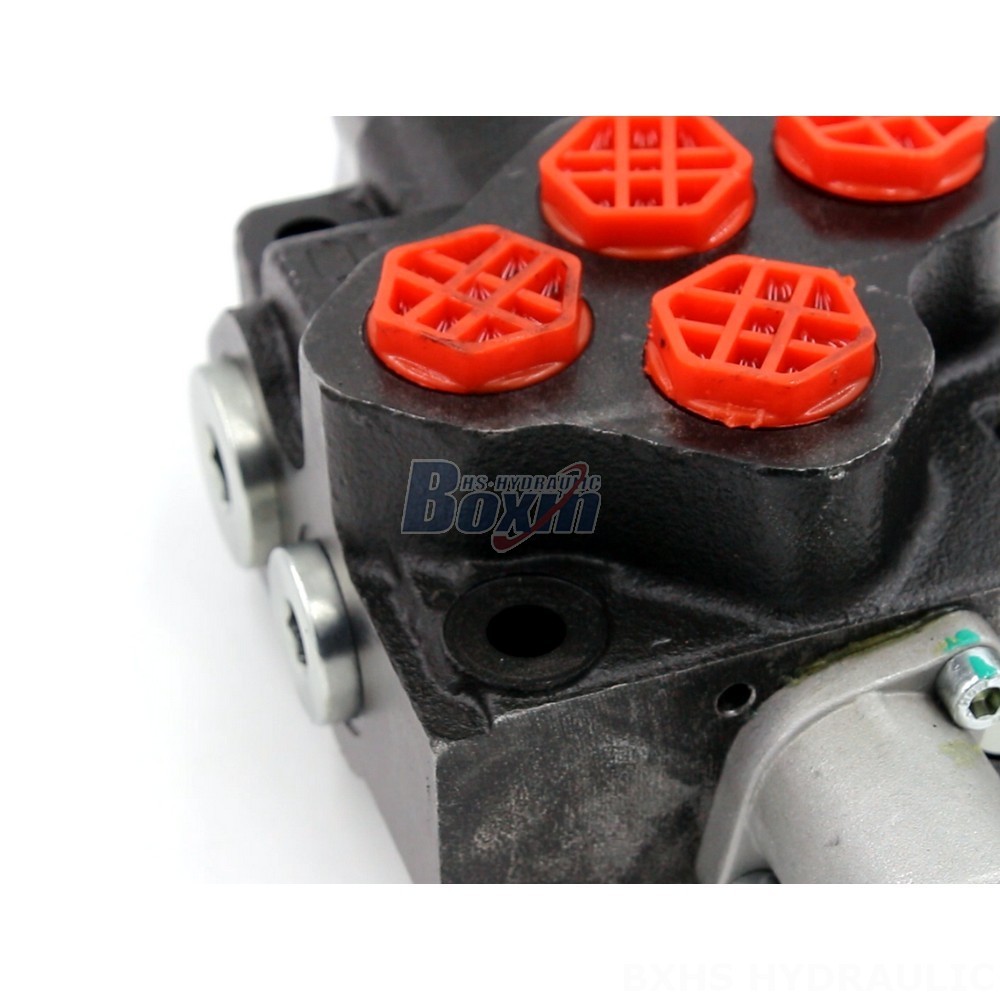

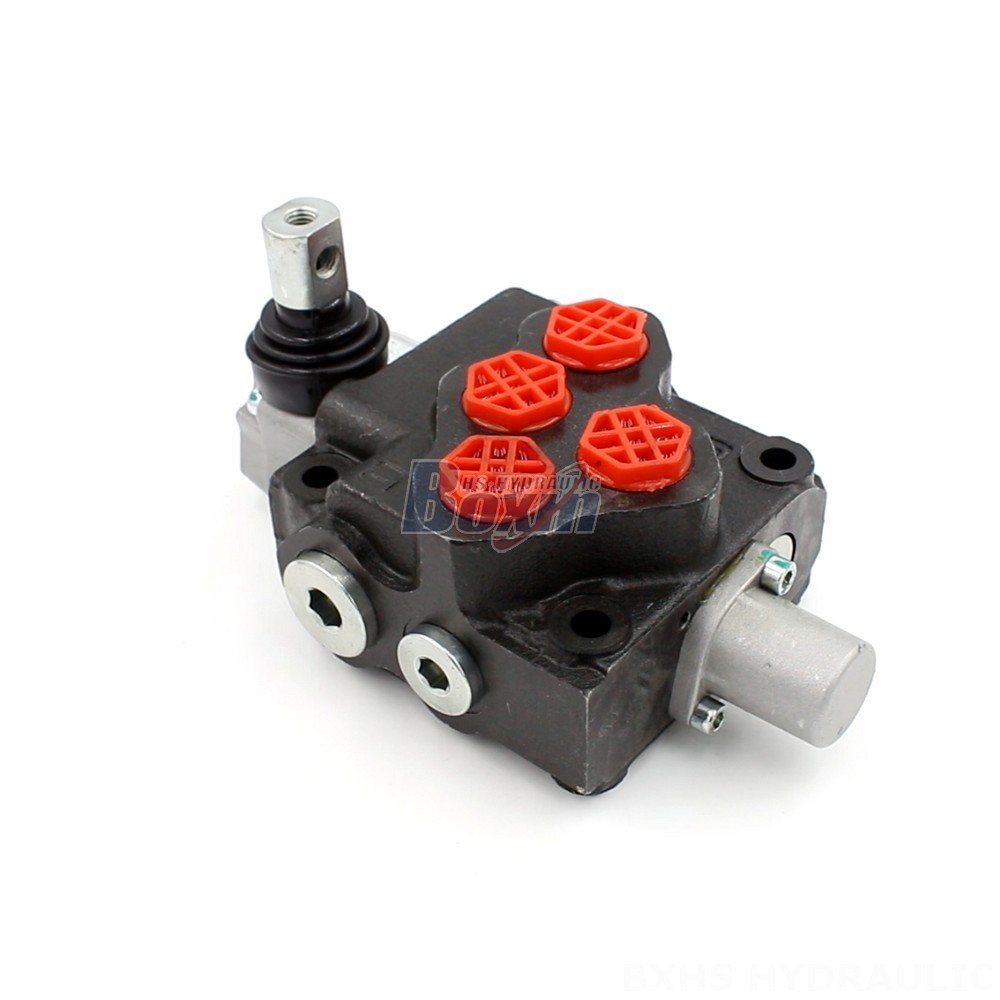

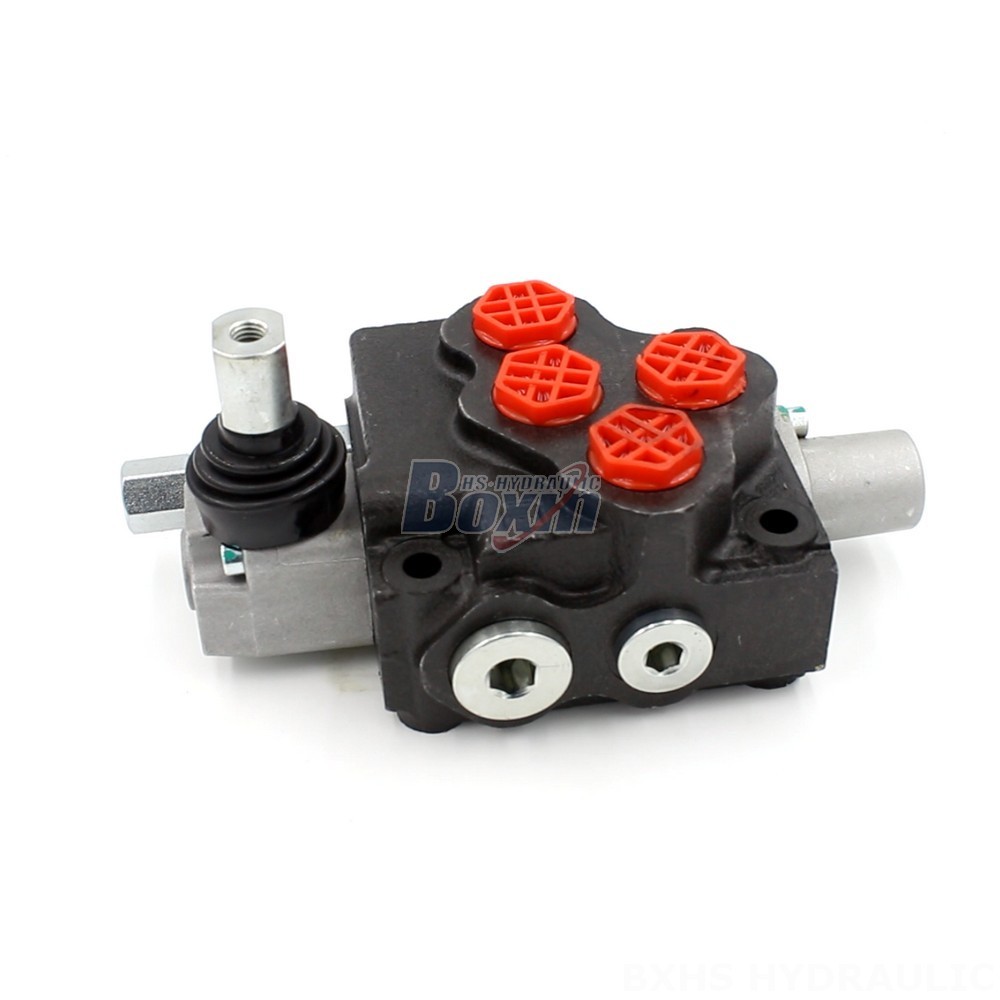

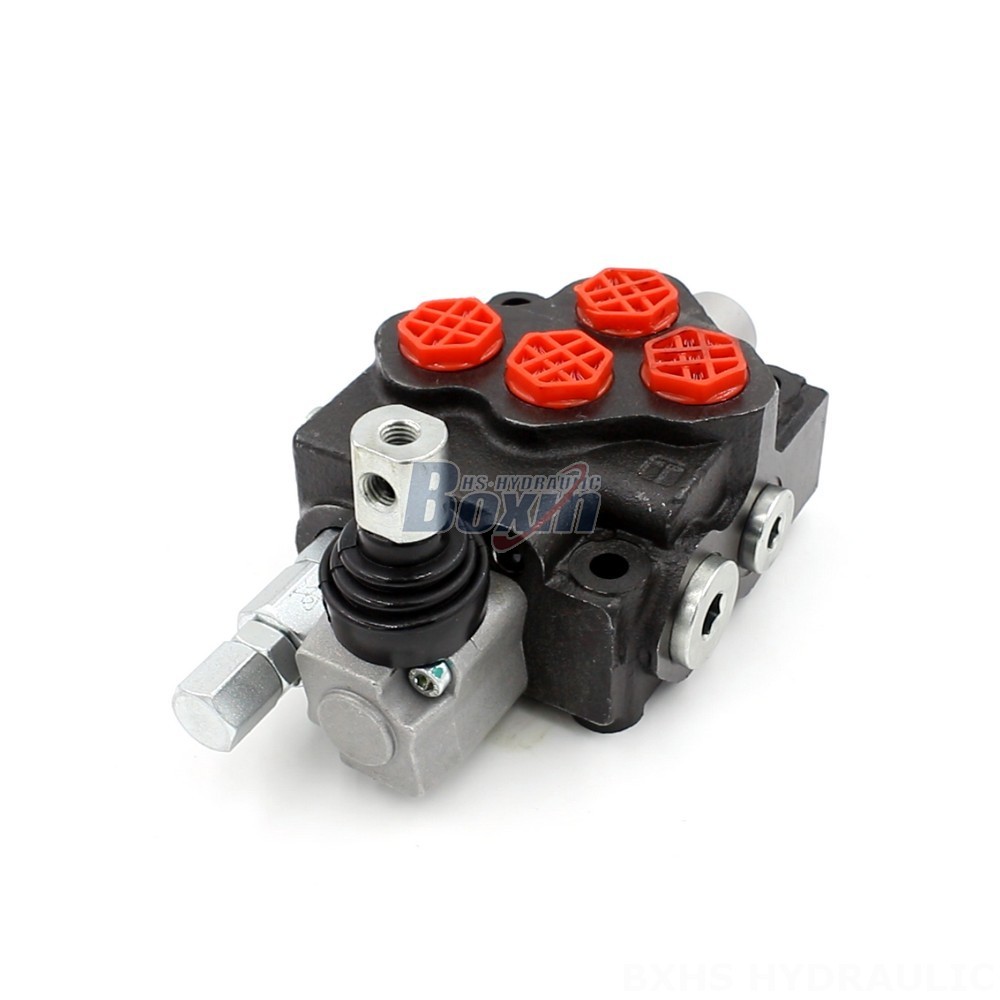

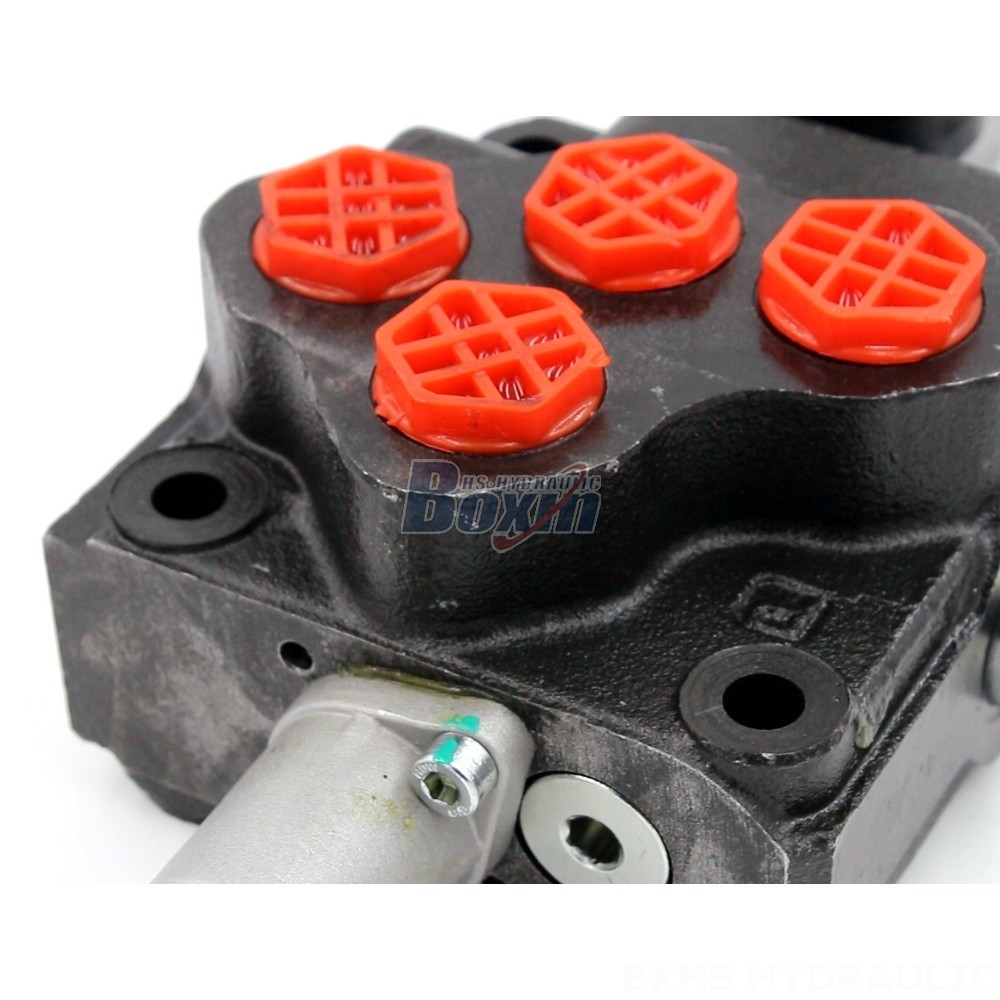

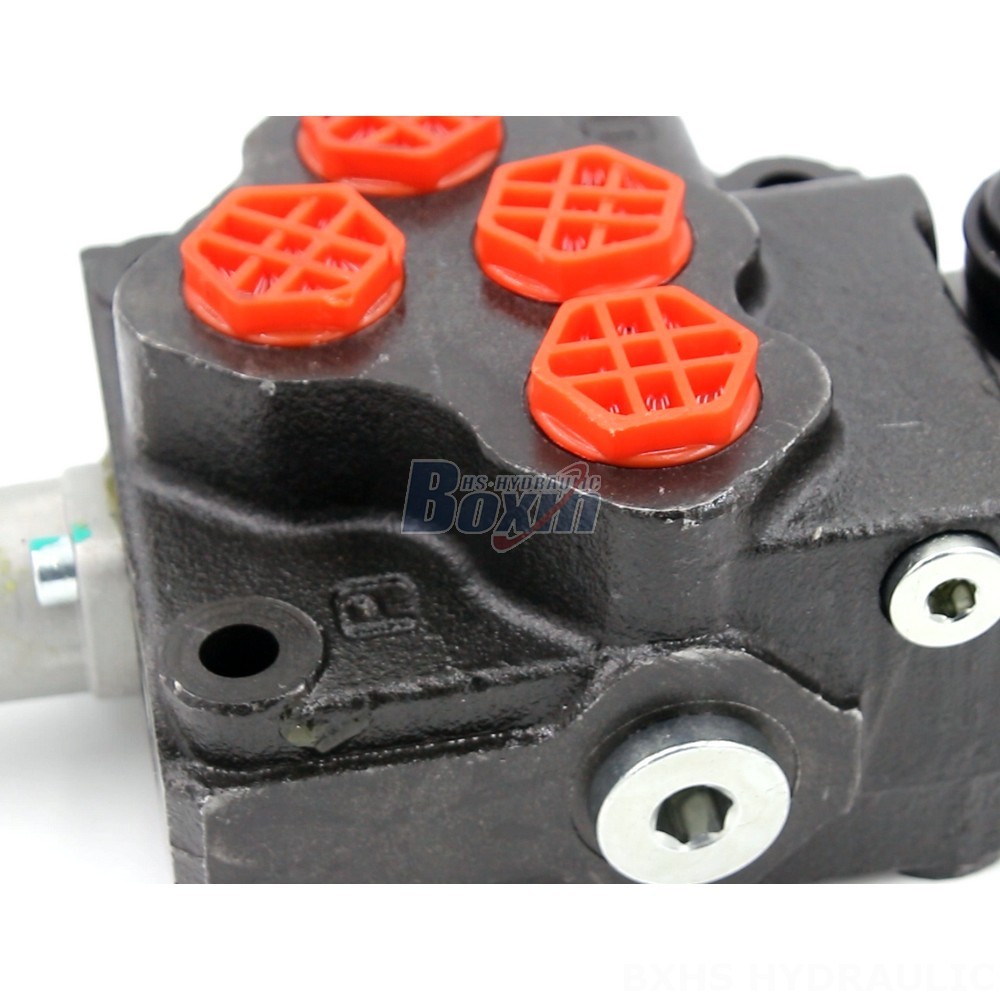

The SD5-G38 Manual Valve is a robust and reliable remote control hydraulic valve block designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a 40 L/min flow rate and 305 bar maximum pressure, making it ideal for demanding operations.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Manual Valve is a single-section monoblock valve with a 1 spool design. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve is designed for operating viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F). The SD5-G38 is suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
