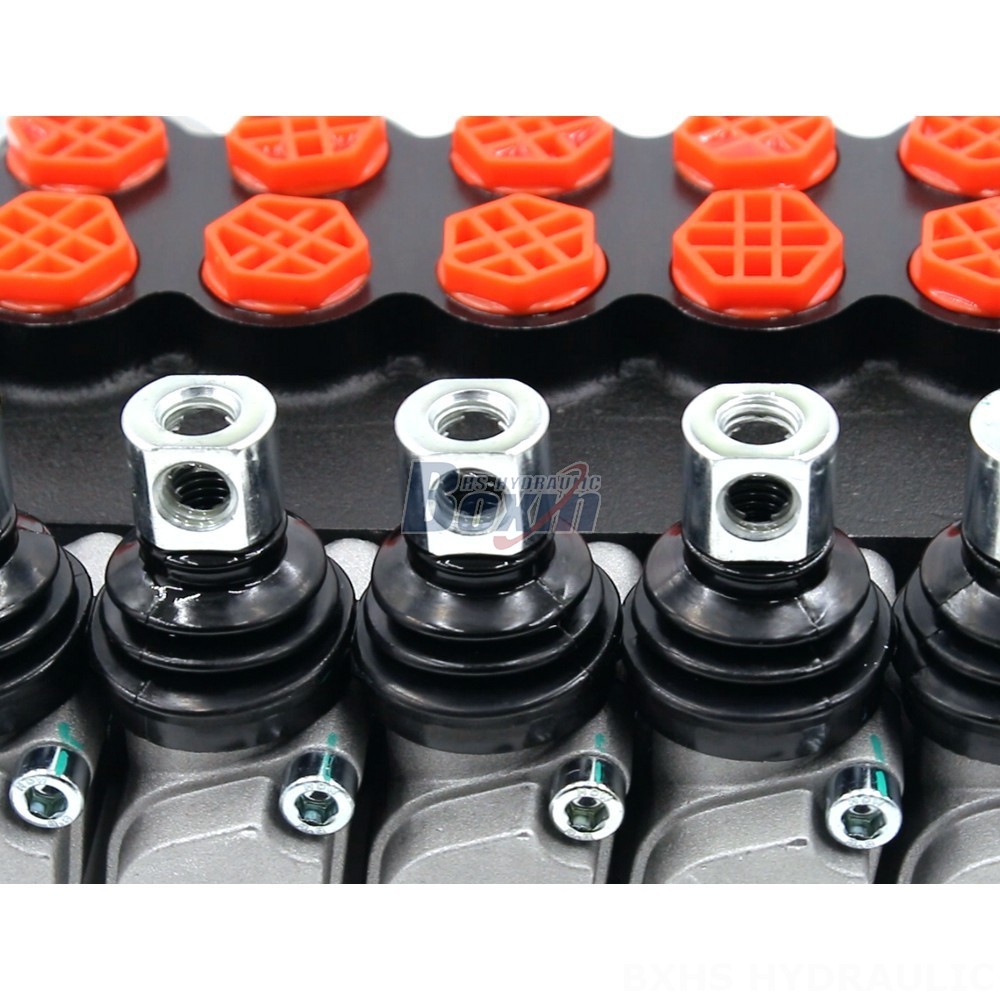

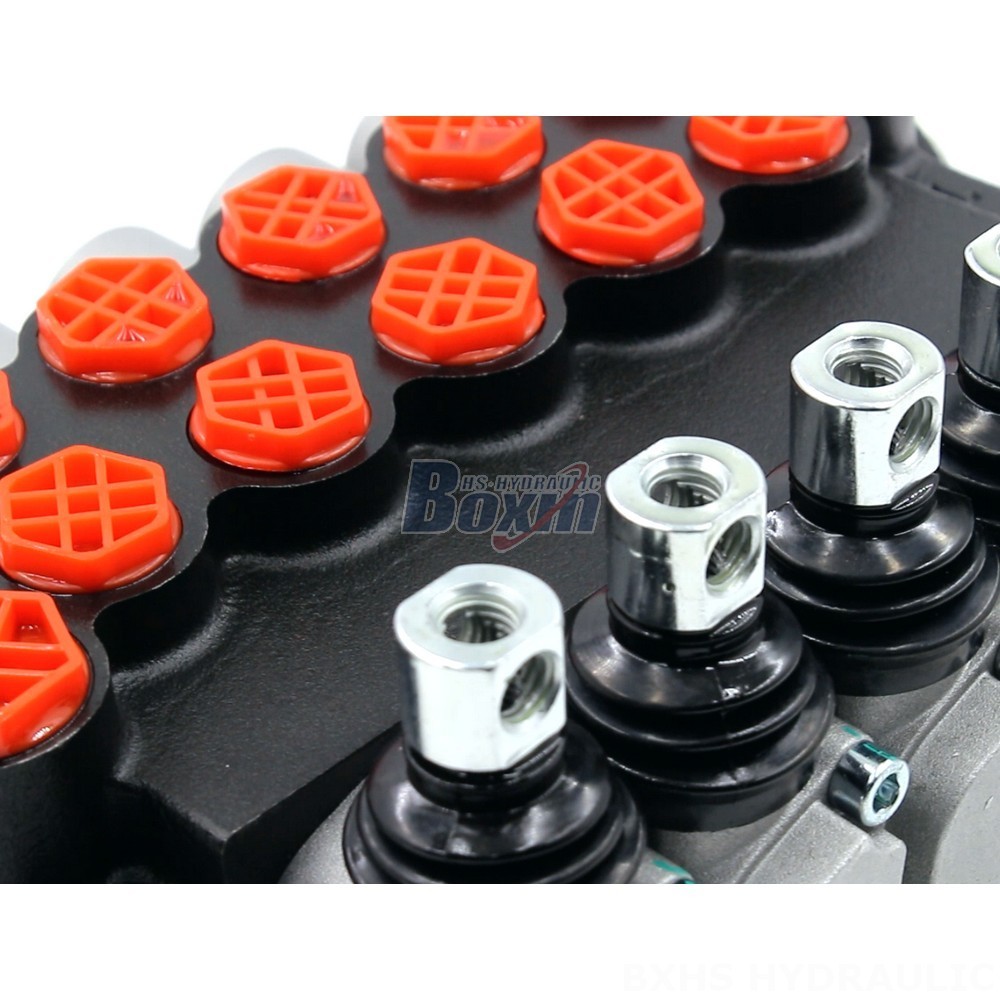

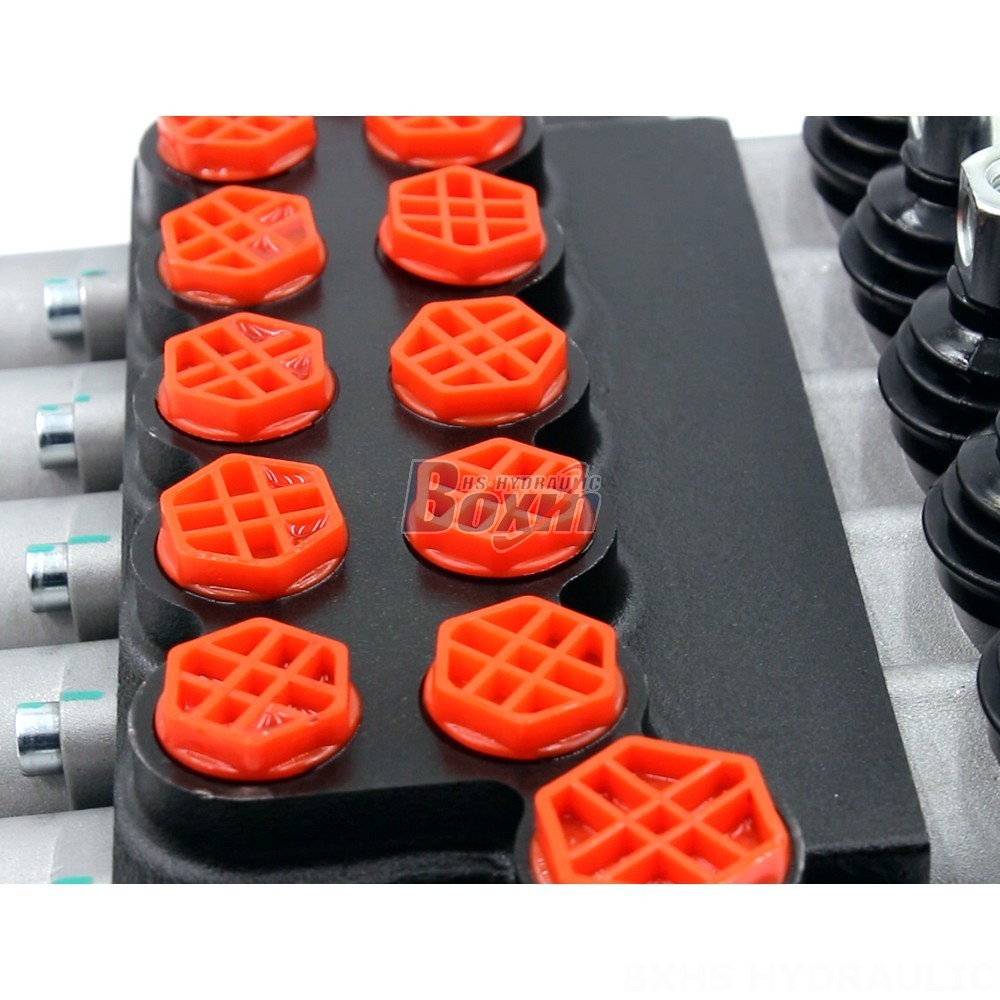

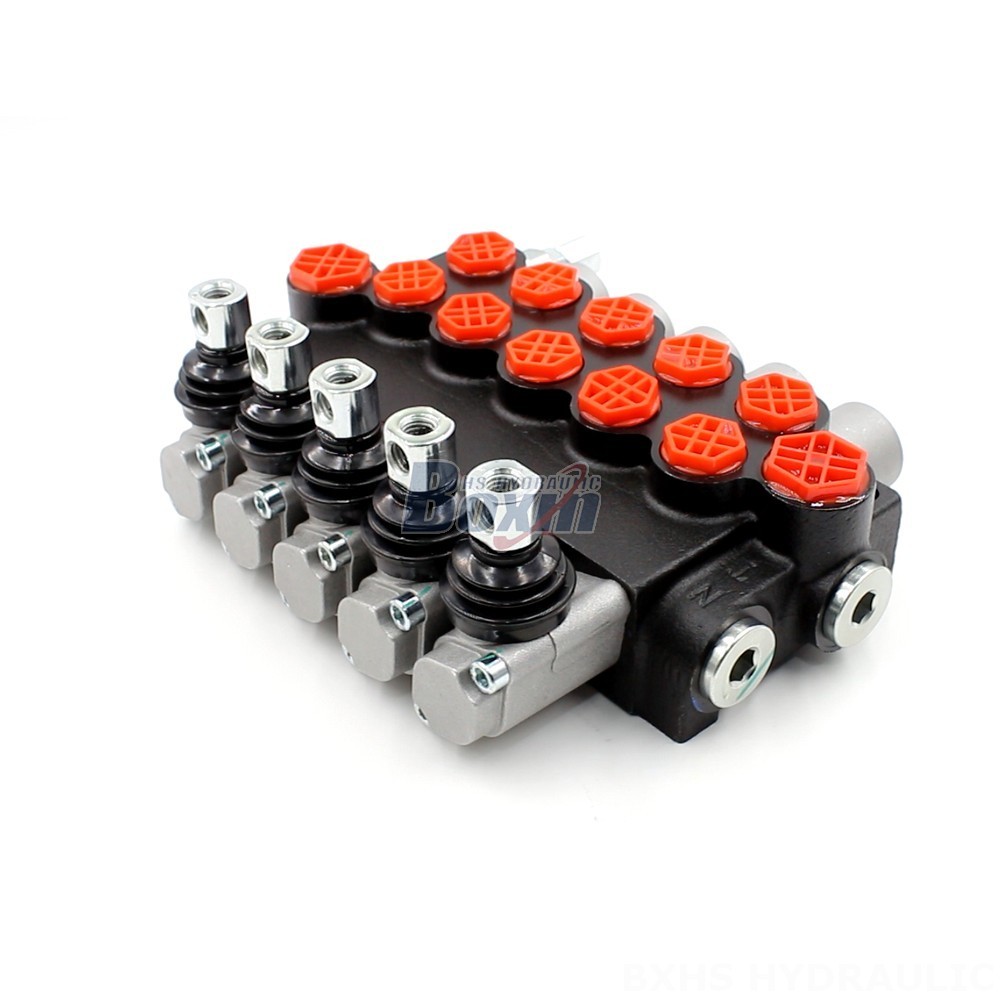

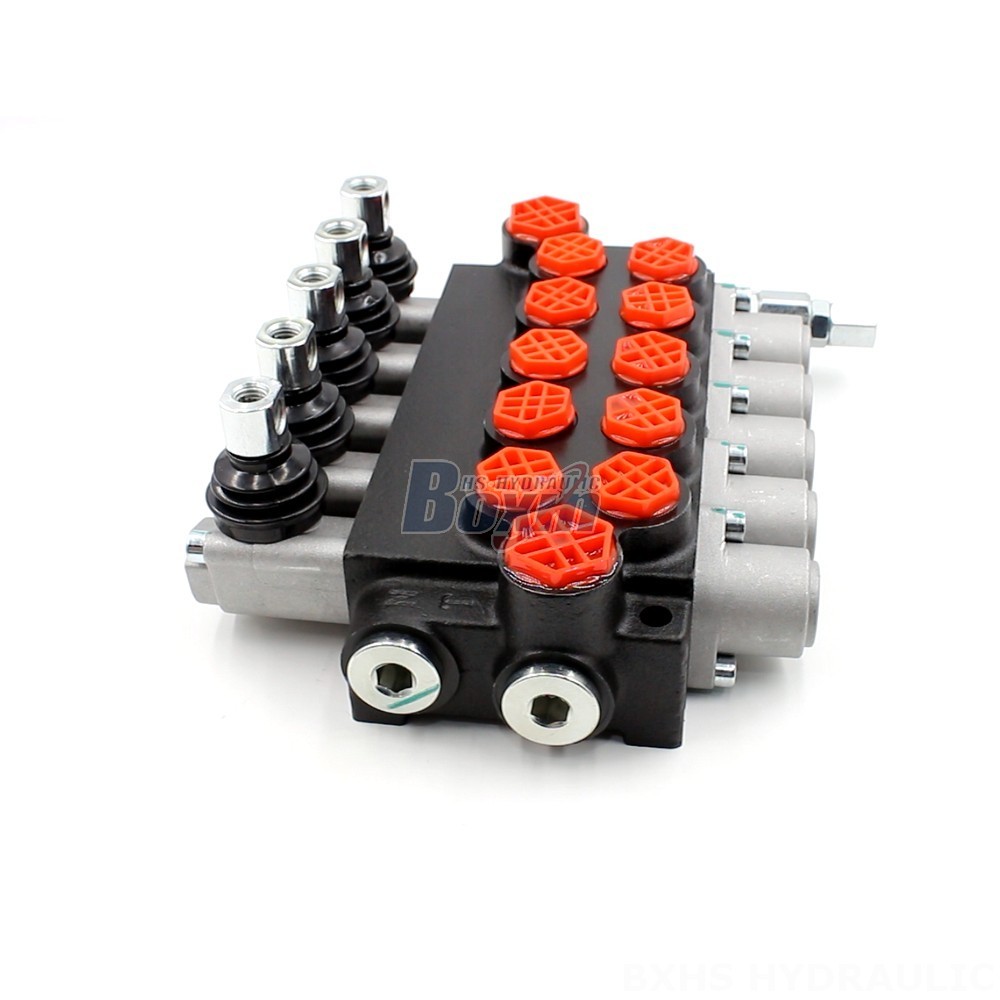

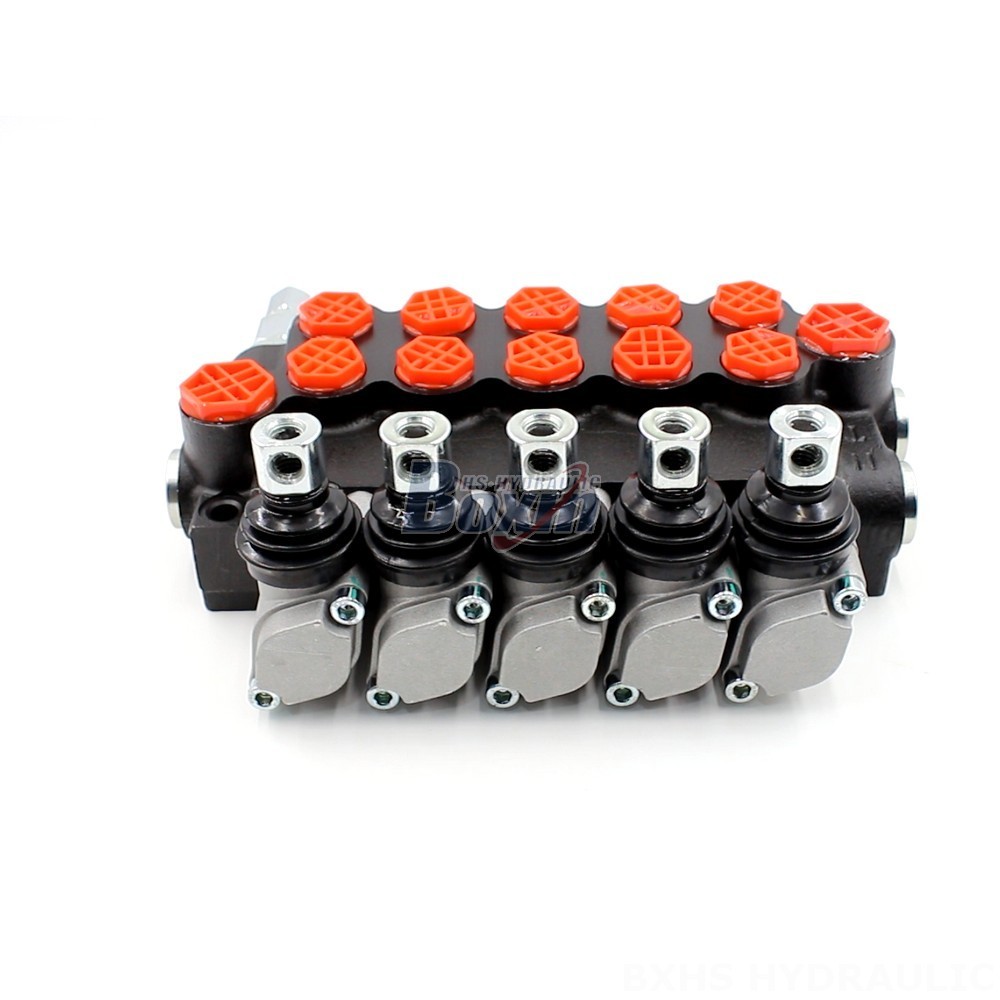

Our Factory Authorized Distribution ensures genuine P40-G12-G38 Valves and support. These valves are designed for various applications in industries like material handling, construction, agriculture, and industrial vehicles. They feature a robust 5-section monoblock structure, providing exceptional durability and reliability.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Factory Authorized Distribution: Genuine P40-G12-G38 Valves and Support**
Our Factory Authorized Distribution program guarantees that you receive genuine P40-G12-G38 Valves directly from the manufacturer. This ensures the highest quality and performance, backed by our comprehensive support services.
**Product Specifications:**
* Control Method: Manual
* Section: 5 Section
* Structure Type: Monoblock Valve
* Rated Flow: 40 L/min (10.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 5 Spool
* Series: P40 Series
**Applications:**
Our P40-G12-G38 Valves are widely used in demanding applications across various industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
These valves are compatible with an extensive range of equipment models, such as:
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Mini Excavator
* Skid Steer Loader
* Compact Wheel Loader
* Wheel Loader
