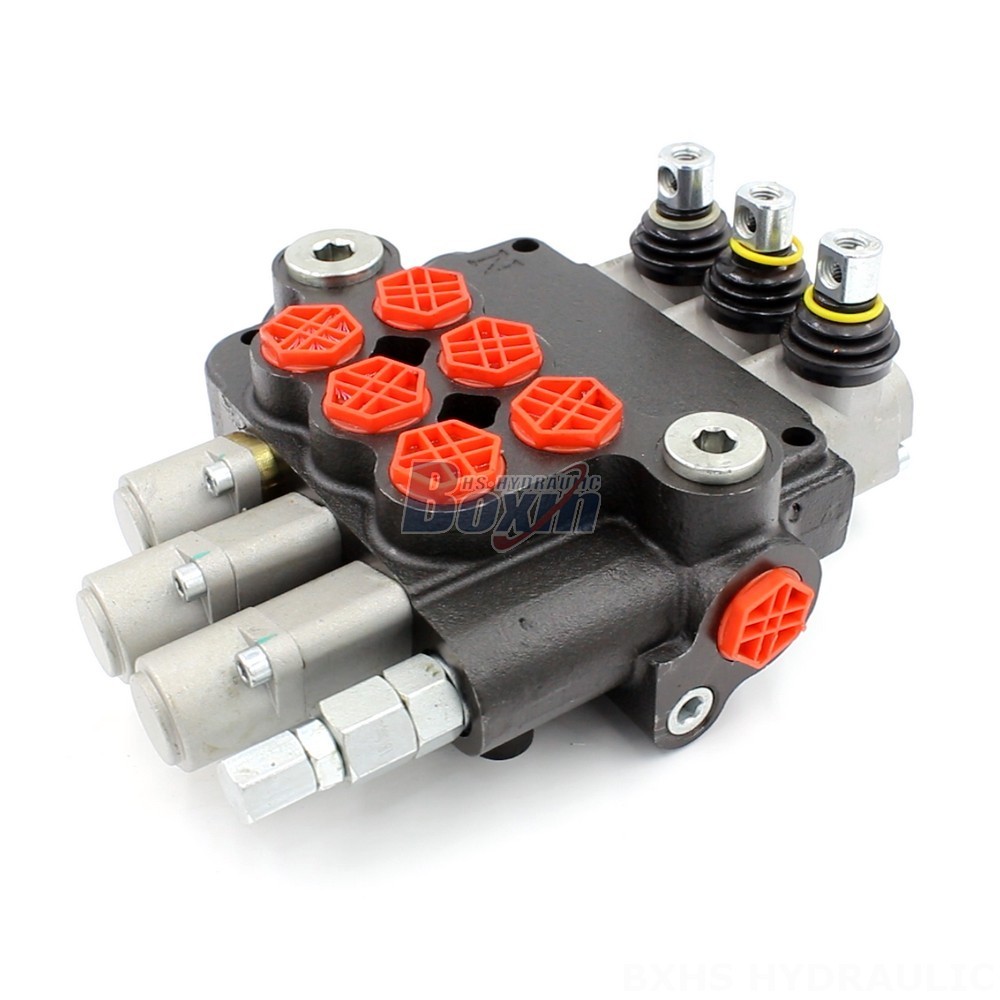

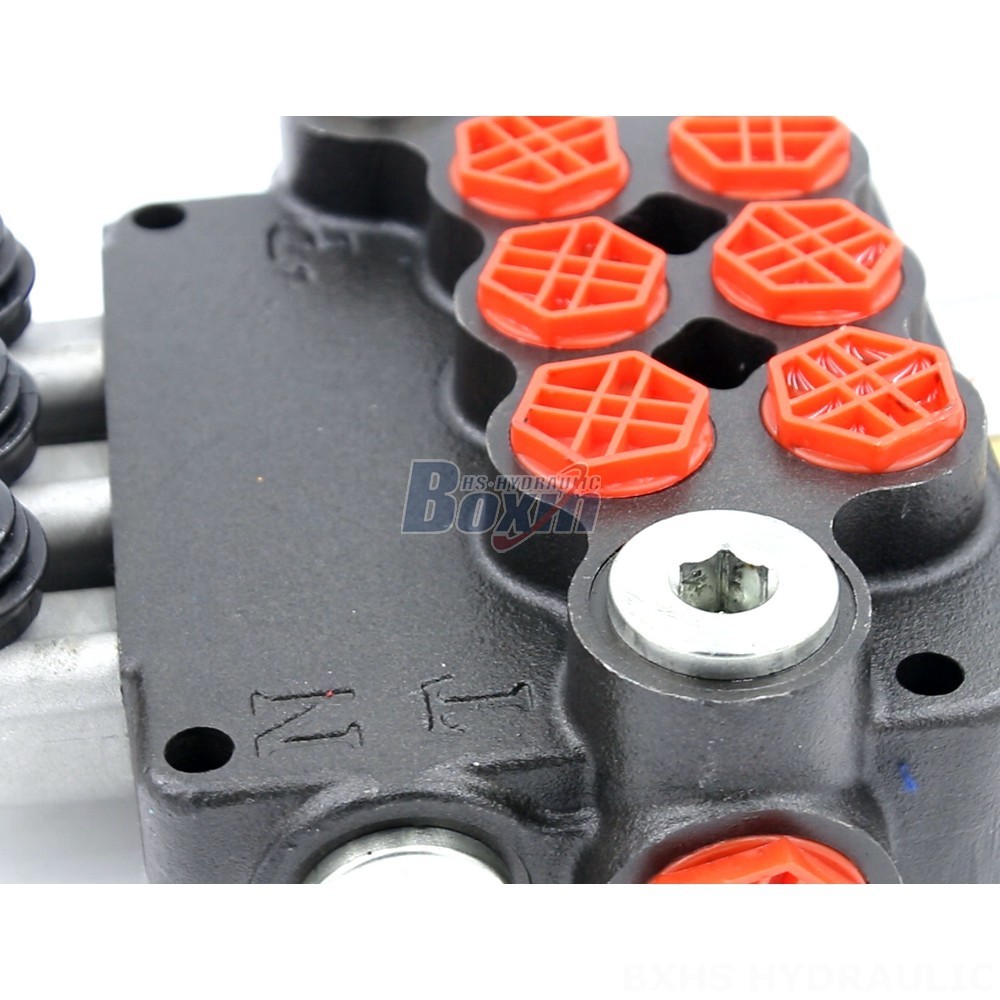

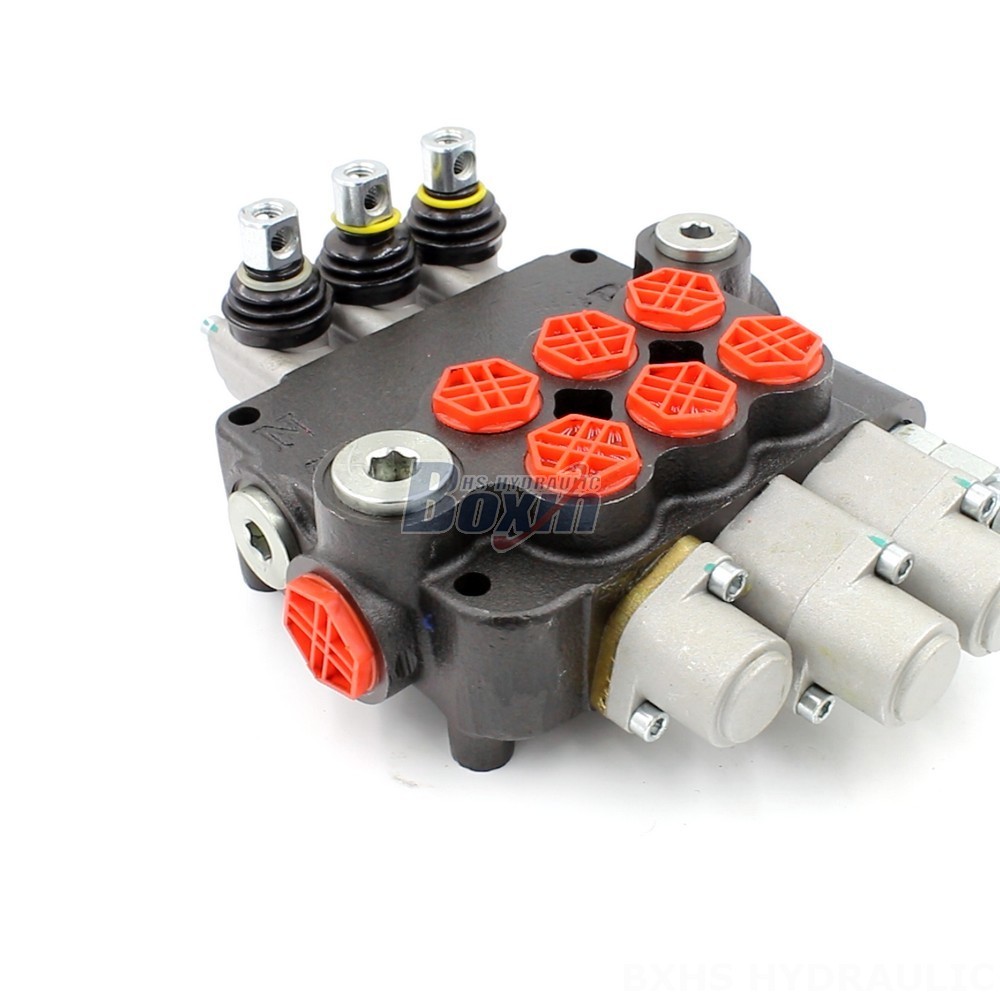

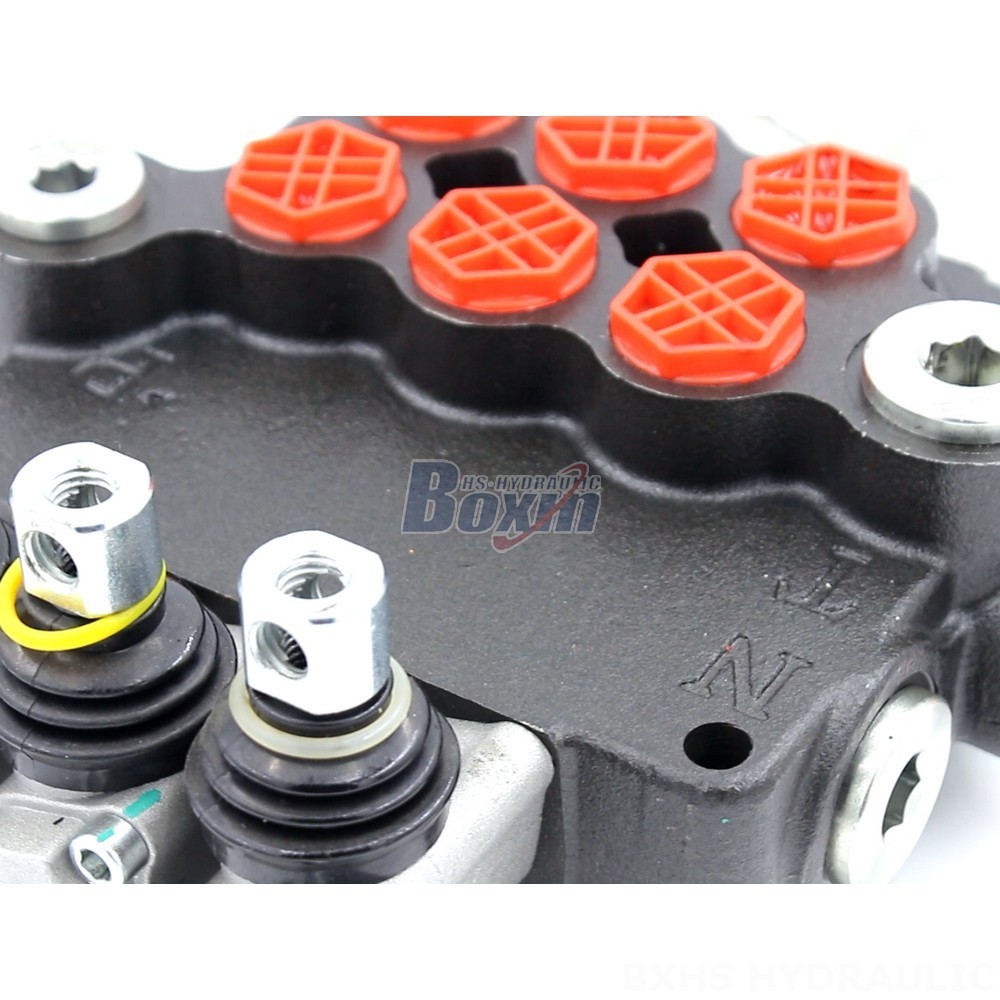

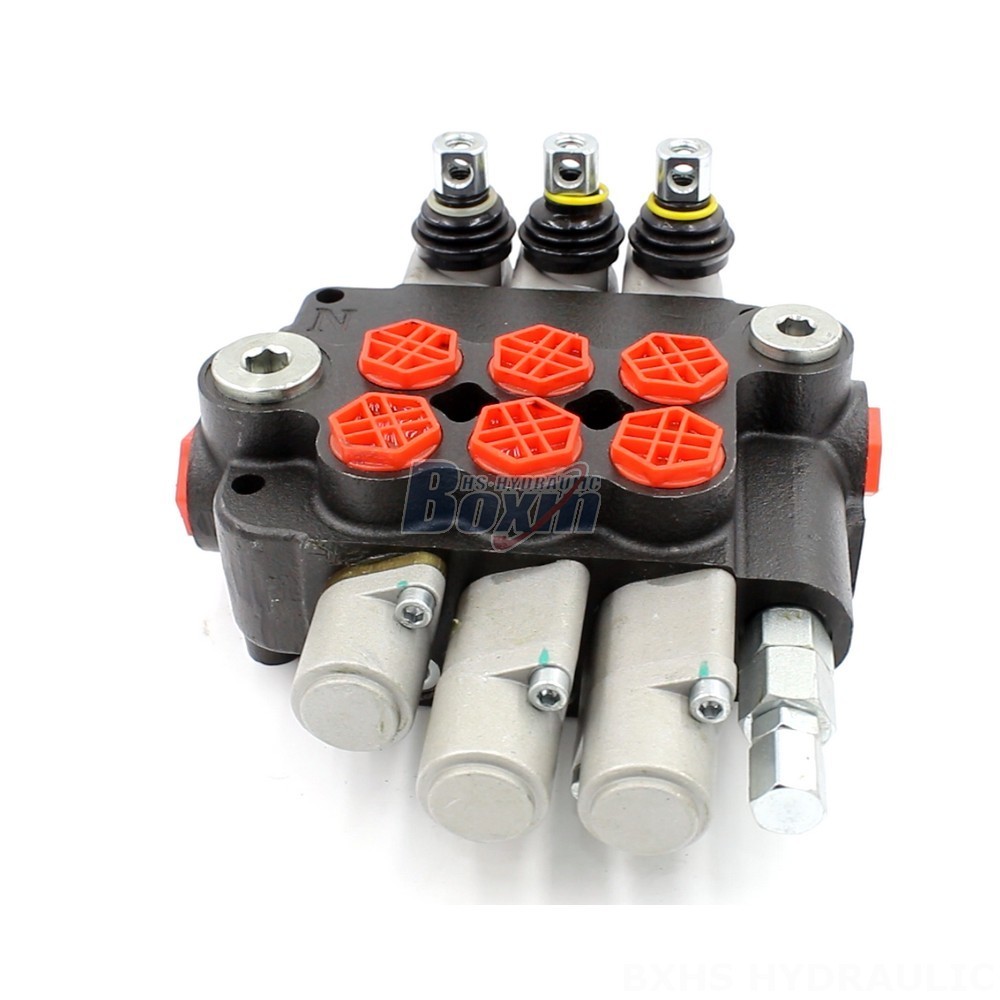

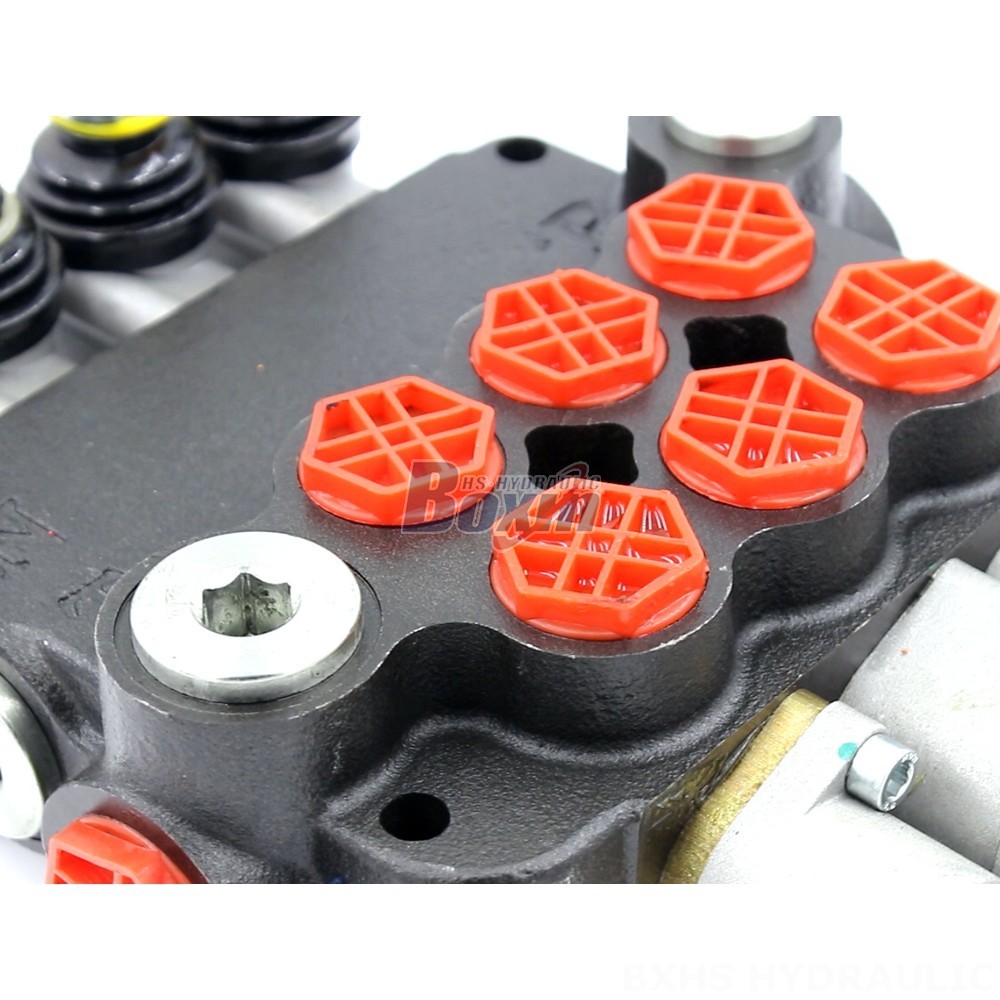

The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are a superior quality product with excellent support. They are manually controlled, have a 3 section structure, and are a monoblock valve. With a rated flow of 80 L/min and a max pressure of 250 bar, they have an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. They have 3 spools and are part of the P80 Series. These valves are ideal for use in material handling, construction, earth moving, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are manufactured by a leading manufacturer of hydraulic products. They are factory supplied and factory wholesale, ensuring that you get the best possible price and quality. These valves are designed to meet the highest standards of performance and durability. They are made from high-quality materials and are precision-engineered to provide years of trouble-free operation. The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are the perfect choice for anyone looking for a high-quality, reliable hydraulic valve. They are backed by a comprehensive warranty and are supported by a team of experienced engineers who can provide you with the technical assistance you need.
