Produksi & Pengiriman
Waktu Produksi 15-30 Hari

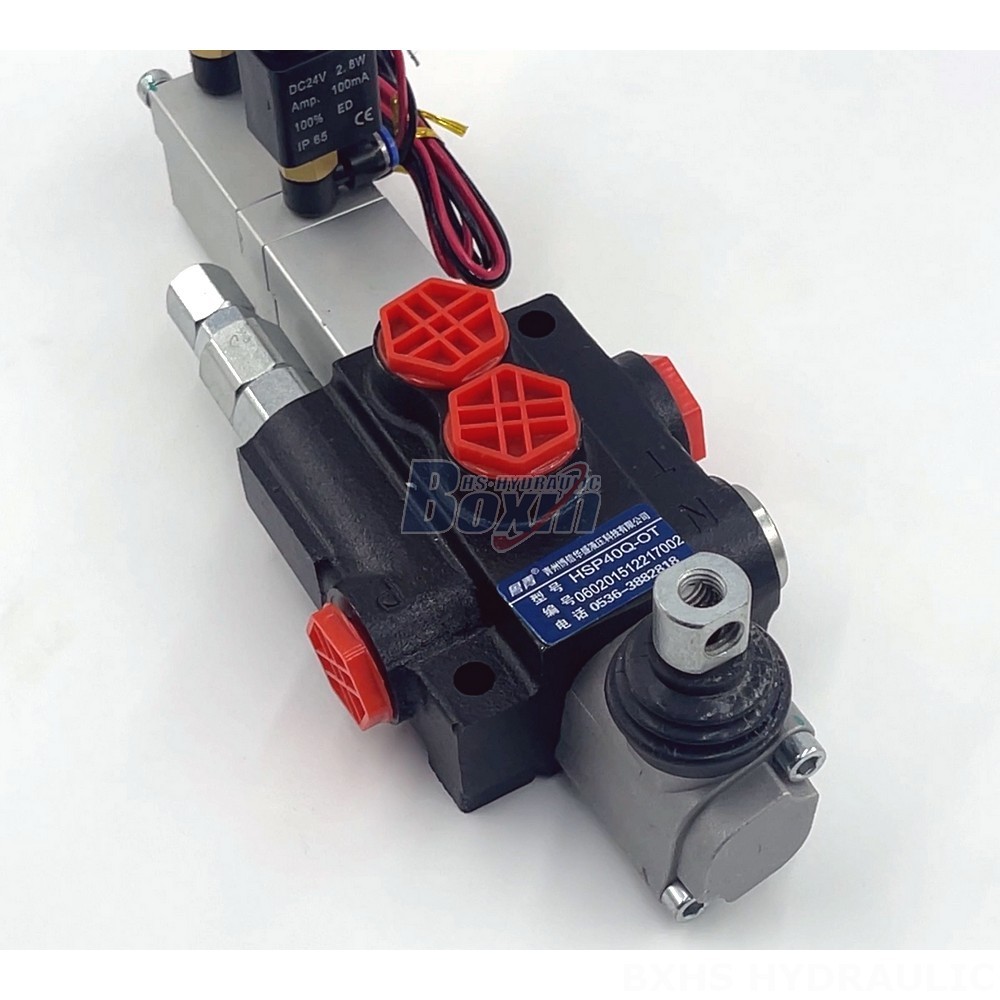

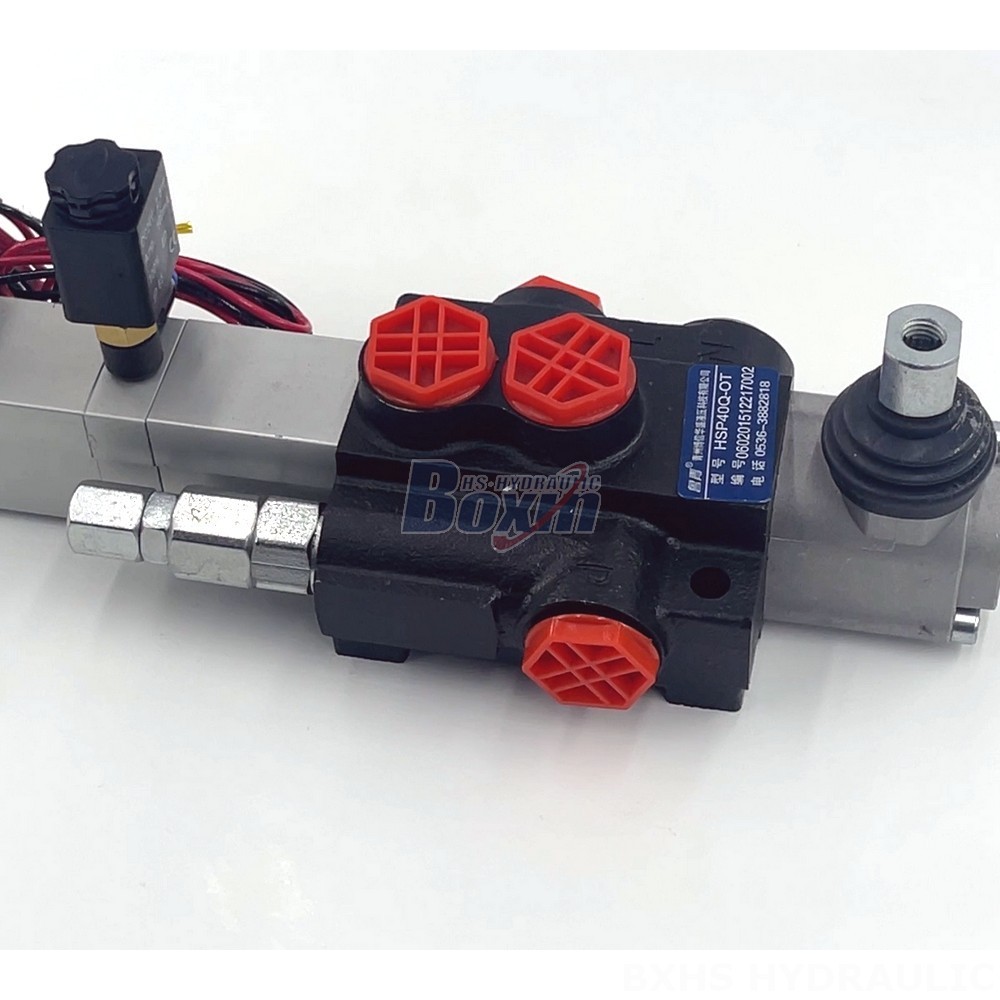

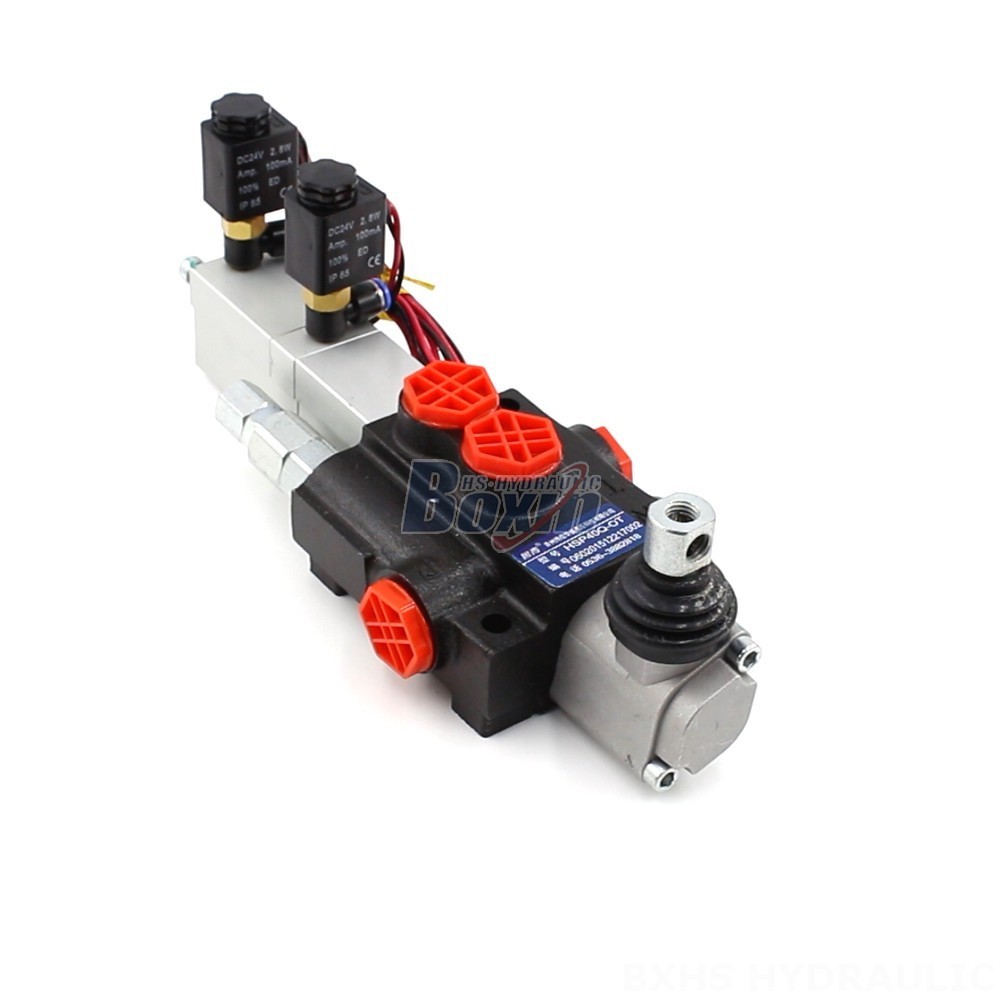

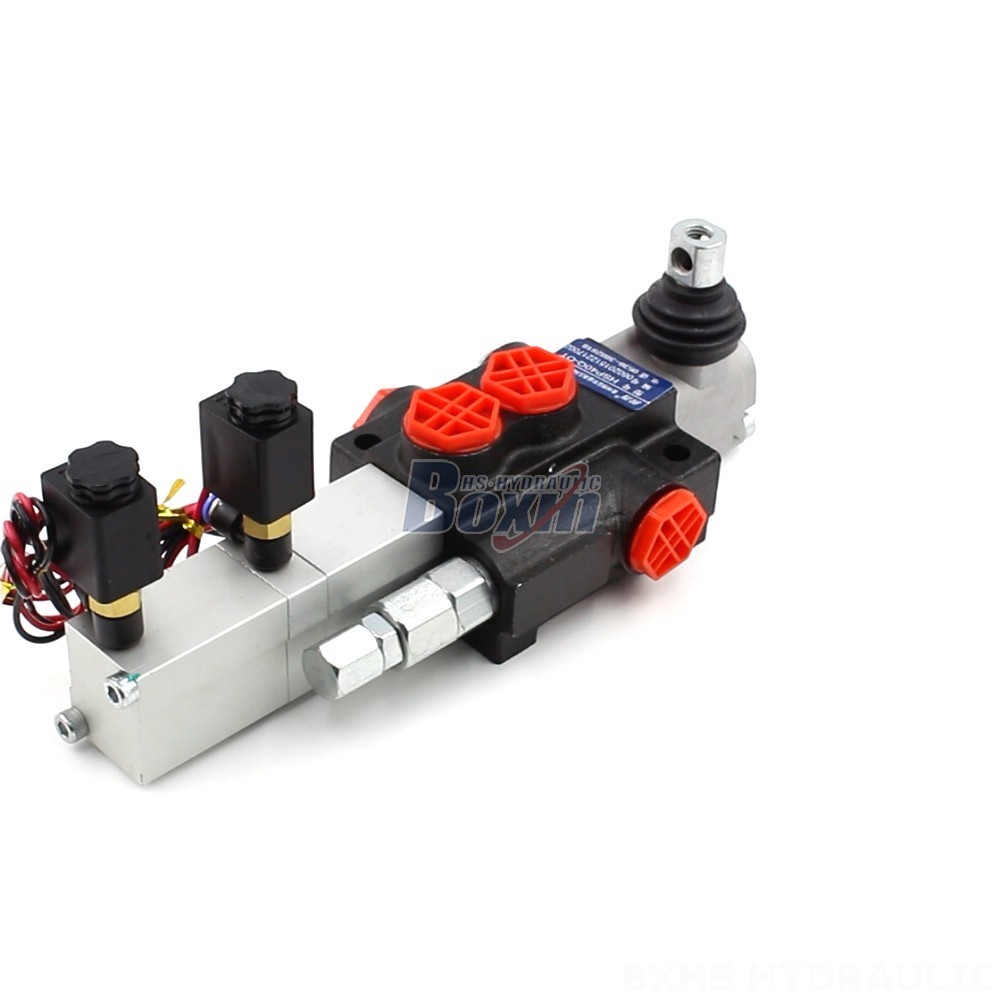

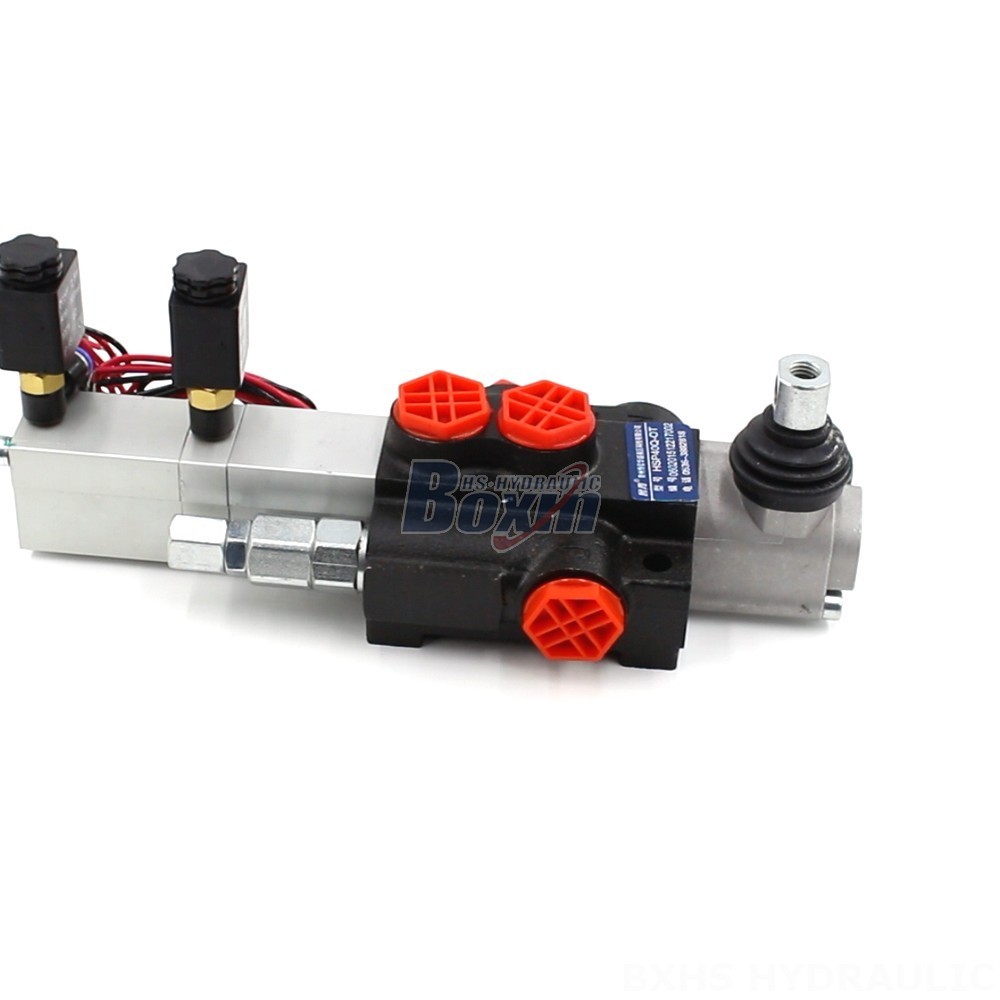

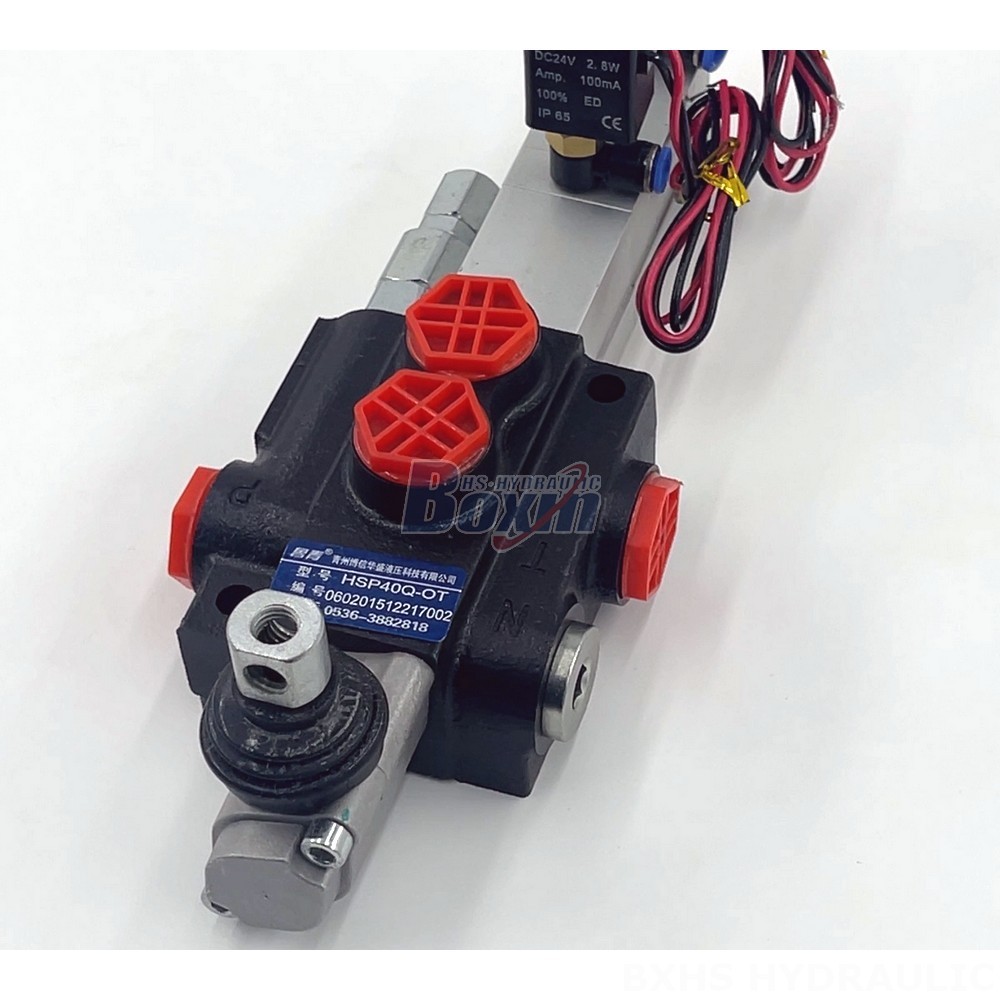

Introducing our Factory Direct P40 Electro-pneumatic Monoblock Directional Valves, engineered to deliver unbeatable performance and value. These valves boast a compact monoblock design, ensuring reliability and durability in demanding applications.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 Series valves are meticulously crafted with precision components, guaranteeing exceptional flow rates of up to 40 L/min and withstanding pressures as high as 250 bar. They operate seamlessly within a wide viscosity range of 15 - 75 mm²/s and can endure temperatures from -40°C to +80°C.
These valves find widespread application in industries like material handling, construction, earth moving, agriculture, and industrial vehicles. They are ideally suited for equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini and midi excavators, skid steer loaders, and compact wheel loaders.
As a factory-direct supplier, we offer competitive pricing and ensure prompt delivery. Our commitment to quality and customer satisfaction sets us apart in the industry. Choose our P40 Electro-pneumatic Monoblock Directional Valves for your demanding hydraulic applications and experience the difference that factory-direct manufacturing makes.
