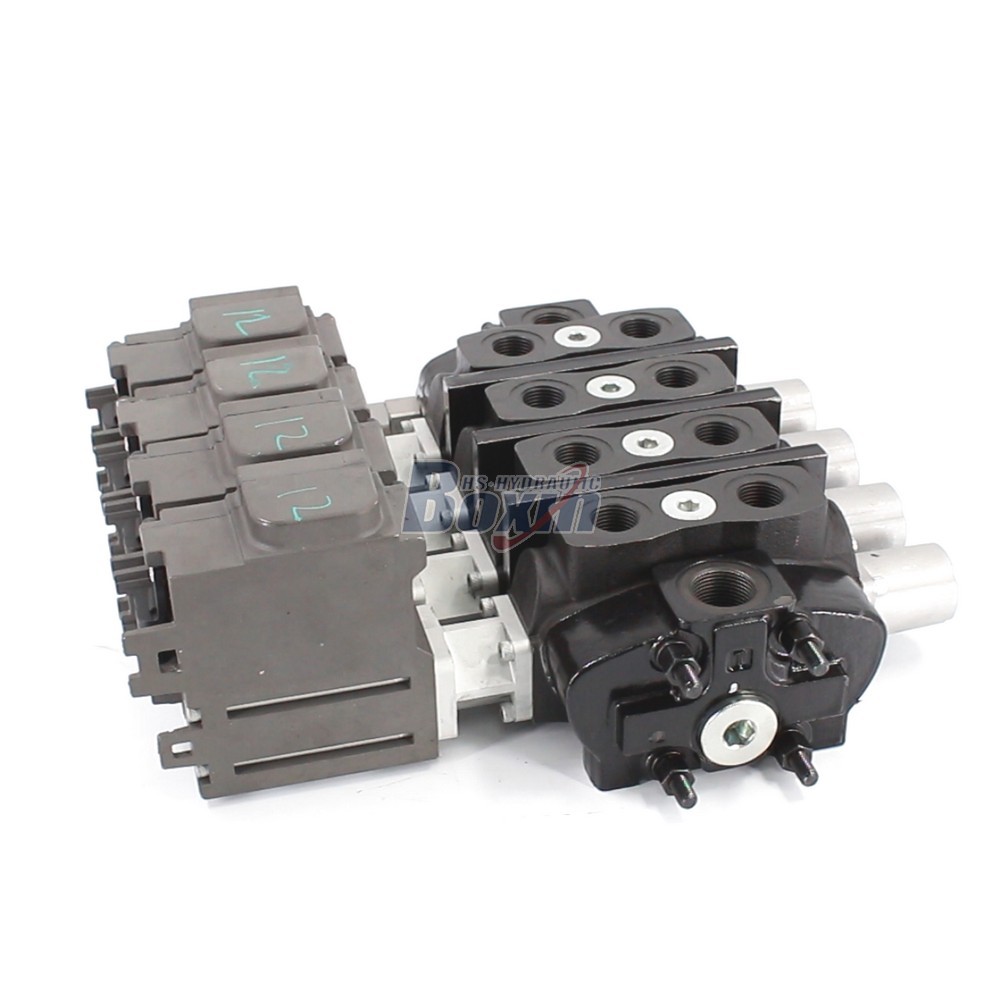

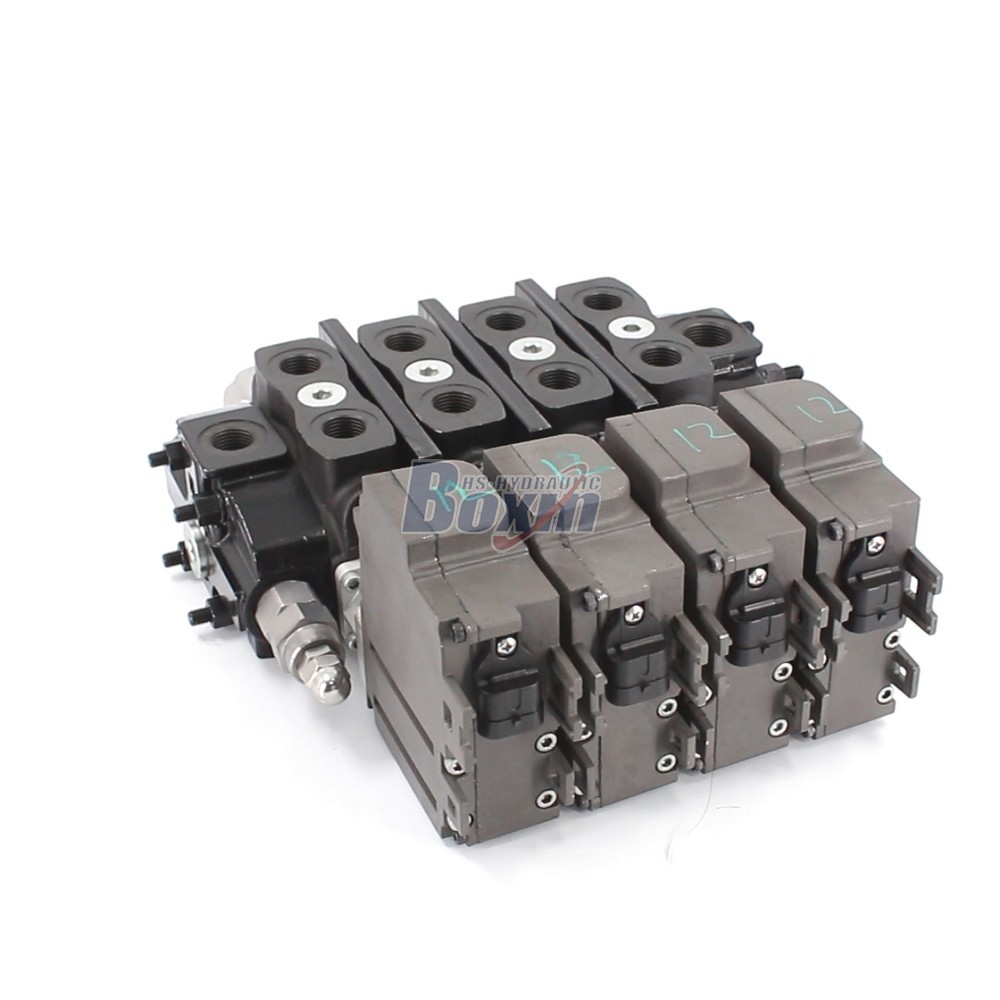

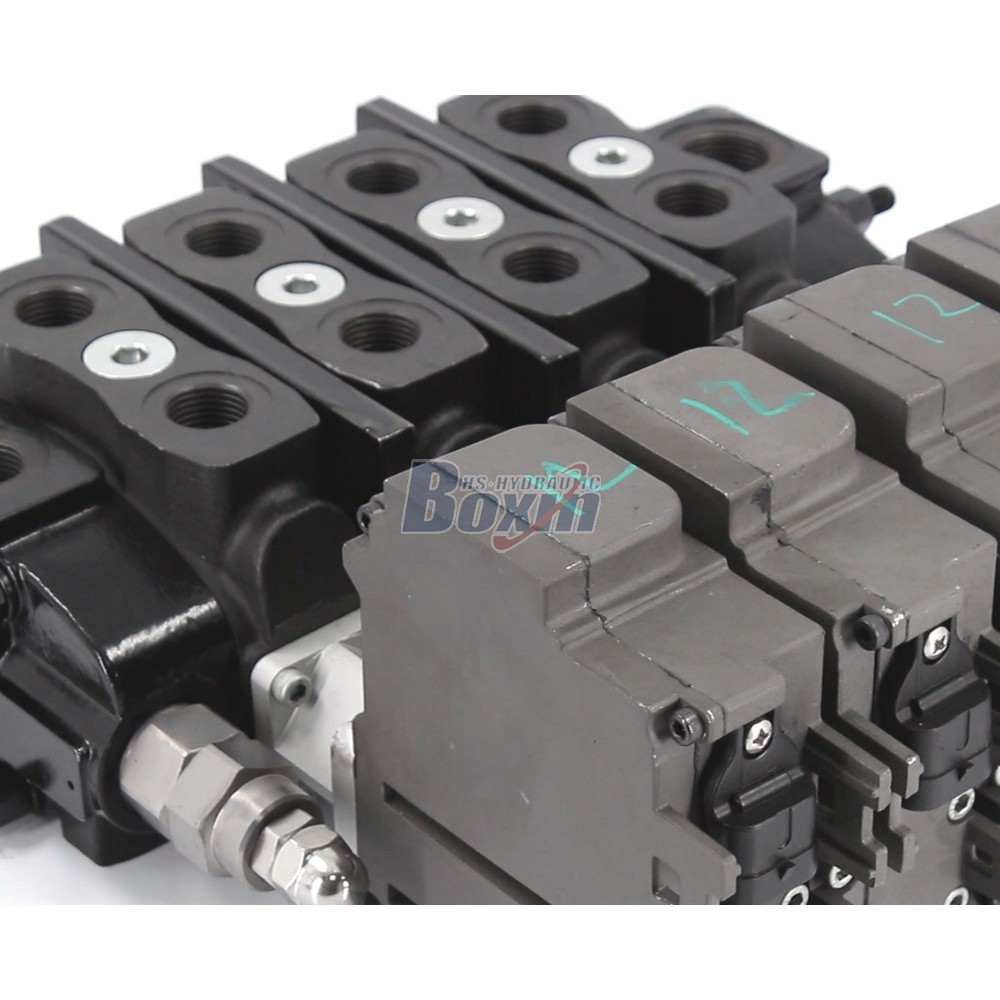

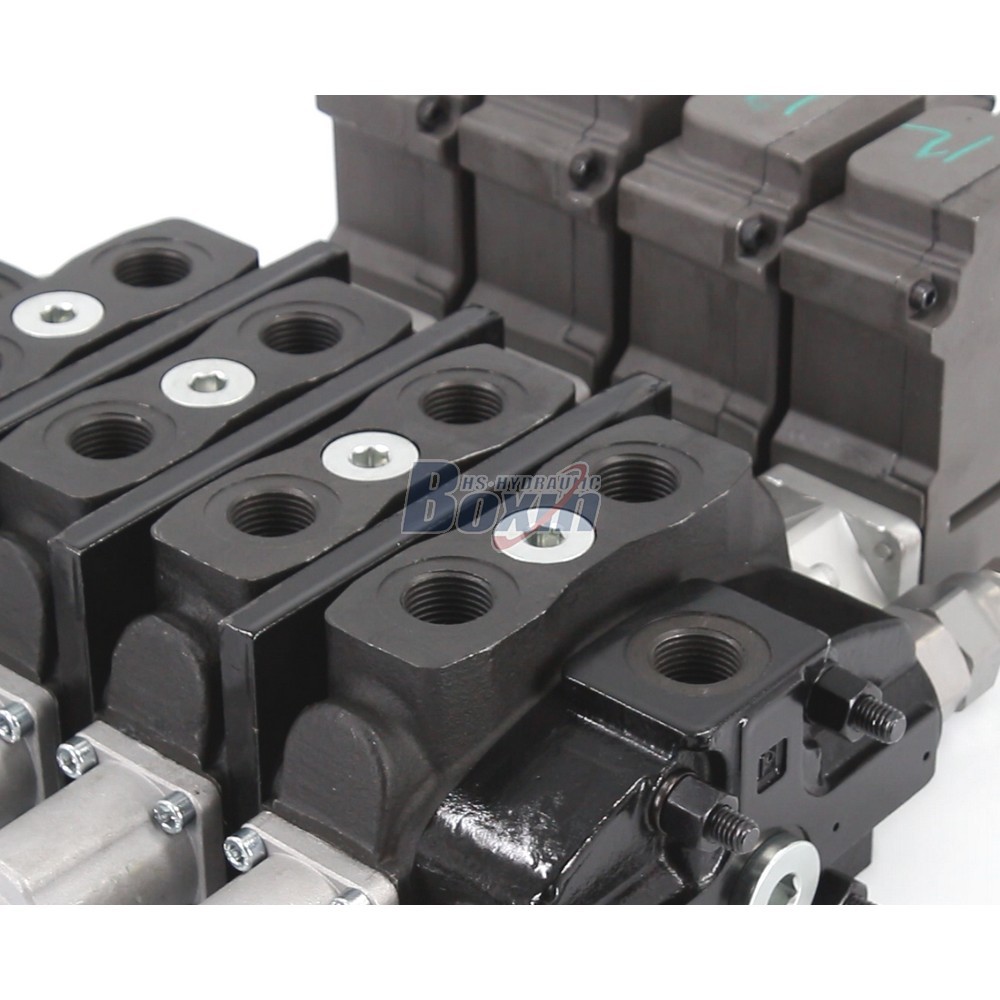

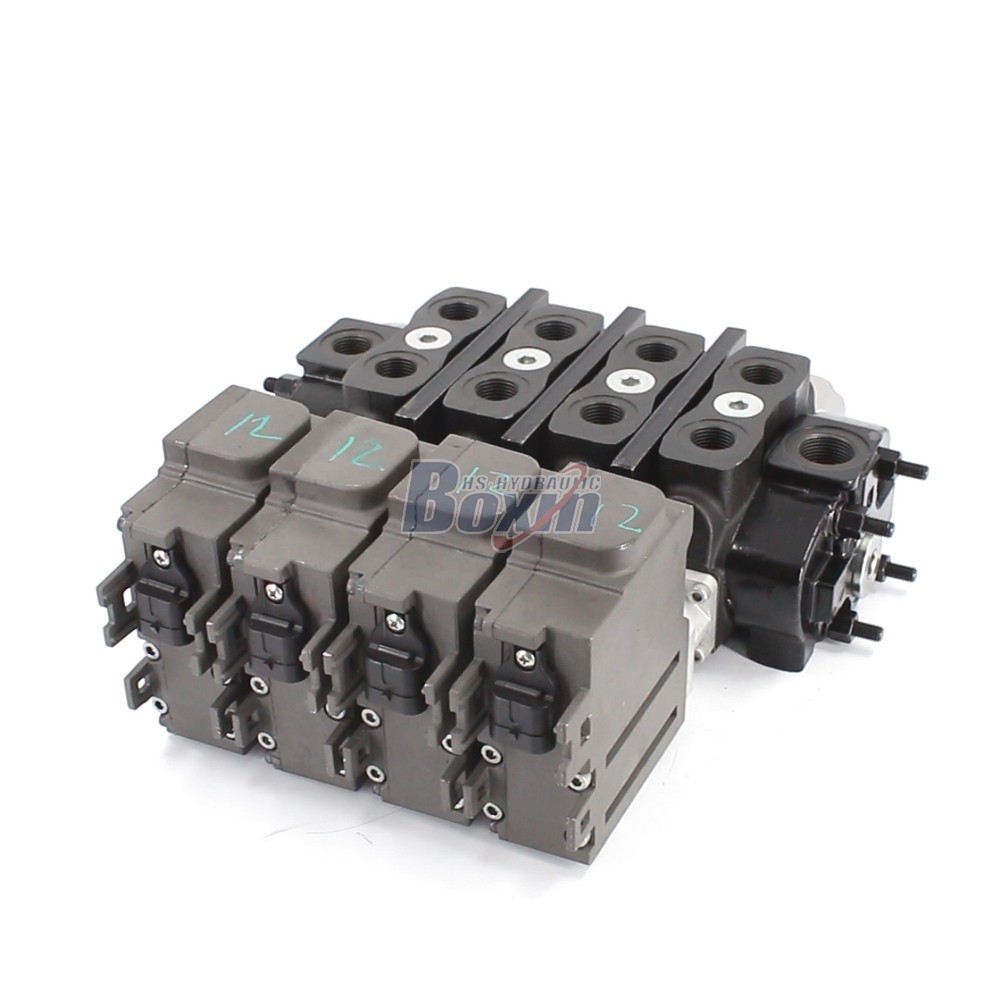

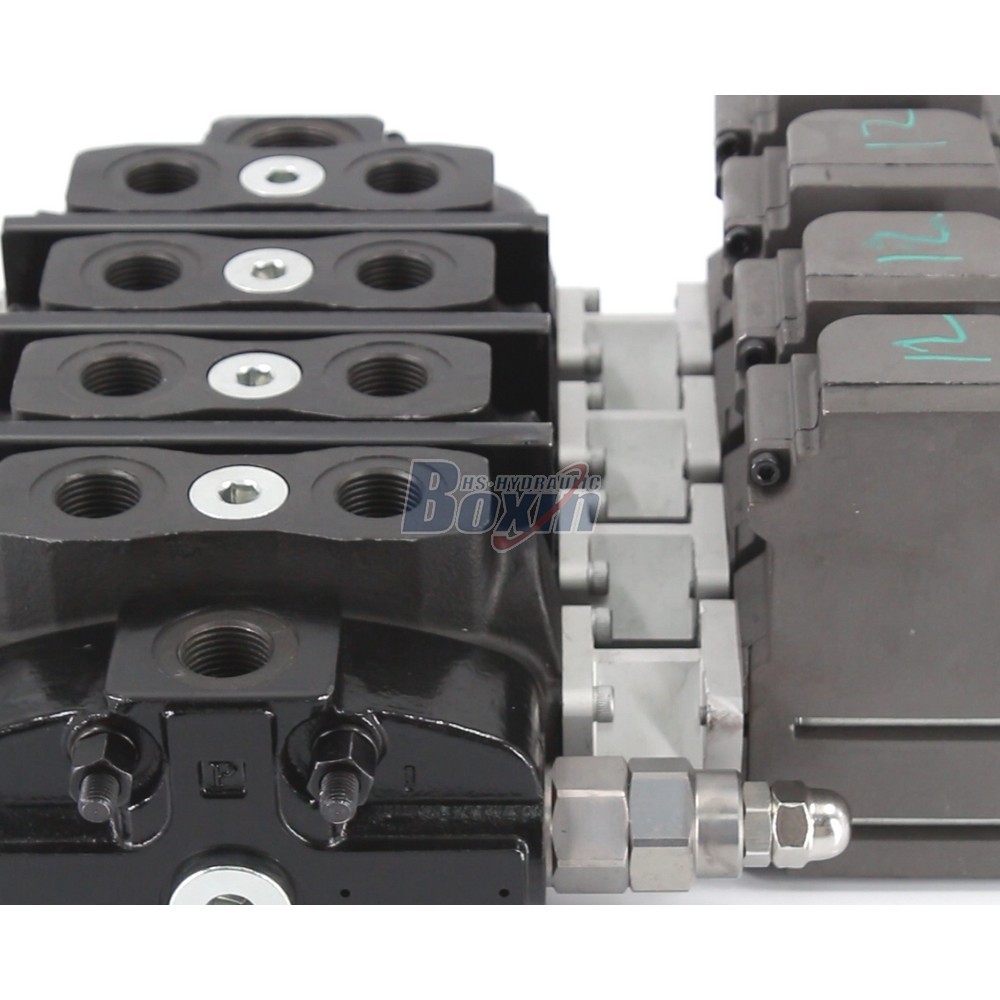

This SD8EMA-4OT Electric Hydraulic Valve features a 4-spool design with 90 L/min flow and 315 bar max pressure, ideal for telehandlers and excavators. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable performance and OEM customization.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, SAE 10 |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10 |
**1. Factory Direct Sales of Sectional Directional Valve**
- Sourced directly from our 68,000㎡ facility with 1.5M annual capacity, ensuring competitive pricing for bulk orders.
- The SD8 Series valve offers seamless integration for material handling and construction machinery, reducing supply chain costs.
**2. Reliable Electric Hydraulic Valve Performance**
- Engineered for 90 L/min (23.8 US gpm) rated flow and 315 bar (4600 psi) max pressure, delivering consistent power.
- Equipped with an electric motor control method for precise operation in aerial platforms and wood splitters.
**3. Versatile 4 Spool Directional Control Valve Design**
- Features 4 spools with M22×1.5 inlet and M27×2.0 outlet ports, compatible with forklifts and skid steer loaders.
- Compact sectional structure allows easy expansion and maintenance, meeting diverse hydraulic circuit requirements.
**4. OEM/ODM Available Customization Services**
- Supported by 35+ senior engineers, we offer private label, laser logo marking, and casting modifications.
- Flexible customization ensures the SD8EMA-4OT matches your specific OEM specifications and branding needs.
**5. Strict Quality Control & Global Compliance**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, backed by CE and SGS certifications.
- As a China Wholesale hub with IATF 16949 certification, we guarantee rust-proof packaging and worldwide export reliability.
