Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1051 Pandangan Mencari Produk Ini
Maximize savings with factory wholesale prices on SD5 Valves. Our high-quality hydraulic valves are manufactured to exacting standards and offer exceptional performance in various applications, including material handling, construction, agriculture, and industrial vehicles.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

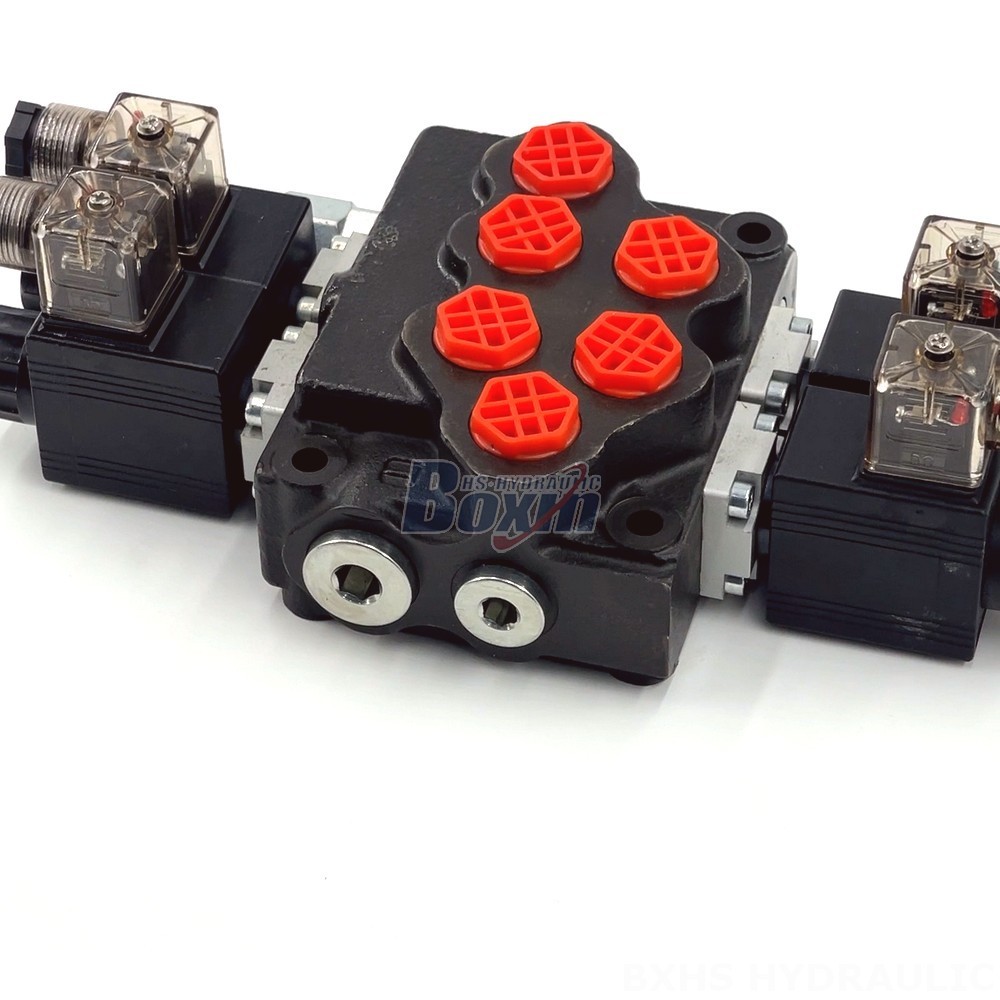

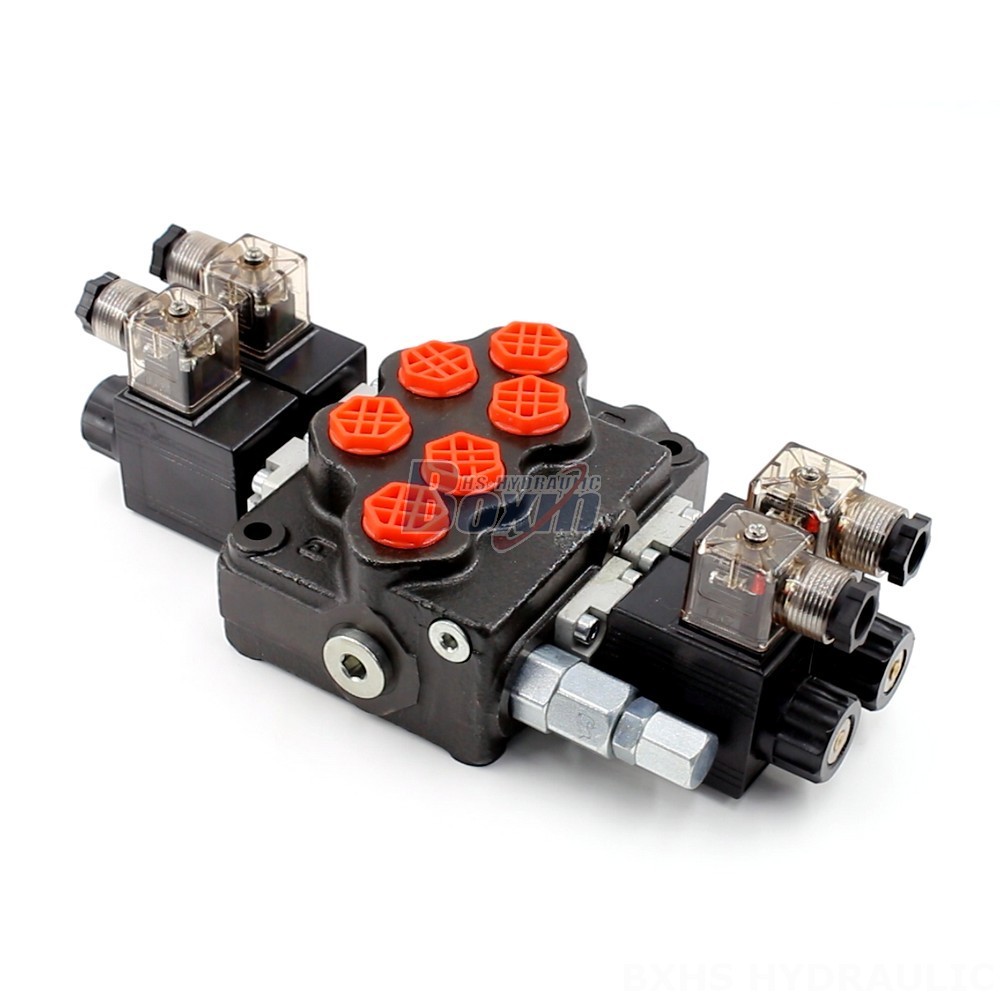

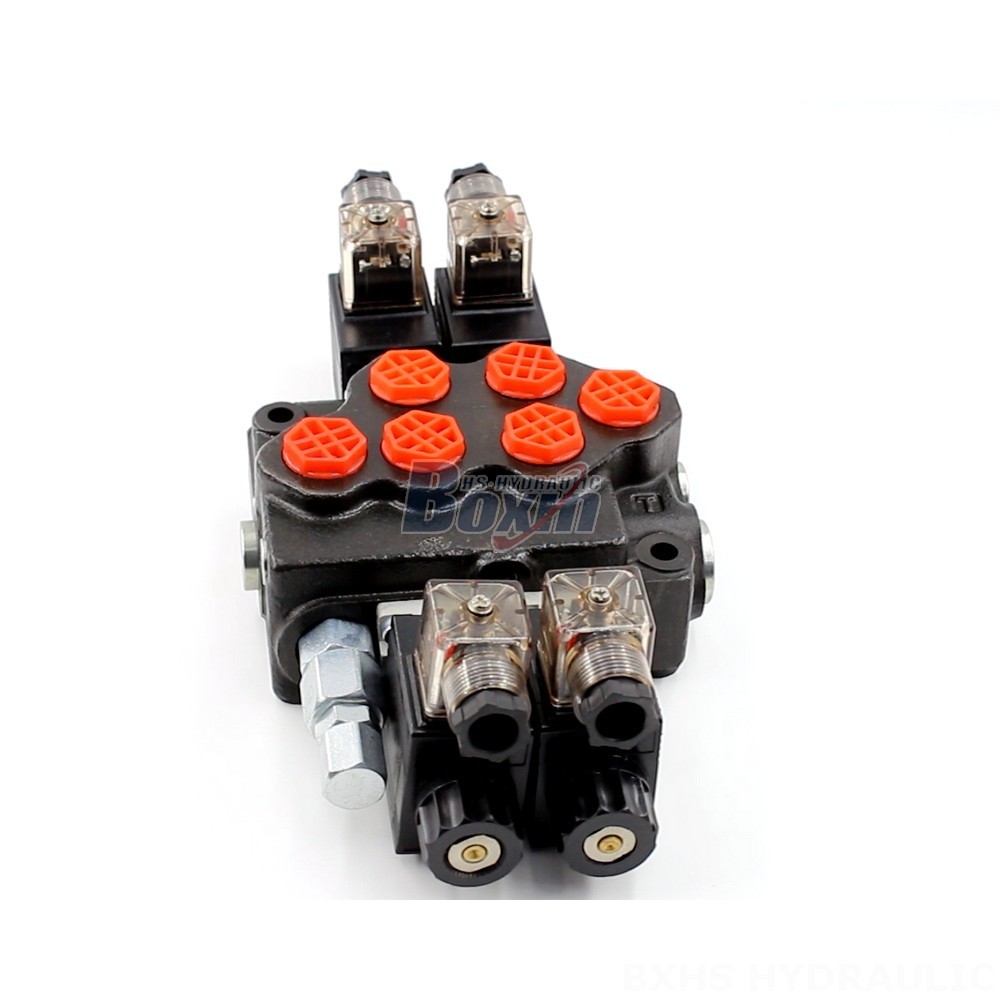

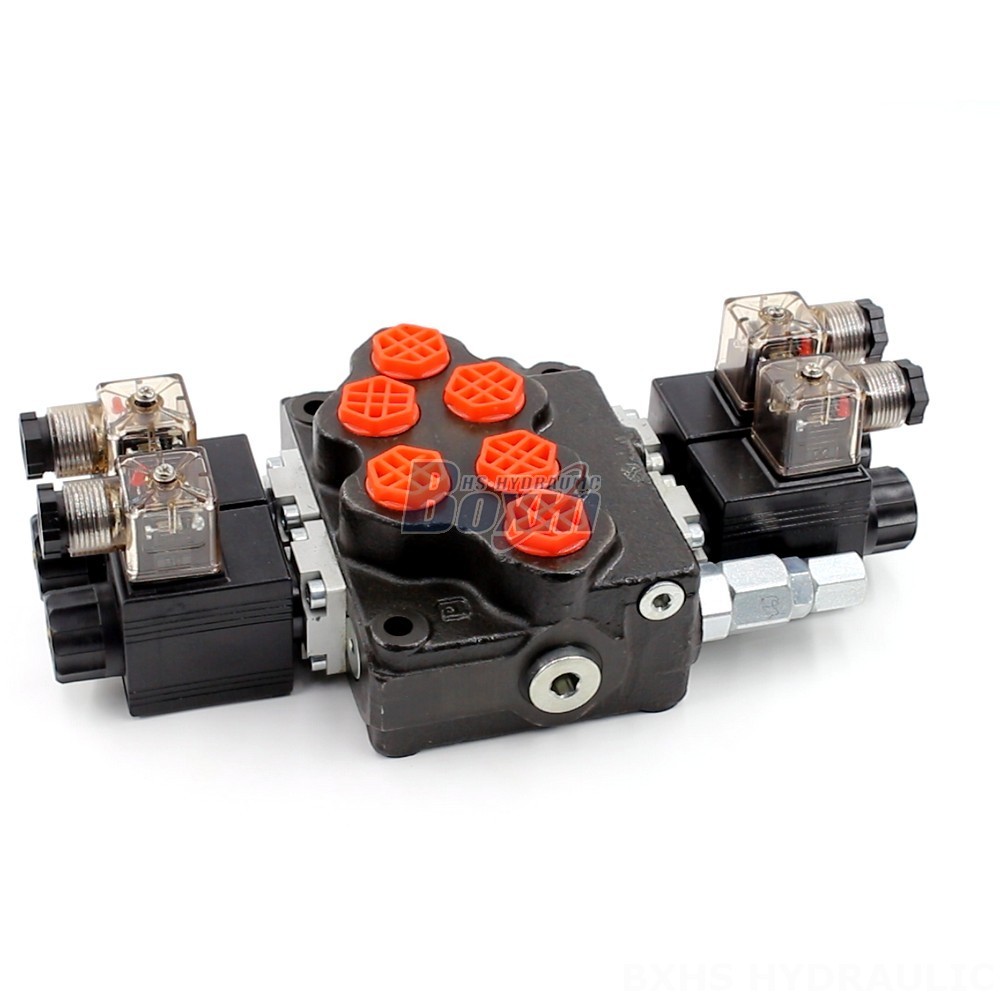

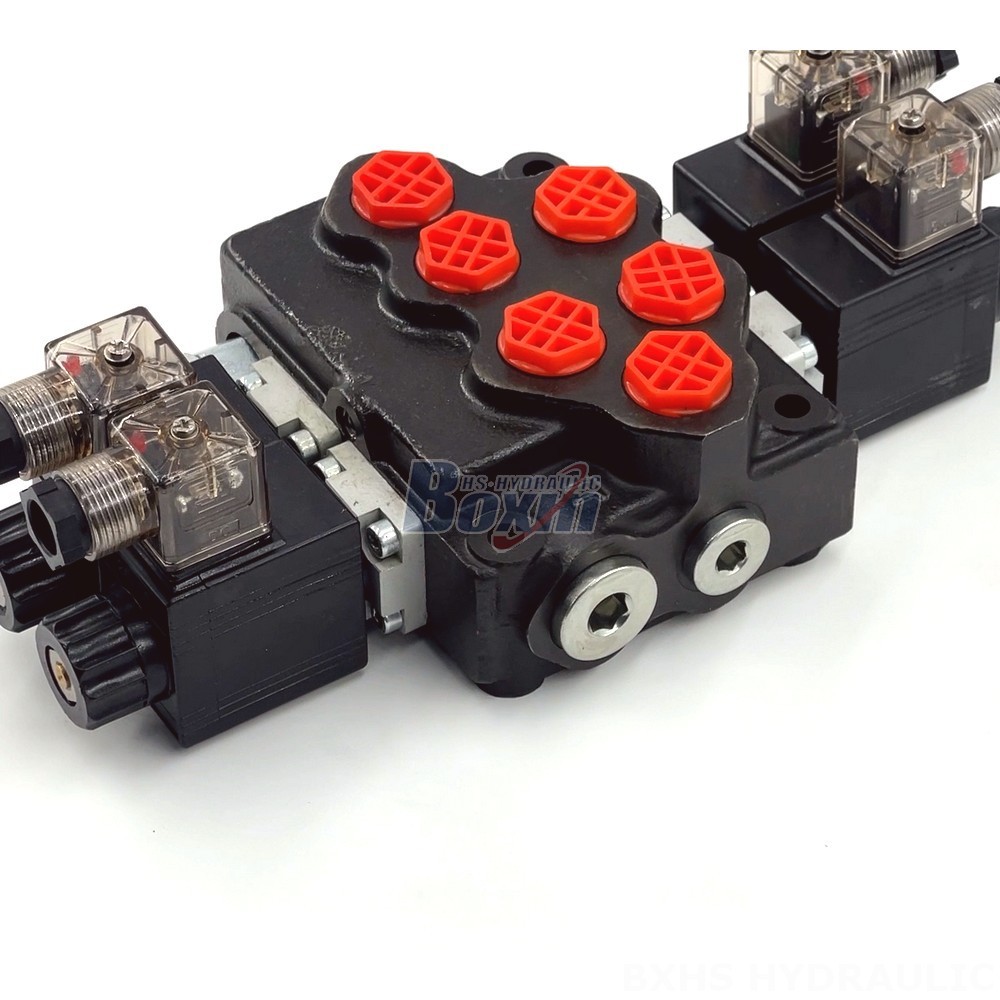

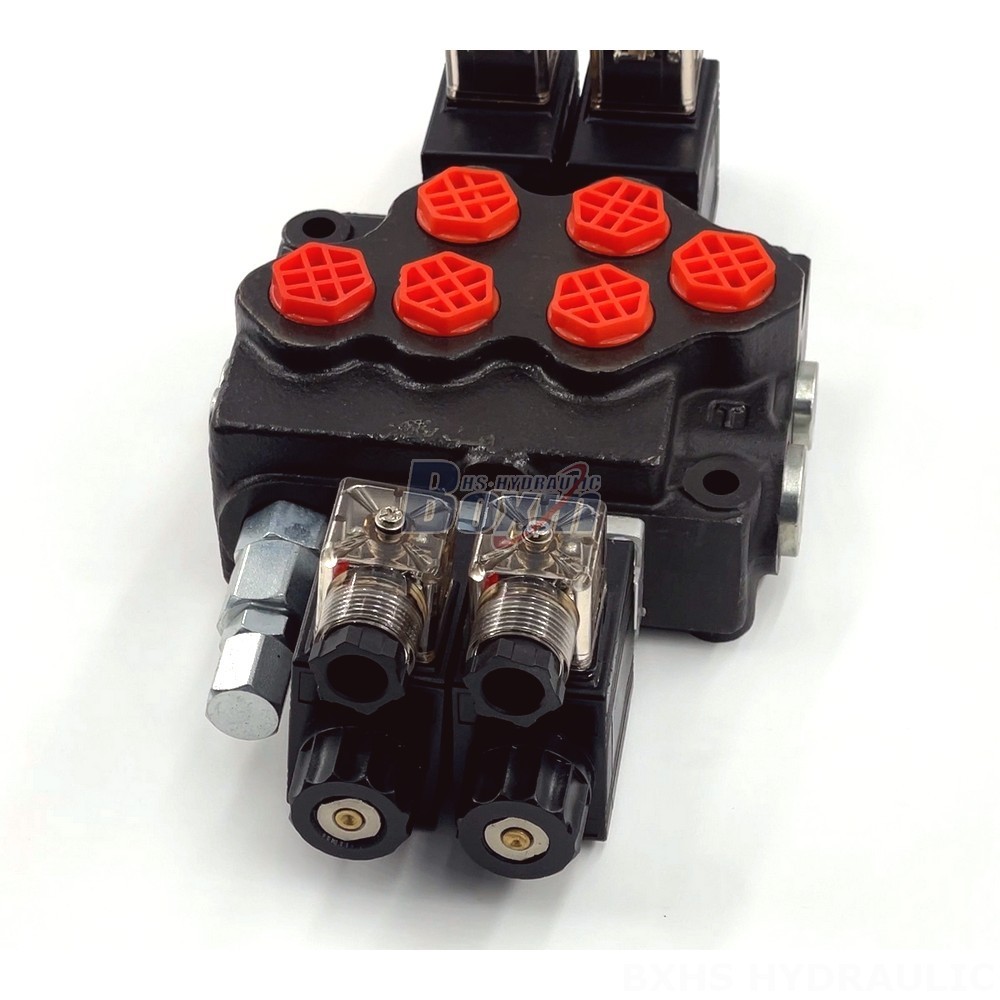

**SD5 Series Hydraulic Valve**
**Factory Wholesale Prices: Purchase Direct and Save**
- Solenoid control for precise operation
- 2 section design for versatile applications
- Monoblock construction for durability and compact size
- 40 L/min (10.5 US gpm) rated flow for efficient operation
- 305 bar (4400 psi) maximum pressure for demanding applications
- 15 - 75 mm²/s (15 cSt to 75 cSt) operating viscosity range for compatibility with various fluids
- -40°C to +60°C (-40°F to +140°F) ambient temperature range for wide-ranging use
- 2 spool for enhanced control
**Applications:**
- Material handling
- Construction and earth moving
- Agriculture
- Industrial vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All terrain crane
- Stacker
- Aerial platform
- Motor grader
- Midi-excavator
- Mini-excavator
- Skid steer loader
- Compact wheel loader
As a leading manufacturer, we offer custom manufacturing, OEM, ODM, and private label services. Contact us today to discuss your specific requirements and experience the benefits of factory wholesale pricing.
