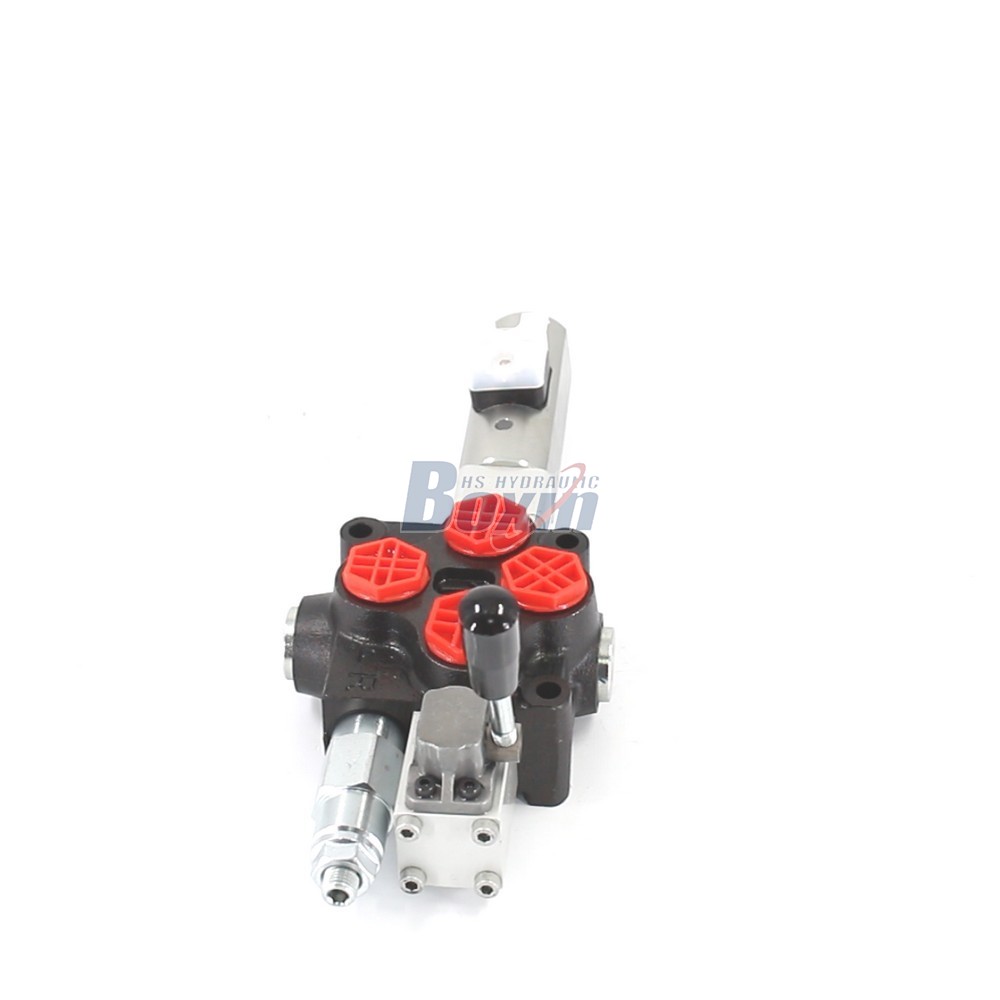

Factory Wholesale Q45 Solenoid and Manual 1 Spool Monoblock Valve

Metode Kontrol:Elektromagnet Manual dan Push-pull

Spul:1 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri Q45 Katup Arah Monoblok

Ukuran kemasan:28* 18*16

Kelas kotor:8.00 kg

Ketersediaan: Tersedia

59 Pandangan Mencari Produk Ini

Factory Wholesale Q45 Solenoid and Manual 1 Spool Monoblock Valve

Factory Wholesale Q45 Solenoid and Manual 1 Spool Monoblock Valve

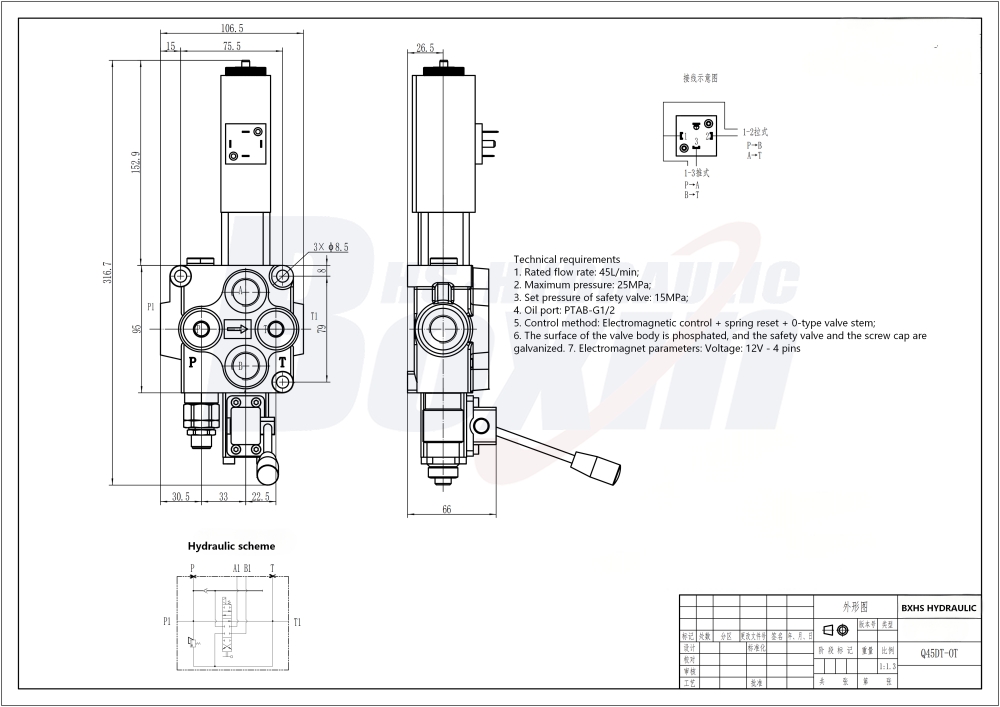

Factory Wholesale Q45 Solenoid and Manual 1 Spool Monoblock Valve drawing image

The Q45 Series is a versatile 1-spool monoblock directional control valve designed for both solenoid and manual operation. Featuring a rated flow of 45 L/min and high-pressure resistance up to 315 bar, it provides reliable fluid power management for various mobile and industrial machinery.

Seri Q45 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -20°C hingga +80°C (-4°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 45 L/menit (11,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2
Port Keluar G1/2
Ukuran Port G1/2

As a leading manufacturer of hydraulic solutions, we offer the Q45 Series 1 Spool Monoblock Valve designed for high-performance applications. This valve integrates both solenoid and manual control methods, allowing for versatile operation in Material Handling, Construction, and Agriculture. With a compact design, it manages a rated flow of 45 L/min (11.8 US gpm) and supports maximum pressures up to 315 bar (4600 psi), making it suitable for Forklifts, Tractors, Mini-excavators, and Wood Splitters. Our factory provides comprehensive manufacturing capabilities, including OEM, ODM, and private label (white label) services to meet your specific technical requirements. We specialize in wholesale distribution and are actively seeking global partners, including distributors, wholesalers, agents, and trading companies to expand our international reach. By choosing our factory-direct supply, you benefit from reliable quality control and competitive bulk pricing. Whether you need customized port sizes or specific spool configurations for telehandlers or skid steer loaders, our technical team is ready to support your business. Explore partnership opportunities with a professional manufacturer dedicated to hydraulic excellence.
