Produksi & Pengiriman
Waktu Produksi 15-30 Hari



Factory direct wholesale of high-quality SD8 4-spool hydraulic directional valves. Rated for 90 L/min and 350 bar, ideal for construction, agriculture, and industrial applications. OEM, ODM, and custom orders welcome.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |

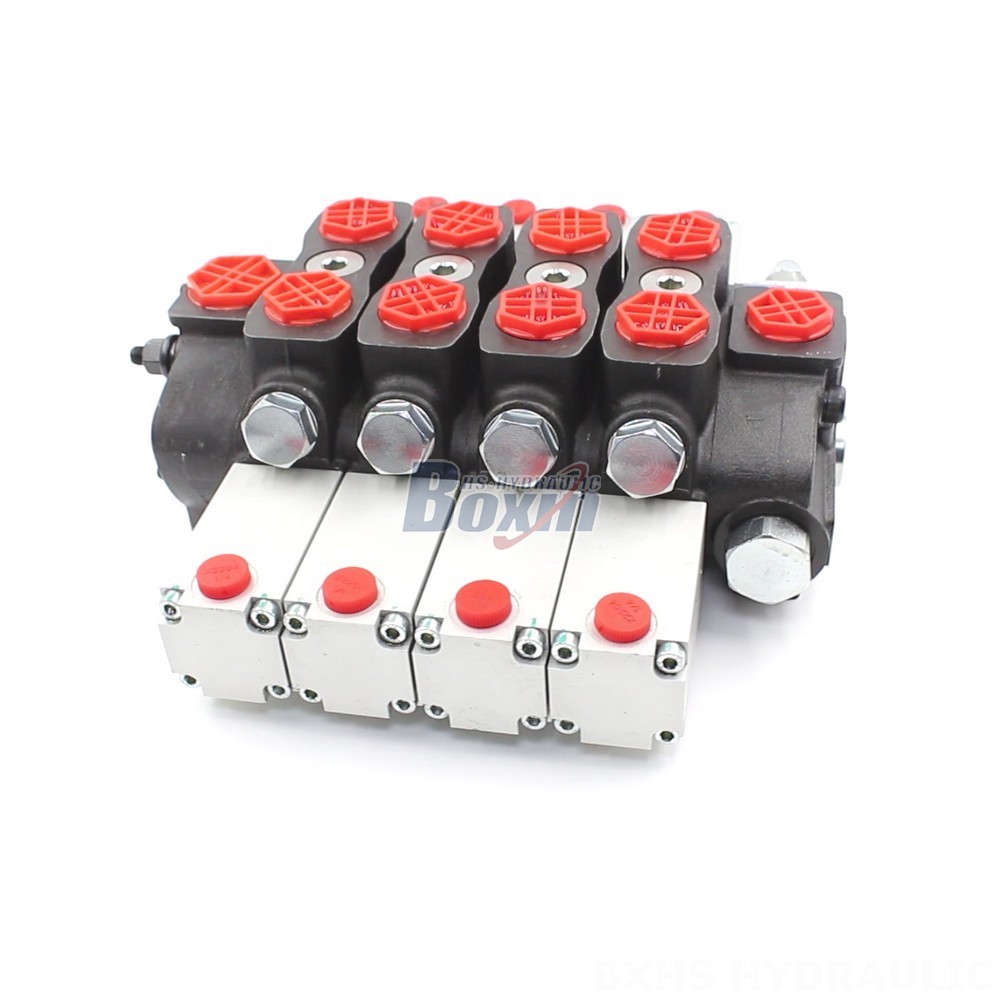

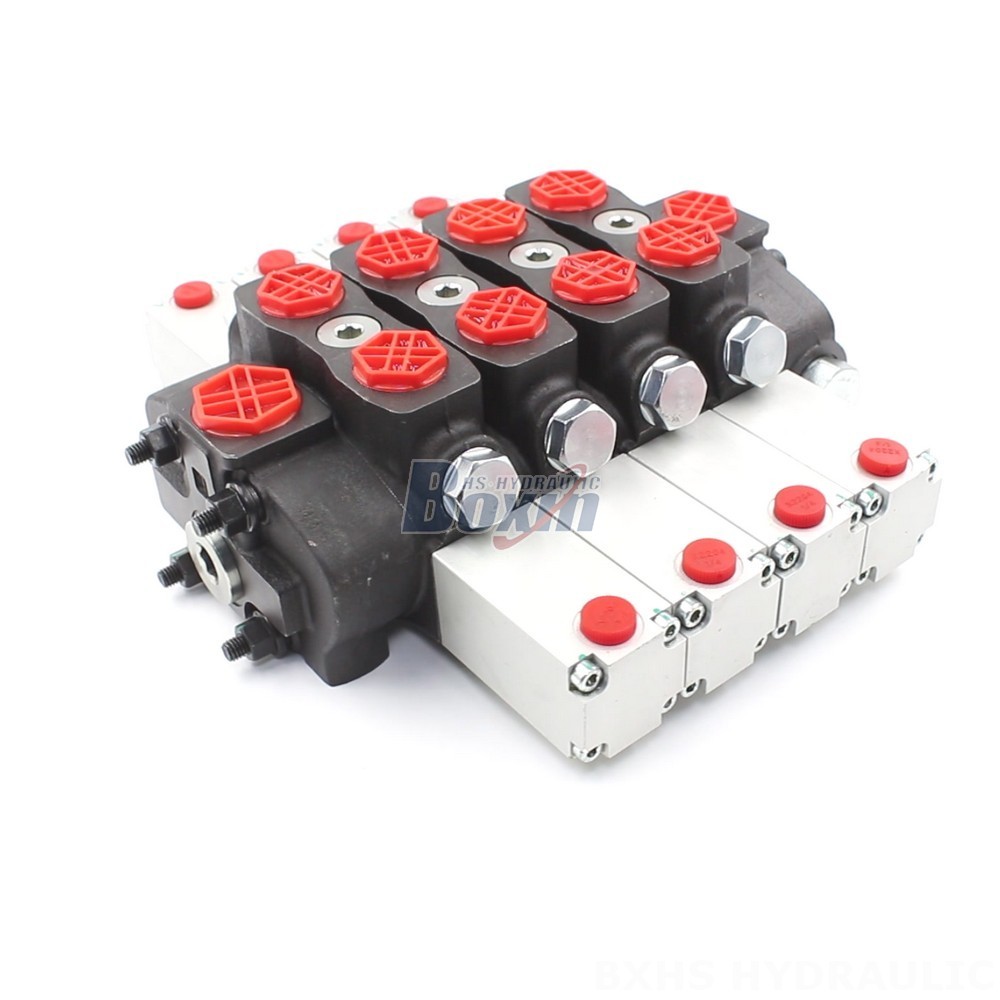

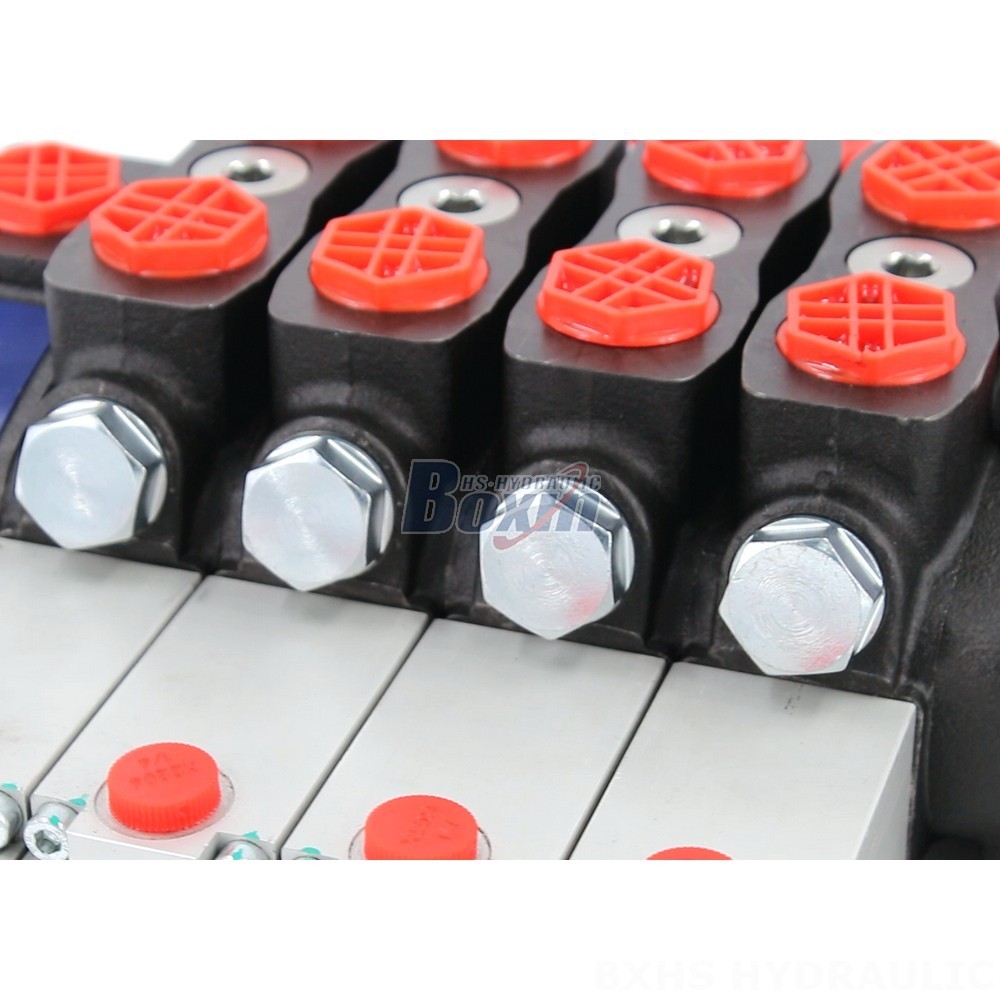

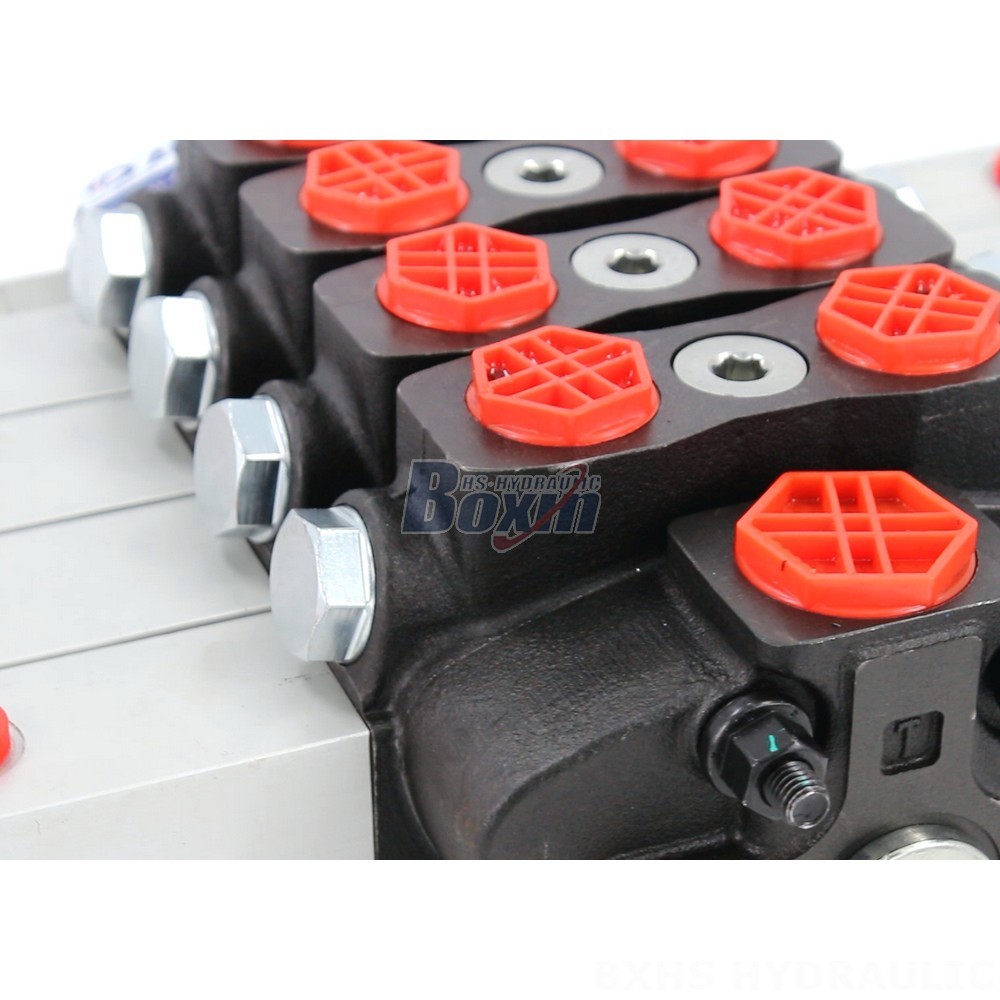

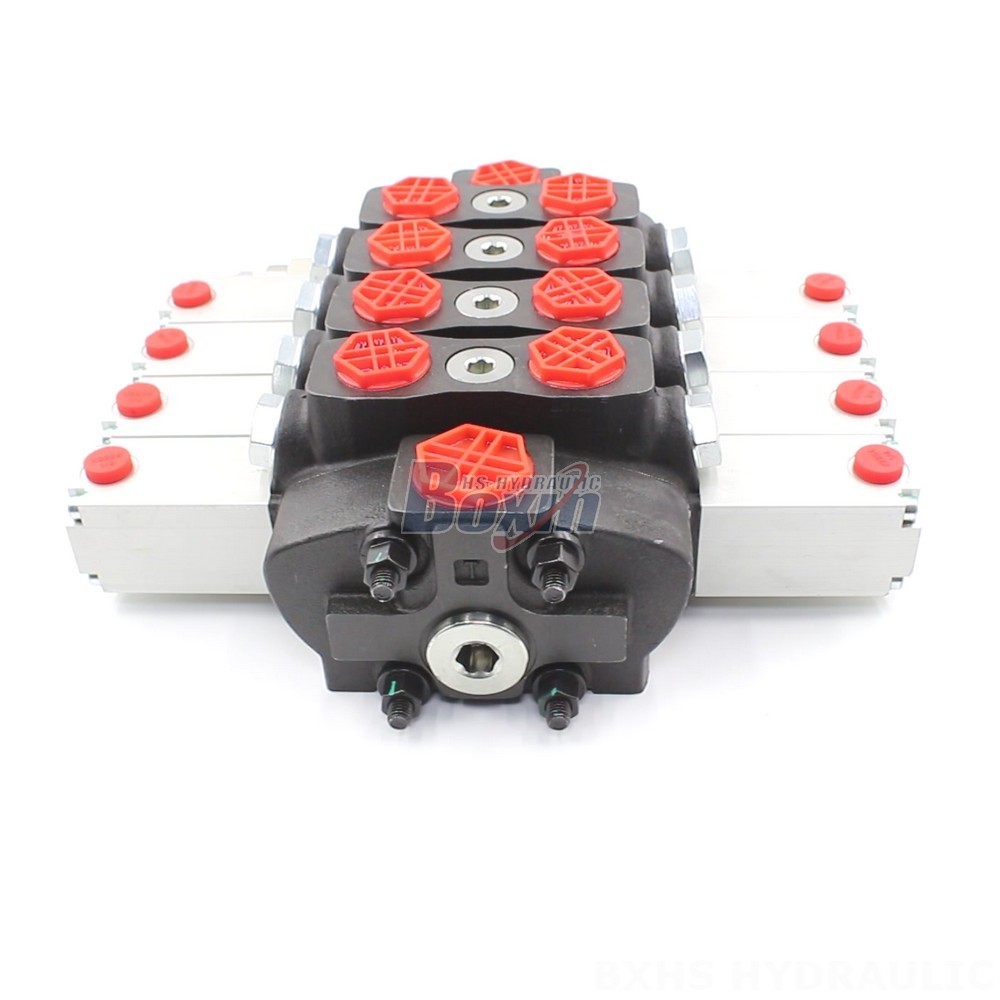

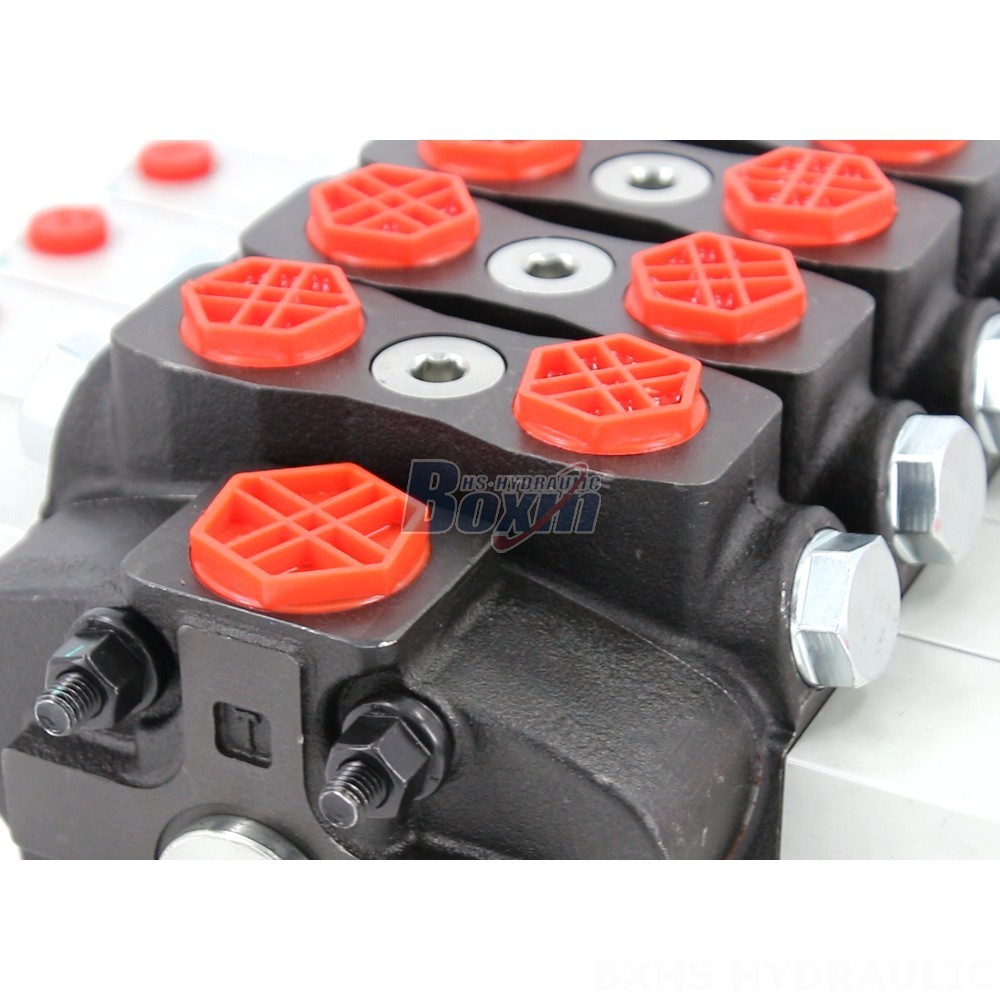

We are a leading hydraulic product manufacturer offering a wide range of solutions to the global market. Our flagship product, the SD8 4-Spool Hydraulic Directional Valve, is a high-performance, heavy-duty valve designed for demanding applications. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this sectional valve is perfect for various equipment, including forklifts, mini-excavators, skid steer loaders, and more.
**Key Features:**
* **High-Quality Manufacturing:** Factory direct supply ensures superior quality and competitive pricing.
* **Versatile Applications:** Suitable for construction, earthmoving, material handling, agriculture, and industrial vehicles.
* **Robust Performance:** Designed to withstand extreme operating conditions (-40°C to +80°C).
* **Customizable Solutions:** OEM, ODM, and custom design services available to meet your specific needs.
**We offer:**
* **Manufacturing:** High-volume production capabilities.
* **OEM/ODM:** Private label and customized solutions.
* **Wholesale:** Competitive pricing for bulk orders.
**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
Partner with us to access high-quality, reliable hydraulic valves directly from the manufacturer. Contact us today for inquiries and bulk order discounts. Benefit from our factory direct wholesale pricing and experience unparalleled support from a trusted hydraulic component supplier. Factory wholesale – directly from the source!
