Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution

Metode Kontrol:Selenoid dan Joystick

Spul:8 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:200 bar (2900 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:45*45*17

Kelas kotor:36.00 kg

Ketersediaan: Tersedia

1083 Pandangan Mencari Produk Ini

Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution

Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution

Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution drawing image

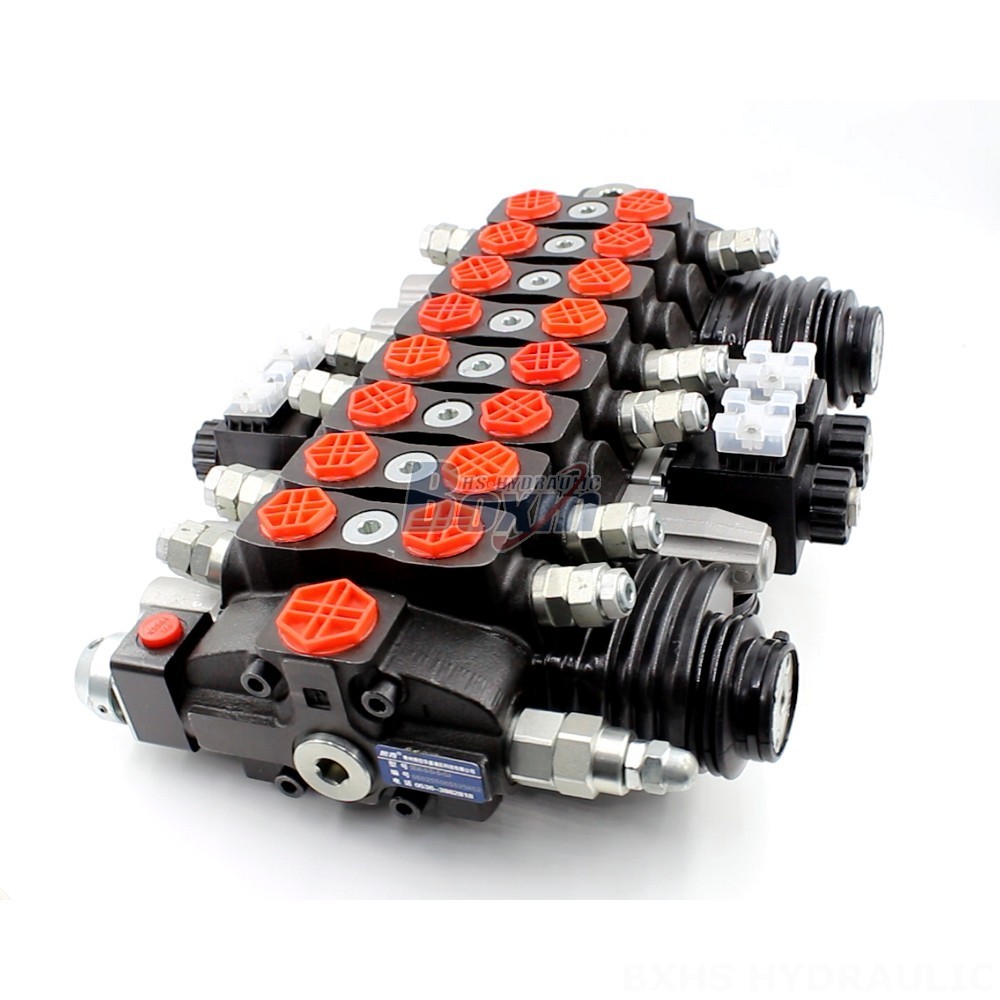

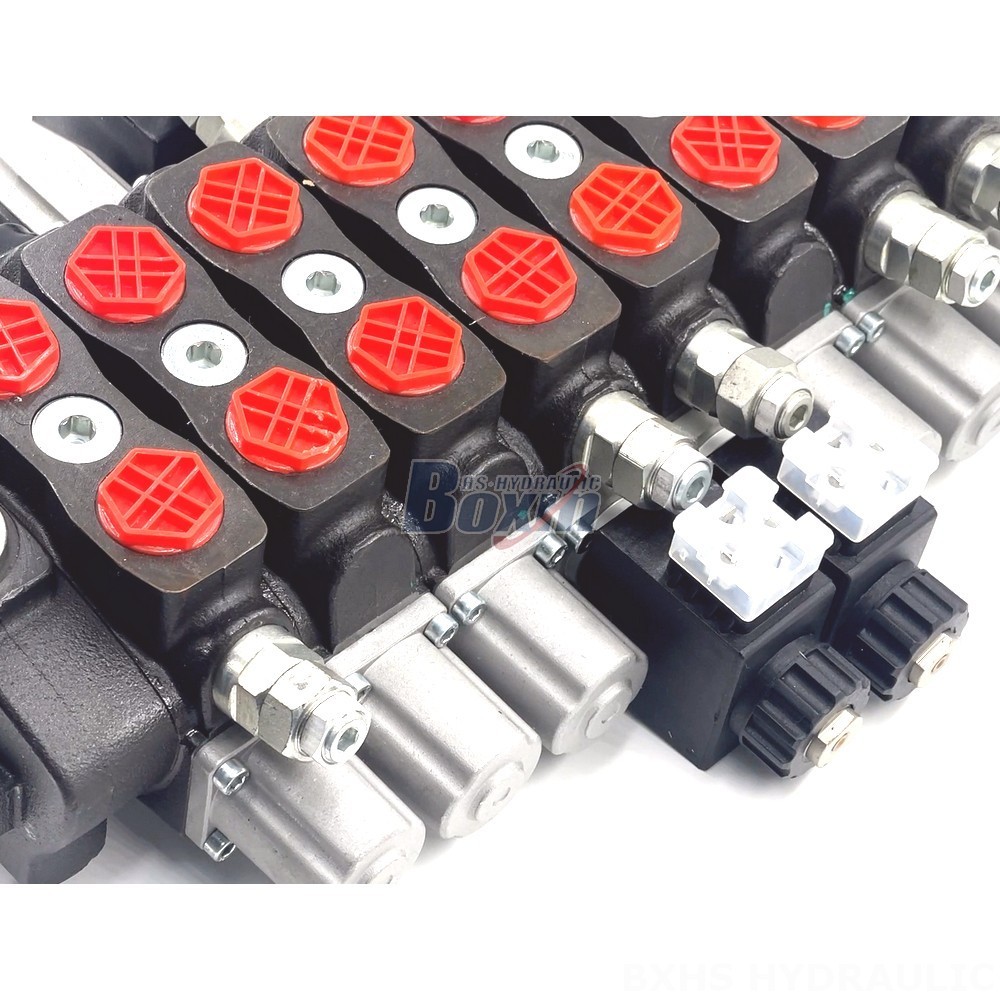

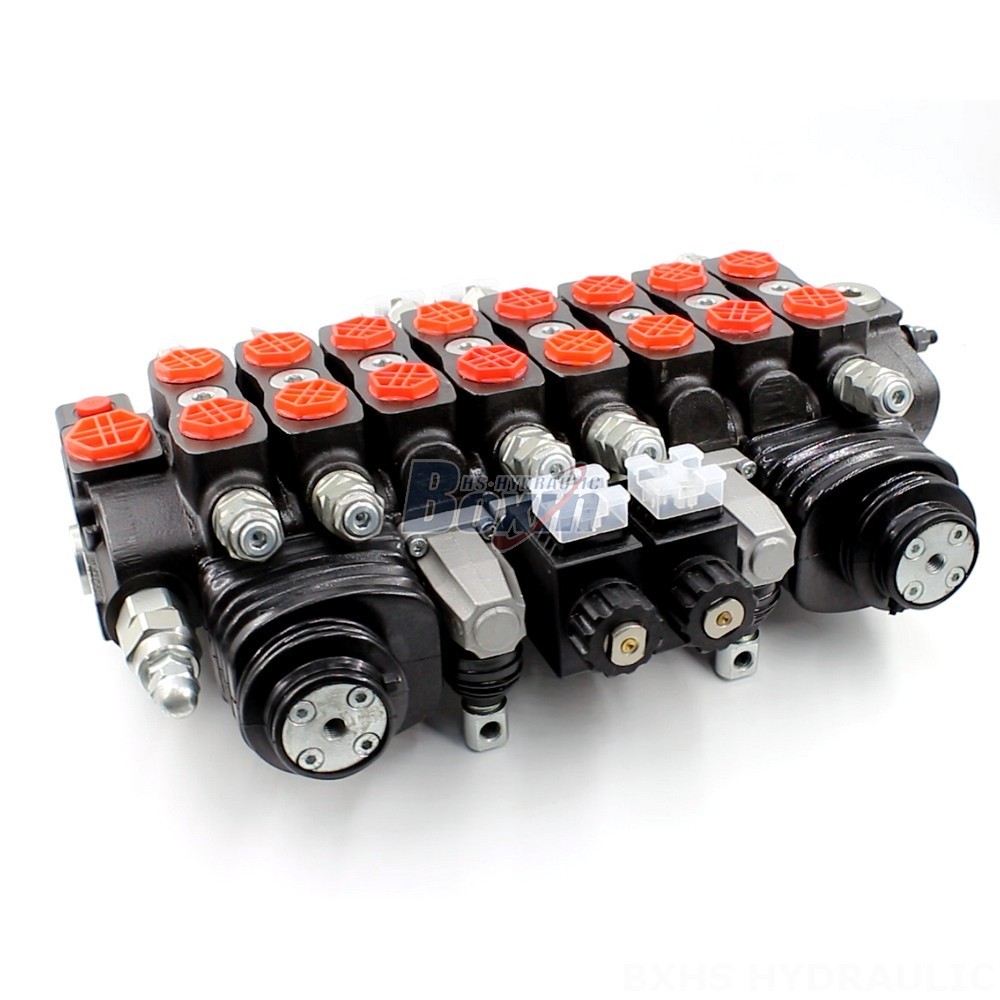

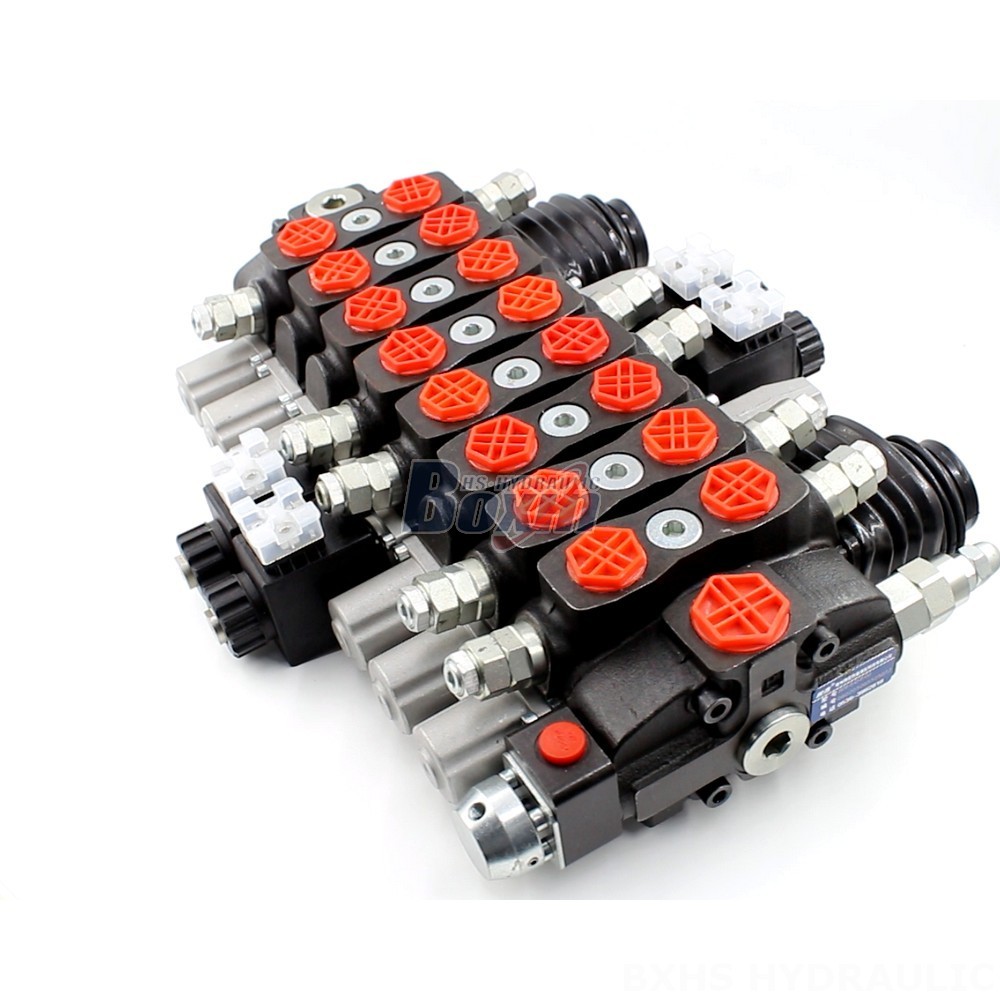

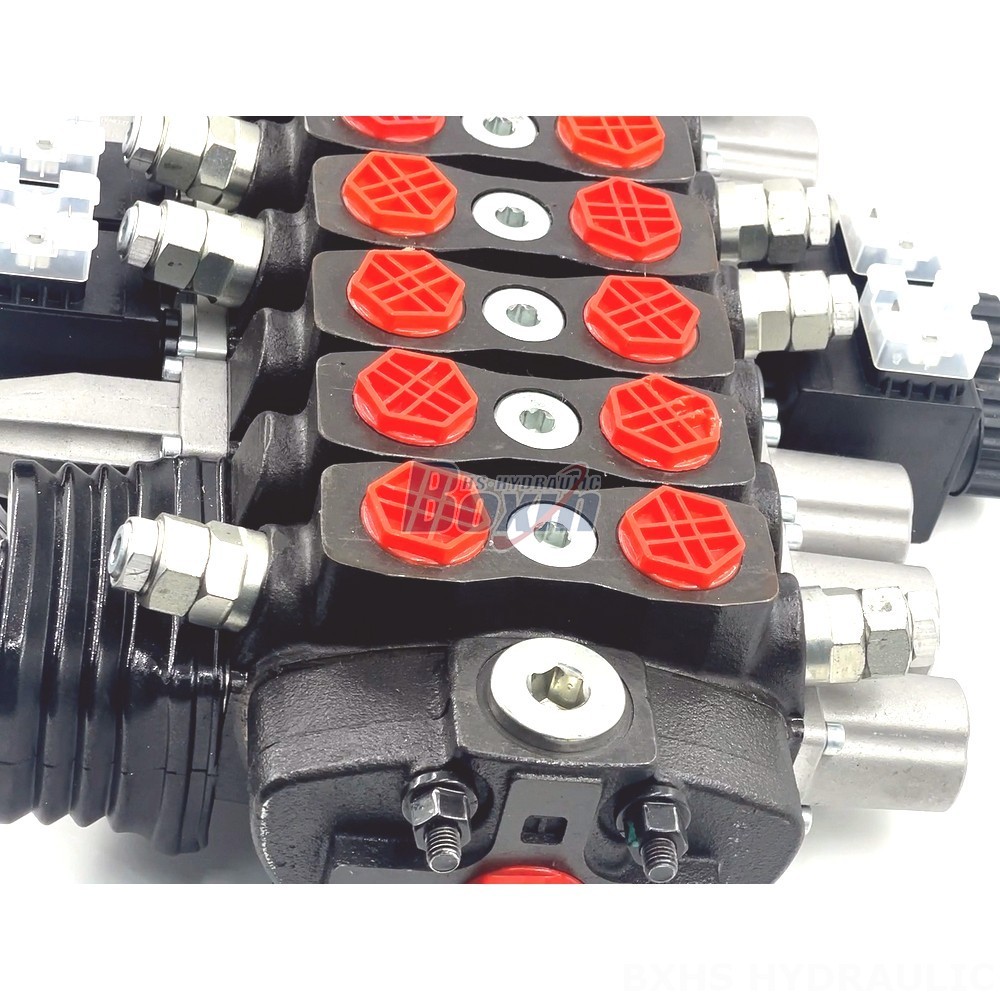

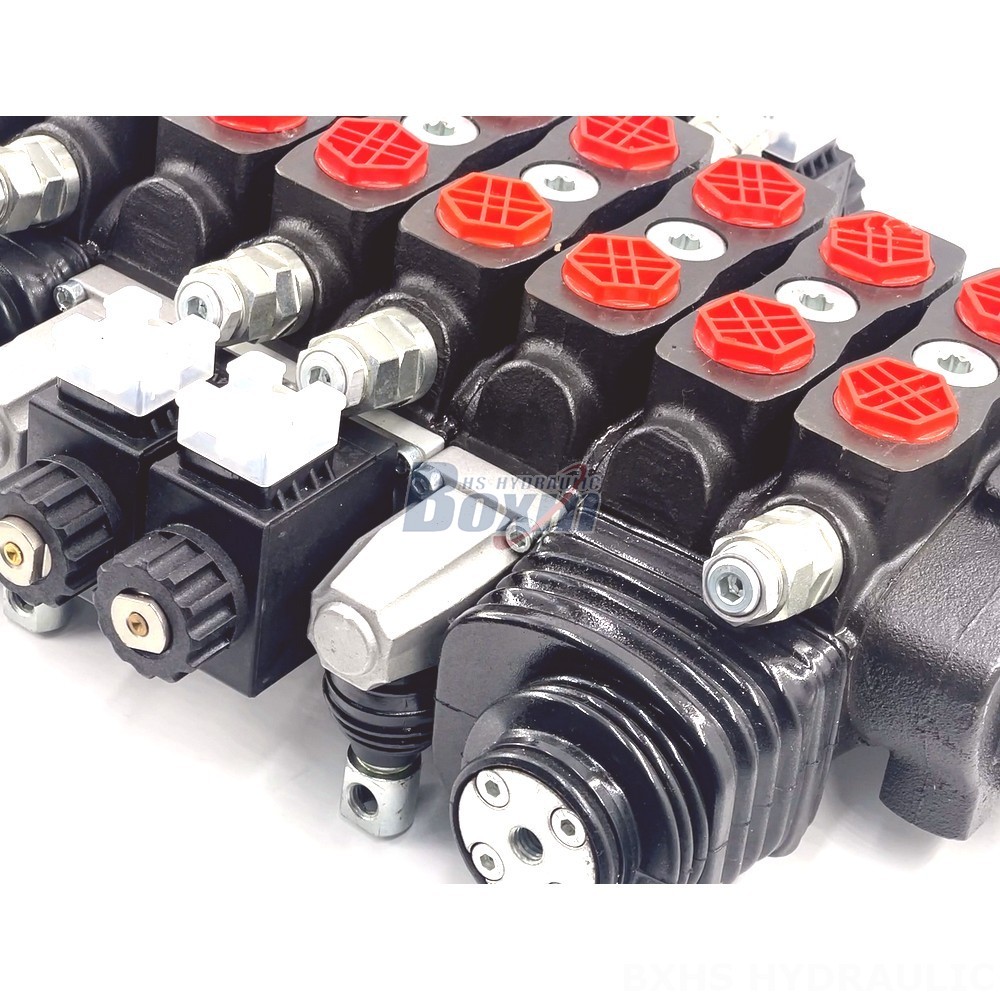

This is a high-performance, manual 8 spool sectional directional valve designed for heavy-duty applications in industries such as construction, agriculture, and material handling. It offers a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of machines and equipment. This valve is available for global distribution through factory wholesale and offers OEM, ODM, private label, and customization options.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

This durable and reliable manual 8 spool sectional directional valve is manufactured to the highest standards and designed for demanding applications. It features a robust construction and a wide operating temperature range, ensuring optimal performance even in extreme conditions. The valve is available in the SD8 series and boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), making it ideal for various equipment like telehandlers, forklifts, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, balers, and sprayers. As a factory supplier, we offer competitive wholesale prices and global distribution. We also provide OEM, ODM, private label, and customization services to meet specific customer requirements.
