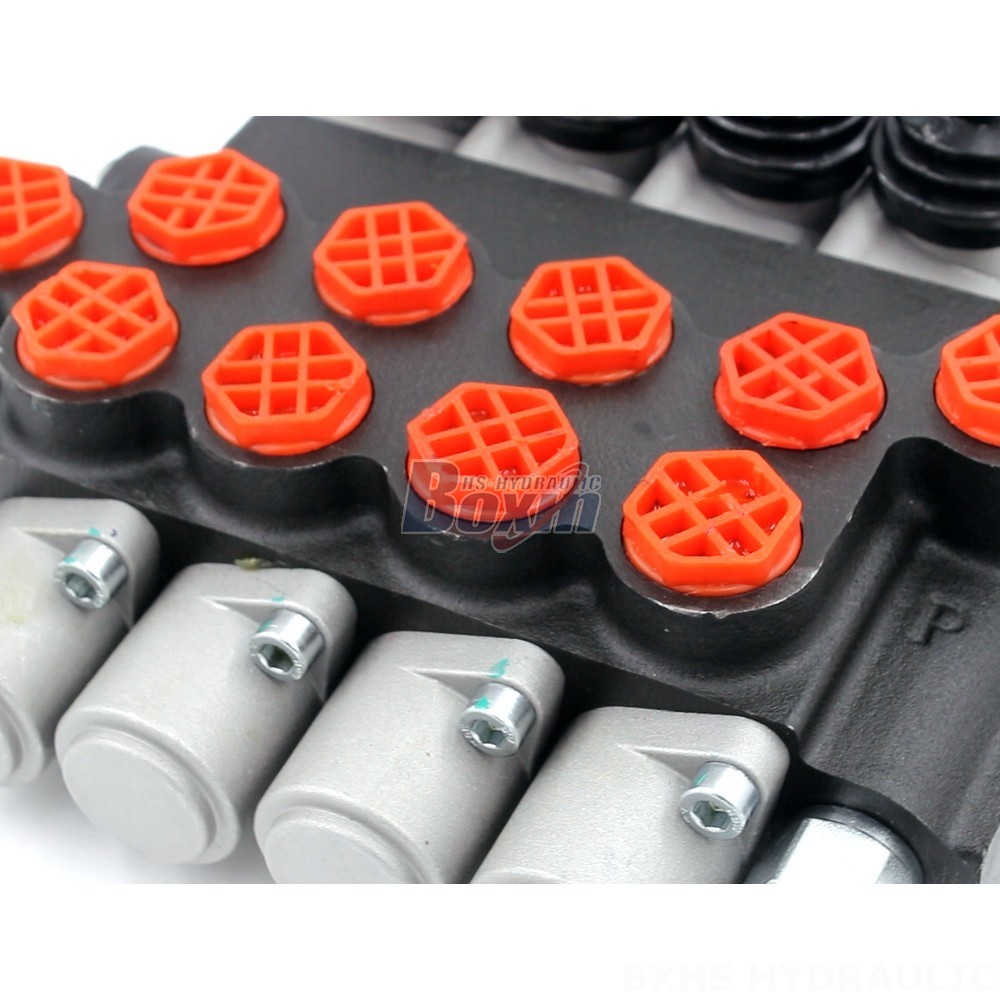

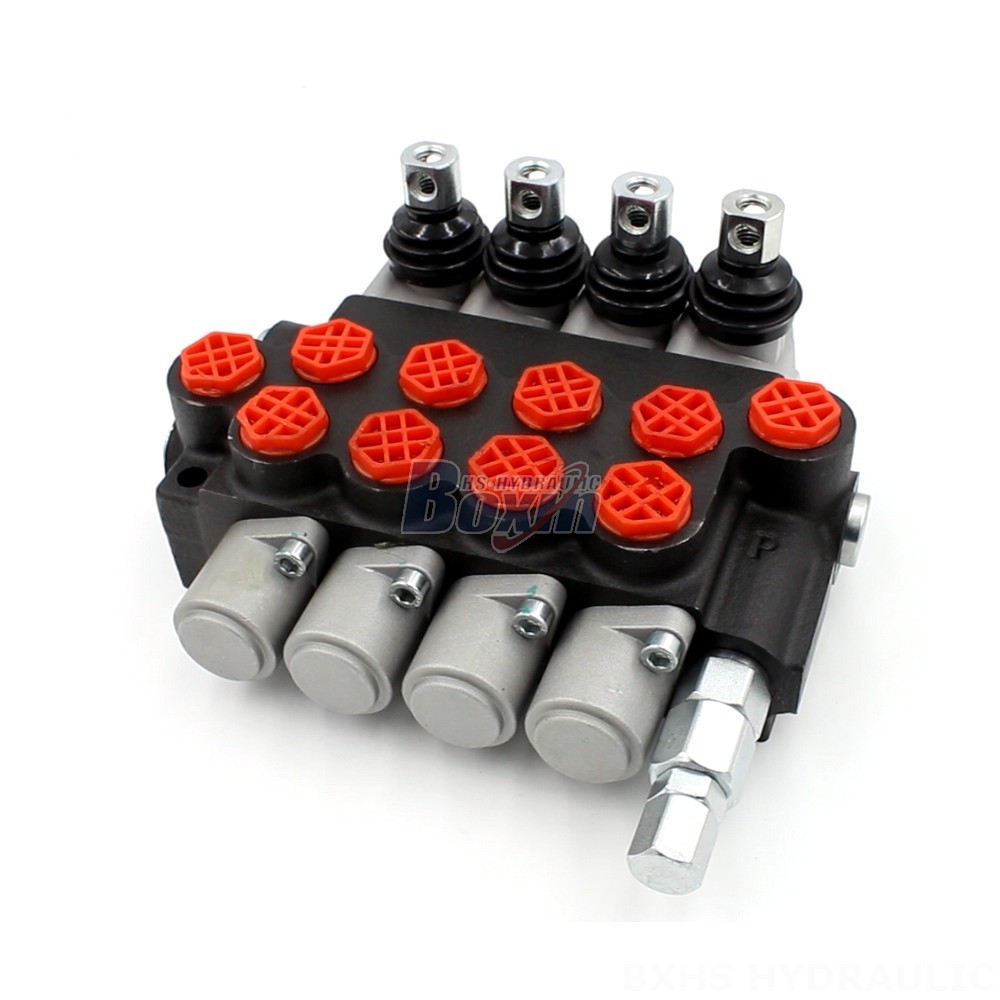

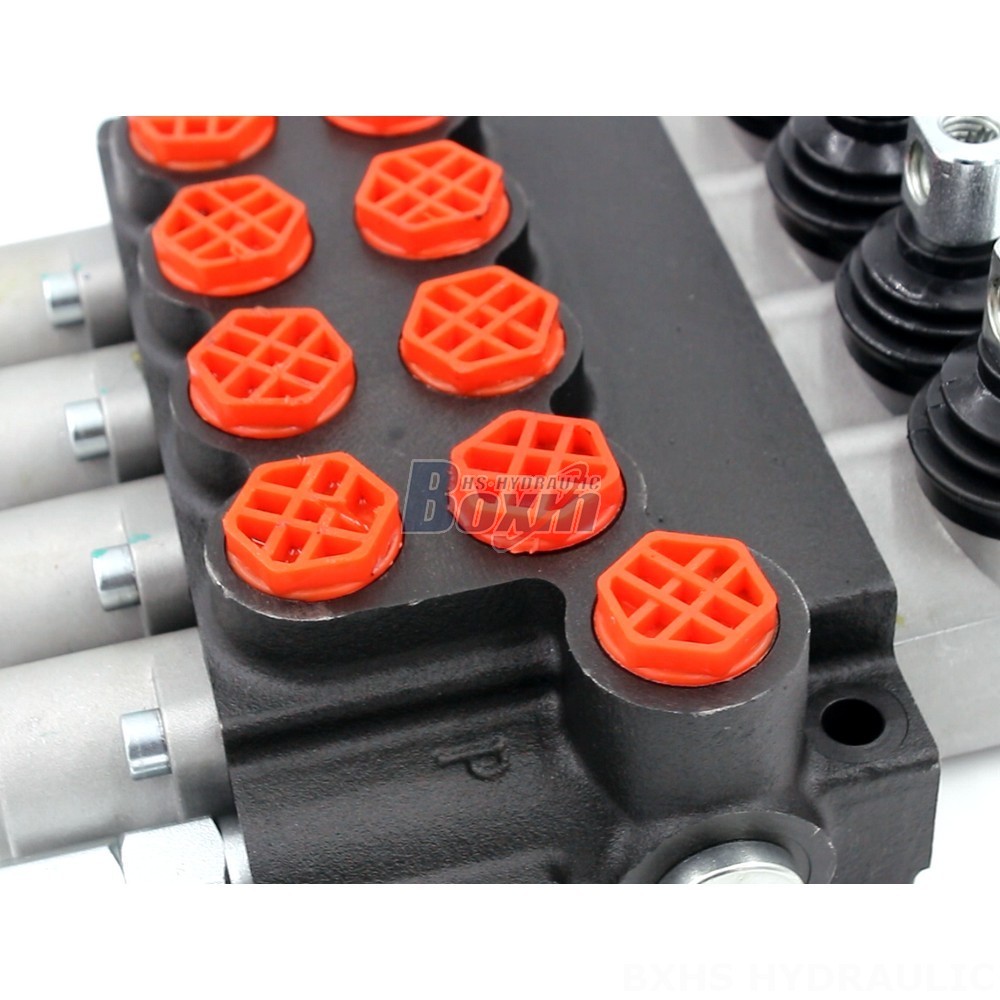

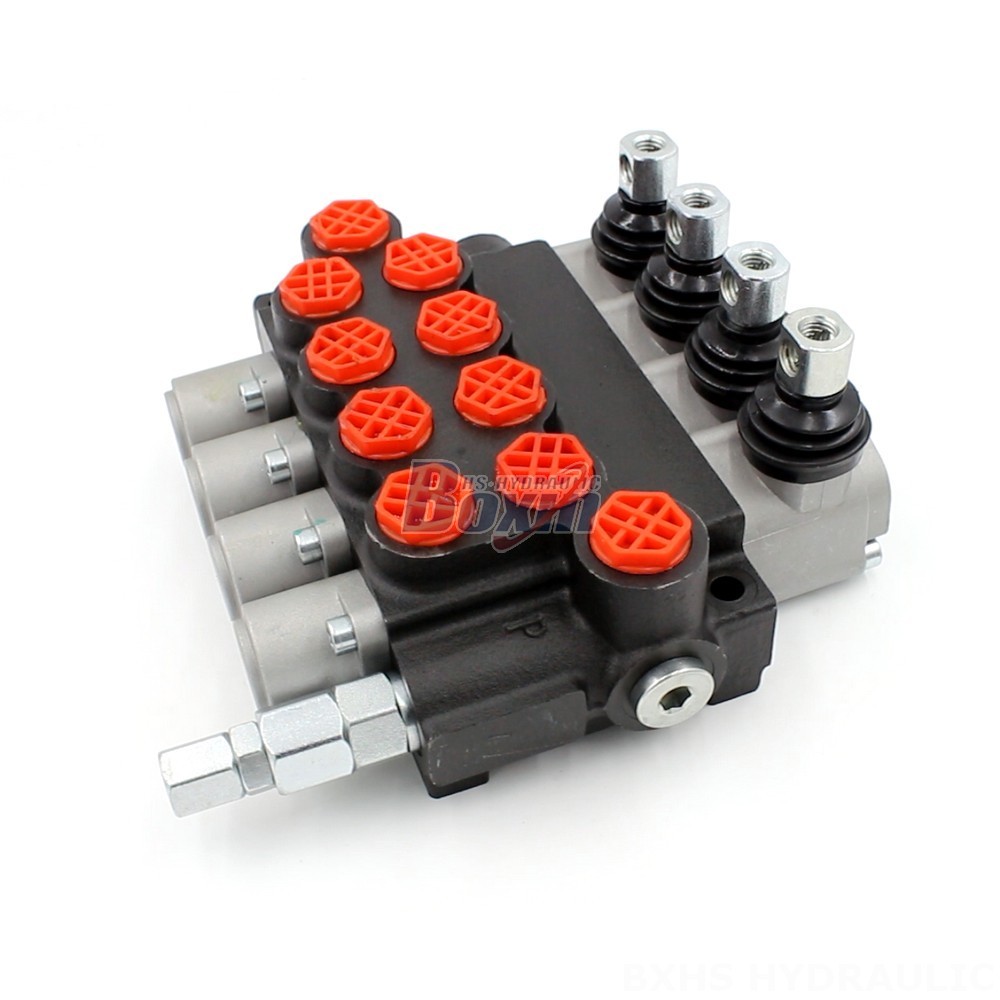

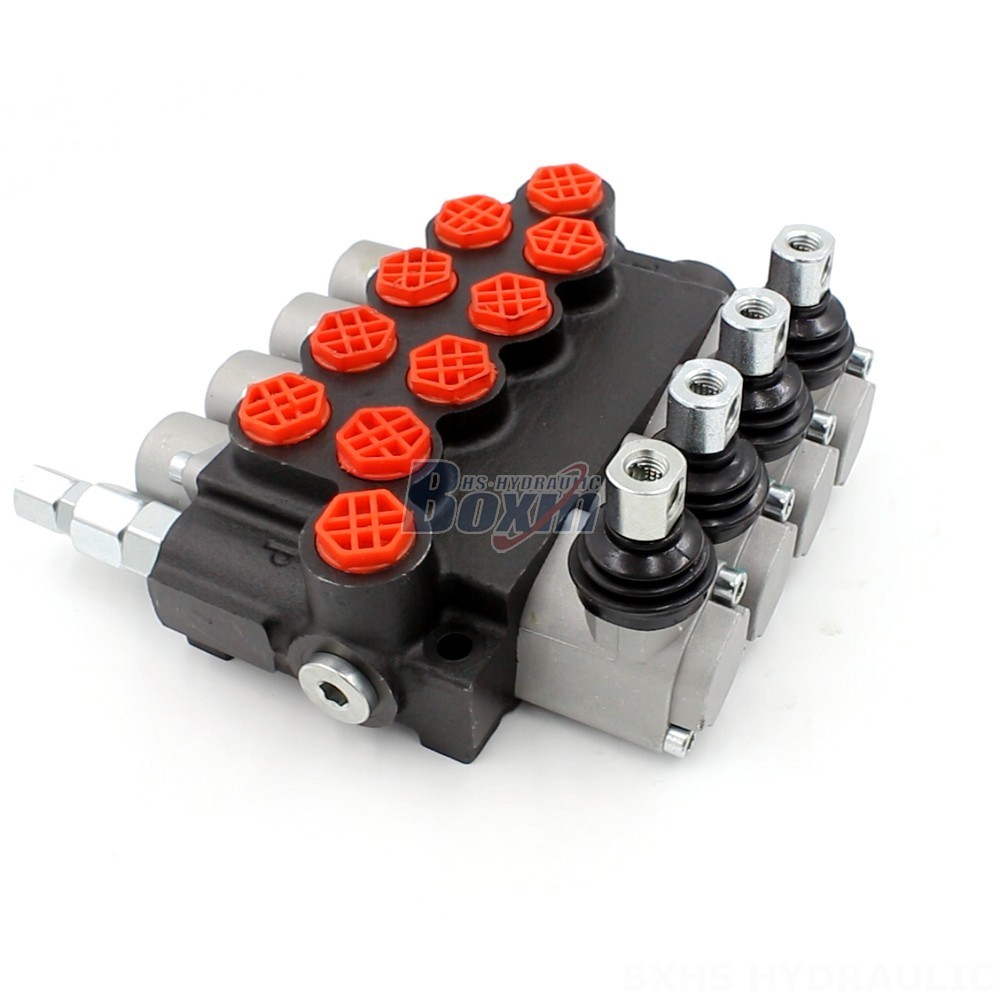

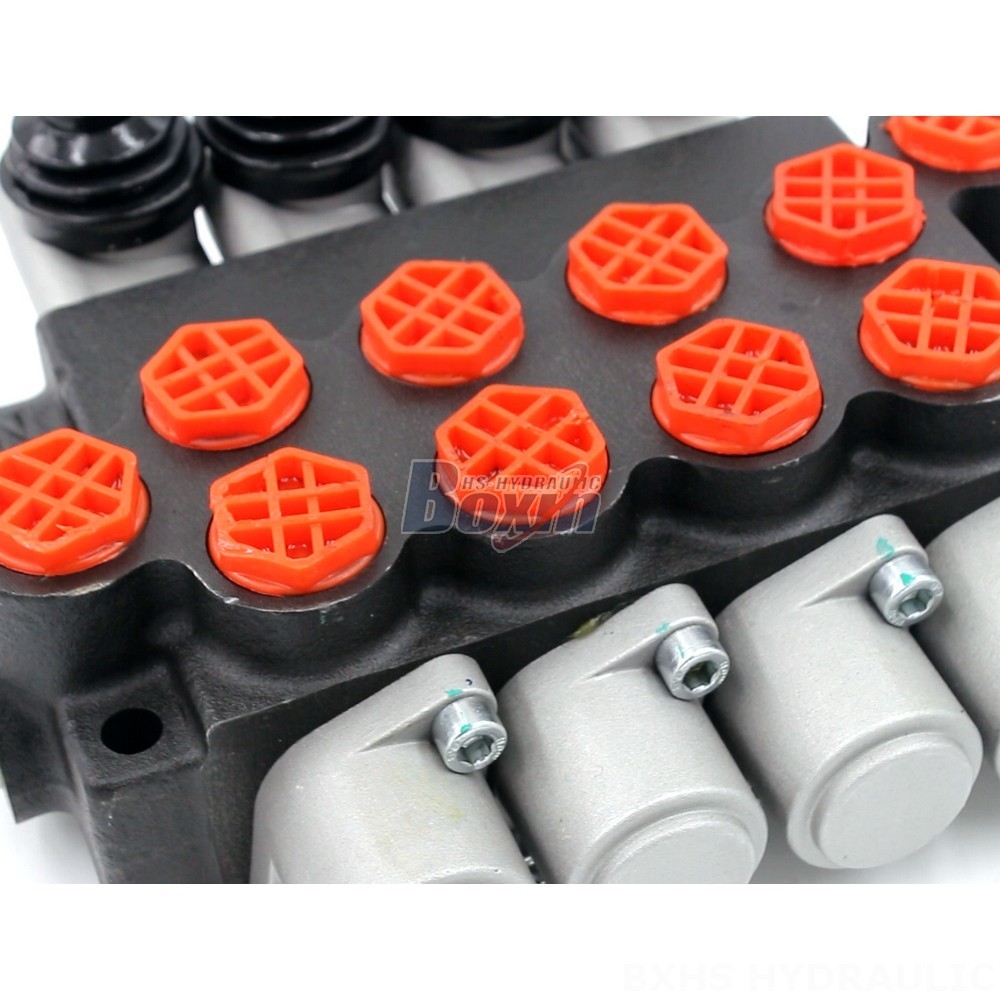

The P40-G38 4 Section Monoblock Valve is a high-performance hydraulic valve designed for use in various applications including construction, material handling, and agriculture. This 4-spool valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it a reliable choice for demanding environments.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
We are a manufacturer of hydraulic products supplying to global markets. We offer manufacturing, OEM, private labeling, customization, and wholesale. This P40-G38 4 Section Monoblock Valve is a high-performance hydraulic valve designed for various applications. This manual control valve features a 4-spool design, rated flow of 40 L/min, and a maximum pressure of 250 bar. It is suitable for use in demanding environments with an operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C. We are a factory supplier and wholesaler offering competitive pricing for bulk purchases. Contact us today to learn more about our products and services.
