Produksi & Pengiriman
Waktu Produksi 15-30 Hari

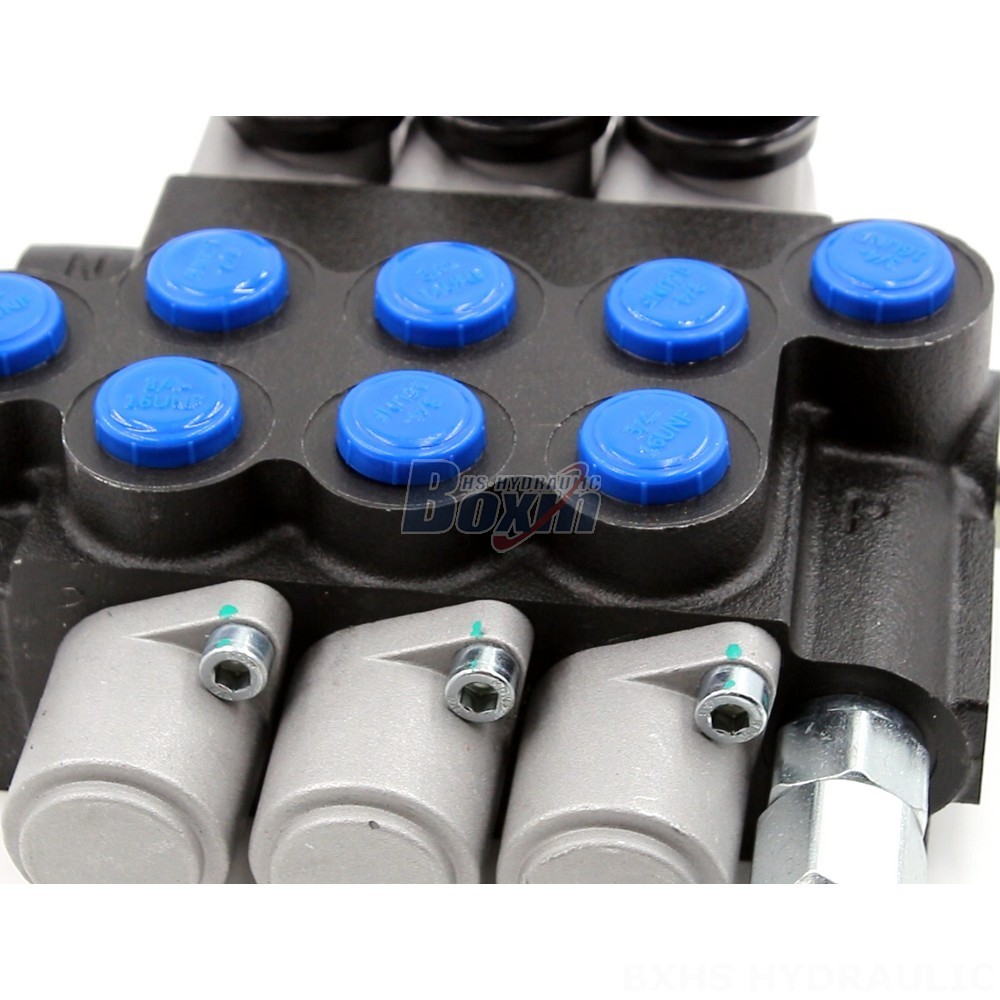

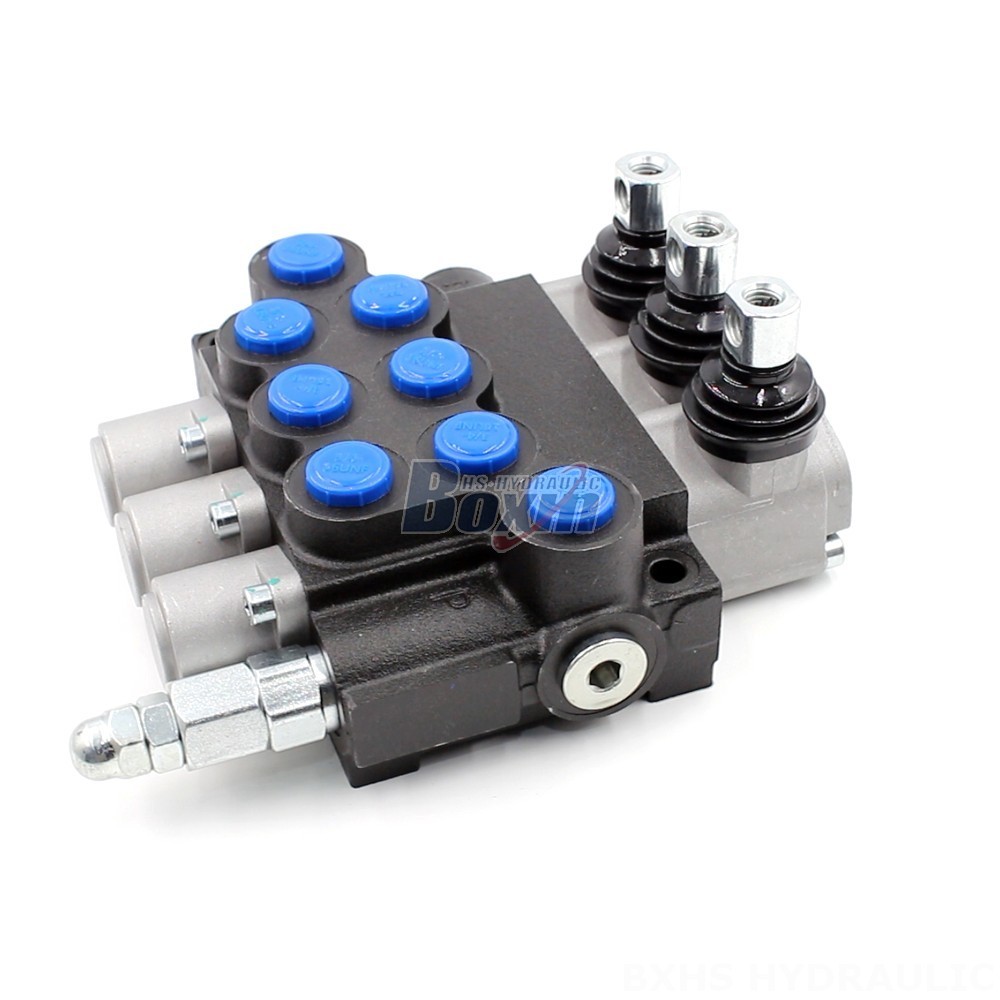

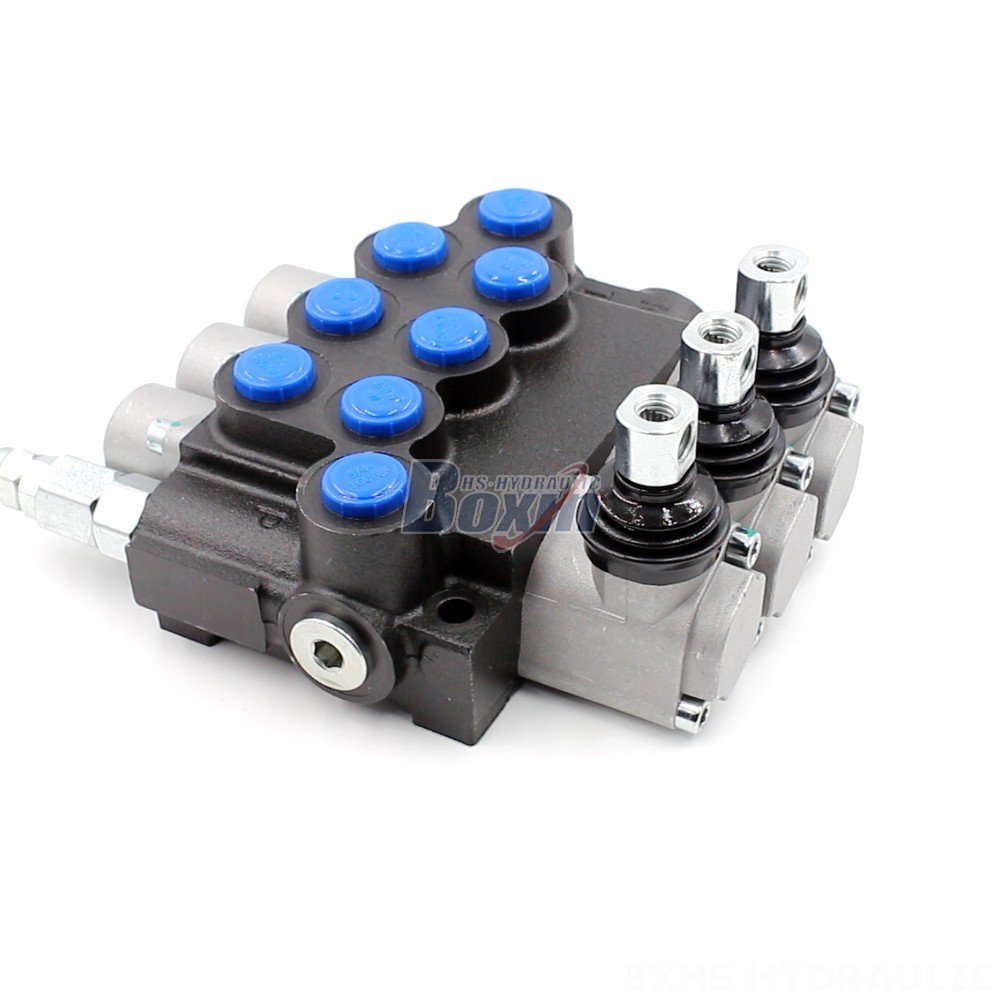

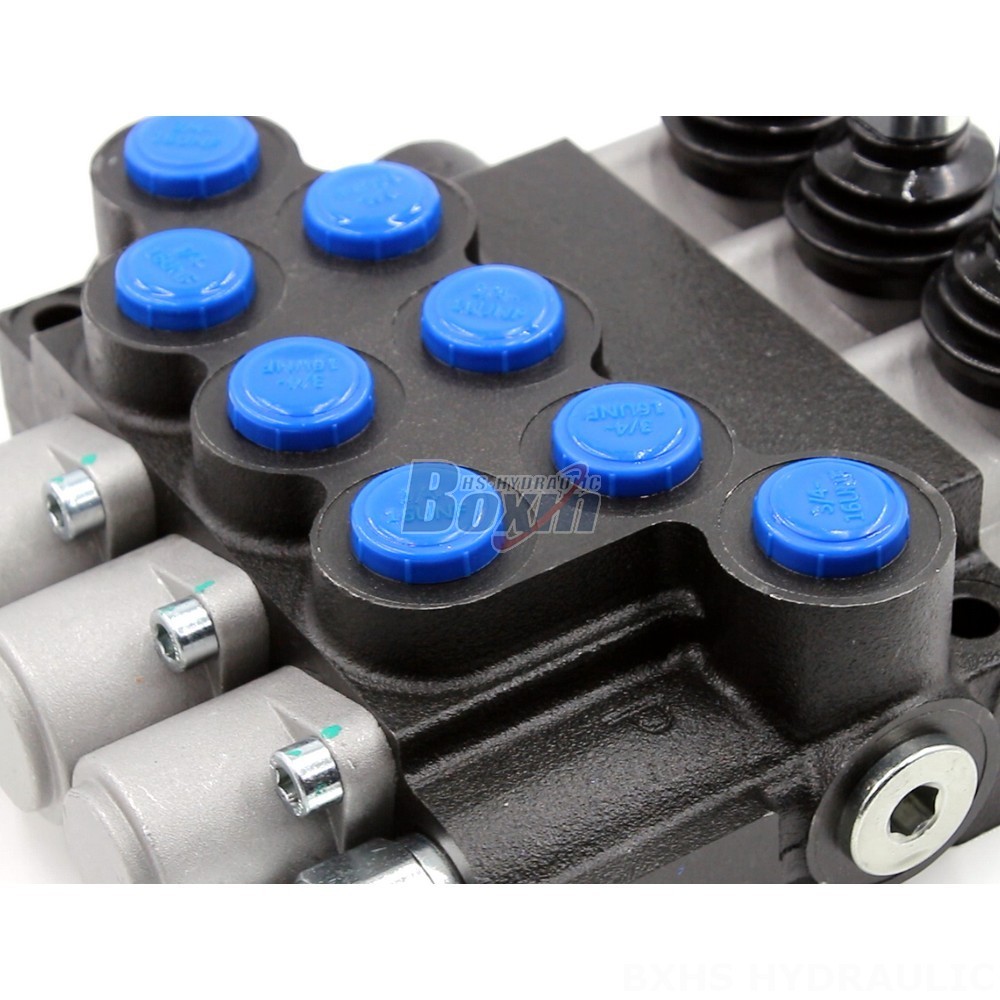

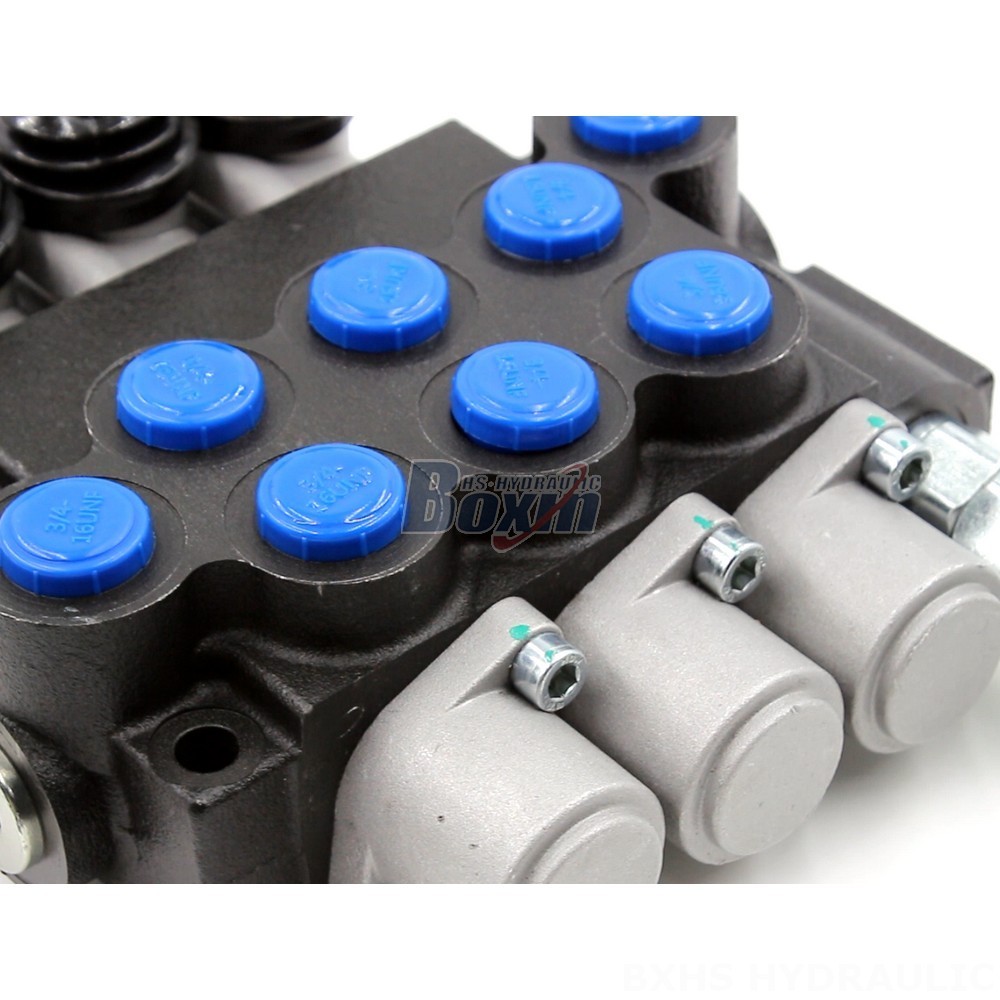

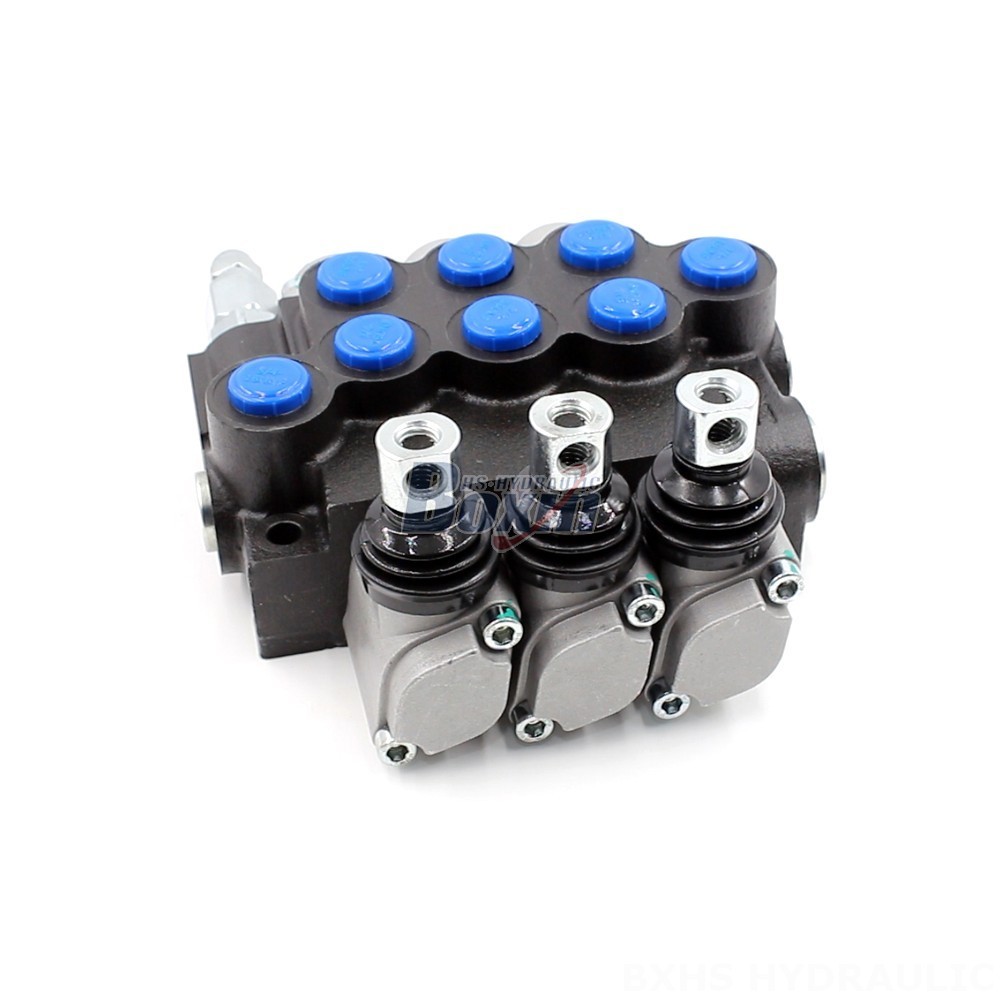

This P40-U78 Hydraulic Valve is a 3-section monoblock valve designed for manual control in various applications, including material handling, construction, and agriculture. It features a rated flow of 40 L/min, a max pressure of 250 bar, and is suitable for a wide range of operating temperatures.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our factory directly supplies this high-quality P40-U78 Hydraulic Valve, a 3-section monoblock valve with manual control. This valve is designed for applications in material handling, construction, and agriculture, and is suitable for various machines such as telehandlers, forklifts, cranes, and excavators. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions. It is also engineered for a wide operating temperature range of -40°C to +80°C, ensuring durability and longevity. We are a global supplier offering manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and find the perfect solution for your needs.
