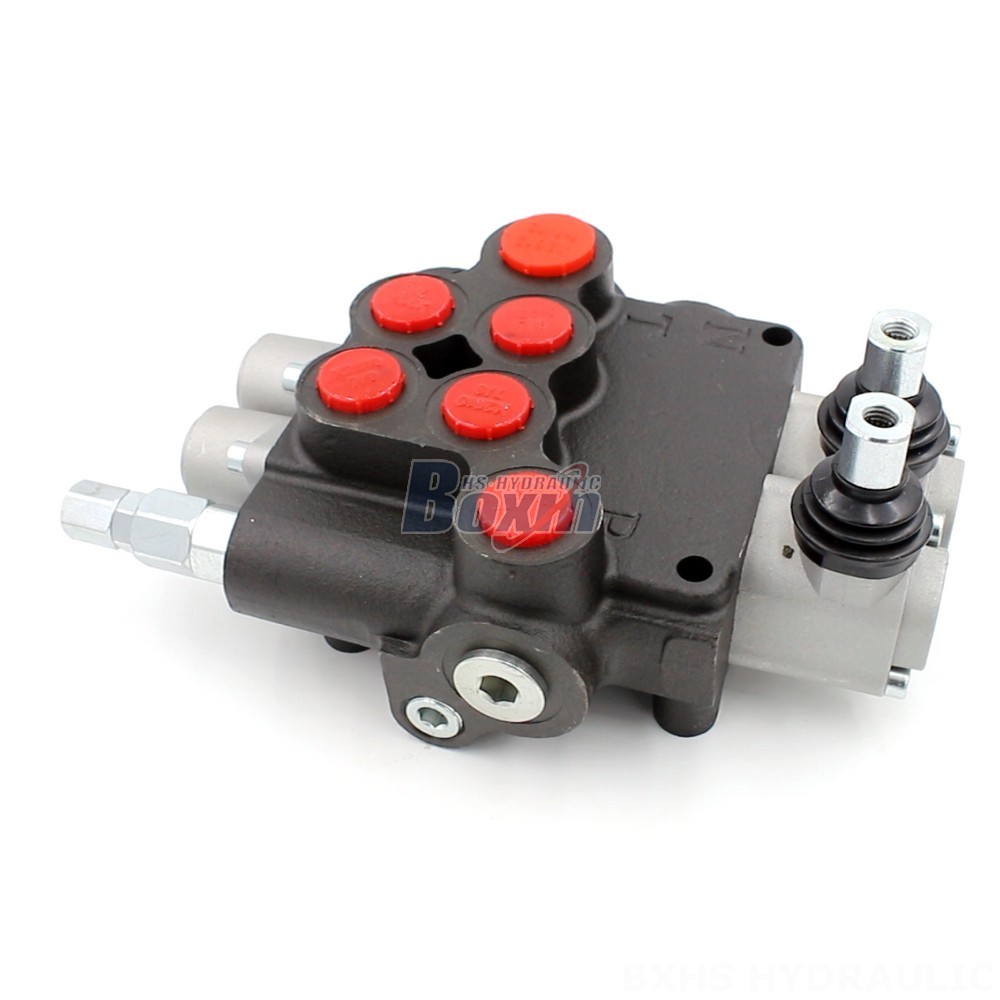

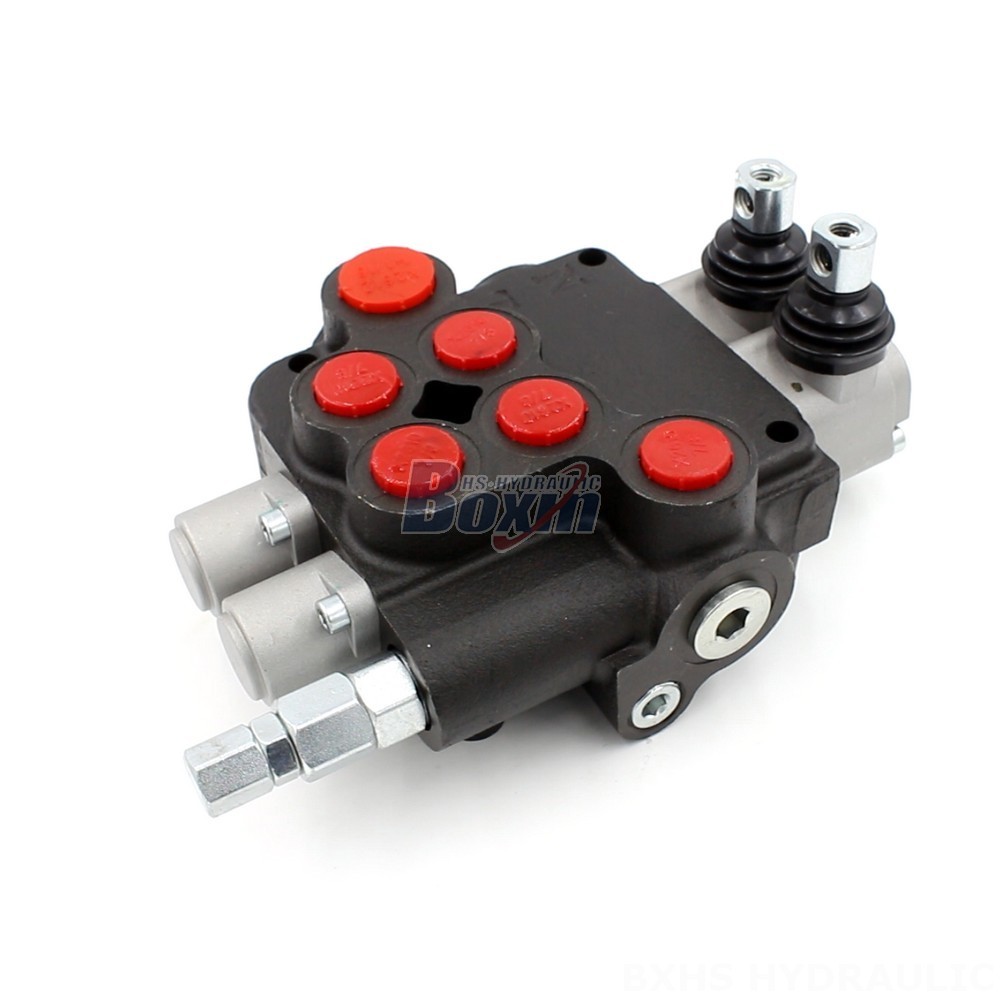

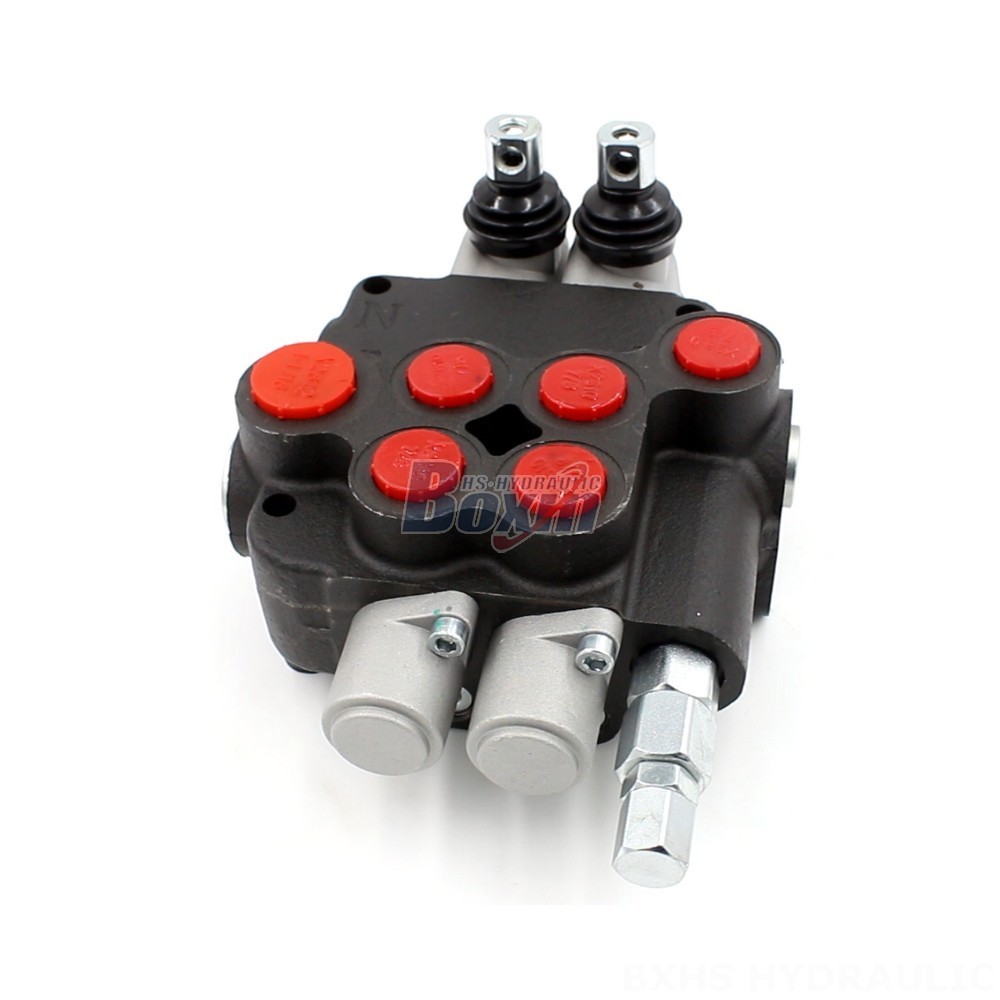

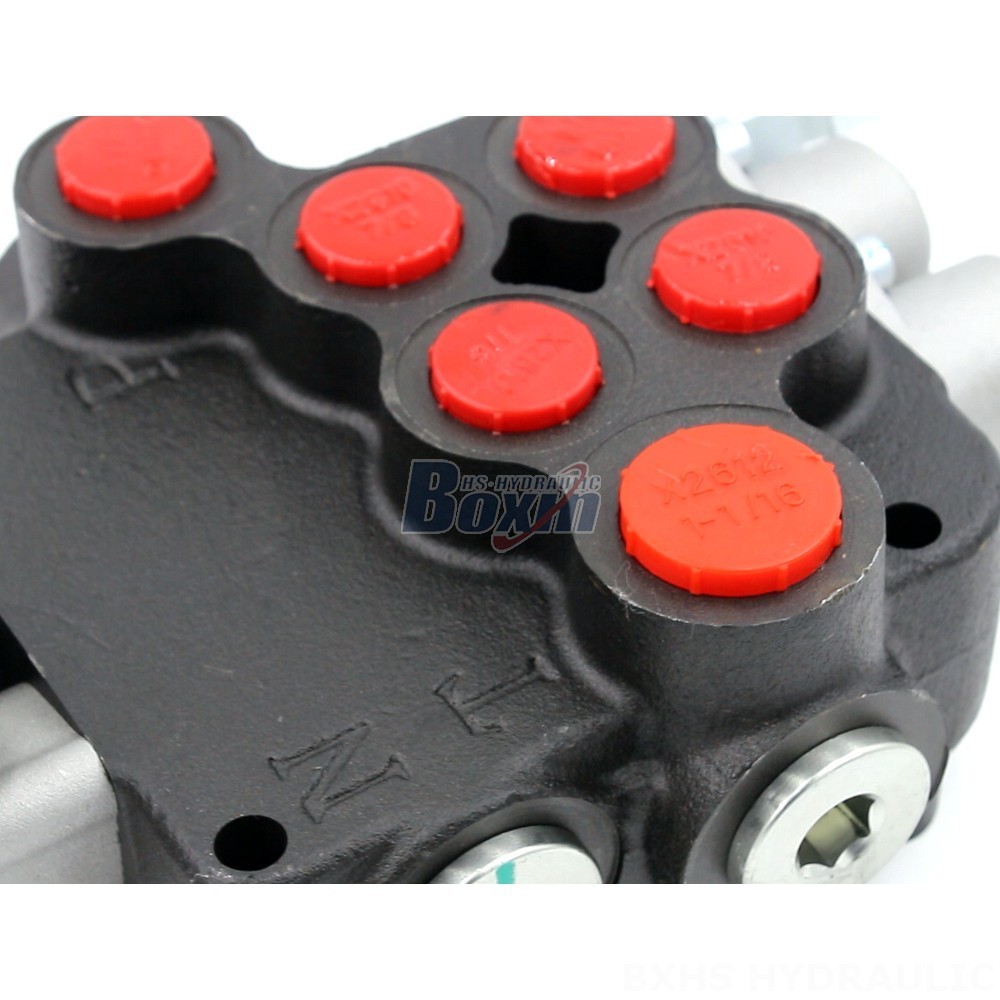

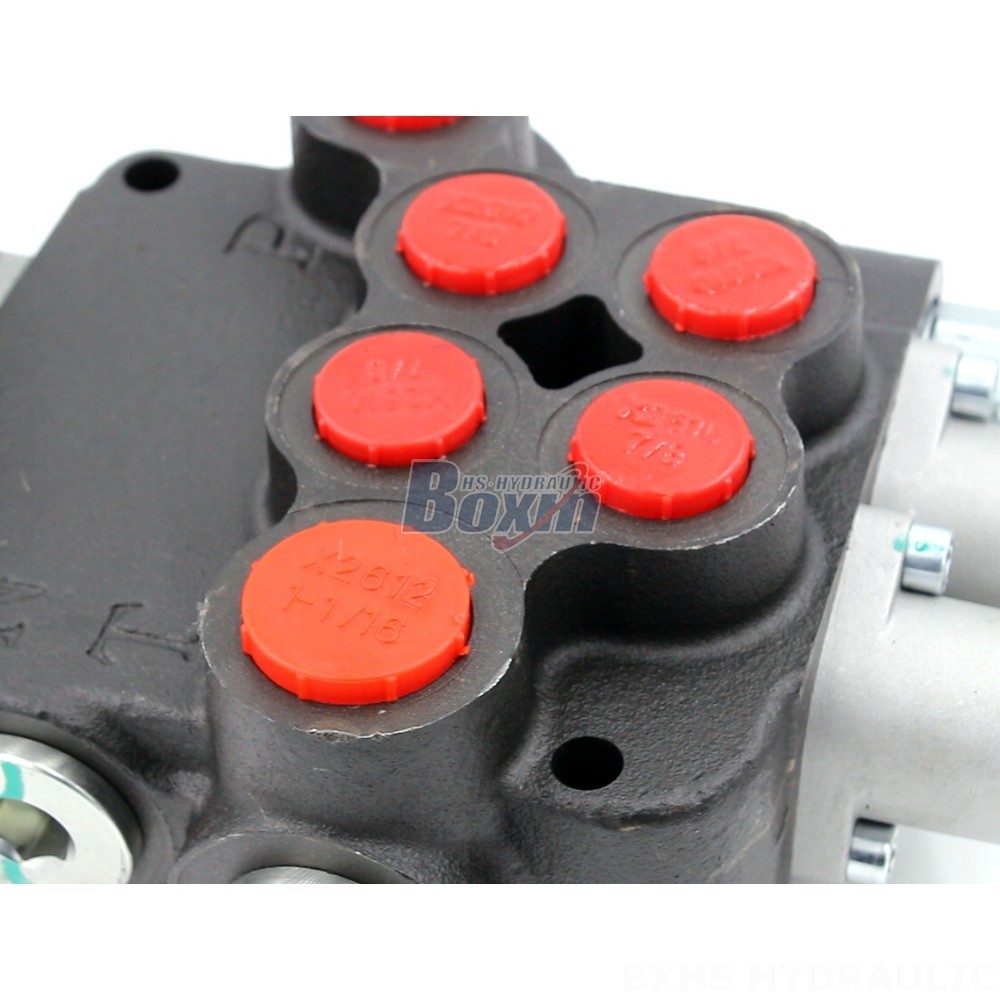

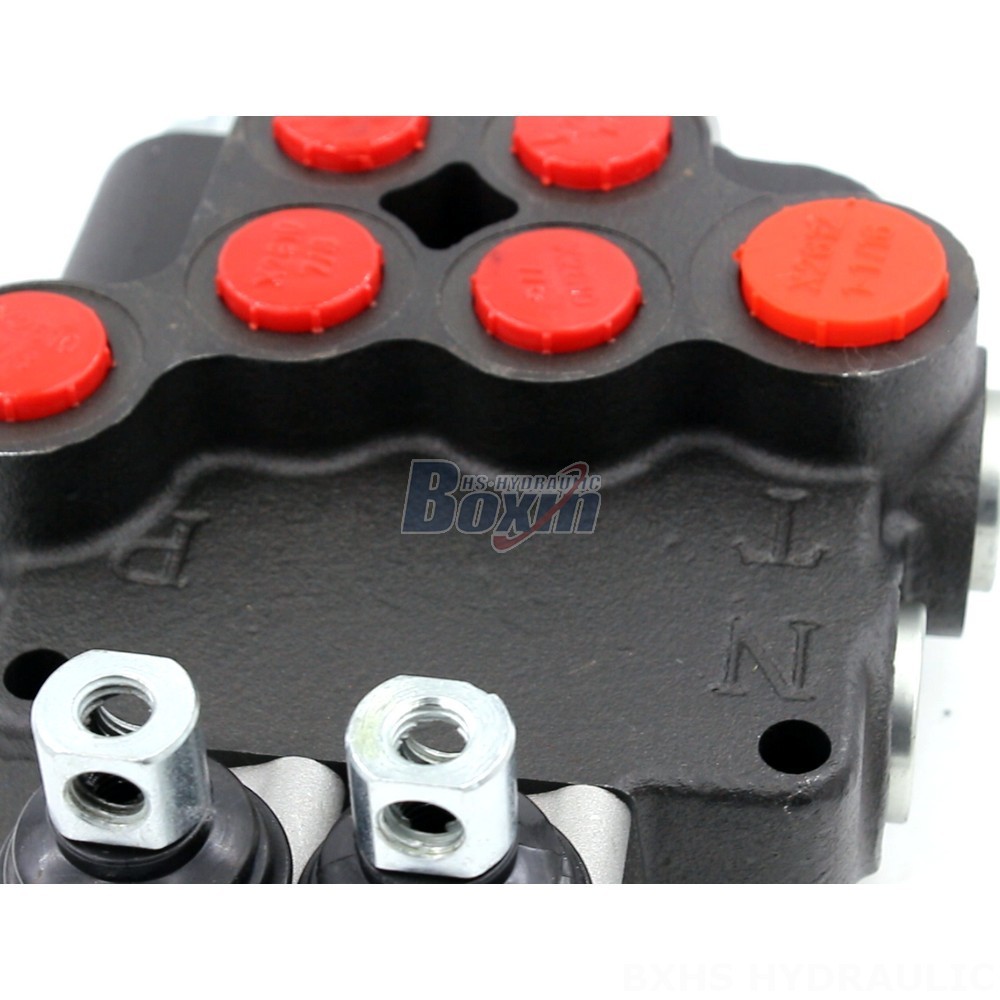

The Factory Wholesale Supply: P80-U116-U78 Hydraulic Valves from the Manufacturer are designed for use in a variety of applications including material handling, construction, agriculture, and industrial vehicles. These valves are manufactured to the highest standards and are available at competitive prices.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U116-U78 Hydraulic Valve is a monoblock valve with a manual control. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a wide range of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also suitable for use in a wide range of ambient temperatures, from -40°C to +80°C. The P80-U116-U78 Hydraulic Valve is available from the manufacturer at competitive prices. The valve is also available with a variety of options, including different spool types and port configurations.
