Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1402 Pandangan Mencari Produk Ini

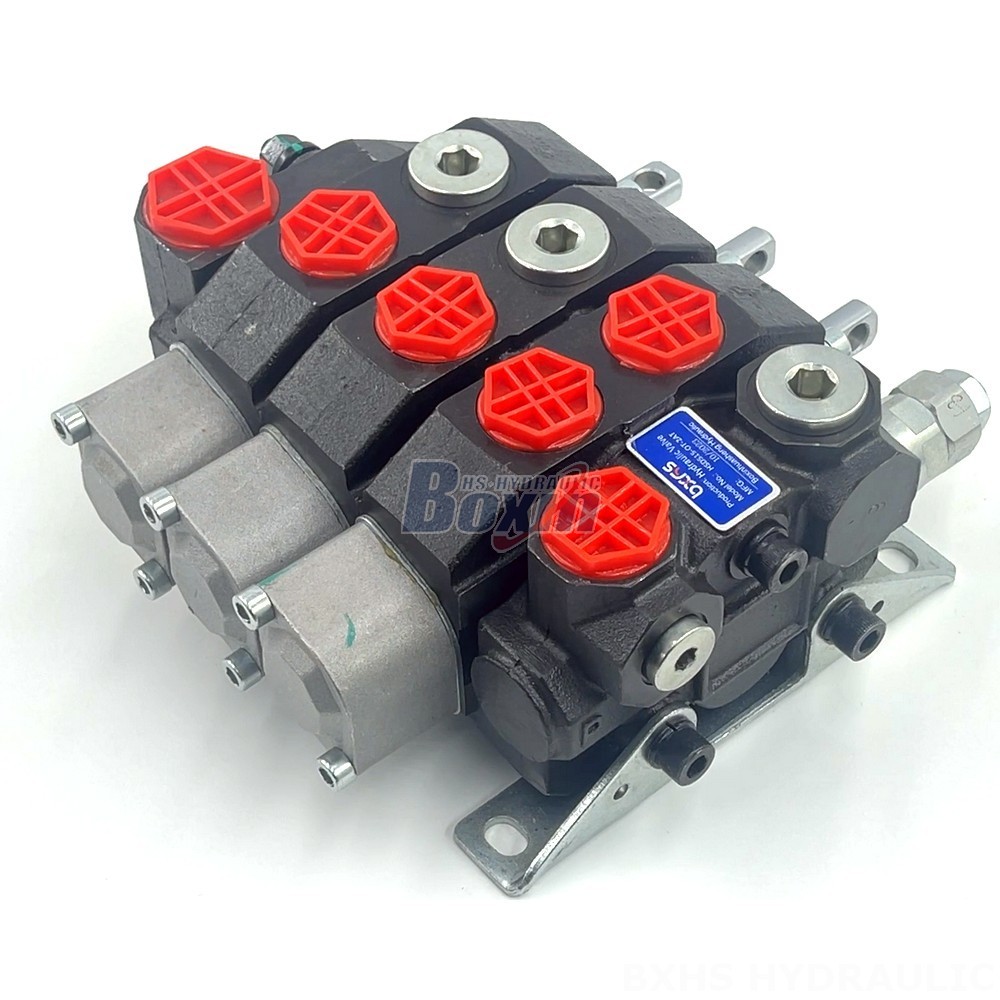

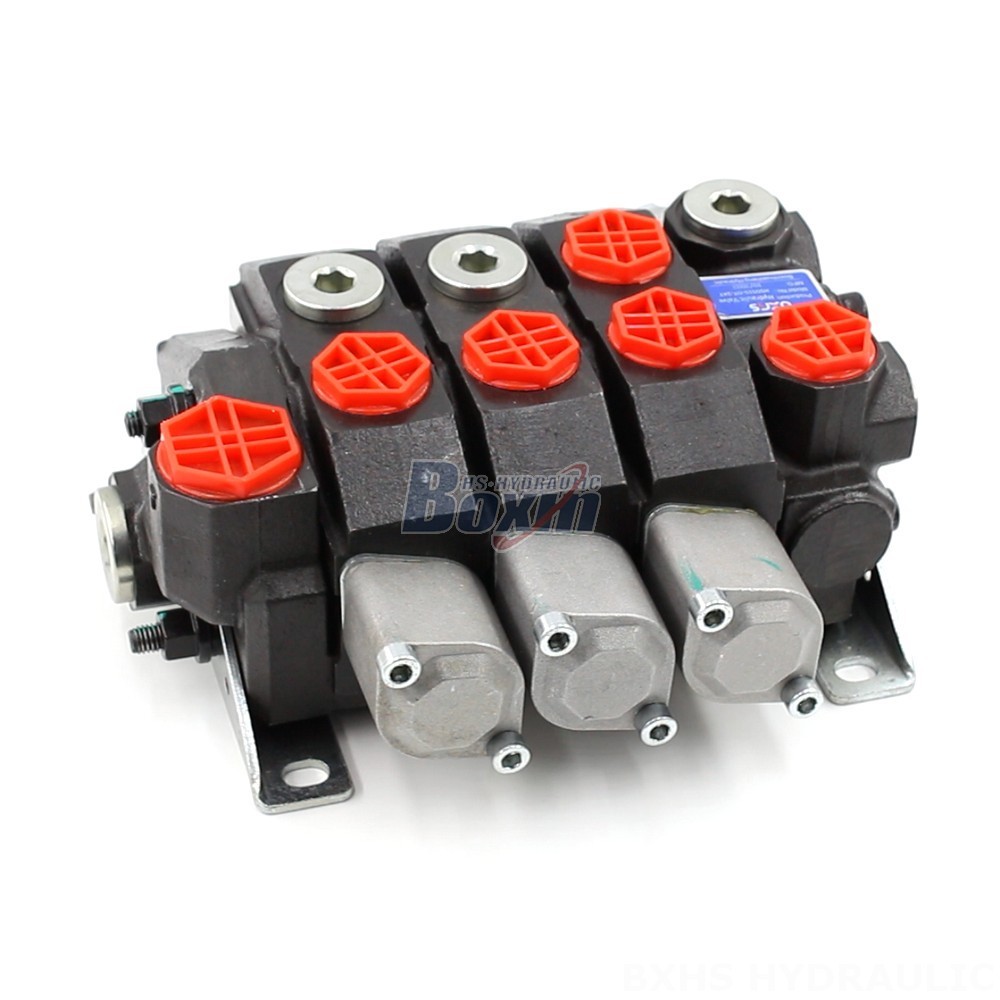

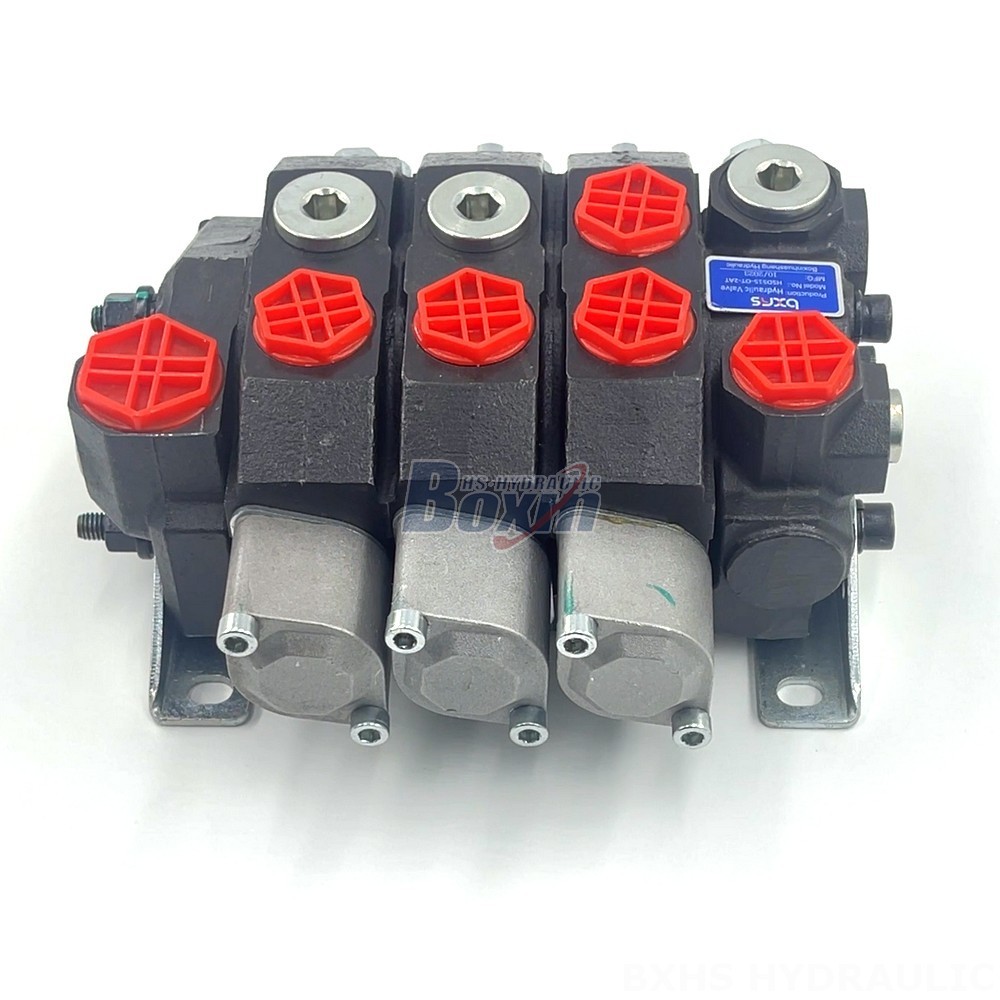

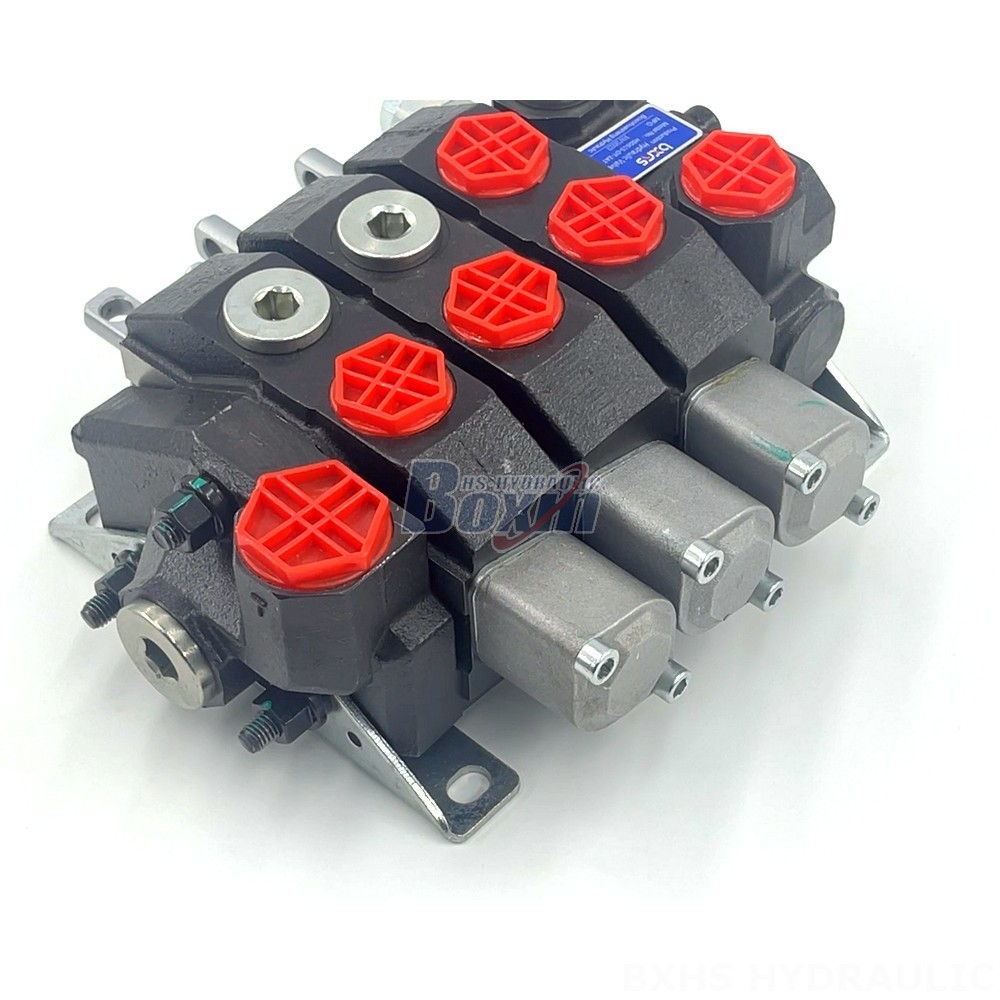

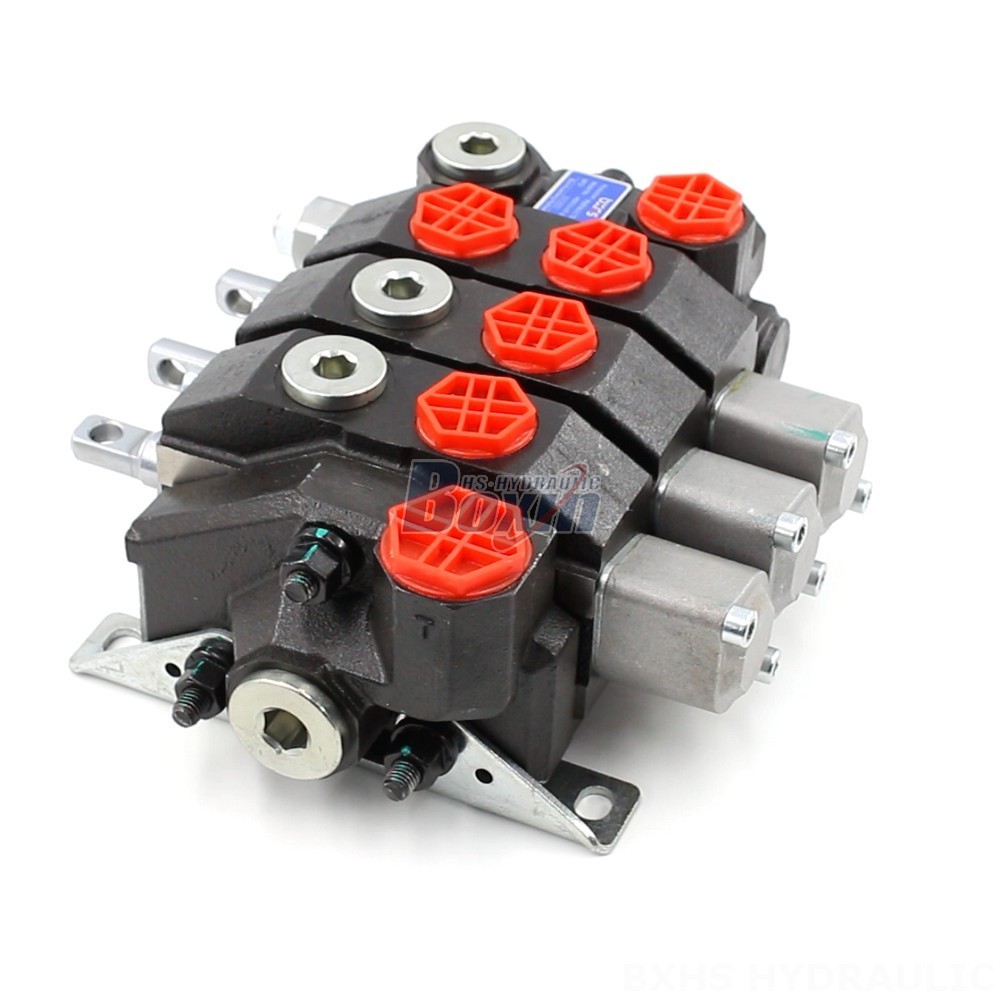

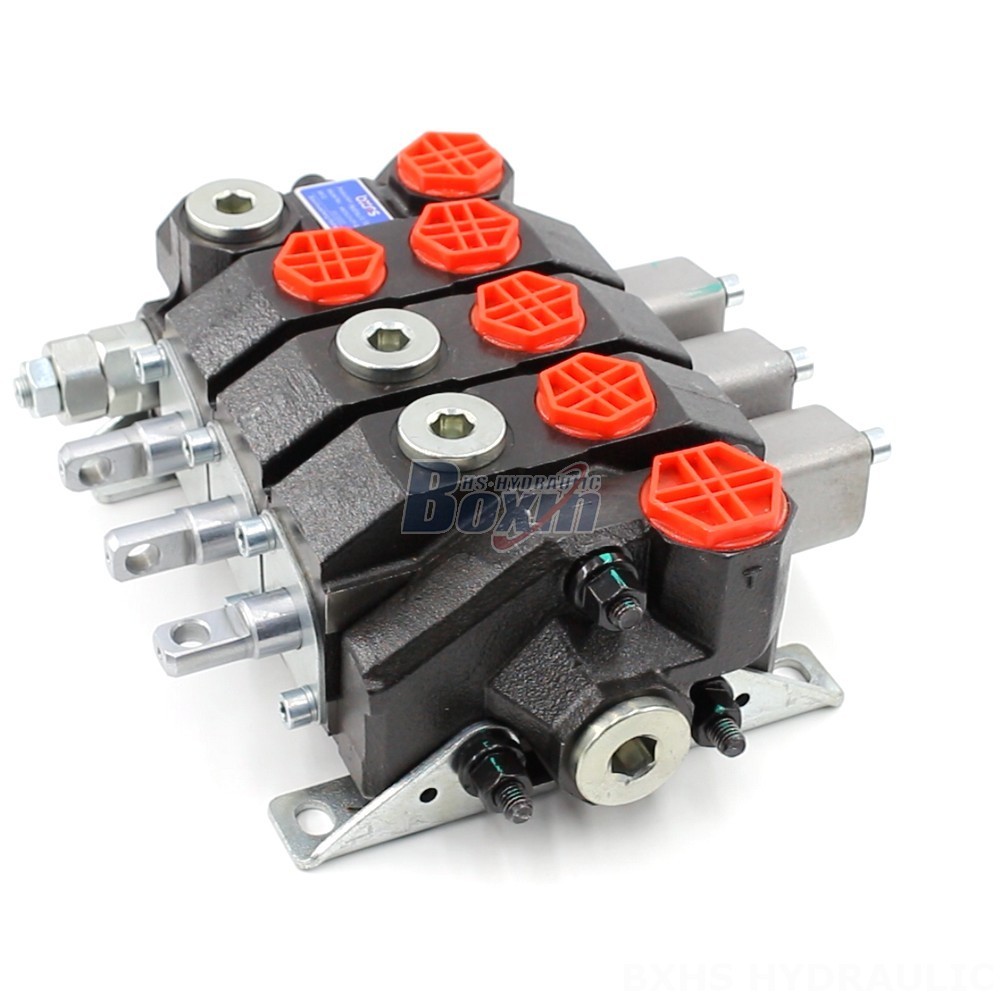

This is a high-performance, manual 3-spool monoblock directional valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It offers a flow rate of 60 L/min, a pressure rating of 315 bar, and is suitable for various operating temperatures and viscosity ranges.
| Seri HSDS15 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G1/2, SAE 8 |
| Port Keluar | G1/2, G3/4, SAE 8 |
| Ukuran Port | G1/2, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
This 3-spool manual directional valve from the HSDS15 series is a versatile, high-performance solution for hydraulic systems. Its compact monoblock design provides durability and efficiency. With a rated flow of 60 L/min and a maximum pressure of 315 bar, this valve is capable of handling demanding applications. The valve's sectional design allows for easy maintenance and repair. Ideal for use in forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, harvesters, balers, backhoes, and sprayers. The valve is built to withstand challenging environments with an operating temperature range of -40°C to +80°C.
