Metode Kontrol:Selenoid

Spul:5 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:200 bar (2900 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:33*44*11

Kelas kotor:19.50 kg

Ketersediaan: Tersedia

1156 Pandangan Mencari Produk Ini

Fluid Power

Fluid Power

Fluid Power drawing image

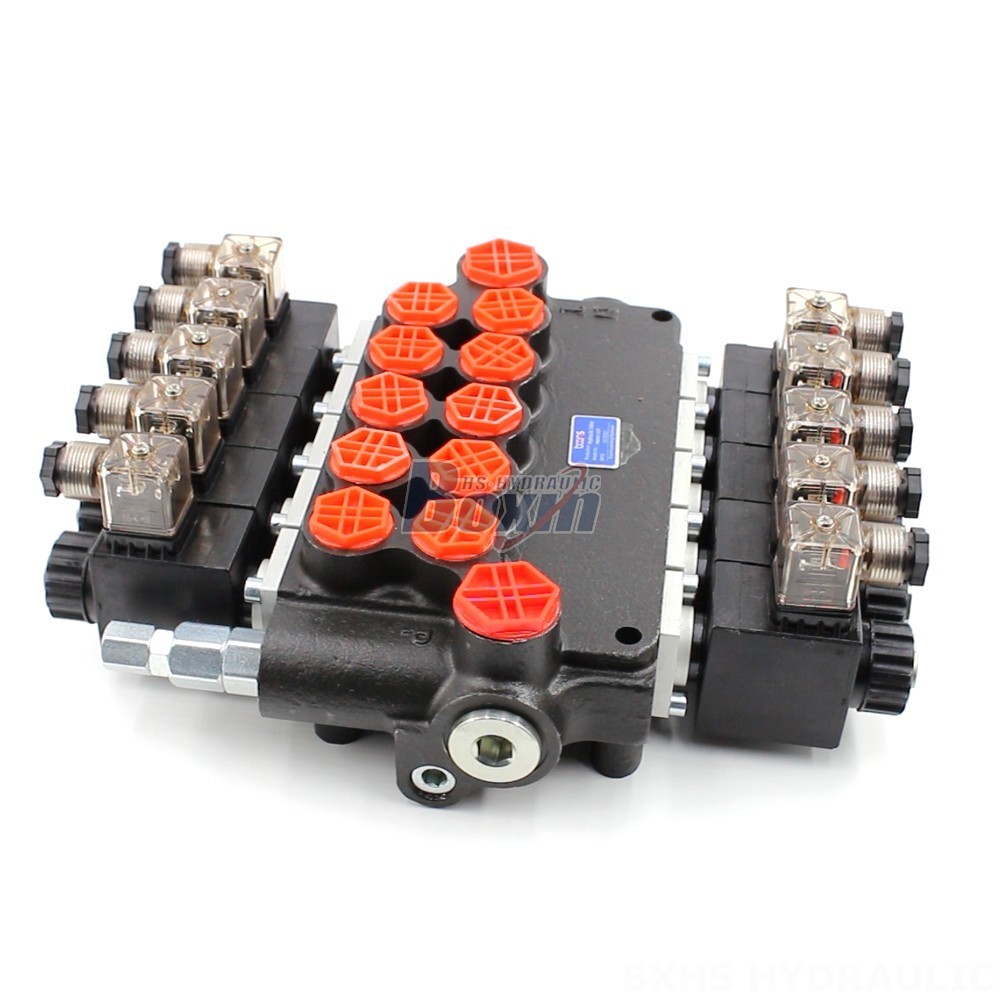

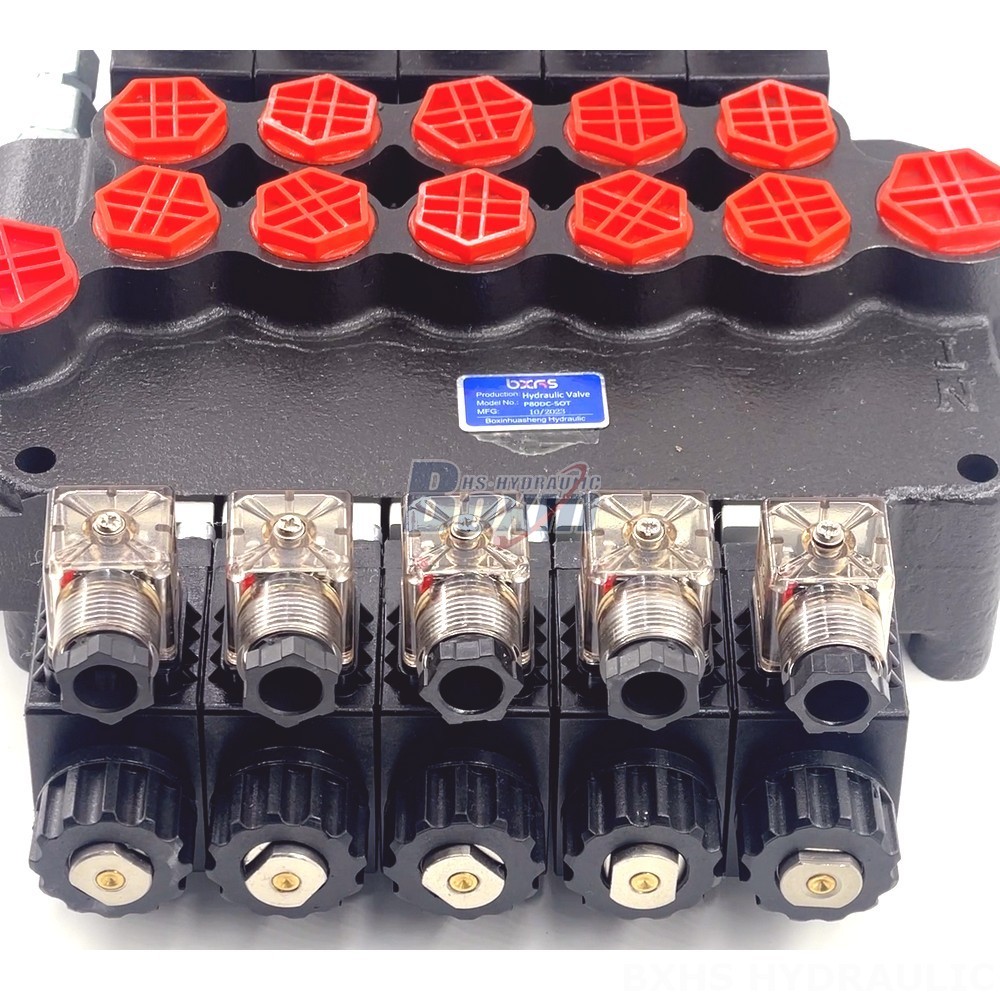

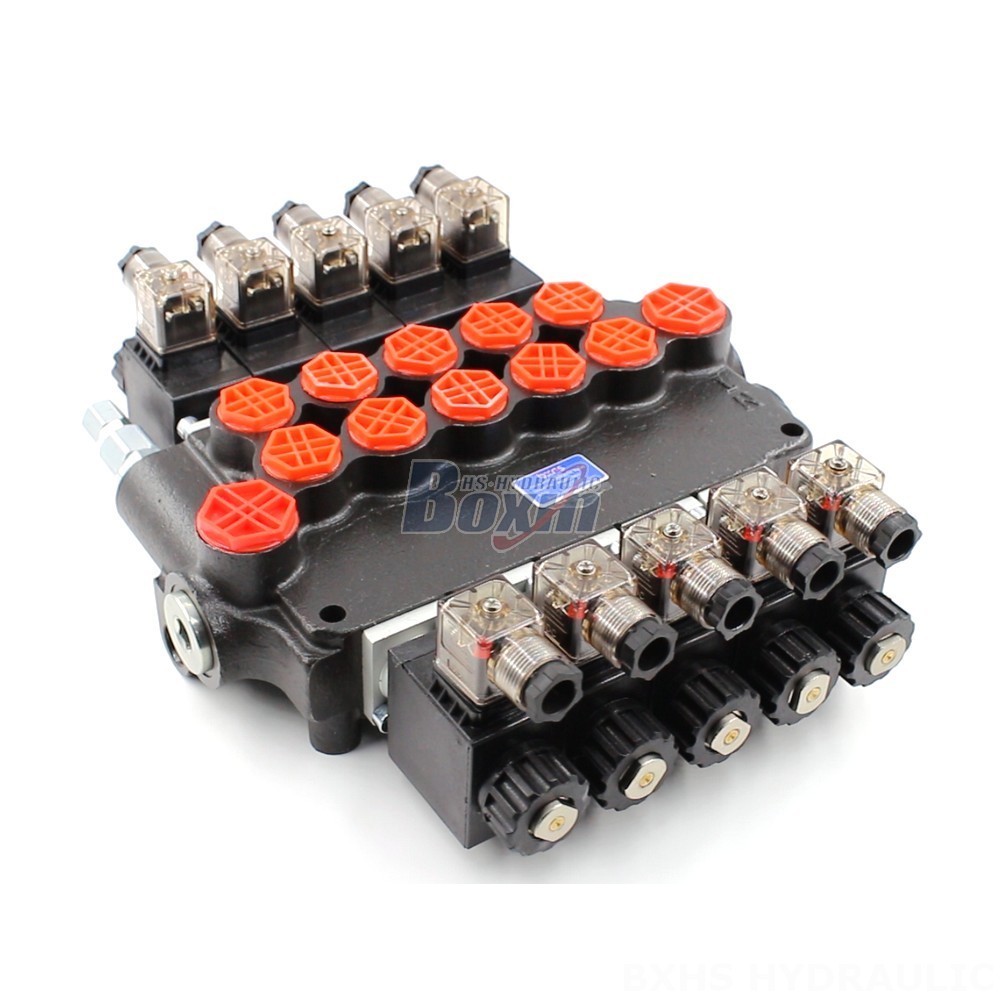

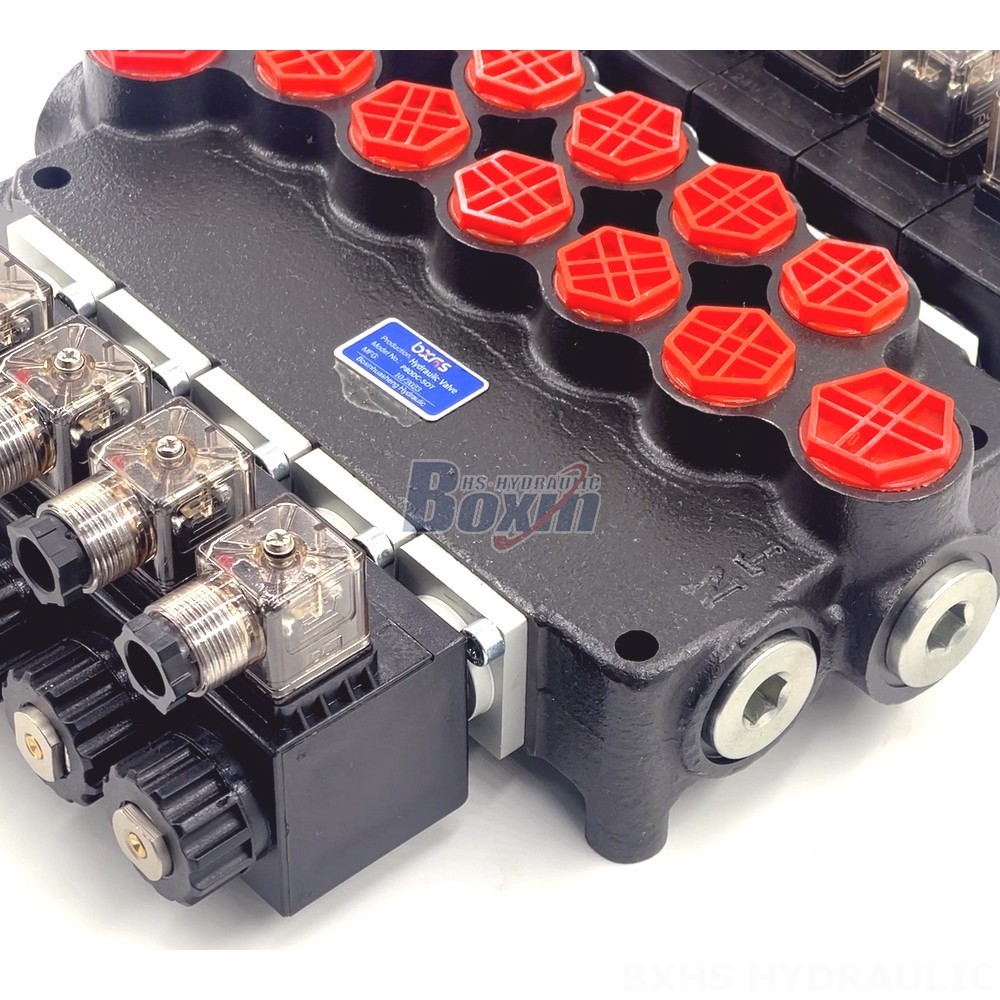

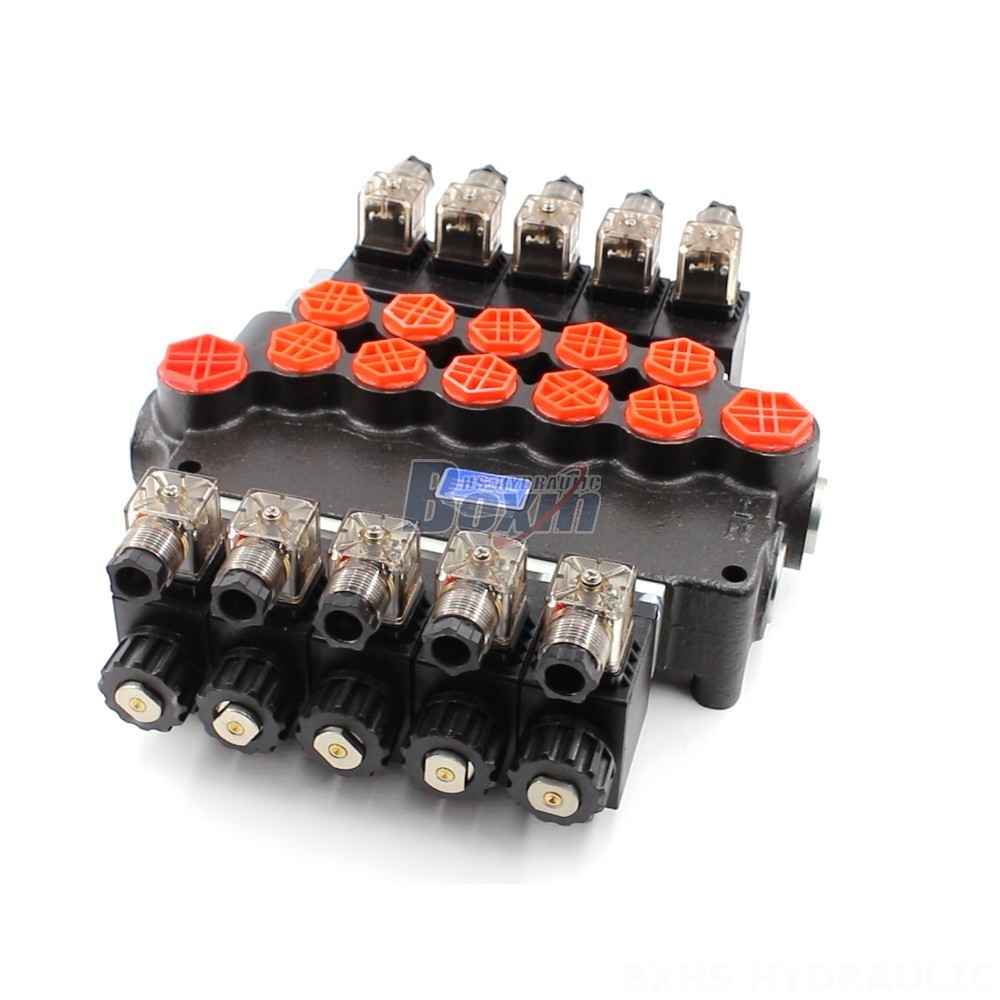

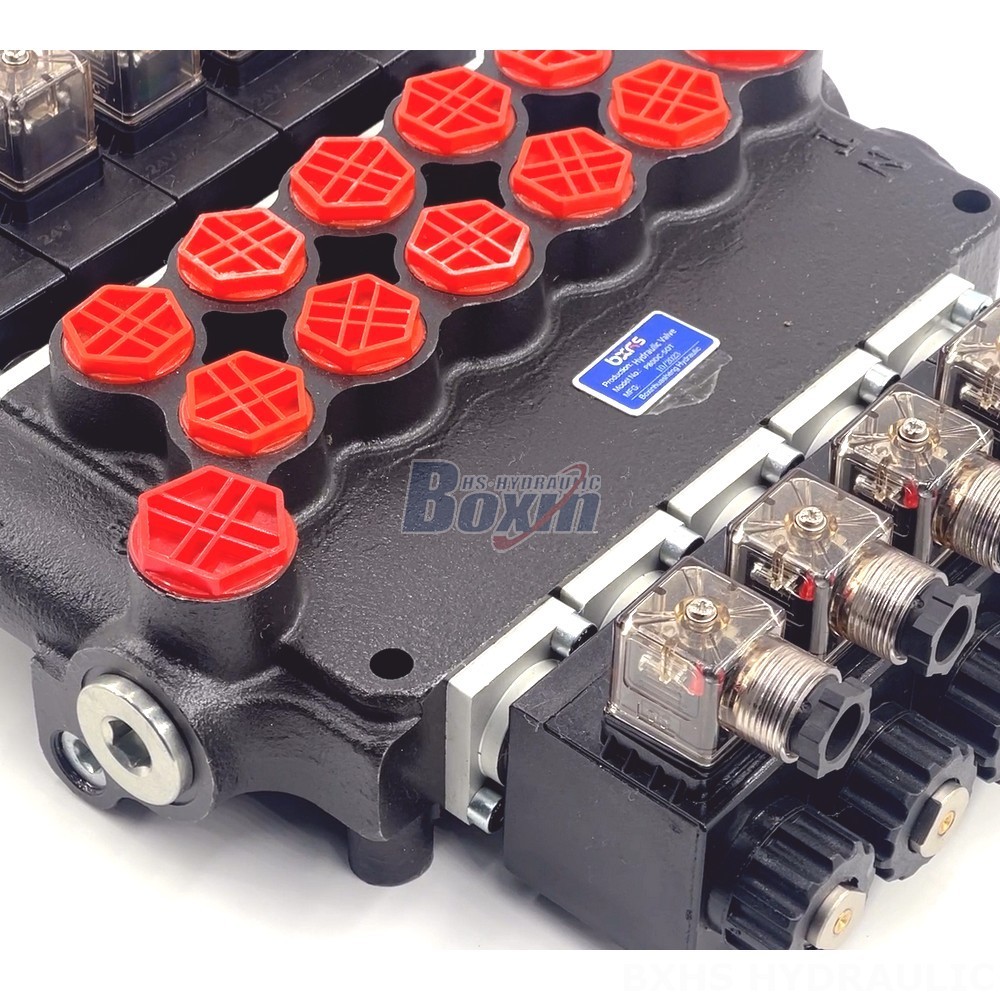

This hydraulic spool control valve is designed for electric remote control of fluid power systems in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock structure, 5 sections, and a rated flow of 80 L/min, it operates at pressures up to 250 bar.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic spool valve is engineered for demanding applications in material handling, construction, and industrial vehicles. It features an electric remote control method with a solenoid for precise actuation. The monoblock structure provides durability and reliability, while the 5-section design allows for versatile control configurations. The valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its wide operating viscosity range (15 - 75 mm²/s) ensures consistent performance across various operating conditions. The valve is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it suitable for diverse environments. This valve is ideal for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
