Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1041 Pandangan Mencari Produk Ini

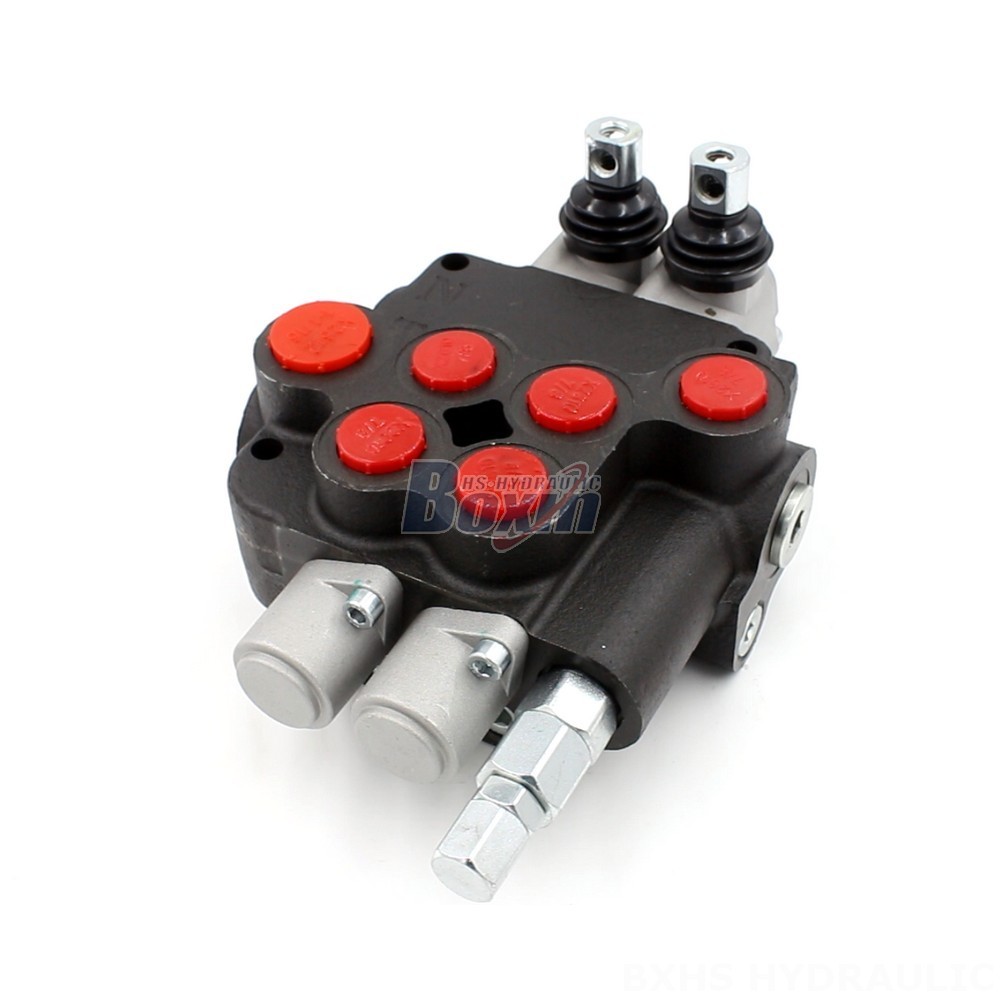

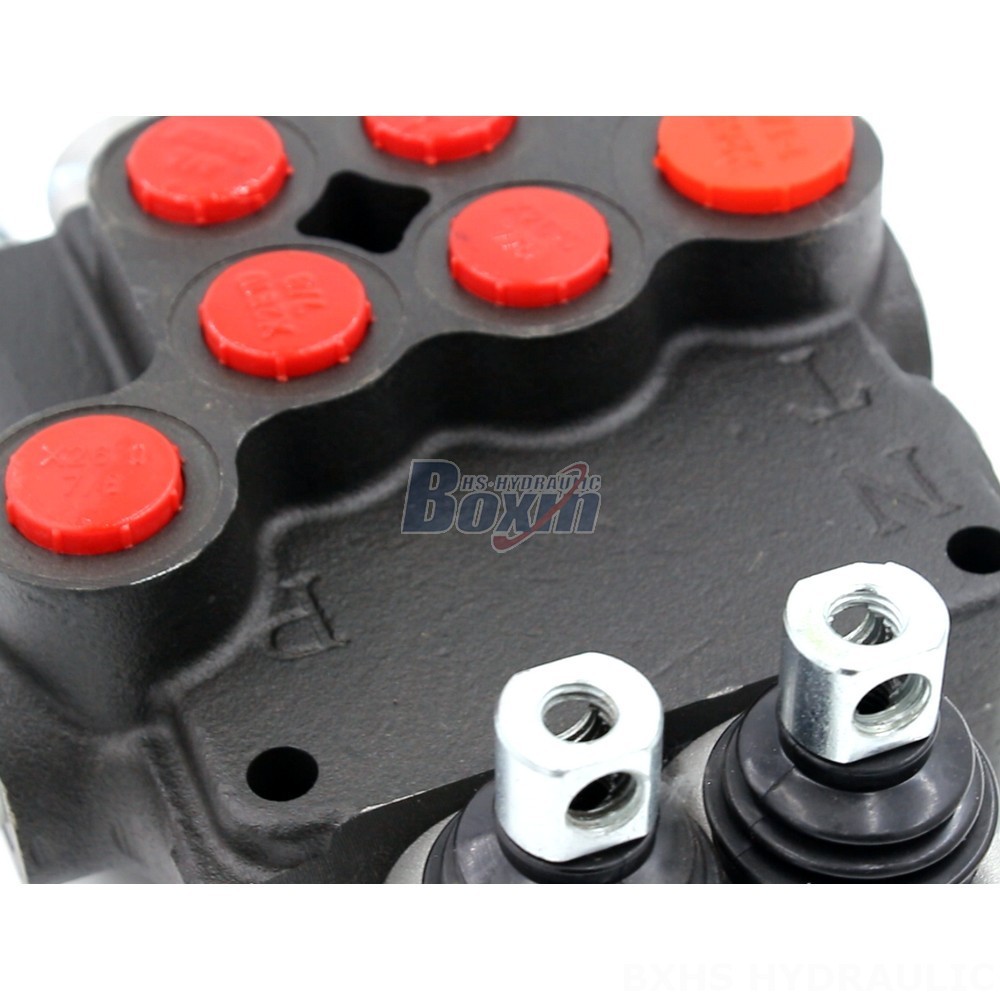

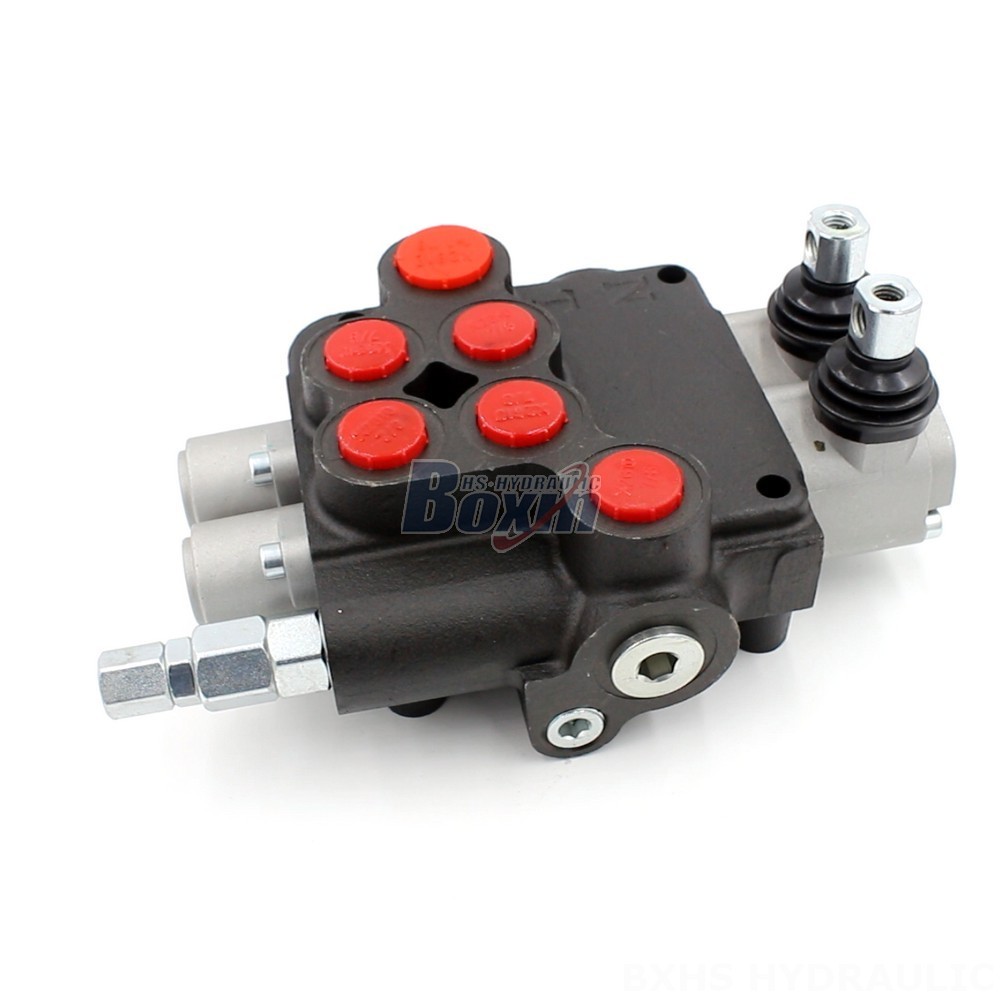

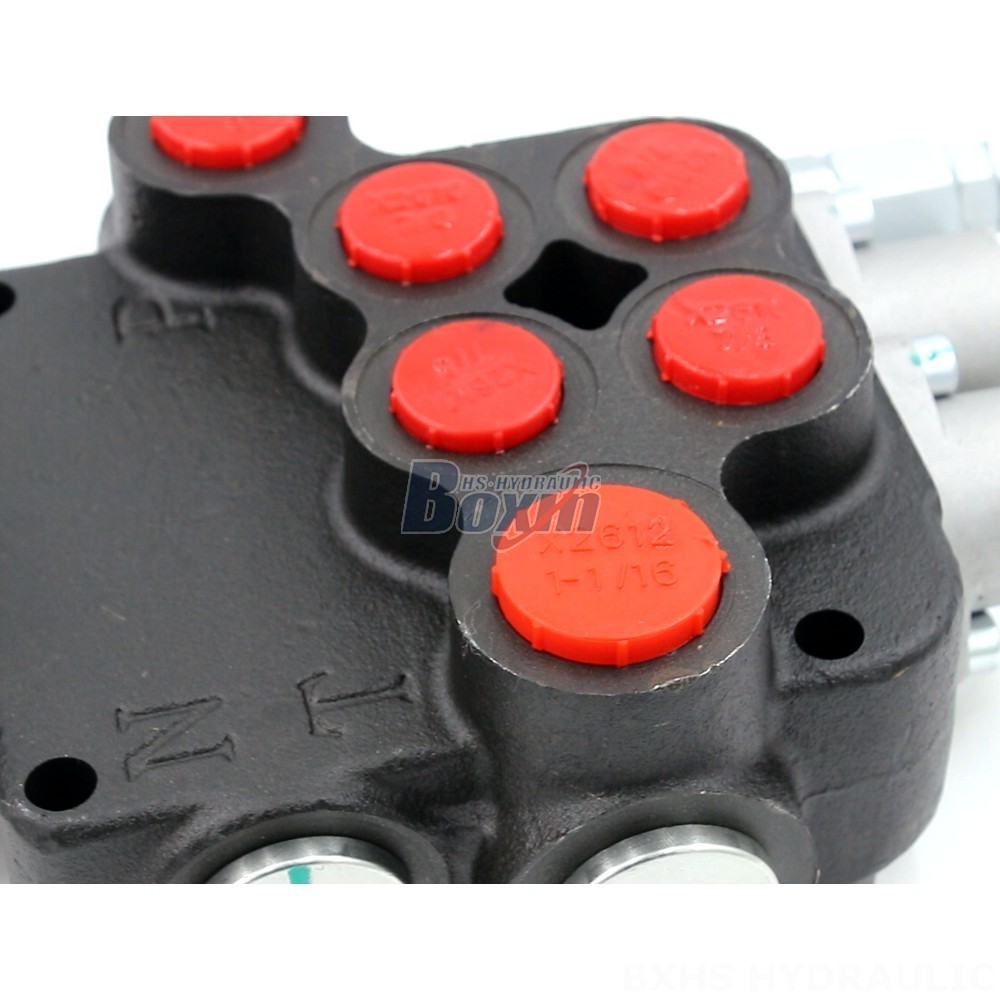

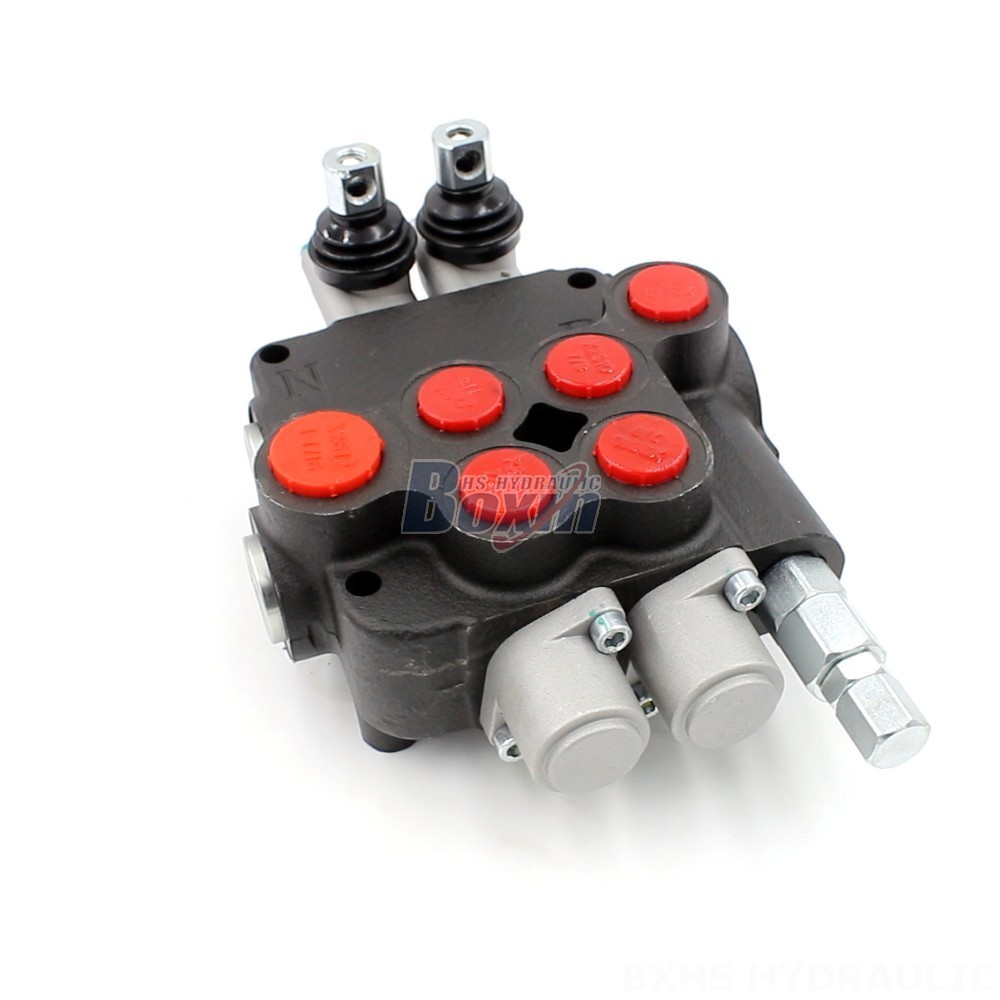

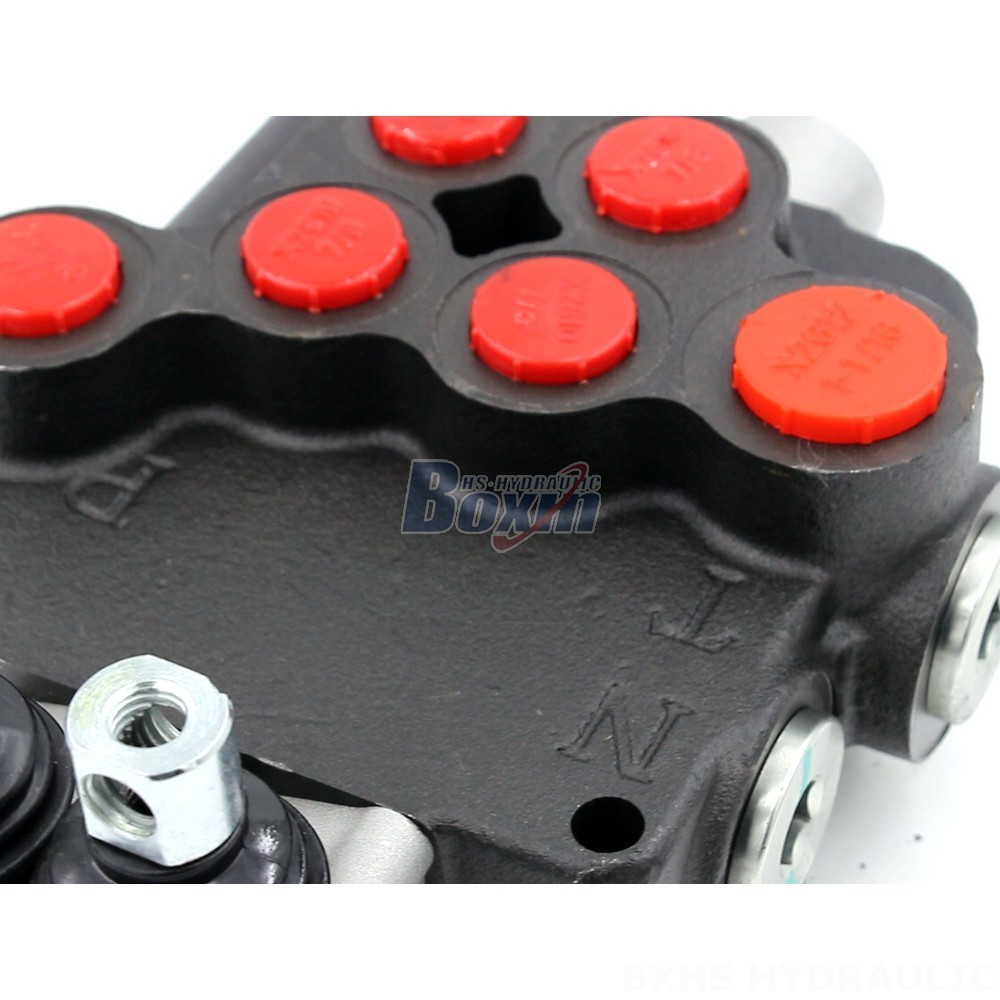

The P80-U116-U78 hydraulic valve is a high-performance, manually controlled monoblock valve designed for demanding applications in various industries. With a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s, it ensures efficient and reliable operation in challenging conditions. Its temperature range of -40°C to +80°C allows for use in extreme environments.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U116-U78 hydraulic valve features a single spool and is part of the P80 Series. Its versatile applications include material handling, construction and earth moving, agriculture, and industrial vehicles. It is ideally suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. We are seeking distributors, wholesalers, traders, and resellers to expand the global reach of this exceptional hydraulic valve.
