Produksi & Pengiriman
Waktu Produksi 15-30 Hari
235 Pandangan Mencari Produk Ini

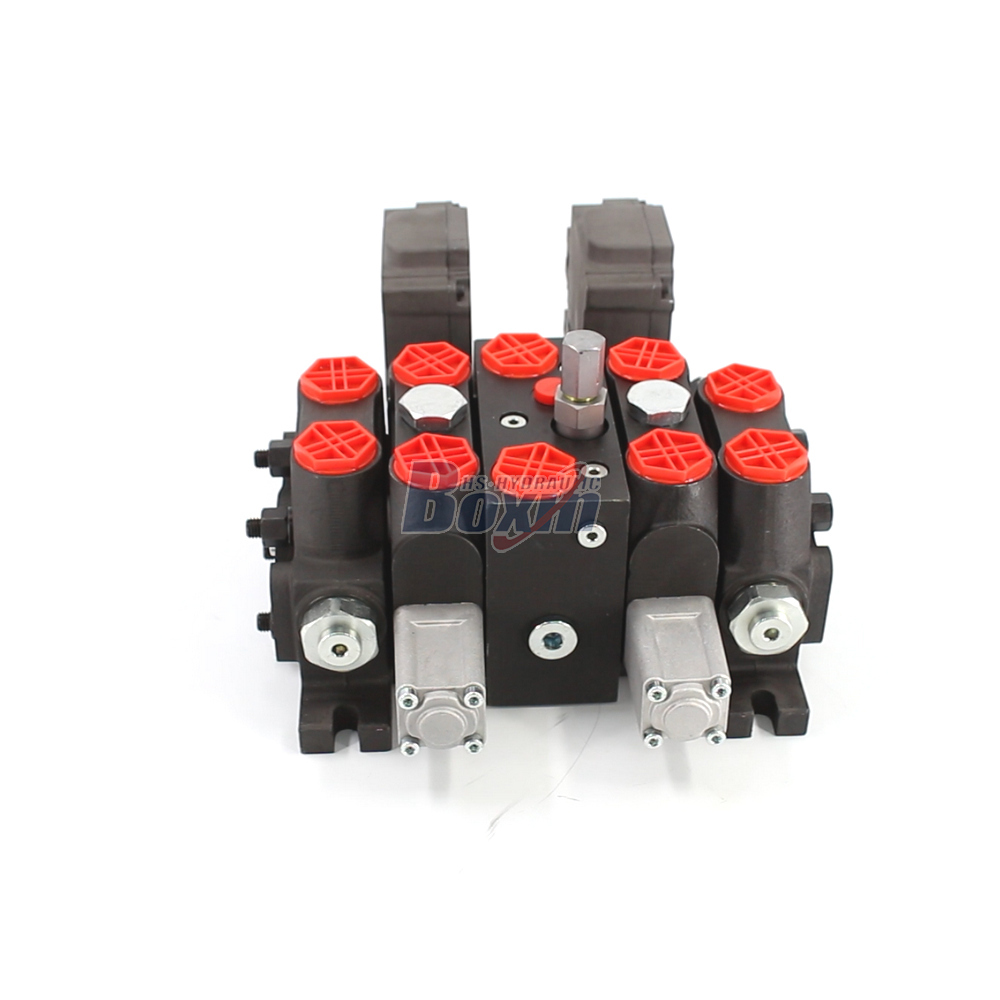

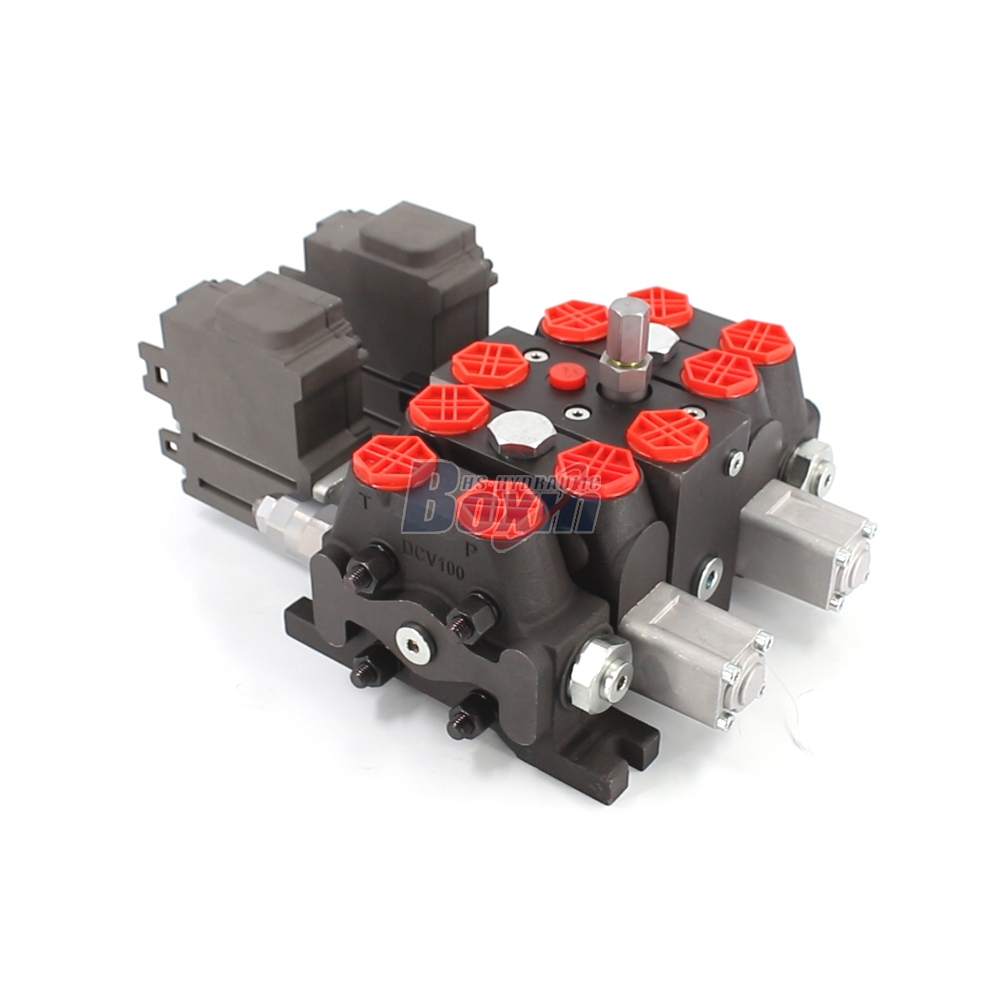

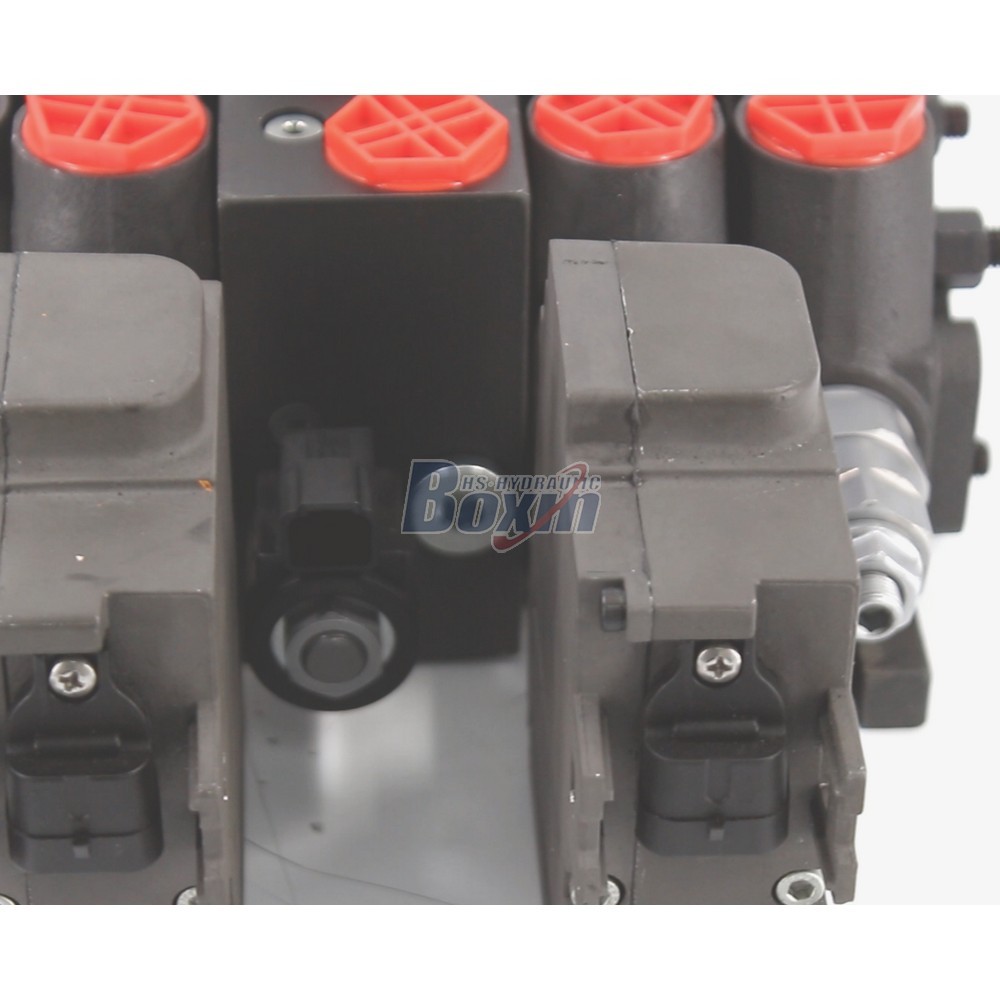

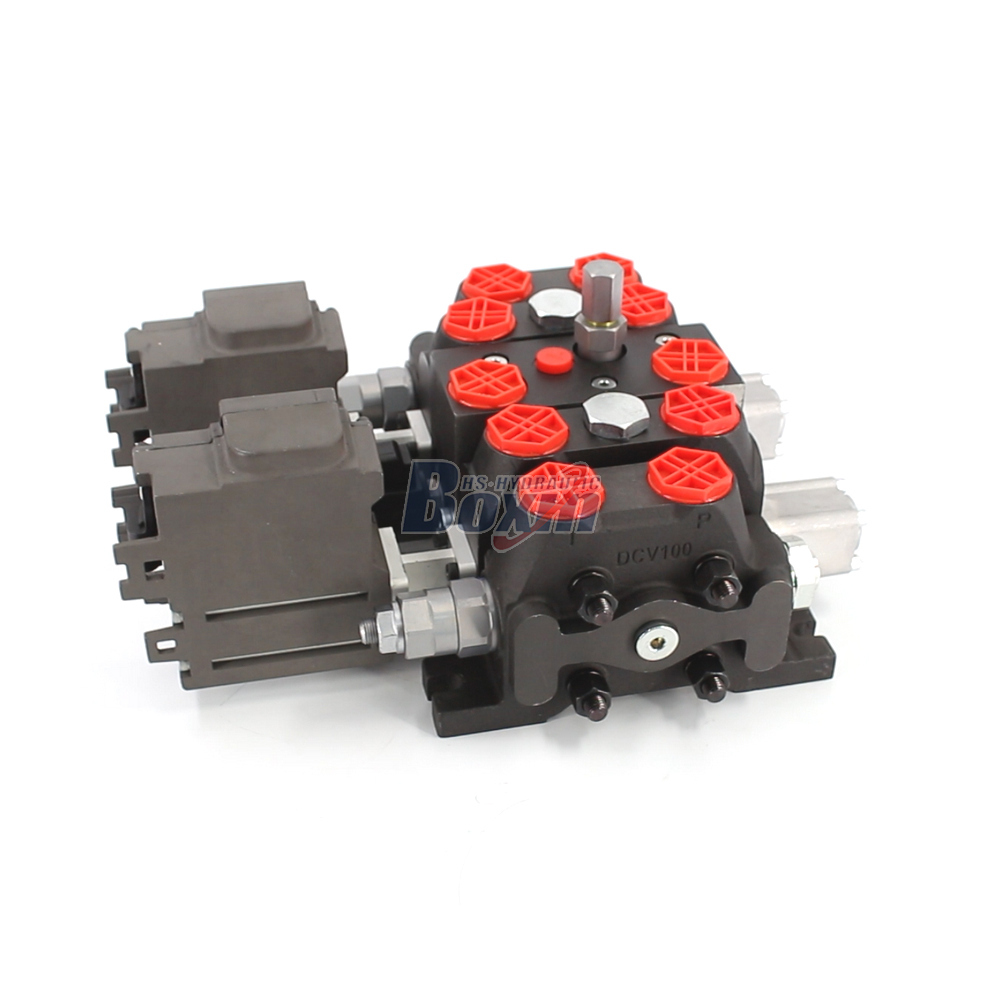

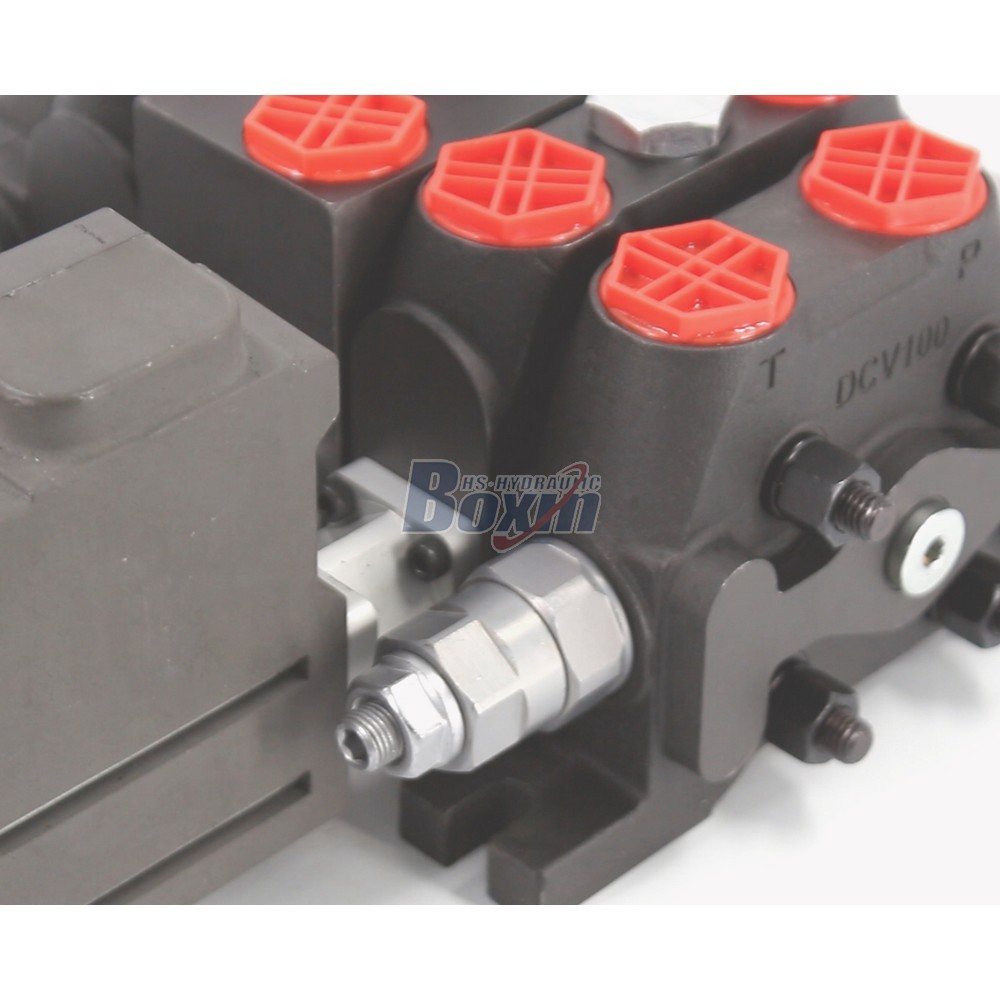

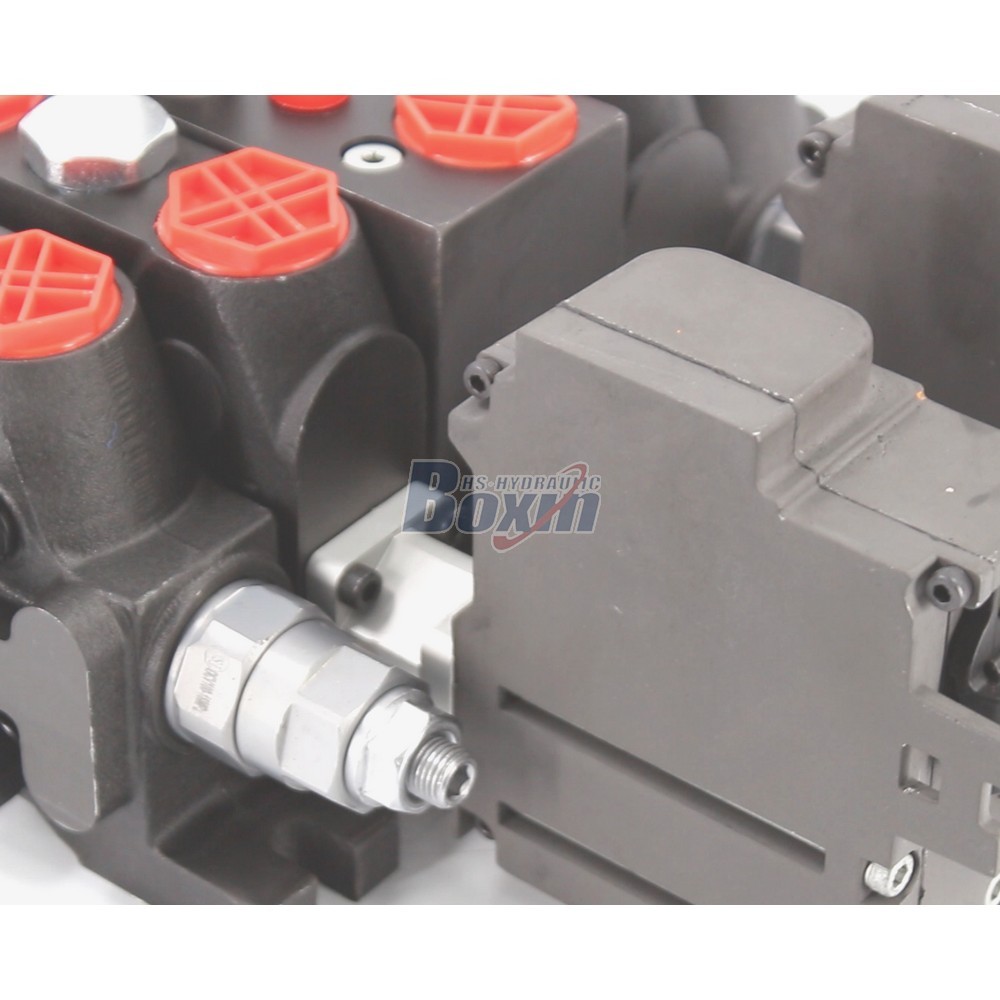

This DCV100 Series Sectional Directional Valve features electric motor control, 2 spools, and handles 100 L/min at 315 bar. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for forklifts, telehandlers, and agricultural machinery.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. Factory Direct Sales of Sectional Directional Valve**
- Sourced directly from our 68,000 sqm facility with 1,500,000 annual capacity, ensuring competitive Wholesale China Factory pricing.
- The DCV100EMA-YT-JYT-J-K model offers G3/4 ports and supports material handling applications with consistent supply stability.
**2. Reliable Electric Motor Control Valve Performance**
- Engineered for precise operation with a rated flow of 100 L/min (26.5 US gpm) and max pressure of 315 bar (4600 psi).
- Ideal for OEM integration in aerial platforms and wood splitters, providing smooth electric actuation without manual lever fatigue.
**3. Durable 2 Spool Hydraulic Valve Construction**
- Built with high-grade castings and processed on 260+ vertical machining centers to meet strict dimensional tolerances.
- Features dual spool design perfect for compact wheel loaders and backhoe loaders requiring independent circuit control.
**4. Professional Manufacturer Quality Assurance**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing before shipment, backed by CE and SGS certifications.
- Our IATF 16949 certified process guarantees zero-defect delivery, making us a trusted partner for global distributors.
**5. OEM/ODM Available Customization Services**
- Supported by 35+ senior engineers, we offer private label options, custom logos, and specific port configurations.
- Compatible with major international brands, this solution allows wholesalers to expand their product line with minimal R&D cost.
