Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1002 Pandangan Mencari Produk Ini

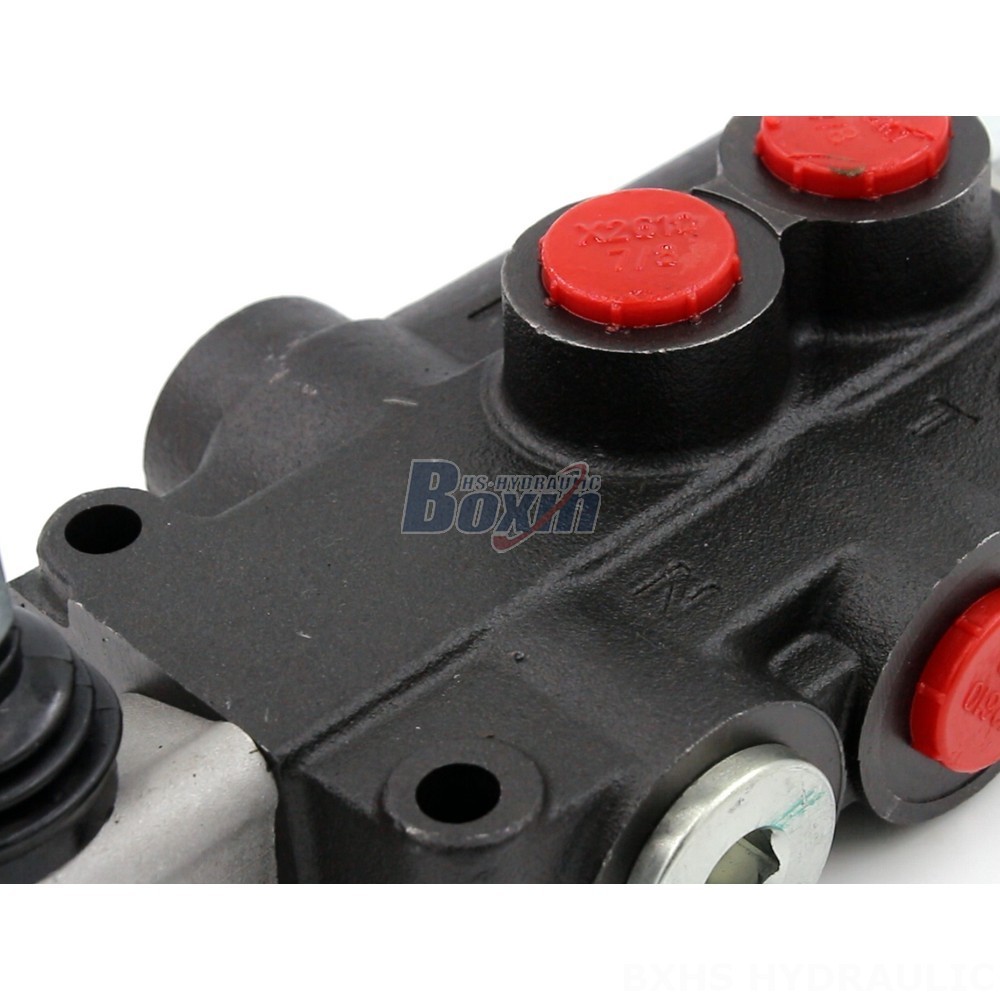

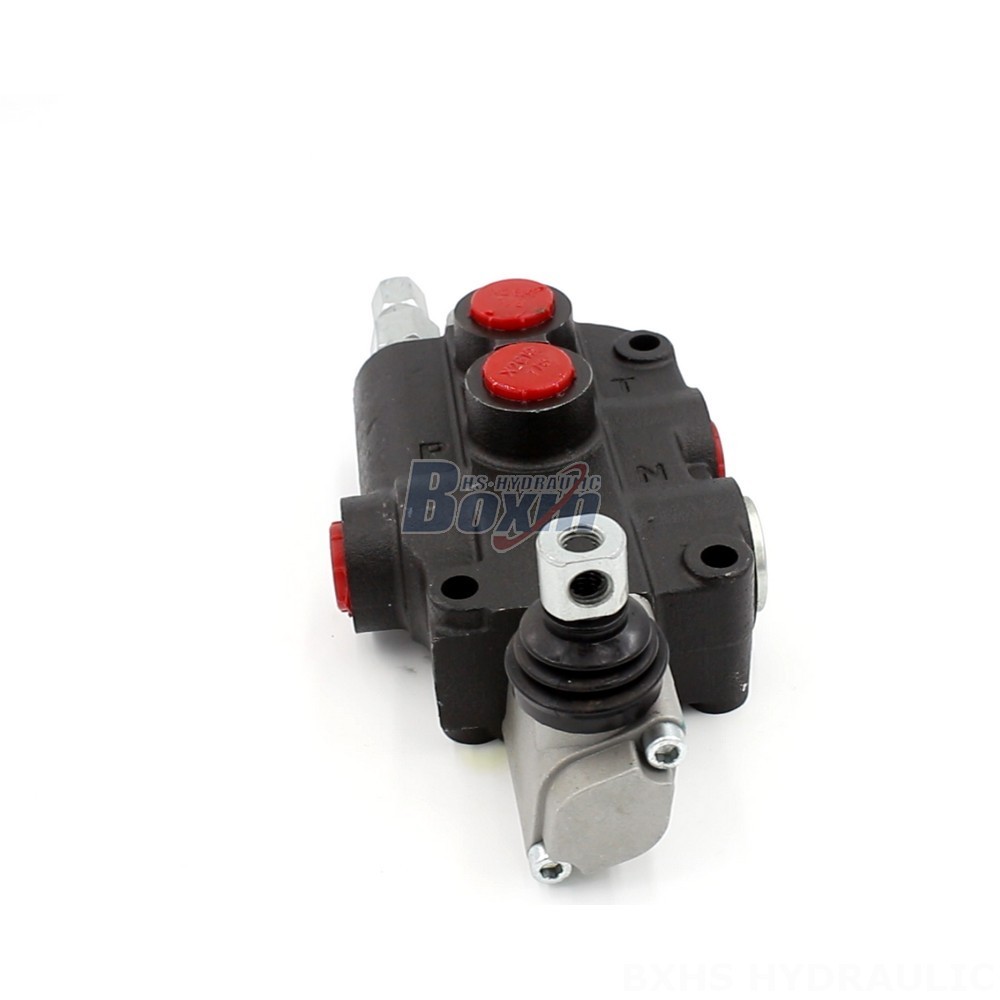

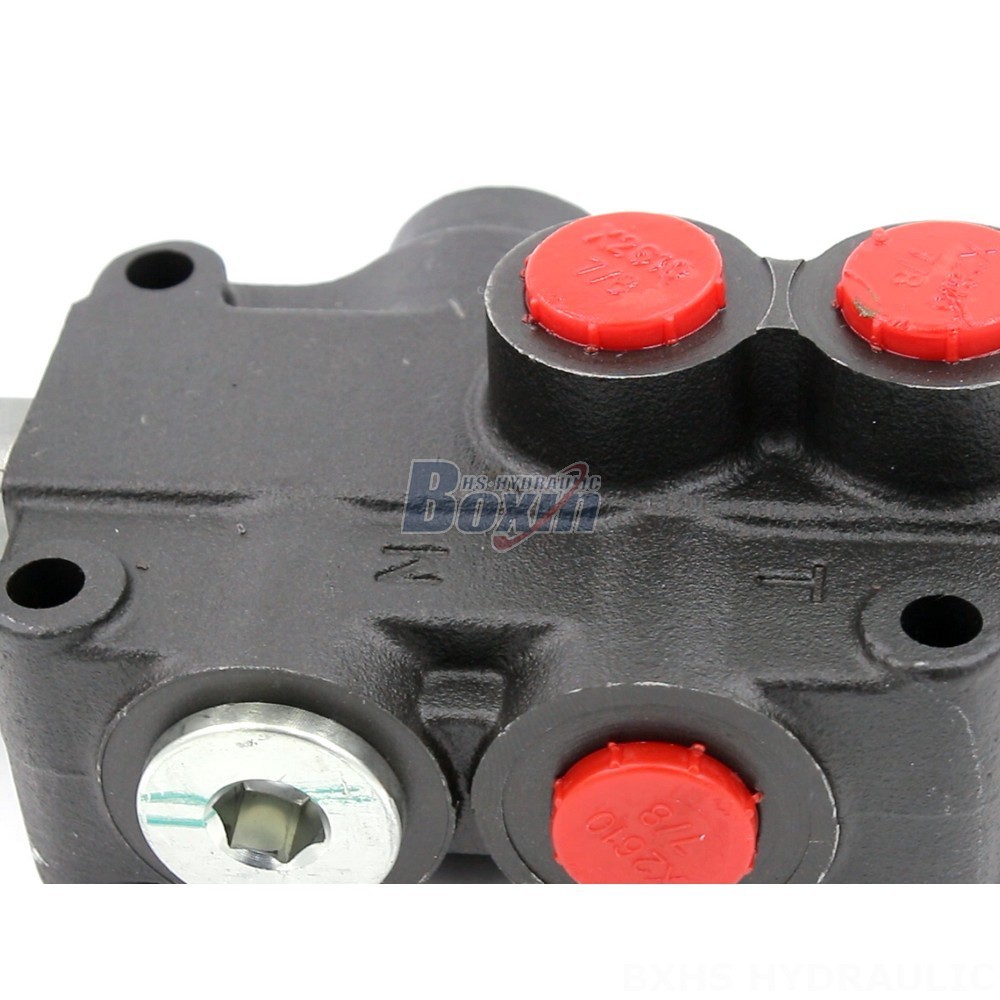

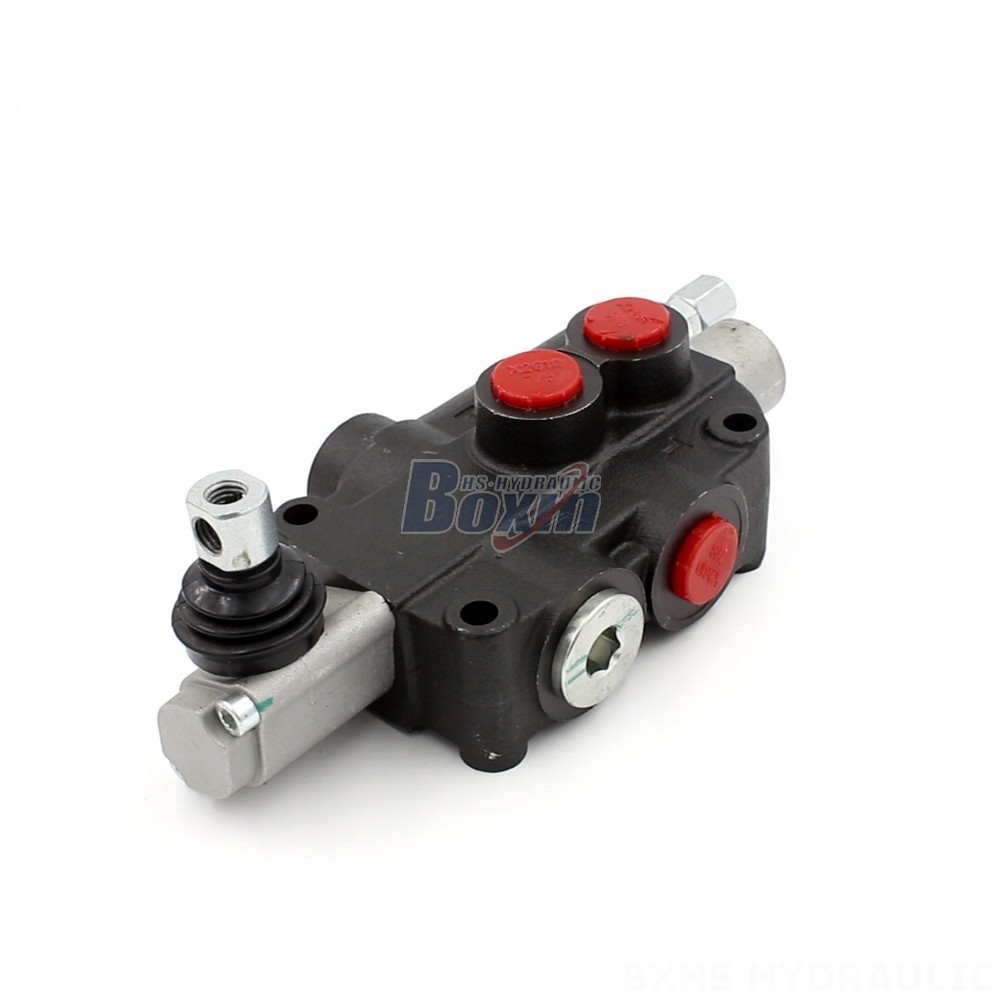

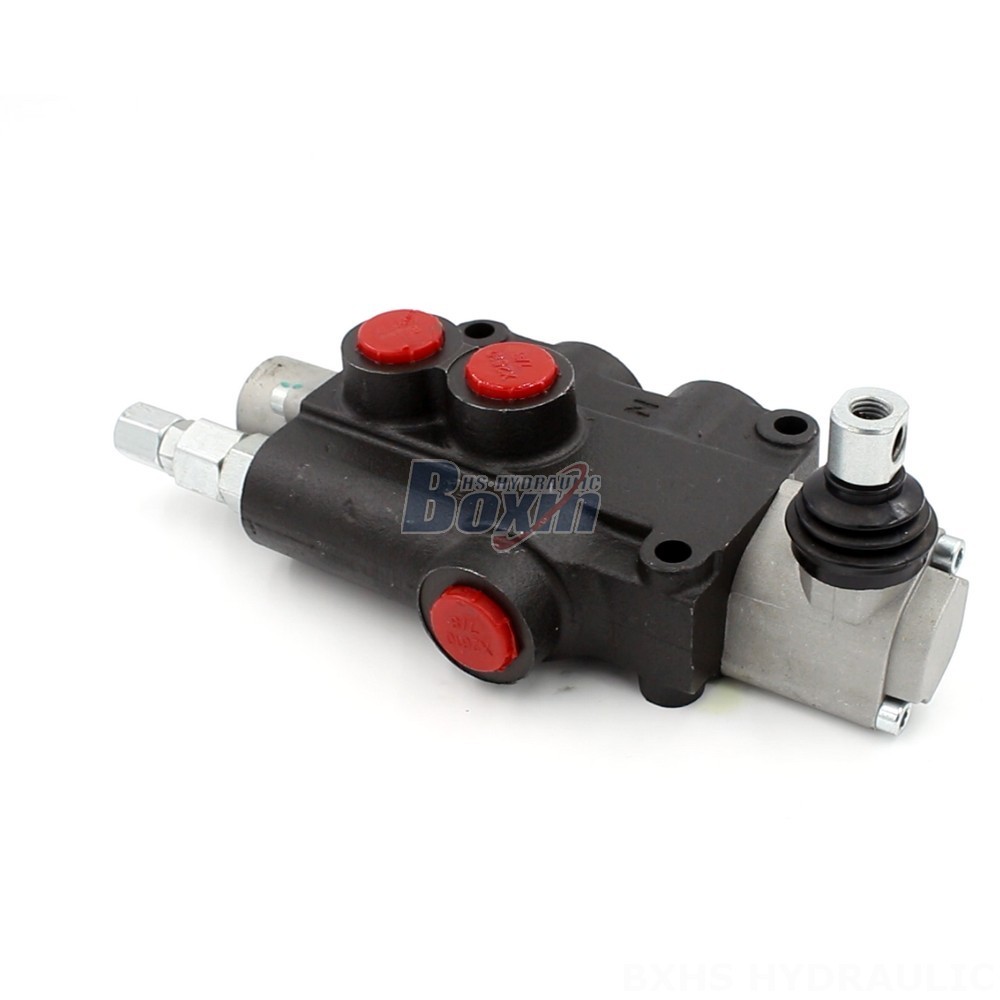

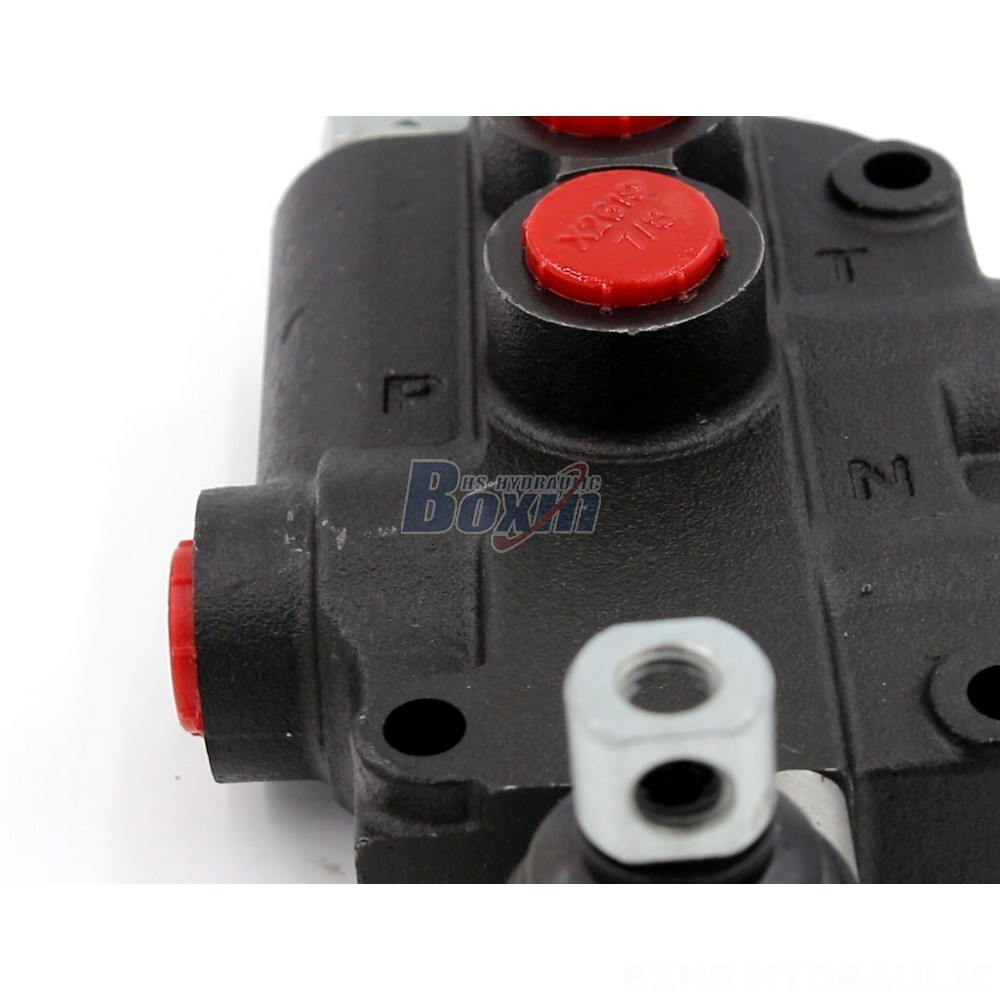

Our Global Supplier of P80-U78 Monoblock Directional Valve provides a high-flow solution for your hydraulic system needs. With a rated flow of 80 L/min and a max pressure of 250 bar, this valve is suitable for demanding applications in material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U78 Monoblock Directional Valve features a compact and reliable design, with manual control for precise operation. Its single section design simplifies installation and maintenance. The valve operates within a wide viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. Its versatility makes it suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders.
