The HDCF50 series solenoid control valve is a 6-spool sectional valve designed for material handling, construction, agriculture, and industrial vehicle applications. With a rated flow of 50 L/min, a maximum pressure of 160 bar, and an ambient temperature range of -20°C to +80°C, it provides reliable and efficient control of hydraulic systems.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |

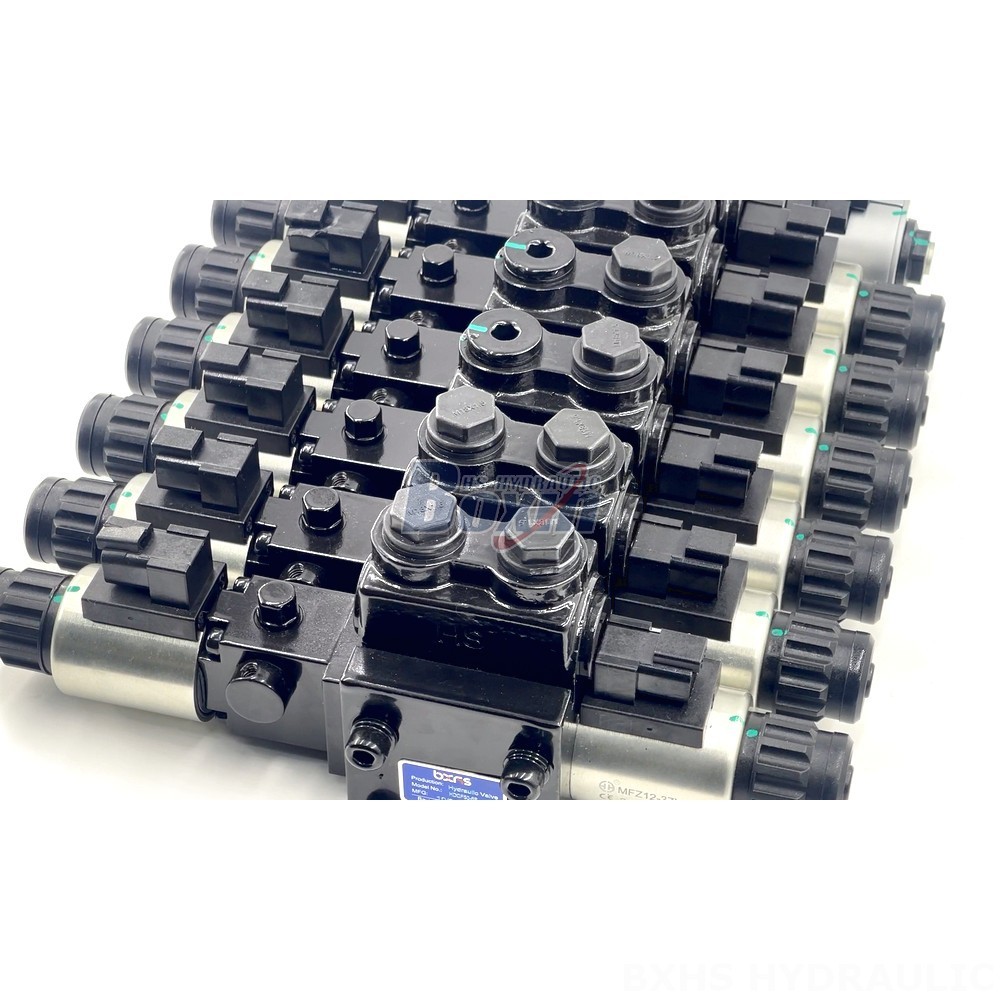

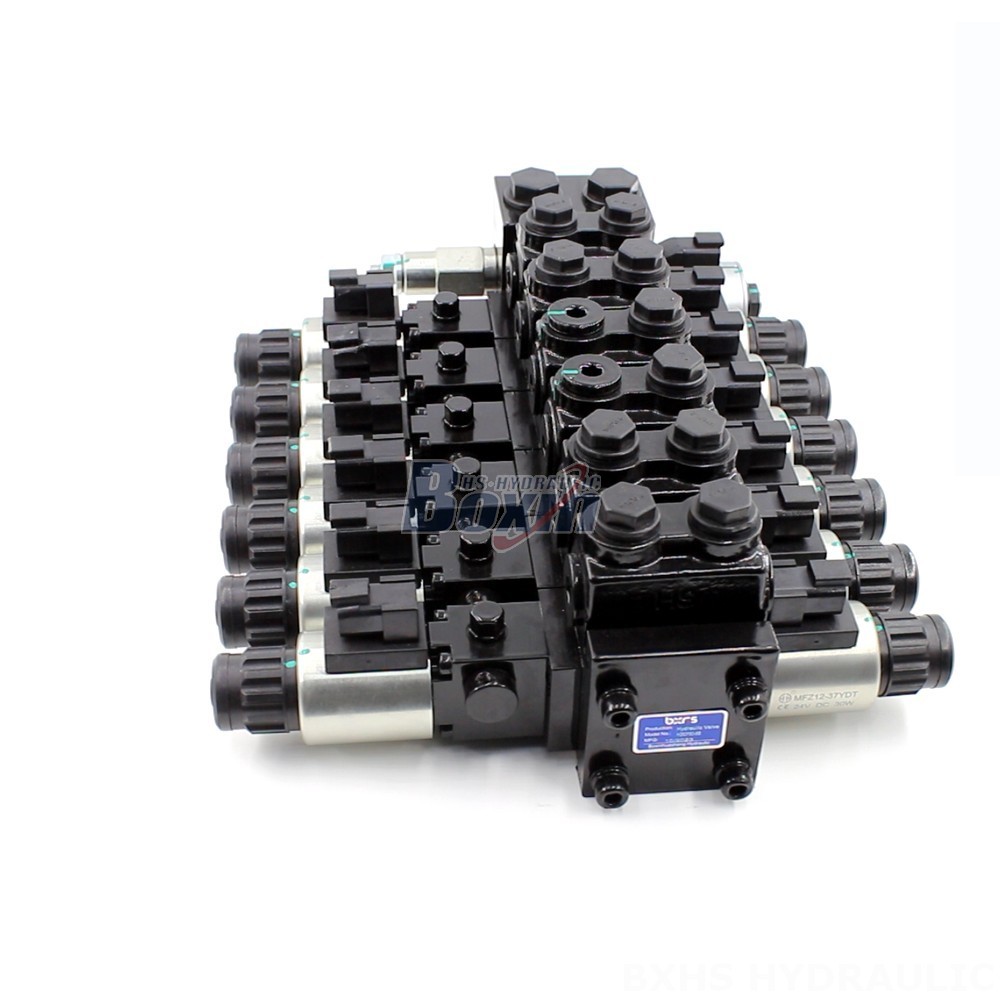

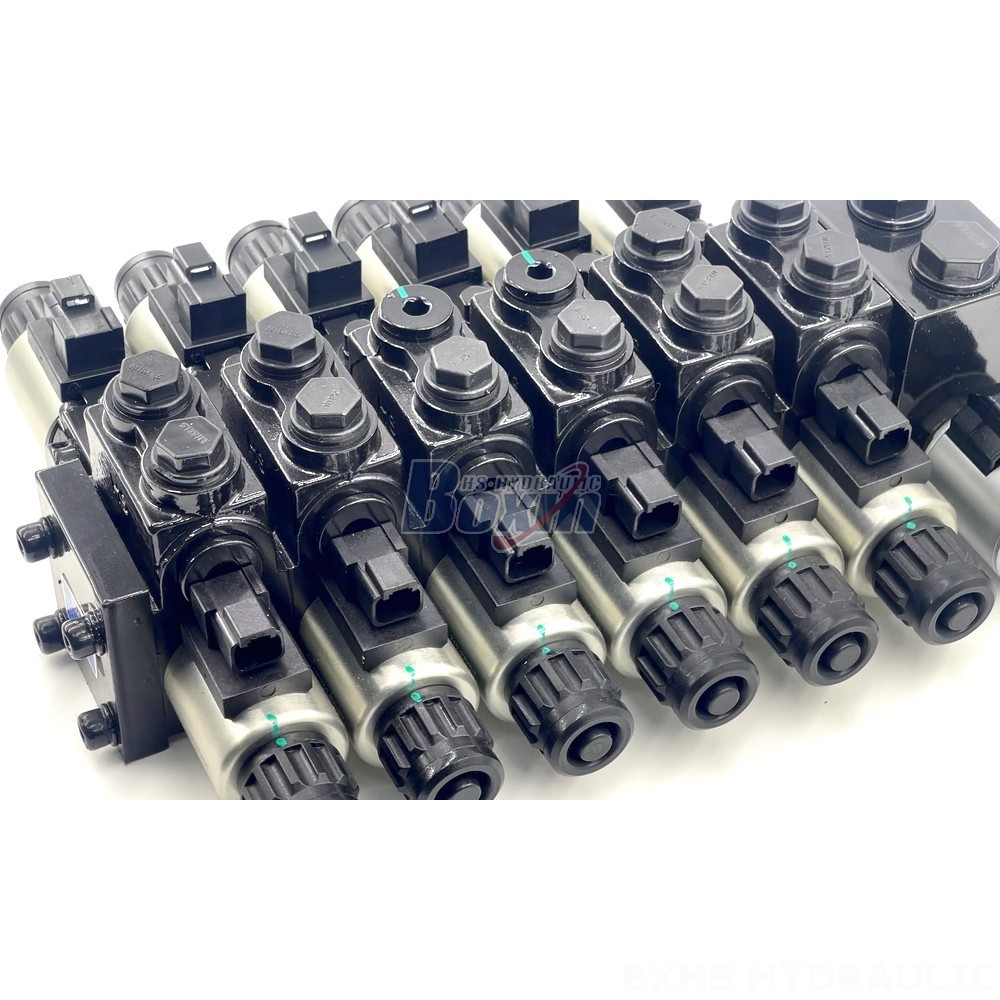

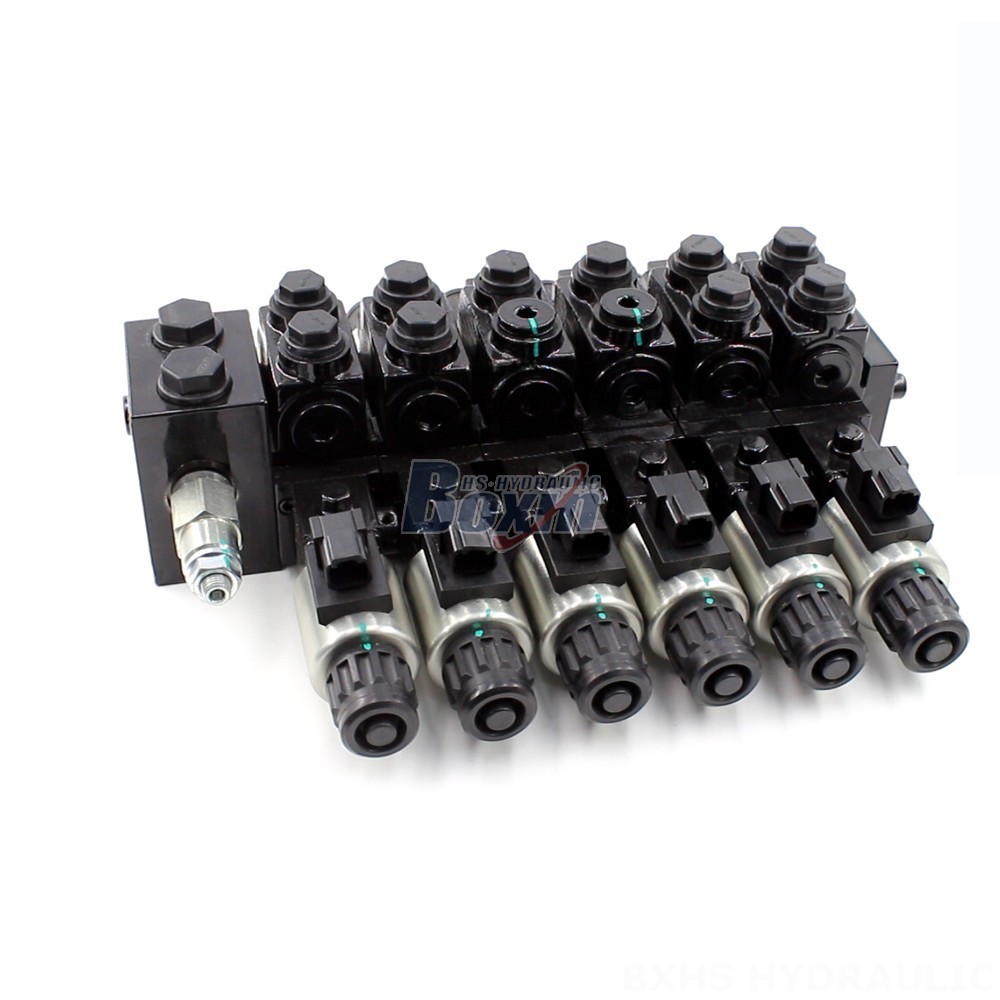

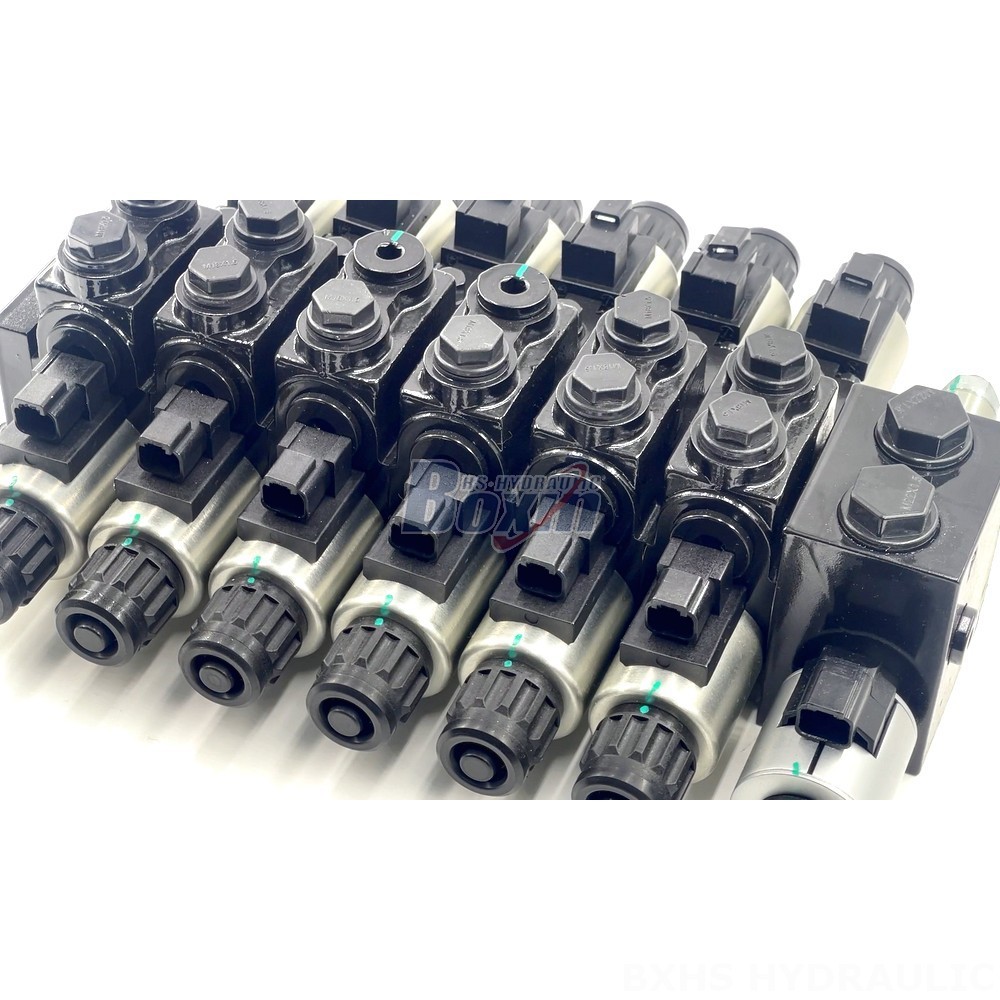

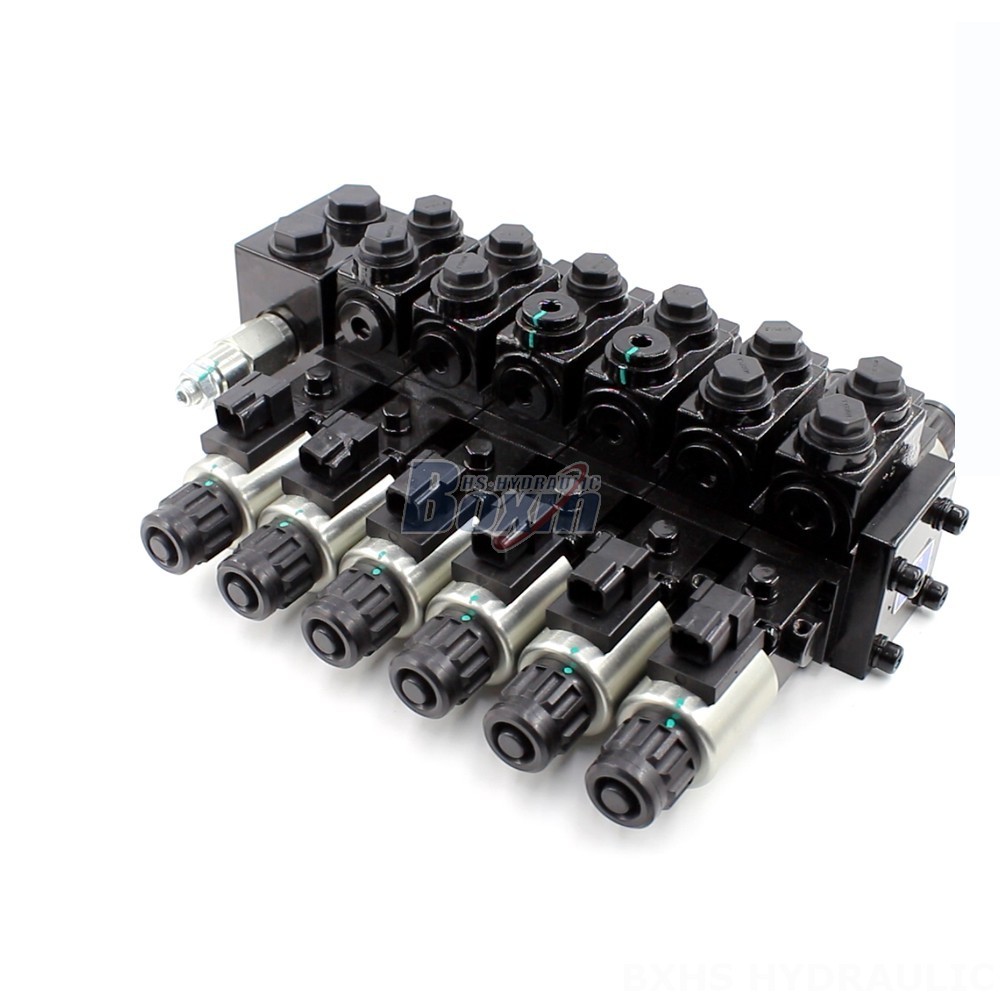

**Product Name:** HDCF50 Solenoid 6 Spool Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 6 Section
**Structure Type:** Sectional valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 6 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,BACKHOE LOADER
