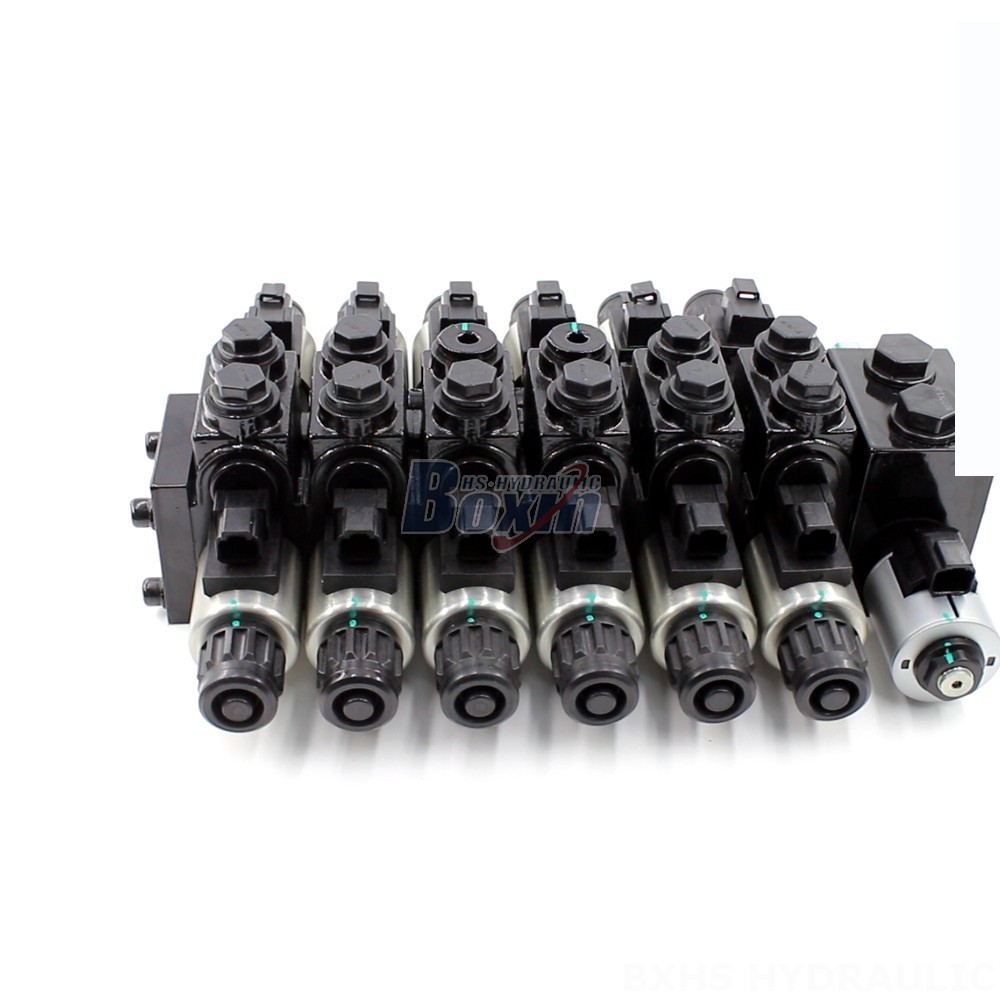

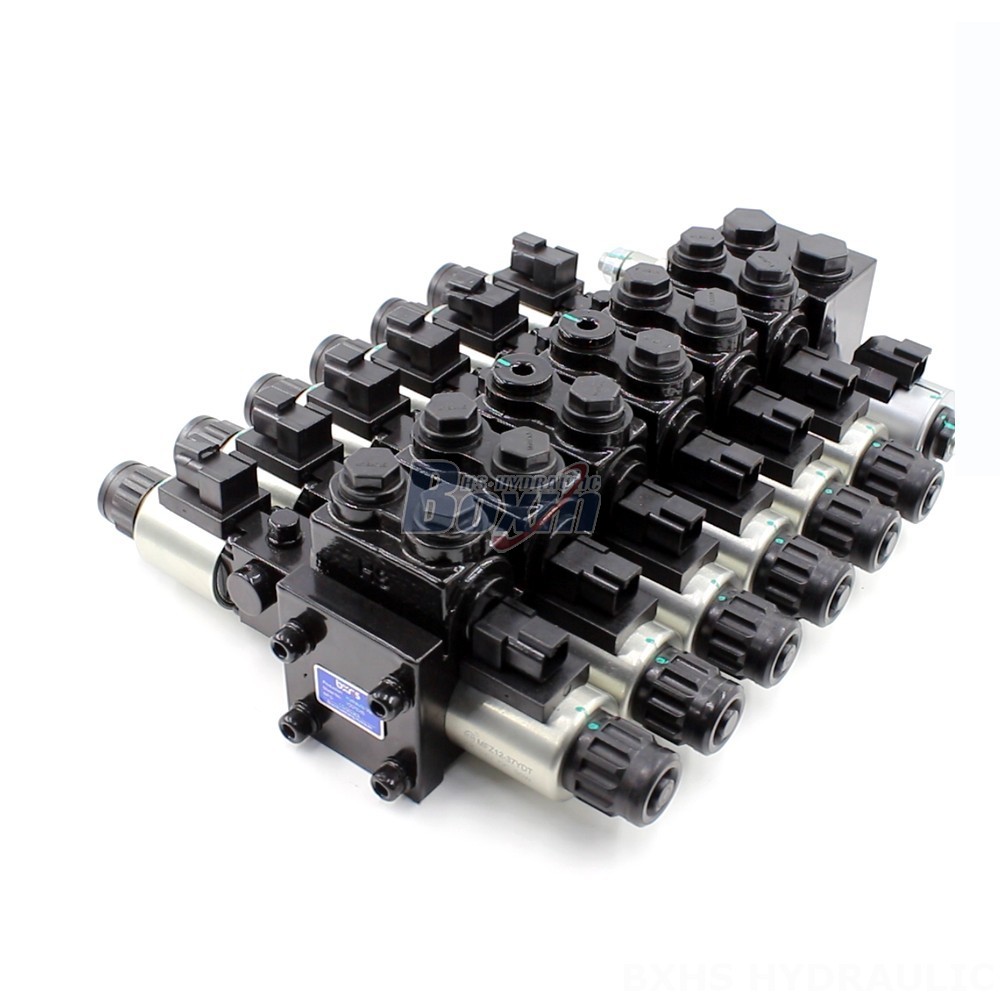

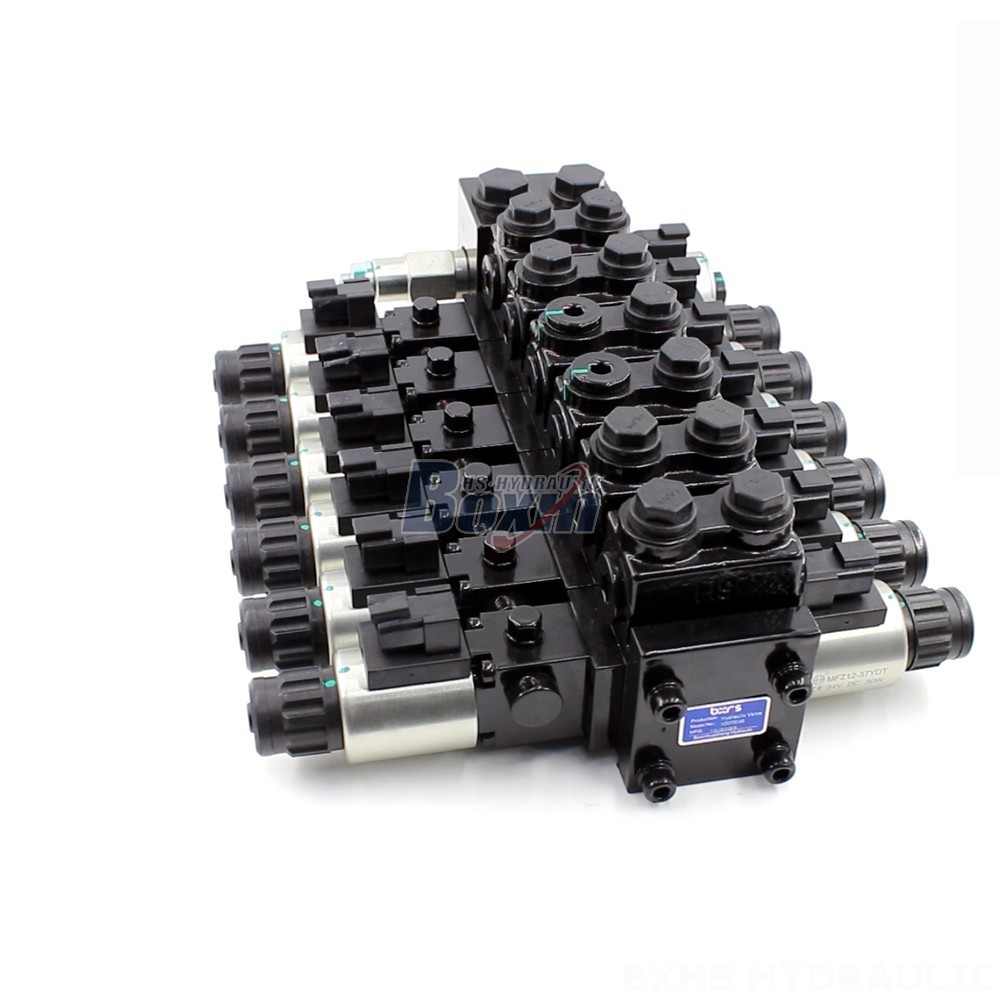

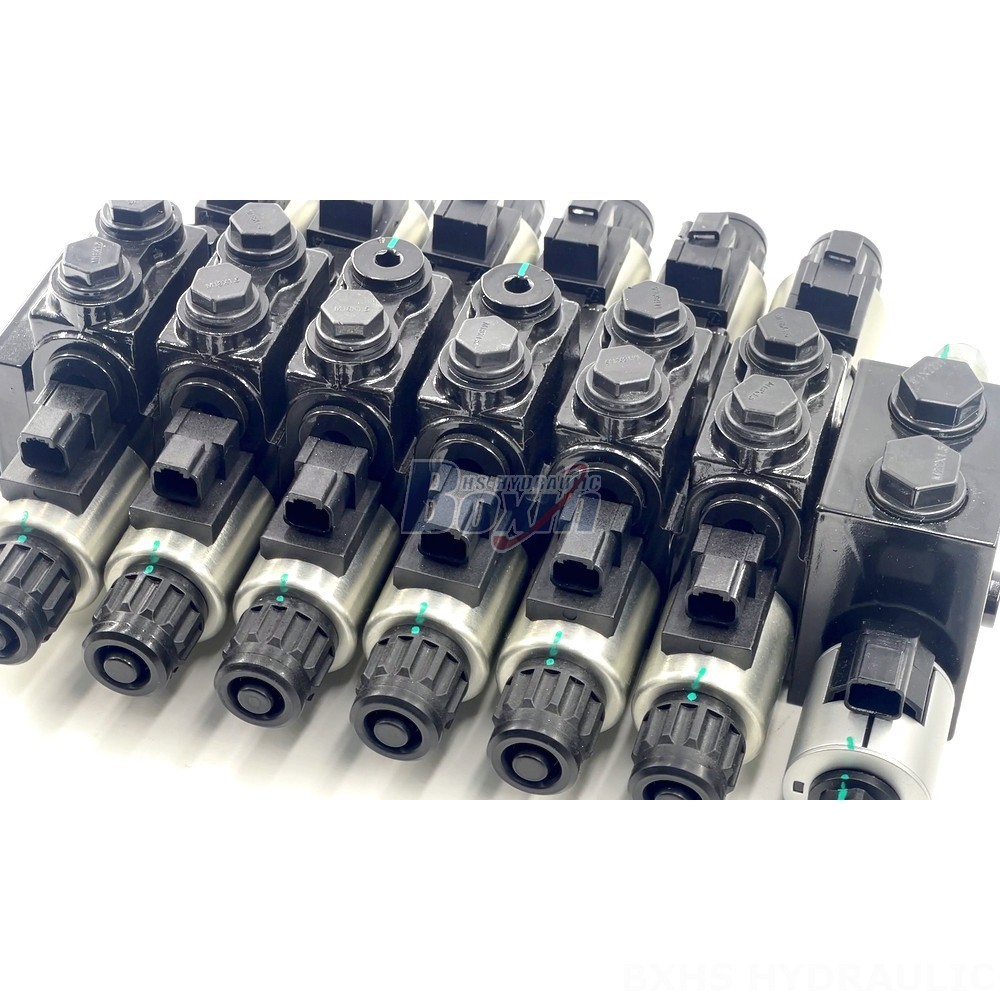

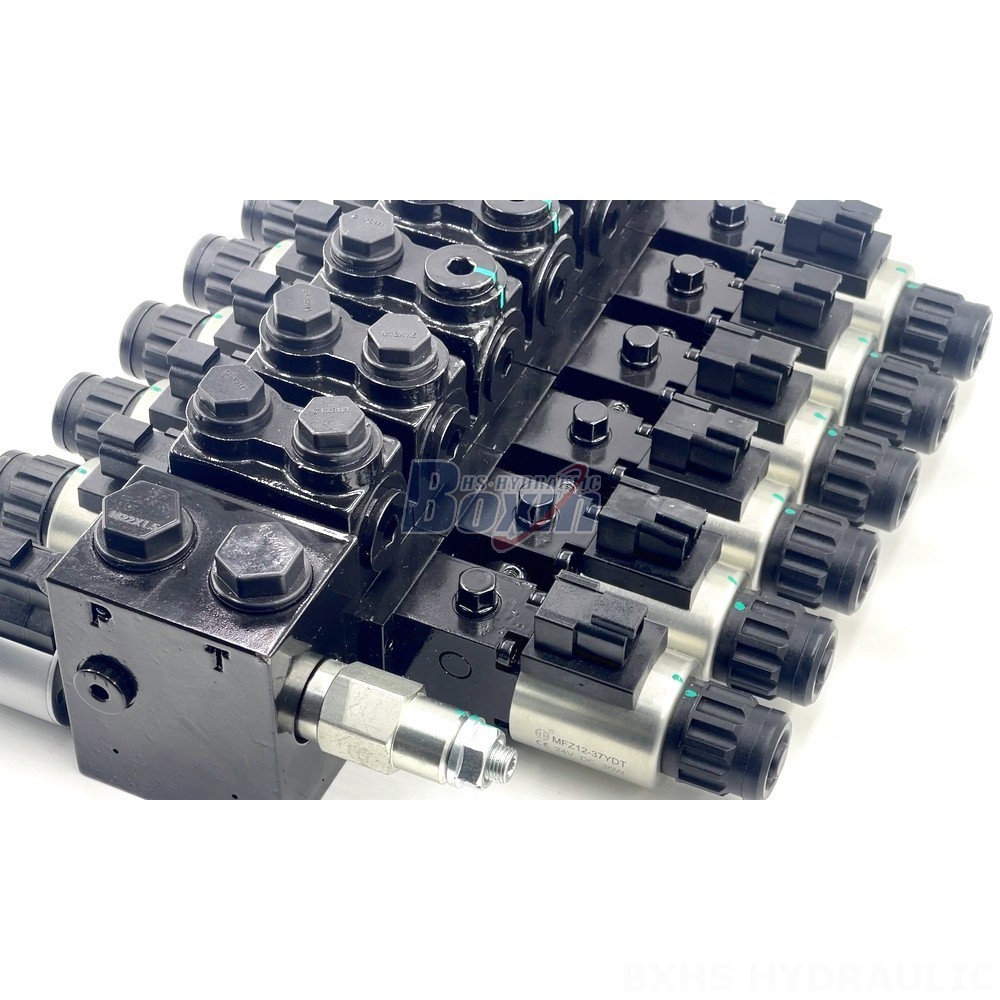

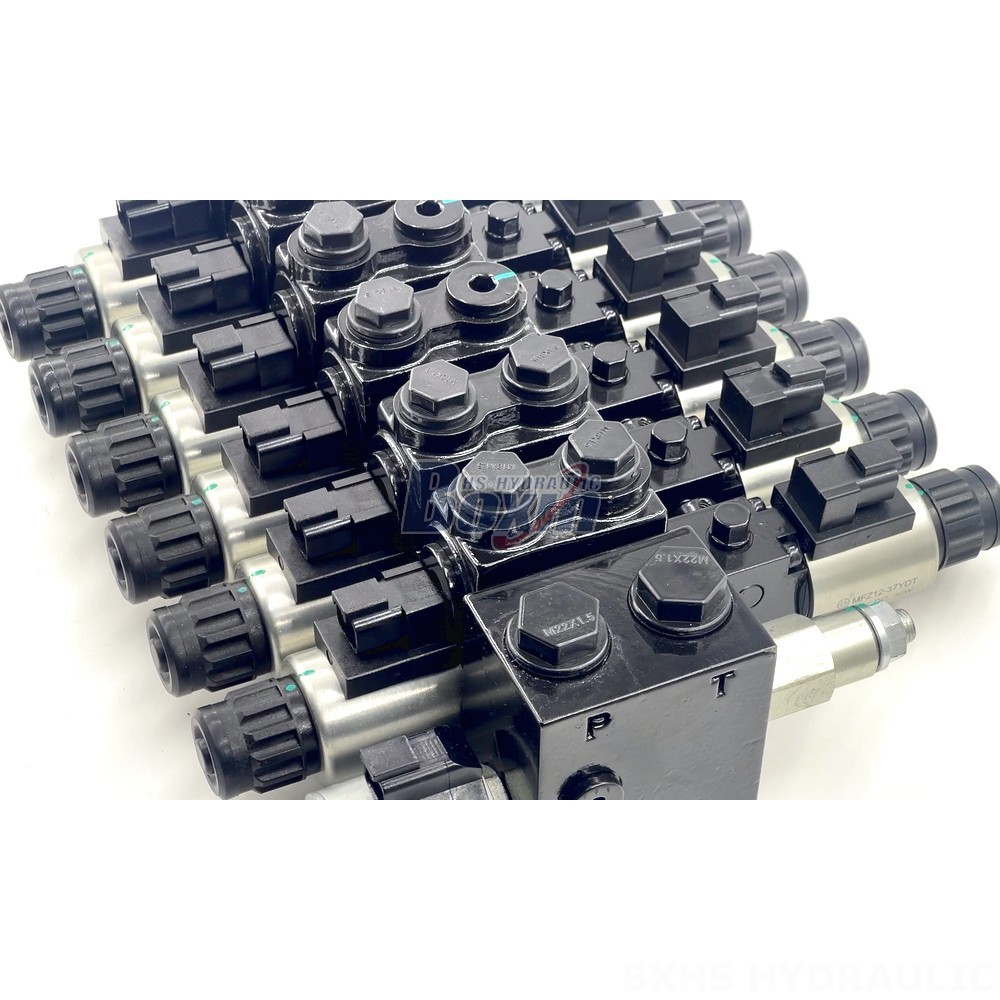

The HDCF50 Series Double Acting Hydraulic Solenoid Valve is a high-performance, reliable valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This sectional valve features a 6-spool design, offering precise control and efficient operation. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), the HDCF50 valve is ideal for demanding environments.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series Double Acting Hydraulic Solenoid Valve is a robust and versatile solution for controlling hydraulic systems. Its sectional valve design allows for easy assembly and maintenance. The valve features a 6-spool configuration, providing precise control of hydraulic functions. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), the HDCF50 valve is capable of handling high flow rates and demanding applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable performance across a variety of hydraulic fluids. Designed for durability, the valve operates within an ambient temperature range of -20°C to +80°C (-4°F to +176°F). Available in 12V and 24V configurations, the HDCF50 valve is compatible with various electrical systems. The valve is ideal for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
