Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1237 Pandangan Mencari Produk Ini

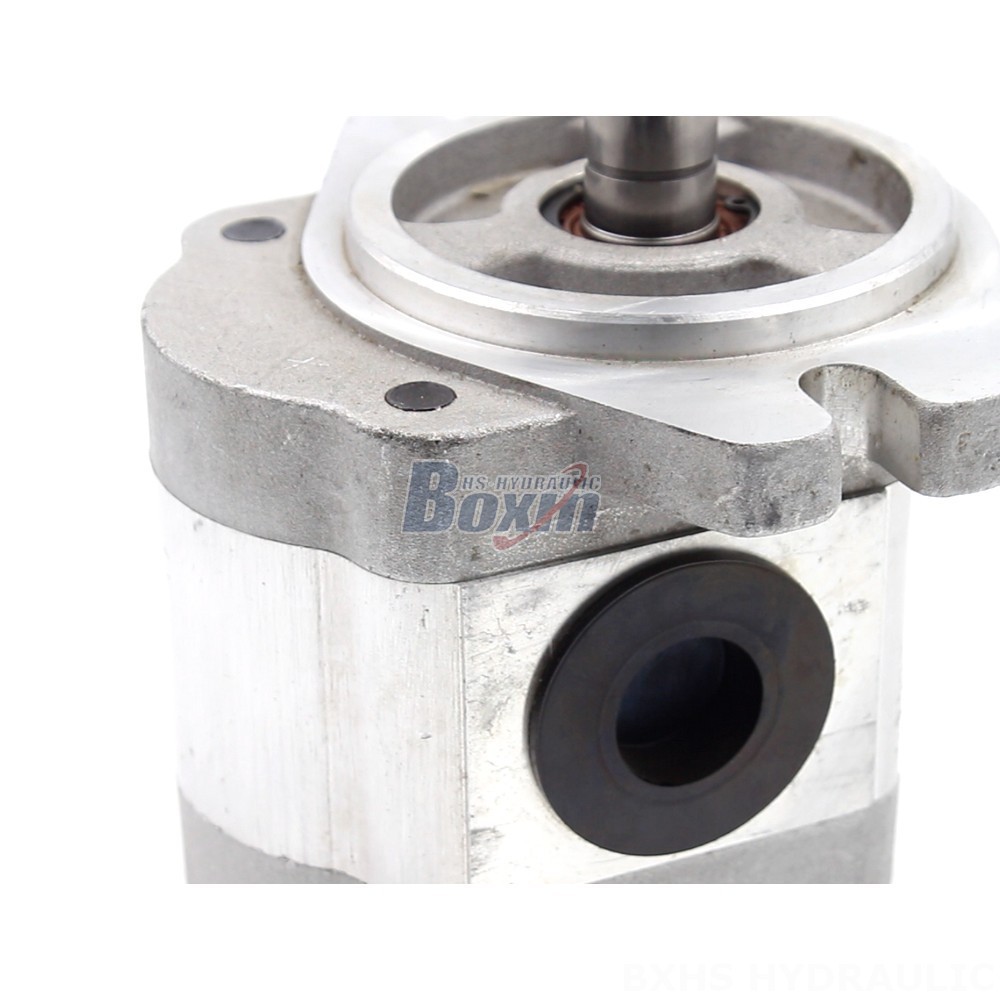

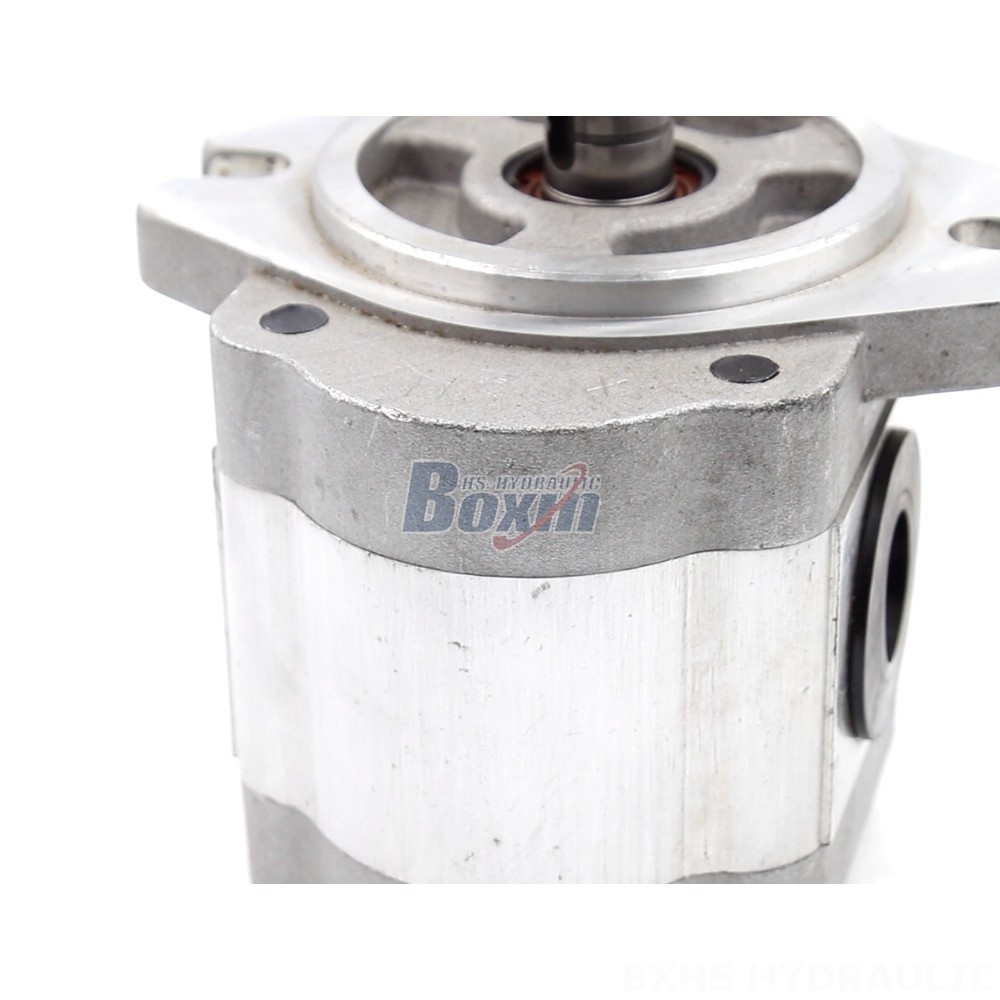

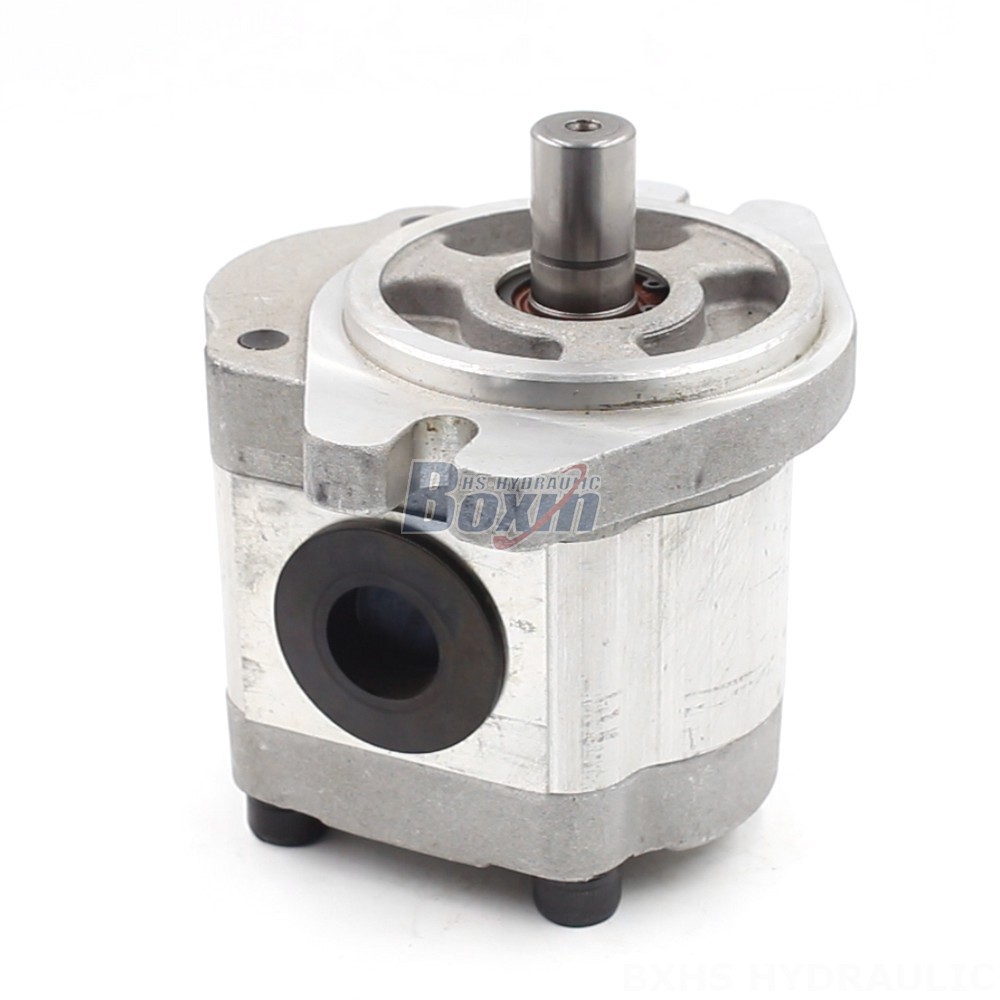

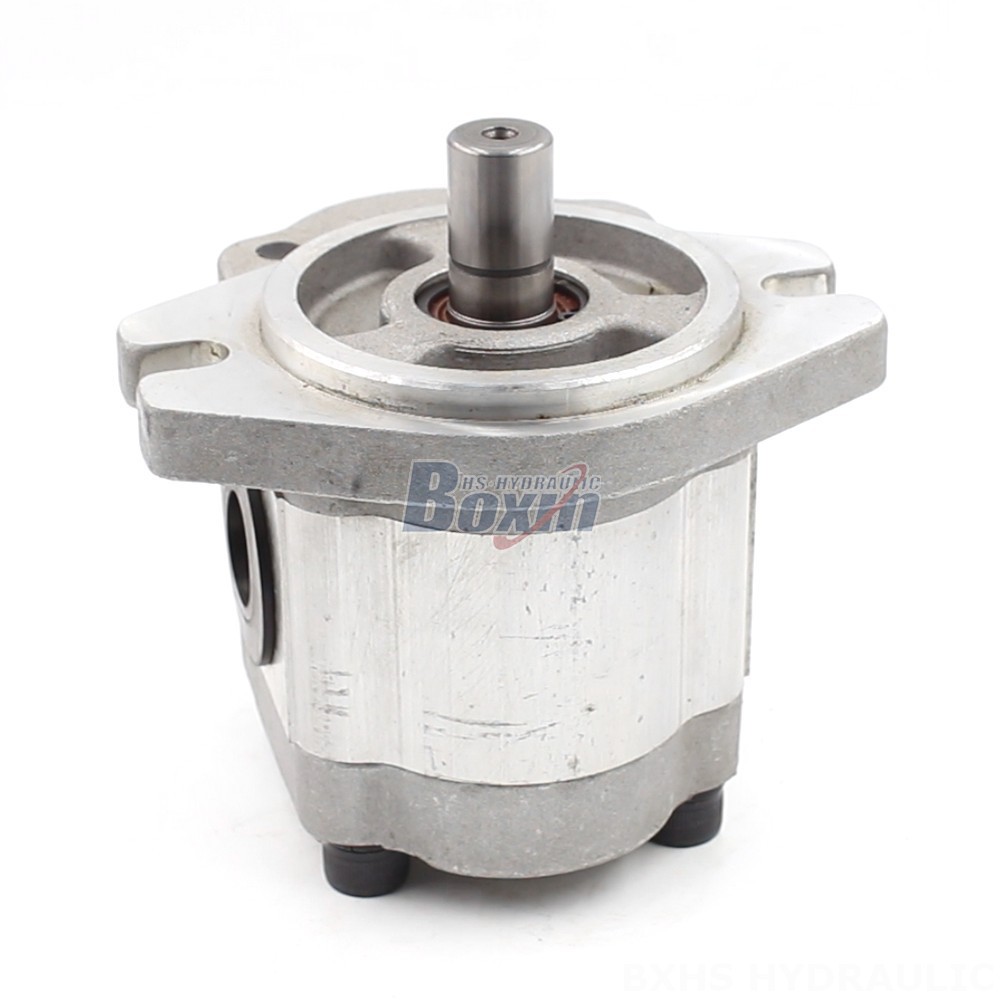

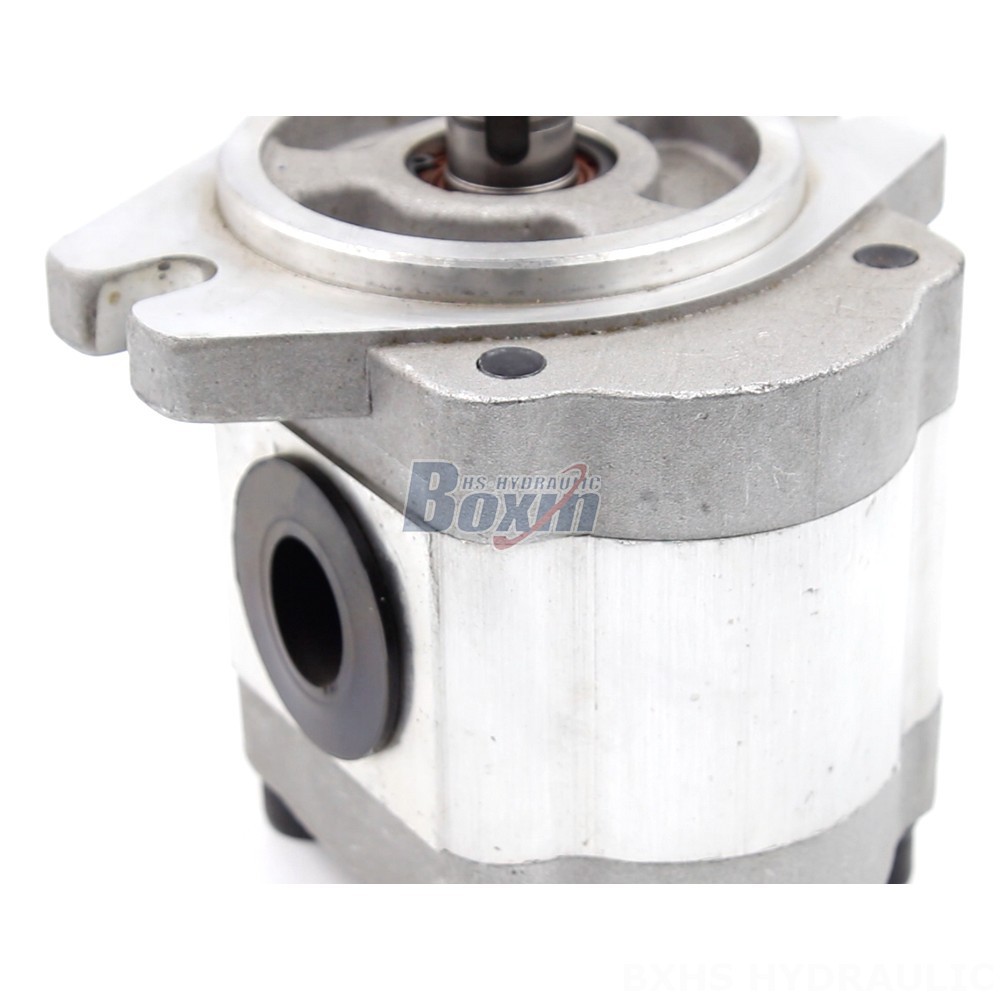

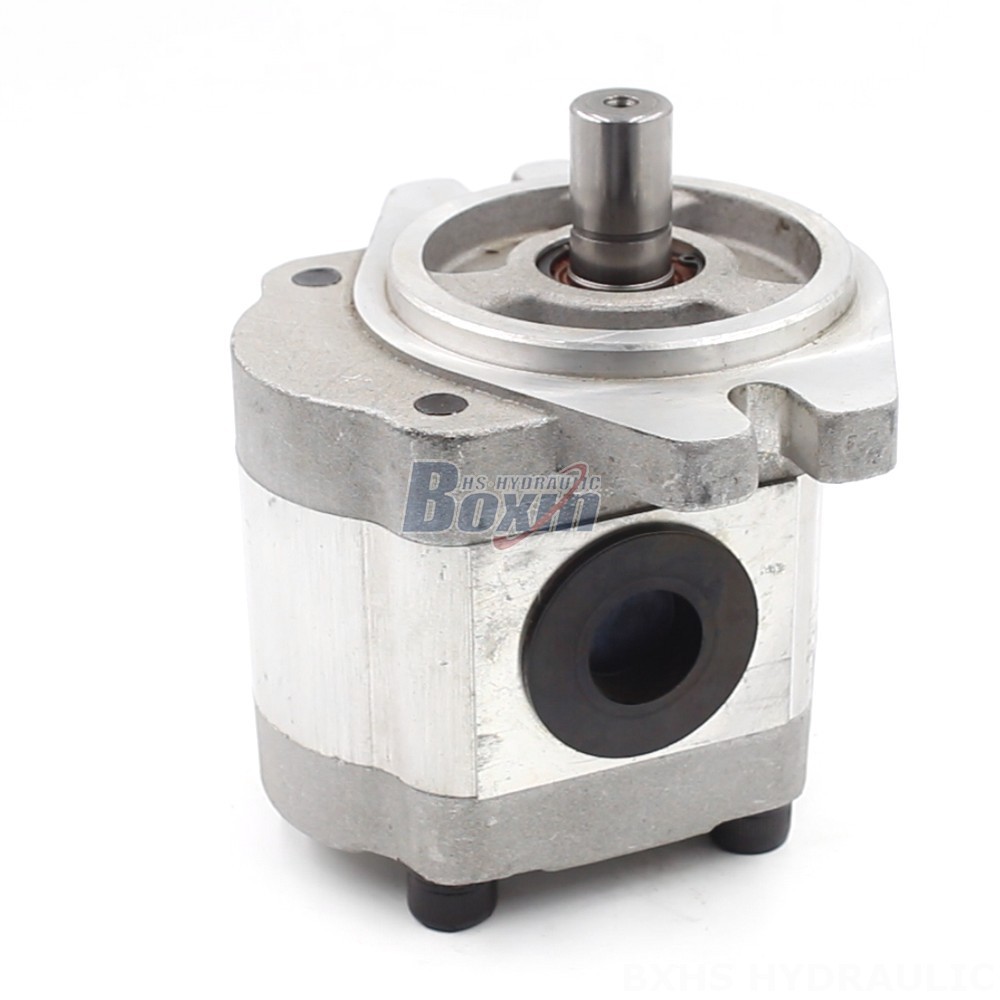

This heavy-duty 6 cc/rev hydraulic gear pump, manufactured in China, is designed for high-performance applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, 20 MPa rated pressure, and 2000 r/min rated speed, it delivers reliable power and efficiency.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
The CBHS-FL3 Series hydraulic gear pump features a robust internal gear design and is constructed from durable aluminum. It offers a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available with left or right rotation options and comes with an A-oval flange and plain key shaft. Its versatility makes it suitable for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers.
