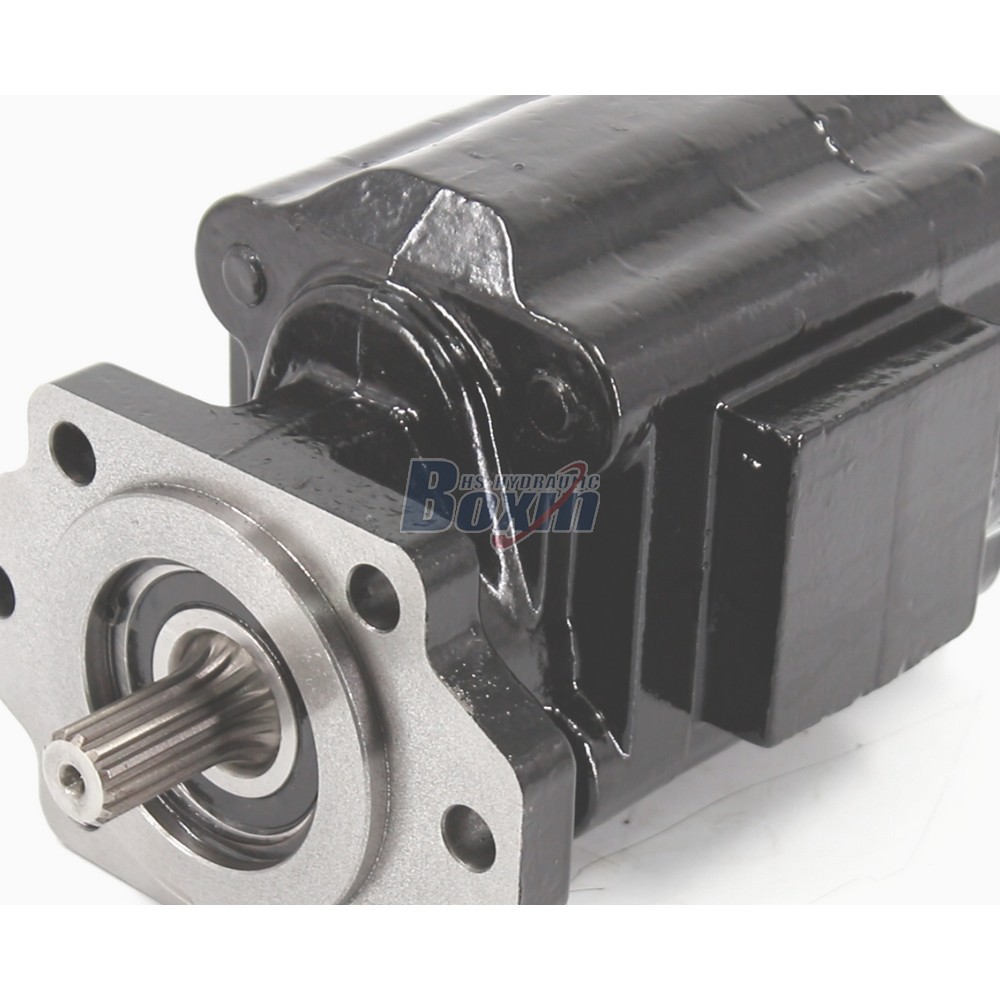

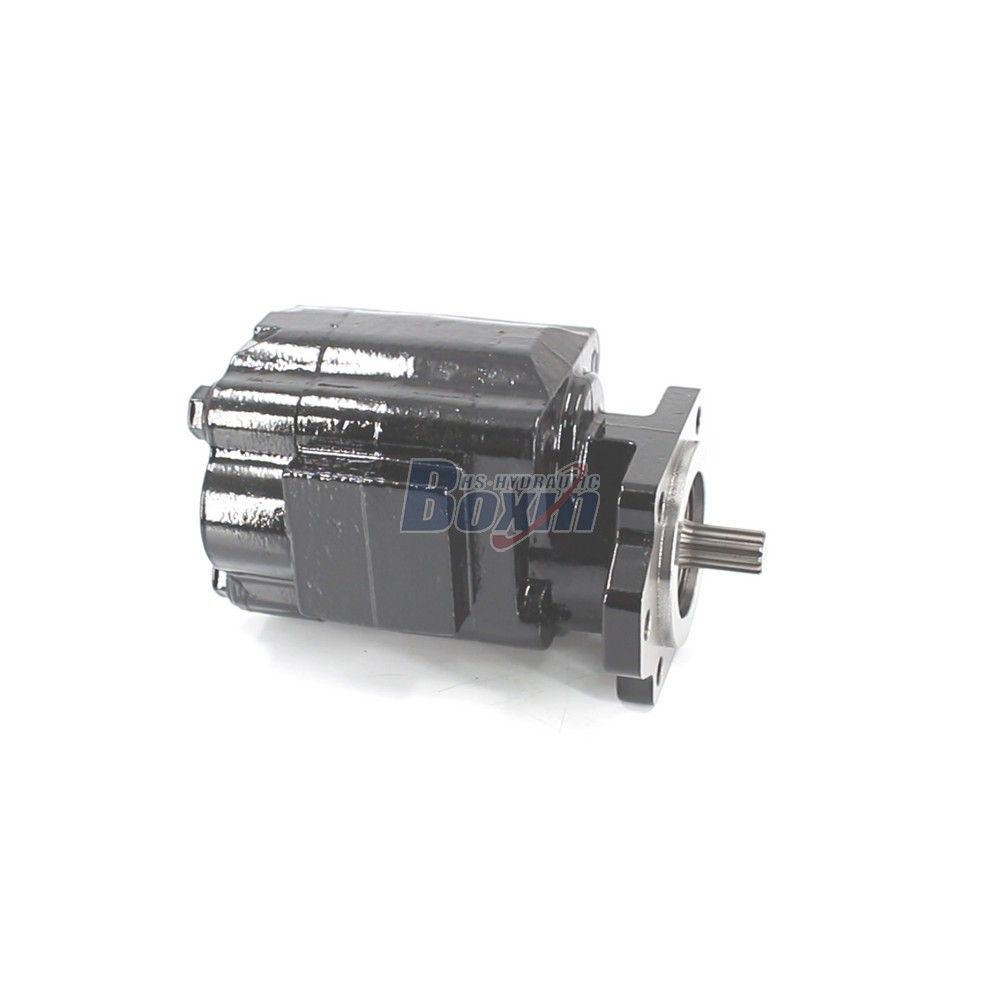

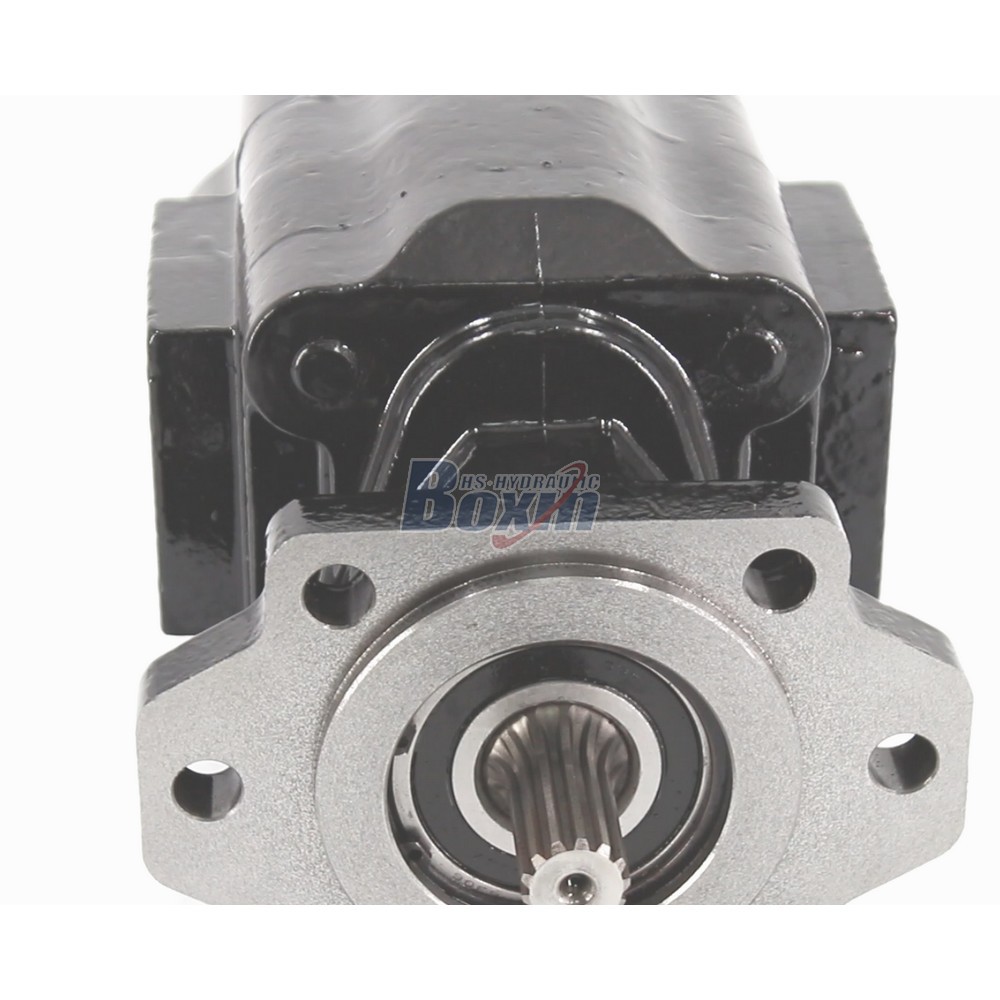

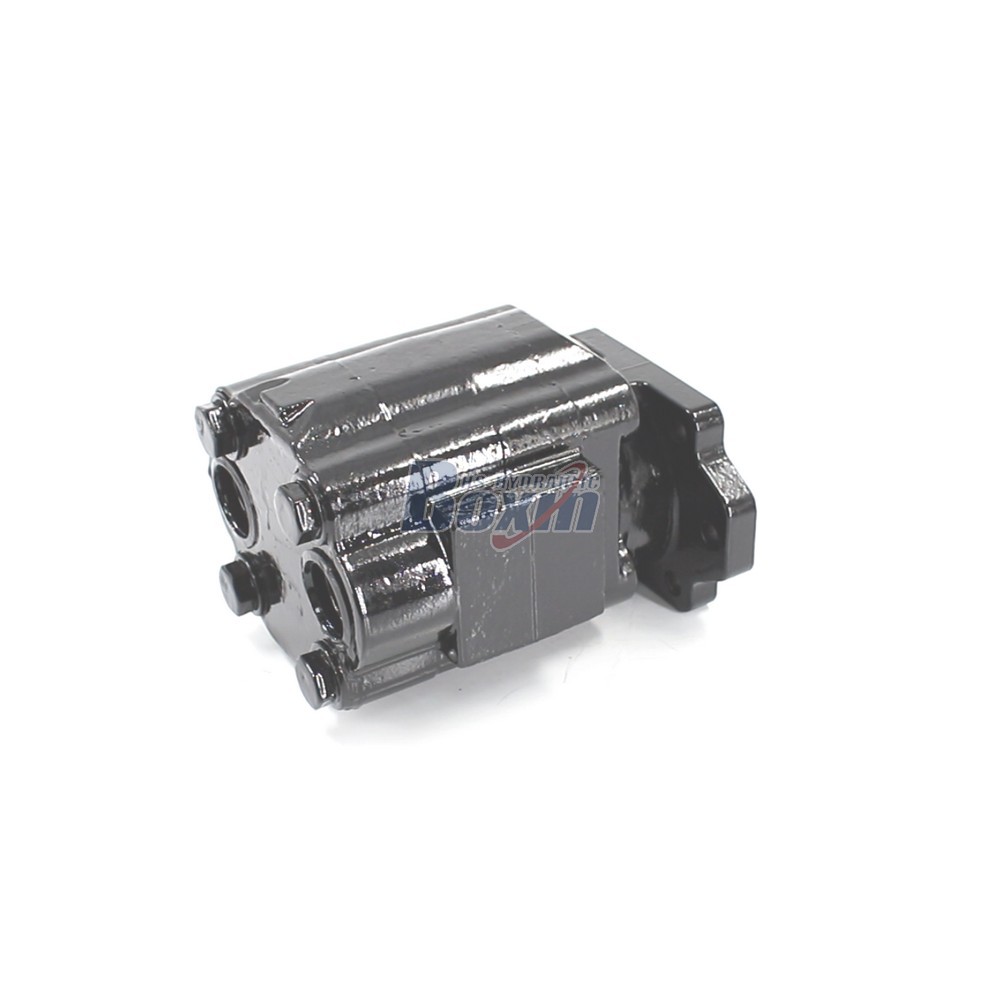

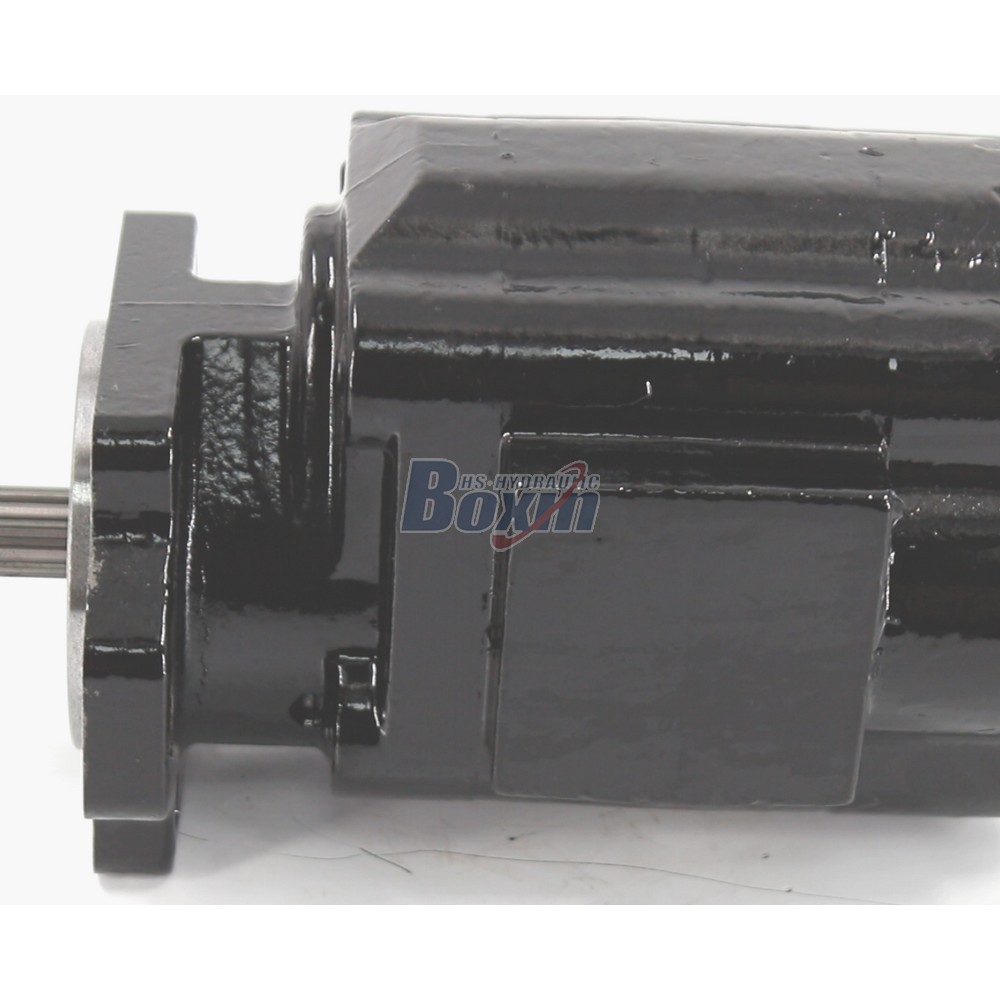

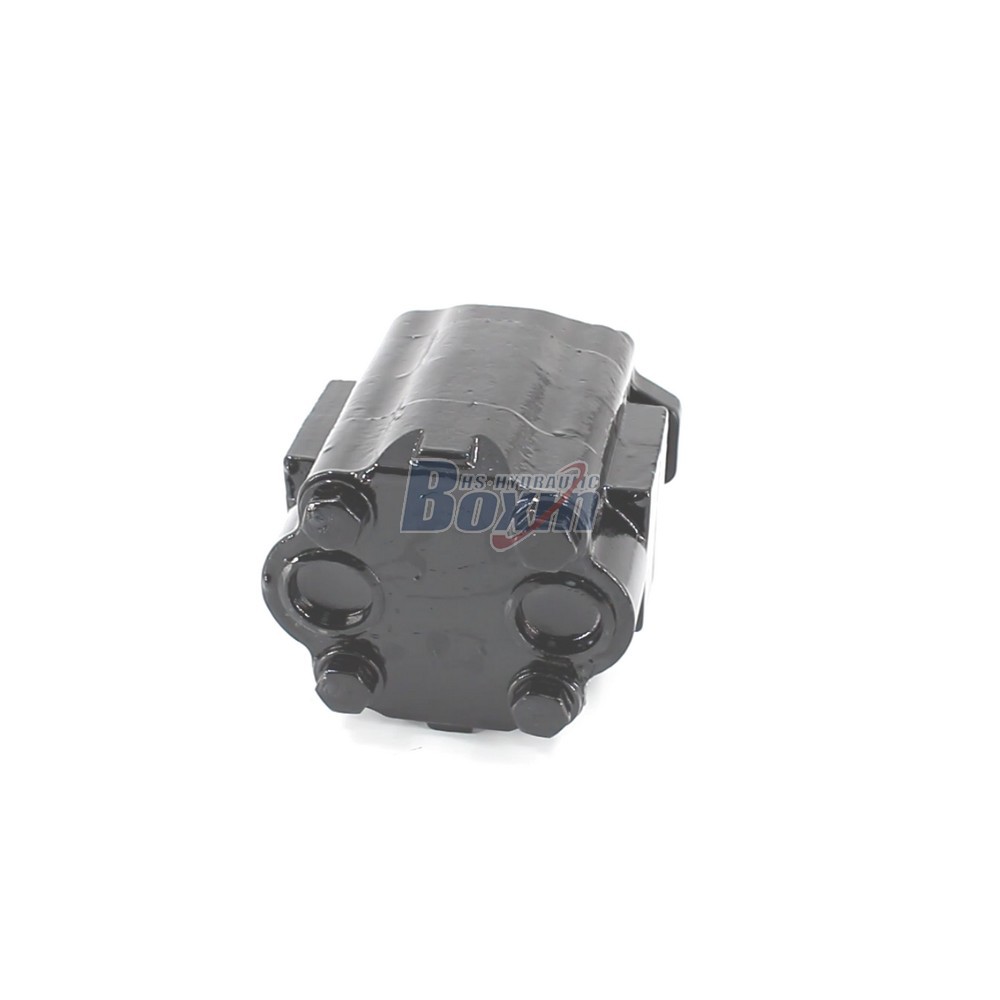

As a leading manufacturer of large-scale hydraulic solutions, we offer the high-performance P51A646TEYR25-25 Hydraulic External Gear Pump. This heavy-duty series features a 104.5 cc/rev displacement and bidirectional rotation, designed for stable power transmission in demanding industrial and mobile applications.
| Seri P51 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 104.5 cc/putaran, 21 cc/putaran, 41.8 cc/putaran, 52.3 cc/putaran, 62.7 cc/putaran, 64.6 cc/putaran |
| Tekanan Terukur | 16 MPa (2320 psi) |
| Tekanan Maksimum | 17 MPa (2465 psi) |
| Kecepatan Terukur | 2200 r/min |
| Kecepatan Maksimum | 2400 r/min |
| Putaran | Dua Arah |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A, Lubang Pemasangan ISO-4, Flensa SAE |
| Tipe Poros | X: Spline Involute |
Our factory specializes in the mass production of the P51A646TEYR25-25 Heavy Duty Hydraulic External Gear Pump, delivering 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi). Engineered for versatility, this bidirectional model supports speeds ranging from 600 to 2400 r/min, making it suitable for a wide variety of construction, agricultural, and industrial machinery. As a global manufacturing partner, we provide comprehensive services including OEM, private labeling, and custom engineering to meet specific technical requirements. We are currently expanding our international network and actively seeking long-term cooperation with distributors, wholesalers, agents, and professional traders. By sourcing directly from our facility, partners benefit from reliable factory supply, competitive wholesale pricing, and rigorous quality control. Whether you need bulk orders for retail or specialized units for large-scale equipment, our manufacturing expertise ensures performance and durability in every pump.
