High Performance DCV60 Electric Motor Sectional Directional Valve

Metode Kontrol:Motor listrik

Spul:1 Spool

Aliran Terukur:60 L/menit (15,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri DCV60 Kran Arah Bagian

Ukuran kemasan:20*39*23

Kelas kotor:12.60 kg

Ketersediaan: Tersedia

107 Pandangan Mencari Produk Ini

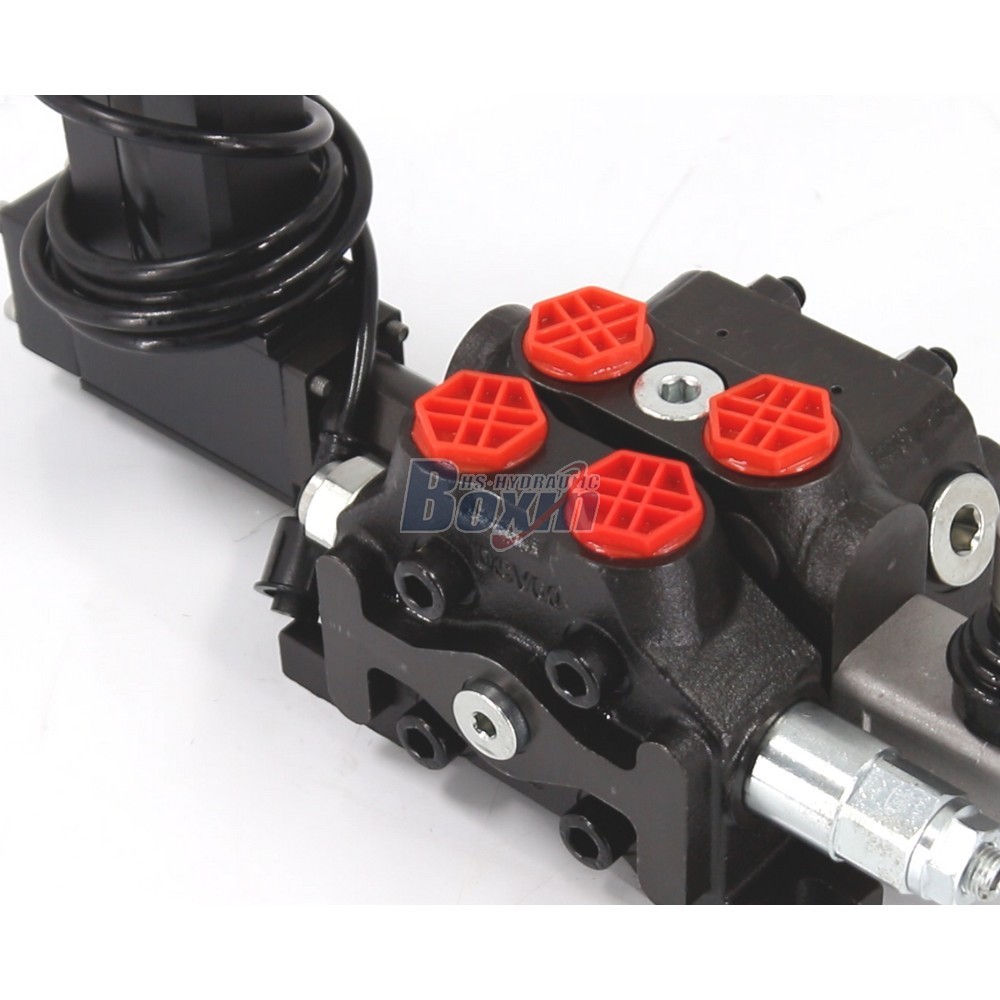

High Performance DCV60 Electric Motor Sectional Directional Valve

High Performance DCV60 Electric Motor Sectional Directional Valve

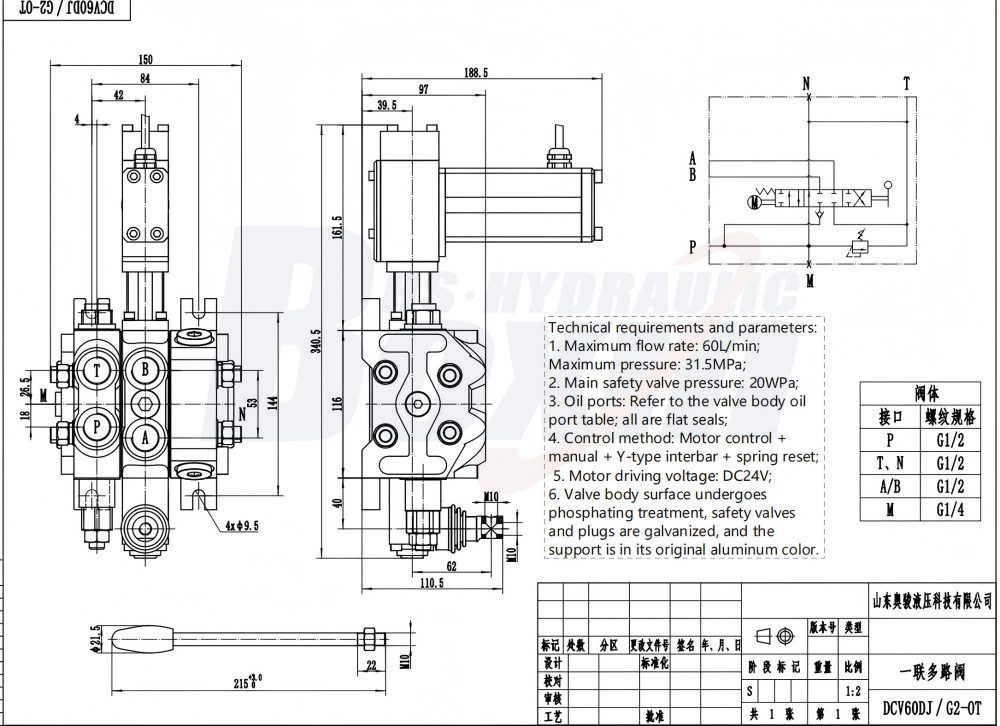

High Performance DCV60 Electric Motor Sectional Directional Valve drawing image

The High Performance DCV60 Electric Motor Sectional Directional Valve is a reliable hydraulic solution designed for precise flow control in demanding mobile and industrial applications, featuring a 60 L/min flow rate and 315 bar pressure capacity.

Seri DCV60 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 60 L/menit (15,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi), 350 bar (5100 psi)
Port Masuk G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading hydraulic manufacturer, we offer the DCV60 Series Electric Motor Sectional Directional Valve, specifically engineered for high-pressure systems up to 315 bar (4600 psi). This 1-spool valve provides a rated flow of 60 L/min (15.8 US gpm) and utilizes G1/2 ports for balanced fluid transmission. Ideal for construction, agriculture, and material handling, it serves as a core component for tractors, mini-excavators, and forklifts. Our factory provides comprehensive OEM, ODM, and private labeling services to meet your brand requirements. We offer competitive factory wholesale pricing and are actively seeking global distributors, wholesalers, agents, and trade partners. With robust manufacturing capabilities, we ensure consistent supply for heavy-duty machinery applications including bale wrappers, telehandlers, and aerial platforms. Partner with us for reliable hydraulic technology and professional manufacturing support.
