Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1112 Pandangan Mencari Produk Ini

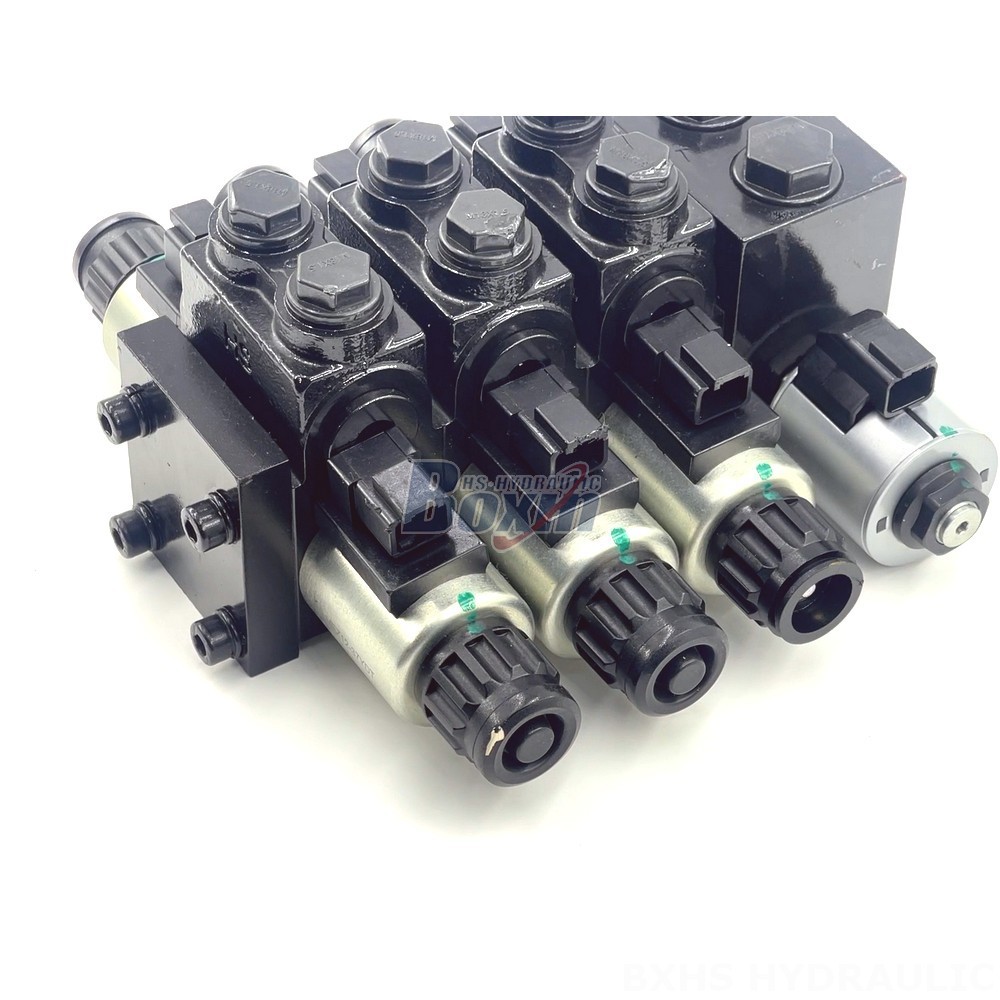

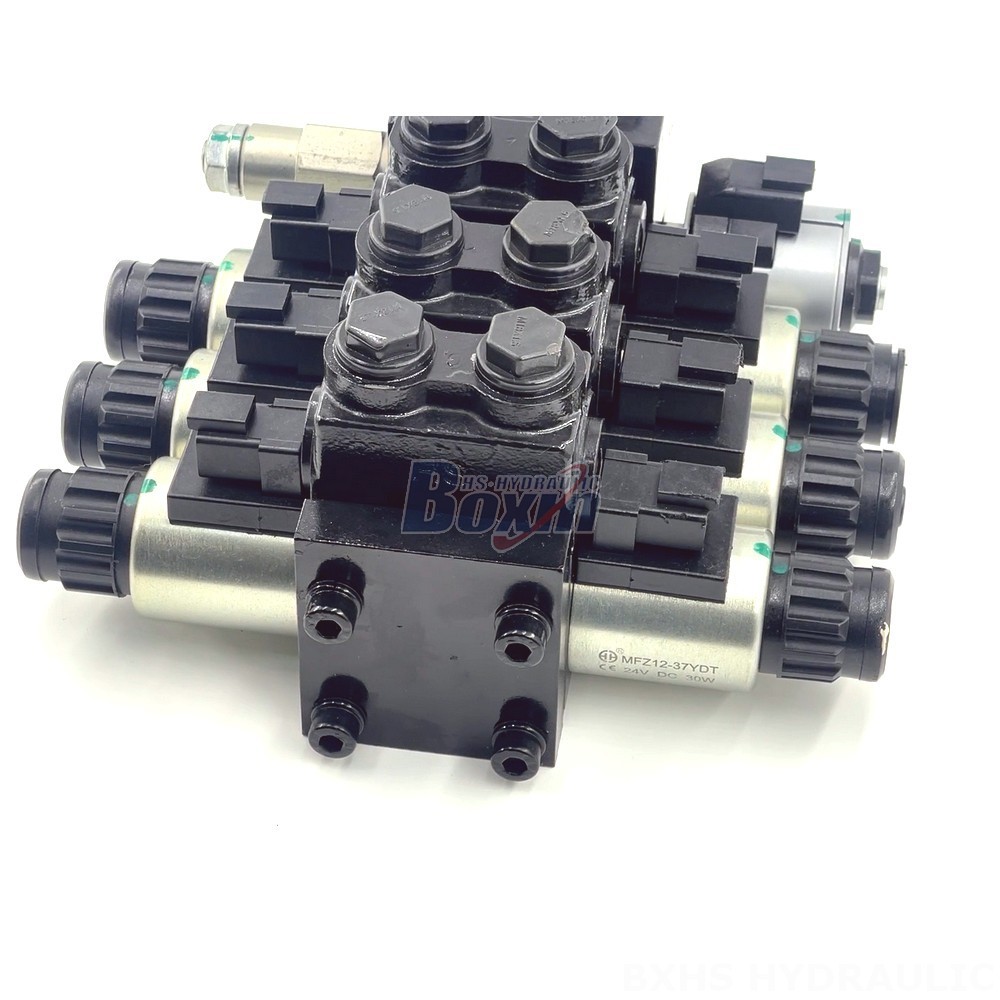

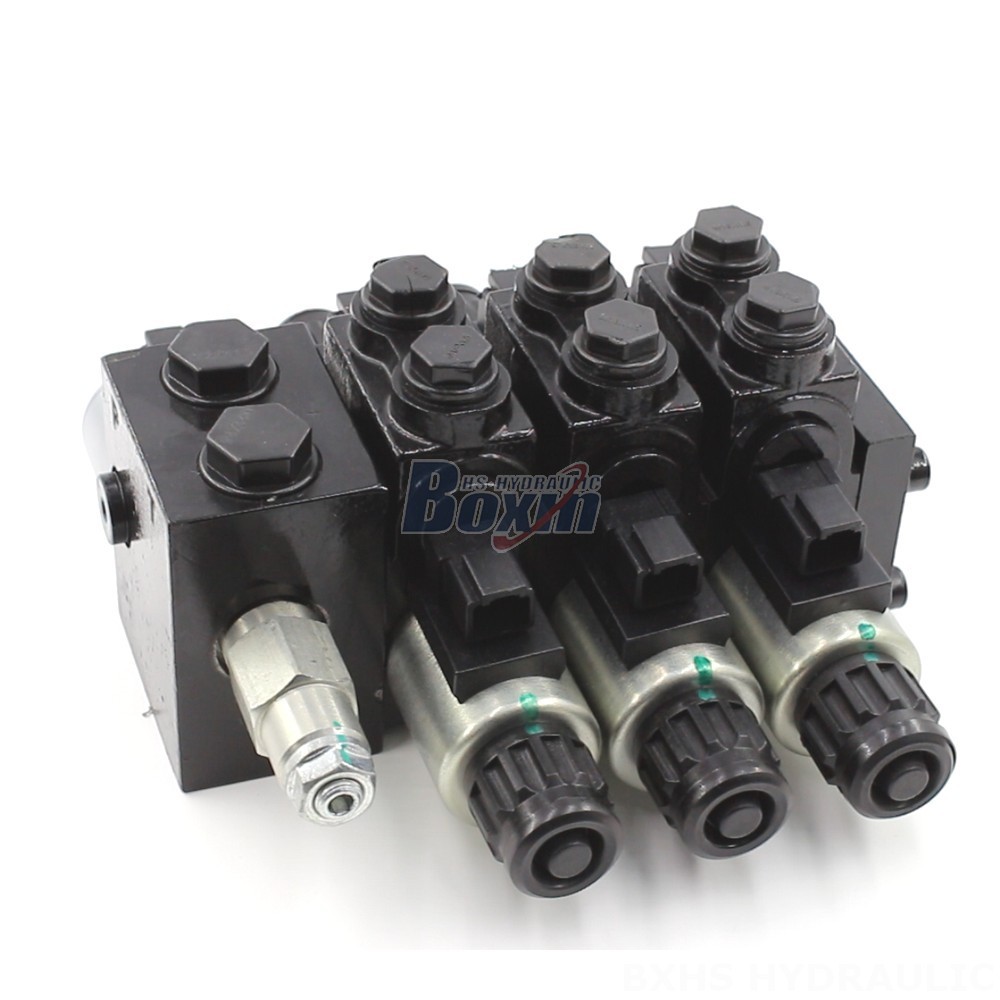

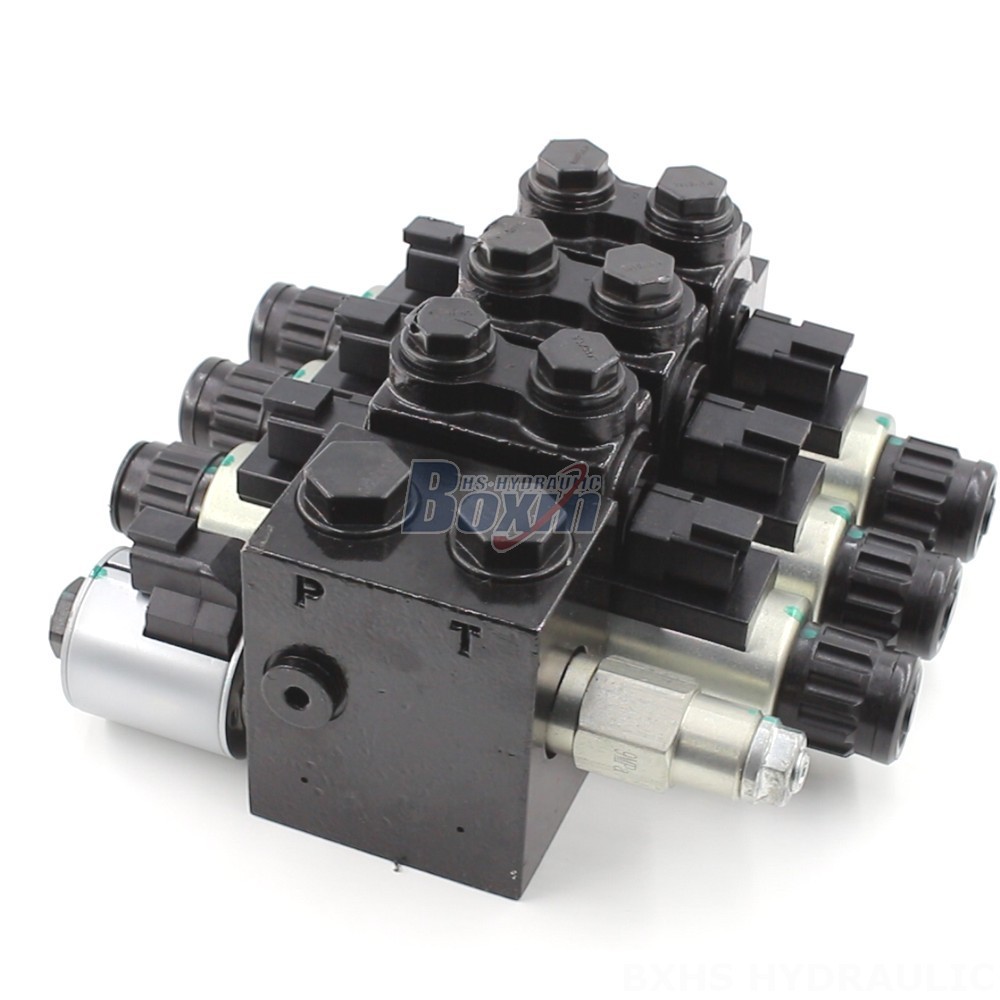

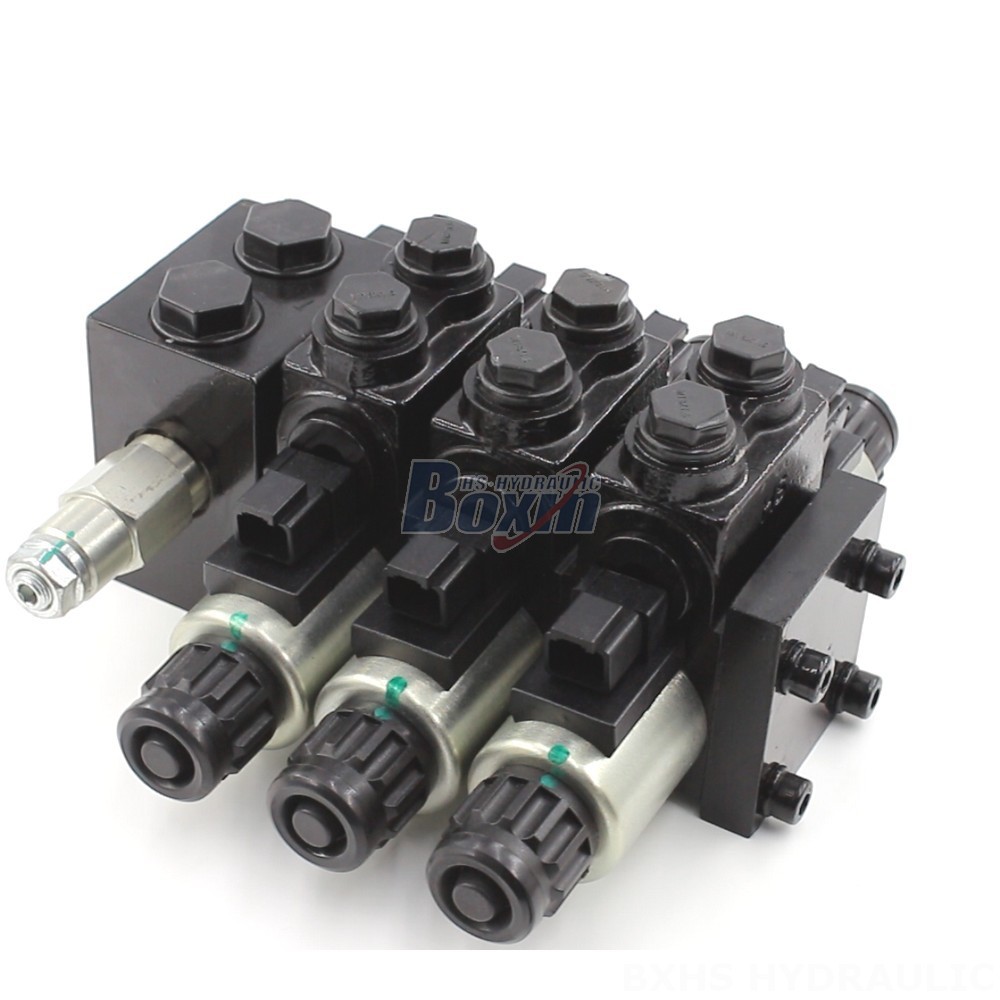

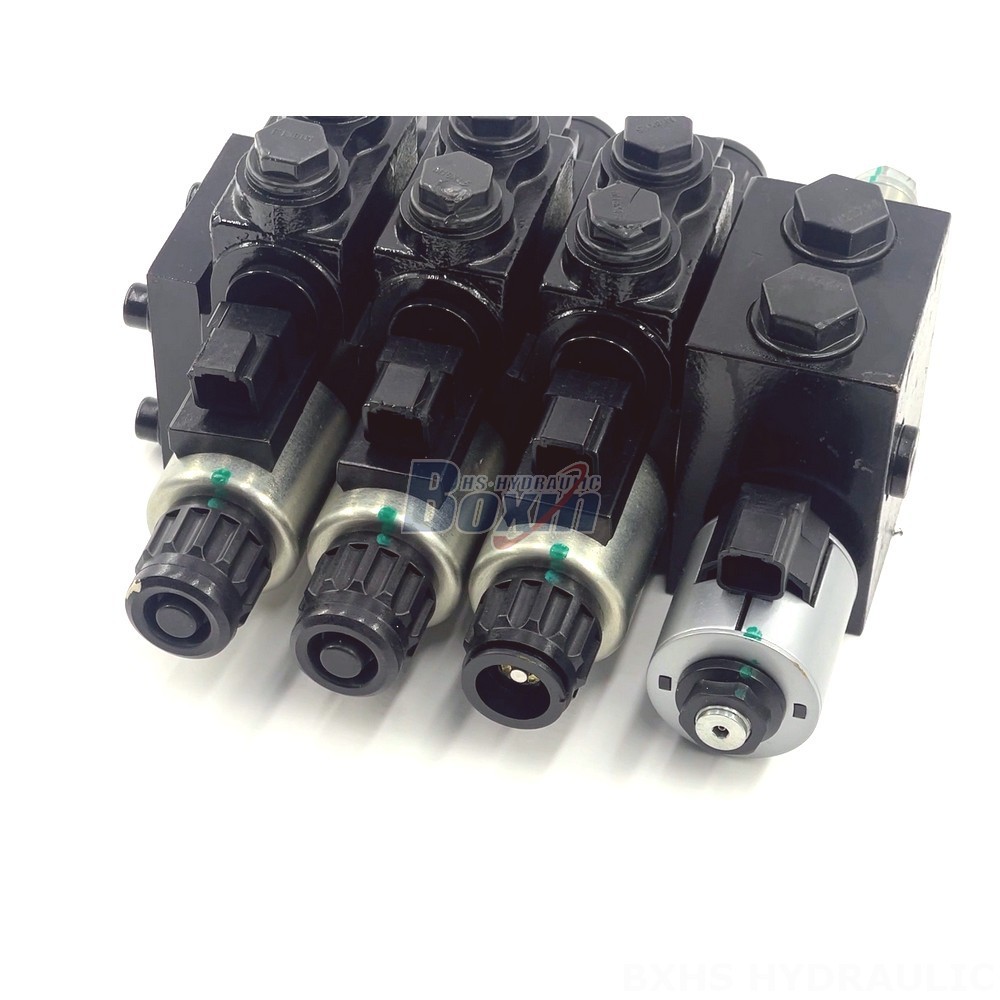

The HDCF50 Series Hydraulic Proportional Valve is a high-performance, sectional valve designed for demanding hydraulic applications in industries like construction, material handling, agriculture, and industrial vehicles. It features a 3-section design, 50 L/min rated flow, and a maximum pressure of 160 bar. The valve operates with a solenoid control method and is available in 12V and 24V voltage options. This reliable and efficient valve is suitable for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series Hydraulic Proportional Valve offers exceptional performance and reliability for demanding hydraulic applications across multiple industries. The valve is designed as a 3-section sectional valve with a 50 L/min rated flow and a maximum pressure of 160 bar. The solenoid control method ensures precise and responsive operation. The HDCF50 series valve is compatible with a wide range of hydraulic systems with a viscosity range of 15 - 75 mm²/s. Its robust construction allows operation in demanding environments with an ambient temperature range of -20°C to +80°C. The HDCF50 valve is specifically engineered for applications in:
* **MATERIAL HANDLING:** Telehandlers, forklifts, stackers, aerial platforms
* **CONSTRUCTION AND EARTH MOVING:** Motor graders, midi-excavators, mini-excavators, skid steer loaders
* **AGRICULTURE:** Agricultural machinery requiring precise hydraulic control
* **INDUSTRIAL VEHICLES:** Heavy-duty vehicles requiring reliable and efficient hydraulic operation
The HDCF50 Series valve offers a versatile solution for a wide range of applications, enabling smooth and efficient operation across diverse hydraulic systems. Its high performance, reliability, and compatibility with various industry standards make it an ideal choice for manufacturers and users seeking a robust and dependable hydraulic valve.
