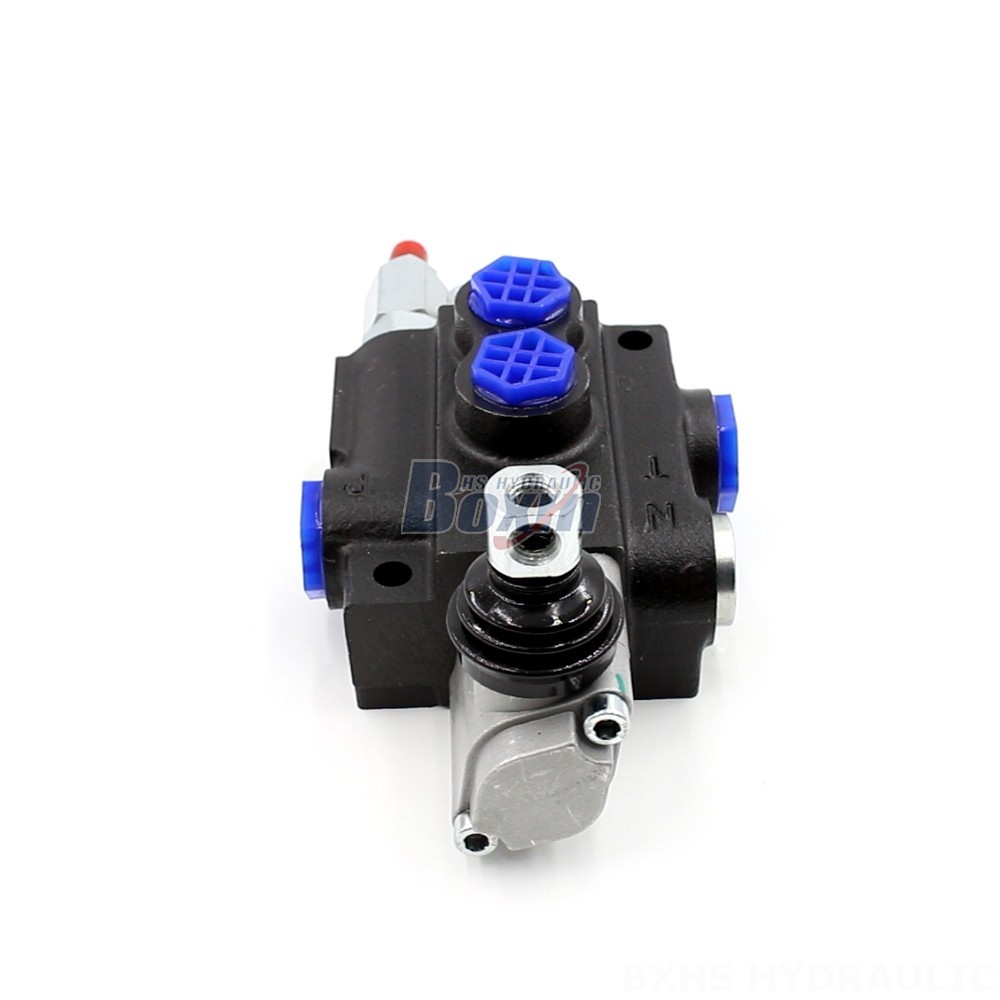

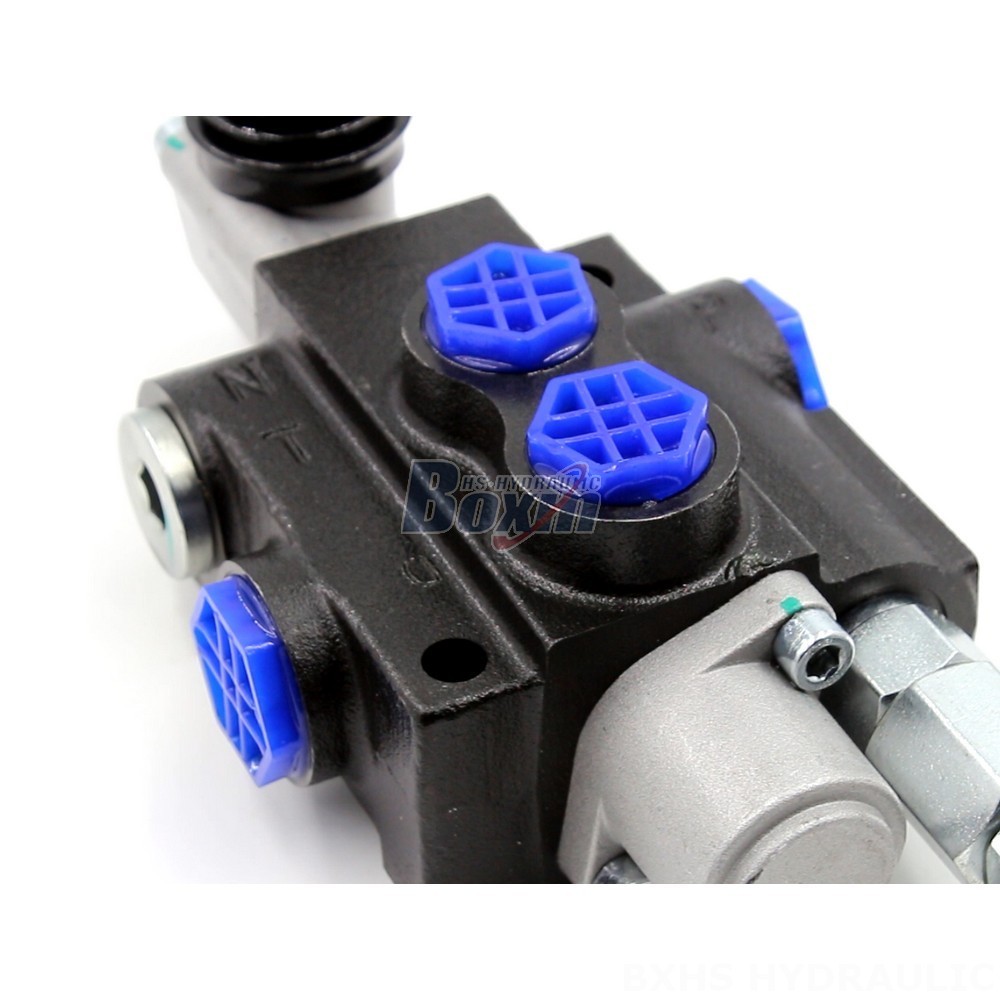

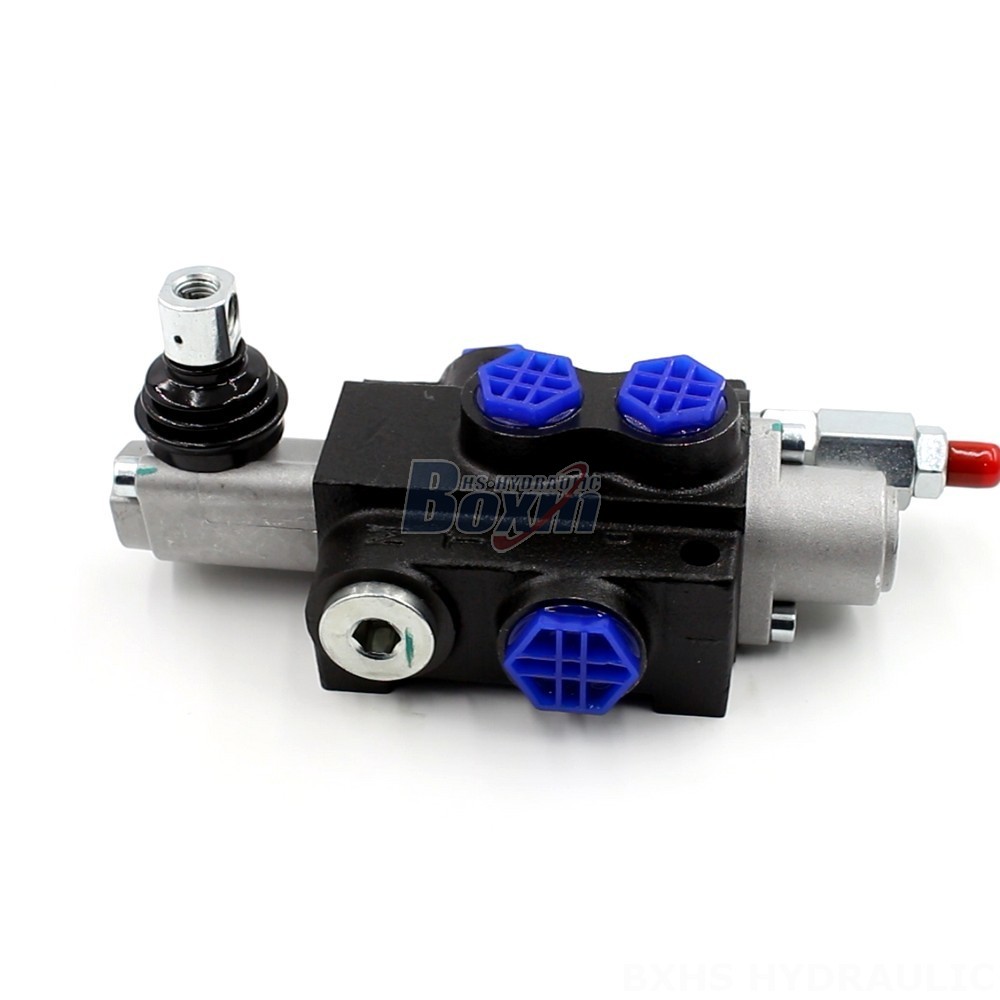

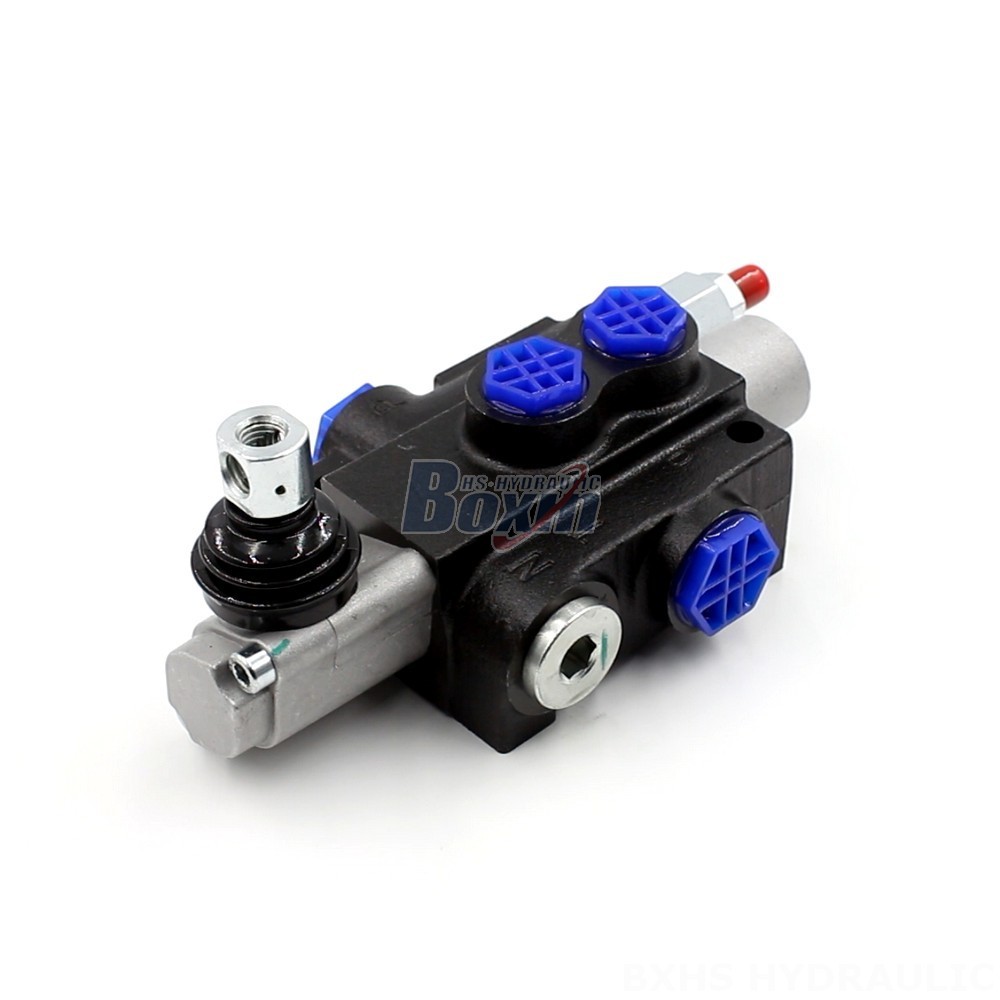

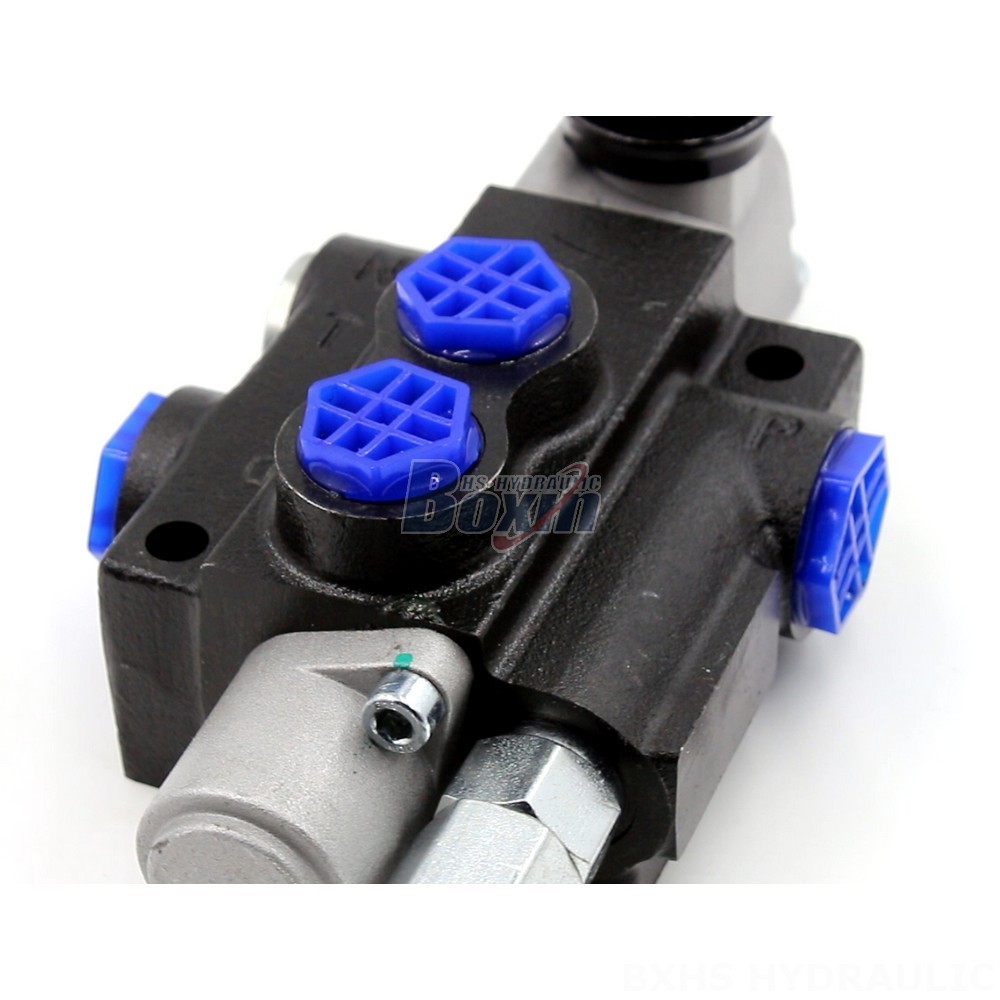

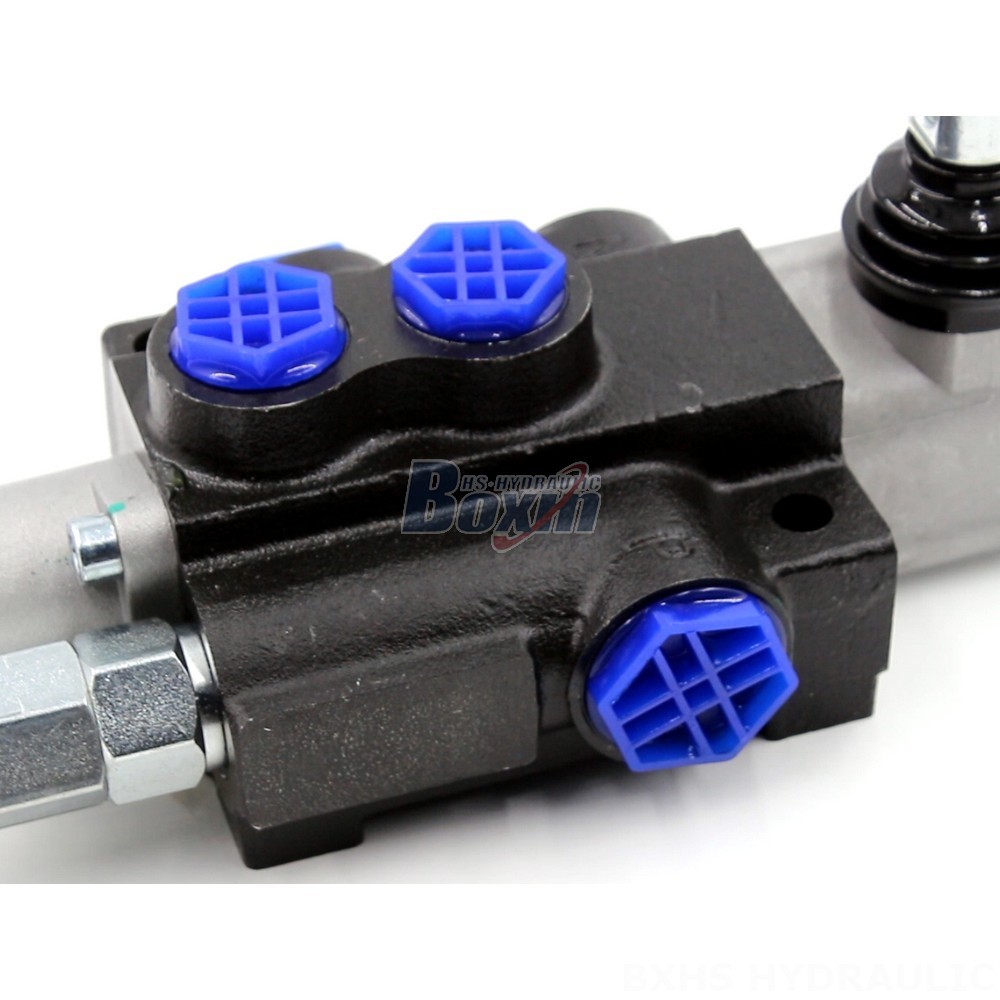

The P40-G12 High-Performance Hydraulic Directional Valve is designed for demanding applications in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. This valve features manual control, a monoblock construction, and a rated flow of 40 L/min. With a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s, it can withstand challenging operating conditions. The P40-G12 is suitable for use in applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12 High-Performance Hydraulic Directional Valve**
**Key Features:**
- Manual control for precise operation
- Monoblock construction for durability and reliability
- Rated flow of 40 L/min for efficient performance
- Maximum pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for versatility
- Ambient temperature range of -40°C to +80°C for use in various environments
- 1 spool for simple and effective flow control
**Applications:**
- MATERIAL HANDLING: Telehandlers, forklifts, stackers
- CONSTRUCTION AND EARTH MOVING: All-terrain cranes, motor graders, excavators
- AGRICULTURE: Tractors, harvesters
- INDUSTRIAL VEHICLES: Aerial platforms, skid steer loaders, compact wheel loaders
