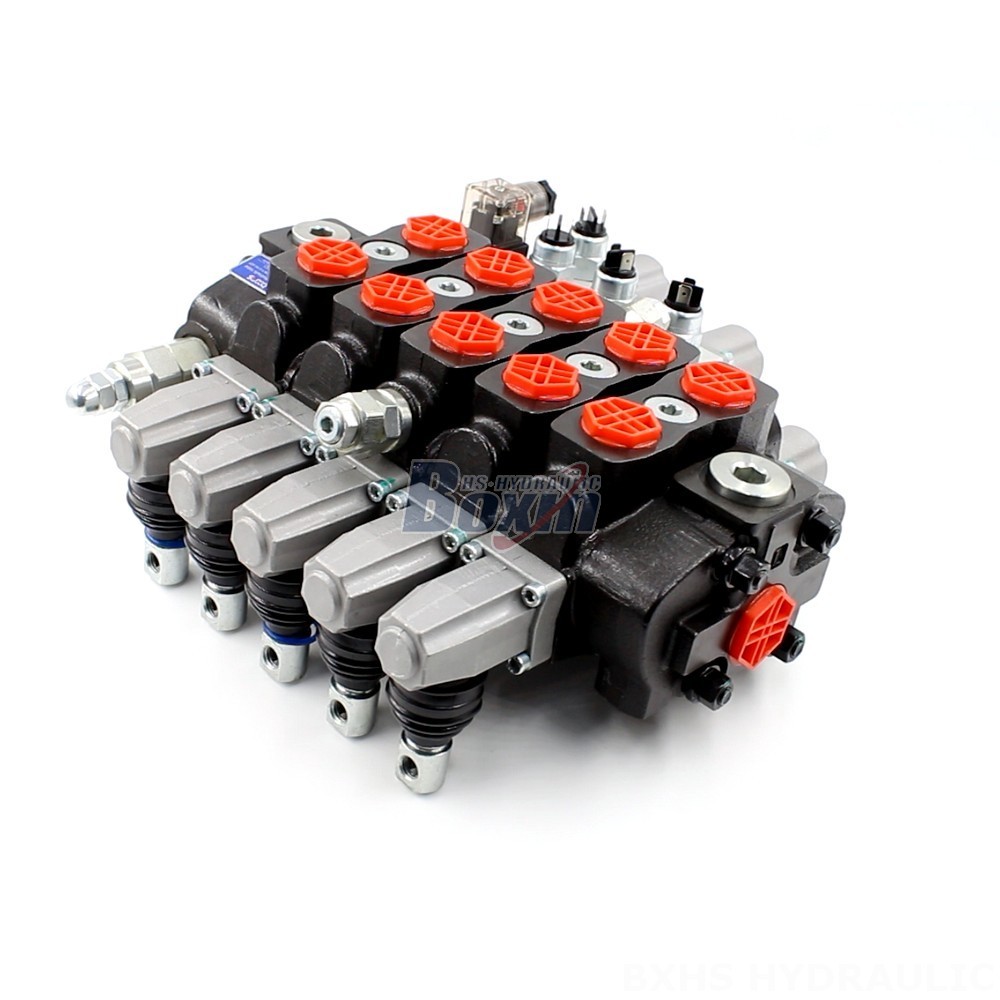

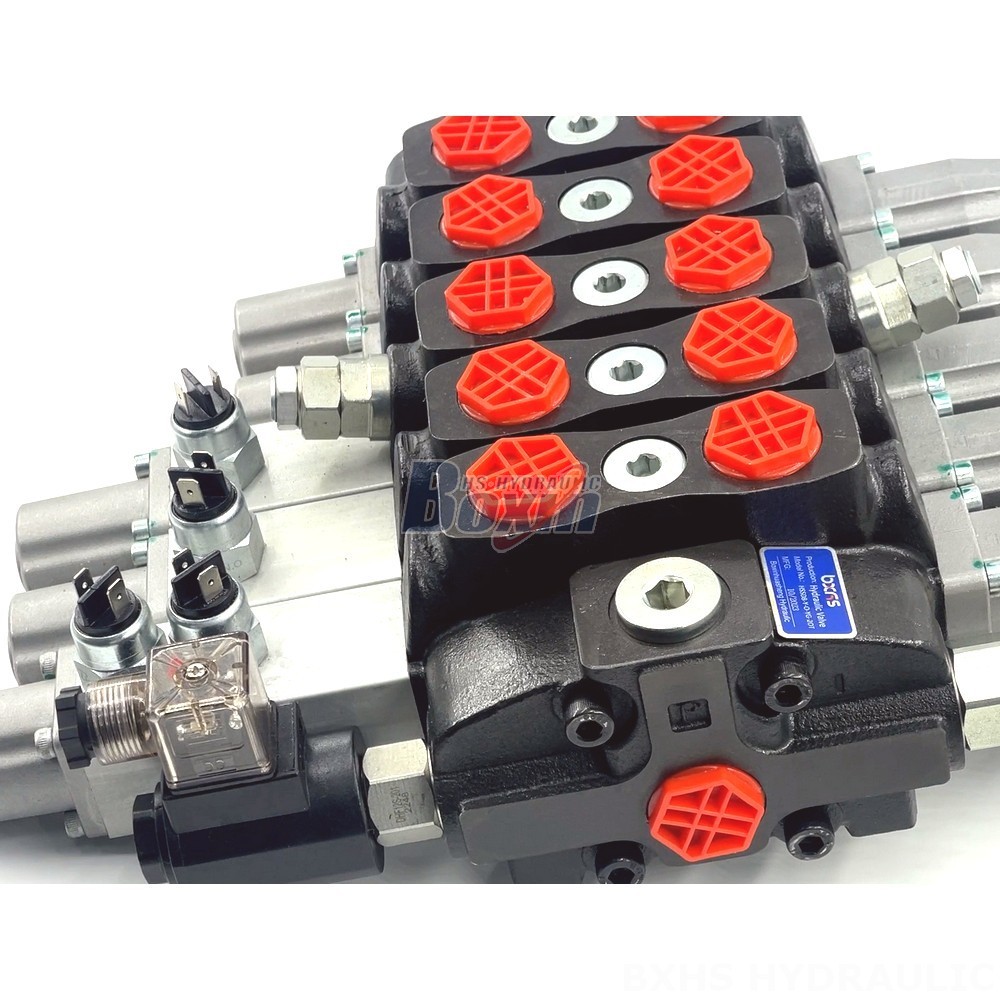

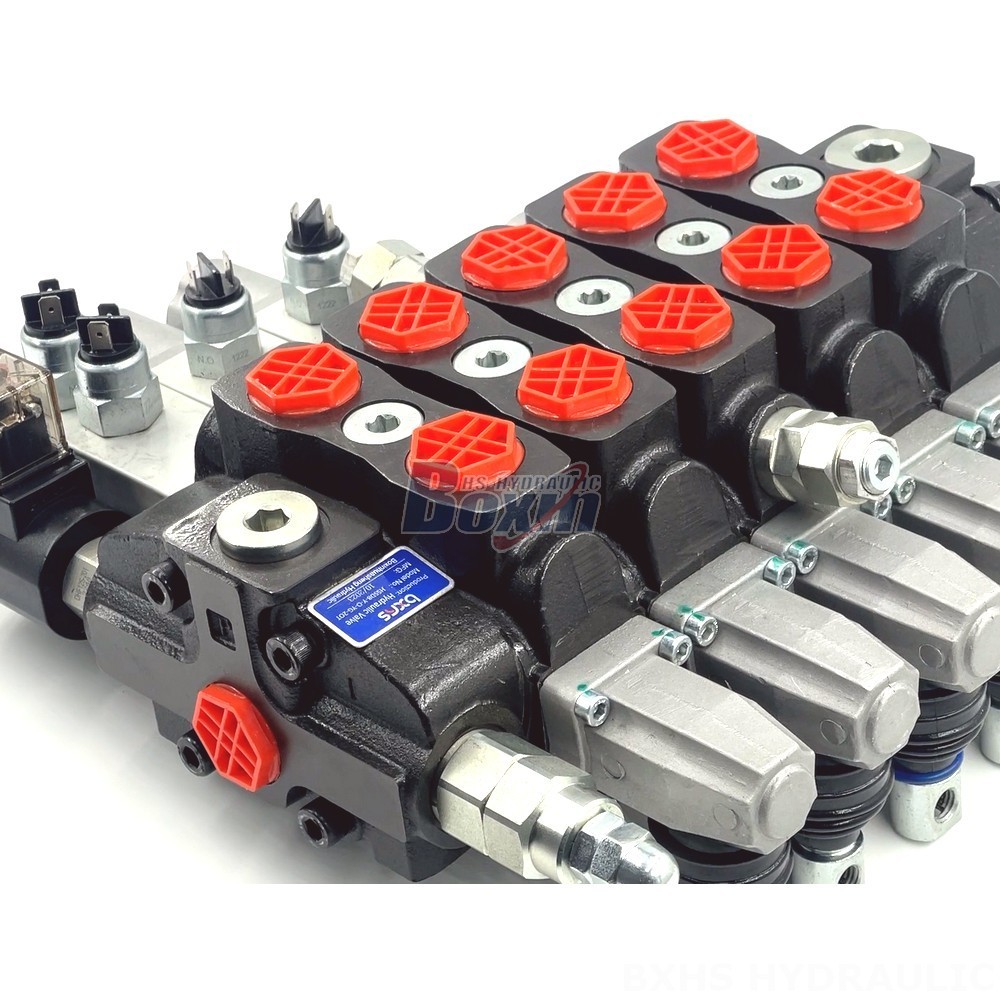

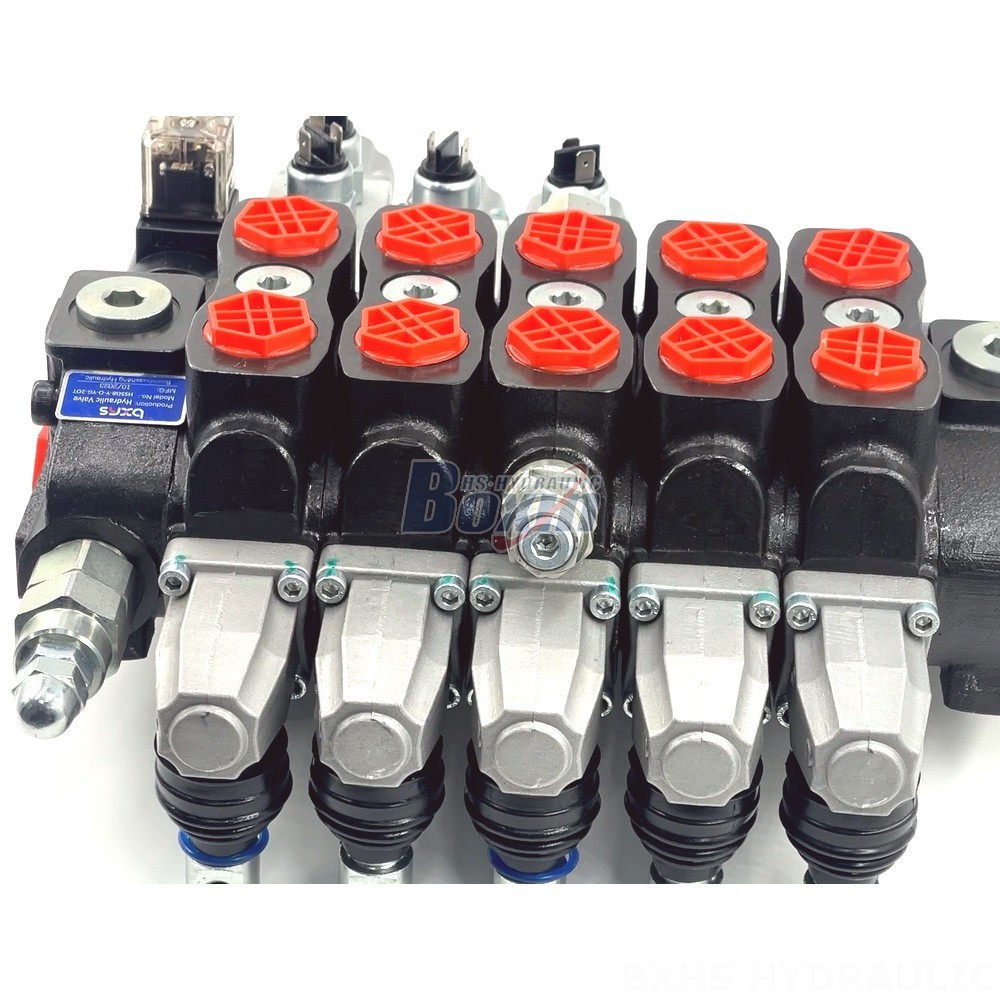

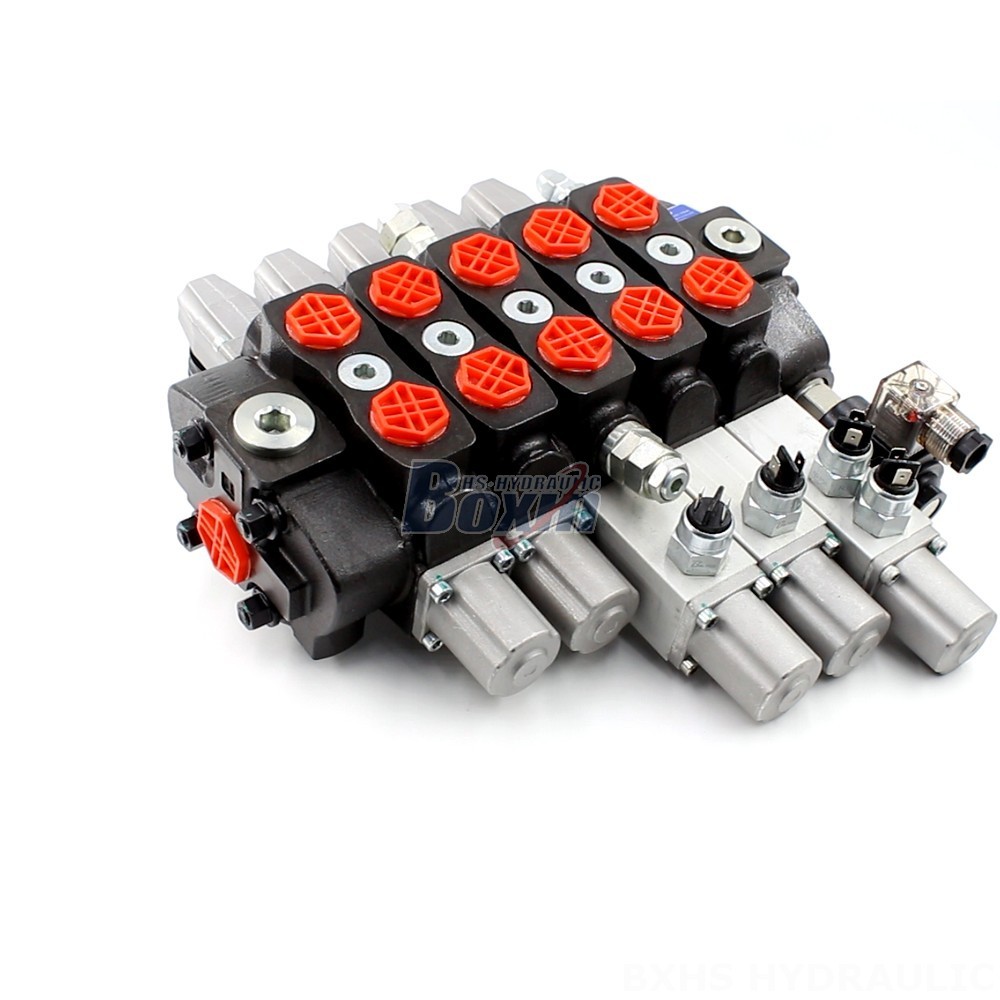

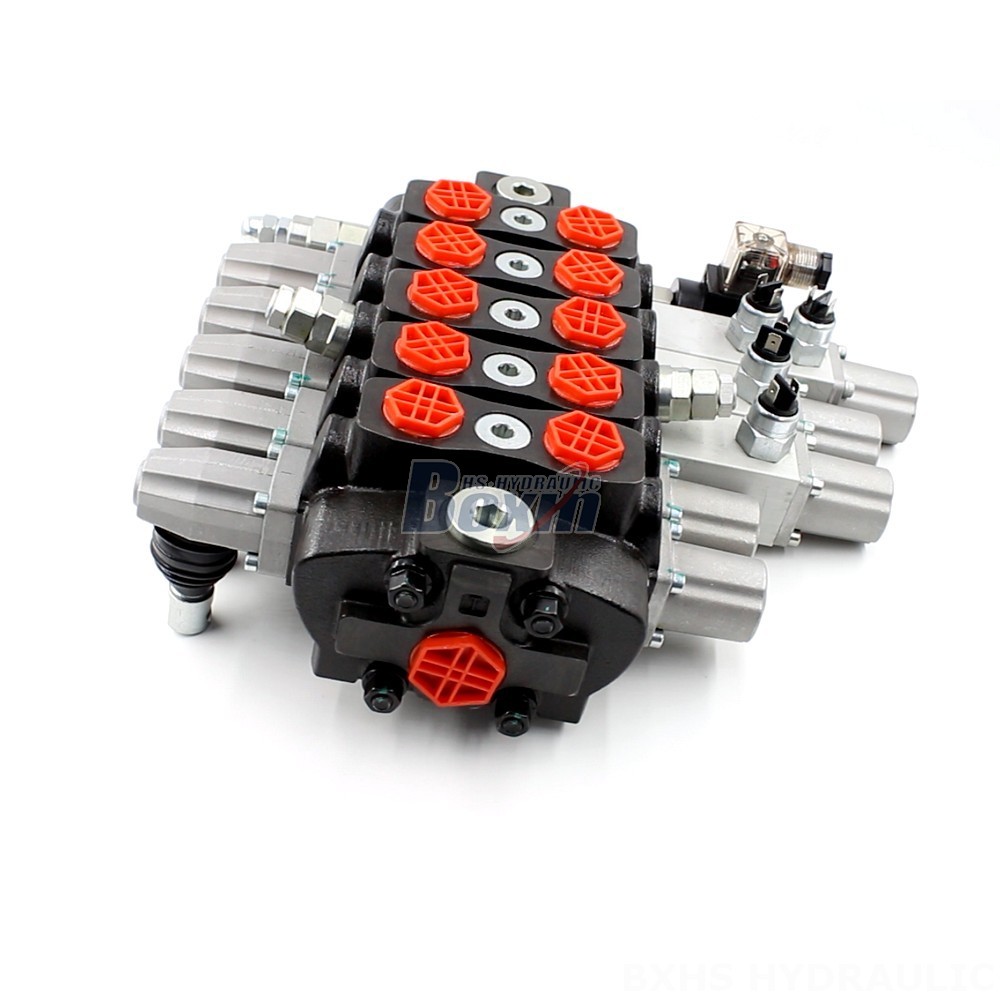

High-Performance Manual 5 Spool Sectional Directional Valve

Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:35*40*17

Kelas kotor:25.00 kg

Ketersediaan: Tersedia

2086 Pandangan Mencari Produk Ini

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve drawing image

This is a high-performance manual 5 spool sectional directional valve designed for excavators and other heavy equipment. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it ideal for demanding applications.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Motor listrik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M22×1.5, SAE 10
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Ukuran Port G1/2, M22×1.5, SAE 10

Our Excavator Joystick Hydraulic Valve is a high-performance, manually controlled, 5 spool sectional directional valve. It is designed for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors. This valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of applications, including excavators, forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve features a robust construction and reliable performance, ensuring long-lasting operation. With its 5 spool design, it offers precise control and responsiveness. This valve is an excellent choice for any application requiring high performance and reliable hydraulic control.
