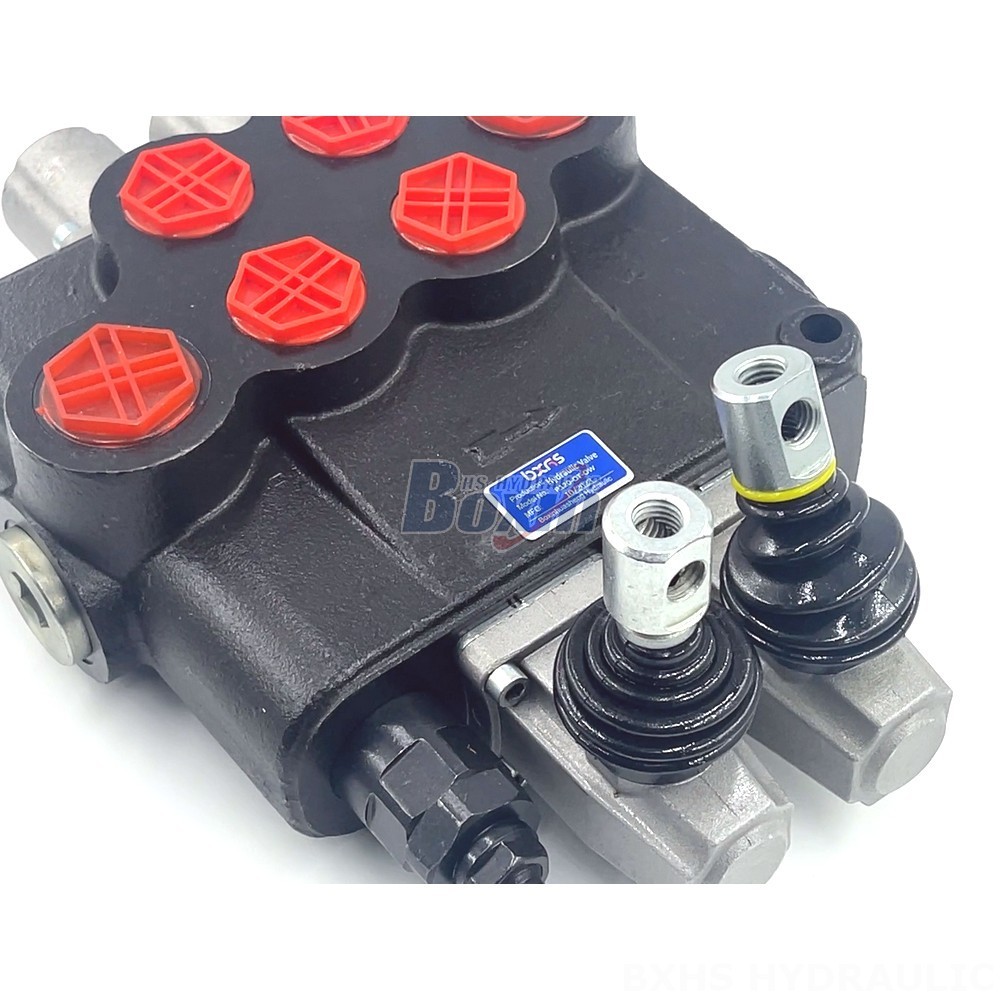

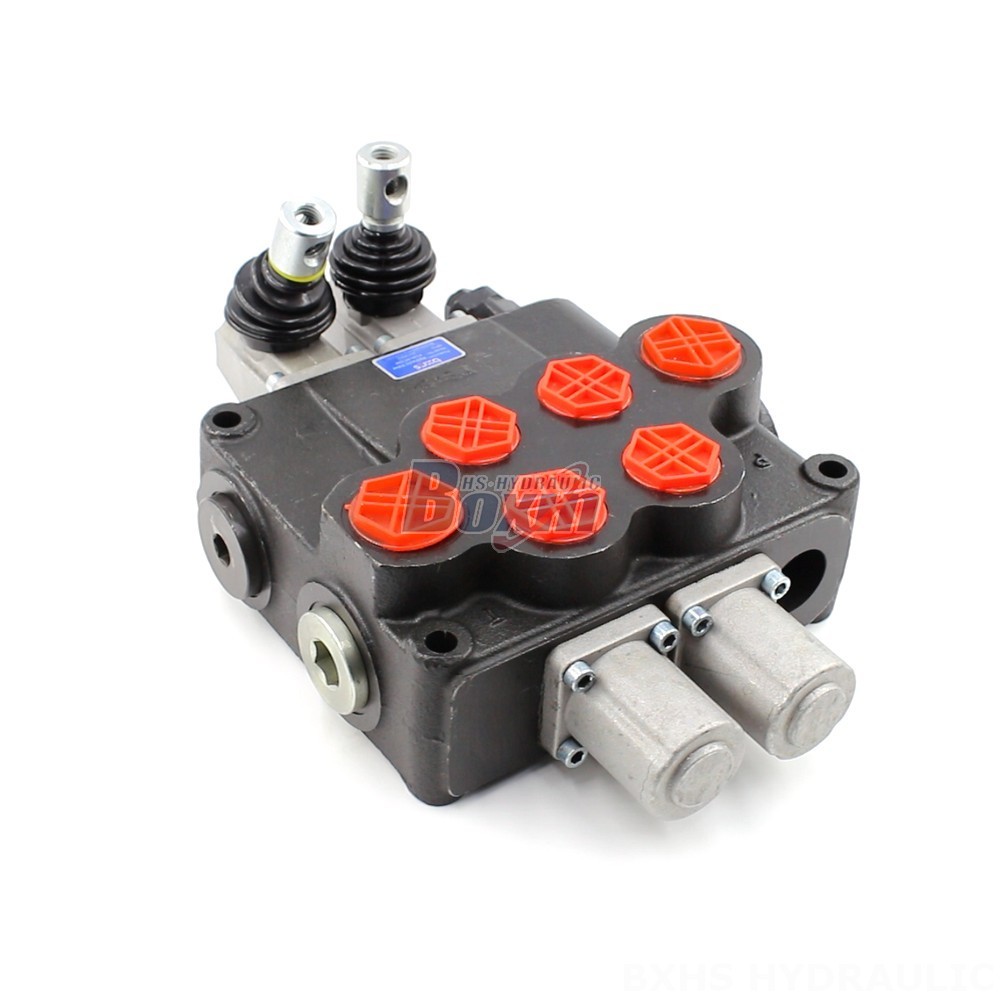

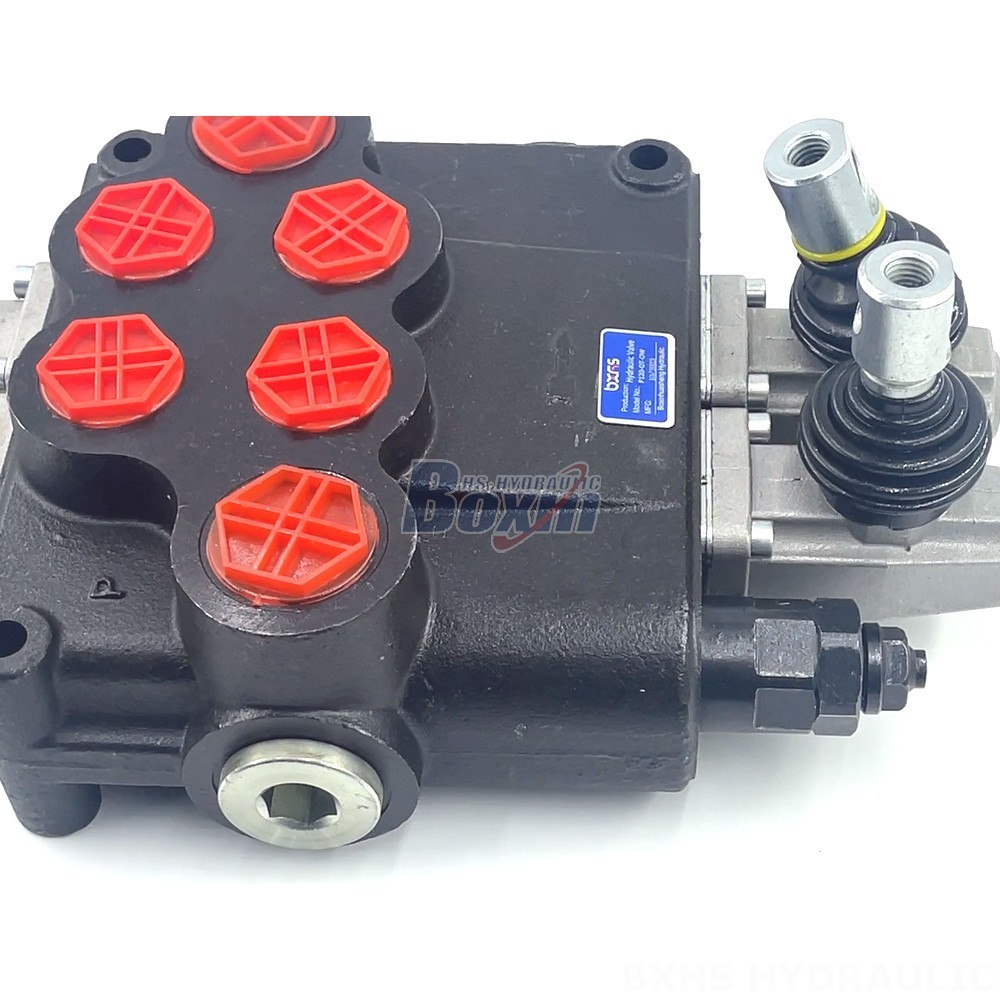

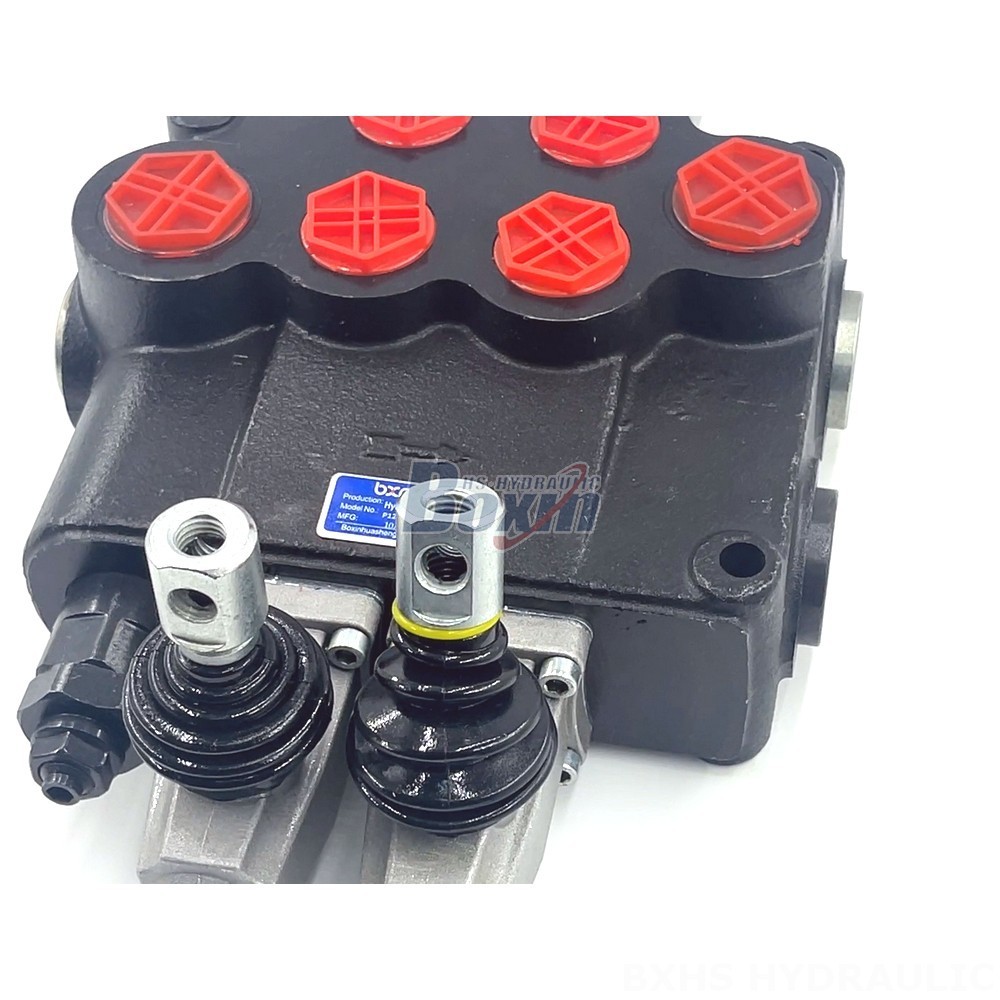

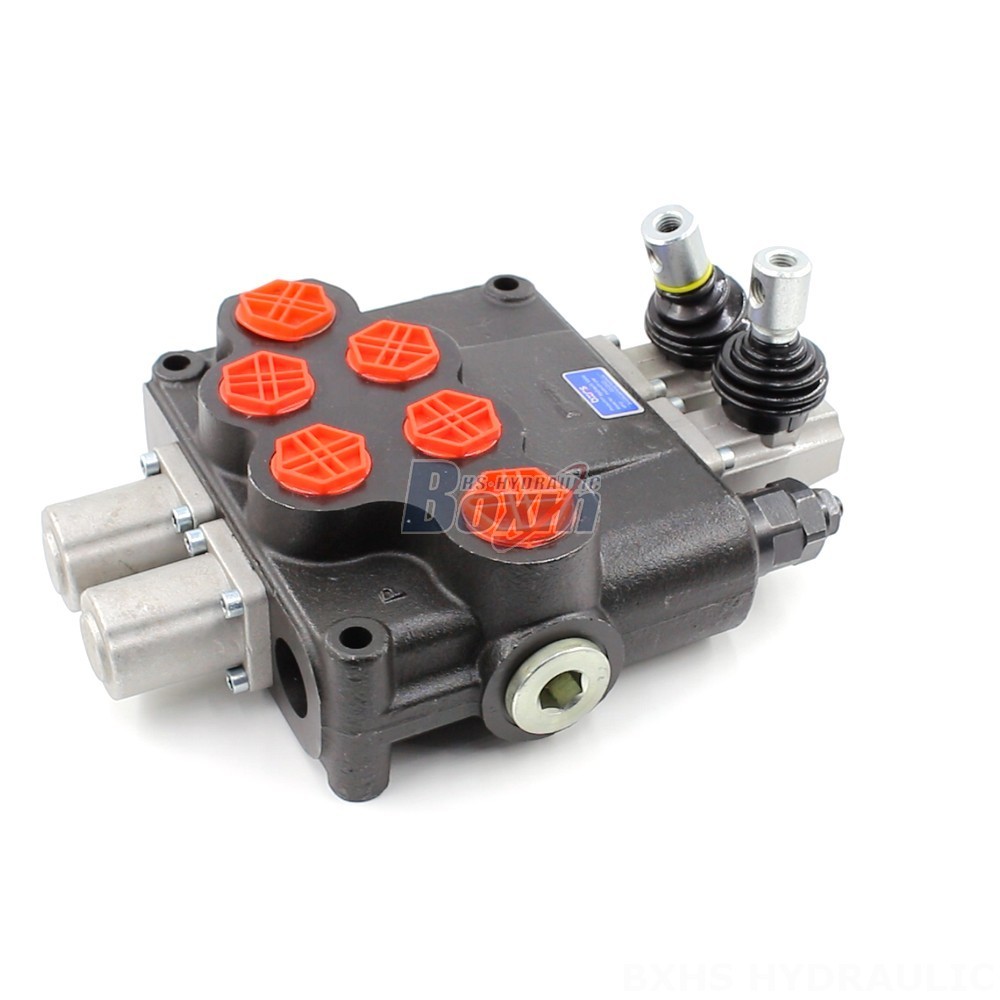

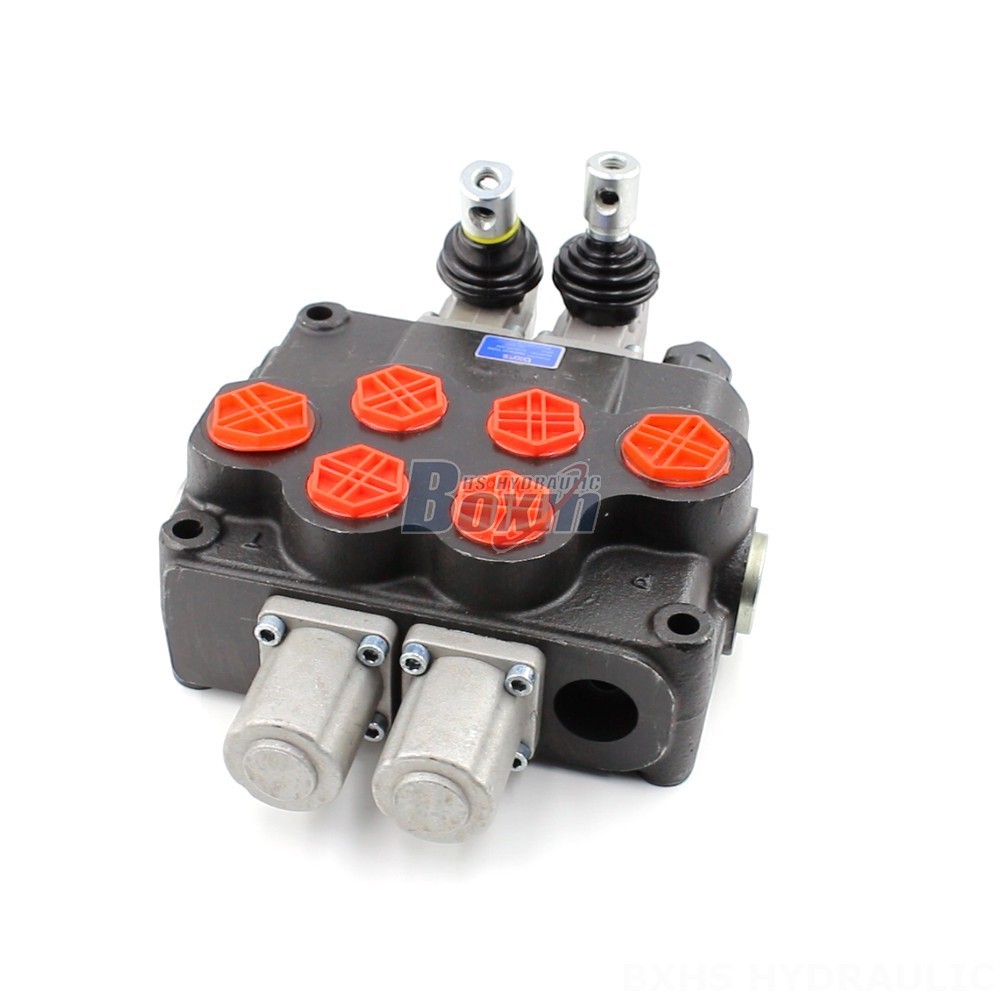

The Rexroth P120 Directional Spool Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section monoblock valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The Rexroth P120 Directional Spool Valve is a robust and reliable hydraulic valve ideal for a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This high-performance valve features a manual control method, a 2-section design, and a monoblock structure for increased durability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, the P120 valve is designed to handle demanding hydraulic applications. The valve also features a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of climates and environments.
