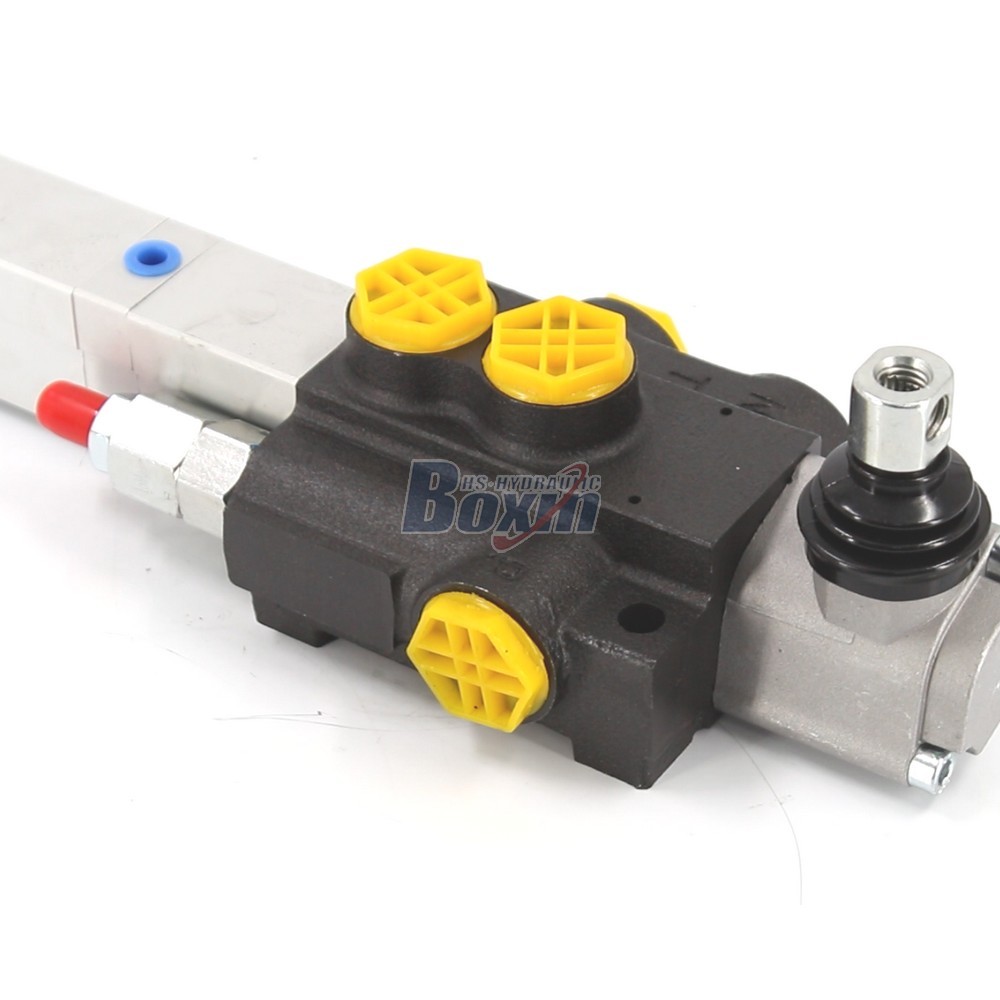

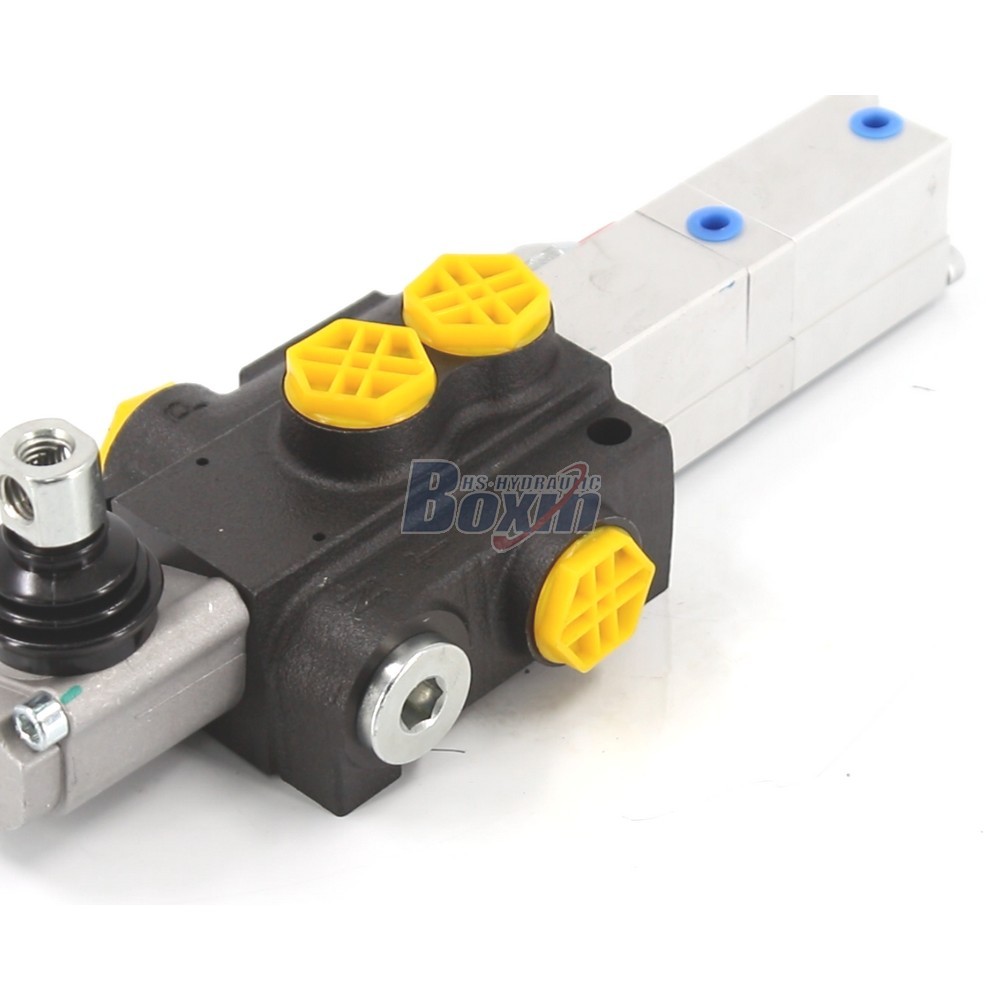

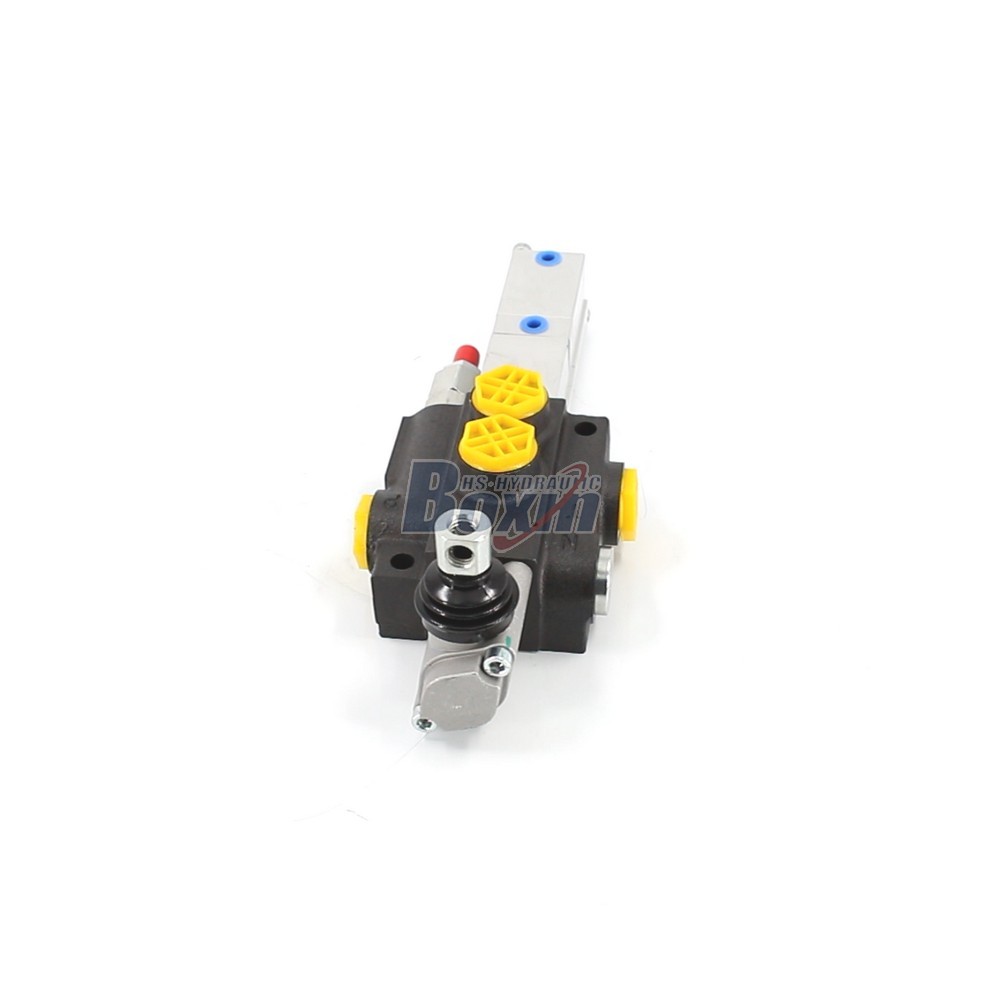

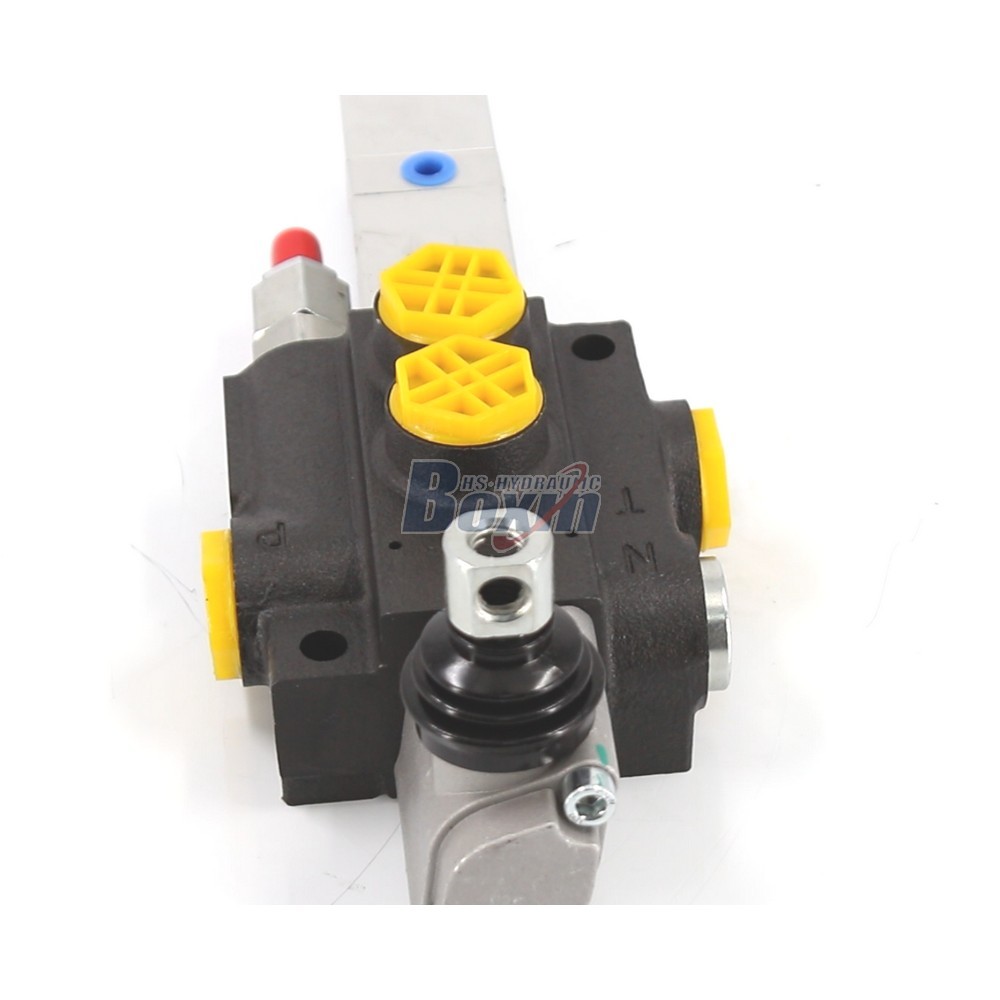

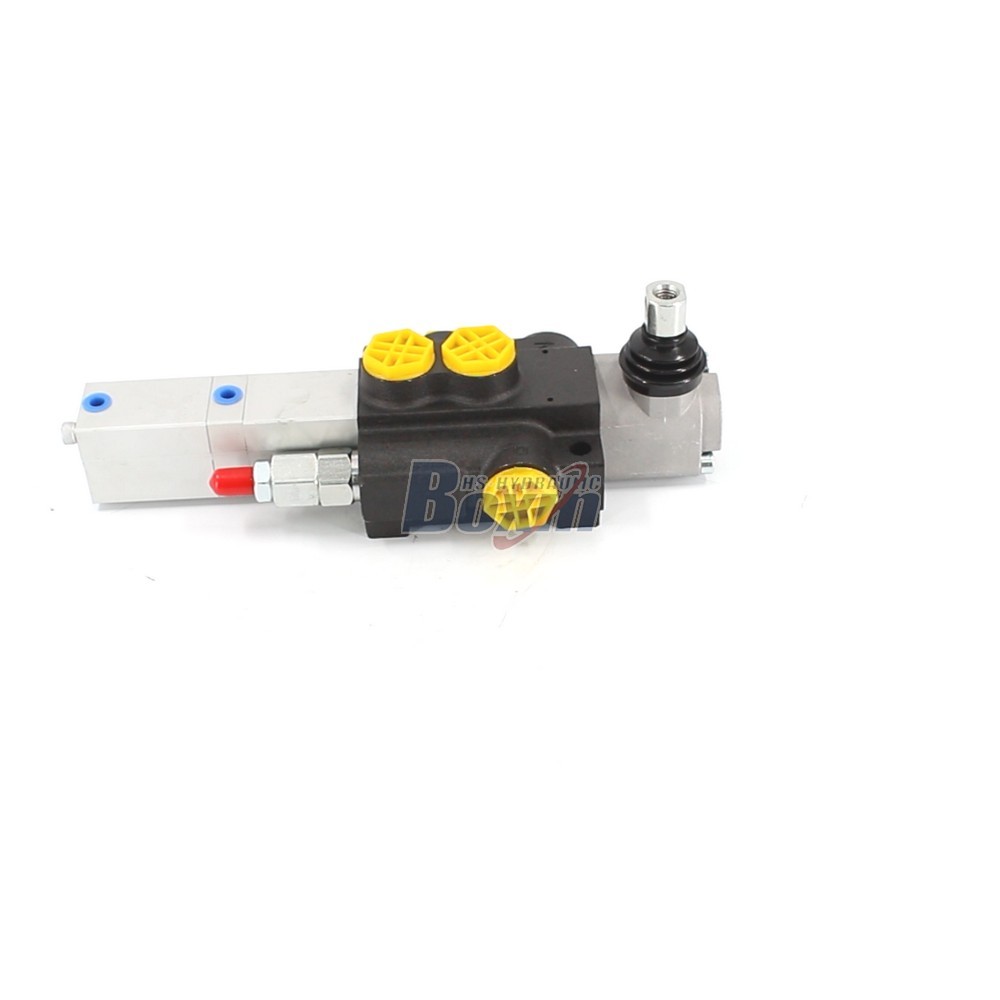

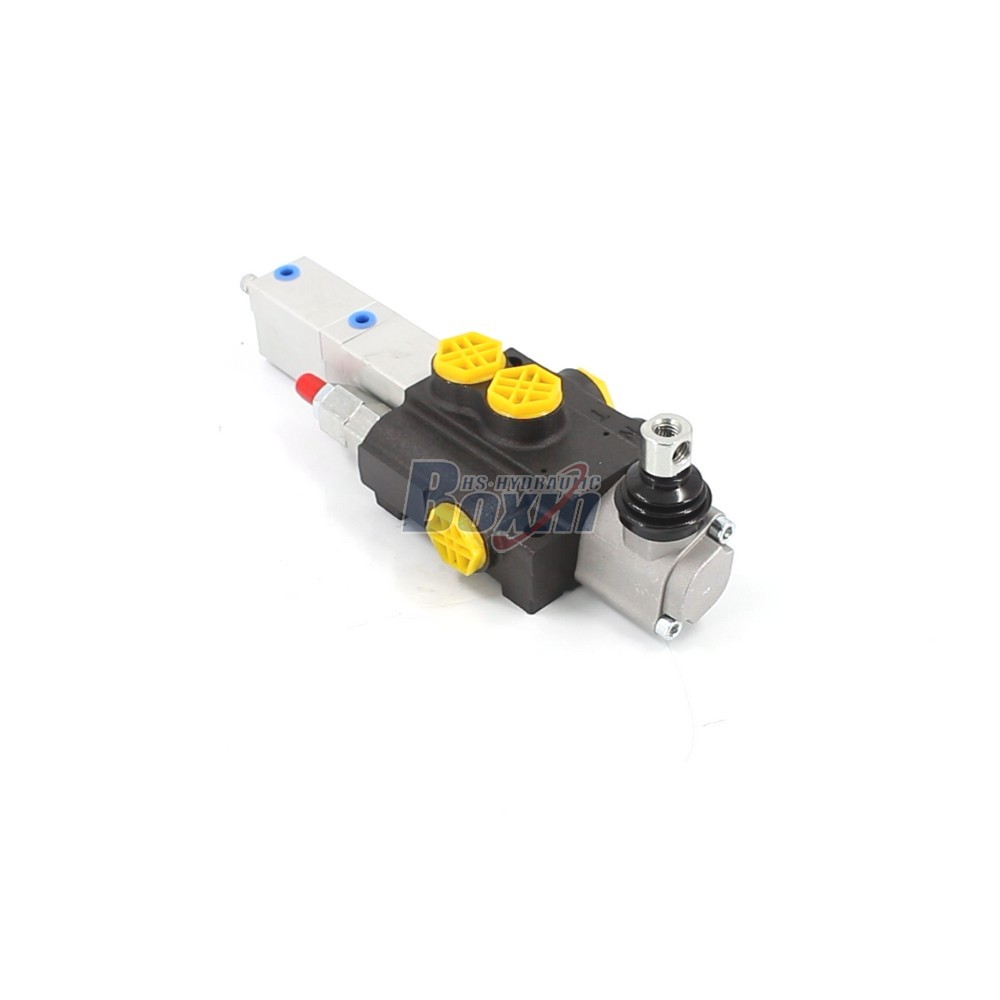

High Performance P40Q-OT Pneumatic Monoblock Directional Control Valve

Metode Kontrol:Pneumatik

Spul:1 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:29*16*11

Kelas kotor:3.50 kg

Ketersediaan: Tersedia

59 Pandangan Mencari Produk Ini

High Performance P40Q-OT Pneumatic Monoblock Directional Control Valve

High Performance P40Q-OT Pneumatic Monoblock Directional Control Valve

High Performance P40Q-OT Pneumatic Monoblock Directional Control Valve drawing image

The P40Q-OT is a high-performance pneumatic monoblock directional control valve designed for precise flow management in various industrial vehicles. Featuring a single spool design with a 40 L/min flow capacity and 250 bar pressure rating, it provides reliable pneumatic operation for material handling, agriculture, and construction machinery.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

As a leading manufacturer of hydraulic products, we offer the High Performance P40Q-OT Pneumatic Monoblock Directional Control Valve for the global market. This P40 series valve is engineered for durability and precision, featuring a 1-spool configuration capable of handling a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is widely used in forklifts, mini-excavators, tractors, and wood splitters. Our factory provides comprehensive manufacturing services, including OEM, ODM, and private labeling. We specialize in wholesale supply and custom manufacturing to meet specific technical requirements. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. By choosing our factory-direct supply, you benefit from competitive wholesale pricing and reliable manufacturing expertise. Whether you need standard P40 series valves or customized pneumatic hydraulic solutions for aerial platforms and sweepers, our facility is equipped to support your bulk orders and professional distribution needs.
