High-Performance P81 Valve for Demanding Hydraulic Applications

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:Tekanan Maksimum

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Pembelah Kayu

Seri Produk:Seri P81 Katup Pembelah Kayu

Ukuran kemasan:27*16*12

Kelas kotor:4.80 kg

Ketersediaan: Tersedia

1671 Pandangan Mencari Produk Ini

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications drawing image

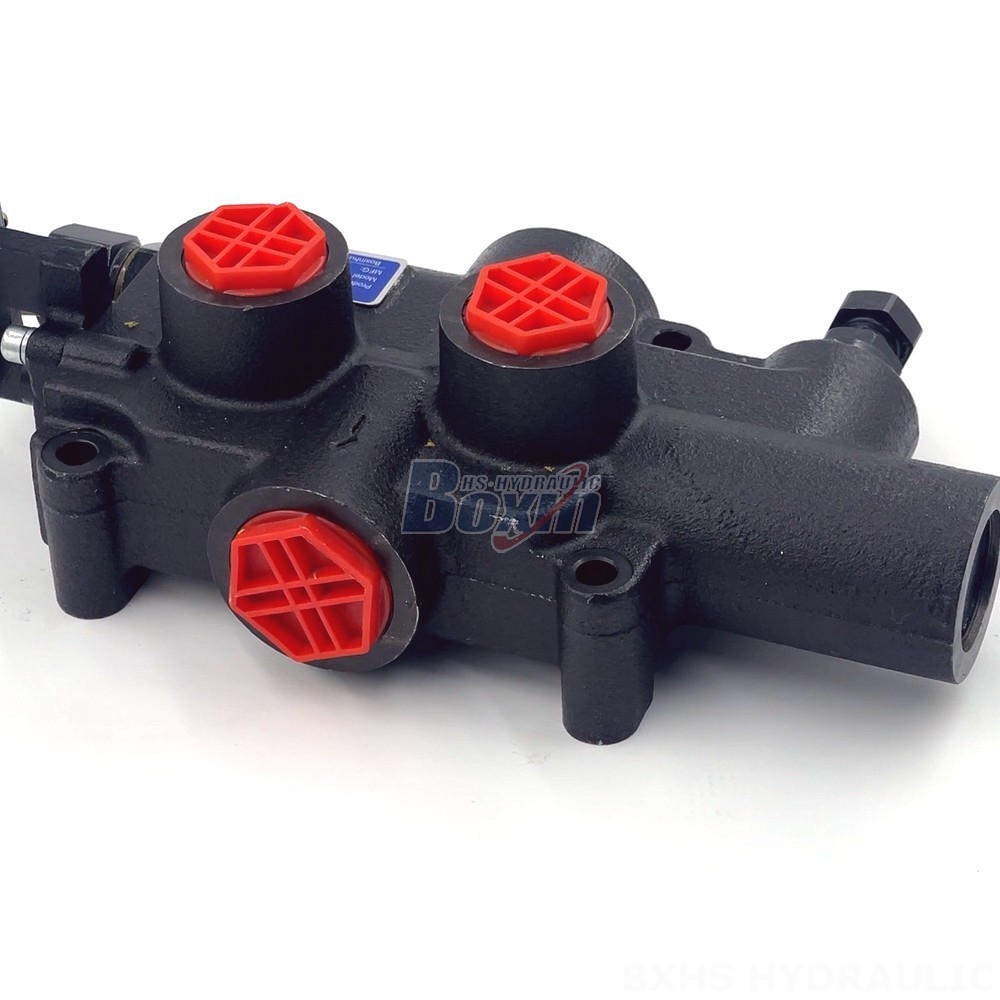

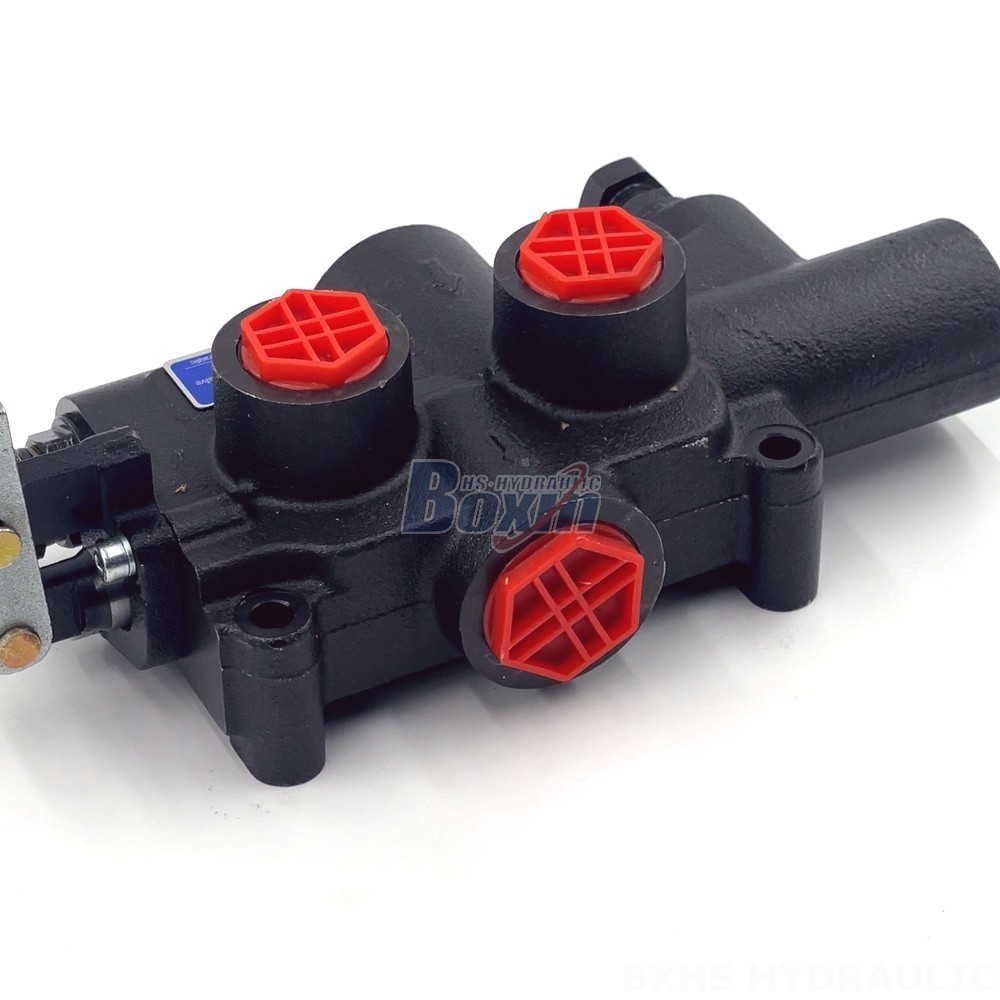

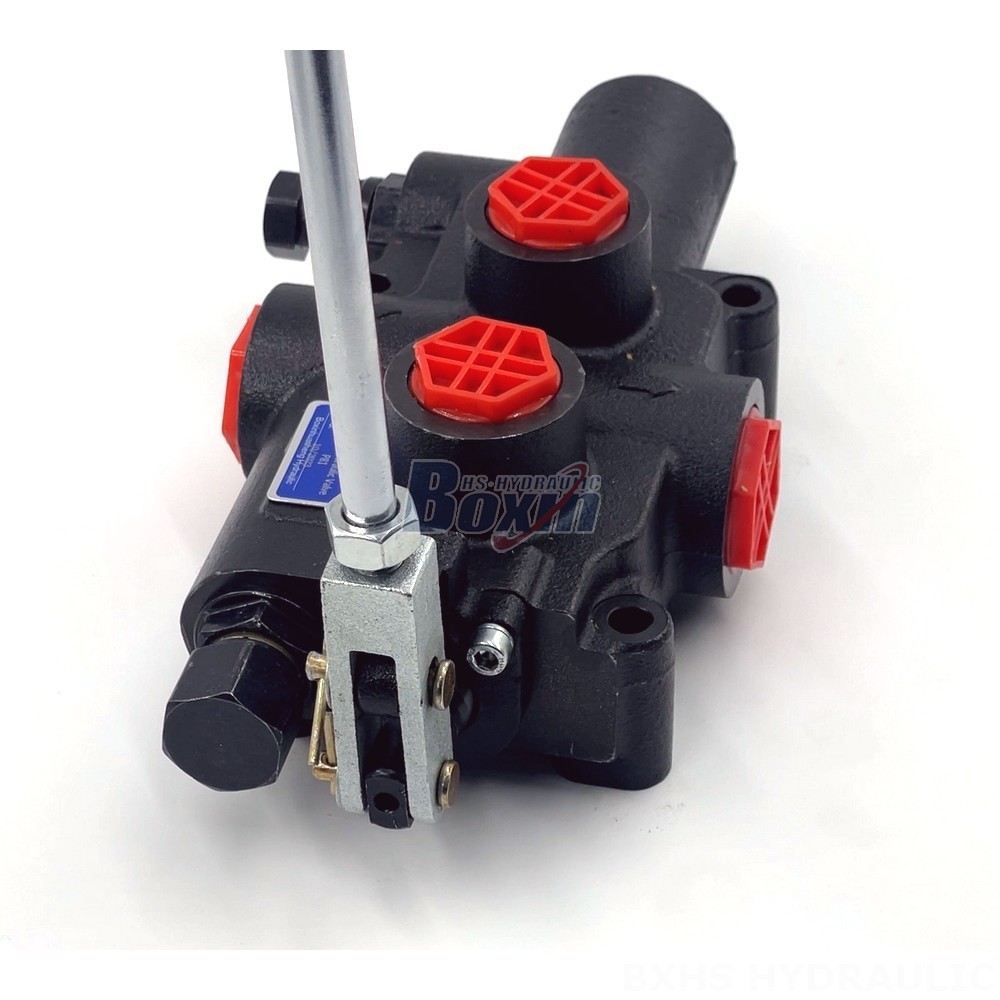

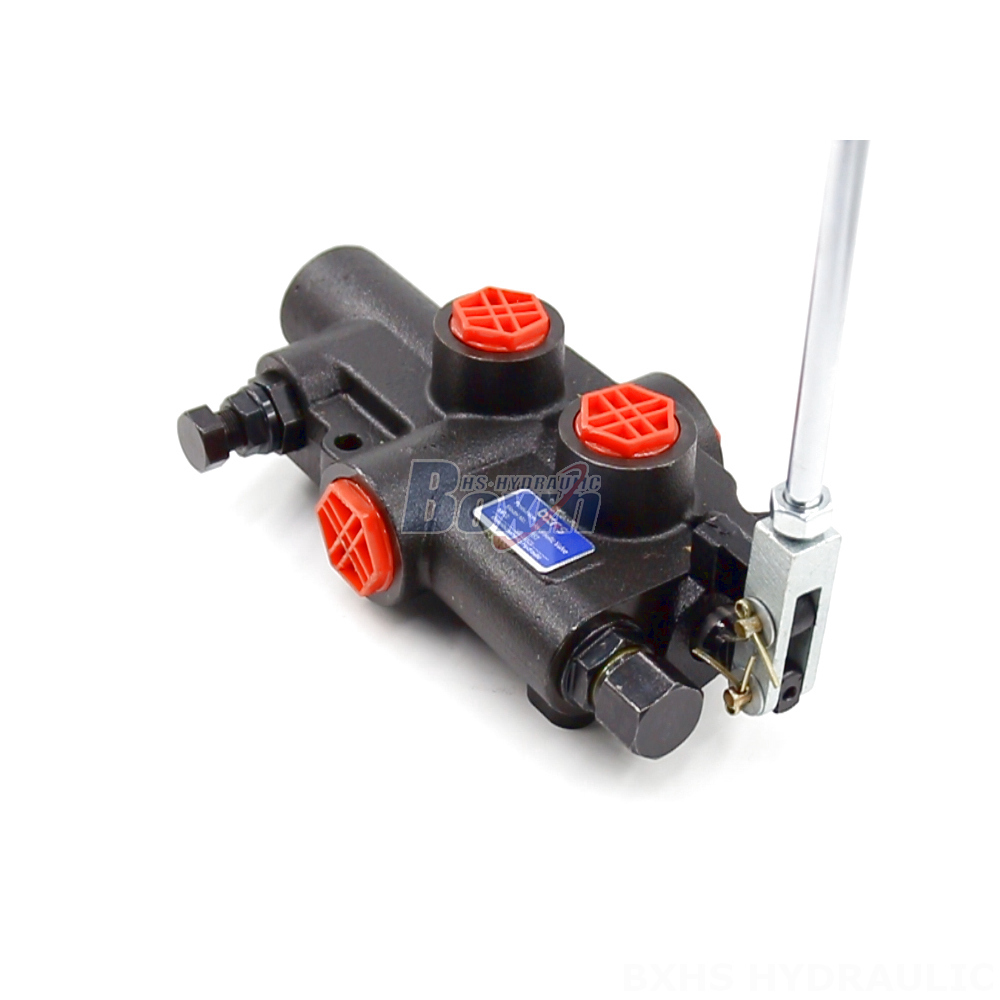

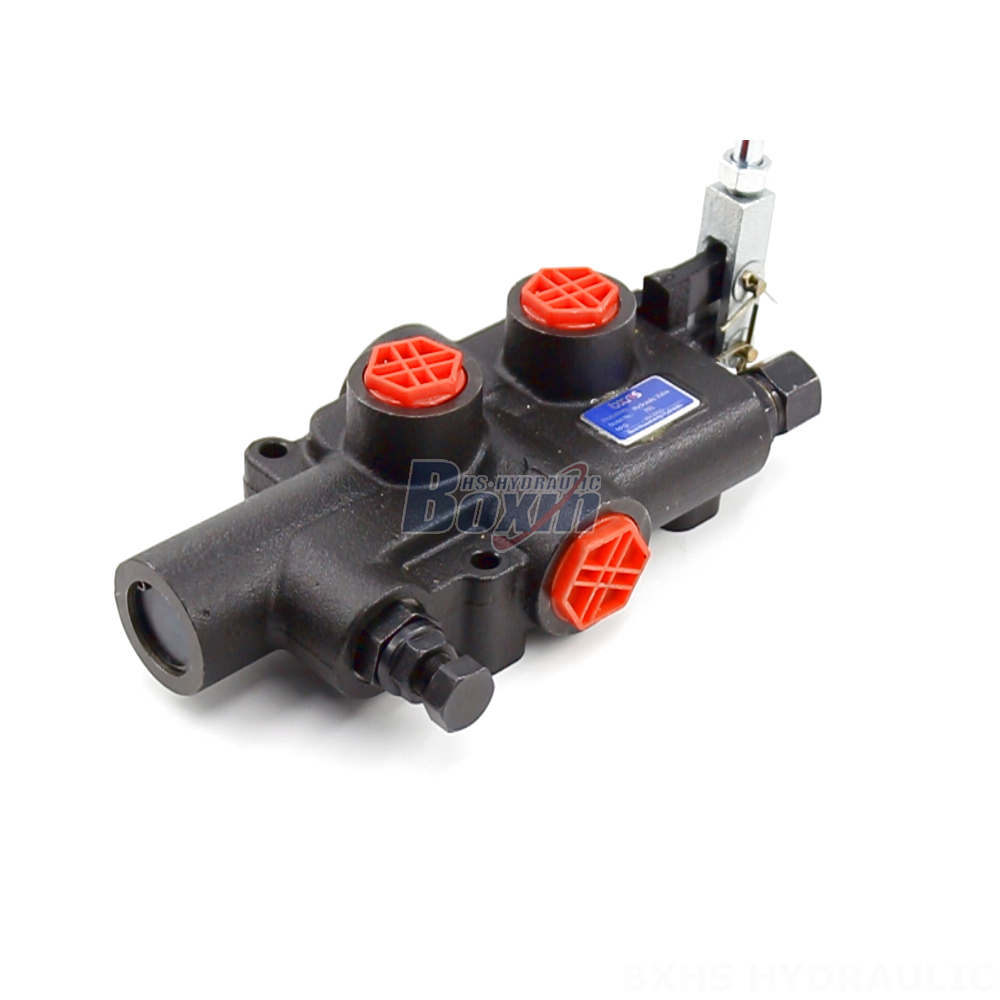

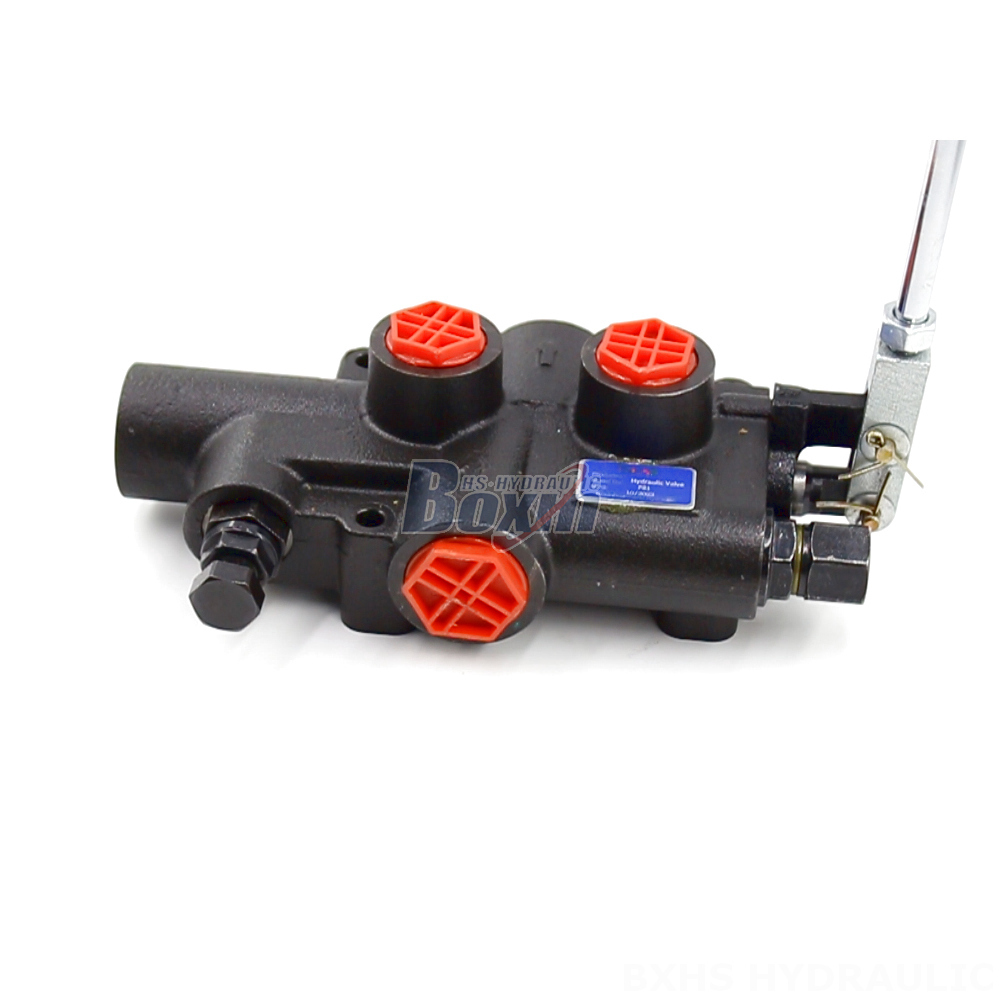

The P81 Series Multiway Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, particularly wood splitters. This manual control valve features a monoblock structure and delivers a rated flow of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi).

Seri P81 Katup Pembelah Kayu Parameter
Metode Kontrol Buku Panduan
Spul 1 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm), 95 L/menit (25,1 US gpm)
Tekanan Maksimum Tekanan Maksimum
Port Masuk G1/2
Port Keluar G1/2
Ukuran Port G3/4

The P81 Series Multiway Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding industrial applications. This high-performance valve is specifically designed for wood splitters, offering superior control and efficiency. Its monoblock construction provides durability and strength, ensuring long-lasting performance. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P81 valve is capable of handling high-pressure hydraulic systems. The valve operates within a wide viscosity range (15 - 75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its kick-out setting pressure is adjustable between 70~140bar (1015-2030psi), providing precise control and safety. The P81 Series Multiway Directional Valve is an ideal choice for manufacturers and users of industrial vehicles and equipment requiring a high-performance, reliable, and durable hydraulic valve solution.
