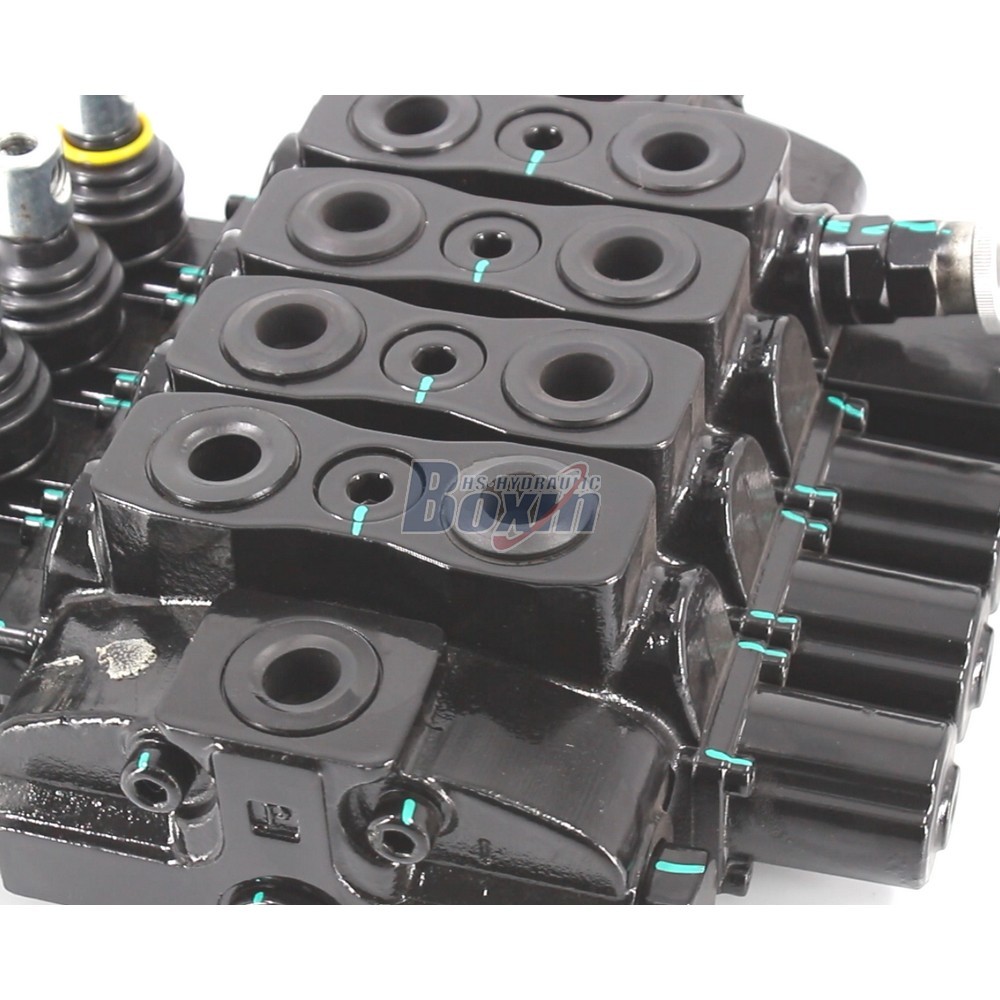

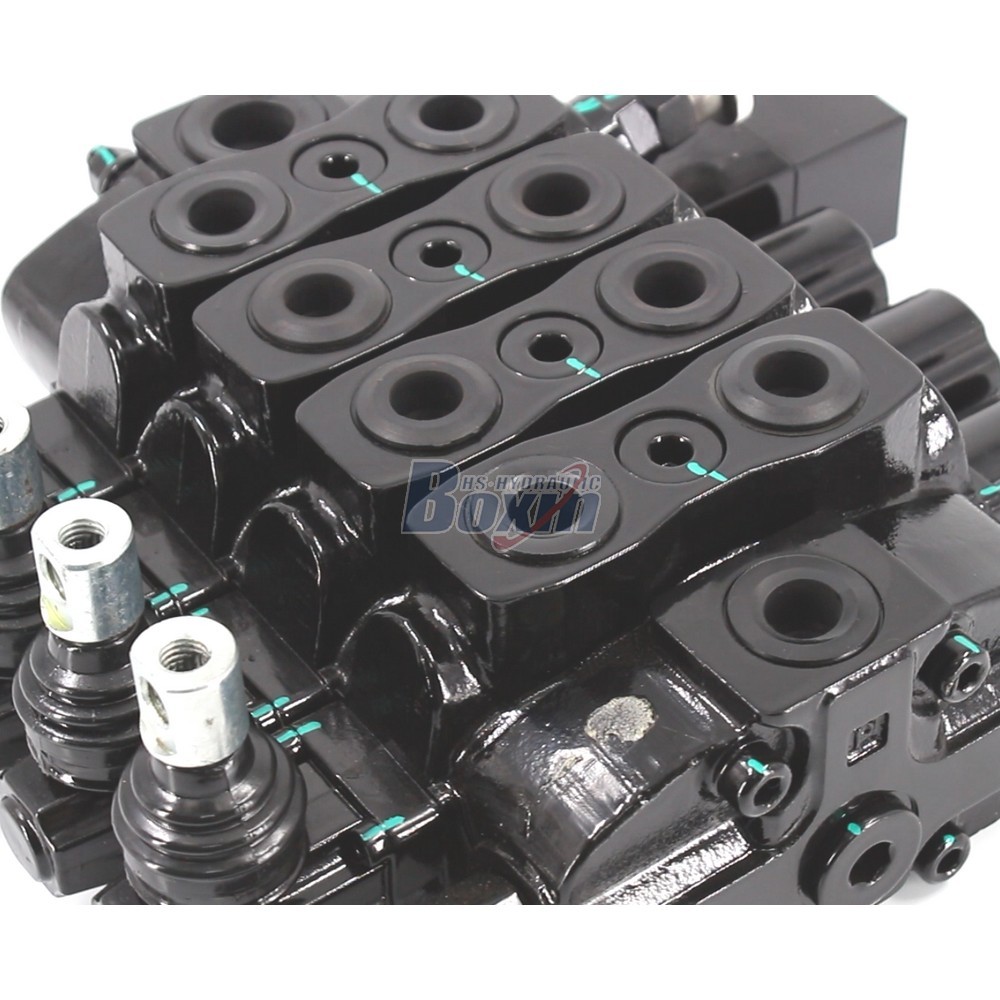

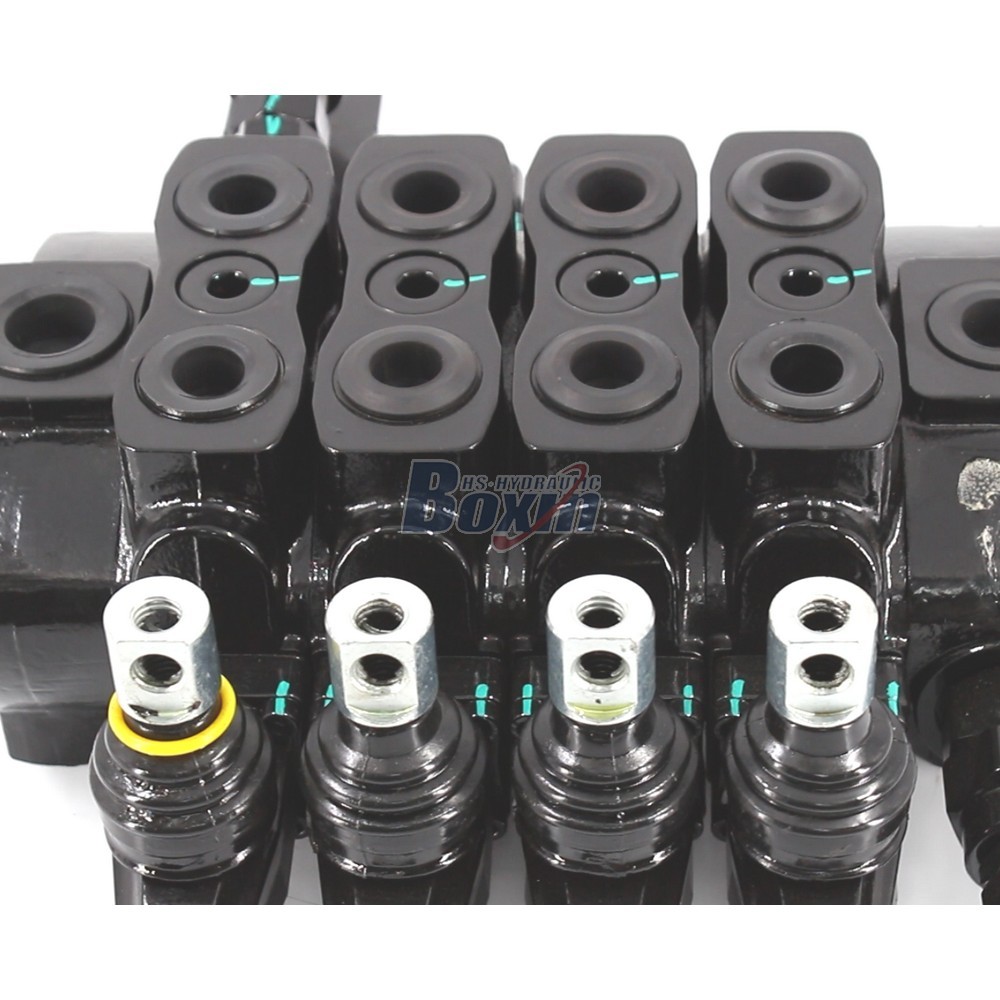

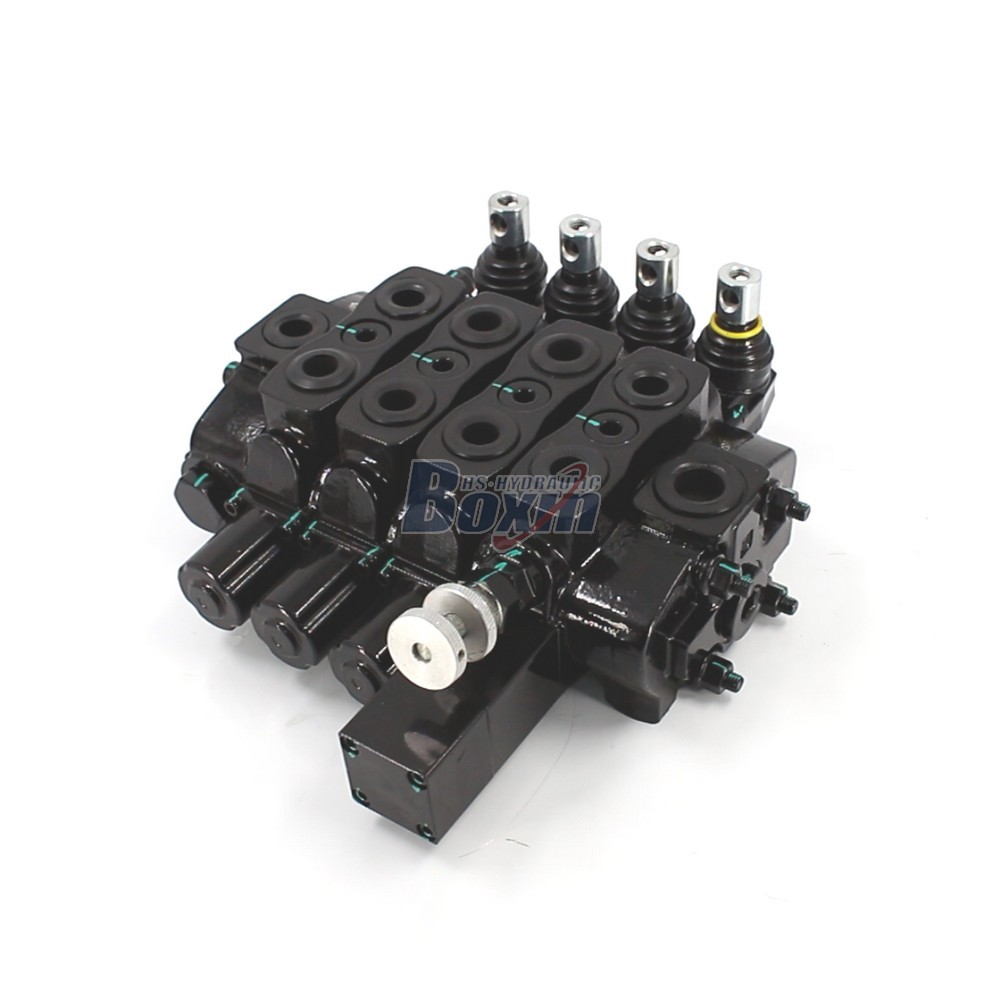

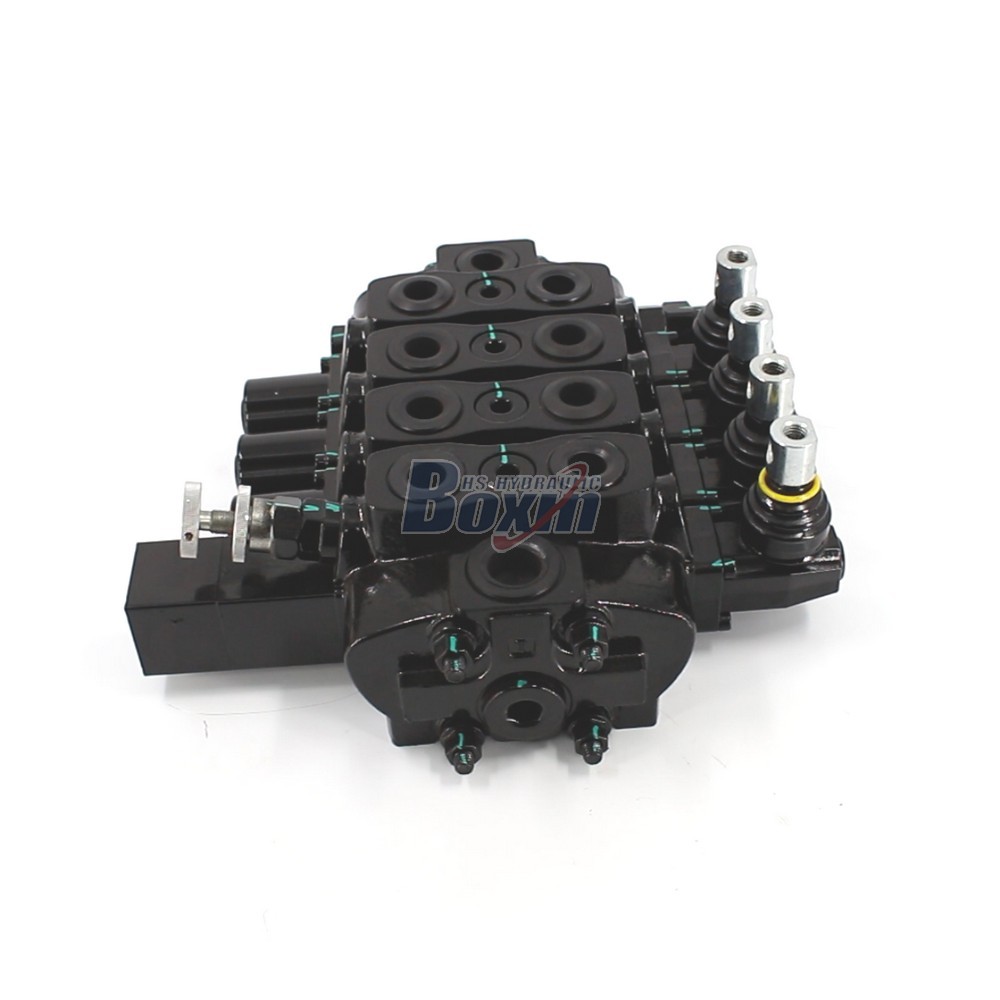

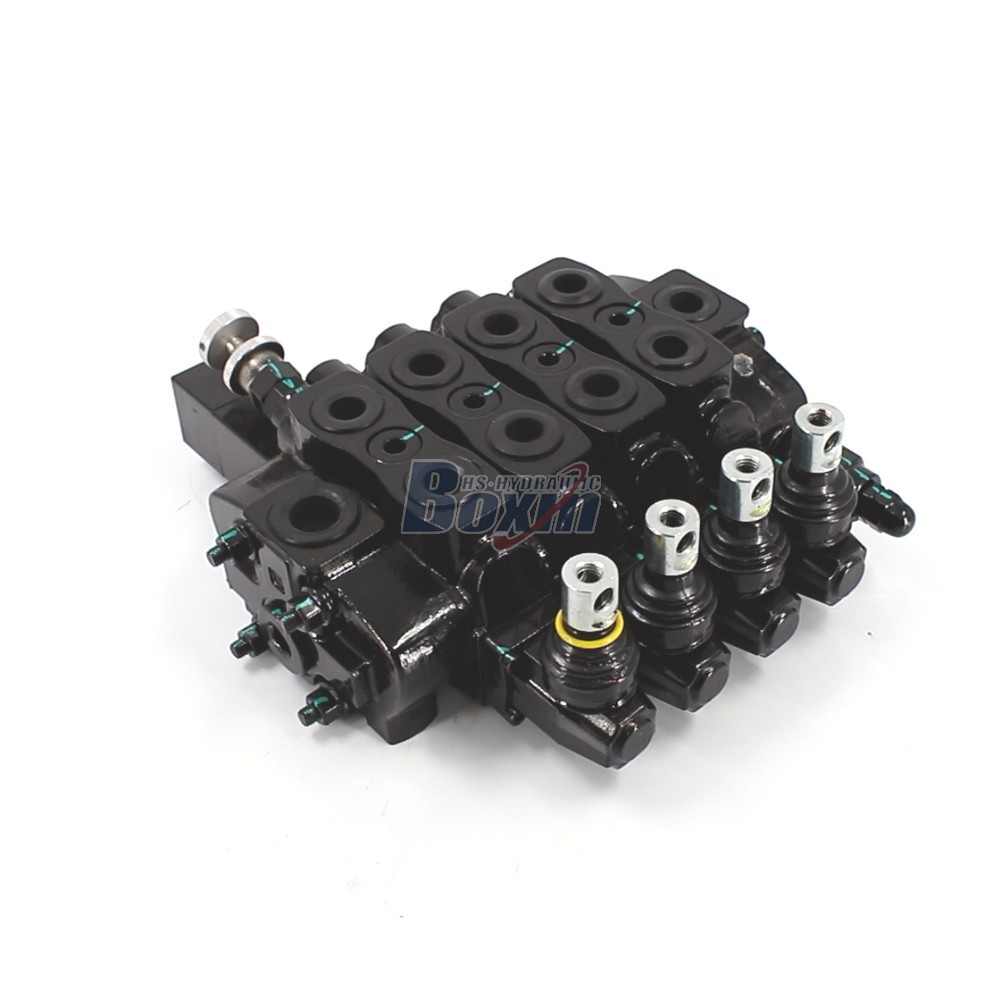

High Performance SD8-OTAMW Manual 4 Spool Sectional Valve

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:34*34*15.5

Kelas kotor:18.50 kg

Ketersediaan: Tersedia

95 Pandangan Mencari Produk Ini

High Performance SD8-OTAMW Manual 4 Spool Sectional Valve

High Performance SD8-OTAMW Manual 4 Spool Sectional Valve

High Performance SD8-OTAMW Manual 4 Spool Sectional Valve drawing image

The SD8-OTAMW is a high-performance 4-spool manual sectional valve designed for precise hydraulic control in demanding environments. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, this SD8 series valve is engineered for versatility across construction, agriculture, and material handling sectors.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

As a leading manufacturer of premium hydraulic components, we offer the SD8-OTAMW 4-spool manual sectional valve for global markets. This robust valve is ideal for equipment such as mini-excavators, wheel loaders, tractors, and forklifts. We provide comprehensive manufacturing solutions including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory ensures stable supply and competitive wholesale pricing for large-volume orders. We are actively seeking long-term partnerships with professional distributors, wholesalers, and international traders. Whether you need reliable factory supply for construction machinery or specialized agricultural equipment, our SD8 series provides the durability and flow control needed for industrial-grade applications. Contact us for bulk wholesale opportunities and customized hydraulic solutions.
