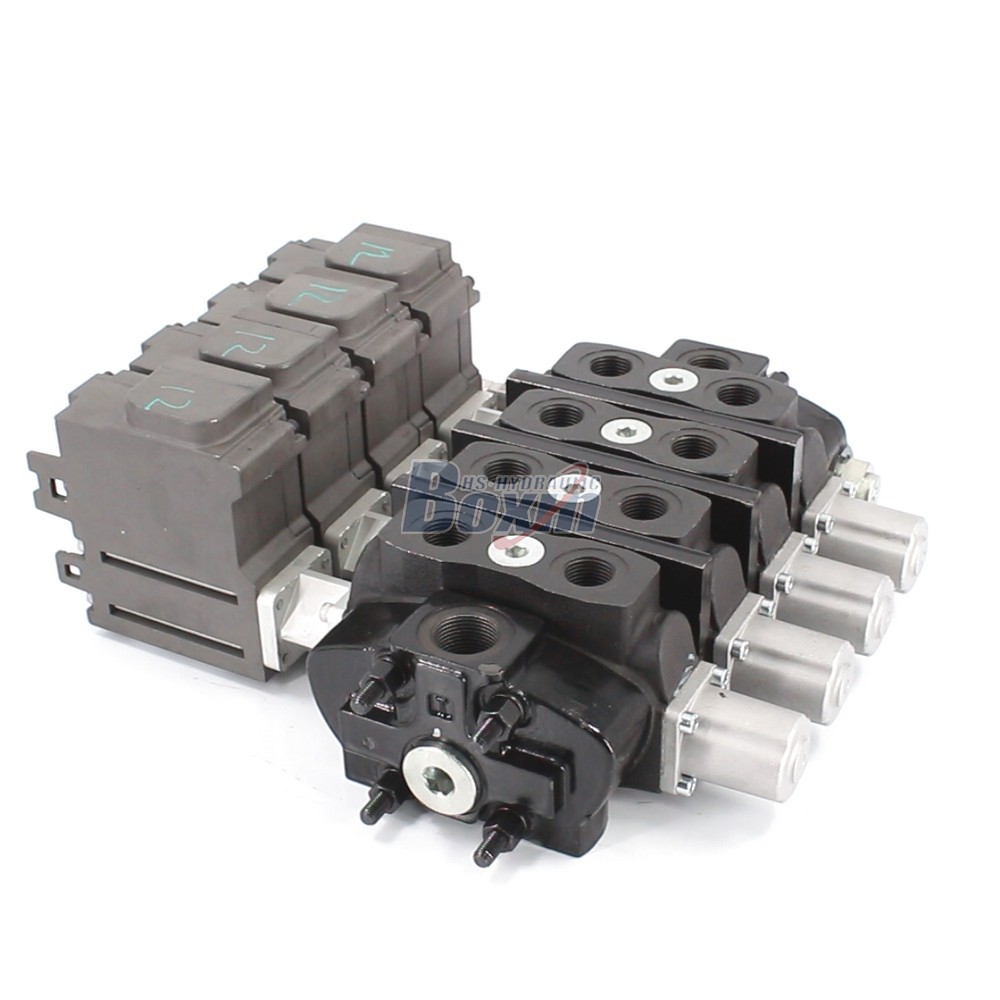

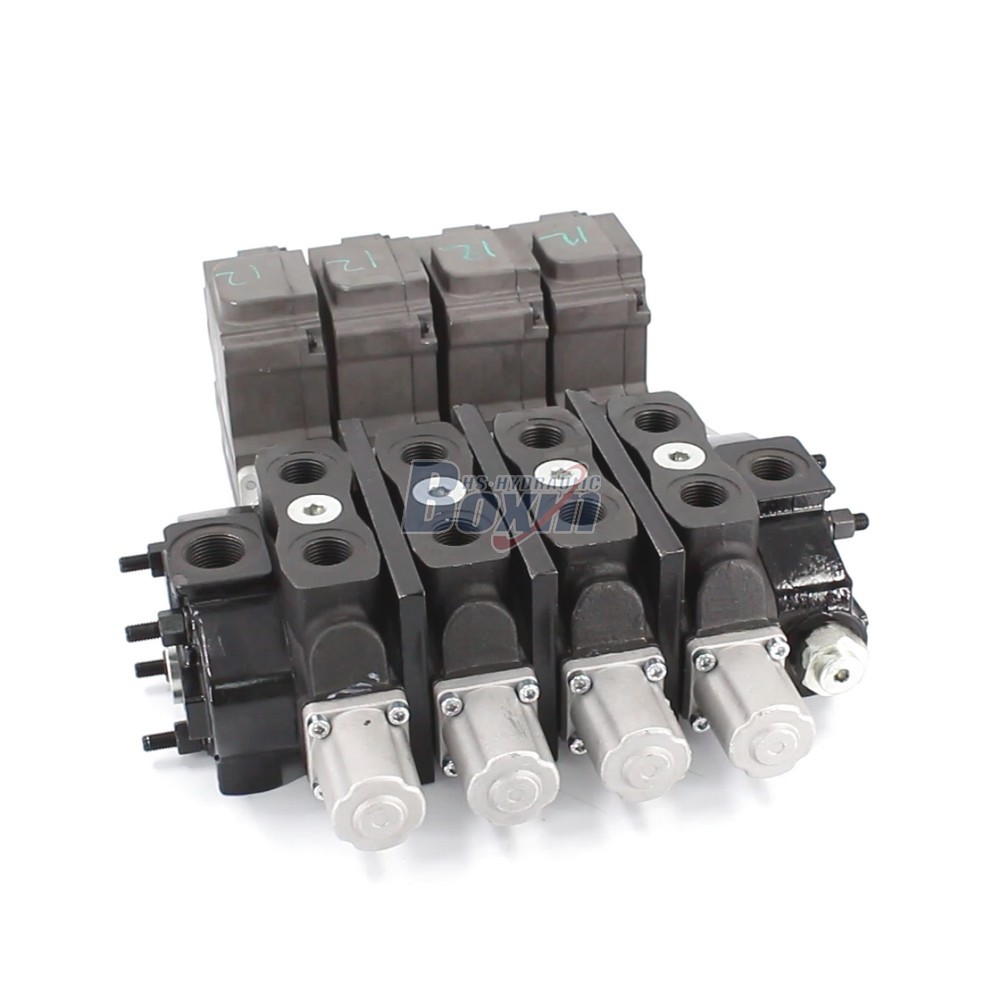

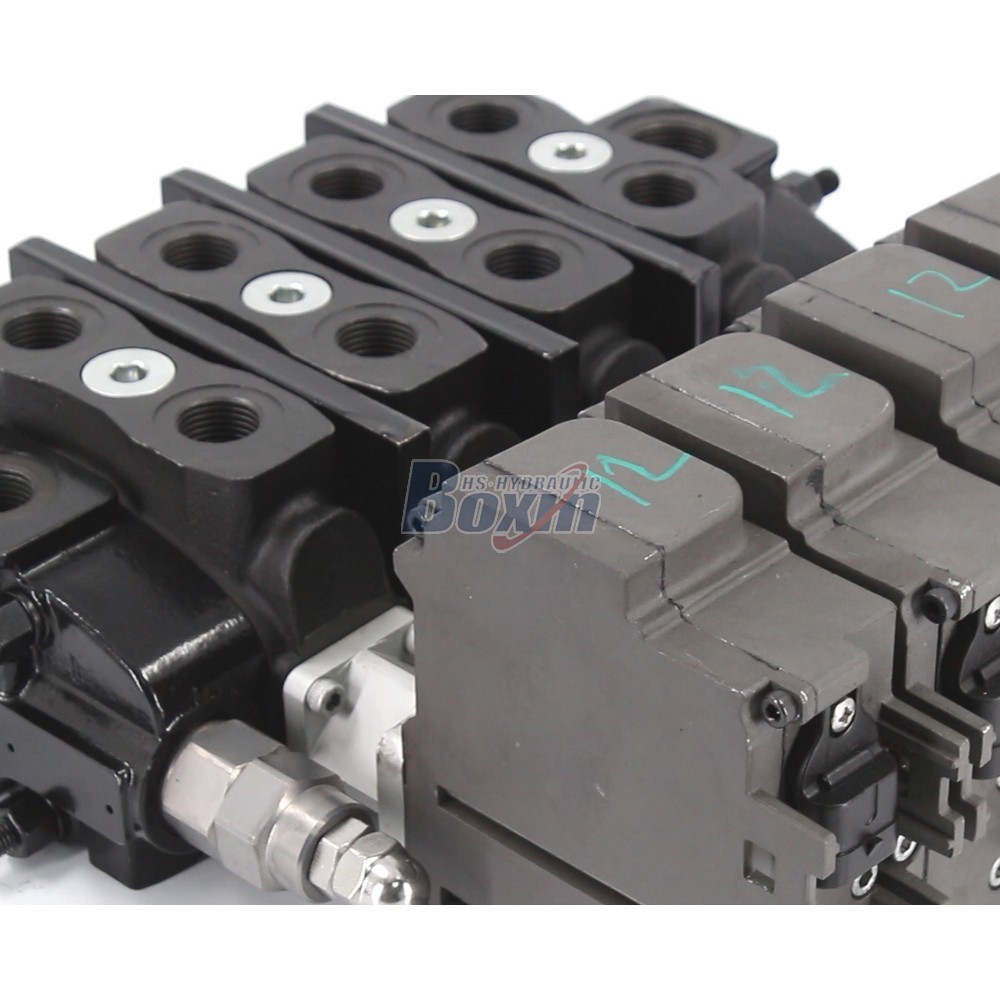

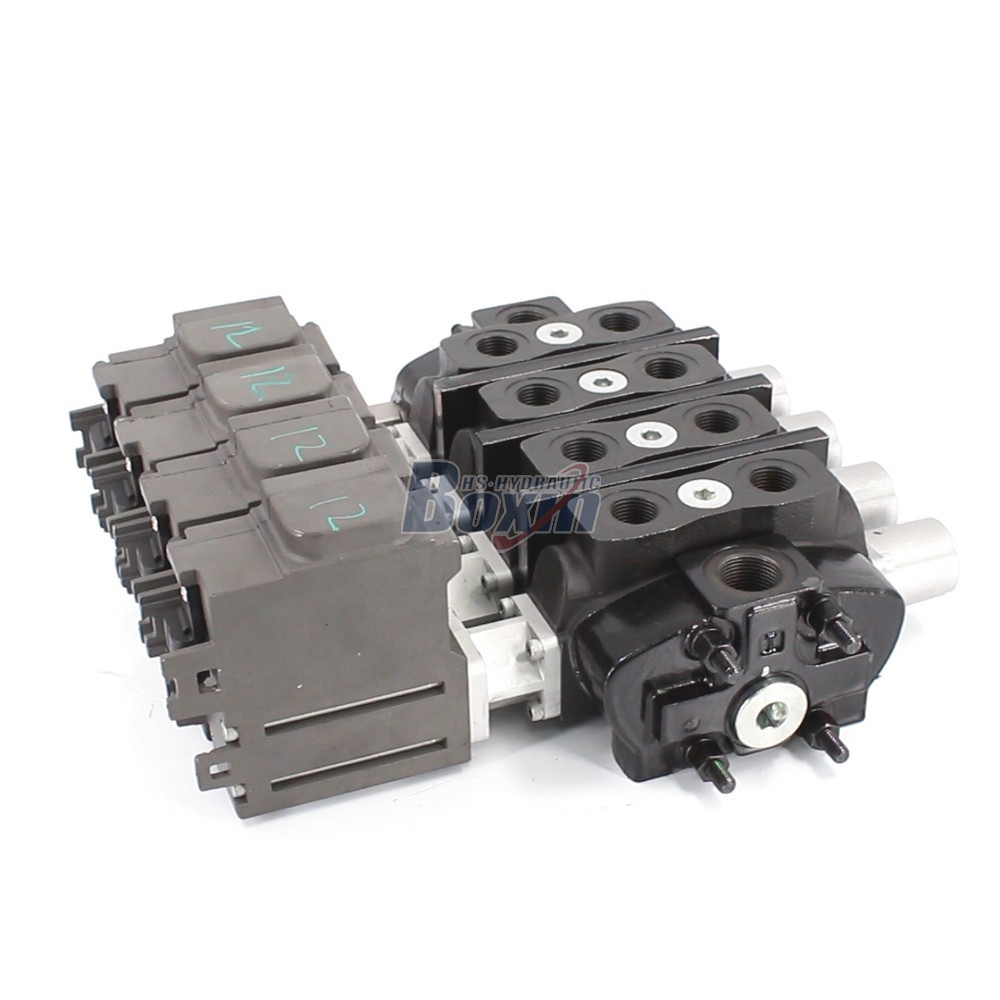

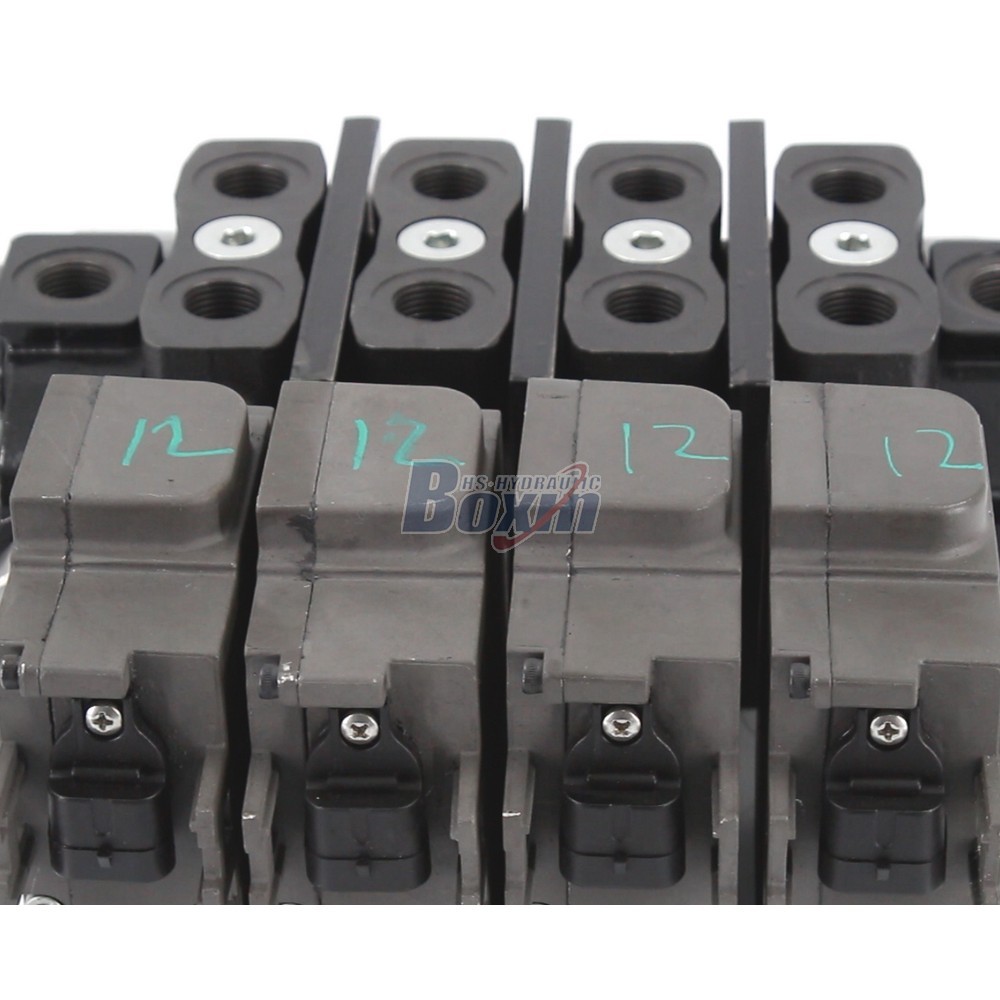

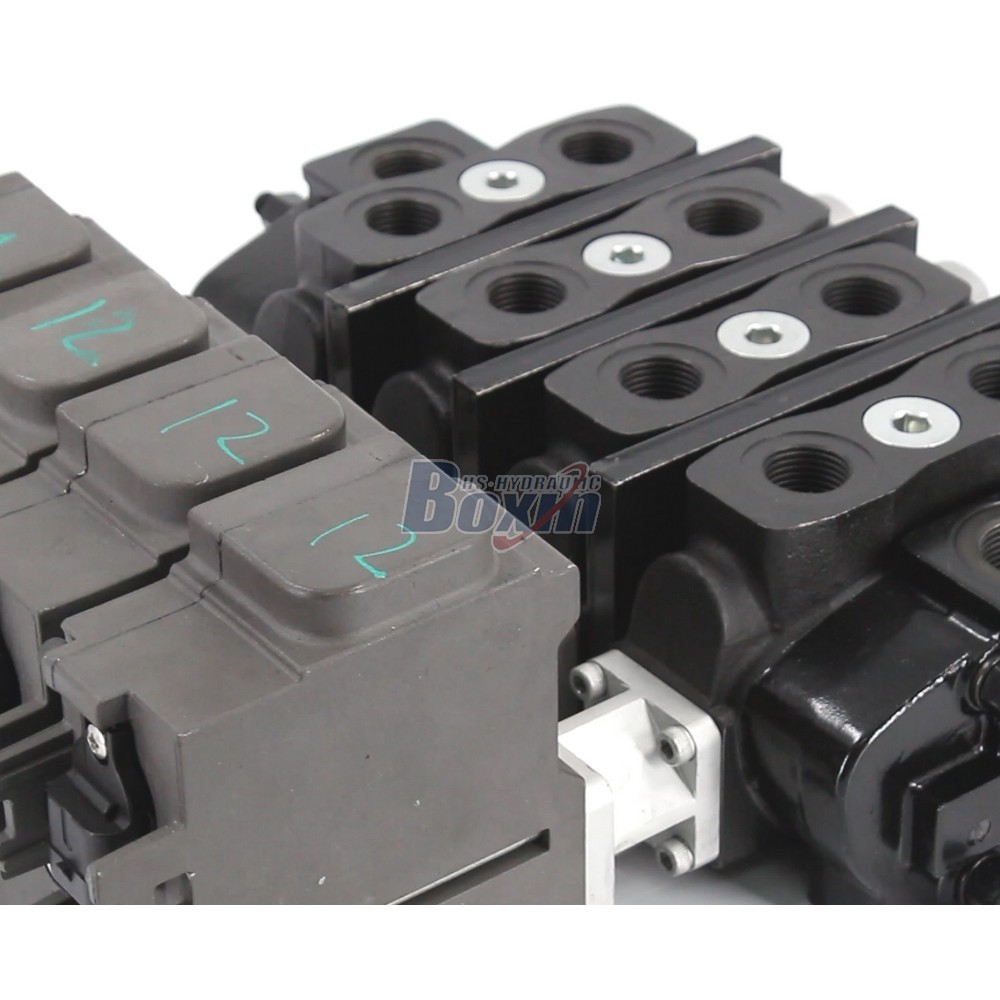

This SD8EMA-4OT Sectional Directional Valve features electric motor control, 4 spools, 90 L/min flow, and 315 bar max pressure. Manufactured by a Professional Manufacturer with 25+ years of experience, it is ideal for telehandlers, forklifts, and mini-excavators. Factory Direct Sales ensure high quality and OEM/ODM support.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, SAE 10 |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10 |
**1. High-Efficiency Sectional Directional Valve Design**
- Features 4 spools with electric motor control for precise operation in material handling and construction machinery.
- Rated flow of 90 L/min (23.8 US gpm) and max pressure of 315 bar (4600 psi) ensure stable performance under heavy loads.
**2. Reliable Electric Hydraulic Control Valve Performance**
- Equipped with M22×1.5 inlet and M27×2.0 outlet ports, compatible with standard hydraulic systems.
- 100% tested for pressure, flow, and sealing before shipment, guaranteeing zero leakage and long service life.
**3. Versatile 4 Spool Directional Valve Applications**
- Widely used in telehandlers, forklifts, skid steer loaders, and aerial platforms for efficient fluid power management.
- Compact SD8 series design saves space while delivering powerful control for industrial vehicles and agricultural equipment.
**4. Durable SD8 Series Hydraulic Valve Construction**
- Produced in our 68,000 sqm facility with IATF 16949 certification, ensuring consistent quality and durability.
- Made from high-grade materials with anti-rust treatment, suitable for harsh environments in earthmoving and logging.
**5. Customizable Solutions from China Wholesale Source**
- OEM/ODM Available: Support for custom logos, casting modifications, and private label packaging for distributors.
- Factory Direct Sales model offers competitive pricing, fast delivery, and technical support from 35+ senior engineers.
