Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1010 Pandangan Mencari Produk Ini

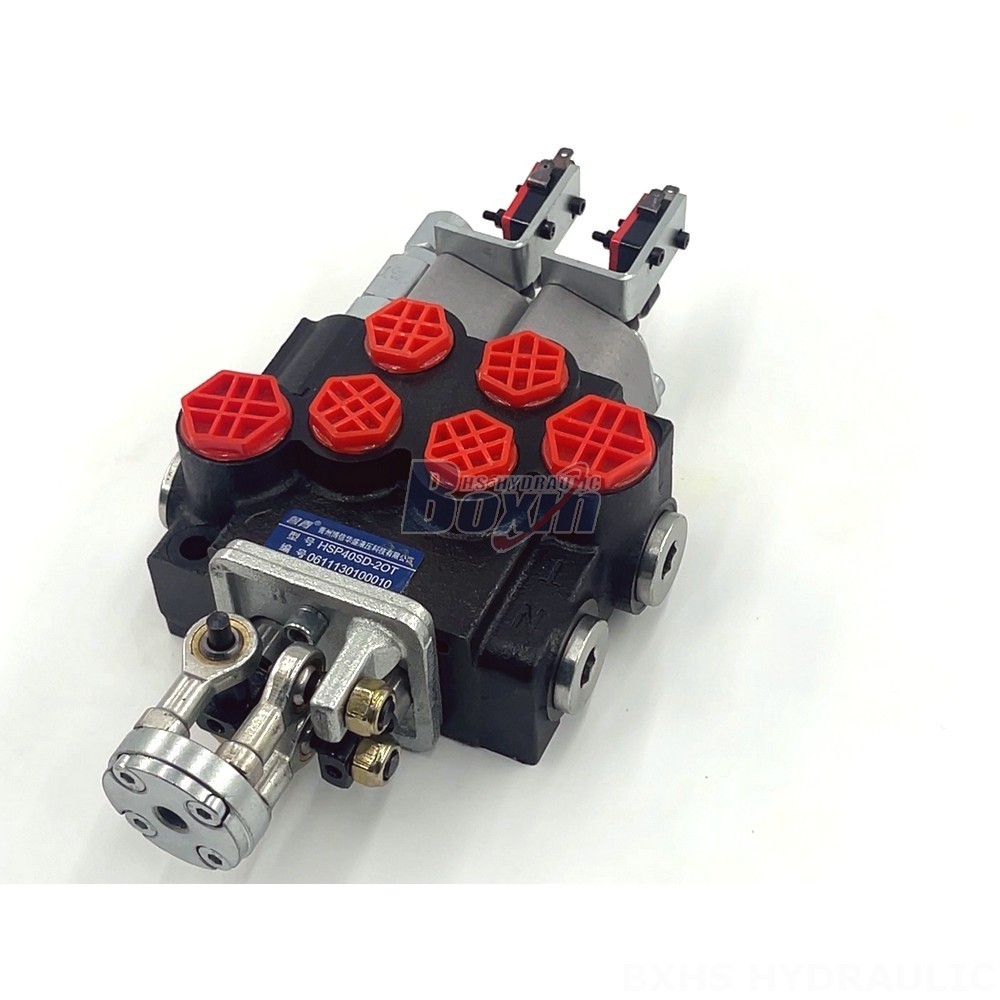

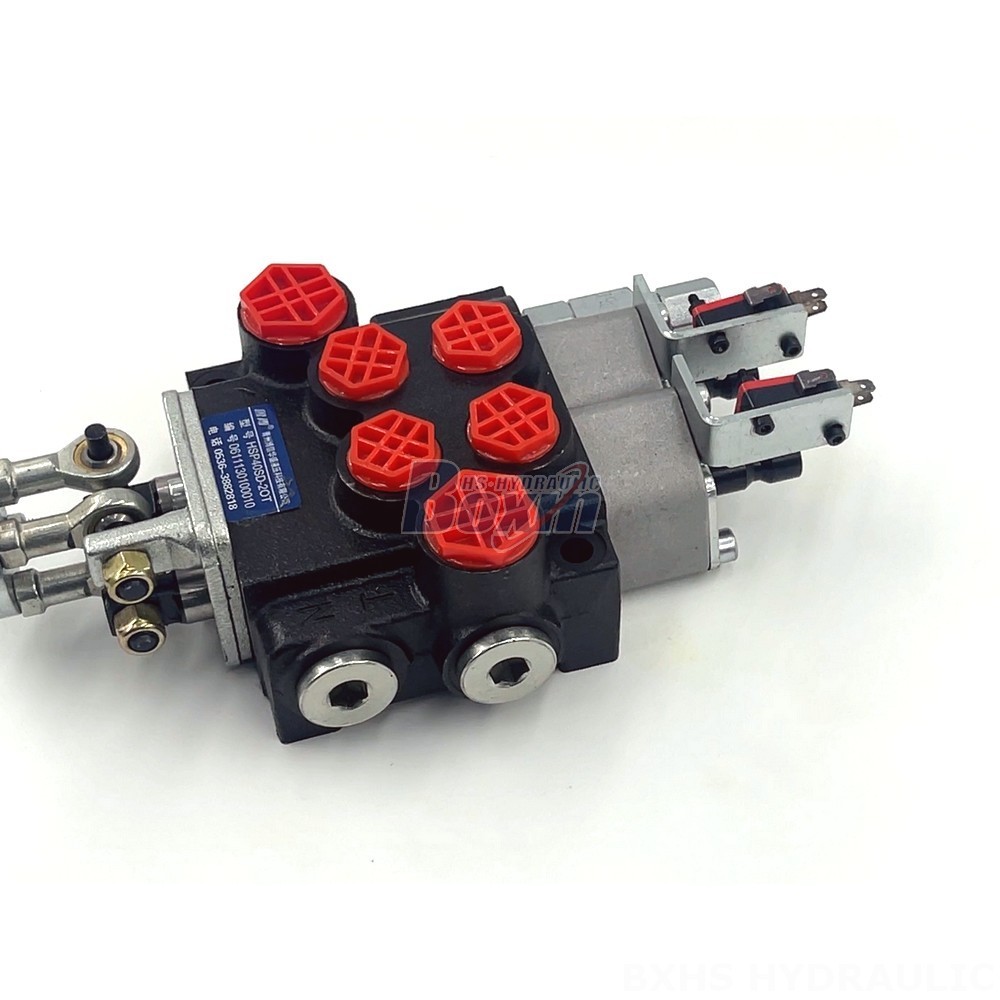

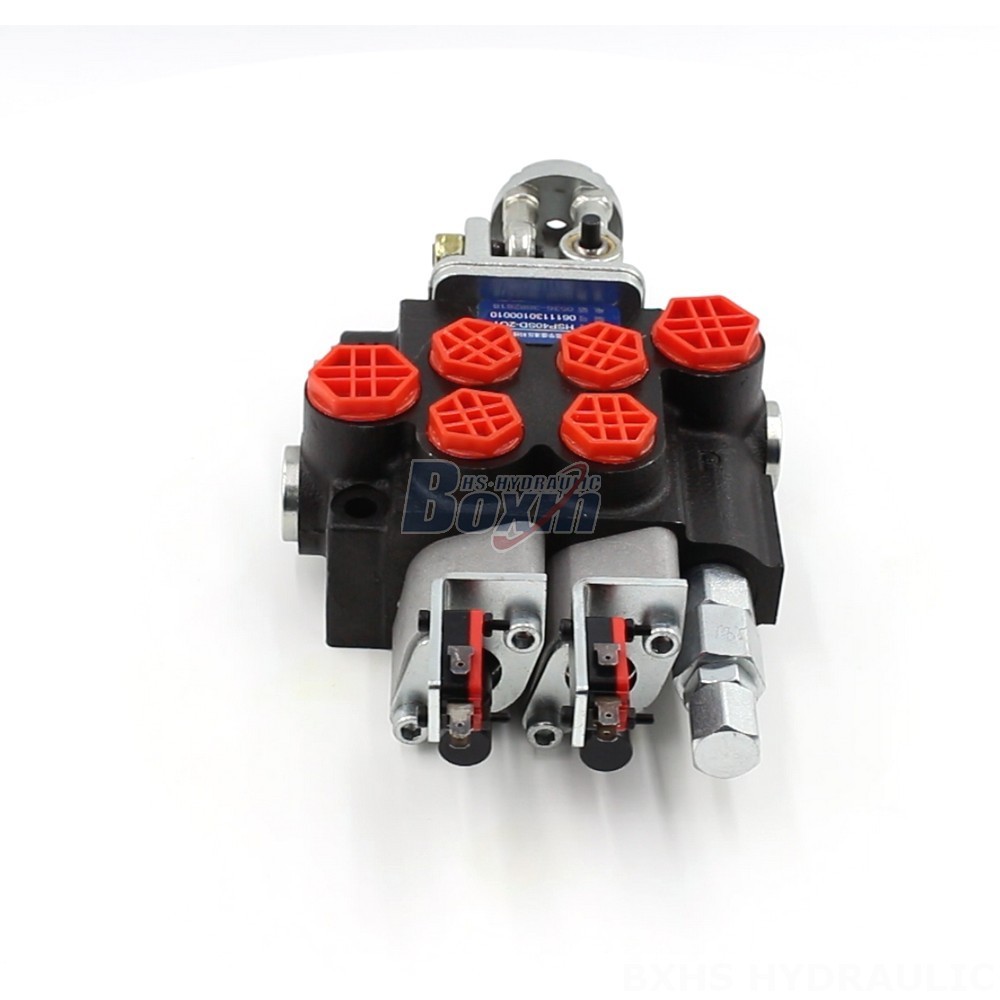

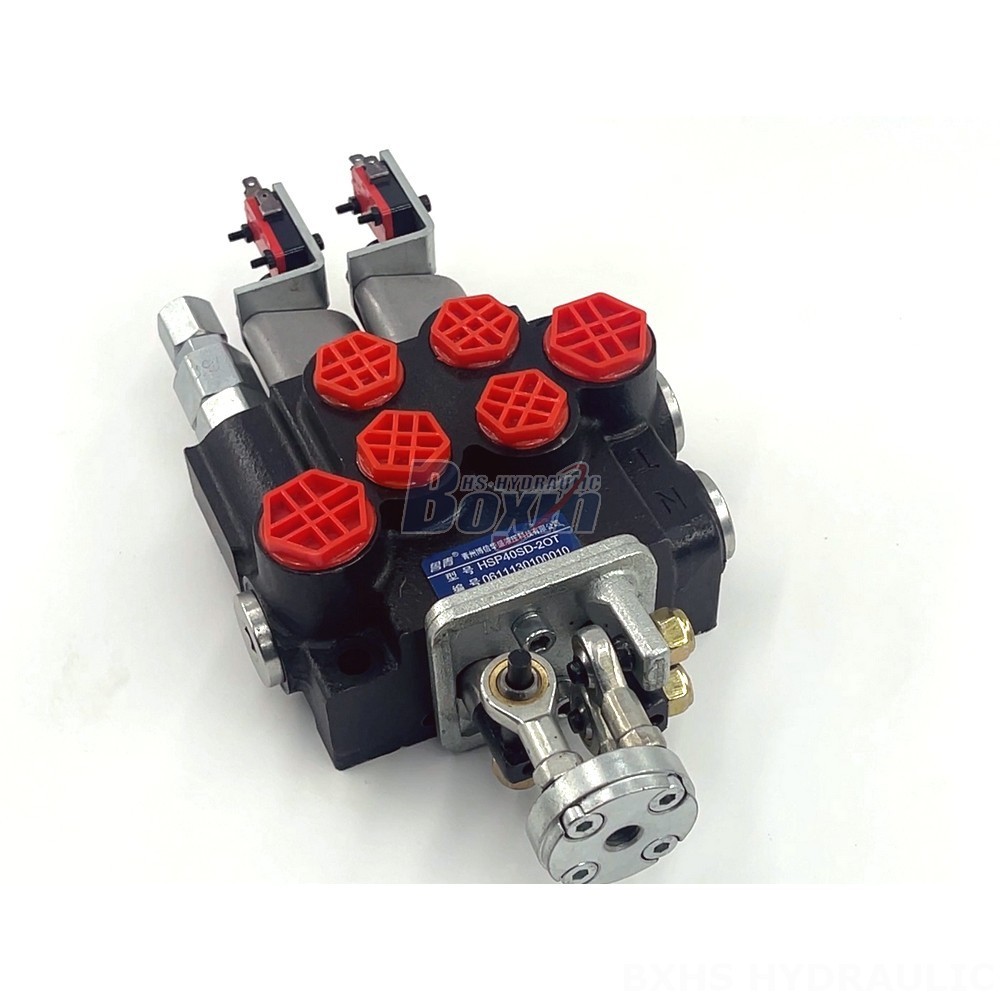

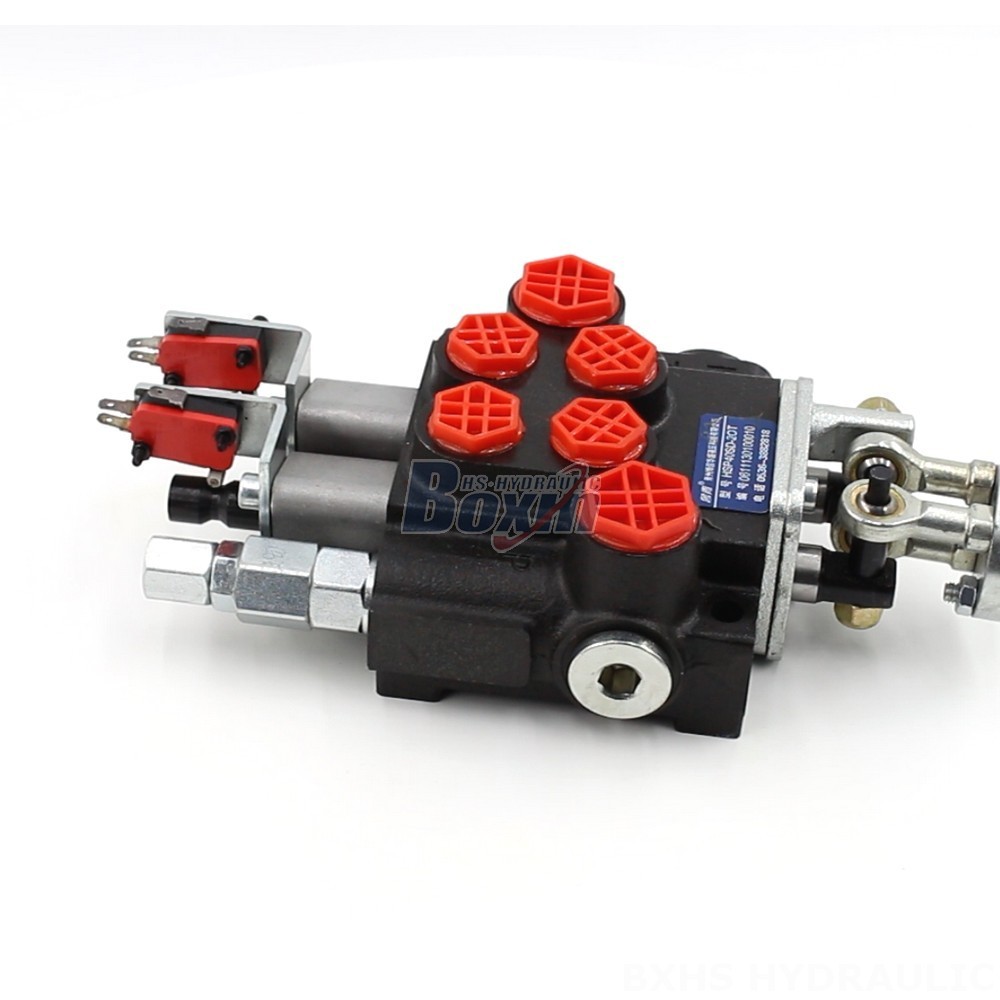

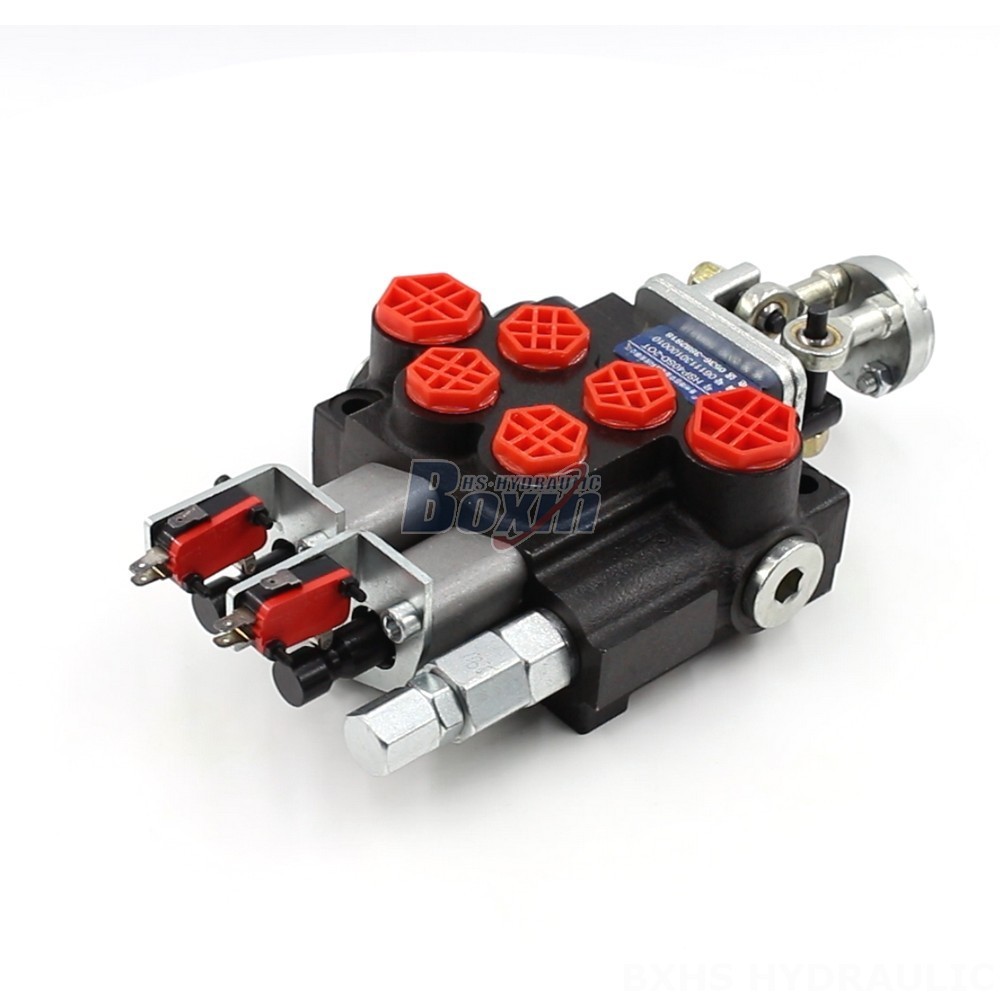

The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve offers unmatched accuracy and control for demanding hydraulic applications. Its innovative joystick design provides precise and intuitive operation, while the 2-spool monoblock construction ensures reliability and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve**
**Key Features:**
* Joystick control for precise and intuitive operation
* 2-spool monoblock construction for reliability and durability
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for extreme environments
**Applications:**
* Material handling: telehandlers, forklifts
* Construction and earth moving: mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders
* Agriculture: harvesters, backhoes, sprayers, balers
* Industrial vehicles: forklifts, mobile cranes
The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is the ideal choice for applications requiring high-precision control and reliability. Its innovative design and robust construction make it a trusted choice for professionals in a wide range of industries.
