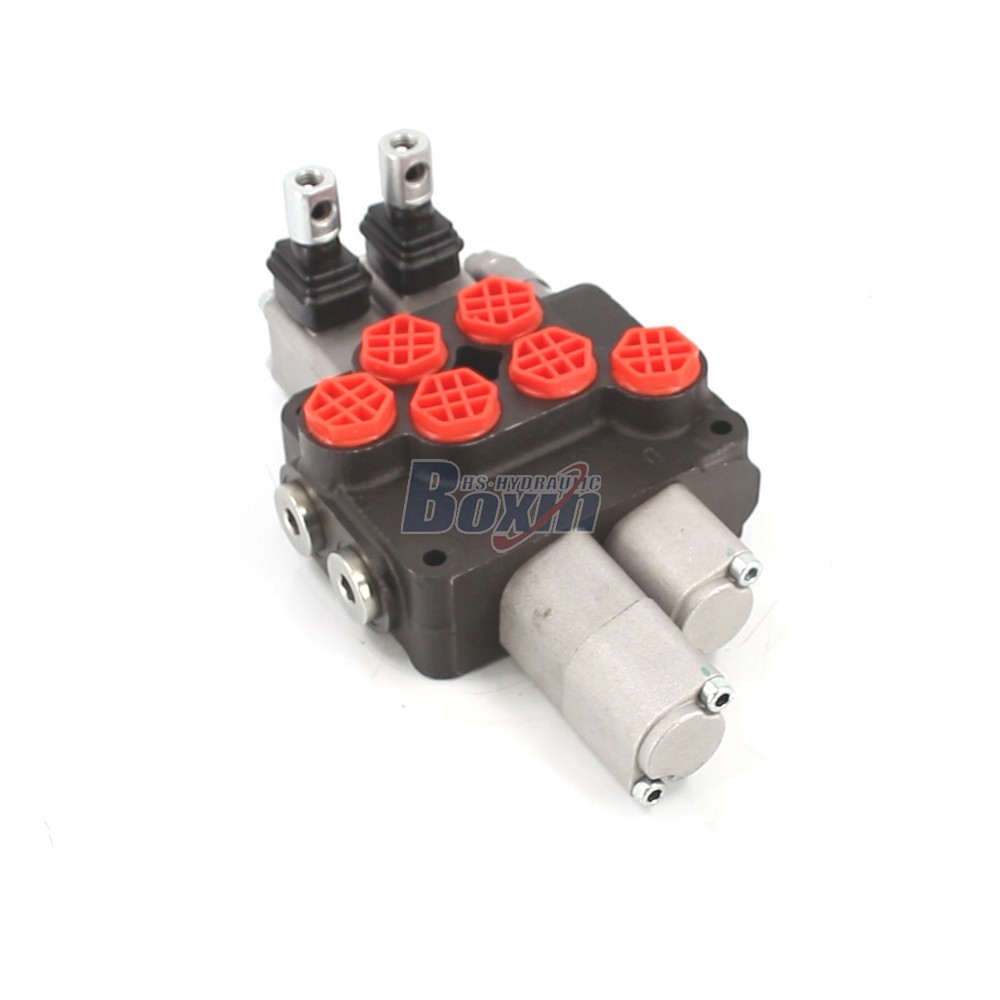

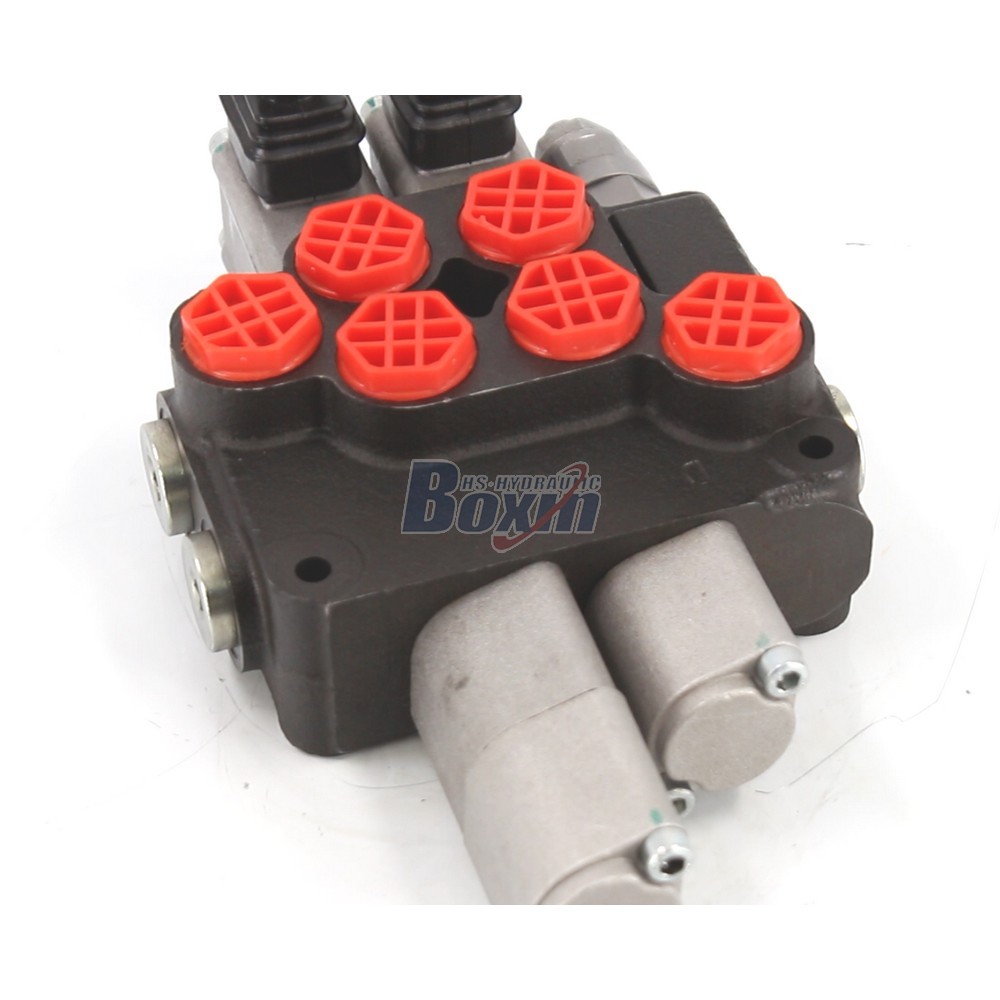

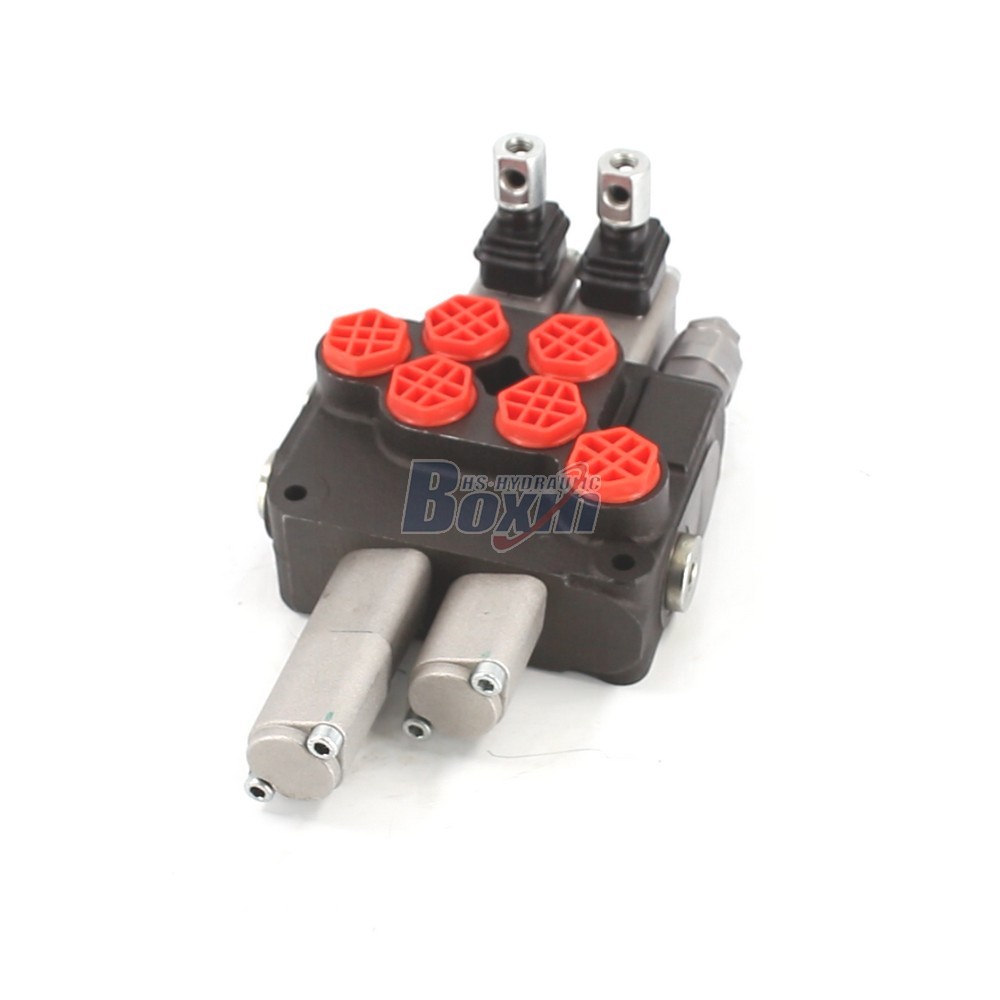

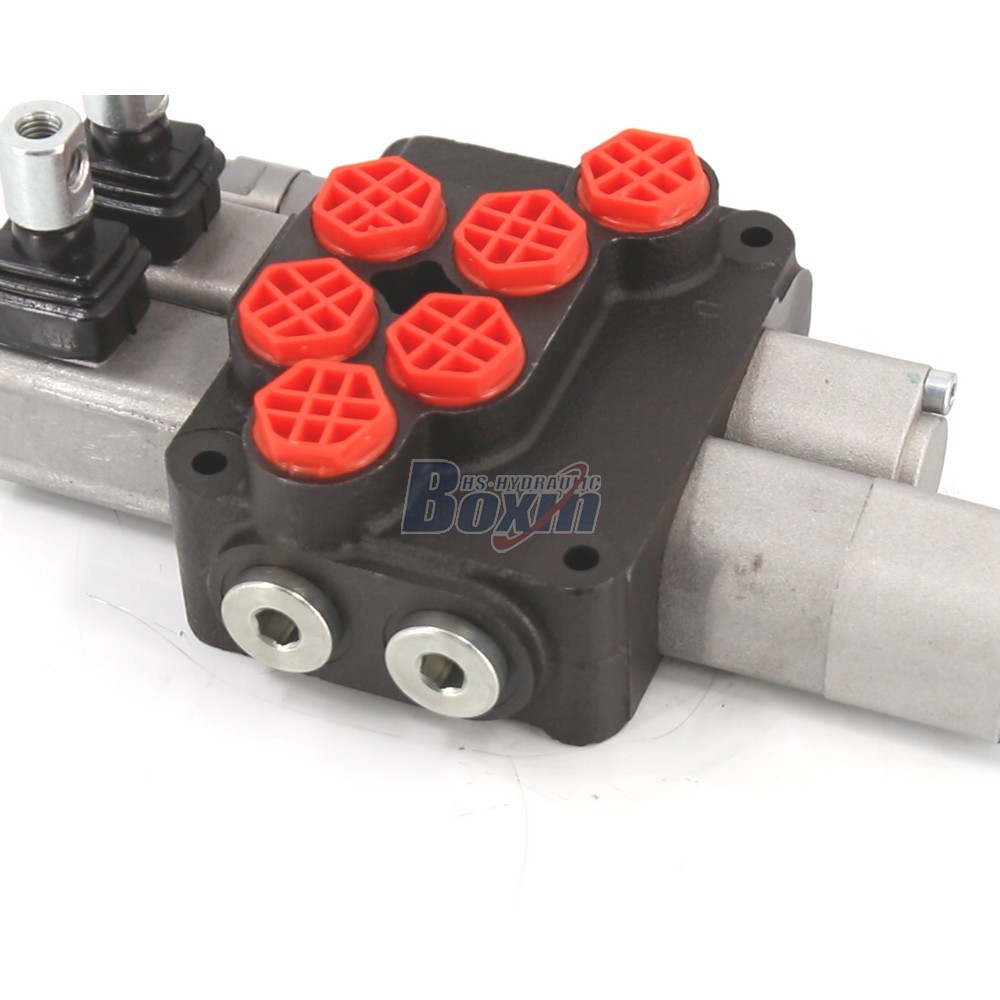

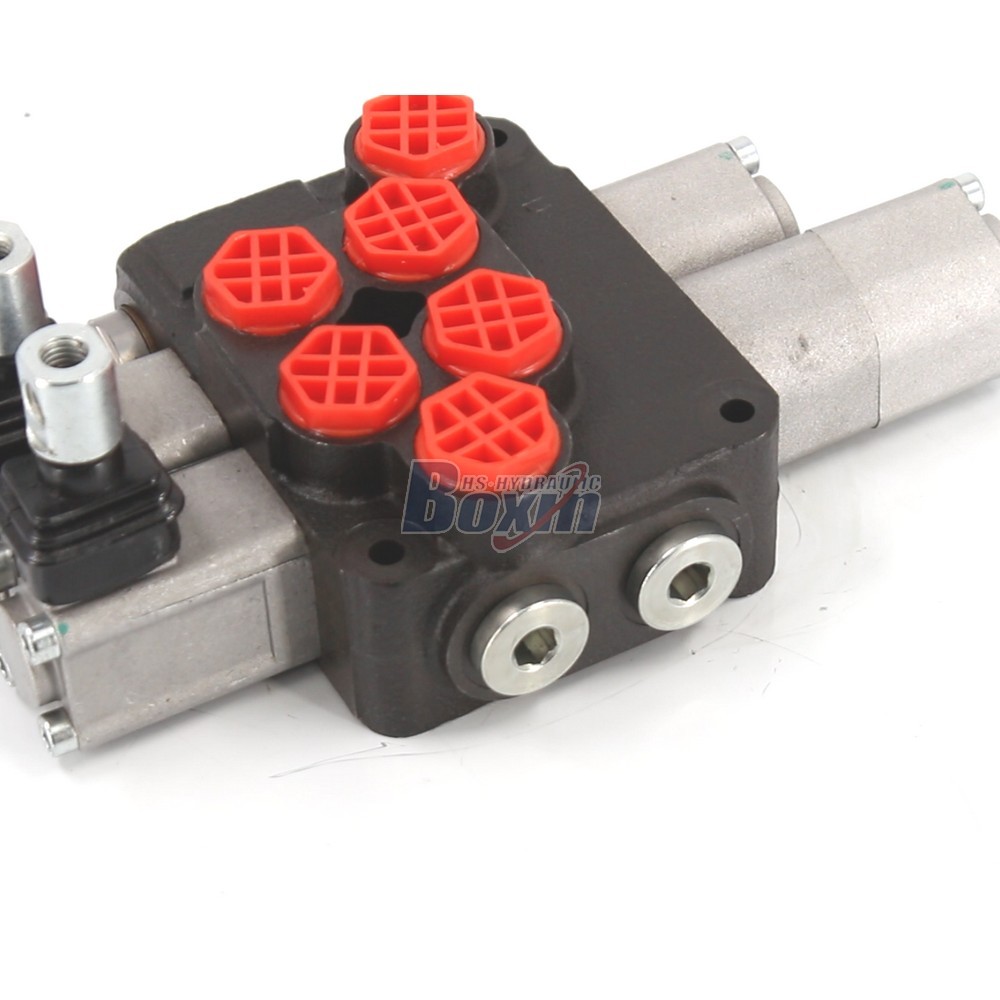

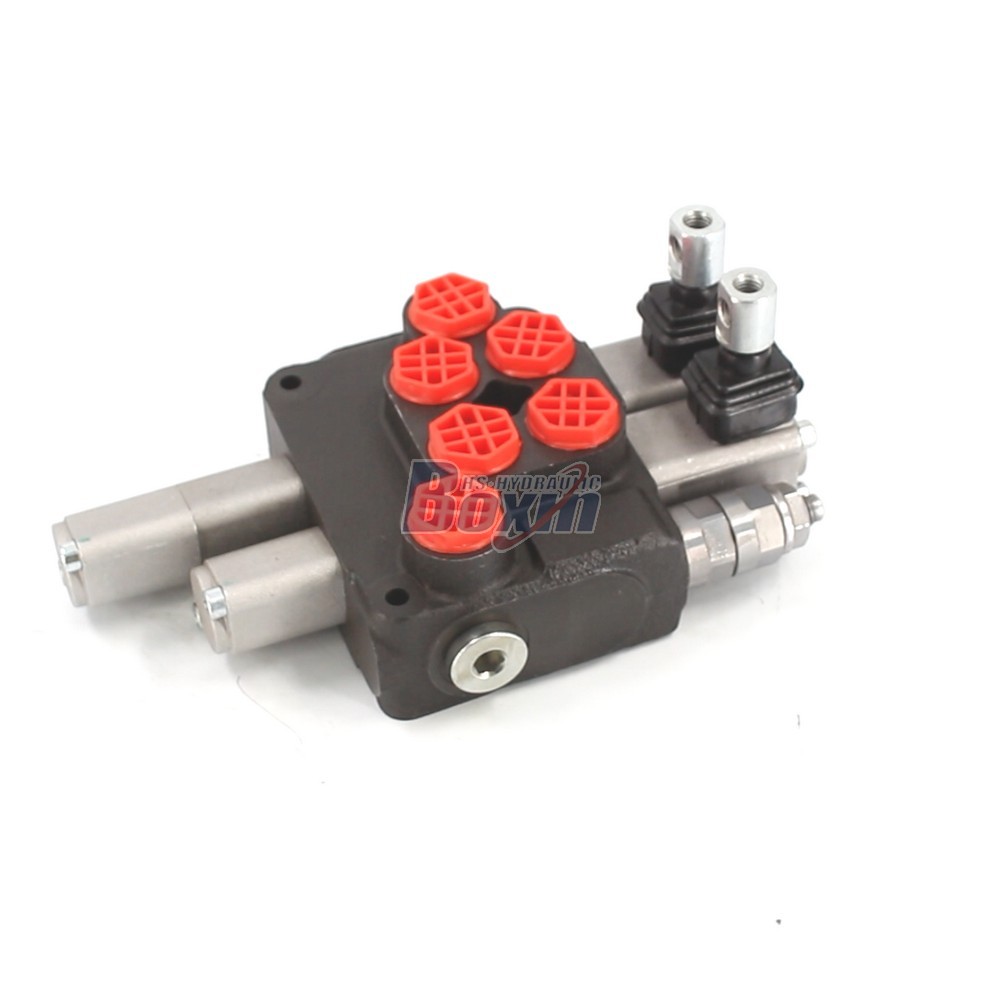

High Pressure DCV20 Series 2 Spool Directional Control Valve

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:20 L/menit (5,2 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G3/8

Port Keluar:G3/8

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri DCV20 Katup Arah Monoblok

Ukuran kemasan:14*21*11

Kelas kotor:3.90 kg

Ketersediaan: Tersedia

106 Pandangan Mencari Produk Ini

High Pressure DCV20 Series 2 Spool Directional Control Valve

High Pressure DCV20 Series 2 Spool Directional Control Valve

High Pressure DCV20 Series 2 Spool Directional Control Valve drawing image

The DCV20 Series 2 Spool Manual Directional Control Valve is a high-pressure, versatile hydraulic component designed for compact and mobile machinery. Featuring a rated flow of 20 L/min and capable of handling pressures up to 350 bar, this valve provides precise manual control for material handling, agricultural, and construction equipment.

Seri DCV20 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 20 L/menit (5,2 US gpm)
Tekanan Maksimum 350 bar (5100 psi)
Port Masuk G3/8, M18×1.5, SAE 8, 3/8 NPT
Port Keluar G3/8, M18×1.5, SAE 8, 3/8 NPT
Ukuran Port G3/8, M18×1.5, SAE 8, 3/8 NPT

As a leading manufacturer of hydraulic solutions, we offer the high-performance DCV20 Series 2 Spool Directional Control Valve, specifically engineered for demanding environments. This manual valve supports a maximum pressure of 350 bar (5100 psi) and a rated flow of 20 L/min, making it suitable for compact machinery such as forklifts, mini-excavators, tractors, and wood splitters. Our factory provides comprehensive OEM, ODM, and custom manufacturing services to meet specific technical requirements. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Benefit from direct factory wholesale pricing, reliable supply chains, and professional technical support. Whether you need private labeling (white label) or bulk wholesale orders, our manufacturing facility ensures consistent quality for your material handling and industrial vehicle applications. Contact us to explore partnership opportunities and customized hydraulic configurations.
