Produksi & Pengiriman
Waktu Produksi 15-30 Hari

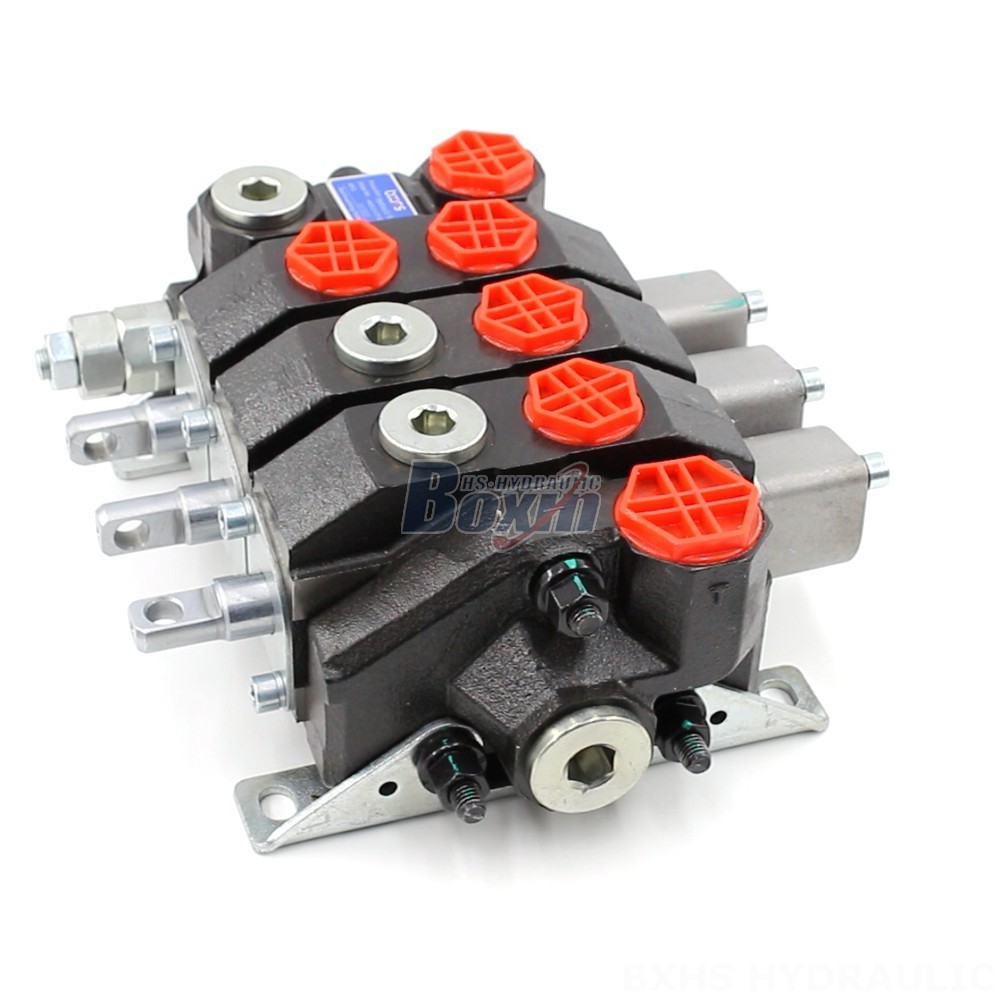

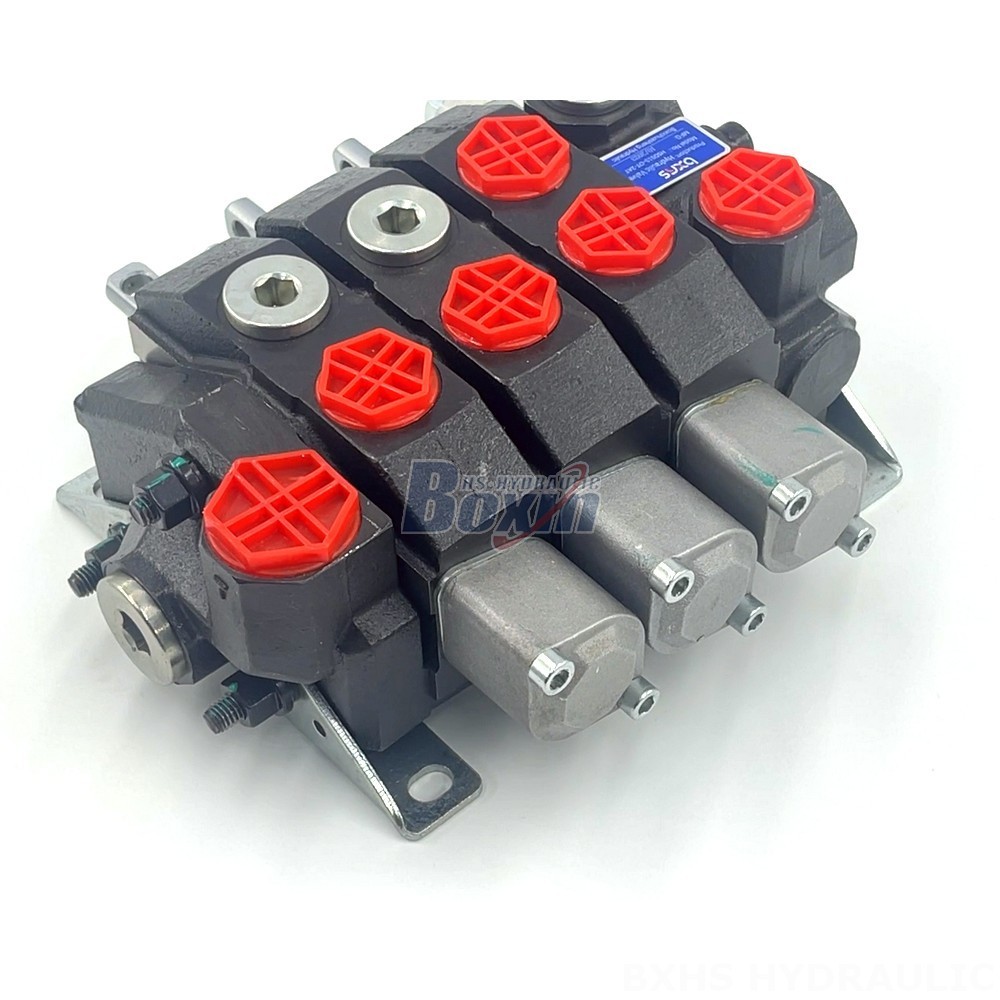

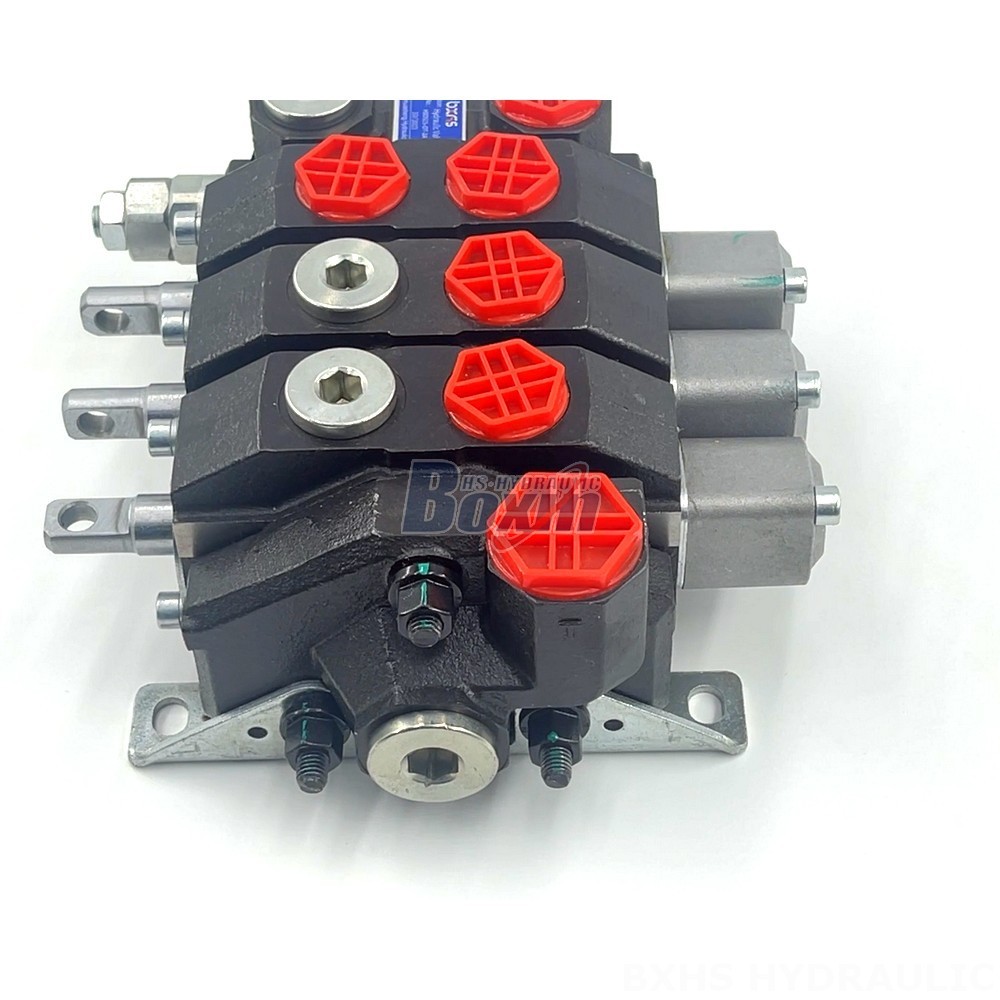

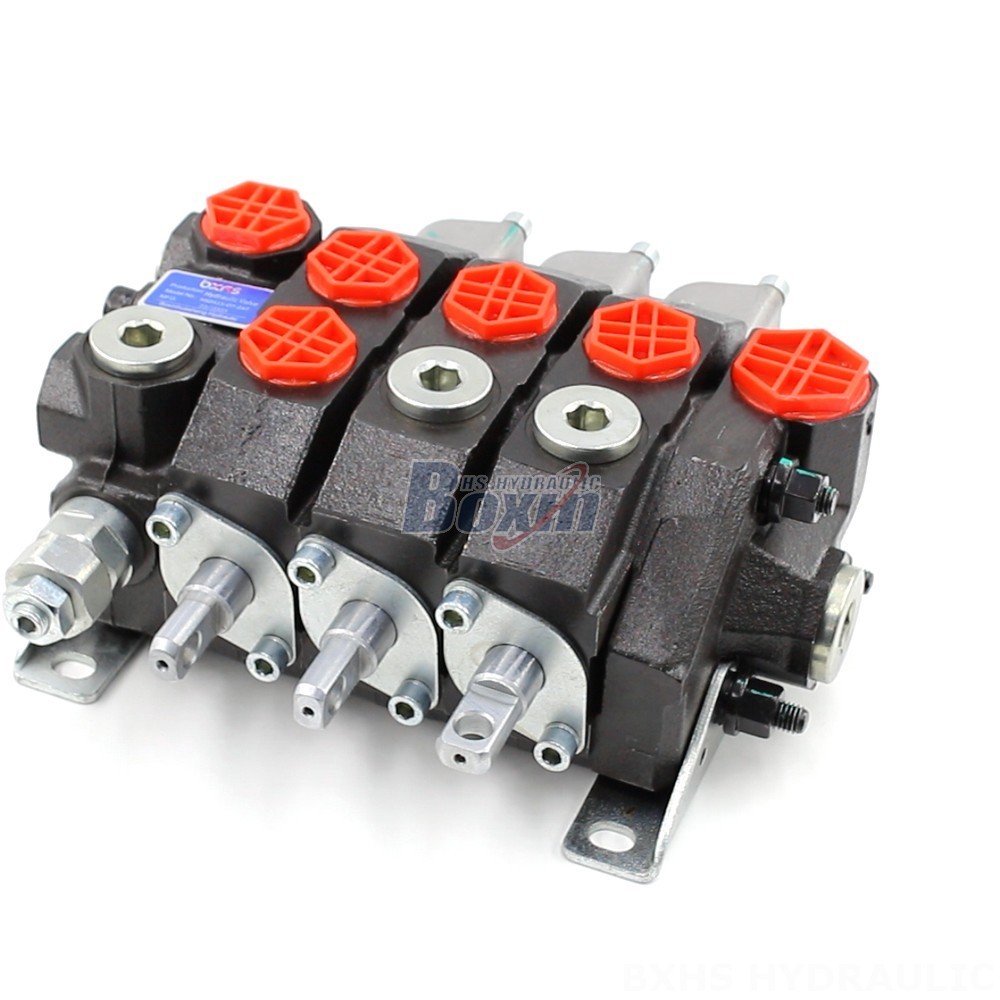

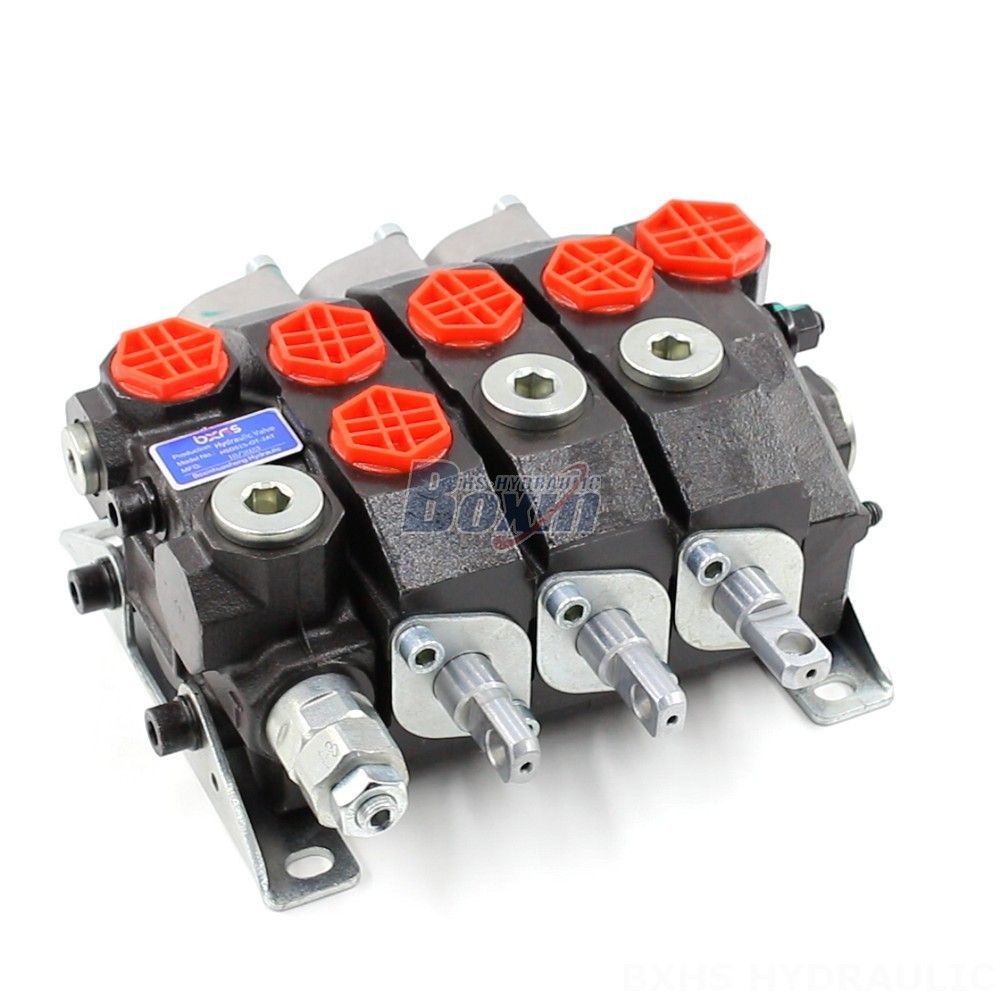

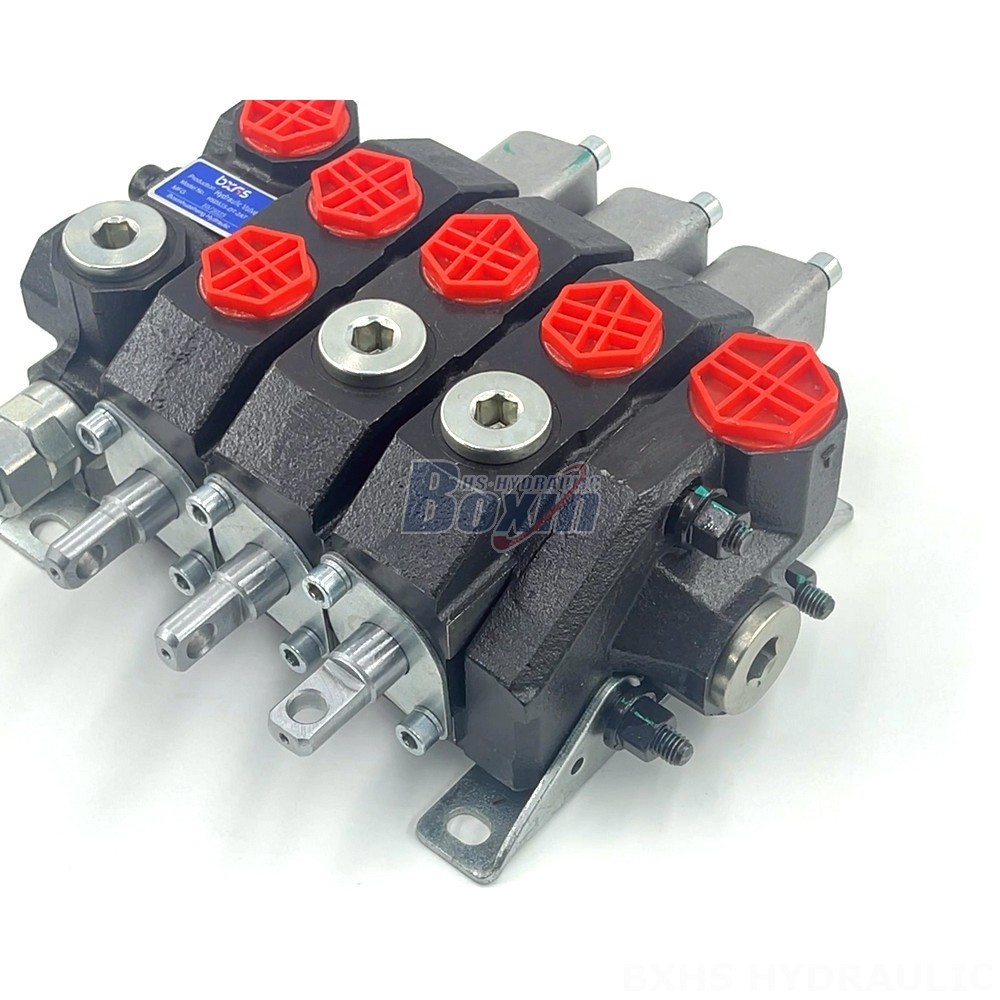

This high-quality, manually operated 3-spool monoblock directional valve is designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 60 L/min and a maximum pressure of 315 bar, making it ideal for demanding operating conditions.
| Seri HSDS15 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G1/2, SAE 8 |
| Port Keluar | G1/2, G3/4, SAE 8 |
| Ukuran Port | G1/2, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
This robust and reliable 3-spool monoblock directional valve is built for performance and durability. It boasts a rated flow of 60 L/min and a maximum pressure of 315 bar, making it suitable for a wide range of applications. Its sectional valve structure allows for easy maintenance and repair, while its high operating viscosity range ensures optimal performance in diverse environments. This valve is engineered for various applications across industries, including material handling, construction, agriculture, and industrial vehicles. It is compatible with forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and sprayers. This valve is available for direct purchase or as an OEM solution, making it a versatile option for manufacturers and end-users alike. The HSDS15 series offers a reliable and efficient solution for controlling hydraulic systems in demanding environments.
