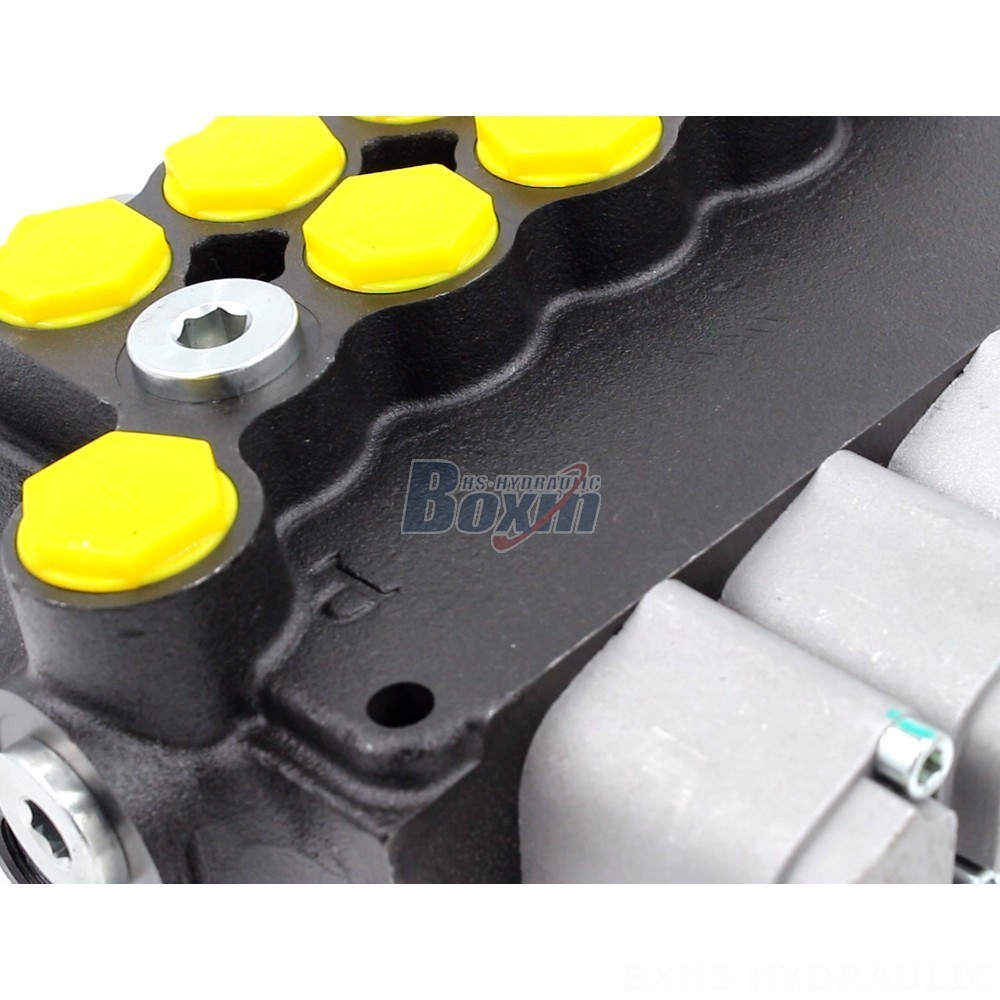

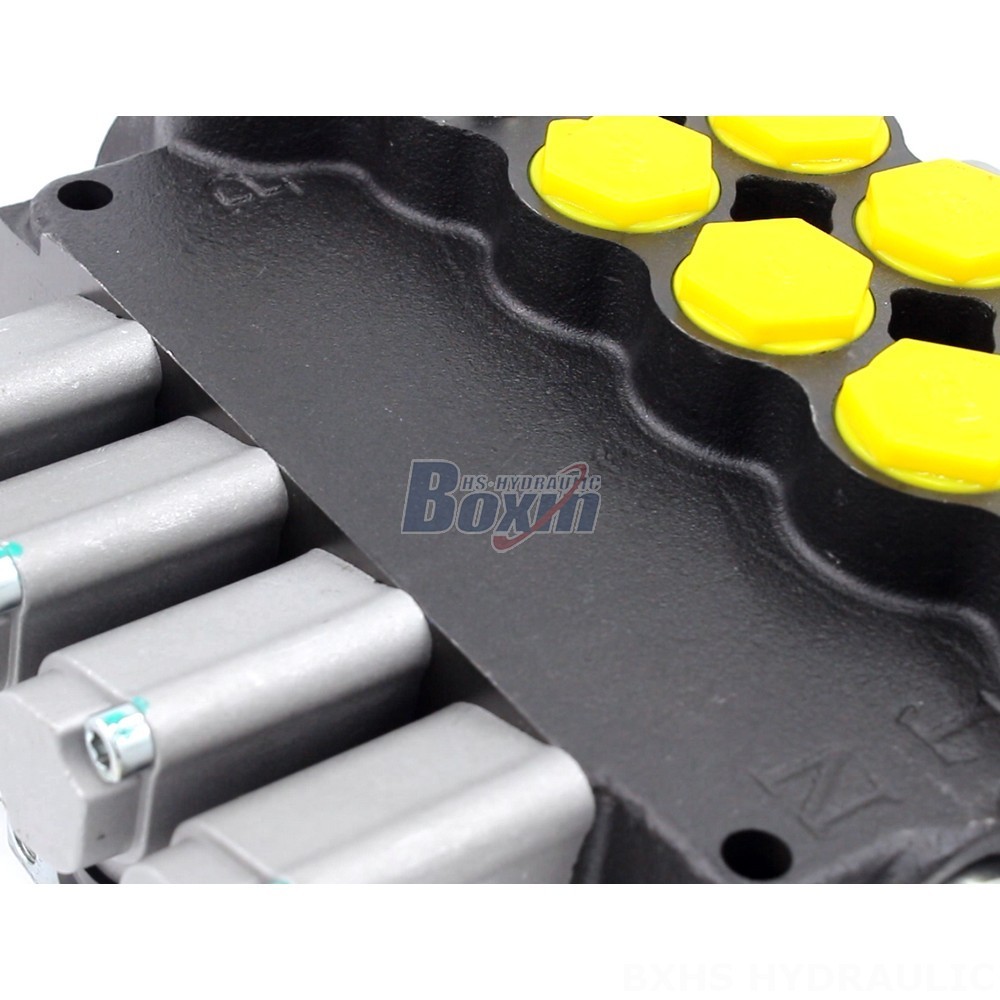

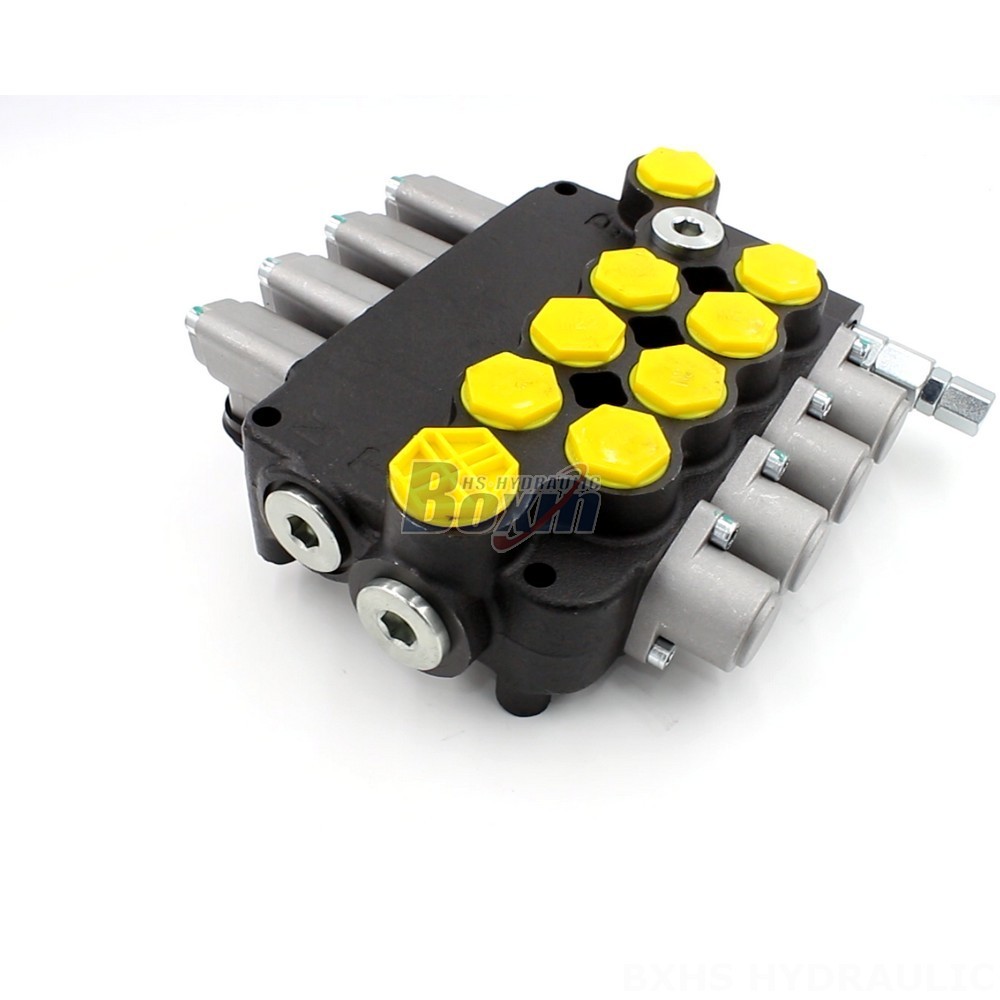

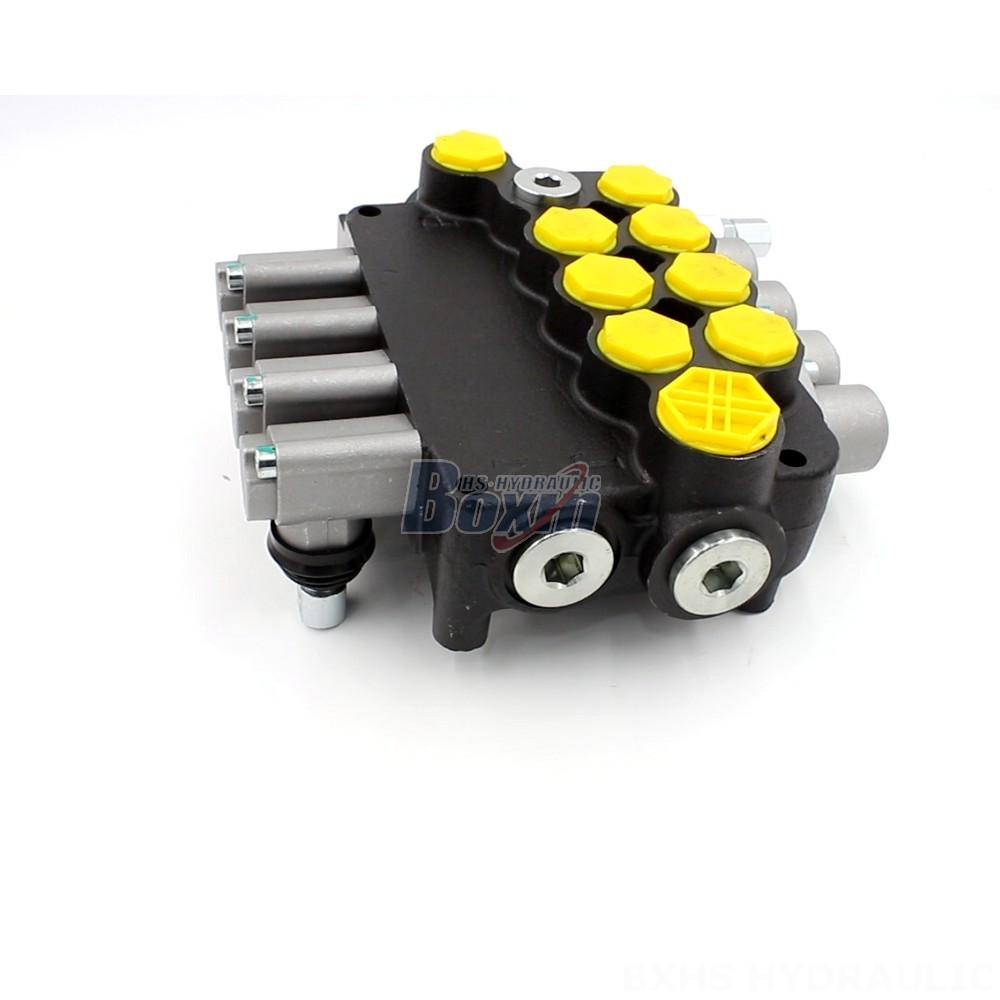

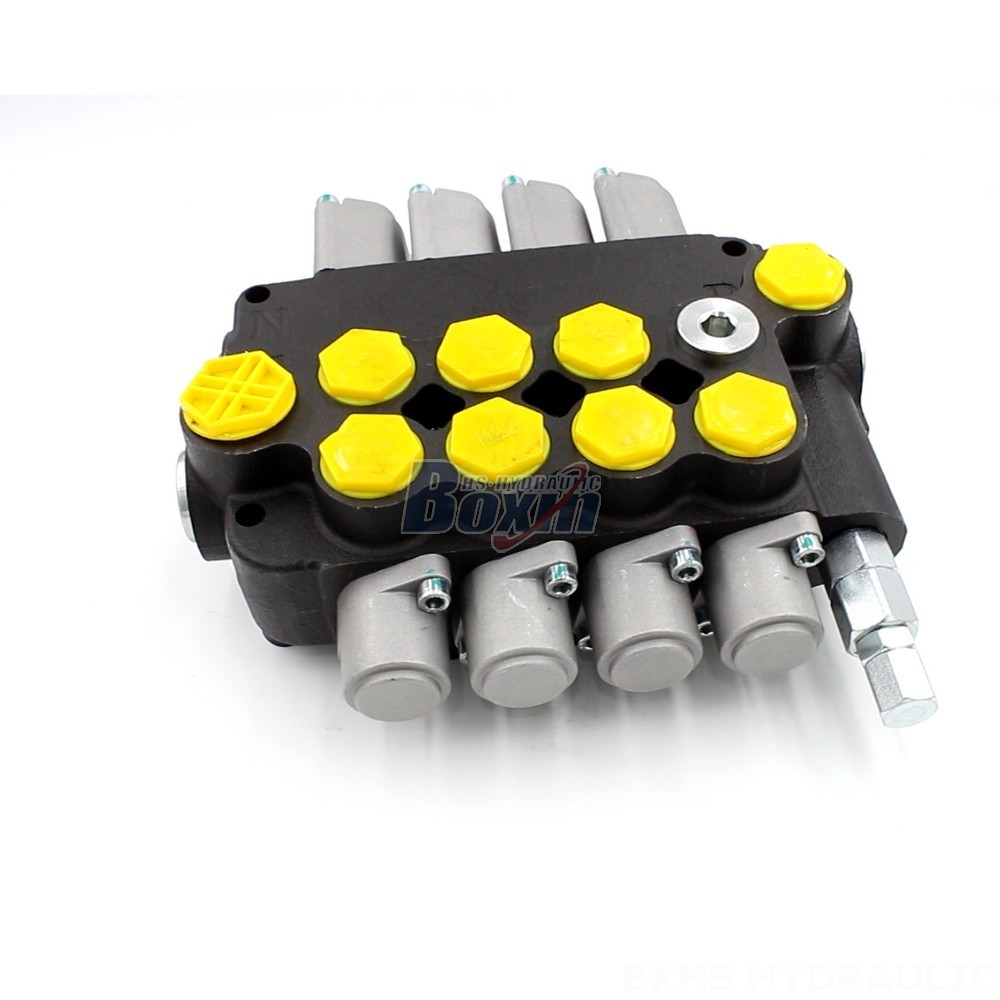

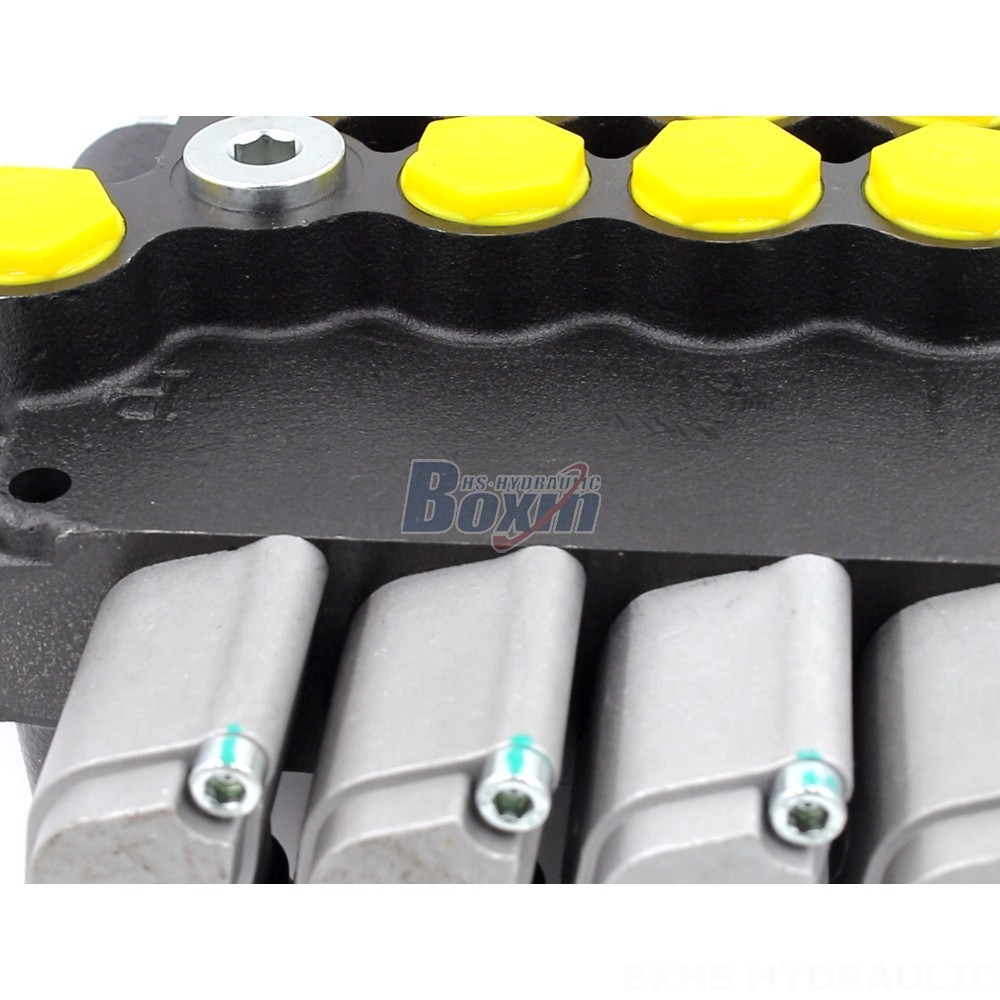

The P80-G34-G12-AT-3OT is a high-quality 4-section monoblock directional valve designed for hydraulic systems. It features a joystick control method, a rated flow of 80 L/min (21.2 US gpm), and a maximum pressure of 250 bar (3600 psi). This versatile valve is suitable for various applications, including material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-G12-AT-3OT joystick hydraulic valve is a robust and reliable solution for demanding hydraulic systems. Its 4-section monoblock construction ensures high performance and durability. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), this valve is capable of handling heavy-duty applications. The valve is designed to operate within an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its 4-spool configuration provides precise control over hydraulic functions. The P80-G34-G12-AT-3OT is ideal for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its high-quality construction, robust performance, and versatility make it an excellent choice for manufacturers and users in various industries.
