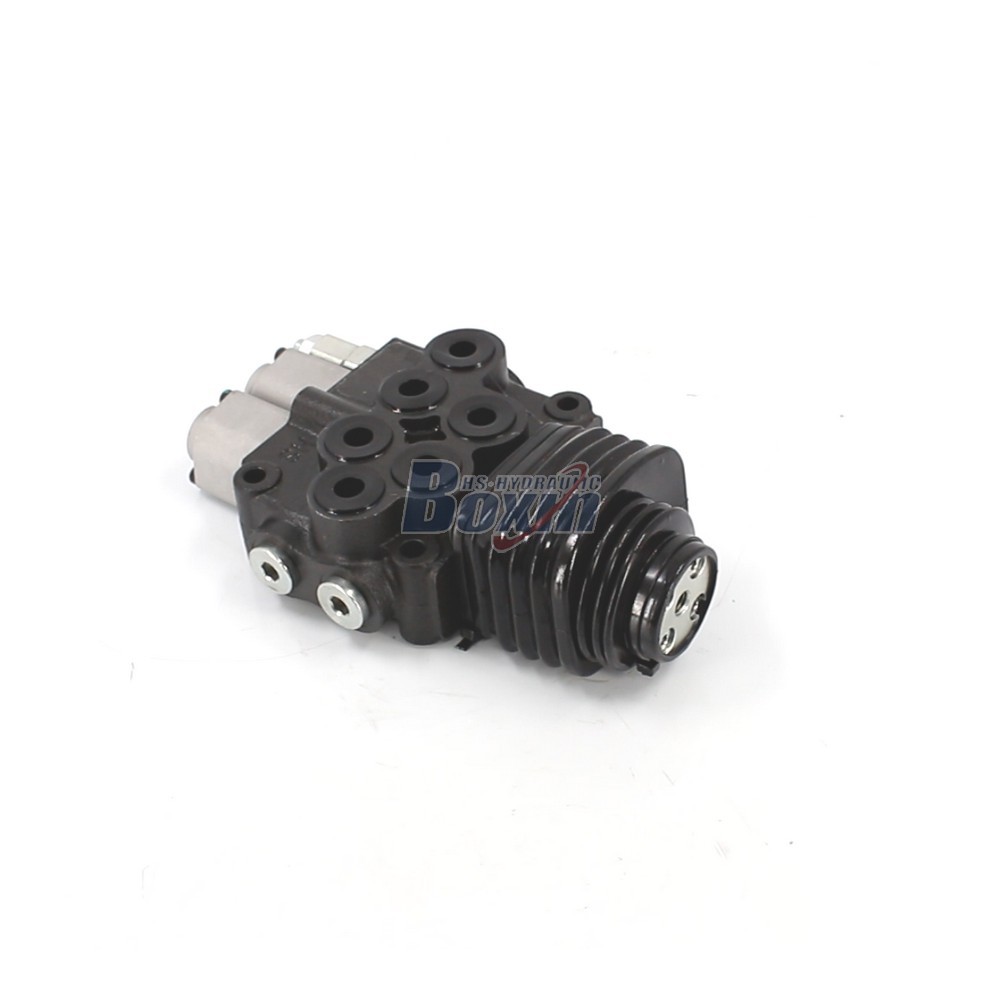

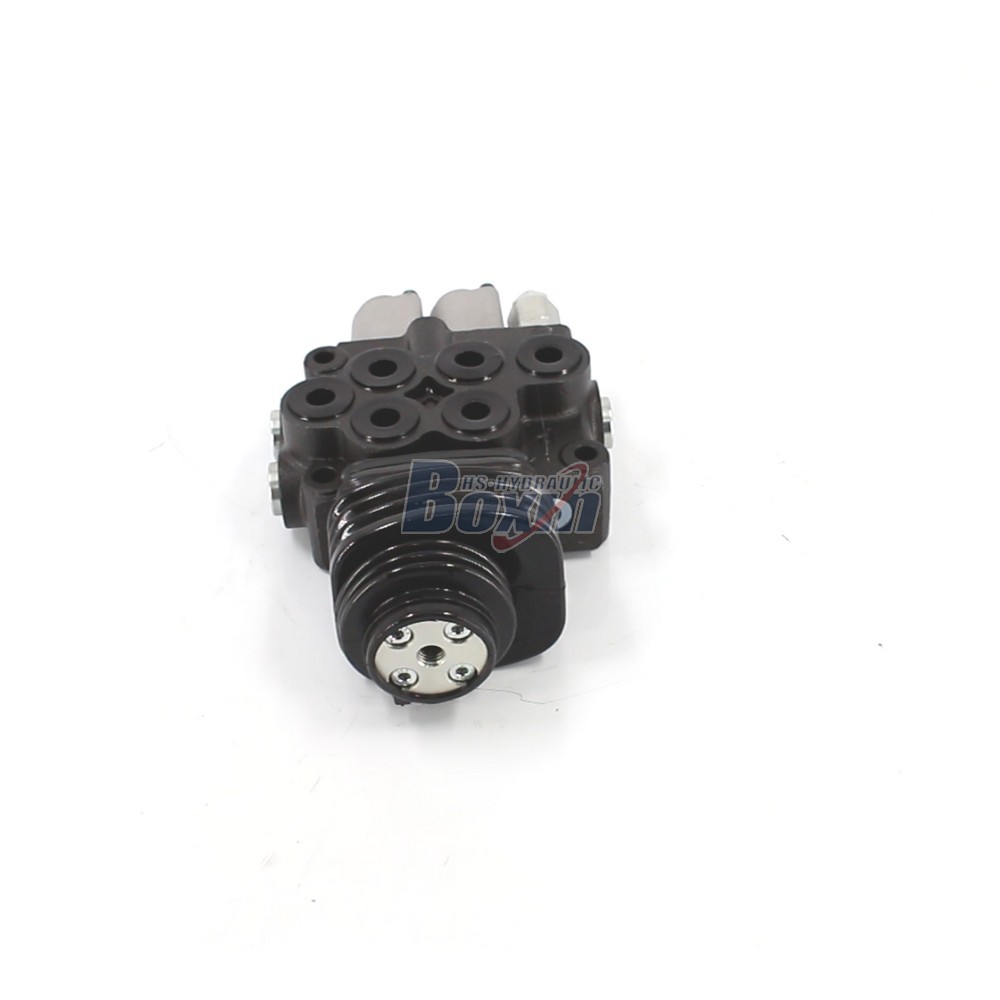

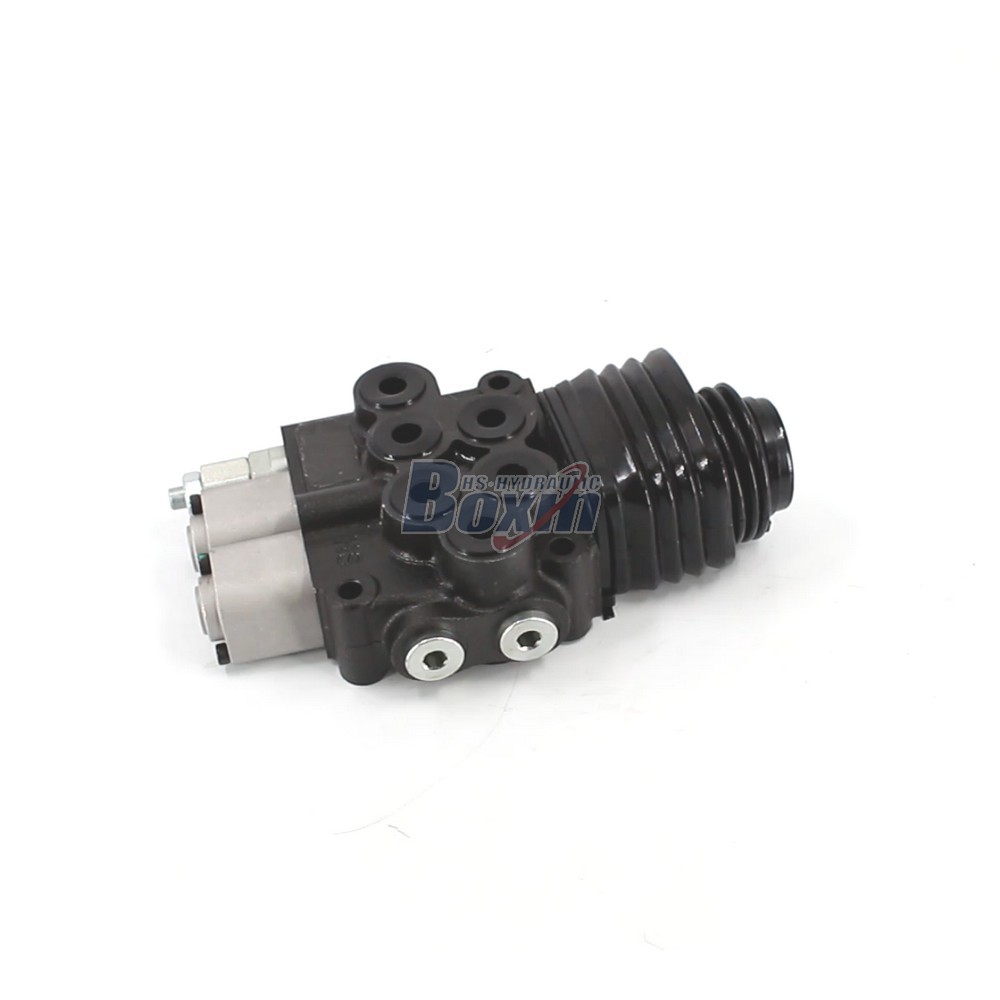

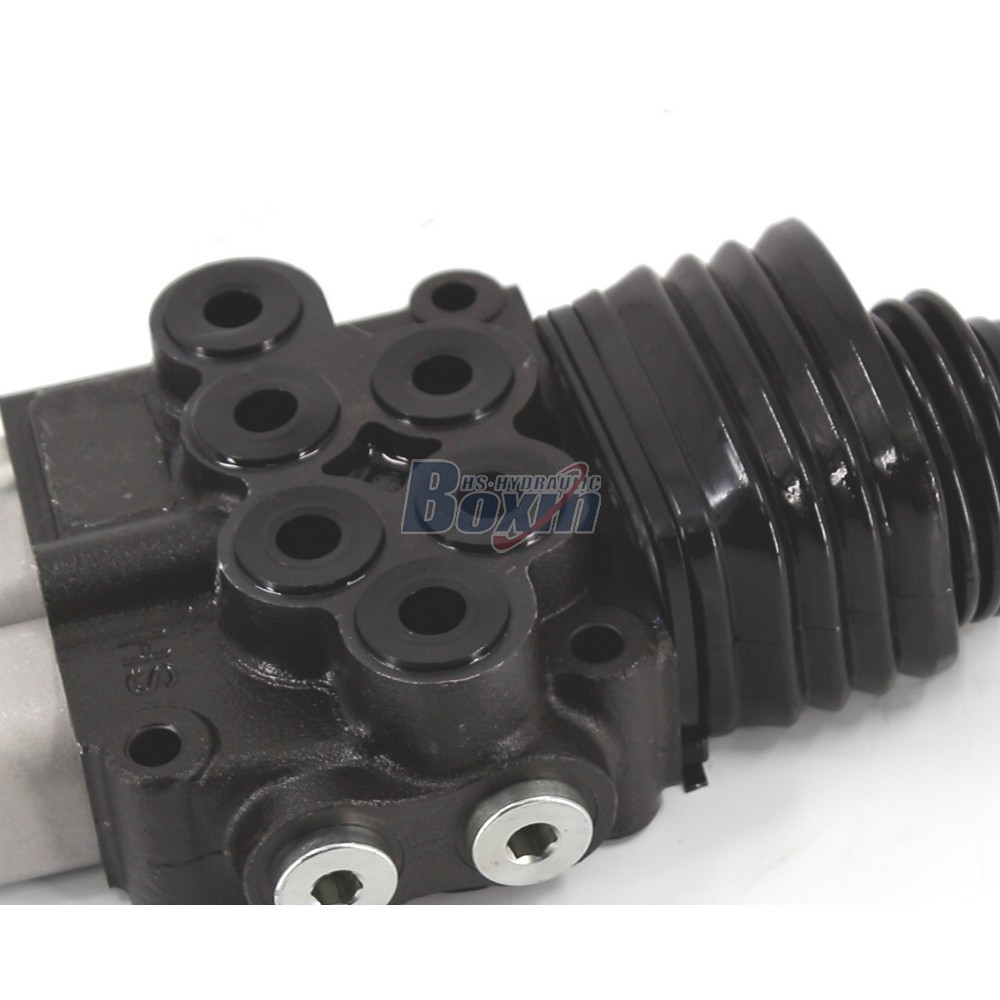

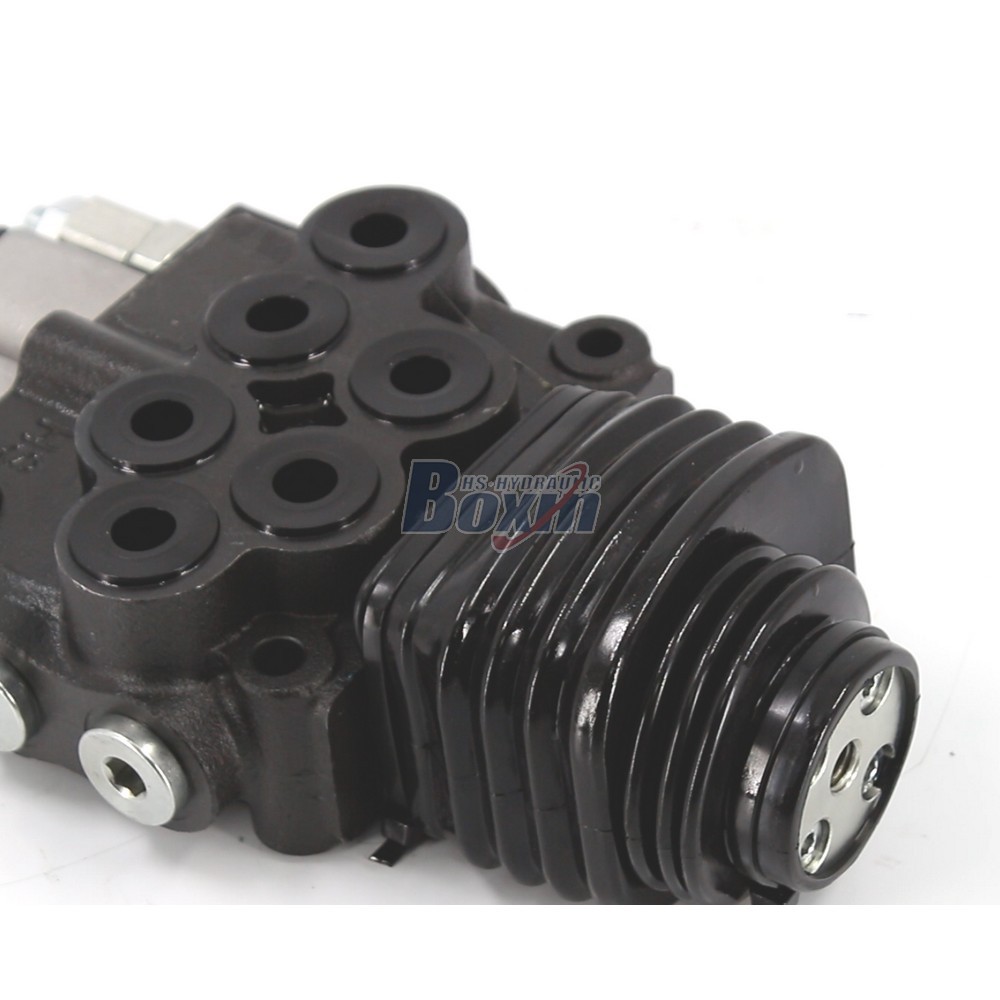

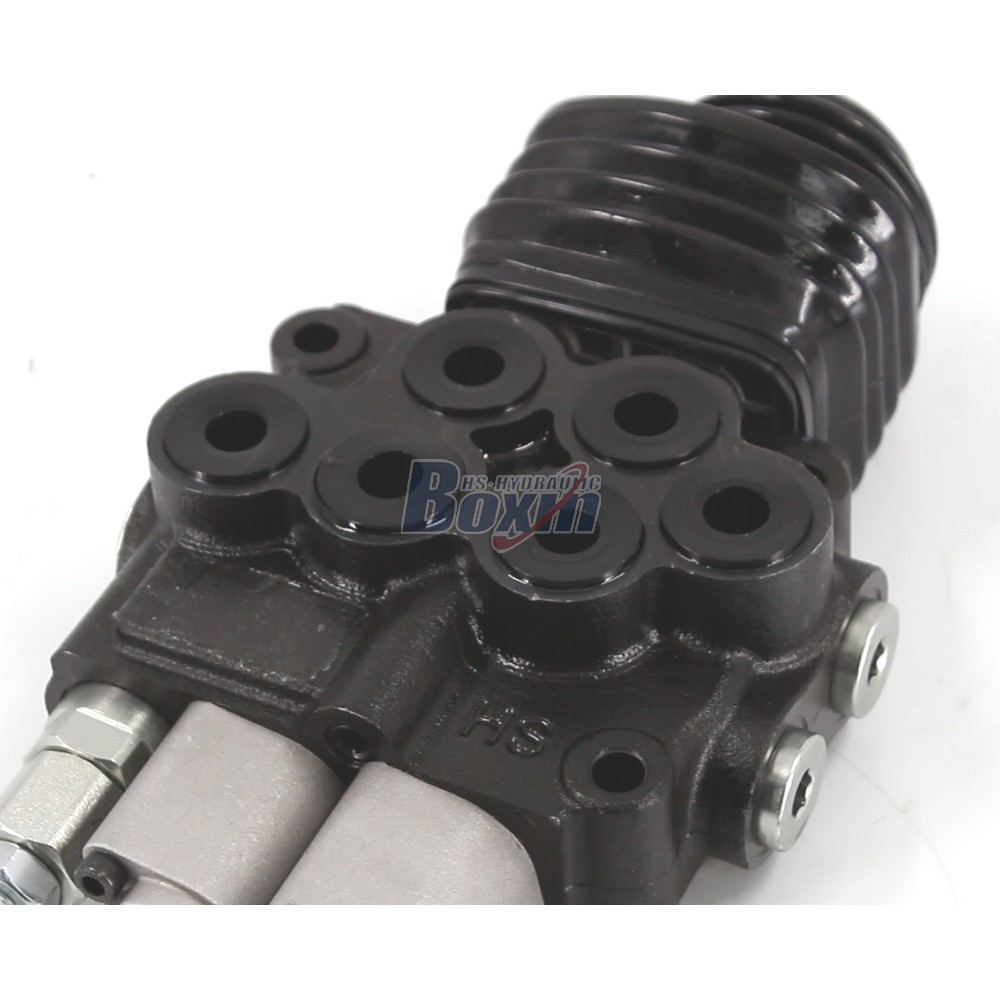

HS45 Joystick 2 Spool Monoblock Directional Valve for Hydraulic Systems

Metode Kontrol:Stik Kontrol

Spul:2 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/8

Port Keluar:G3/8

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri HS45 Katup Arah Monoblok

Ukuran kemasan:25*15*12

Kelas kotor:5.80 kg

Ketersediaan: Tersedia

115 Pandangan Mencari Produk Ini

HS45 Joystick 2 Spool Monoblock Directional Valve for Hydraulic Systems

HS45 Joystick 2 Spool Monoblock Directional Valve for Hydraulic Systems

HS45 Joystick 2 Spool Monoblock Directional Valve for Hydraulic Systems drawing image

The HS45 Series 2 Spool Monoblock Directional Valve features intuitive joystick control and a rated flow of 45 L/min. Designed for high-pressure systems up to 250 bar, this robust G3/8 ported valve is engineered for precision fluid management in agriculture, construction, and material handling equipment.

Seri HS45 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool
Kisaran Suhu Sekitar -20°C hingga +80°C (-4°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 45 L/menit (11,8 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8
Port Keluar G3/8
Ukuran Port G3/8

As a large-scale manufacturer of hydraulic components, we offer the HS45 Series Joystick 2 Spool Monoblock Directional Valve for global supply. This high-performance valve supports a flow rate of 45 L/min (11.8 US gpm) and handles pressure up to 250 bar (3600 psi), making it ideal for mini-excavators, skid steer loaders, and tractors. Our factory provides comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. We specialize in factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. The G3/8 port size ensures compatibility across various industrial vehicles such as forklifts, telehandlers, and wood splitters. By choosing our factory supply, you benefit from direct manufacturing expertise, reliable quality control, and competitive wholesale pricing tailored for the global hydraulic market.
