Produksi & Pengiriman
Waktu Produksi 15-30 Hari

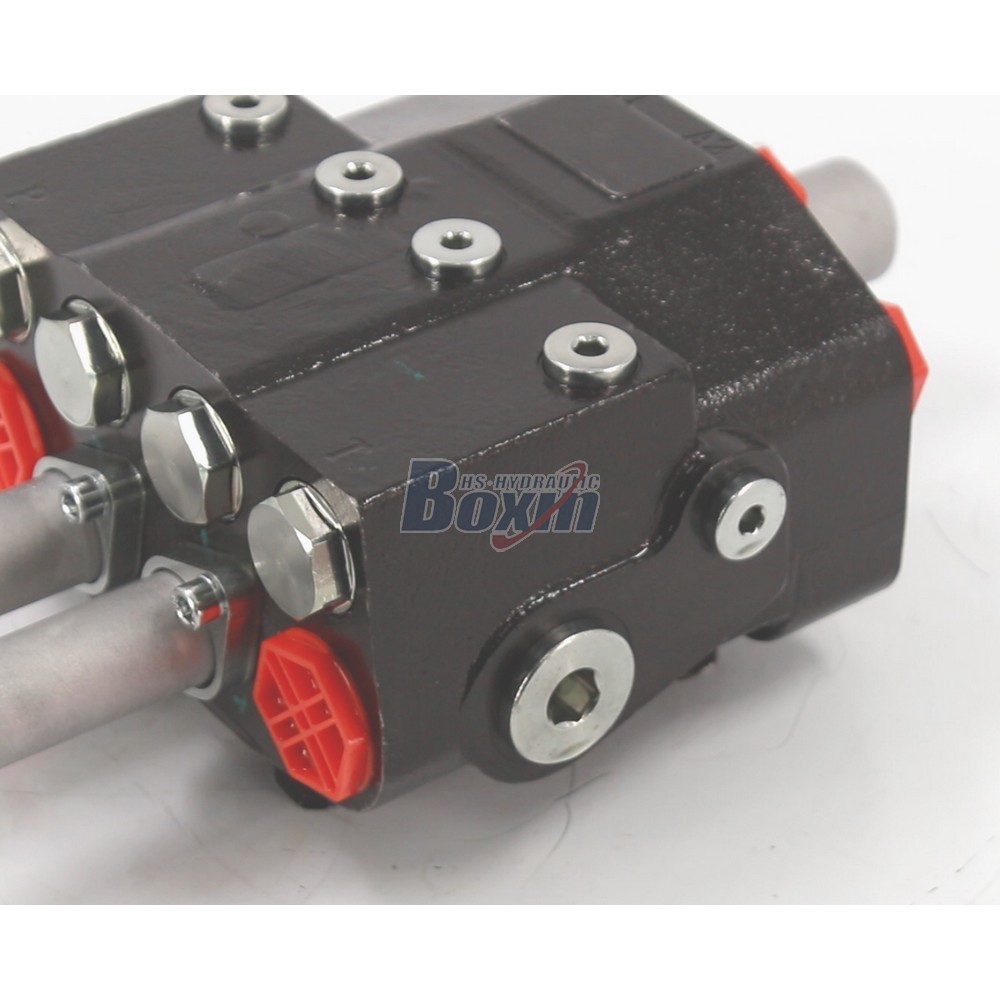

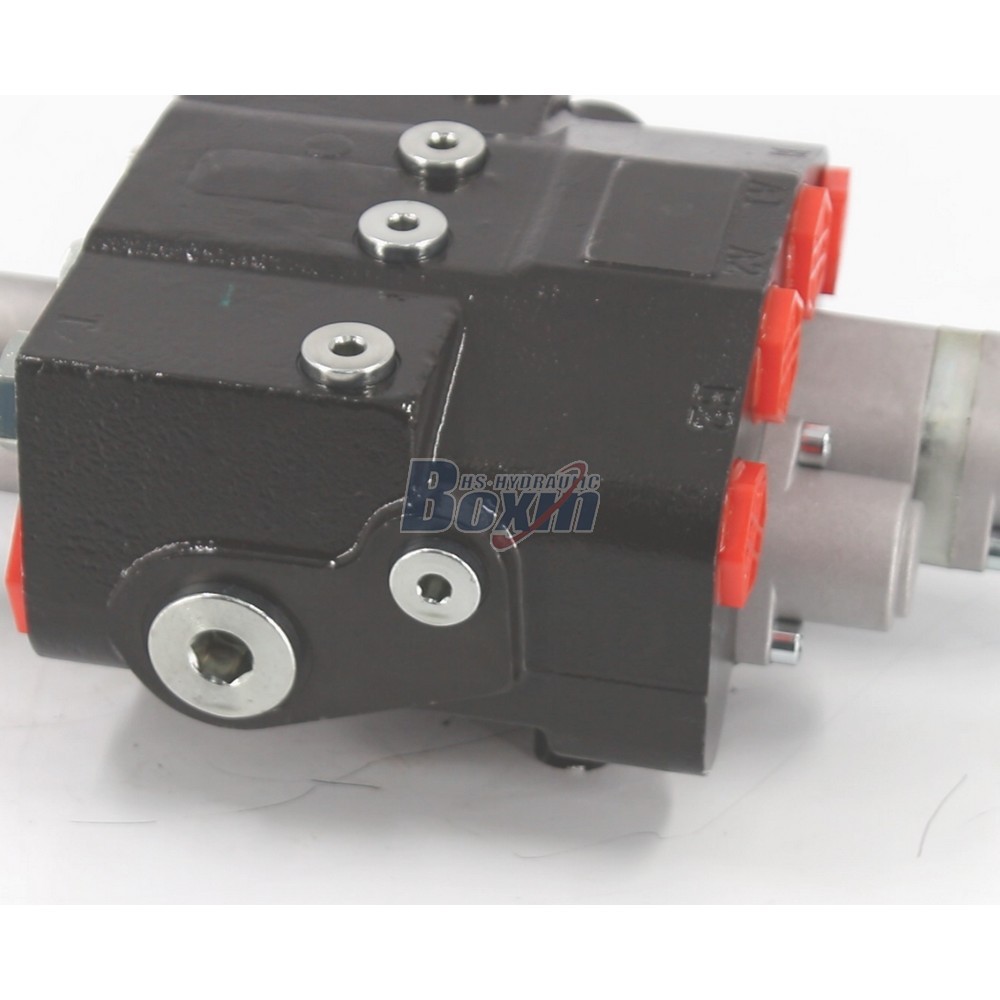

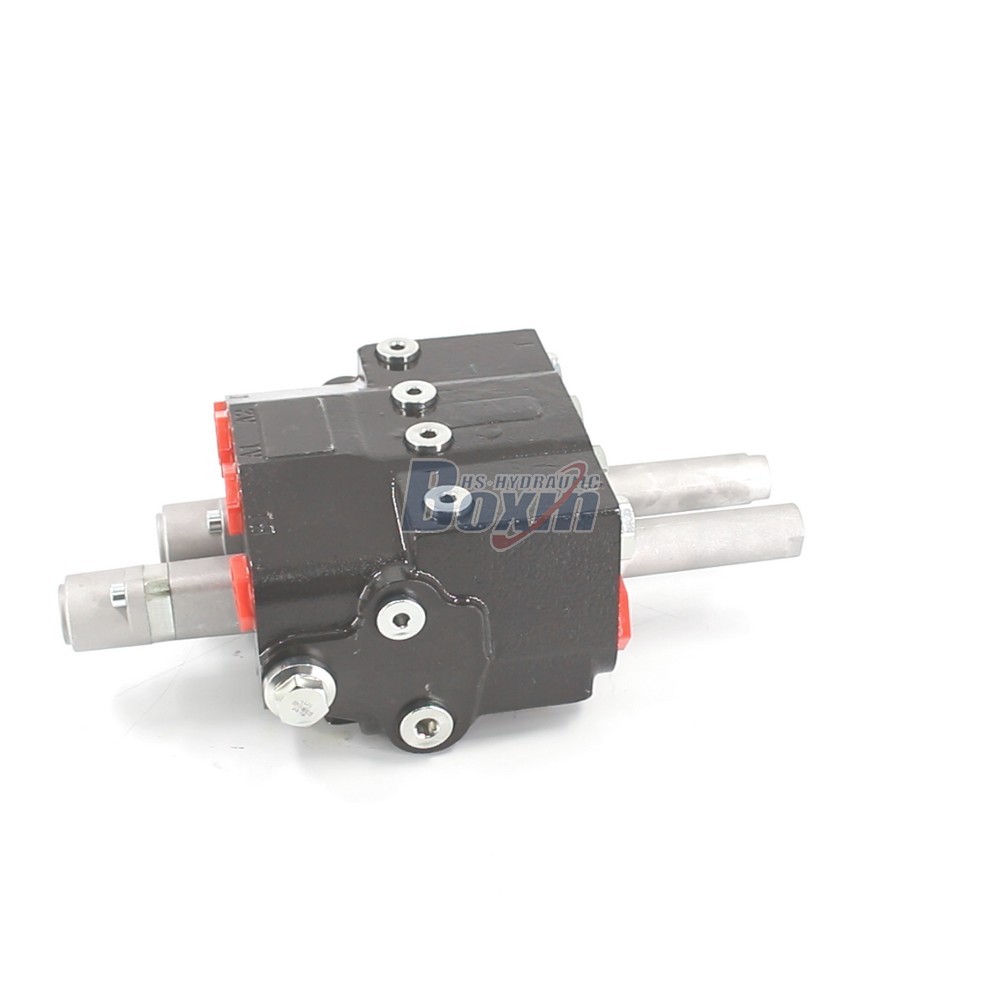

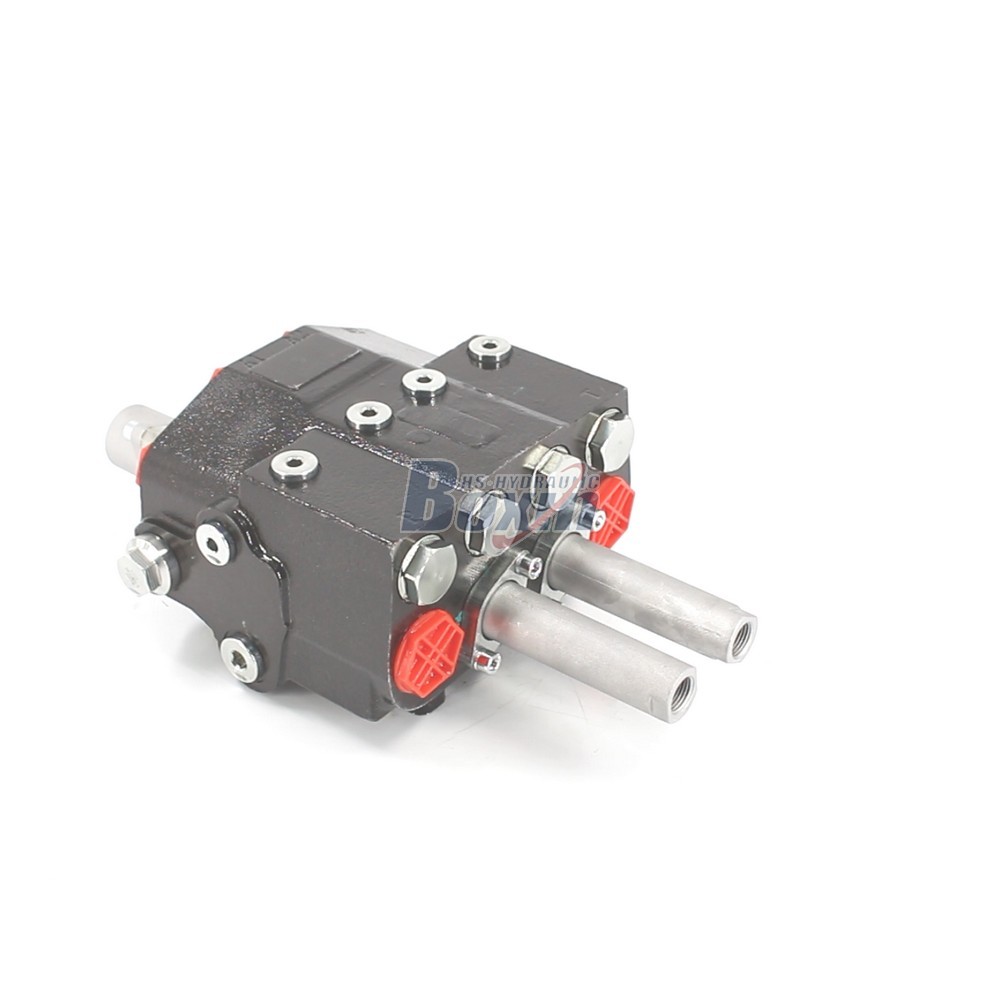

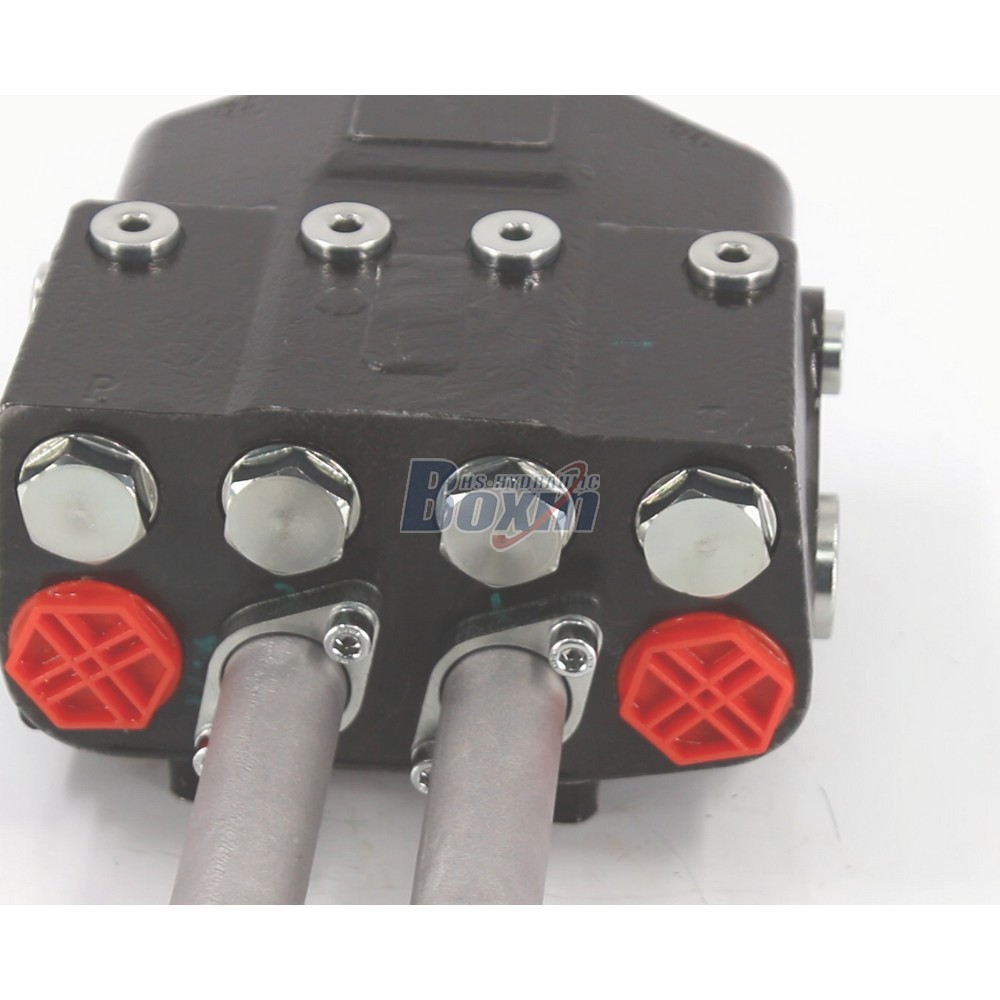

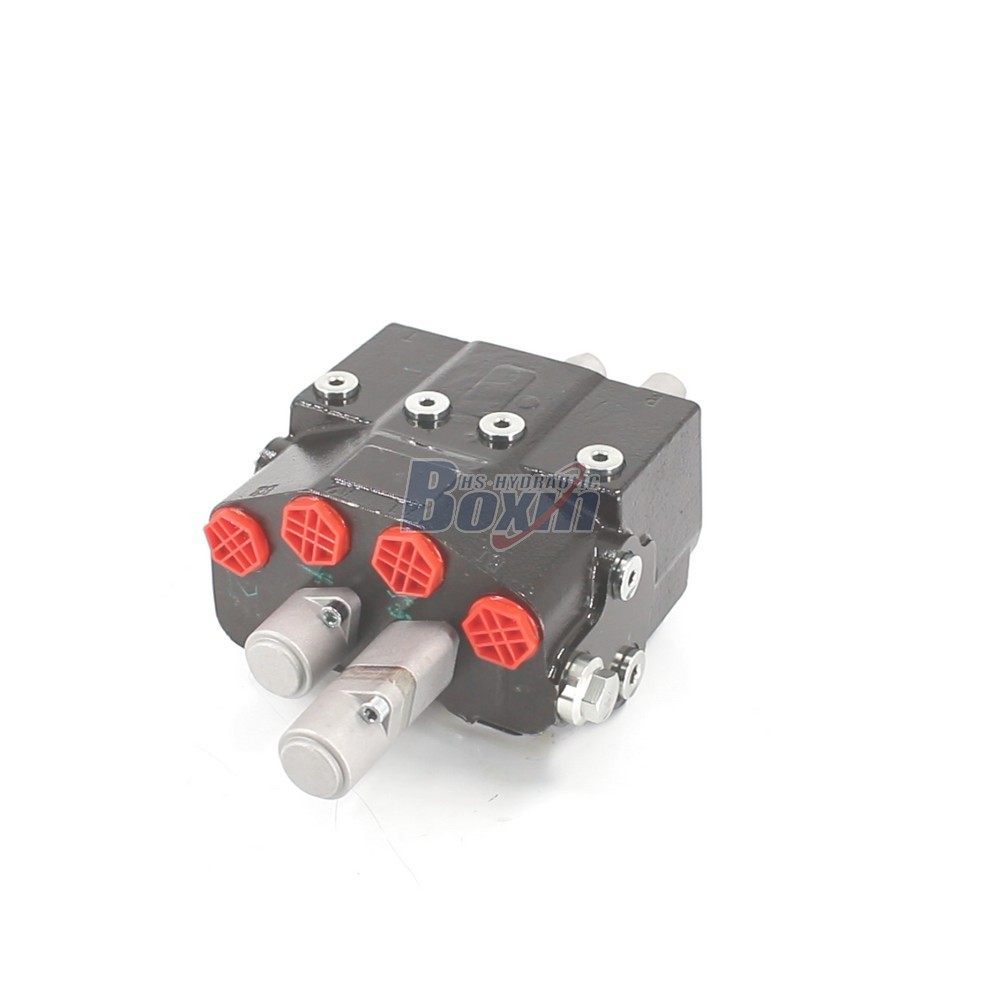

The HSDM80 Series is a high-performance 2-spool monoblock hydraulic directional control valve featuring cable control operation. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, it provides reliable fluid power management for various mobile and industrial applications.
| Seri HSDM80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Kabel |
| Spul | 2 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 2 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4 |
| Ukuran Port | G1/2 |
As a leading manufacturer of hydraulic components, we proudly offer the HSDM80 Series 2 Spool Hydraulic Monoblock Directional Control Valve. This robust cable-controlled valve is engineered for precision and durability, delivering a flow rate of 80 L/min (21.2 US gpm) and sustaining pressures up to 250 bar (3600 psi). It features G3/4 inlet/outlet ports and G1/2 work ports to ensure versatile connectivity. We specialize in global supply, providing comprehensive OEM, ODM, and custom manufacturing services to meet specific technical requirements. Our factory supports large-scale wholesale and private labeling for international brands. We are actively seeking long-term partnerships with professional distributors, wholesalers, agents, and traders worldwide. By choosing our factory supply, you gain access to competitive pricing, reliable technical support, and the capacity for high-volume orders. Ideal for agricultural machinery, construction equipment, and specialized mobile applications, the HSDM80-2 valve ensures efficient performance under demanding conditions.
