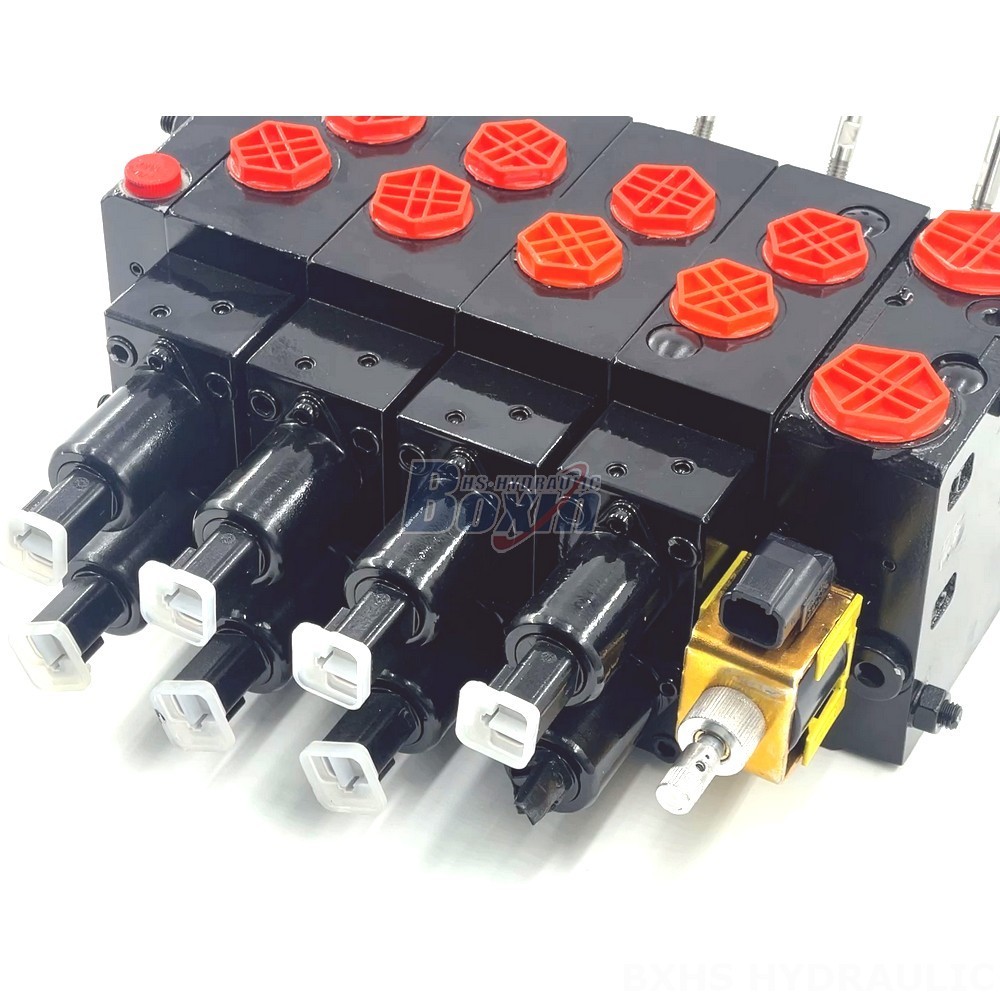

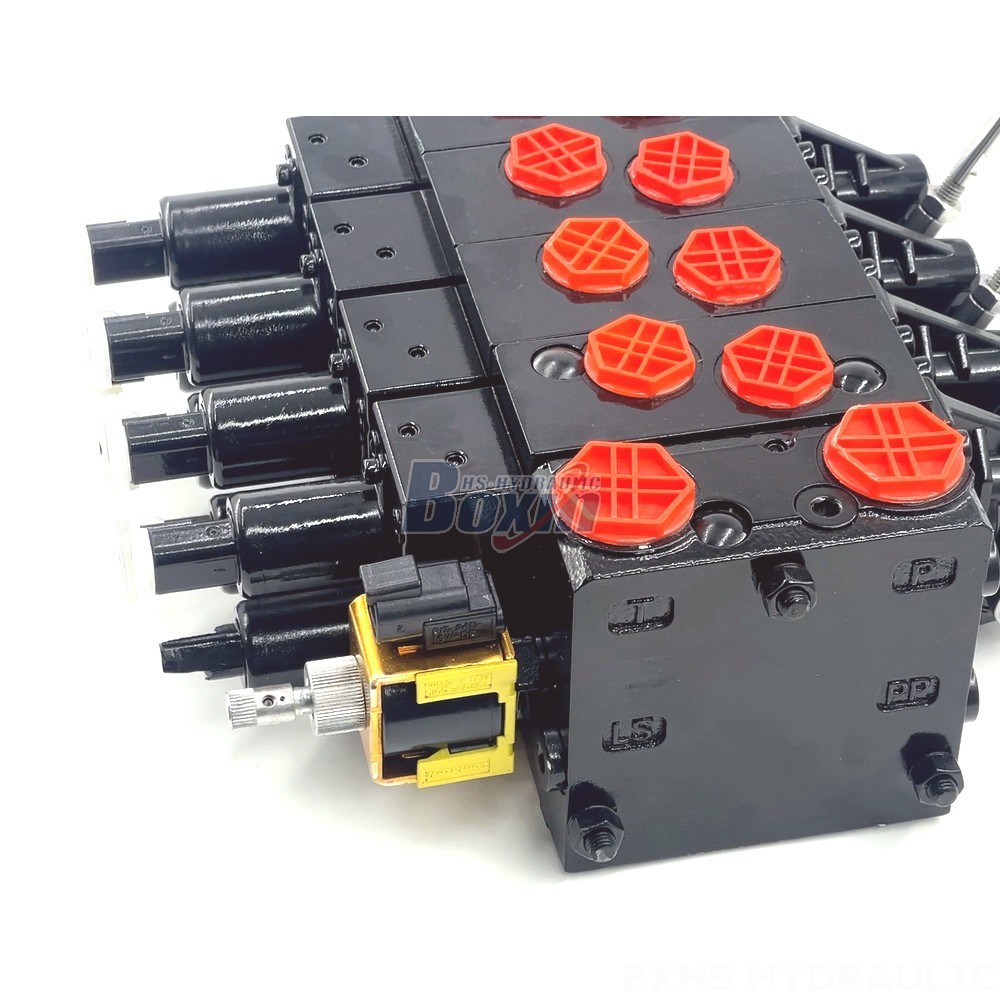

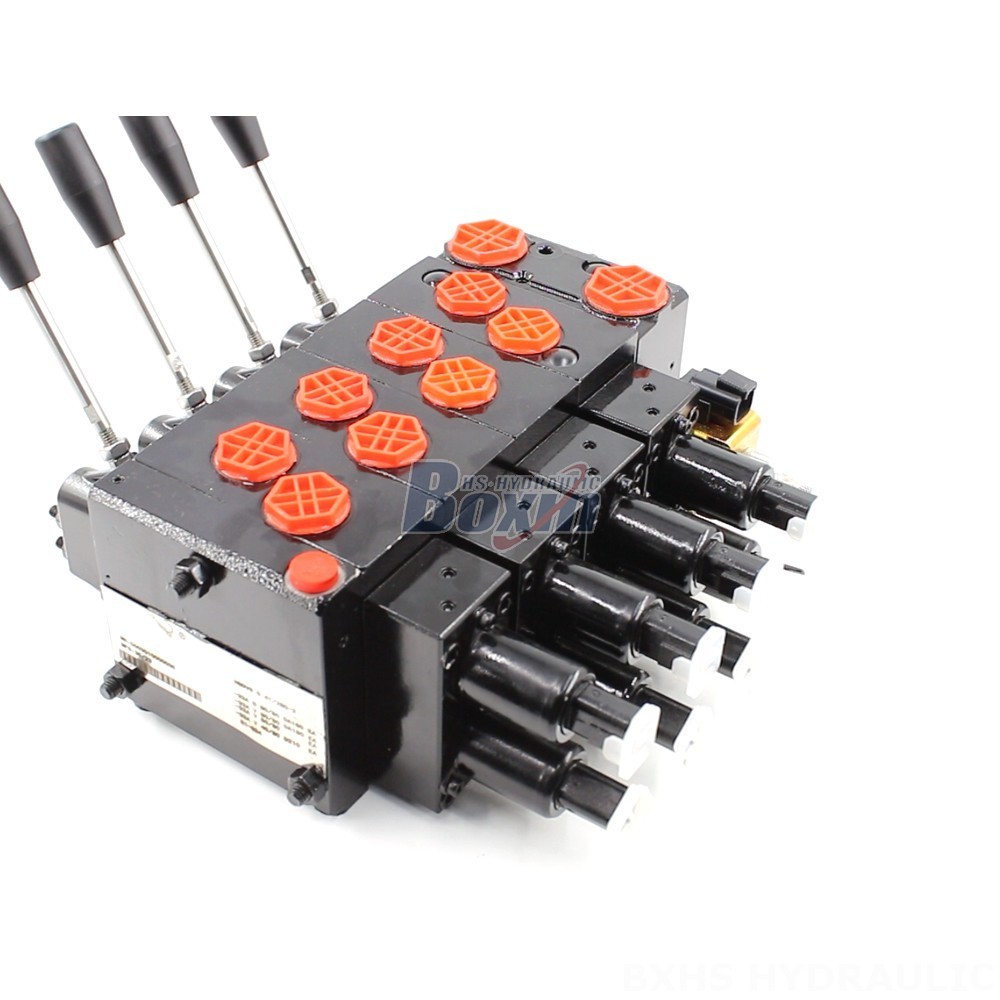

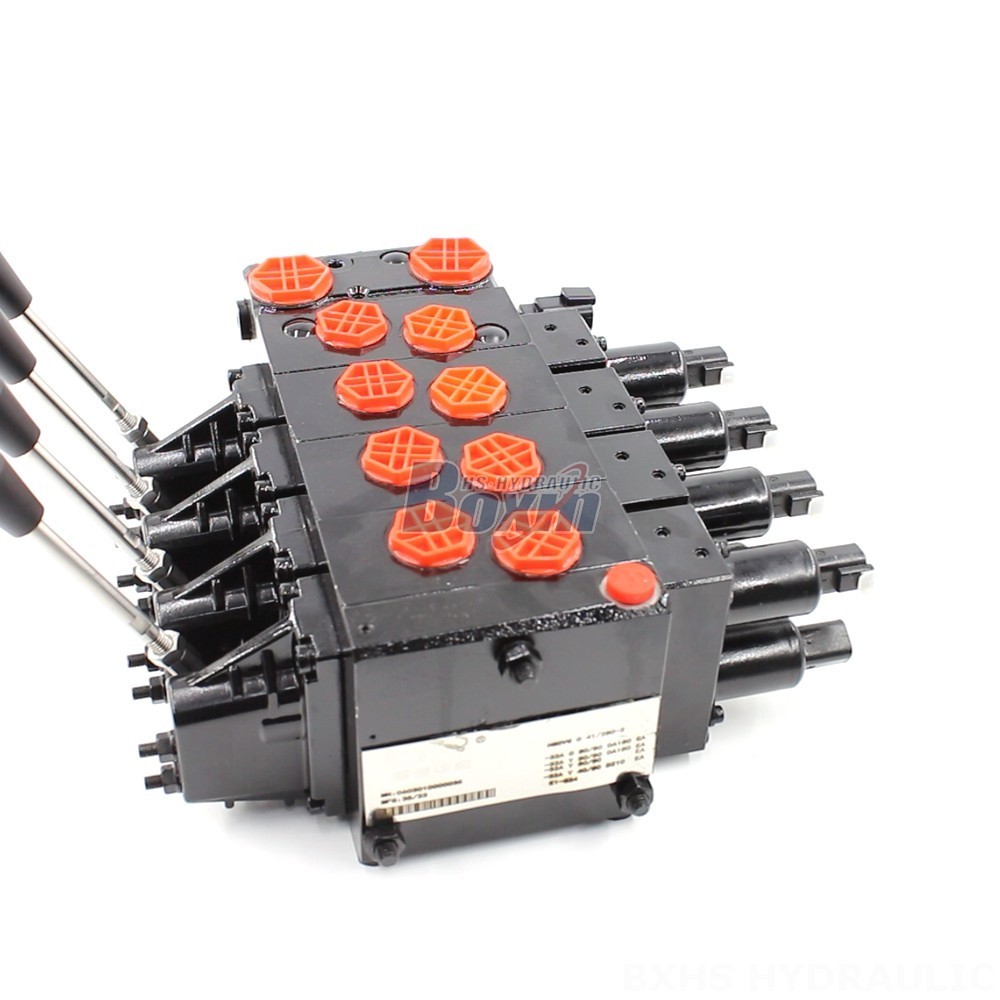

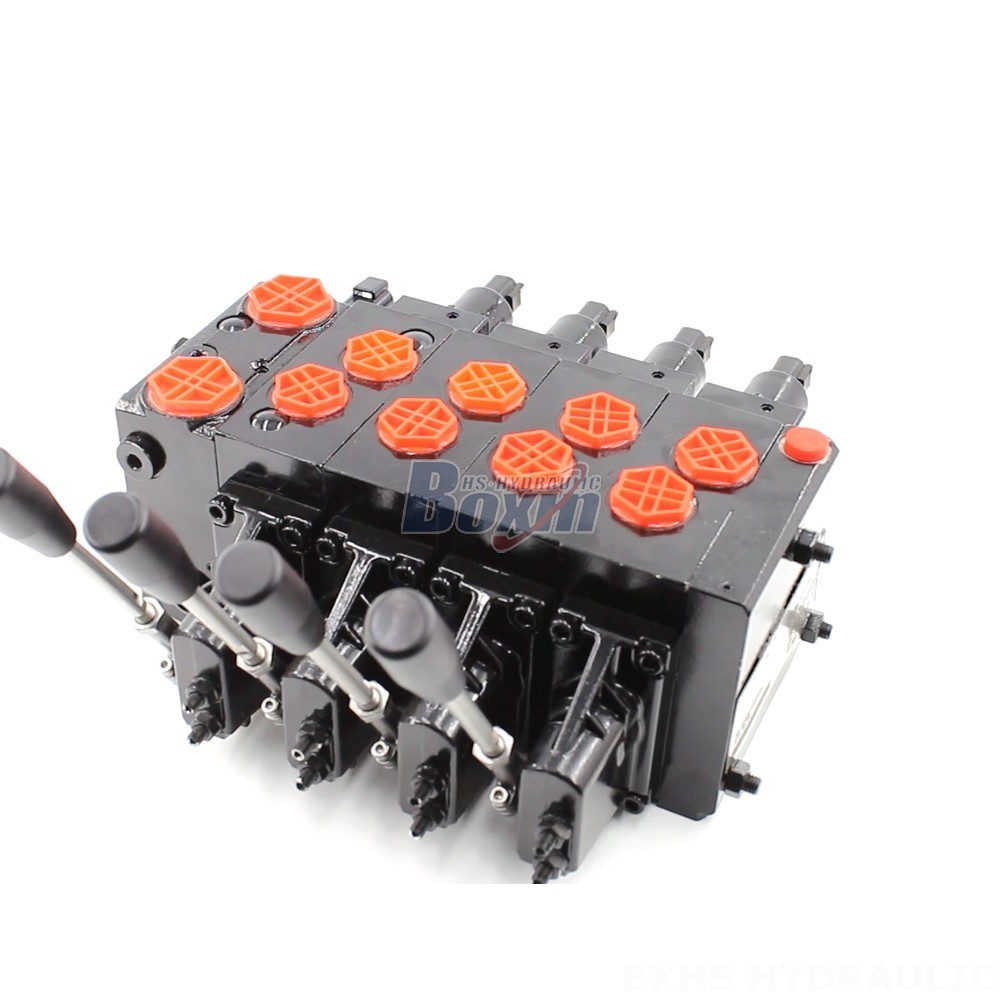

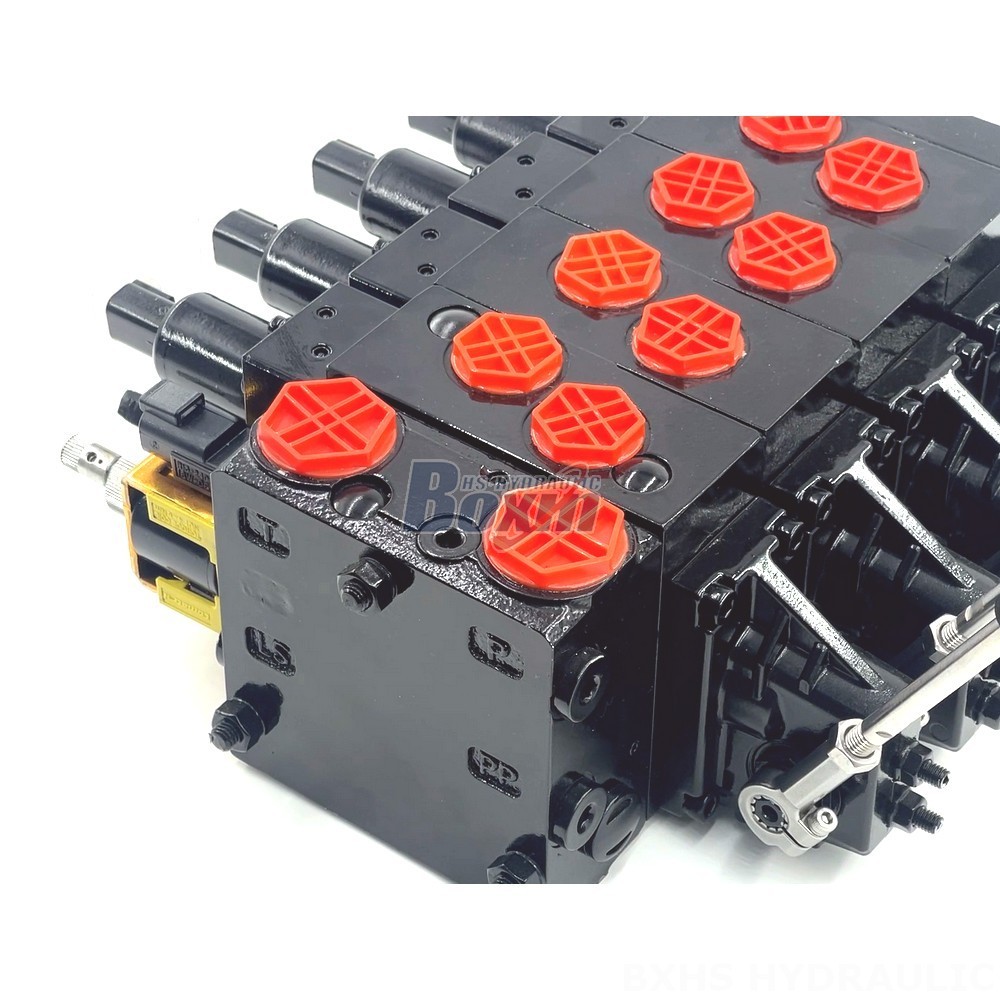

The HSDVG32 Electric Proportional Control Valve is a high-performance valve designed for use in a variety of industrial applications. With a rated flow of 140 L/min and a maximum pressure of 315 bar, this valve is capable of handling a wide range of flow rates and pressures. The electric proportional control provides precise flow control, while the manual override allows for quick and easy adjustment. The valve is constructed from high-quality materials and is designed to withstand the harsh conditions of industrial use.
| Seri HSDVG32 Katup Kontrol Proporsional Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-hidraulik, Selenoid, Hidraulik dan Manual, Kabel, Proporsional listrik, Solenoid dan Manual, Proporsional listrik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 140 L/menit (37 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4 |
| Ukuran Port | G1/2, G3/4 |
**Product Name:** HSDVG32 Electric Proportional Control Valve
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
