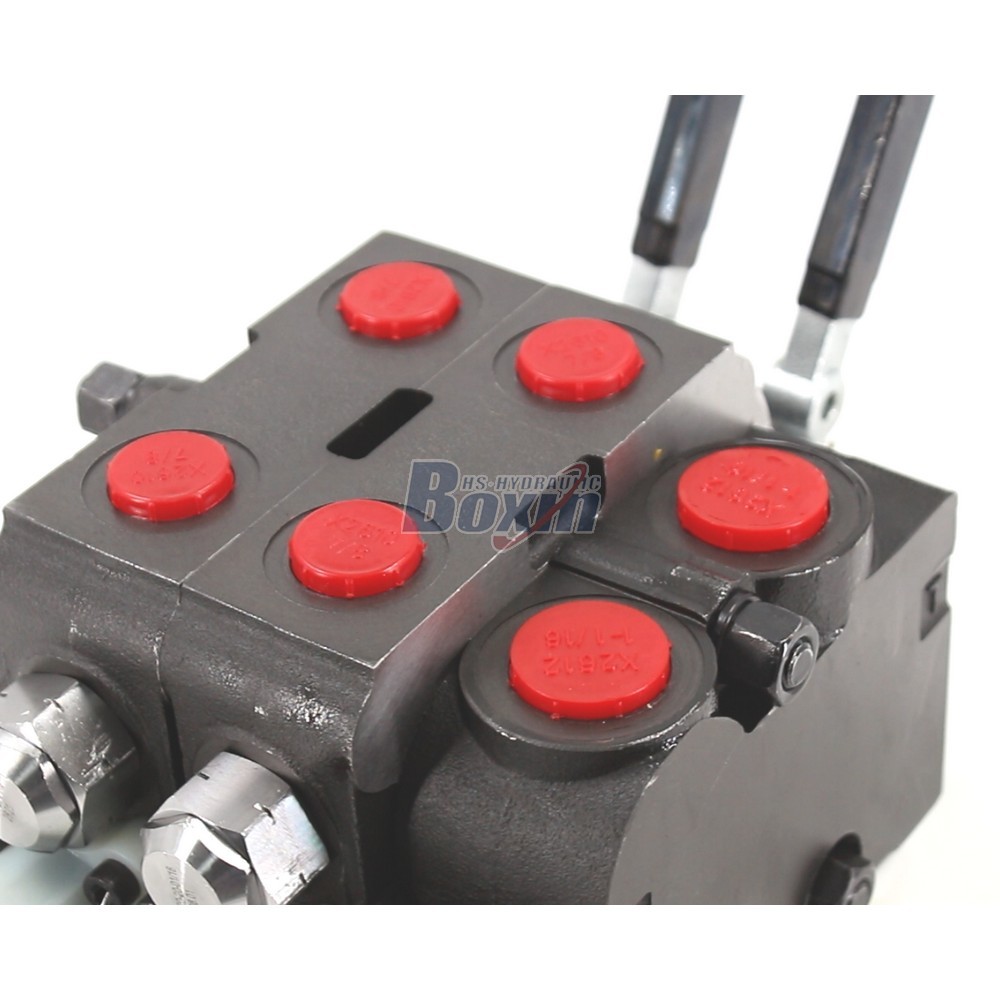

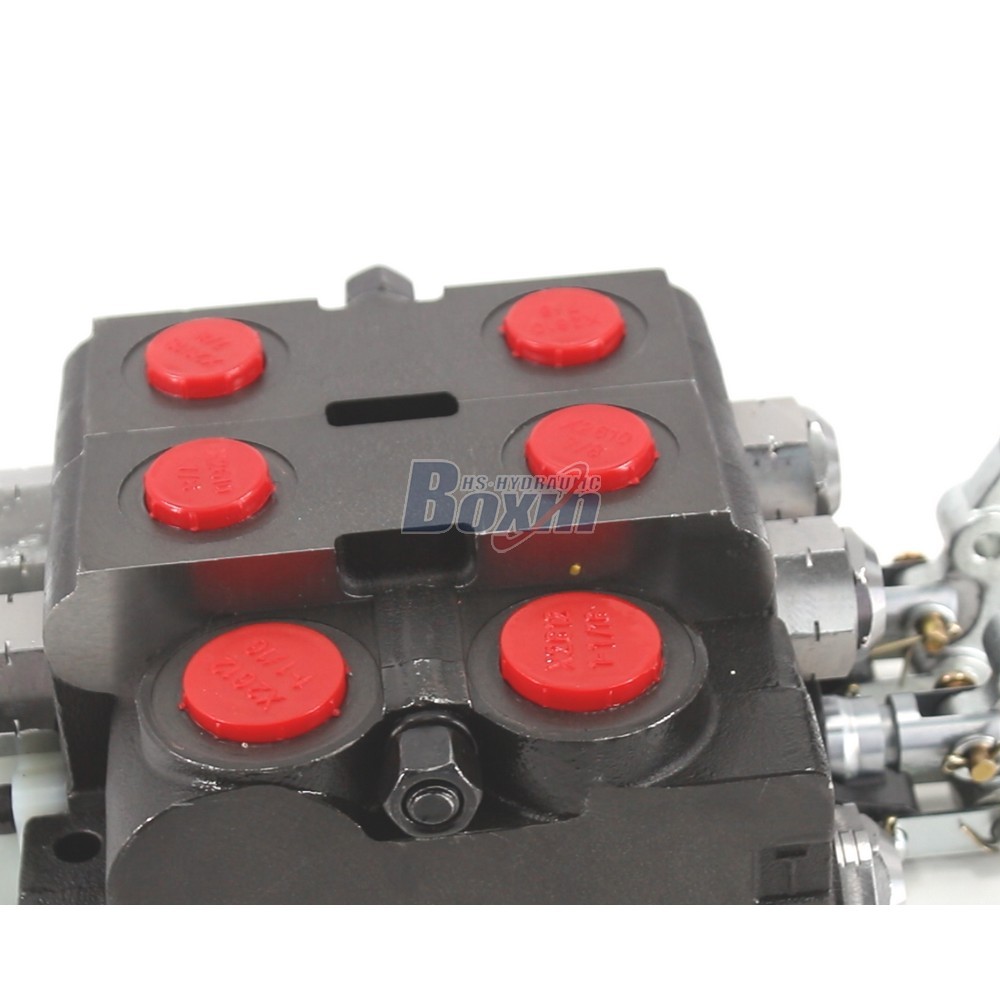

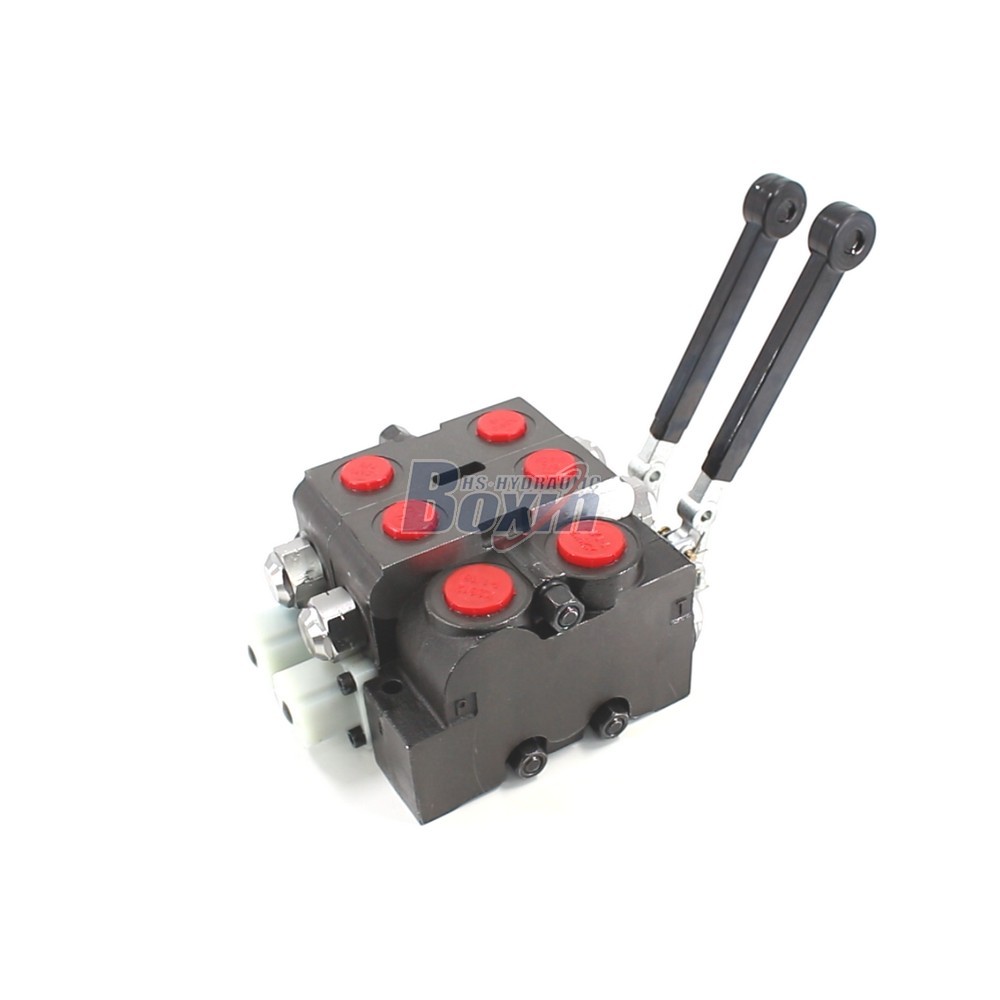

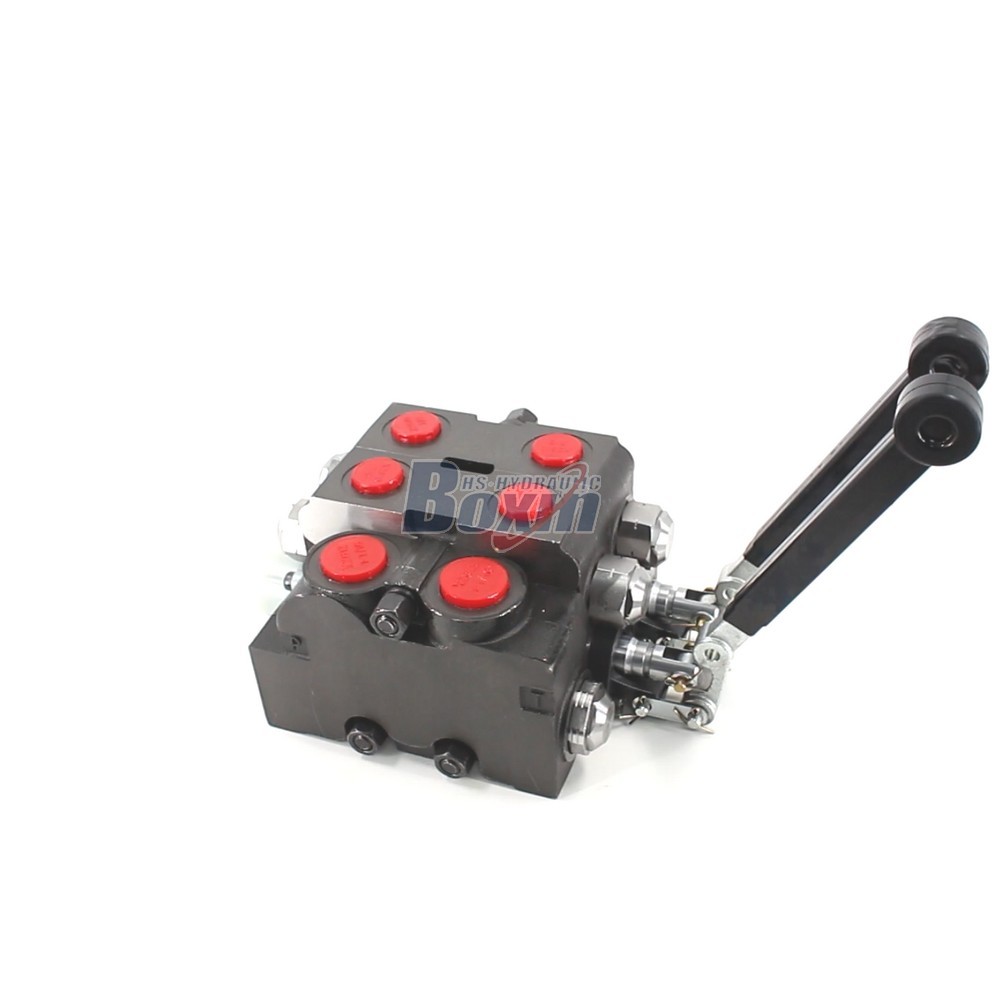

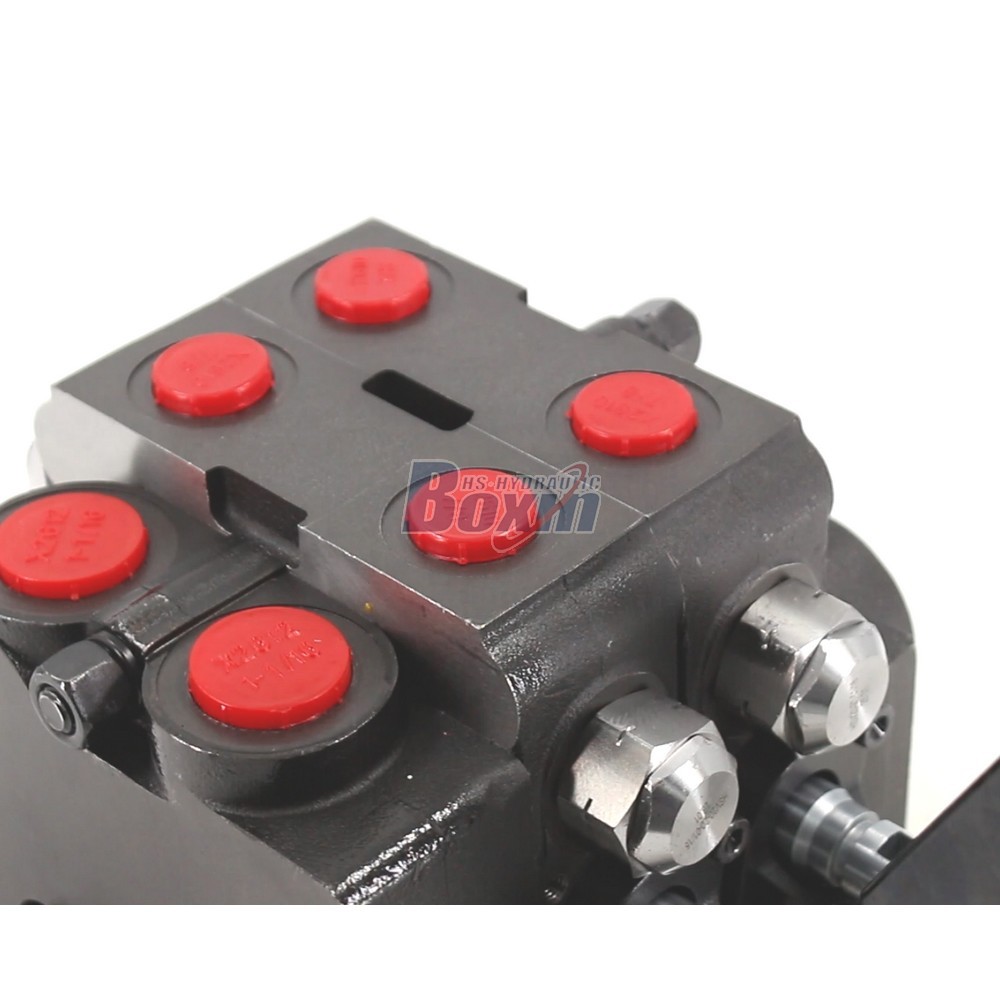

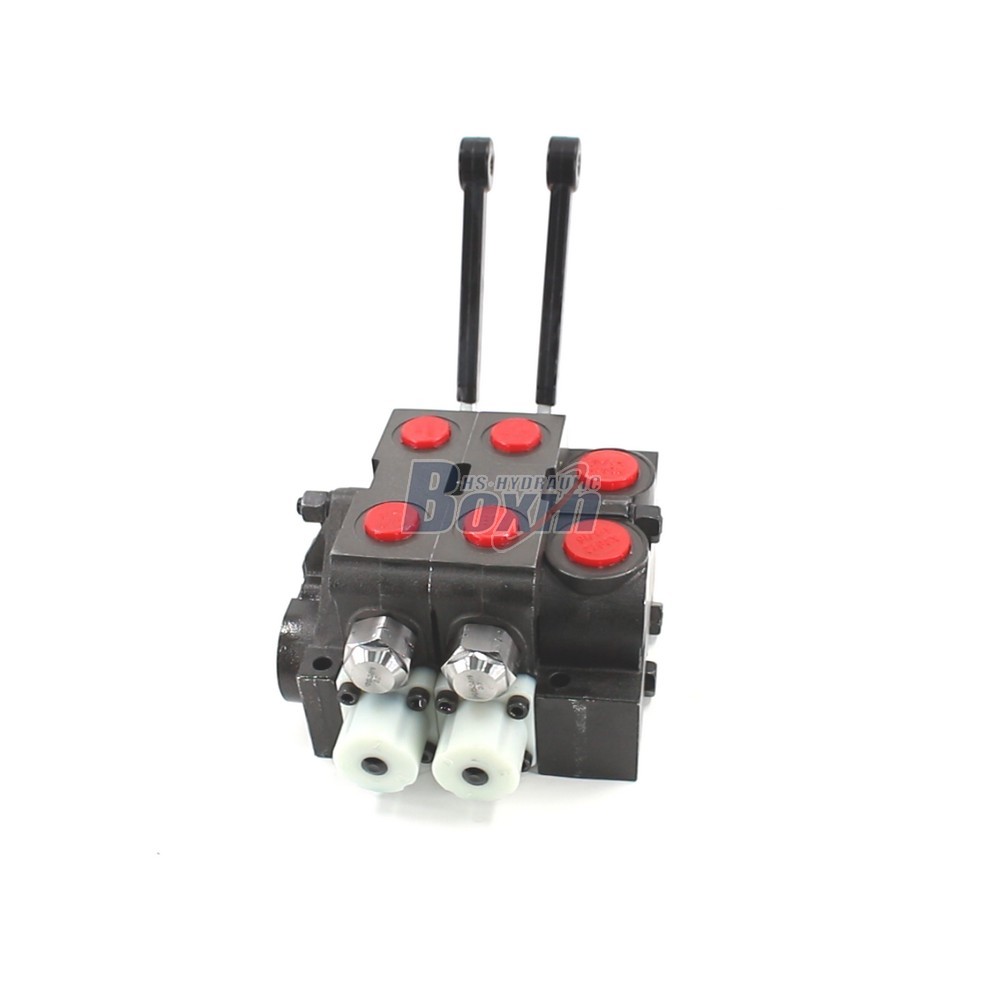

HSV20 Manual 2 Spool Sectional Directional Valve for Hydraulic Systems

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:75 L/menit (19,8 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 12

Port Keluar:SAE 12

Ukuran Port:SAE 10

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri HSV20 Kran Arah Bagian

Ukuran kemasan:34*27*18

Kelas kotor:17.00 kg

Ketersediaan: Tersedia

100 Pandangan Mencari Produk Ini

HSV20 Manual 2 Spool Sectional Directional Valve for Hydraulic Systems

HSV20 Manual 2 Spool Sectional Directional Valve for Hydraulic Systems

HSV20 Manual 2 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The HSV20 series 2-spool manual sectional directional valve provides reliable hydraulic control for high-demand applications. Engineered for a flow rate of 75 L/min and maximum pressure of 250 bar, this robust unit is ideal for agricultural, construction, and material handling machinery requiring precise, manual operations.

Seri HSV20 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Manual dan Joystick, Manual dan Elektro-hidraulik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 75 L/menit (19,8 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/4, SAE 12
Port Keluar G3/4, SAE 12
Ukuran Port G1/2, SAE 10

As a large-scale manufacturer, we prioritize precision engineering and high-quality production for our HSV20 2-spool sectional directional valves. These valves feature a flow rate of 75 L/min (19.8 US gpm) and a maximum pressure capacity of 250 bar (3600 psi), ensuring consistent performance in forklifts, tractors, skid steer loaders, and backhoes. We provide extensive support for OEM, ODM, and customized manufacturing services tailored to your technical specifications. Our factory-direct wholesale model allows us to offer competitive pricing to global distributors, wholesalers, and trading companies. By choosing us as your manufacturing partner, you benefit from scalable production capacity, strict quality control, and professional export services. We are actively seeking long-term partnerships with distributors, industrial wholesalers, and international trade agencies to expand our market reach. Whether you require private labeling (brand-on-product) or tailor-made valve solutions, our expert team is ready to support your business requirements with reliable supply chain solutions.
