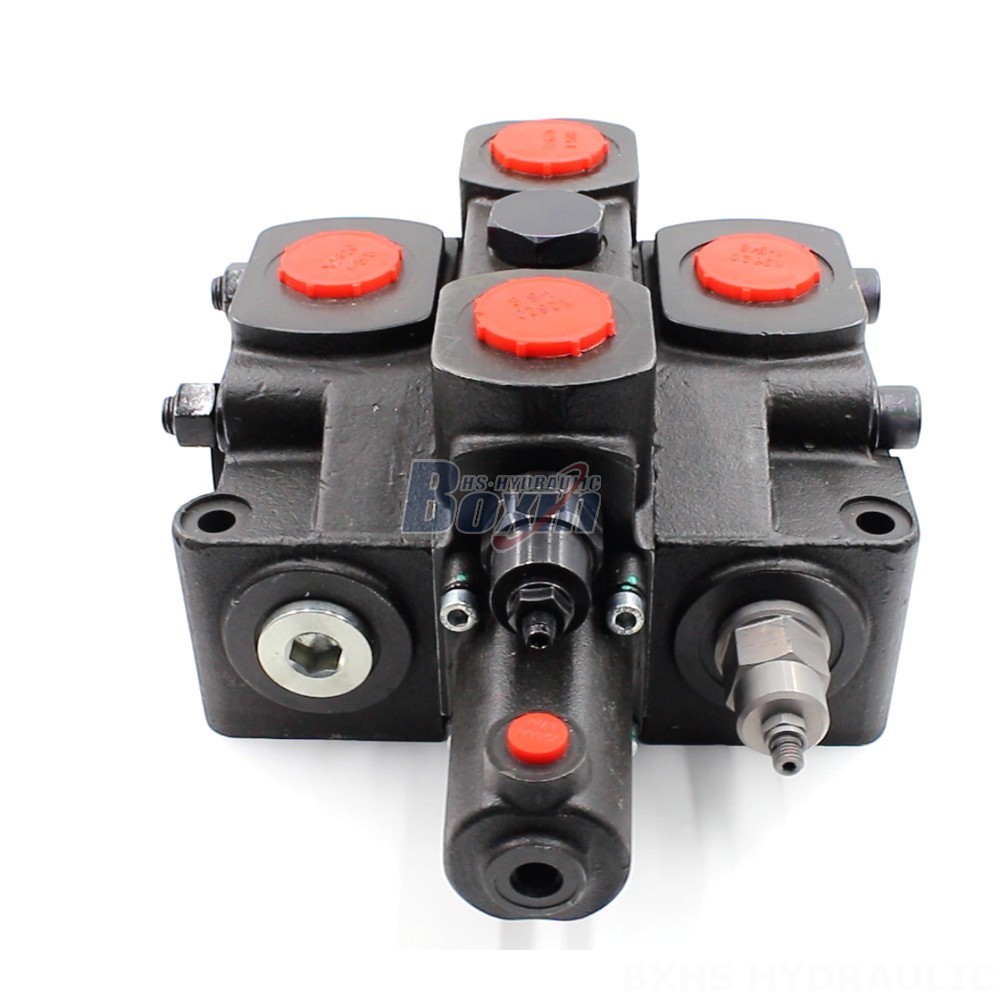

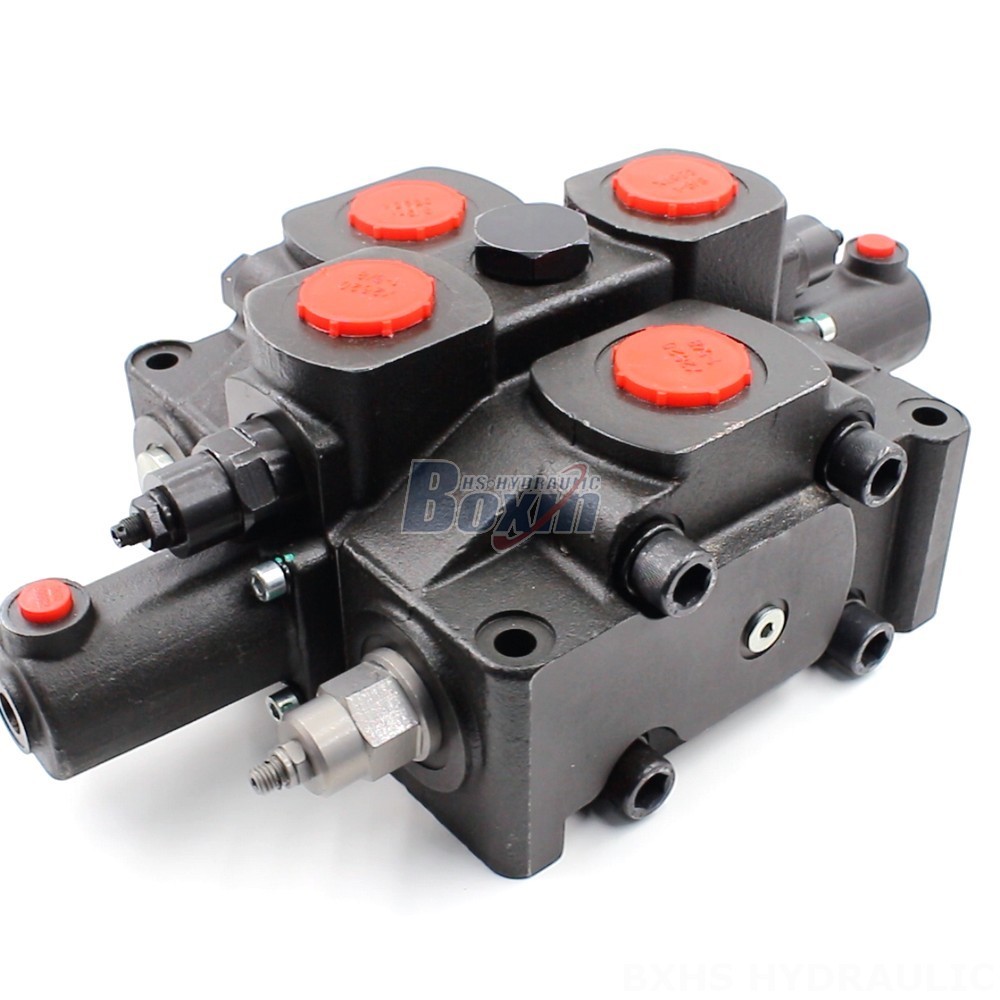

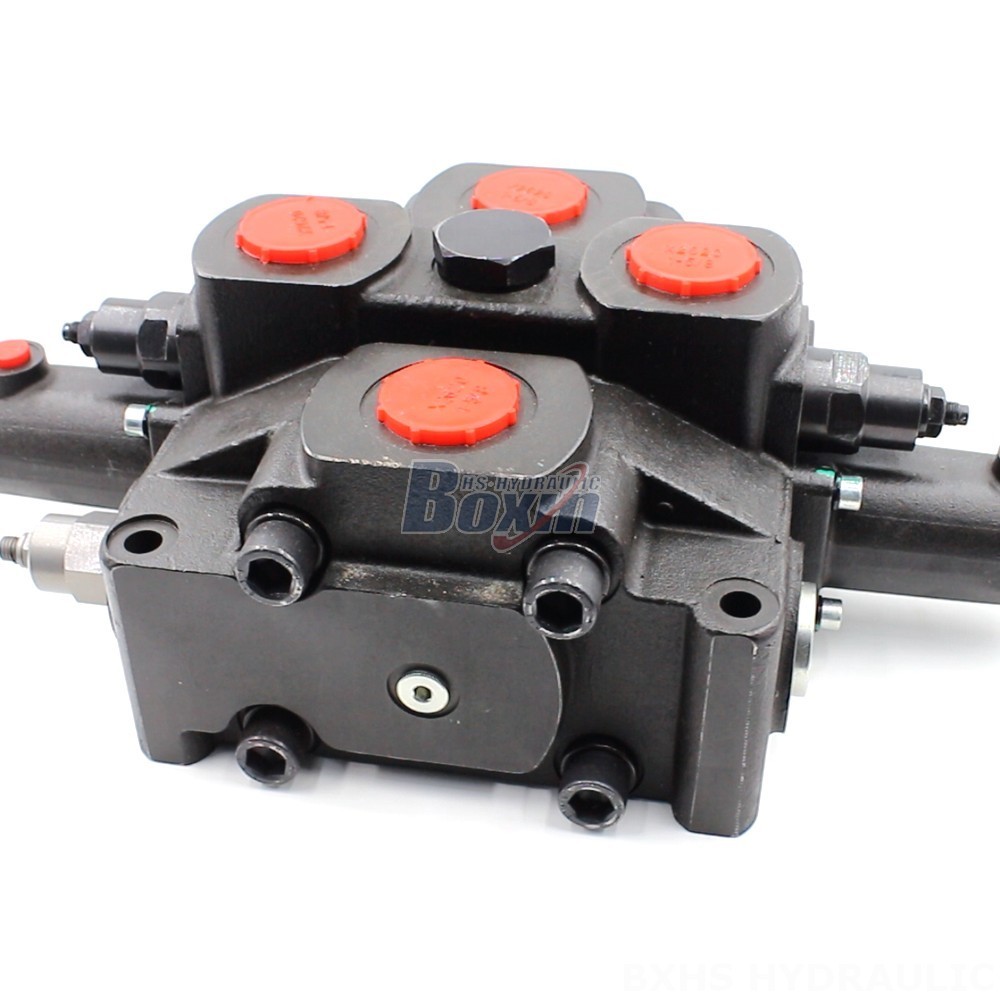

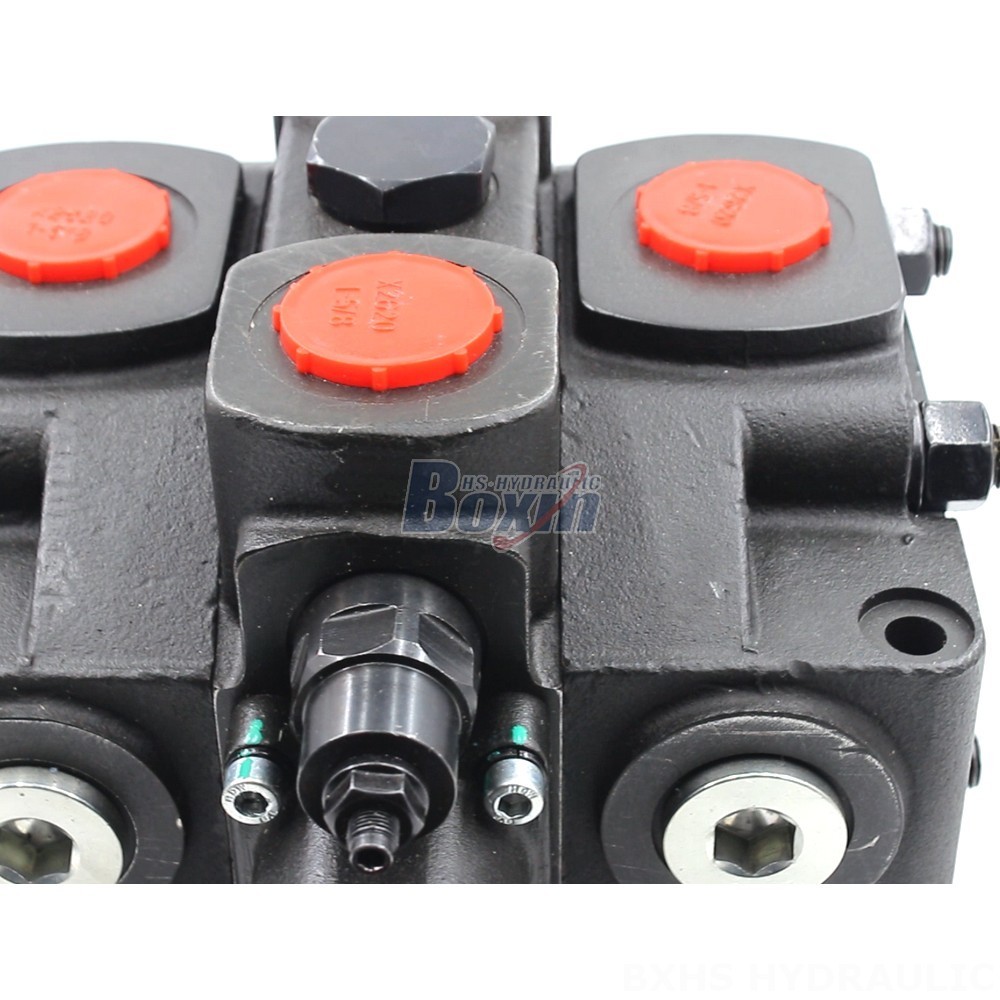

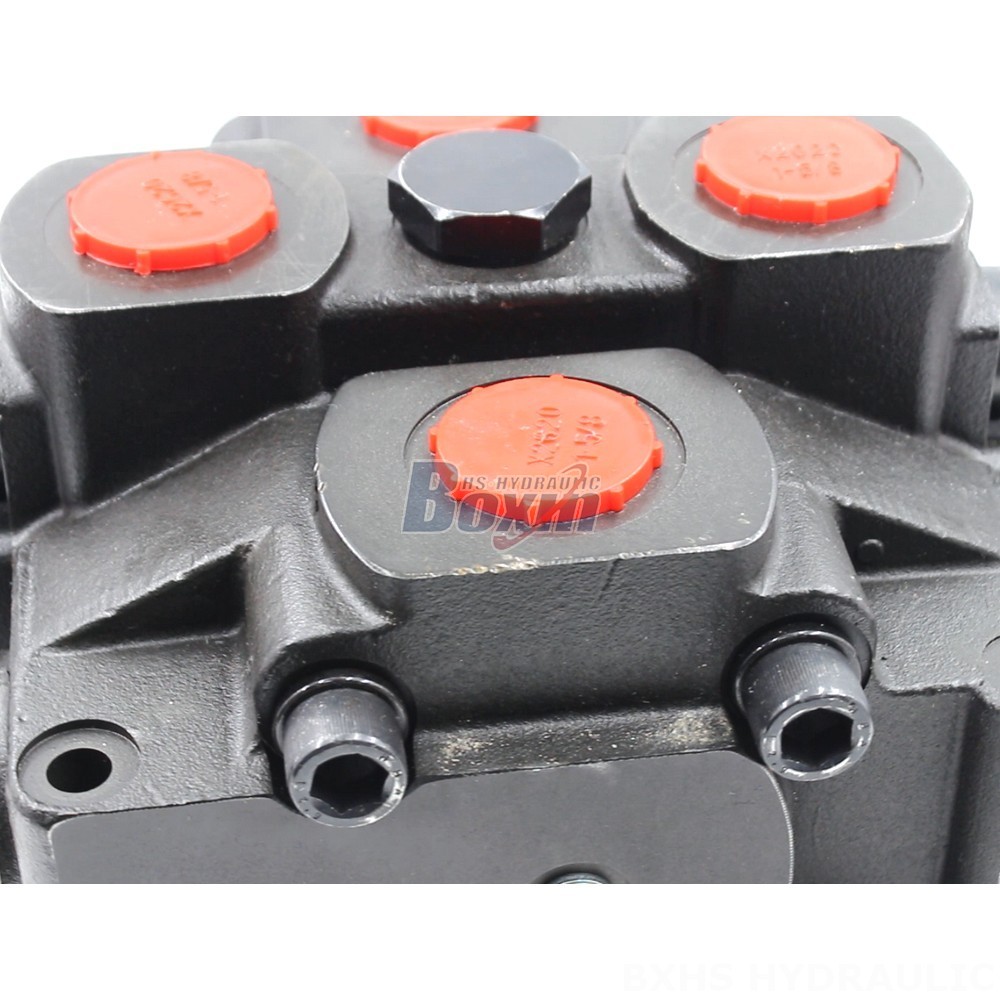

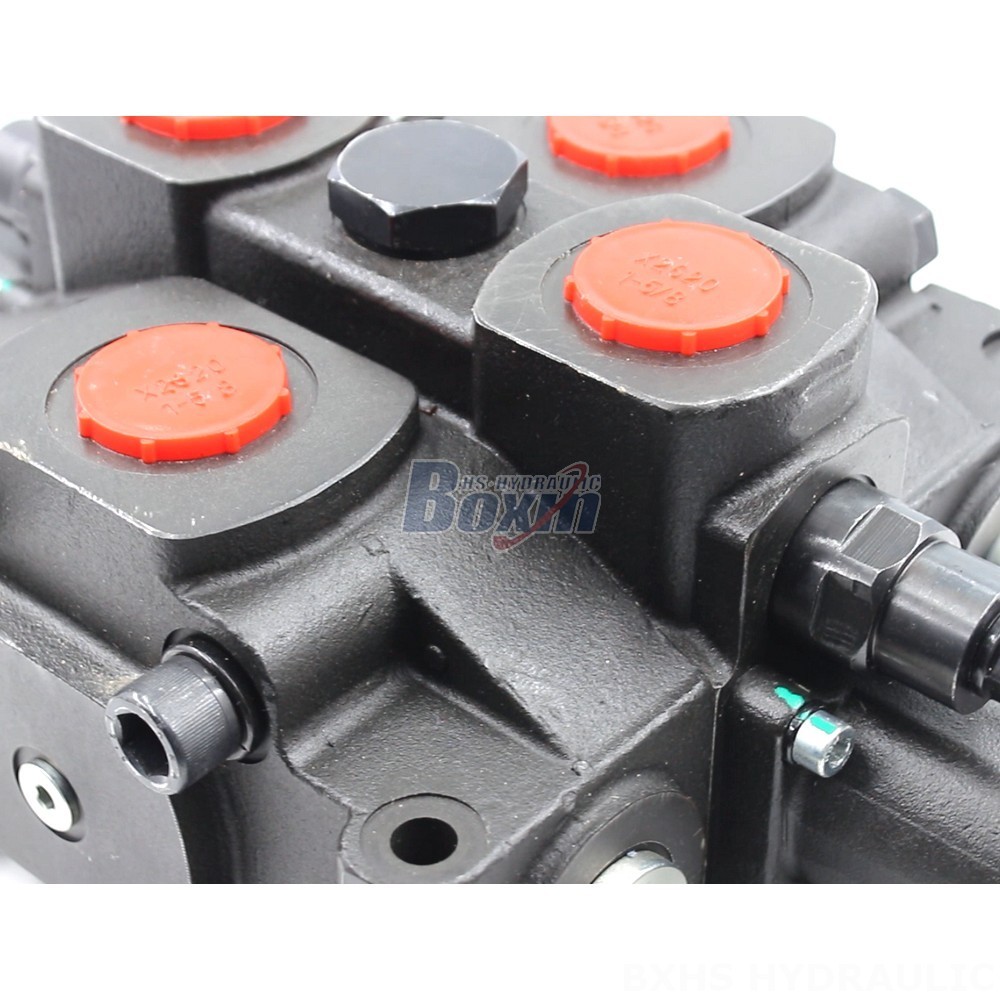

The Hydraulic 1 Spool Directional Valve - SDS380 Model offers precise flow control for various industrial applications. With a rated flow of 380 L/min and a maximum pressure of 350 bar, this valve ensures efficient operation in demanding systems.
| Seri SDS380 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 380 L/menit (100,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1-1/2, SAE 20 |
| Port Keluar | G1-1/2 |
| Ukuran Port | G1-1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**Hydraulic 1 Spool Directional Valve - SDS380 Model**
**Control Method:** Hydraulic
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 380 L/min (100.4 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Series:** SDS380 Series
**Application Areas:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Mini-Excavator
- Skid Steer Loader
- Wheel Loader
- Tractor and Front-End Loader
- Harvester
The SDS380 valve is designed for durability and reliability in harsh operating conditions. Its compact design allows for easy integration into existing systems, while its modular construction provides flexibility for customization. Whether you need a single directional valve or a complete hydraulic system, the SDS380 series offers a reliable solution for your demanding applications.
