Produksi & Pengiriman
Waktu Produksi 15-30 Hari
974 Pandangan Mencari Produk Ini

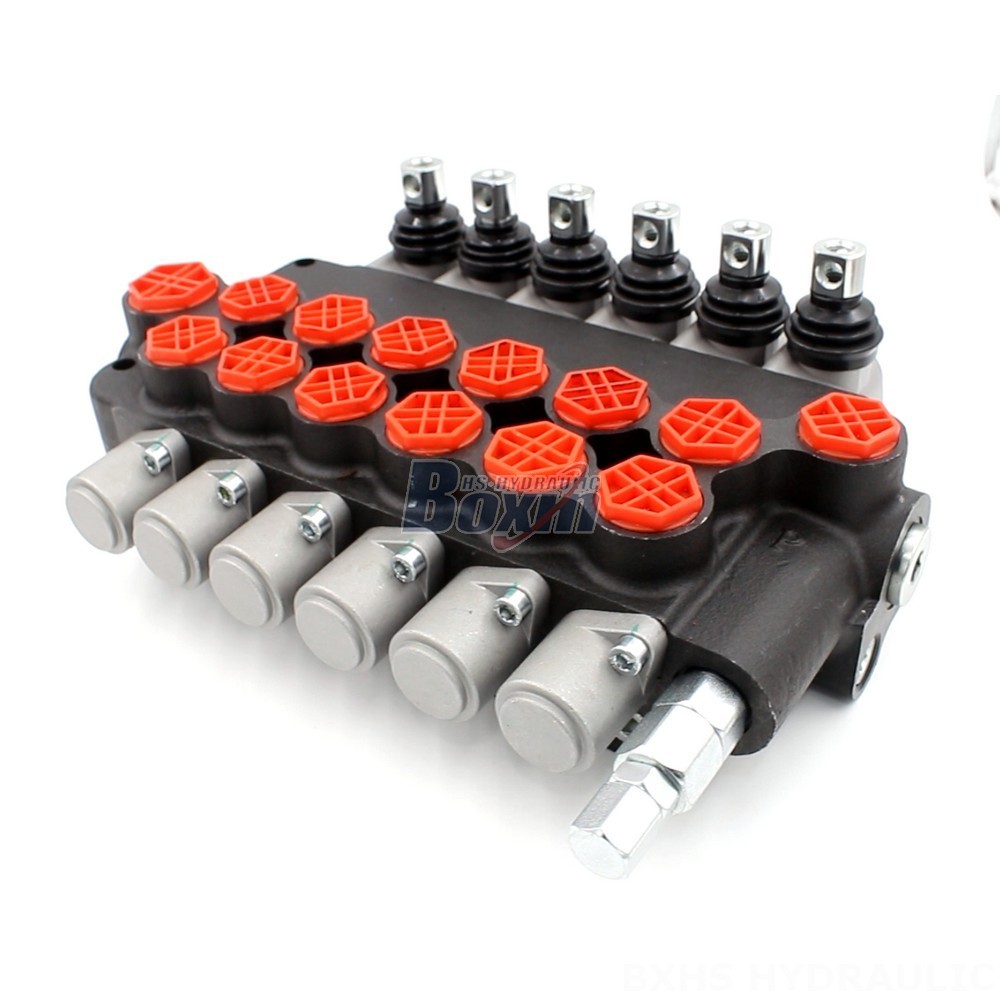

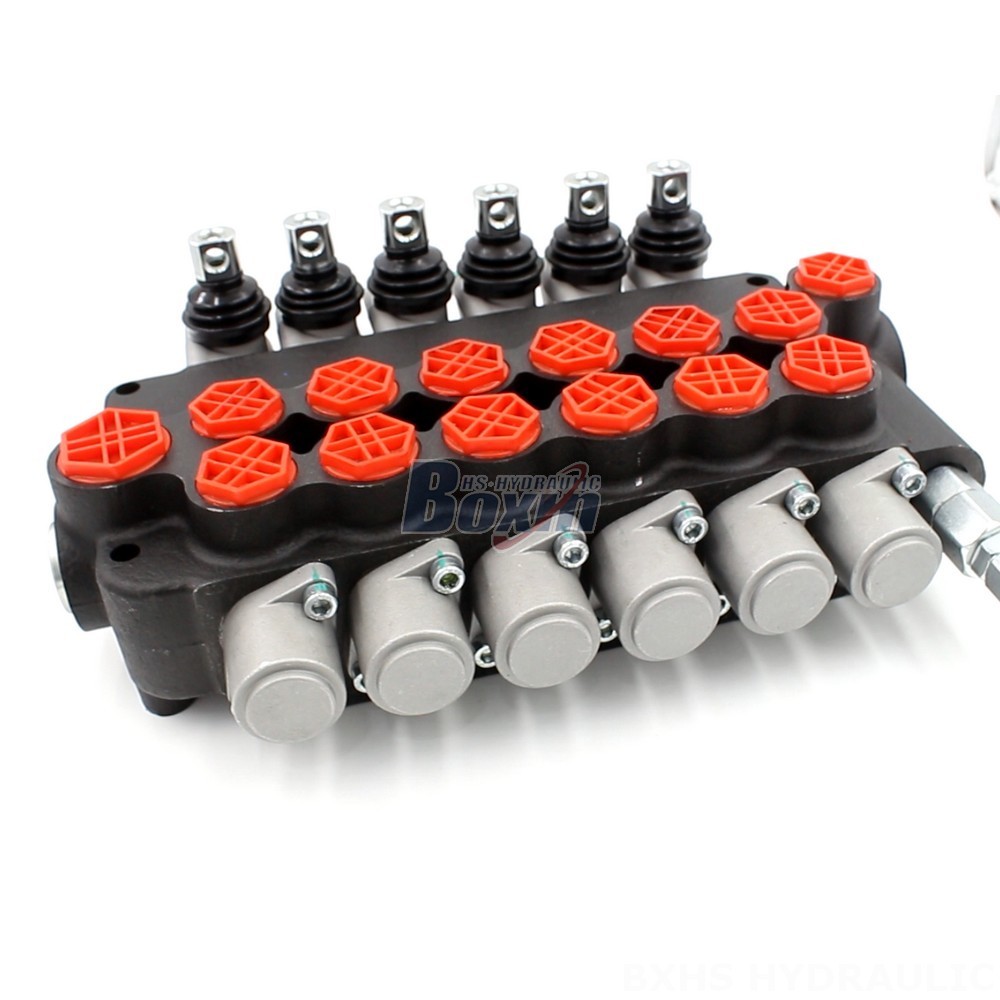

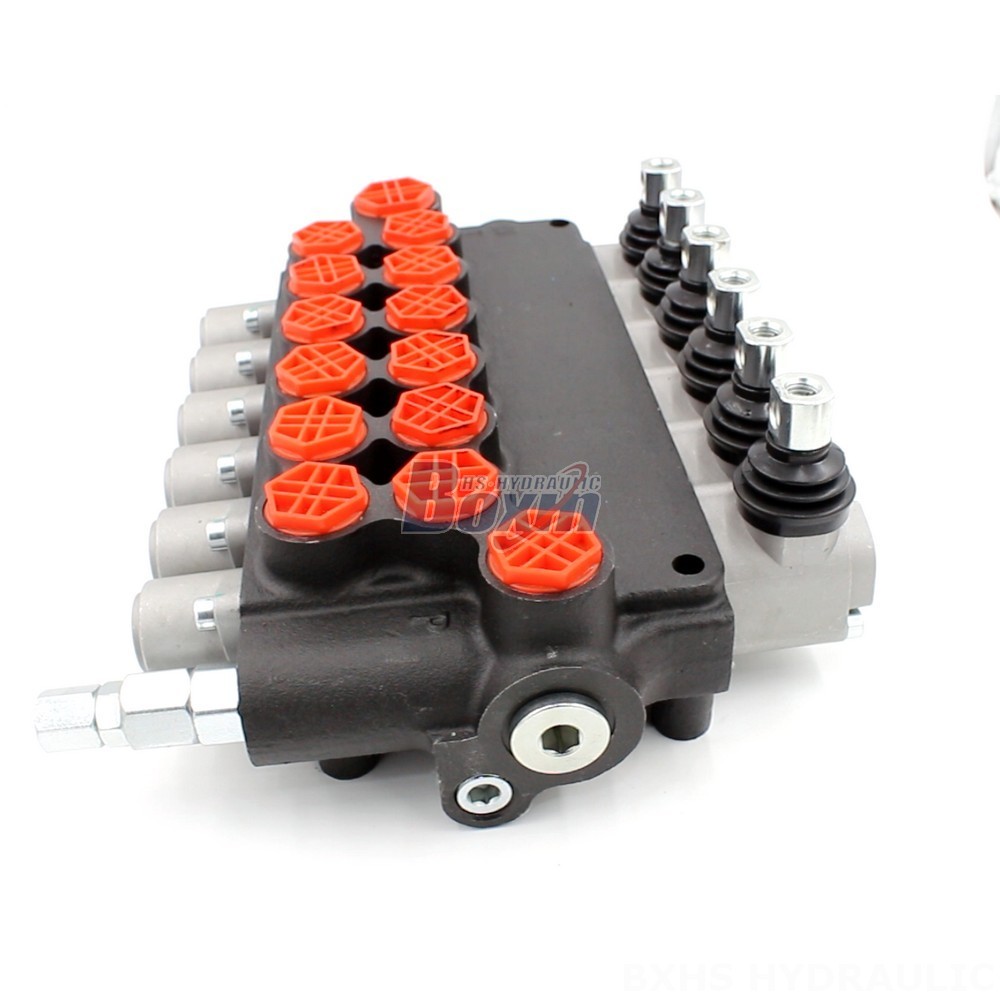

The P80-G12-G34-OT is a high-performance 6-spool hydraulic directional control valve designed for demanding applications in material handling, construction, and agriculture. Featuring a robust monoblock design, it offers high flow rates and pressure capabilities for efficient operation.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 6-section, manually controlled directional control valve from the P80 series is a powerful solution for various mobile equipment. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for applications in telehandlers, forklifts, motor graders, excavators, skid steers, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve's robust monoblock construction ensures high reliability and durability even in challenging environments. It is designed for operating temperatures ranging from -40°C to +80°C, making it suitable for diverse climates. Its efficient design and high performance make it an ideal choice for demanding hydraulic applications.
