Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1009 Pandangan Mencari Produk Ini

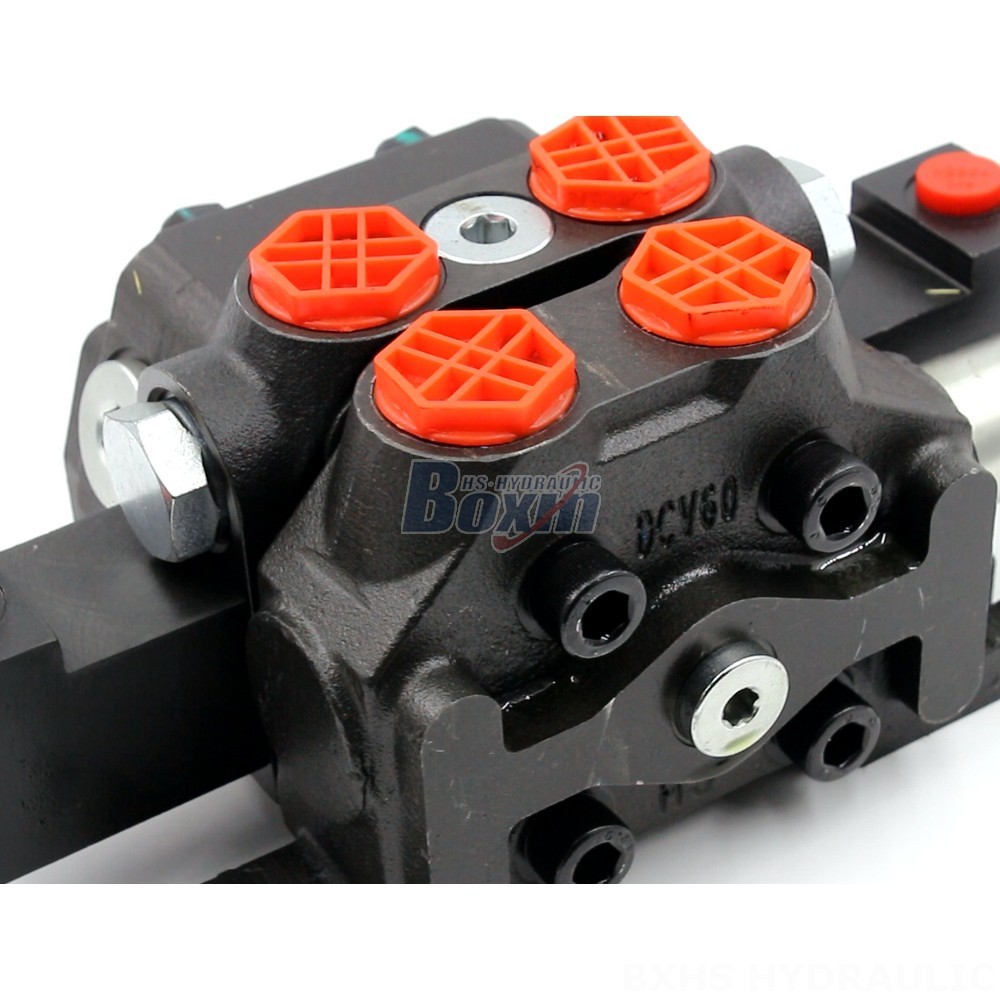

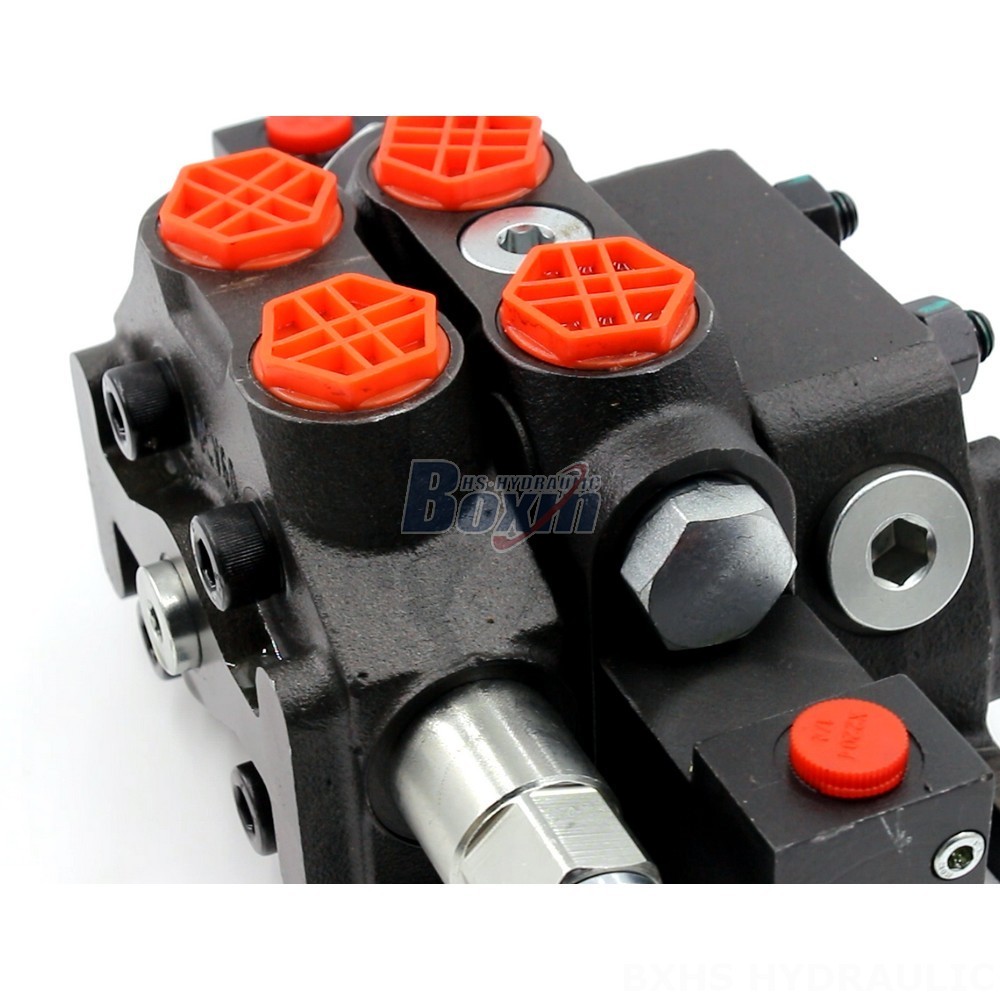

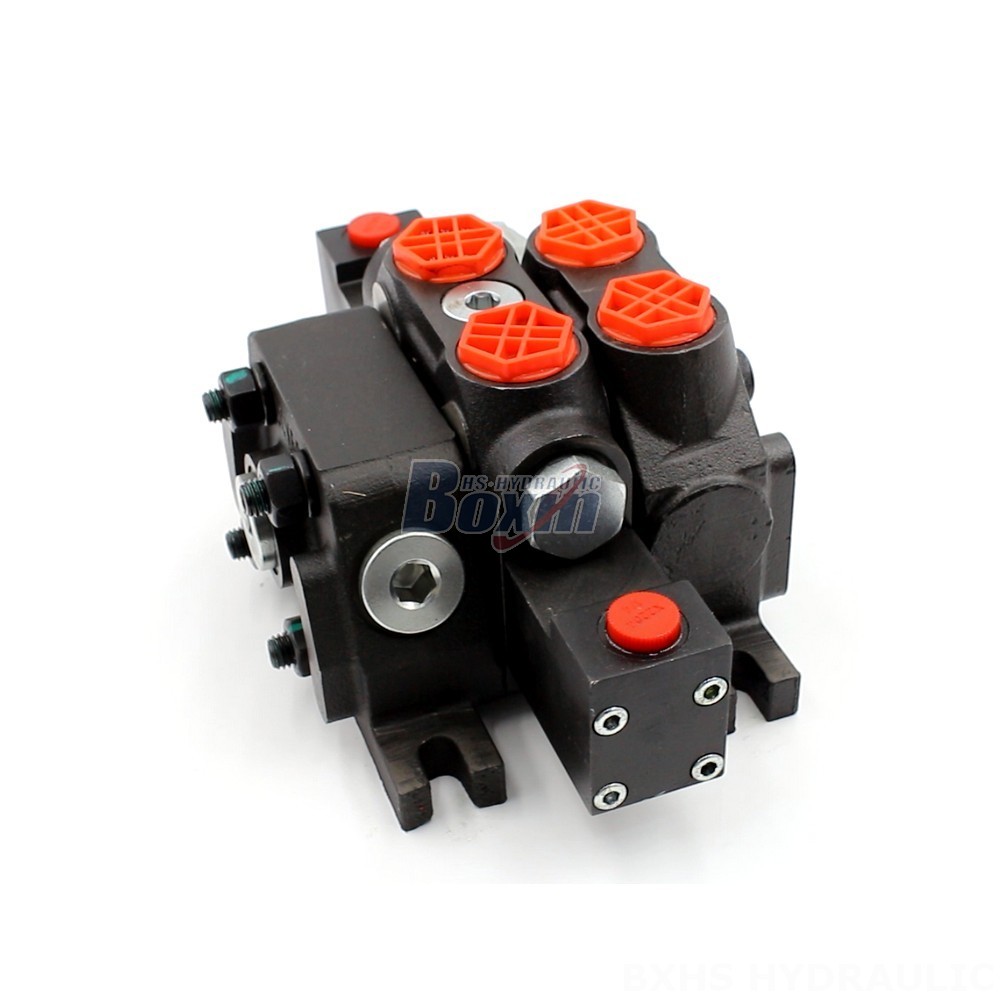

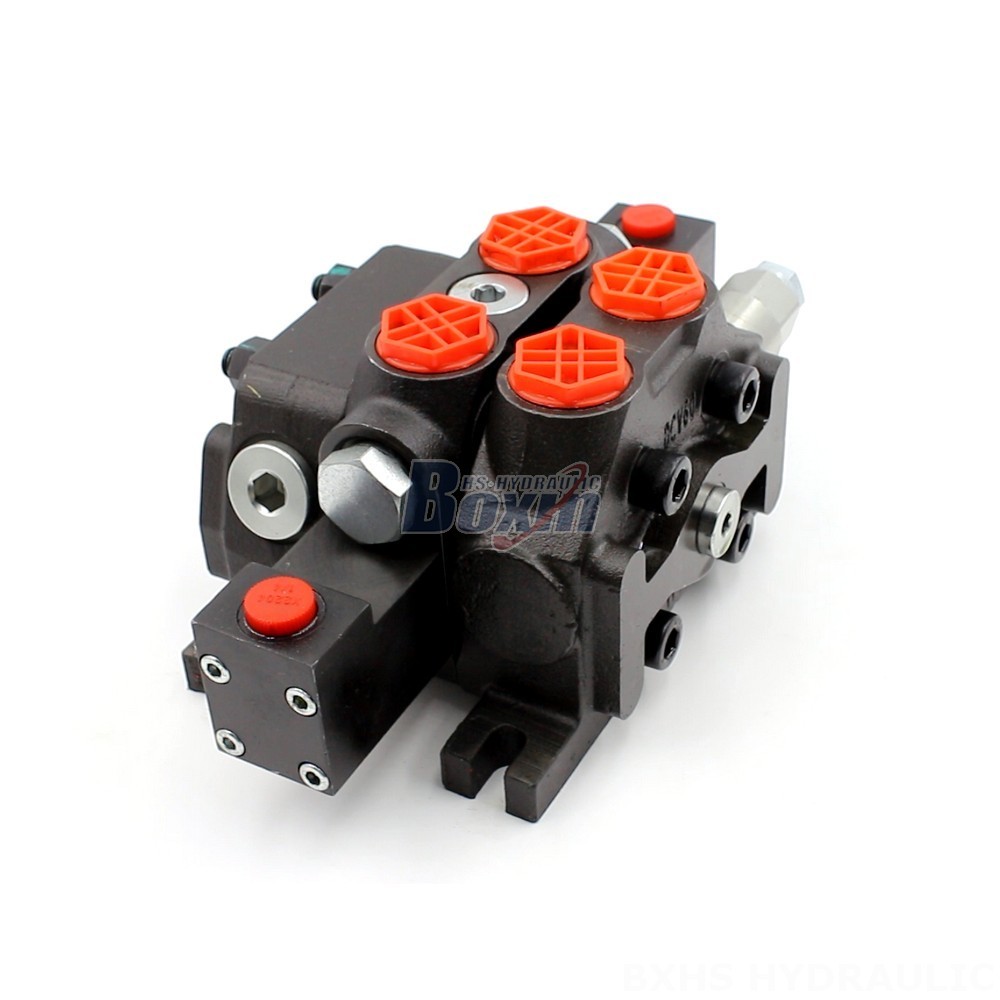

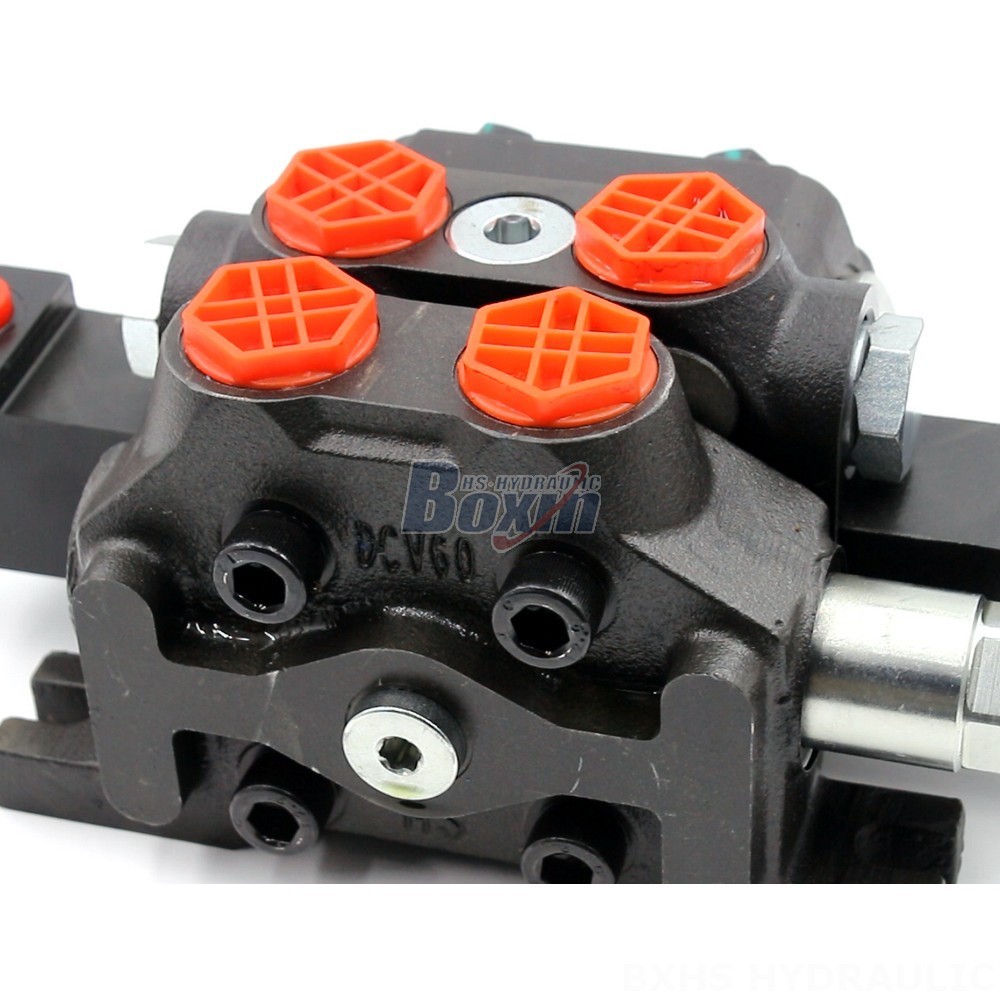

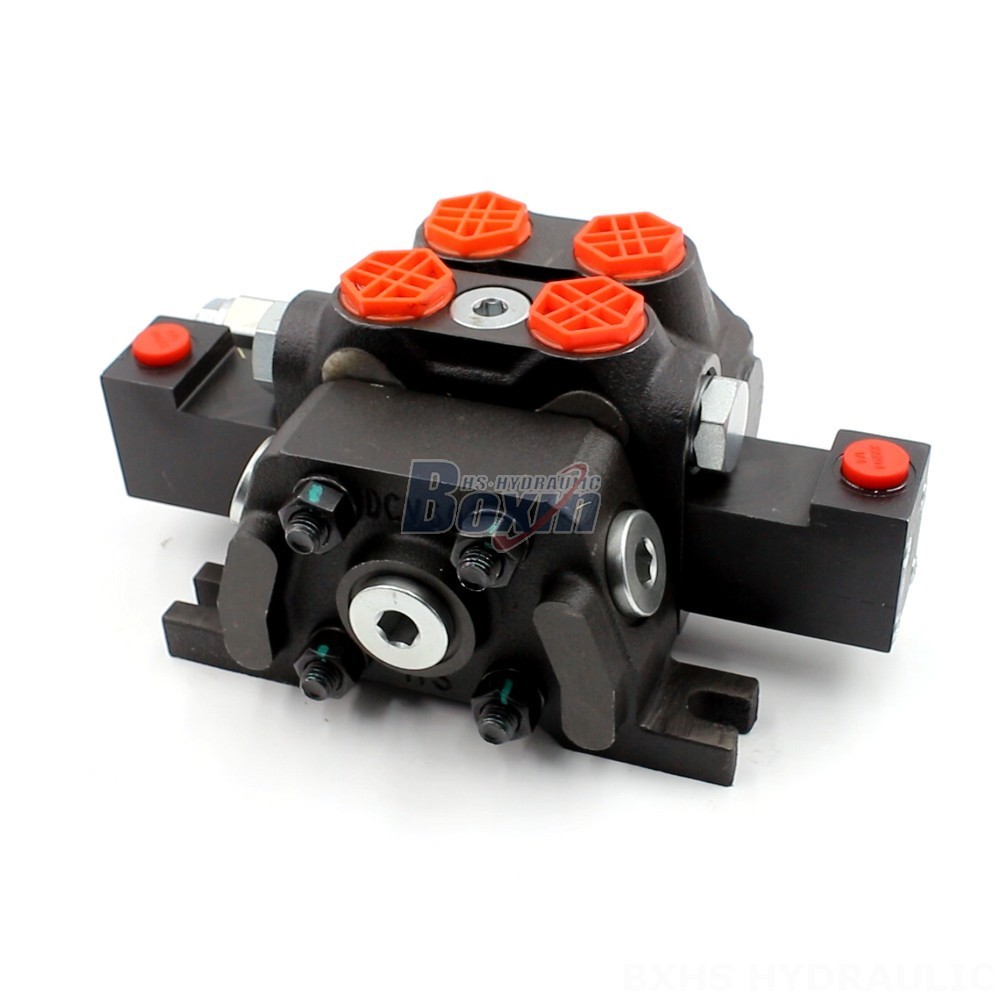

The DCV60-G34 Series hydraulic valve is a high-performance, sectional valve designed for use in a variety of mobile applications, including construction, material handling, and agriculture. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is suitable for demanding applications.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60-G34 Series hydraulic valve is a robust and reliable solution for controlling hydraulic systems in a variety of mobile applications. Its sectional design allows for easy customization and maintenance, while its high flow rate and pressure rating ensure efficient operation in demanding environments. The valve is suitable for use in a wide range of equipment, including forklifts, telehandlers, mini excavators, skid steer loaders, compact wheel loaders, harvesters, seeding machines, forestry trailers, and balers. Its versatile design and high performance make it an ideal choice for a variety of hydraulic system applications.
