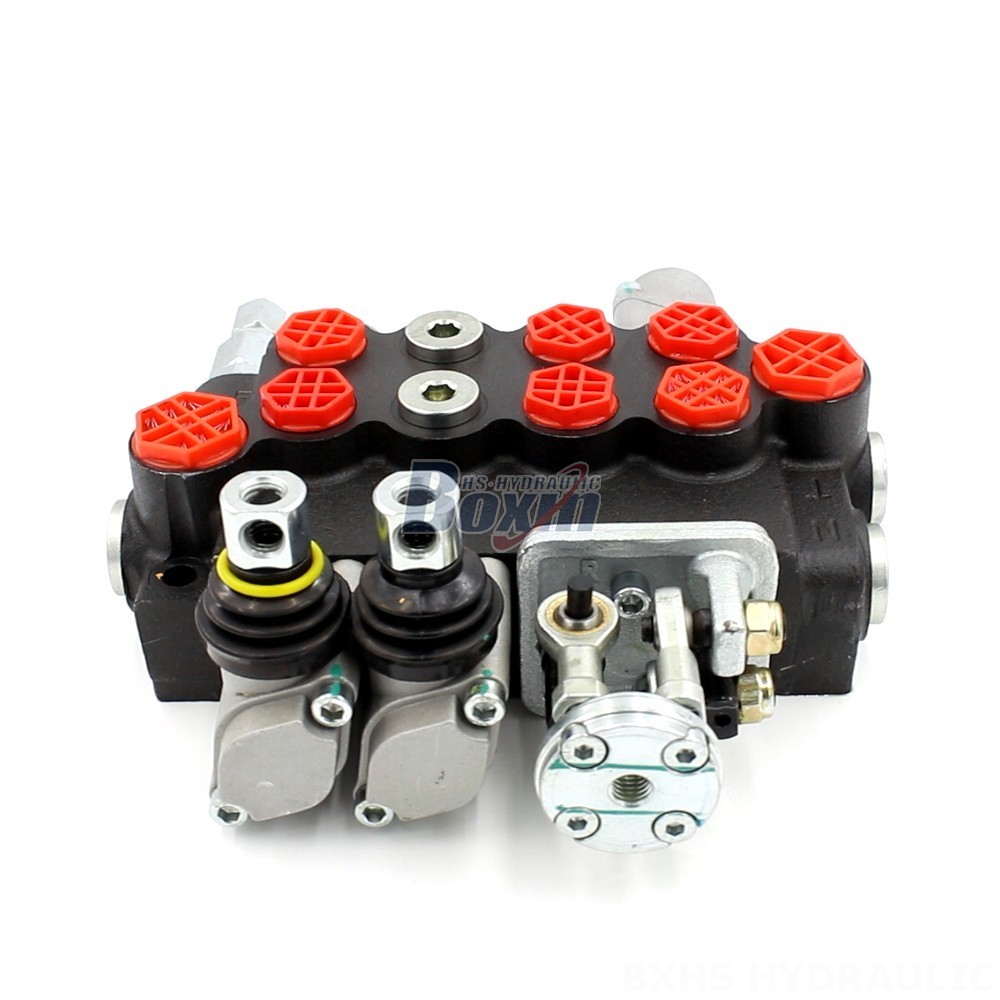

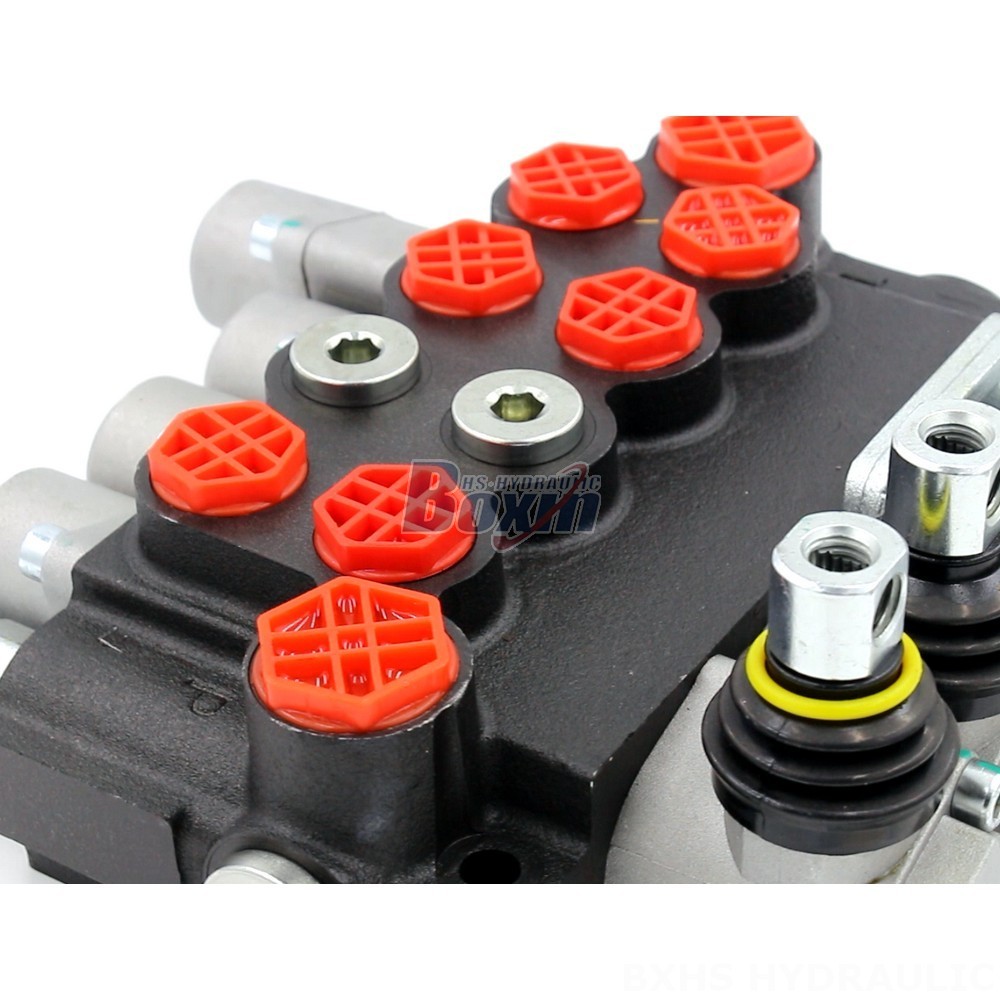

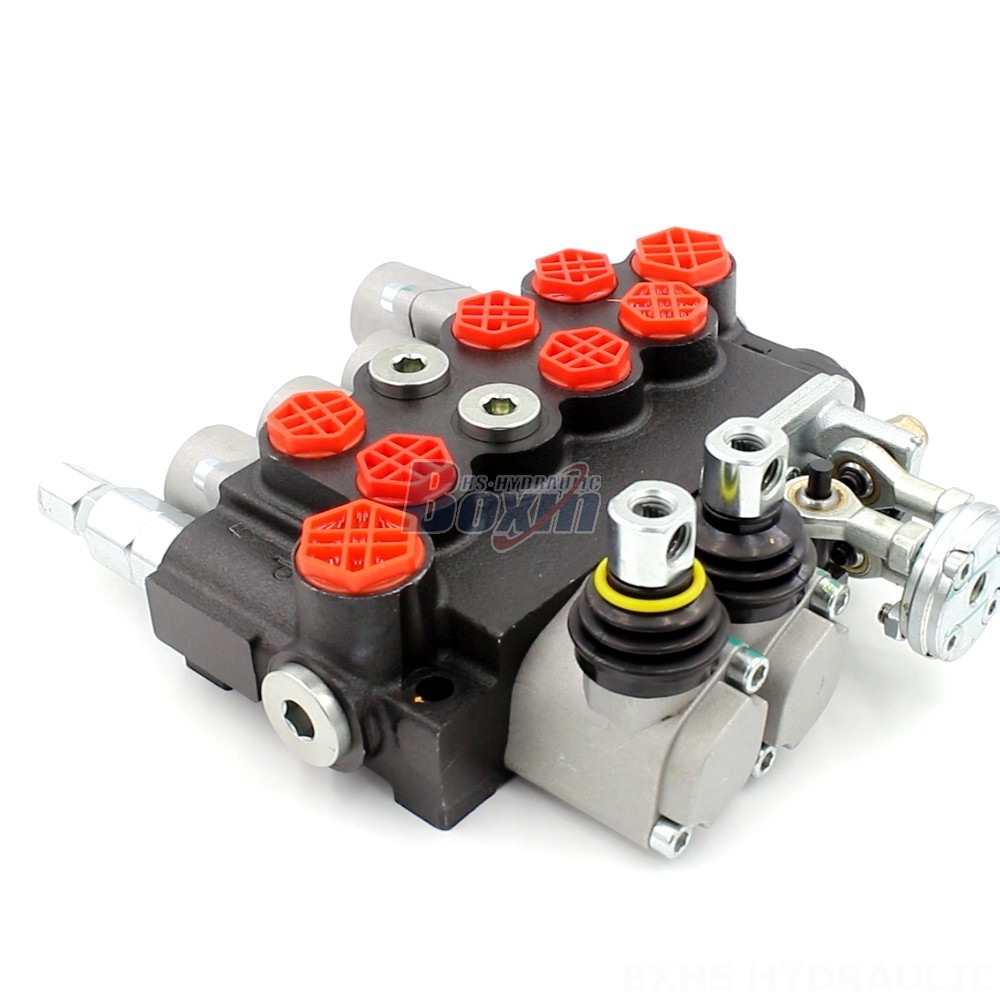

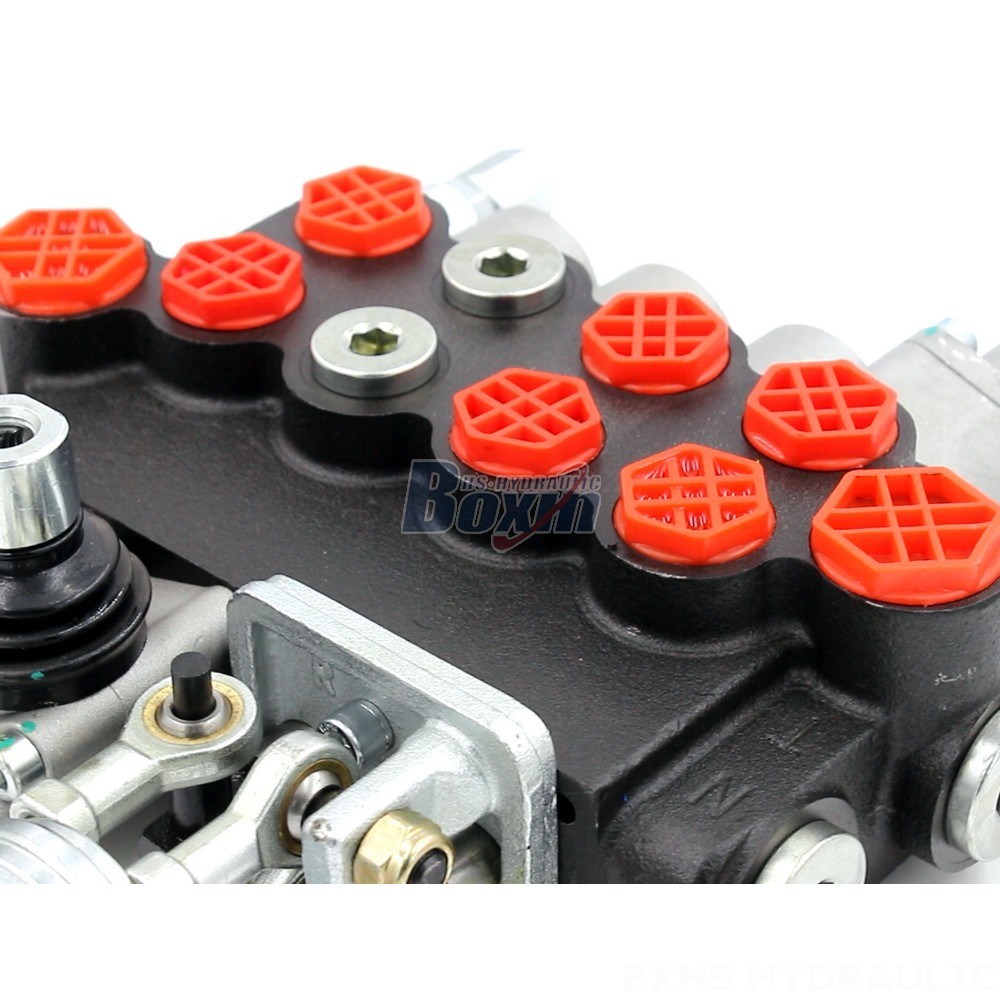

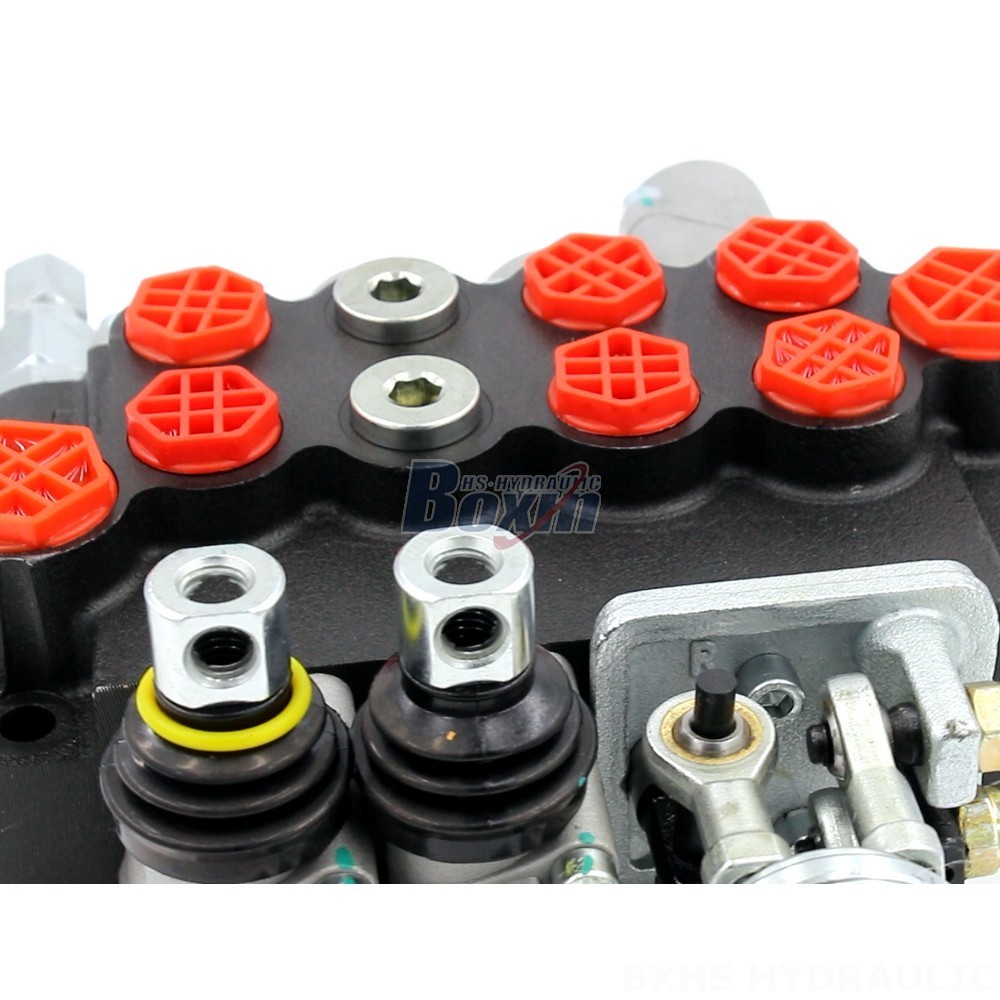

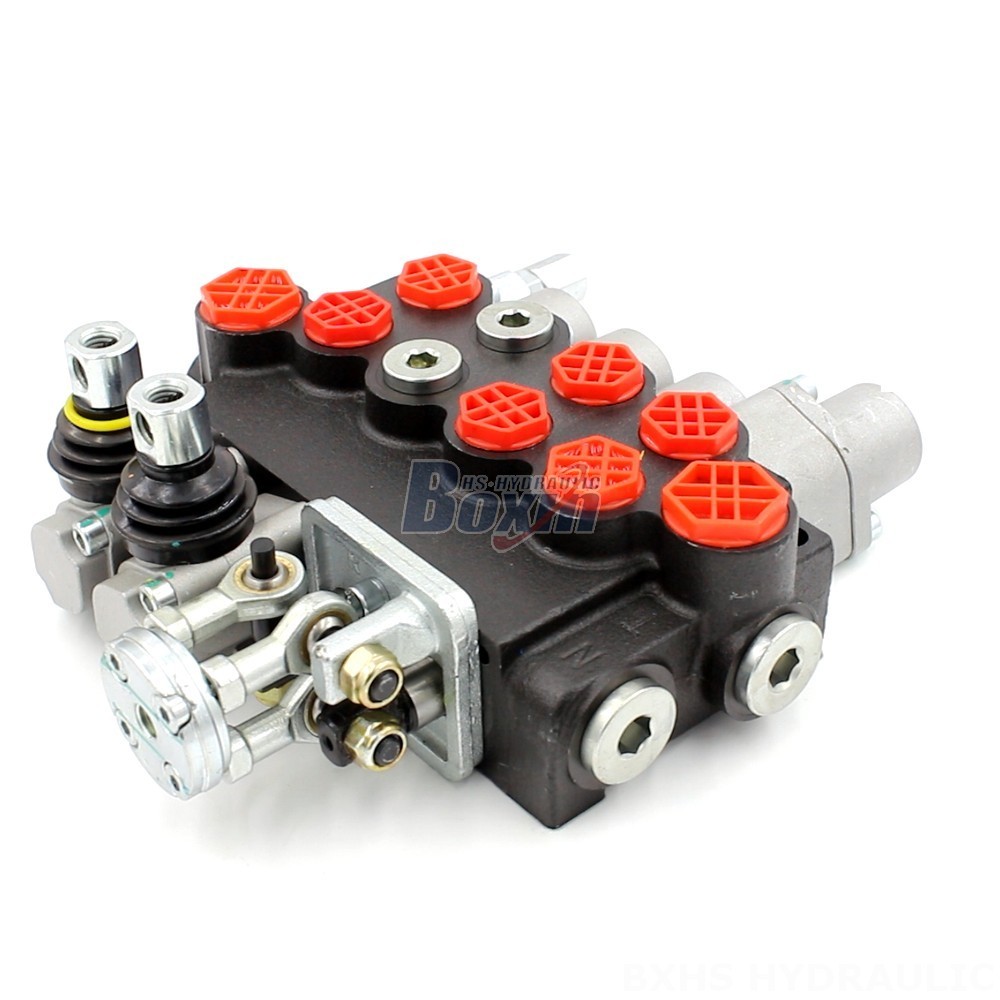

The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a reliable and durable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This 4-section monoblock valve offers manual and joystick control, a rated flow of 40 L/min, and a maximum pressure of 250 bar. It is suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a high-performance valve designed for demanding applications. It features a robust monoblock construction, 4 sections, and a rated flow of 40 L/min. The valve is available with both manual and joystick control options, providing users with flexibility and ease of operation. Its maximum pressure rating of 250 bar ensures reliable performance in heavy-duty environments. The P40 Series valve is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators. It is designed to withstand temperatures ranging from -40°C to +80°C, making it suitable for various climates and operating conditions. The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a reliable and durable solution that meets the needs of global industries.
