Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80F Katup Arah Monoblok

Ukuran kemasan:26*30*11

Kelas kotor:16.00 kg

Ketersediaan: Tersedia

1246 Pandangan Mencari Produk Ini

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer drawing image

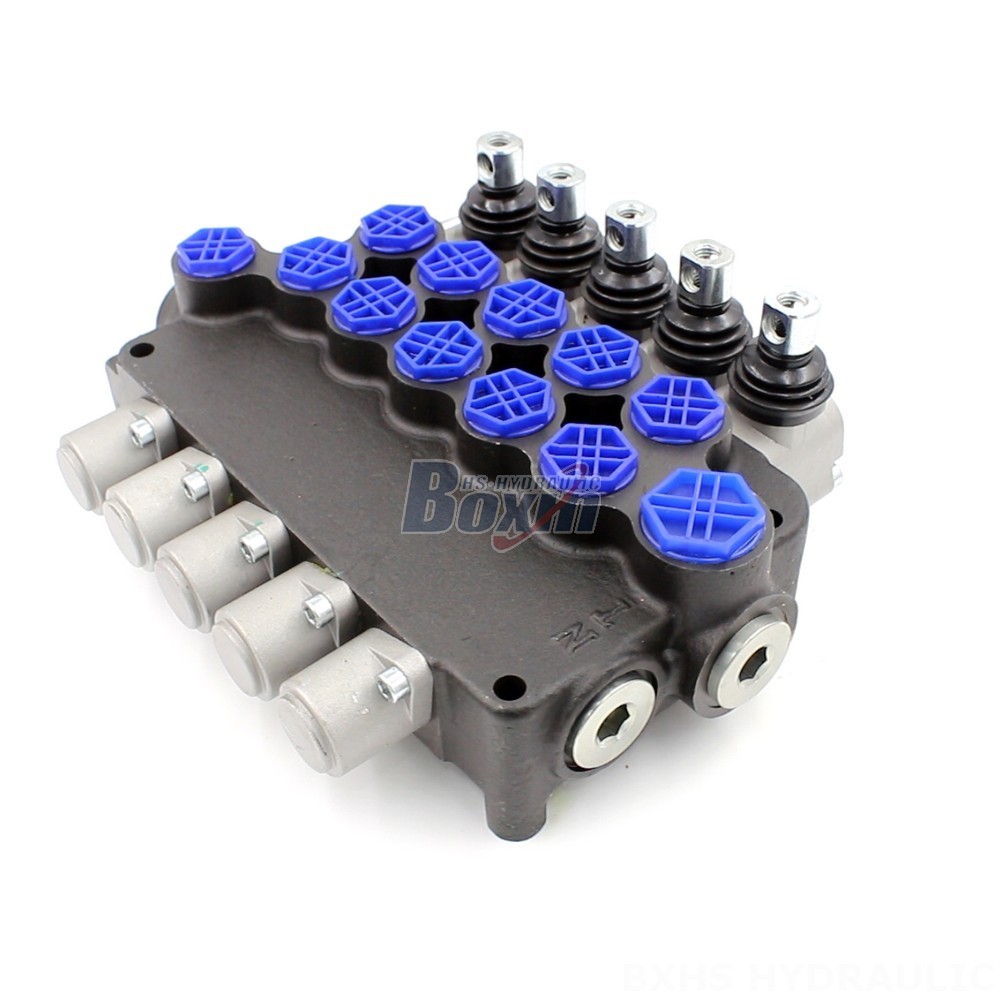

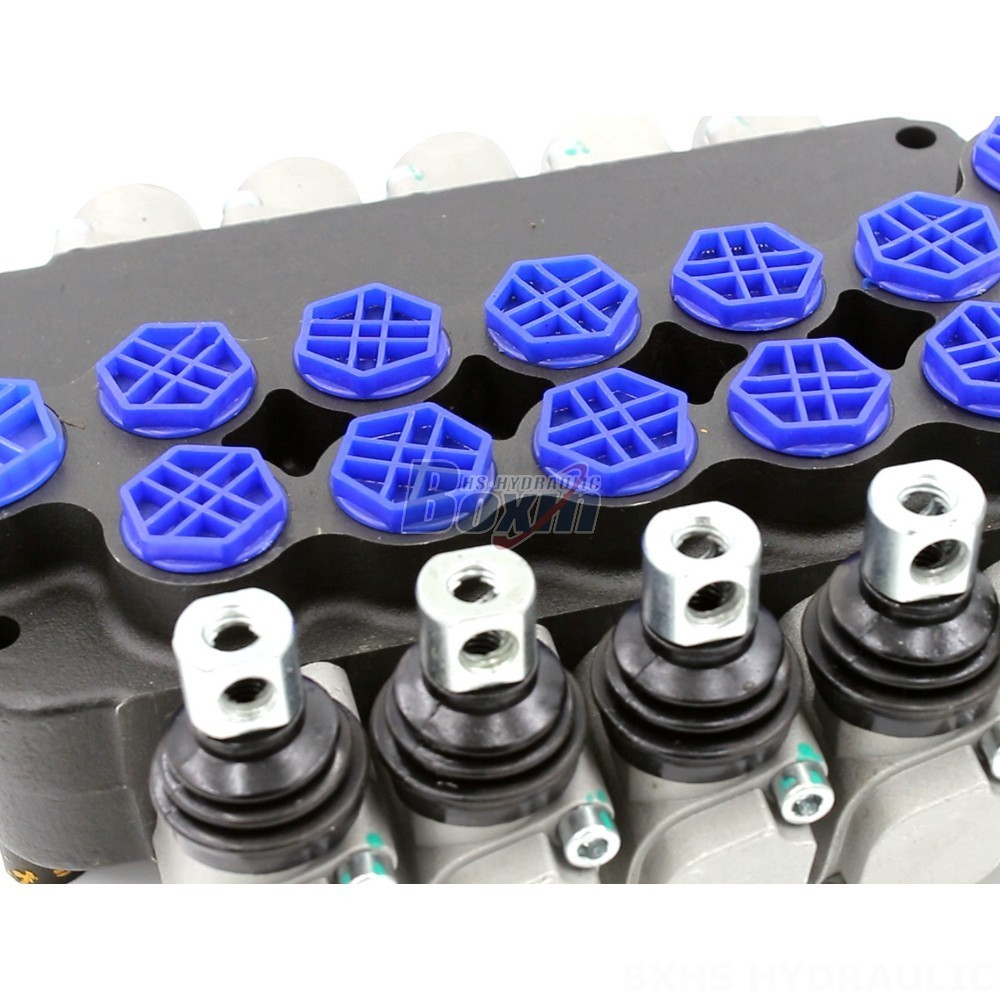

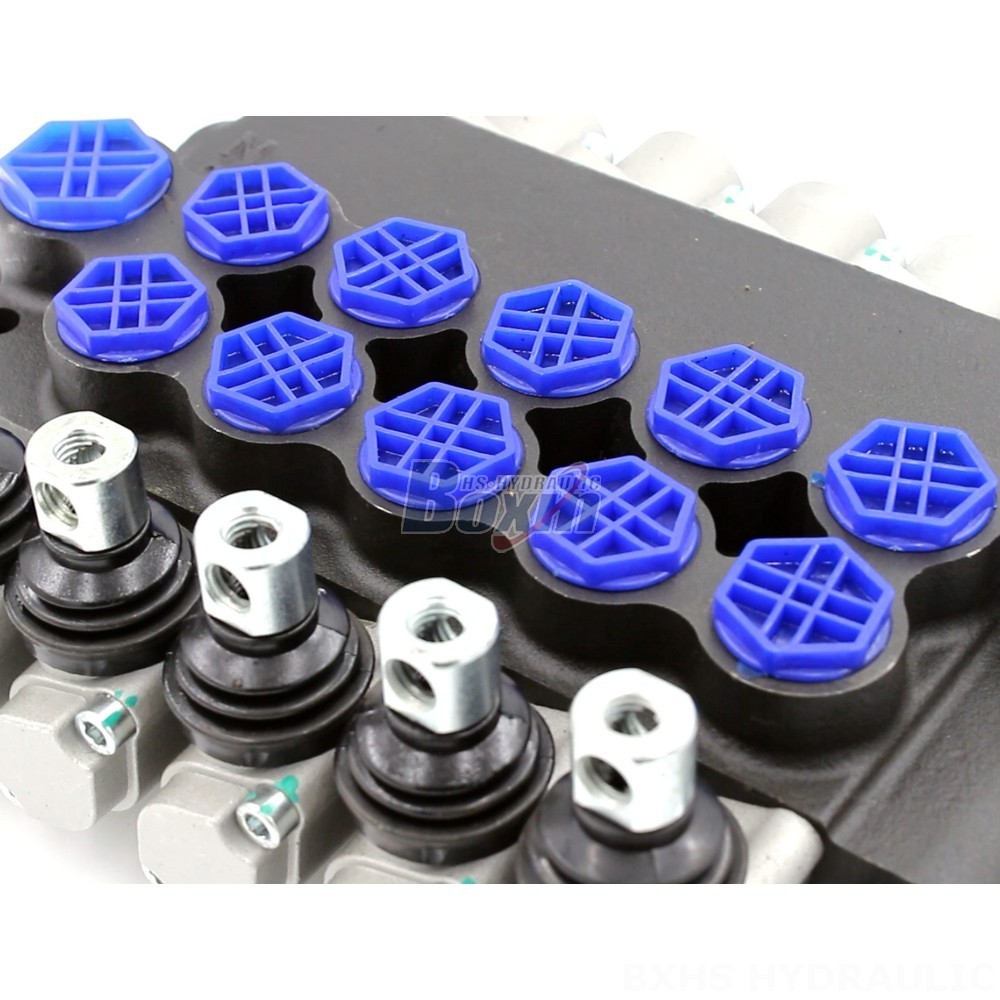

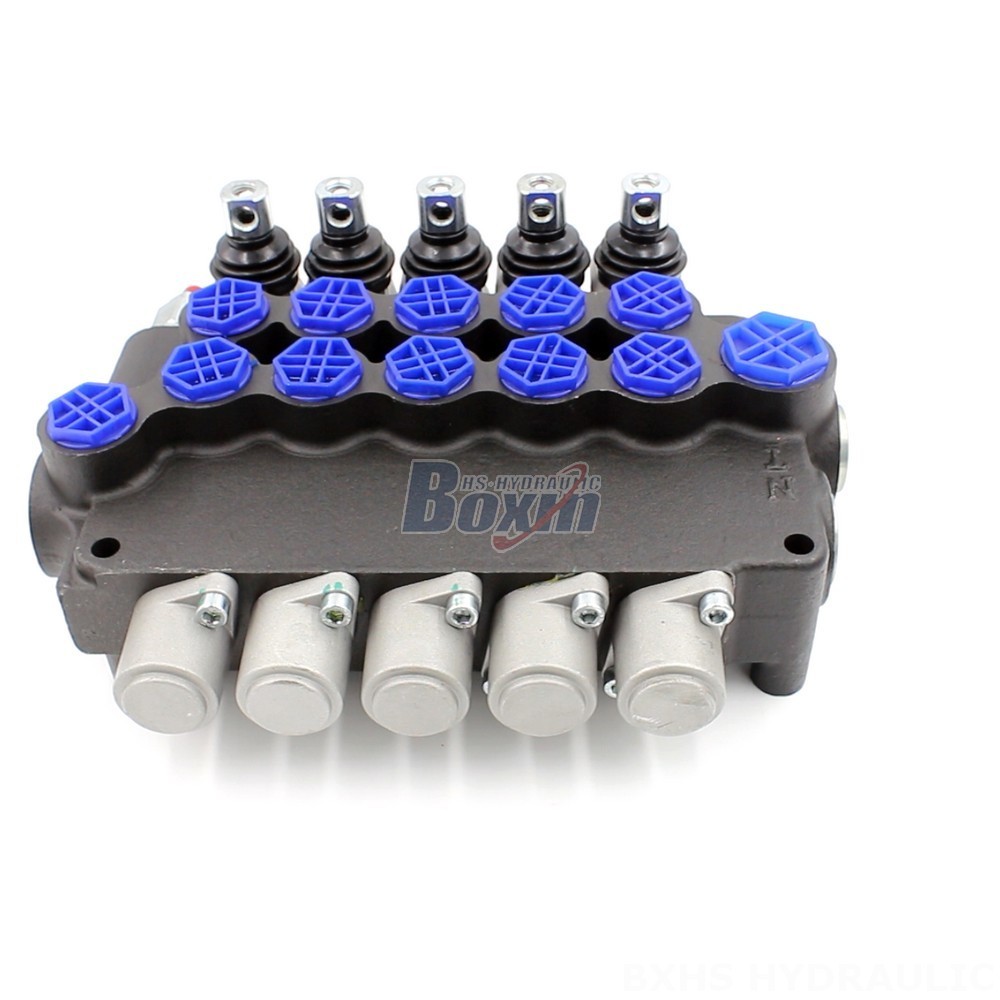

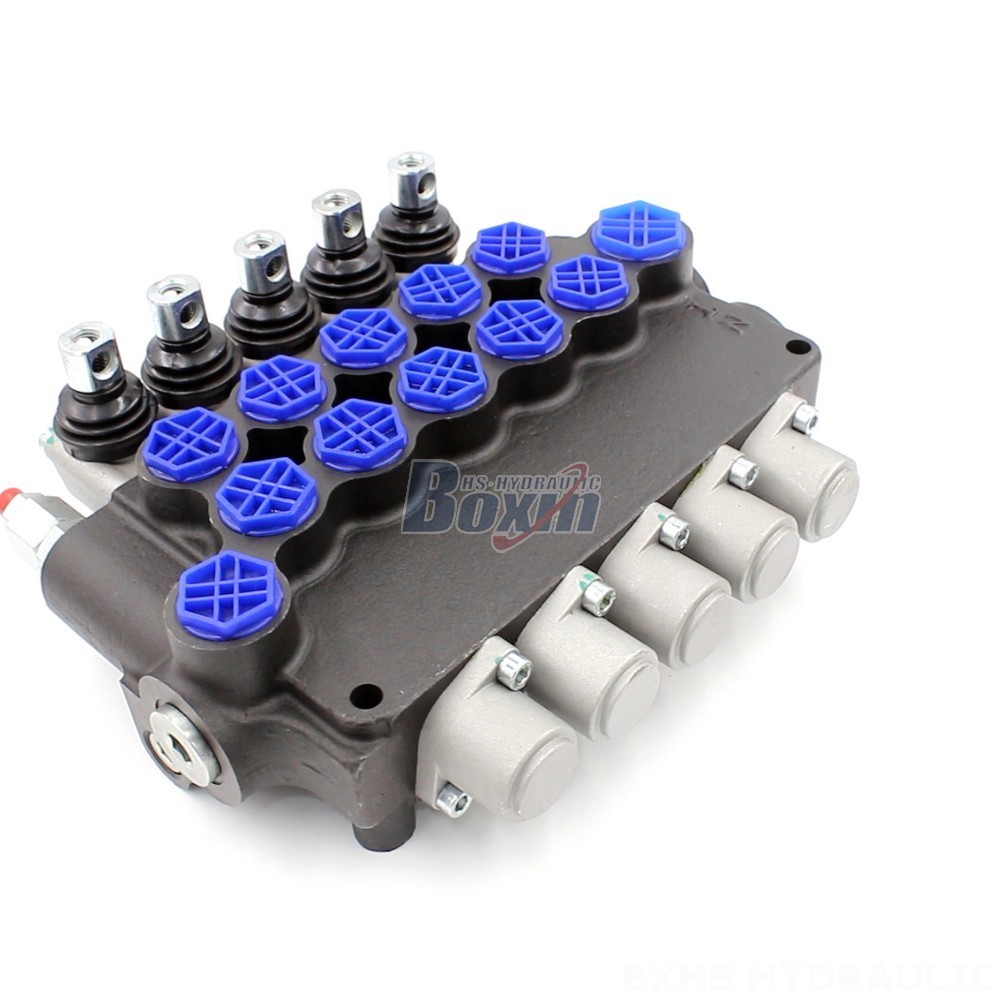

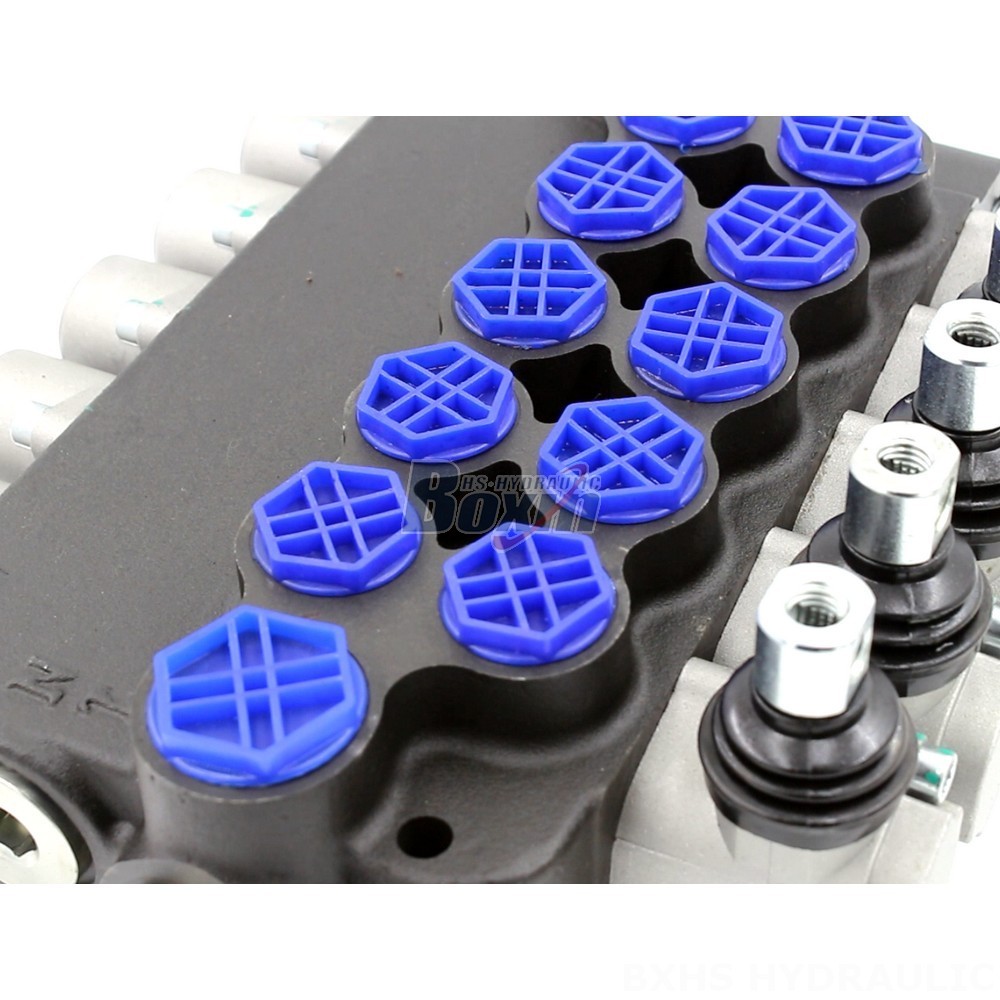

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range. With its manual control and robust design, it provides reliable and precise control for a variety of applications.

Seri P80F Katup Arah Monoblok Parameter
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol
Ukuran Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Tekanan Maksimum 315 bar (4600 psi)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tipe Struktur Katup monoblok
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its manual control allows for precise operation, while its robust construction ensures durability and reliability in demanding environments. The P80F Series is suitable for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. With its customizable features and high performance, this valve is an ideal choice for manufacturers and users seeking reliable and efficient hydraulic control solutions.
