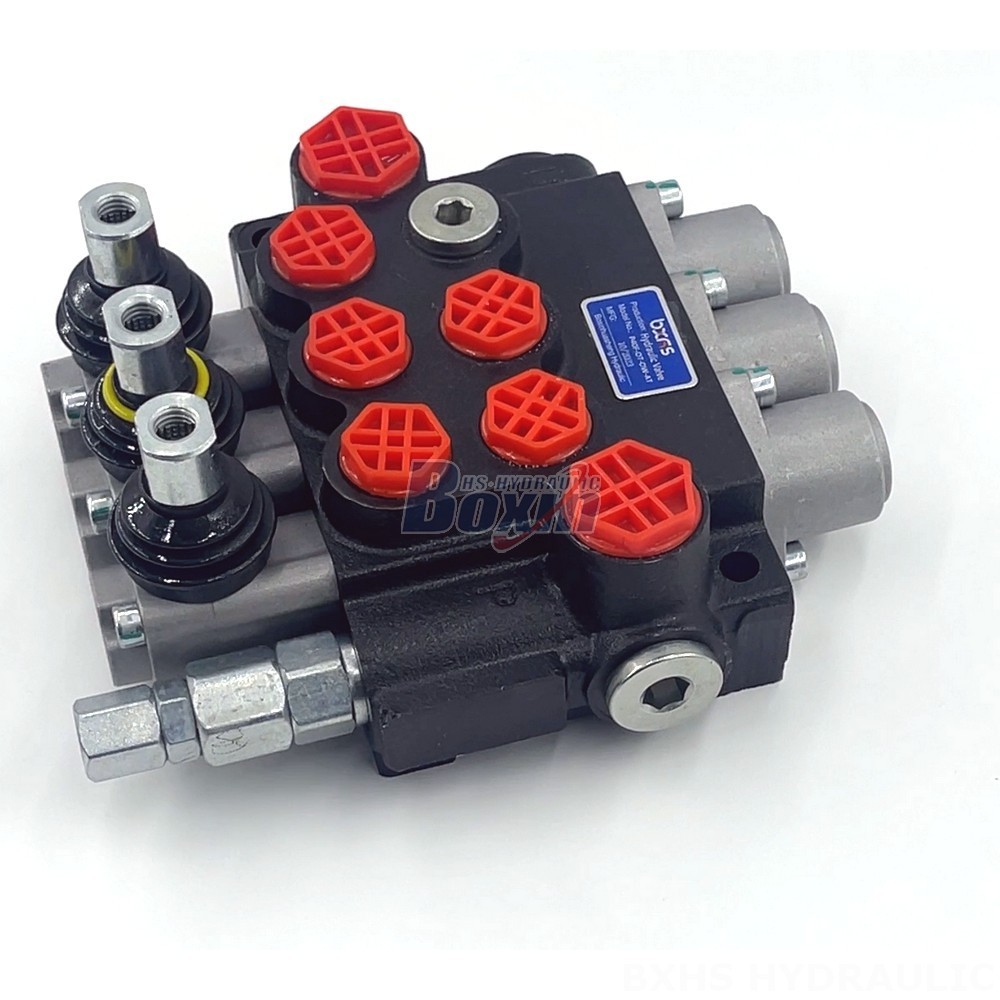

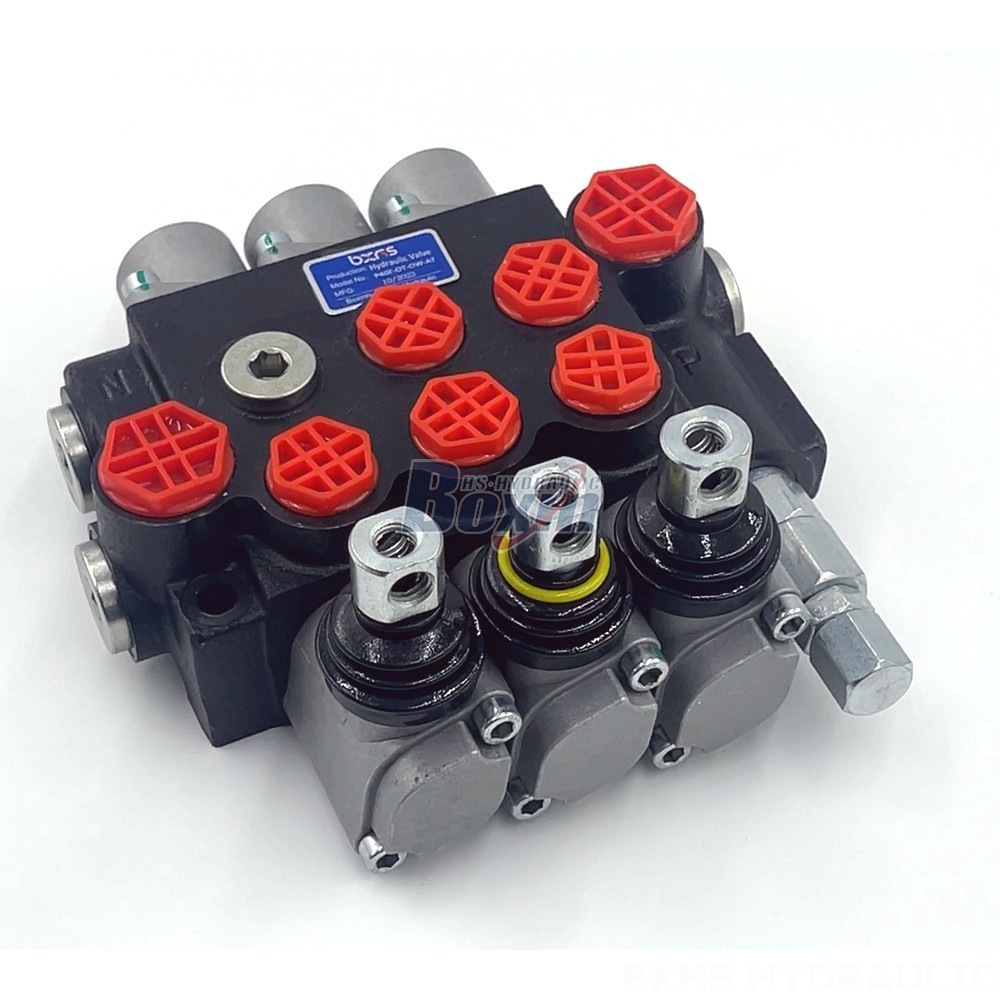

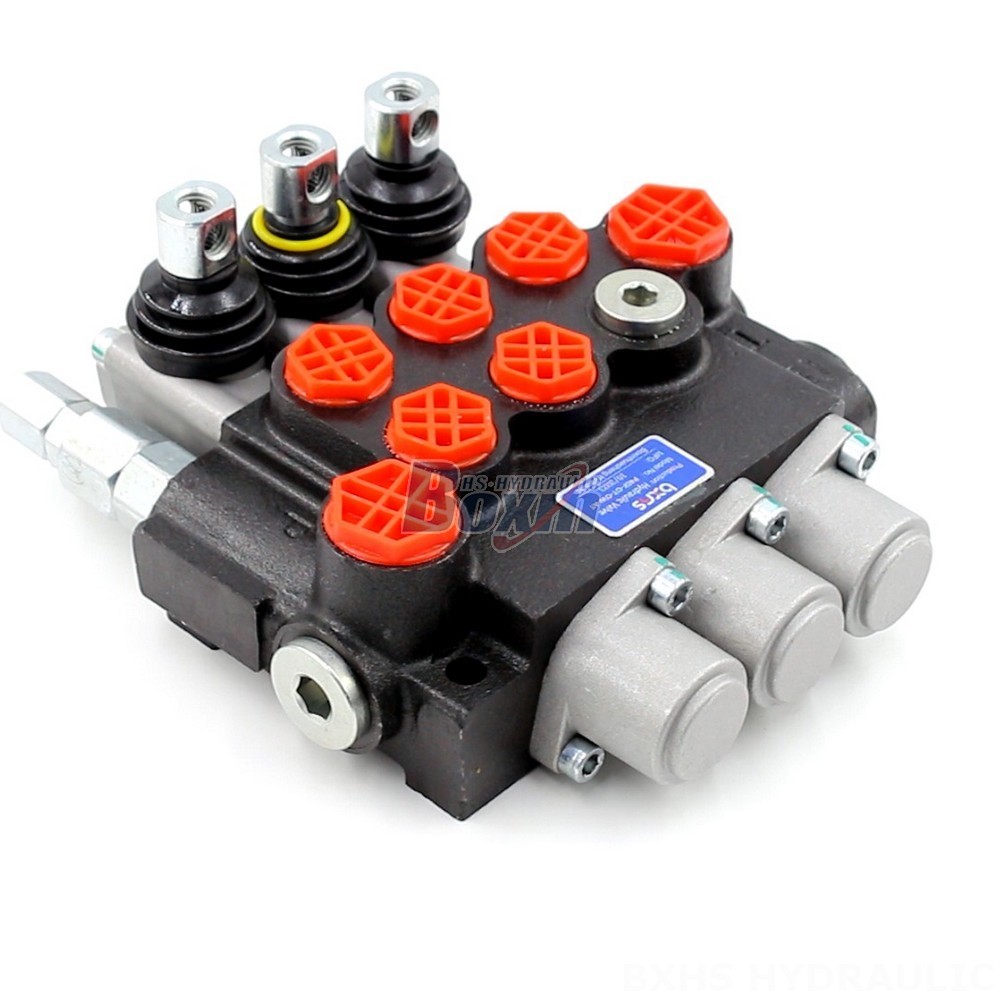

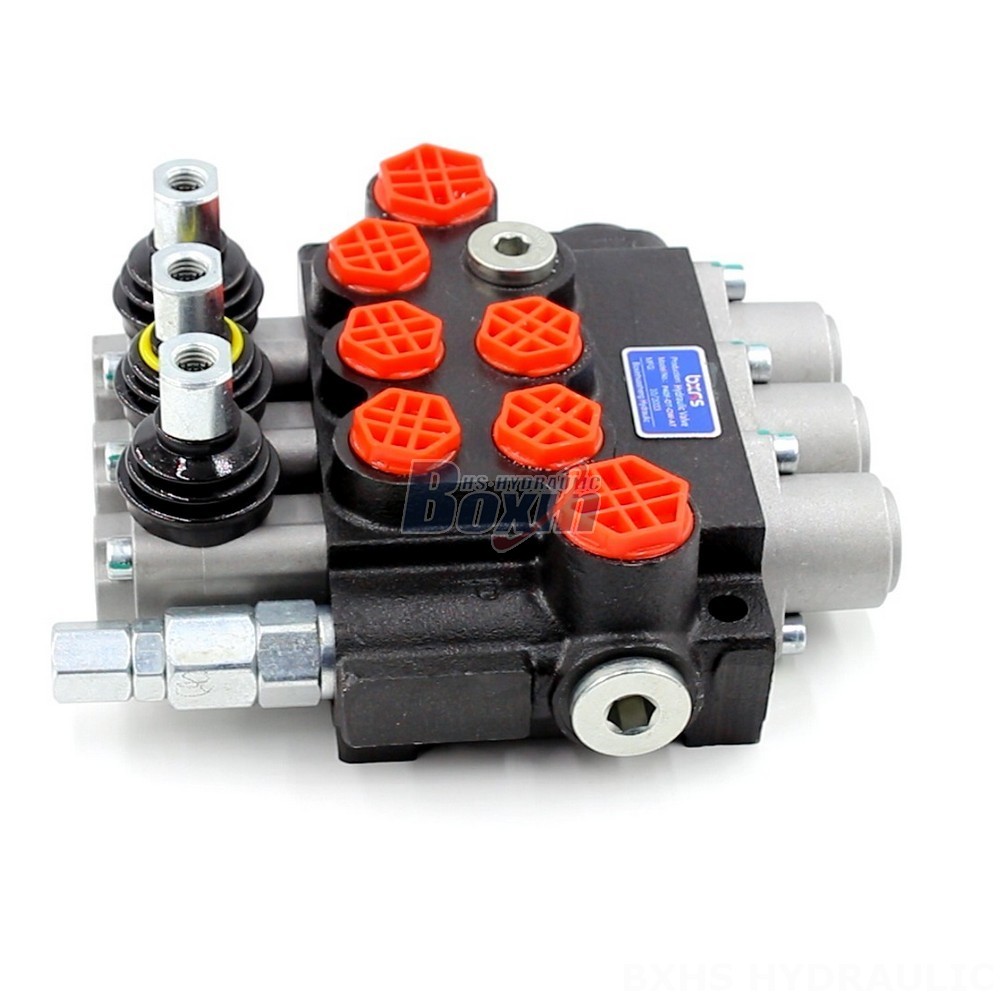

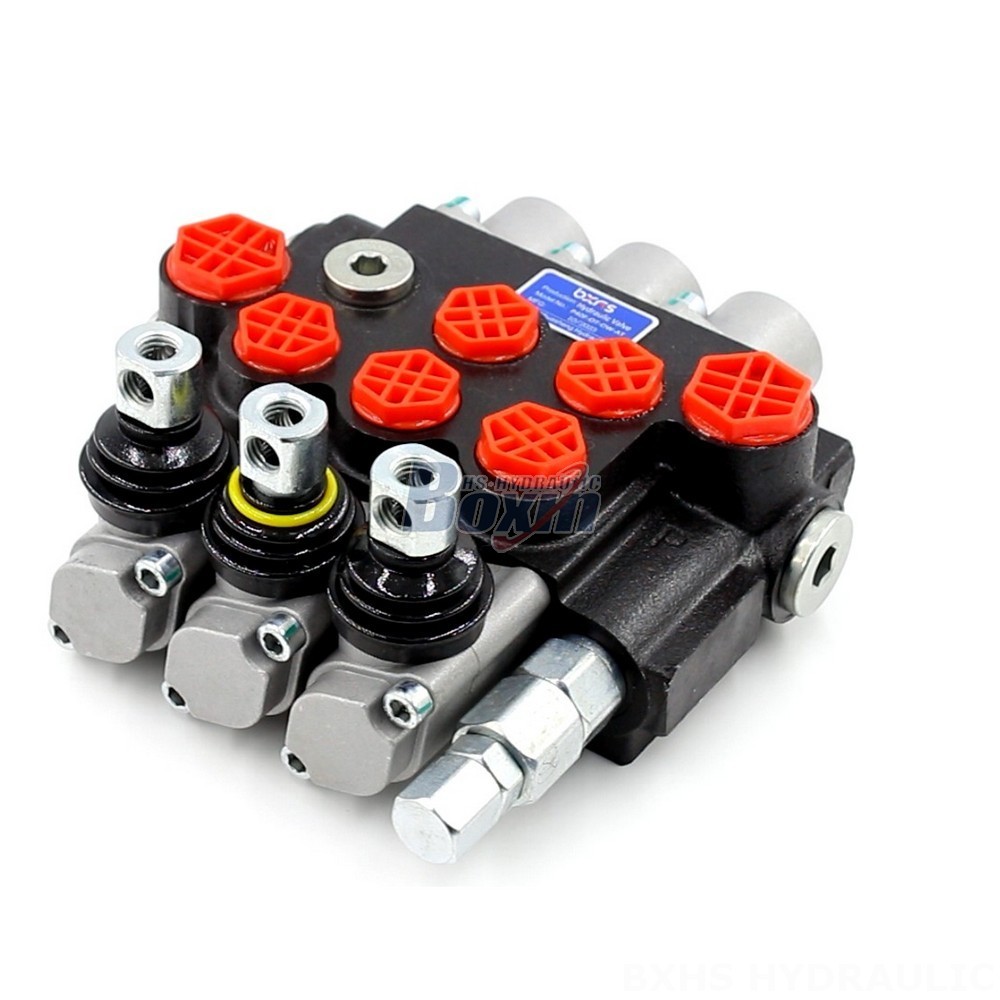

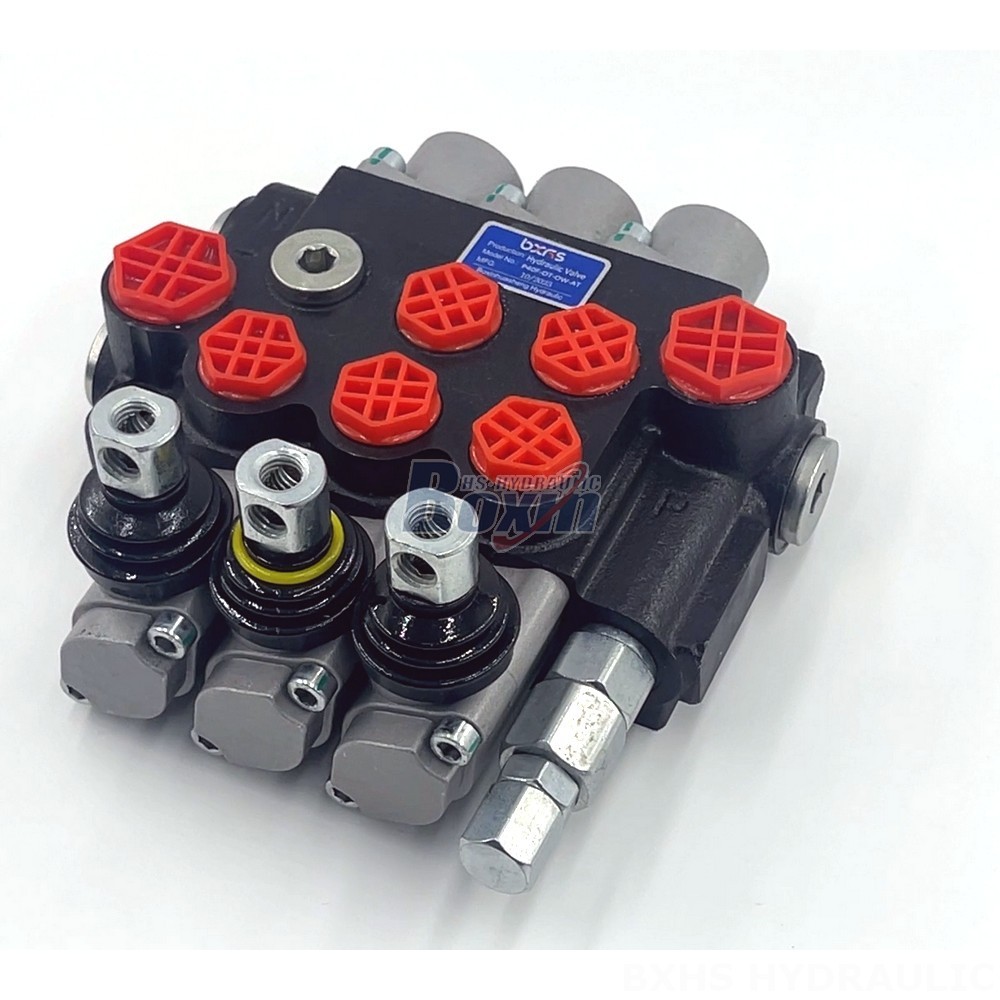

Hydraulic Control Valve

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*20*12

Kelas kotor:6.60 kg

Ketersediaan: Tersedia

1278 Pandangan Mencari Produk Ini

Hydraulic Control Valve

Hydraulic Control Valve

Hydraulic Control Valve drawing image

This hydraulic control valve is designed for use in tractor front end loaders and other material handling, construction, and agricultural equipment. It features a 3-section monoblock design with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is suitable for a variety of applications, including telehandlers, forklifts, all terrain cranes, and more.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This high-quality hydraulic control valve is specifically designed for tractor front end loader applications. It features a 3-section monoblock valve construction, providing a compact and reliable solution for controlling hydraulic functions. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers robust performance for demanding operations. The valve is manually controlled, allowing for precise and intuitive operation. This P40 Series valve is suitable for a wide range of equipment used in material handling, construction, earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
