Hydraulic DCV60 1 Spool Electro-hydraulic Sectional Control Valve

Metode Kontrol:Elektro-hidraulik

Spul:1 Spool

Aliran Terukur:60 L/menit (15,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri DCV60 Kran Arah Bagian

Packagingsize:39*23*21

Grossweight:11.60 kg

Ketersediaan: Tersedia

83 Pandangan Mencari Produk Ini

Hydraulic DCV60 1 Spool Electro-hydraulic Sectional Control Valve

Hydraulic DCV60 1 Spool Electro-hydraulic Sectional Control Valve

Hydraulic DCV60 1 Spool Electro-hydraulic Sectional Control Valve drawing image

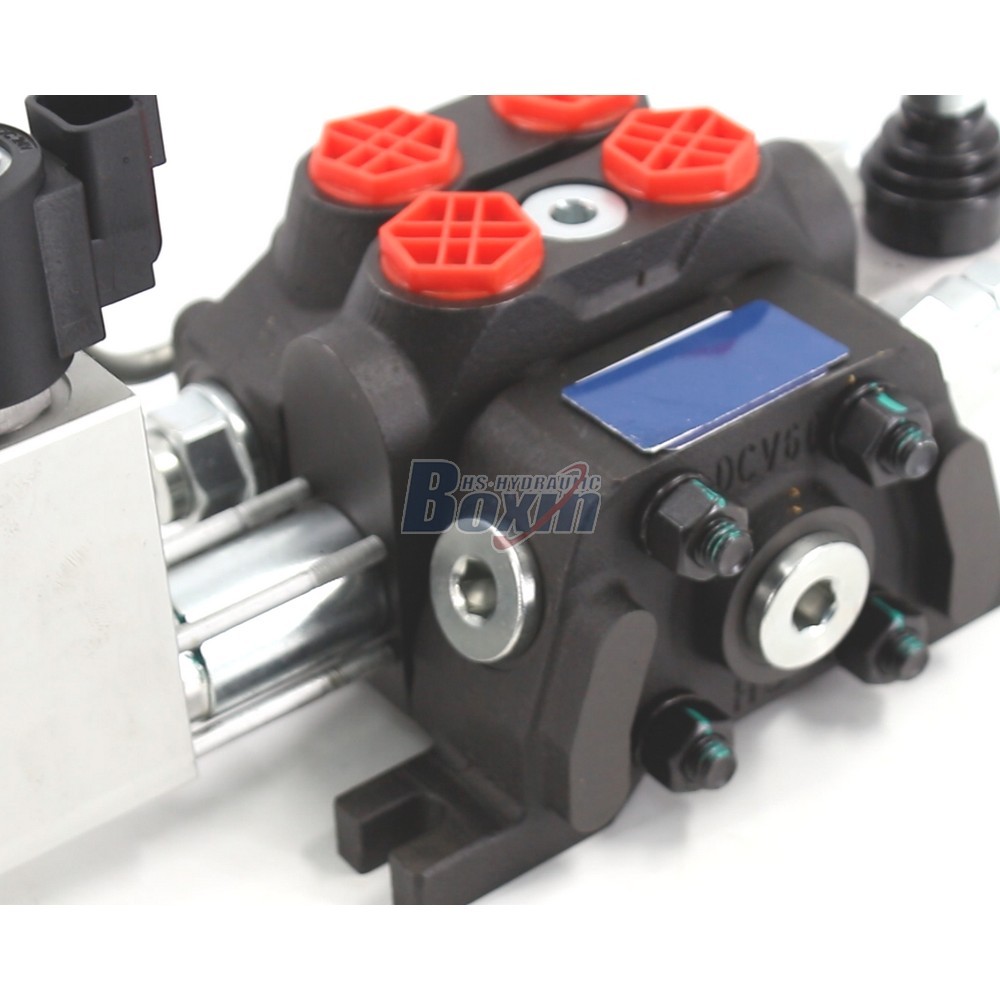

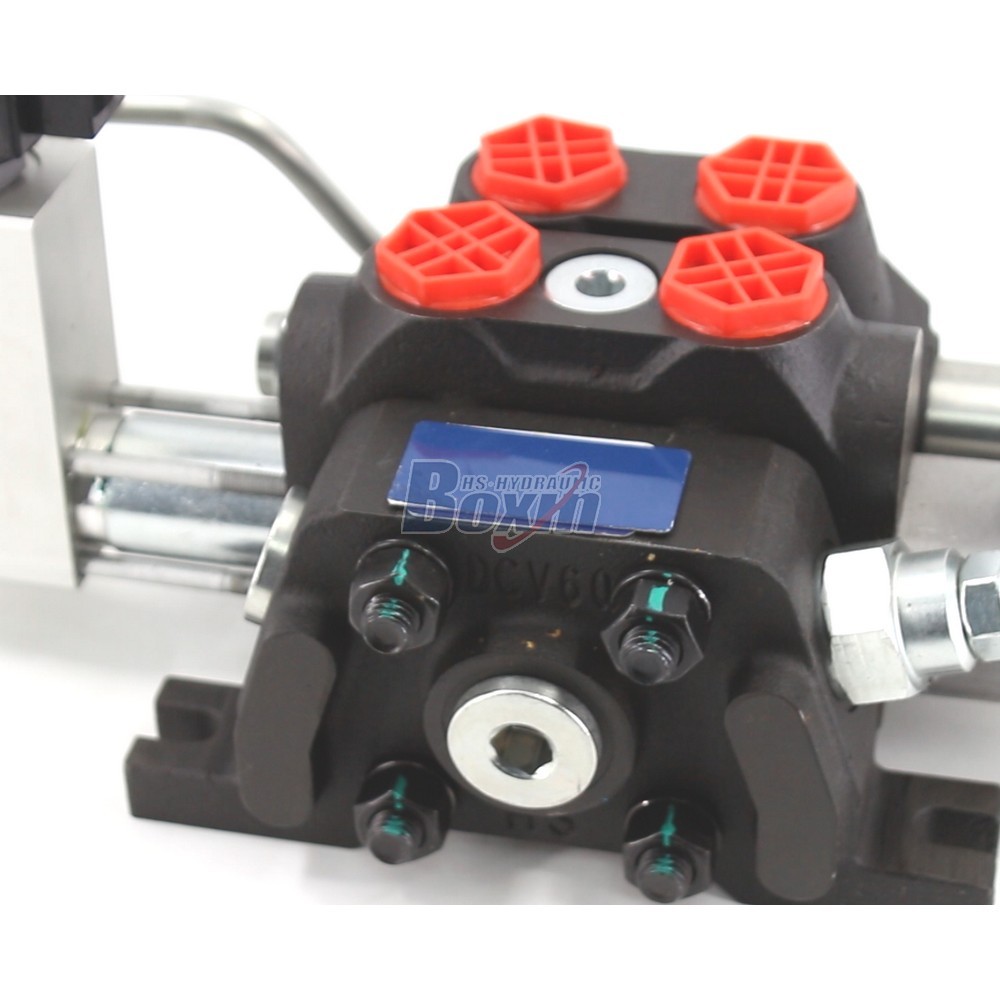

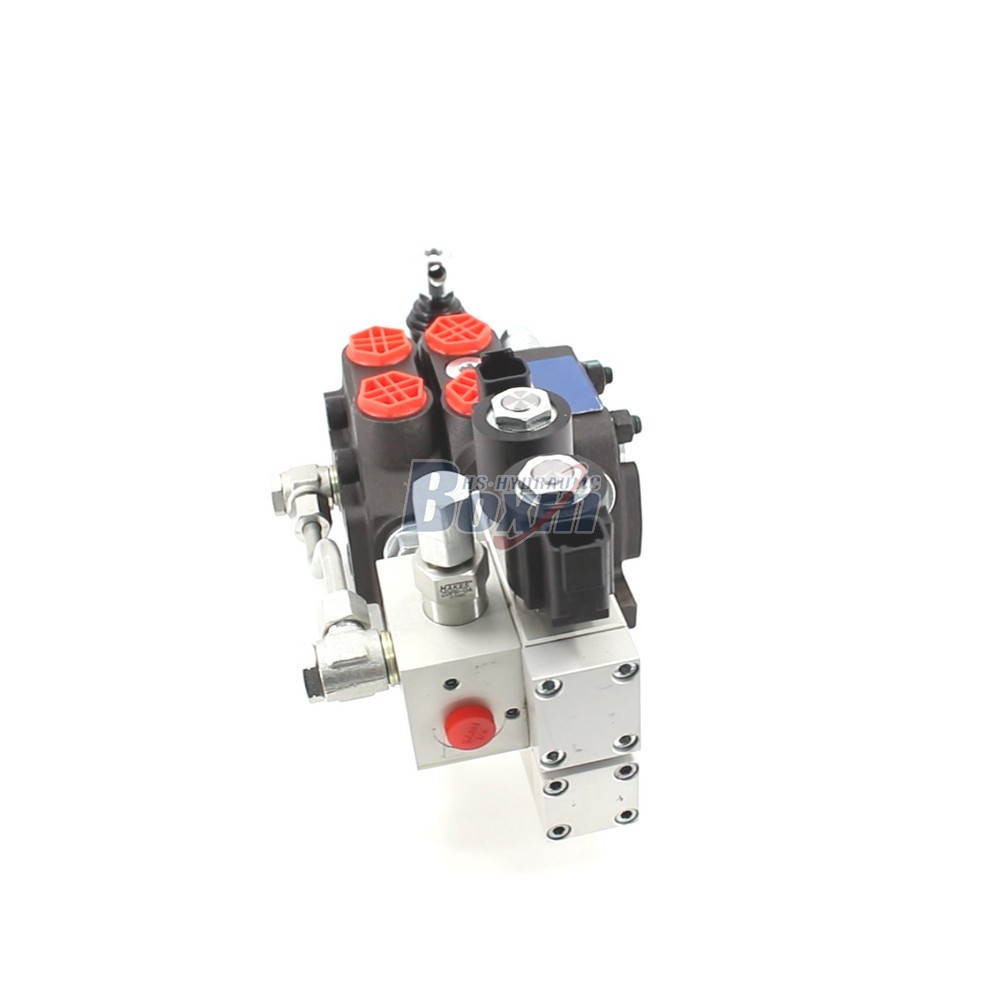

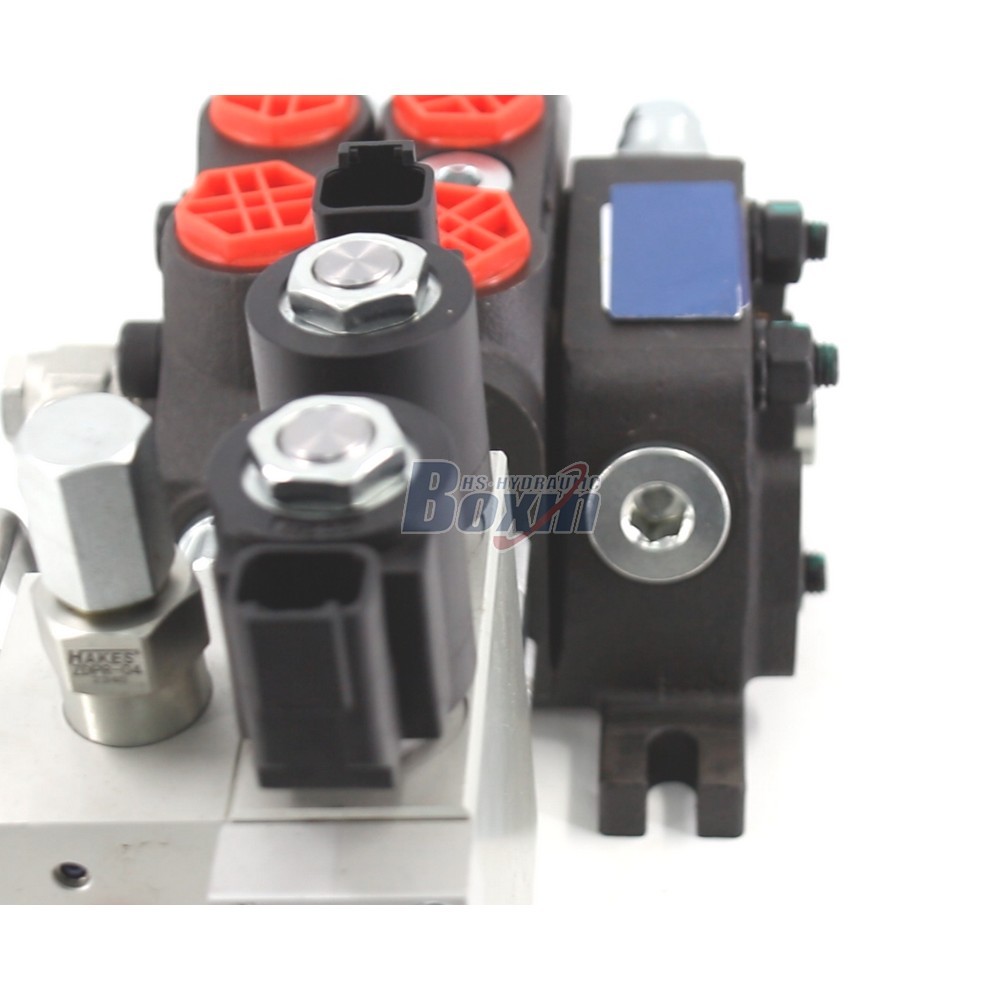

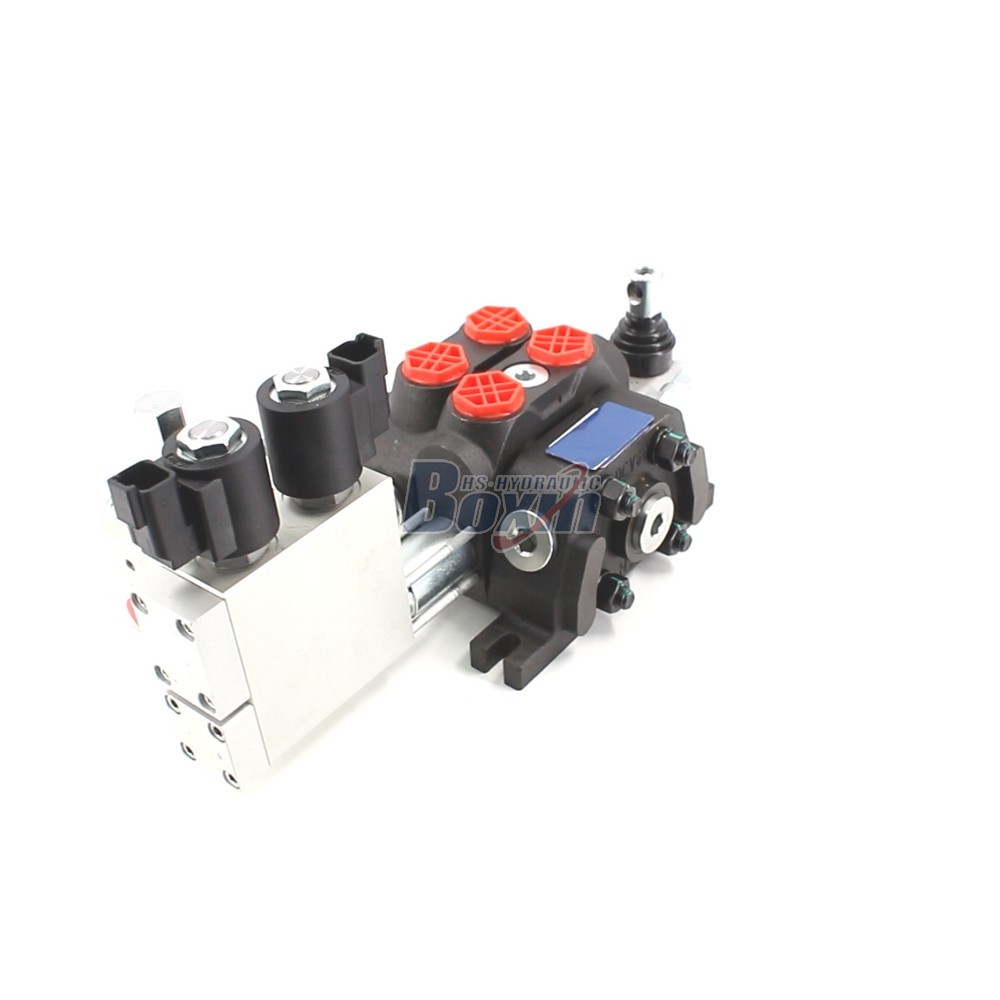

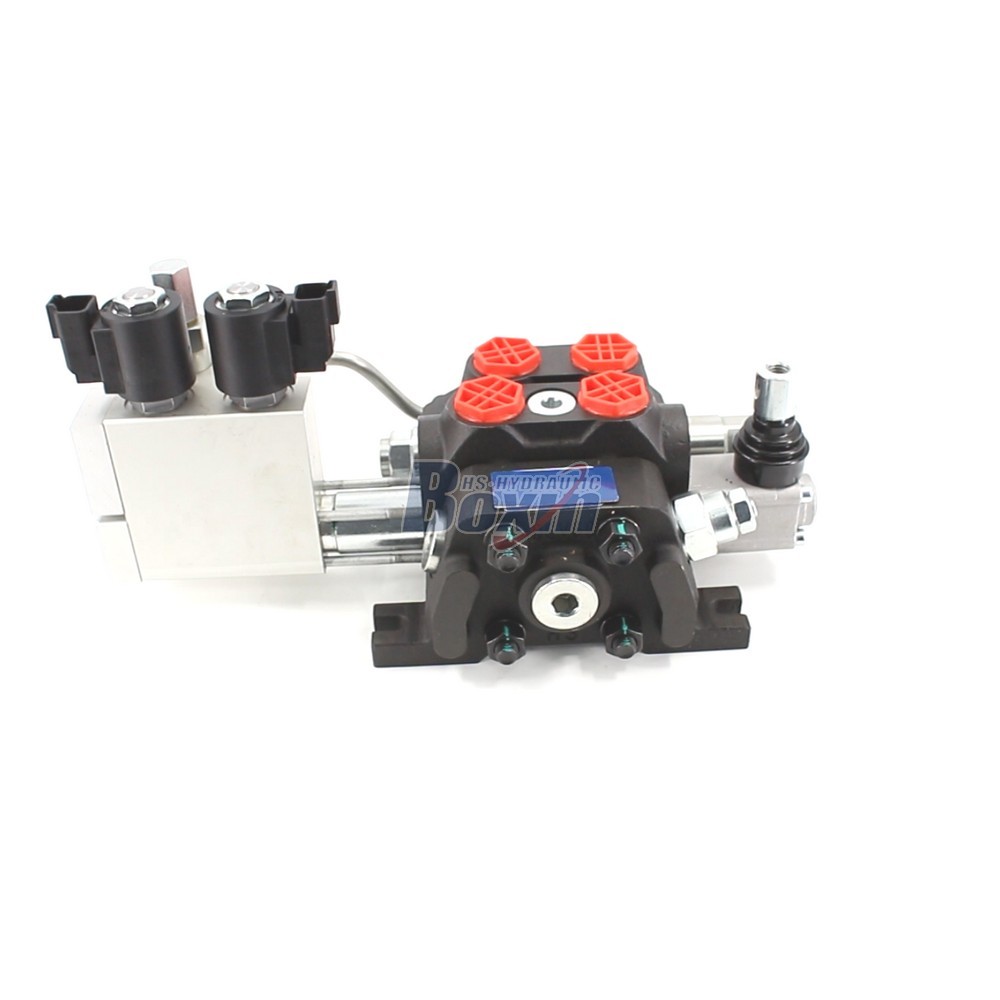

The DCV60 series is a high-performance electro-hydraulic sectional control valve designed for precision flow management in heavy-duty machinery. With a 60 L/min flow rate and 350 bar pressure capacity, it provides reliable control for mobile hydraulic equipment in construction, agriculture, and material handling sectors.

Seri DCV60 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 60 L/menit (15,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi), 350 bar (5100 psi)
Port Masuk G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a large-scale hydraulic manufacturer, we specialize in high-quality DCV60 electro-hydraulic sectional control valves tailored for demanding industrial and mobile applications. Our production line supports extensive customization, OEM, and private label services to meet specific technical requirements. We offer competitive factory-direct wholesale pricing, ensuring supply chain efficiency for global partners. We are actively seeking long-term cooperation with international distributors, wholesalers, agents, and professional trade companies. With robust engineering capabilities and strict quality testing, our factory provides consistent manufacturing excellence for forklifts, tractors, excavators, and various construction equipment. Partner with us to benefit from professional technical support, flexible order quantities, and reliable supply capacity for all your hydraulic control valve needs.
