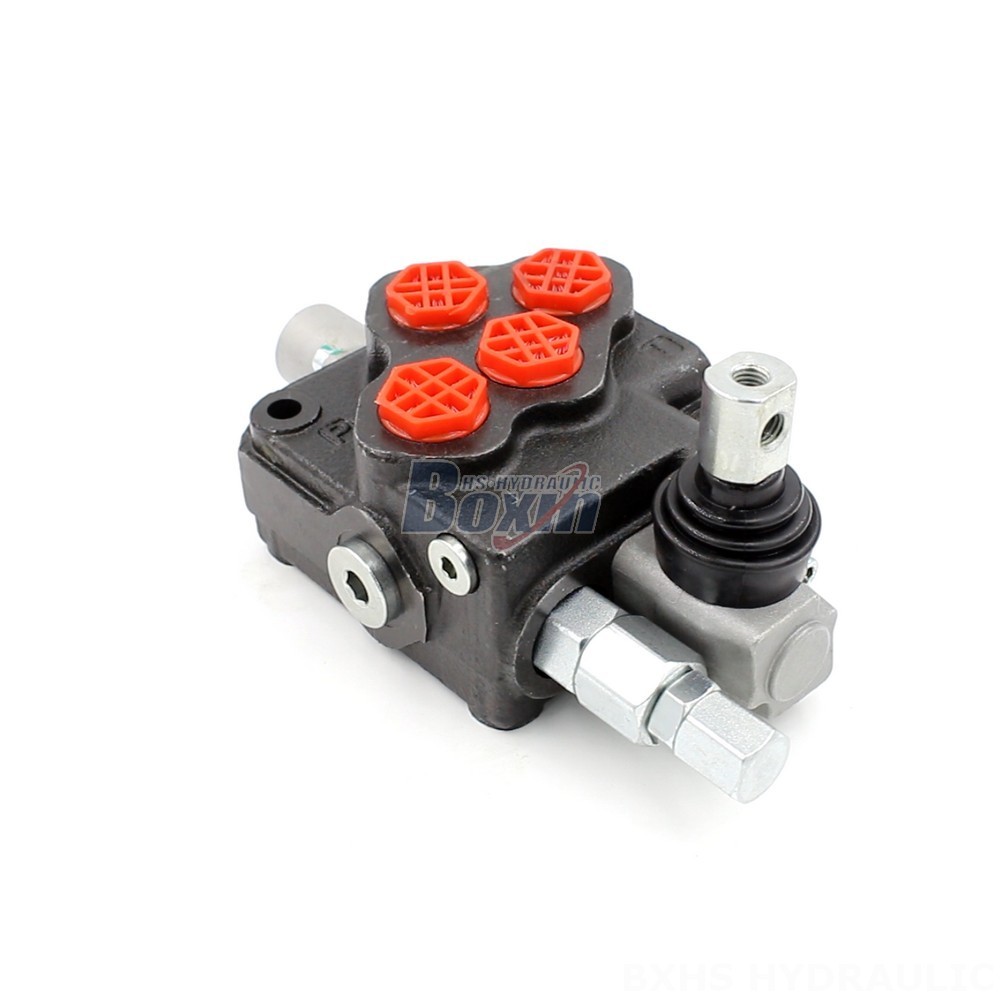

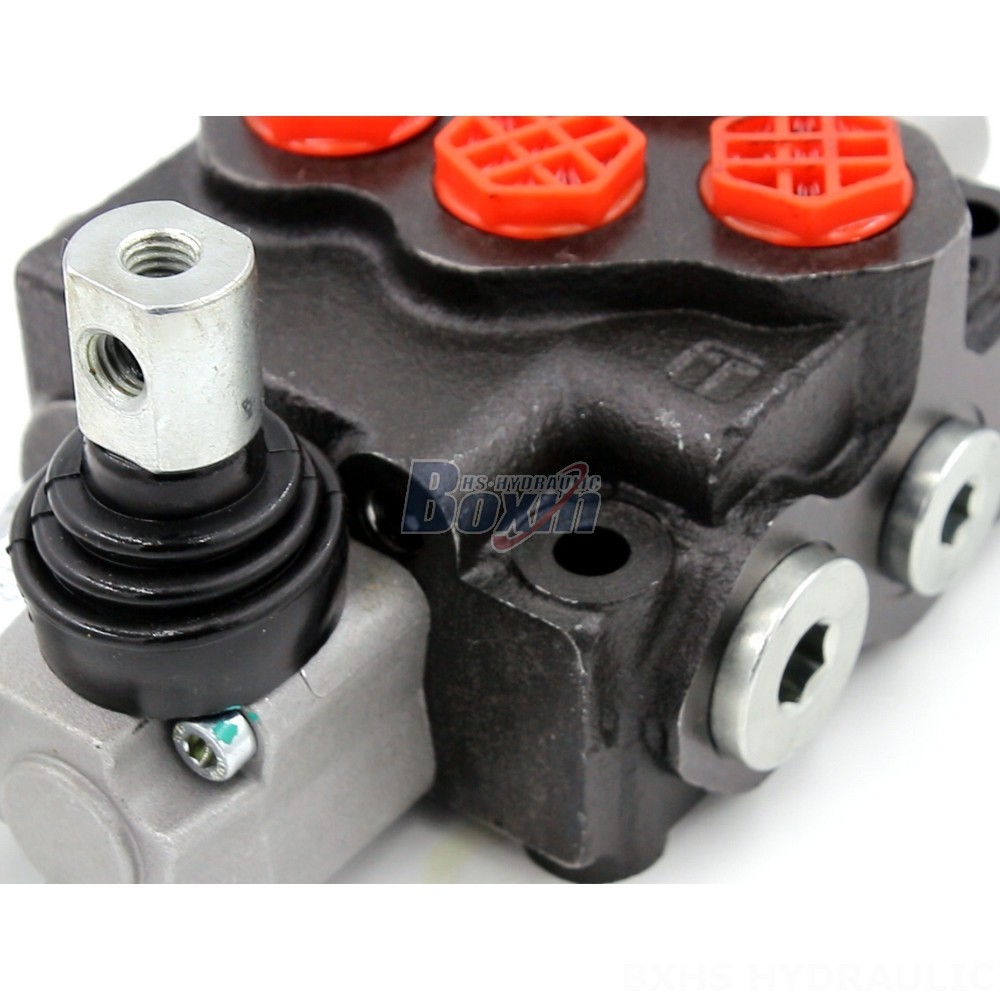

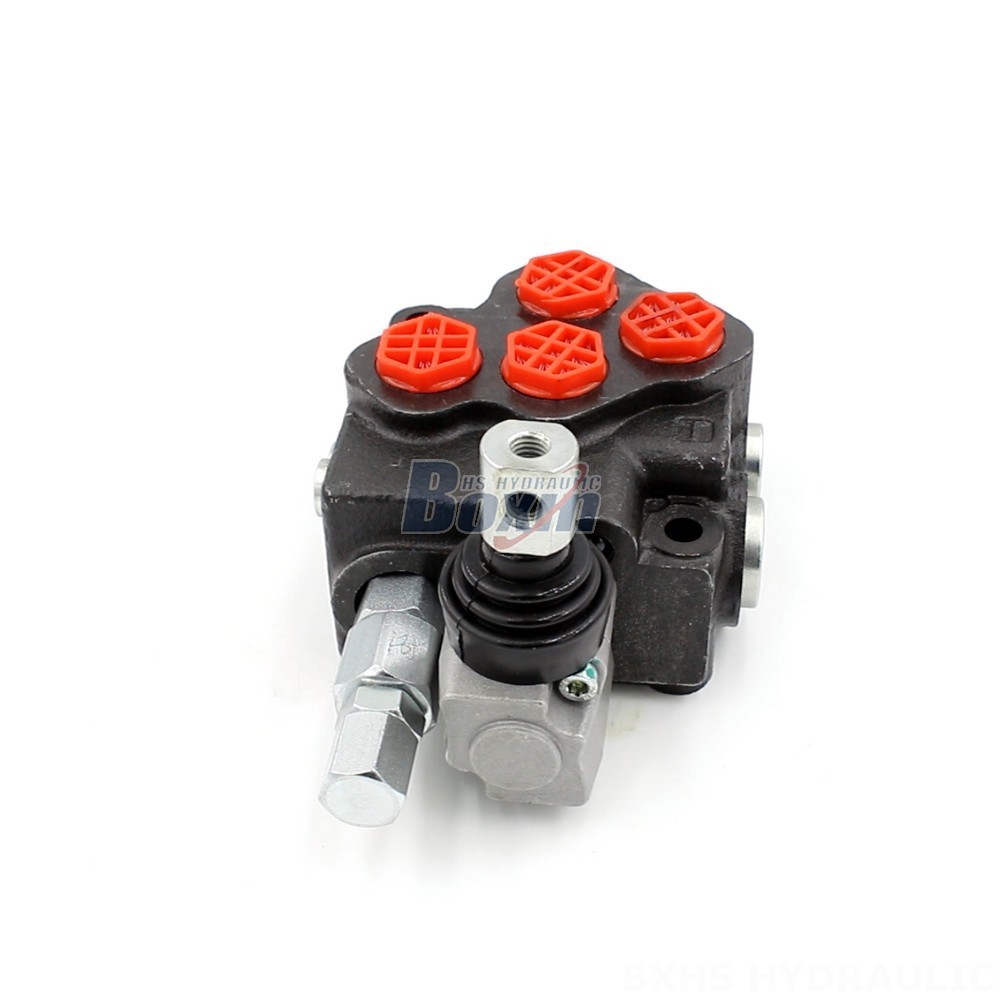

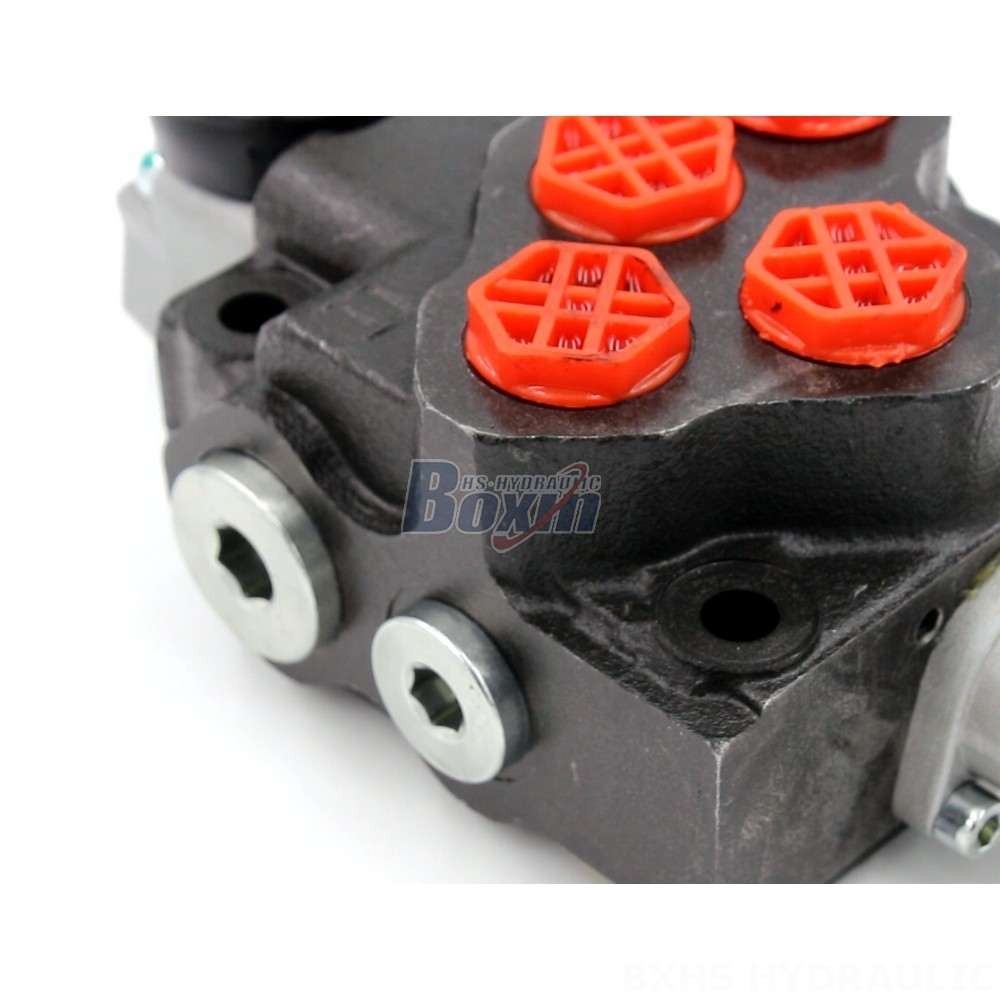

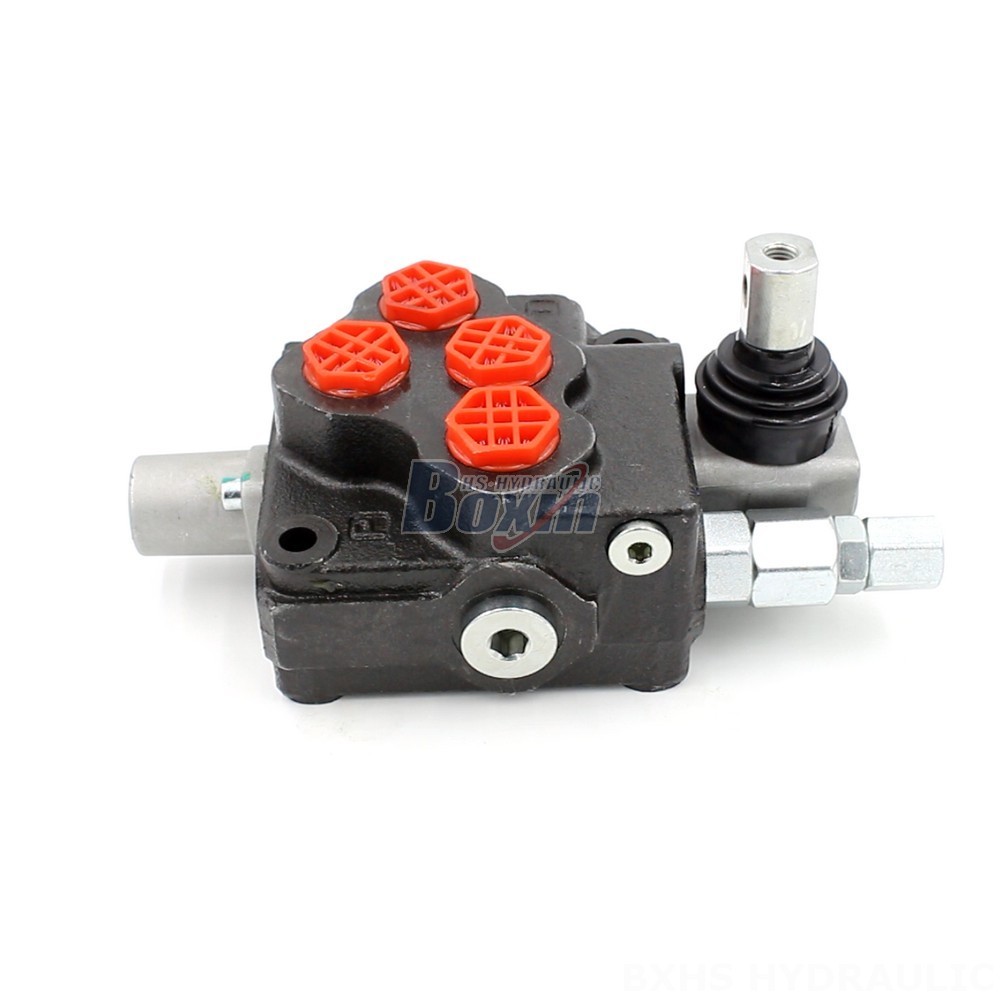

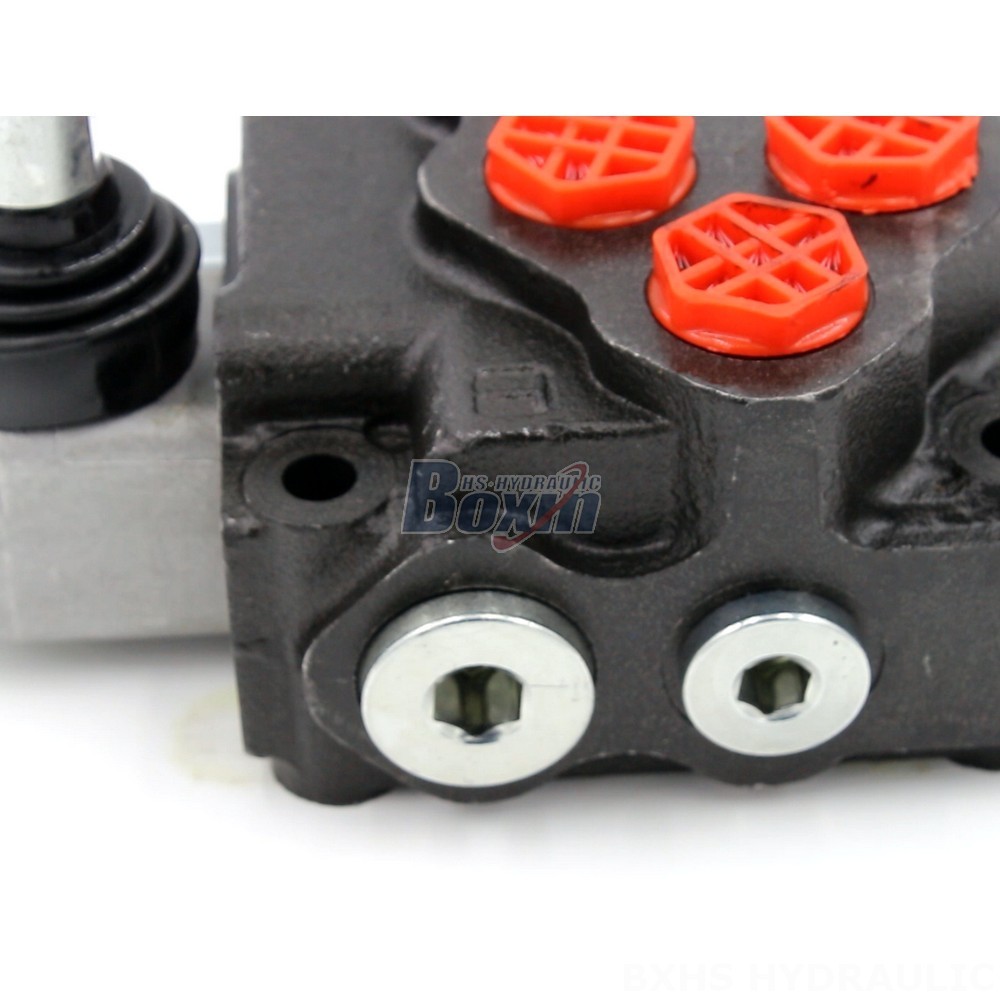

The SD5-G38 is a manual, 1-section, monoblock hydraulic directional control valve designed for various applications including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 305 bar, it is a reliable and durable solution for controlling hydraulic systems in diverse equipment like telehandlers, forklifts, mini-excavators, and more.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This manual, 1-section, monoblock valve, part of the SD5 series, offers reliable directional control for a wide range of applications. It features a single spool with a rated flow of 40 L/min and a maximum pressure rating of 305 bar, ensuring smooth and efficient operation. The valve is designed to handle a viscosity range of 15 - 75 mm²/s, operating effectively in temperatures ranging from -40°C to +60°C. Its compact and durable design makes it ideal for use in material handling equipment, construction machinery, agricultural implements, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, and various other applications.
