Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80F Katup Arah Monoblok

Ukuran kemasan:26*30*11

Kelas kotor:16.00 kg

Ketersediaan: Tersedia

1261 Pandangan Mencari Produk Ini

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier drawing image

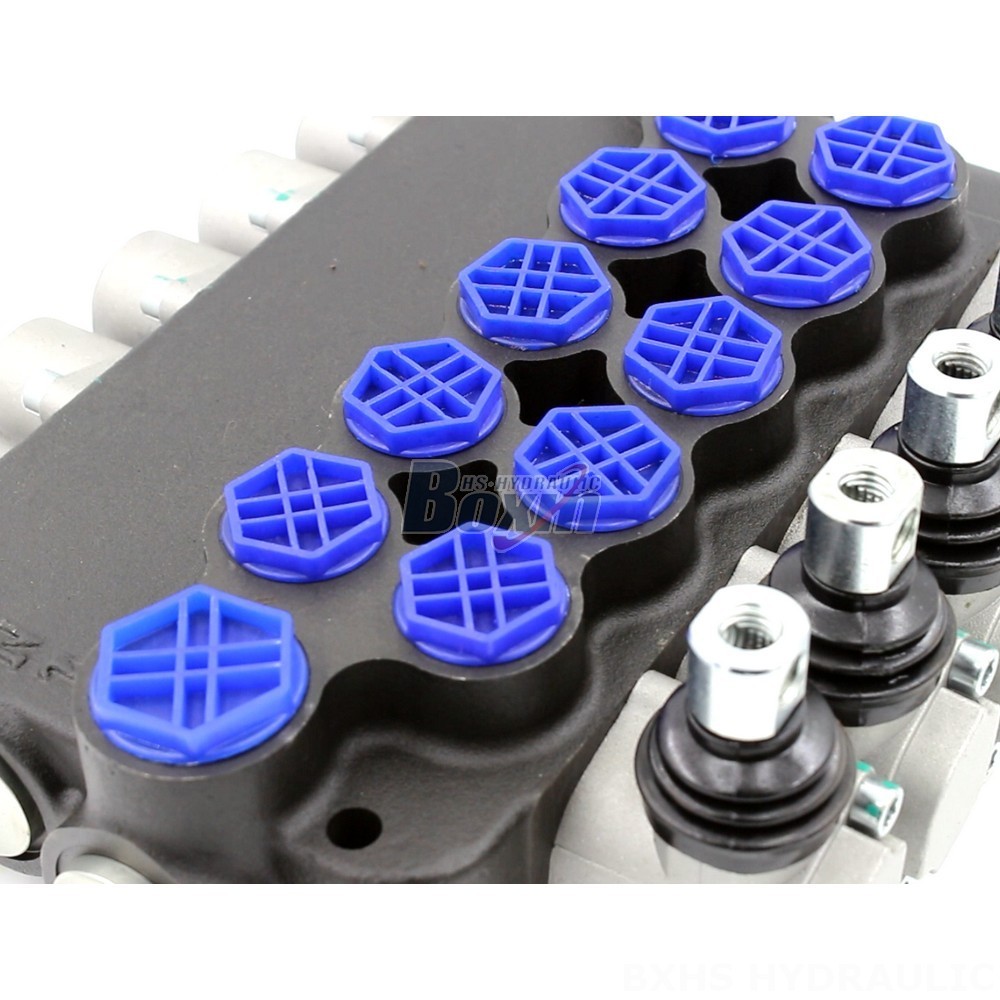

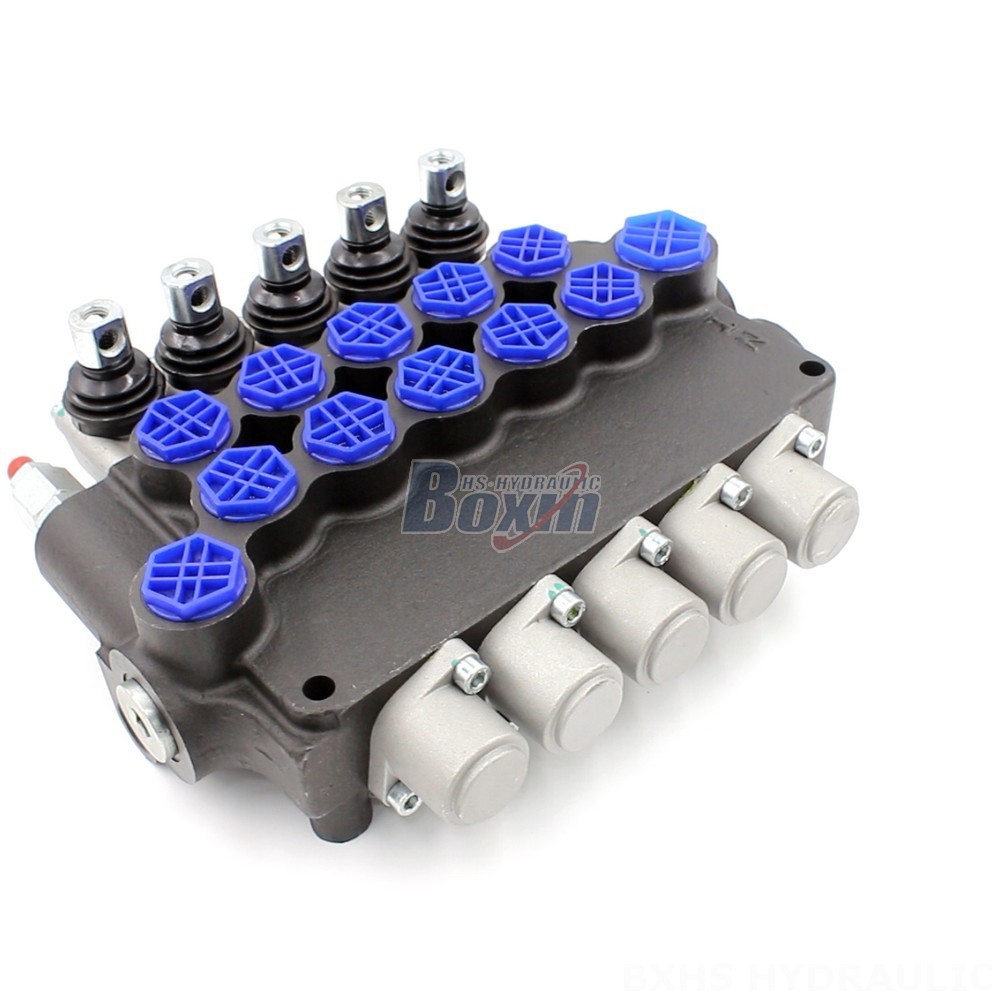

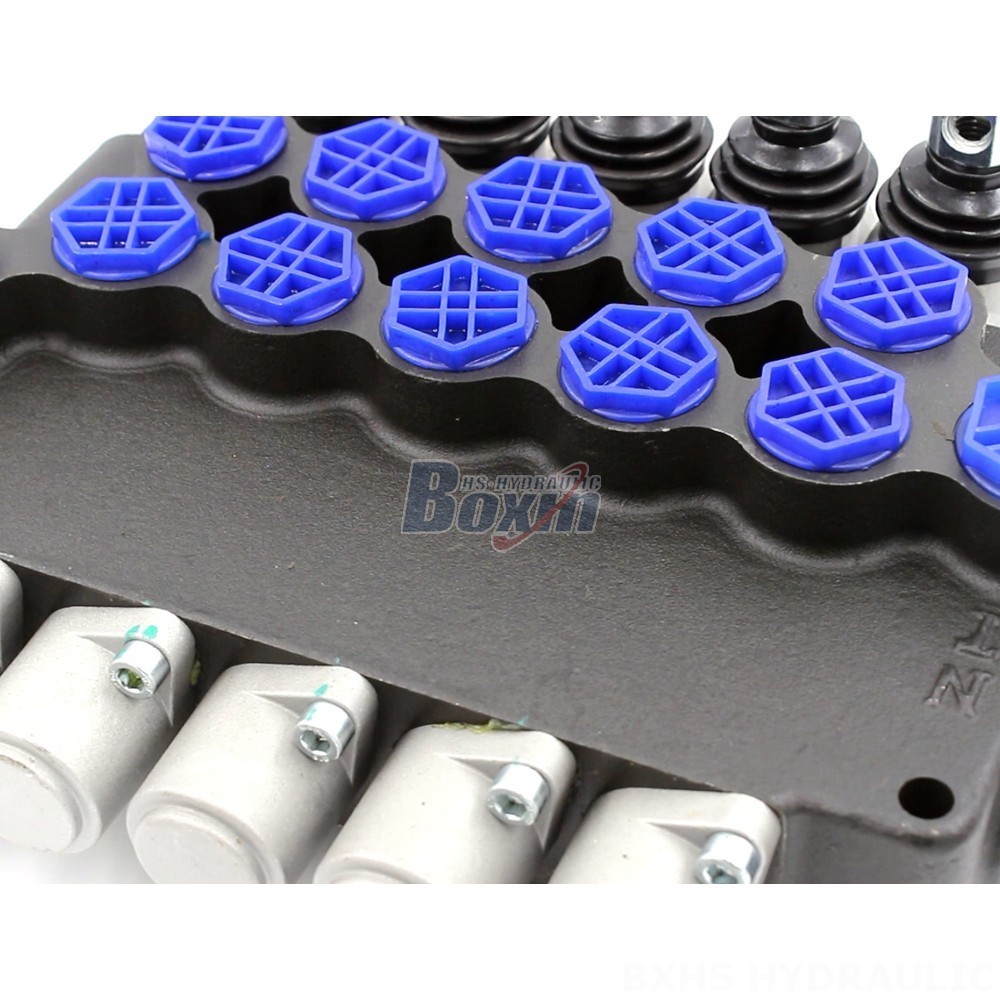

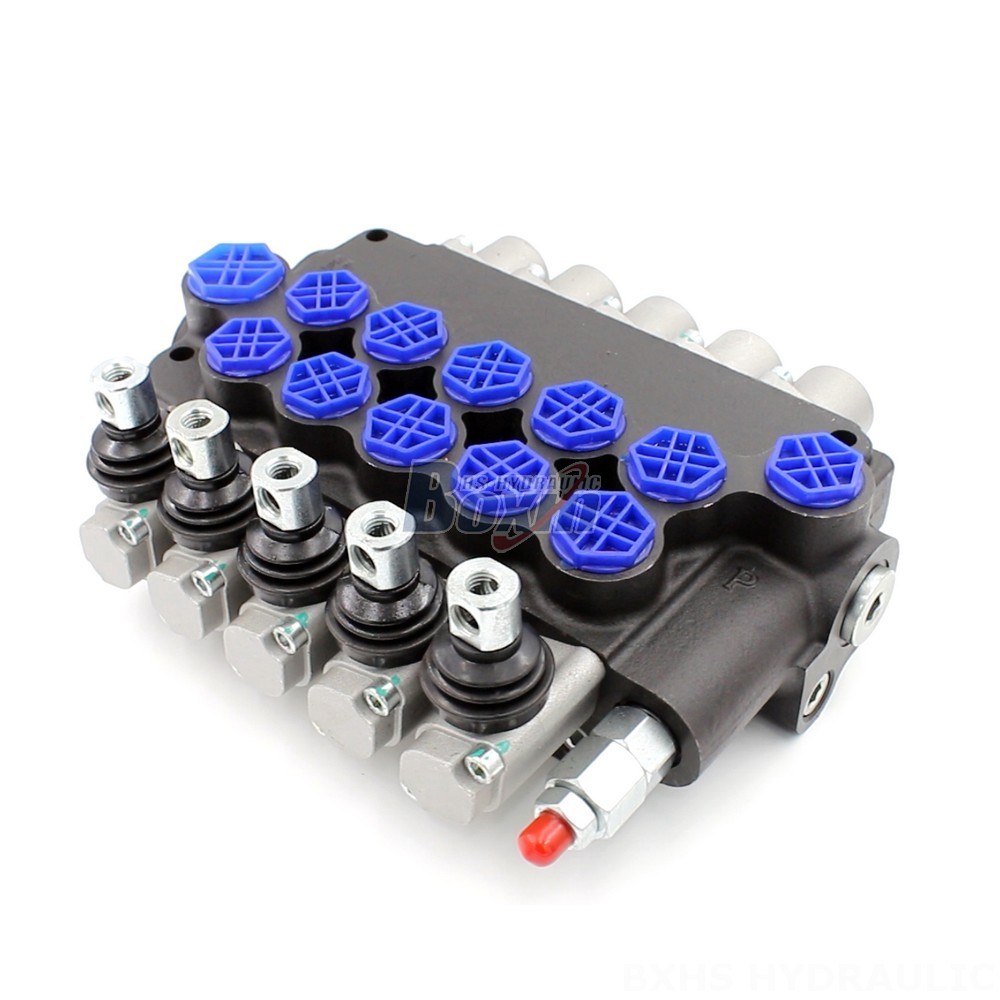

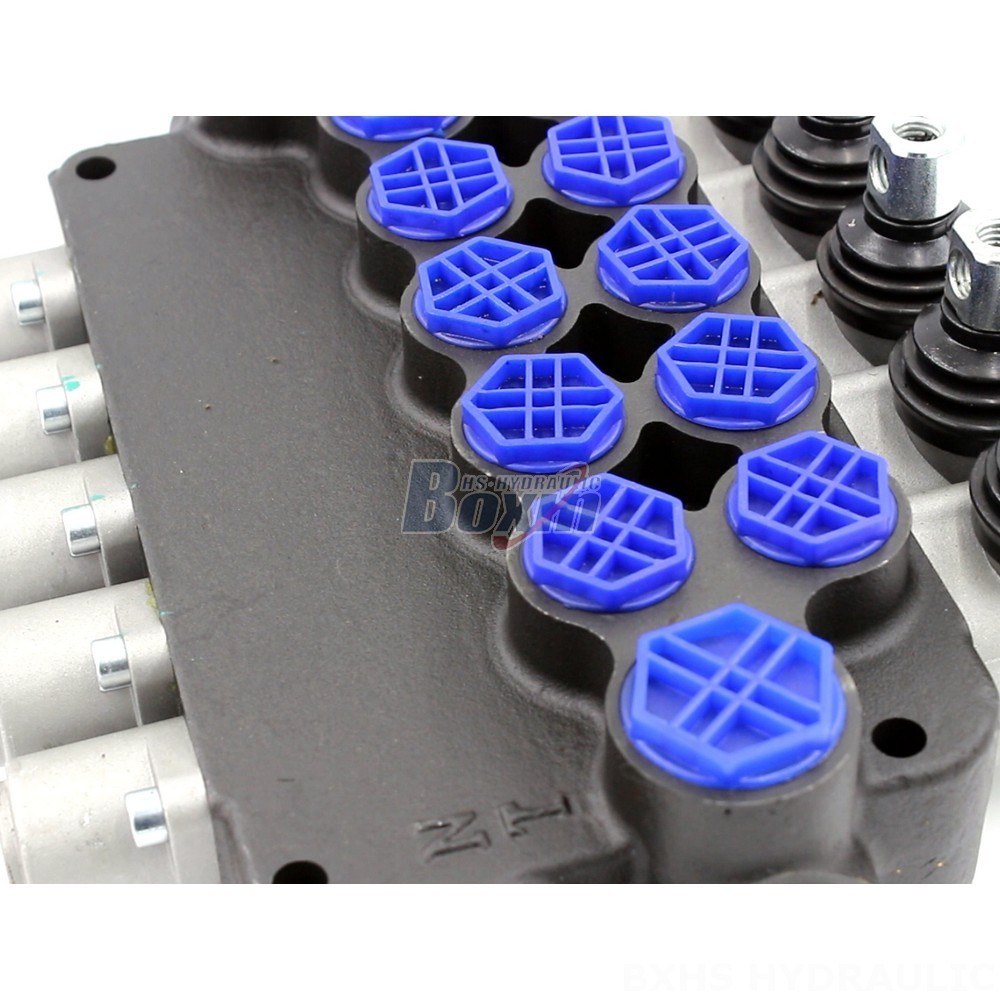

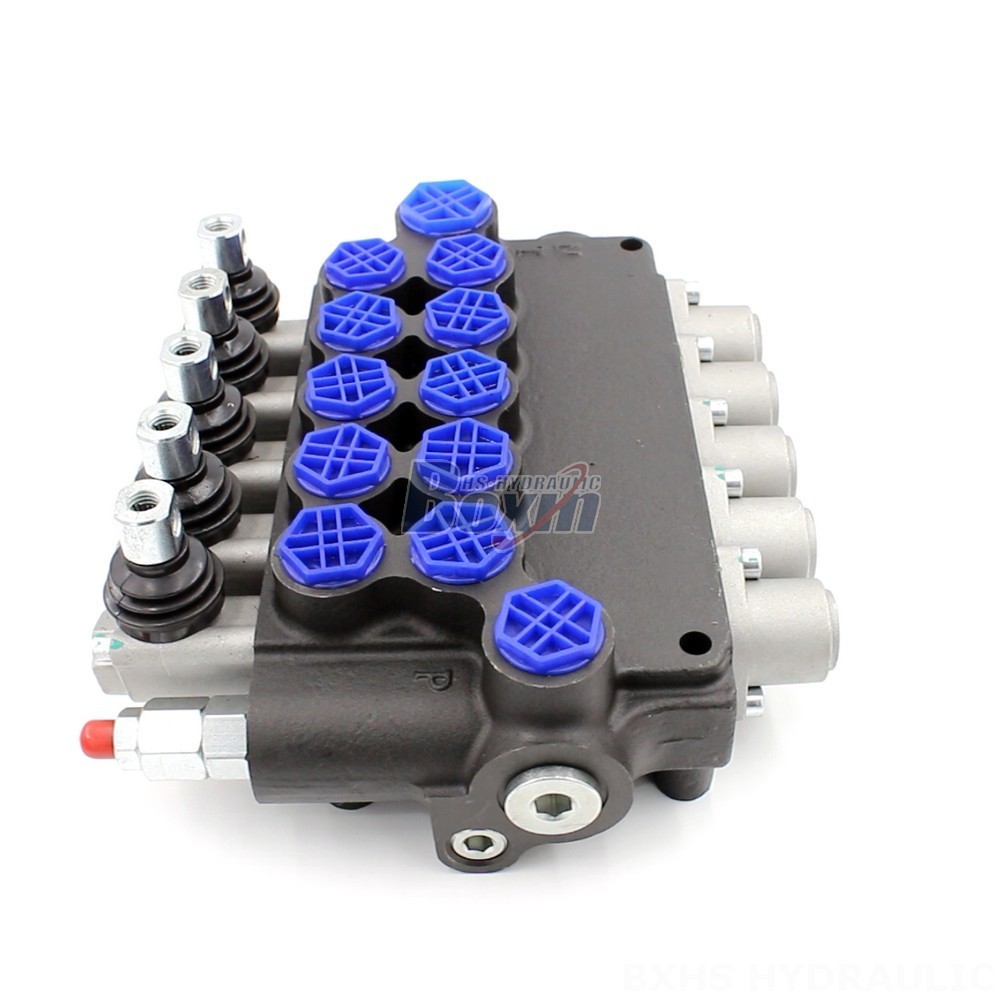

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.

Seri P80F Katup Arah Monoblok Parameter
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol
Ukuran Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Tekanan Maksimum 315 bar (4600 psi)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tipe Struktur Katup monoblok
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
