Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1348 Pandangan Mencari Produk Ini

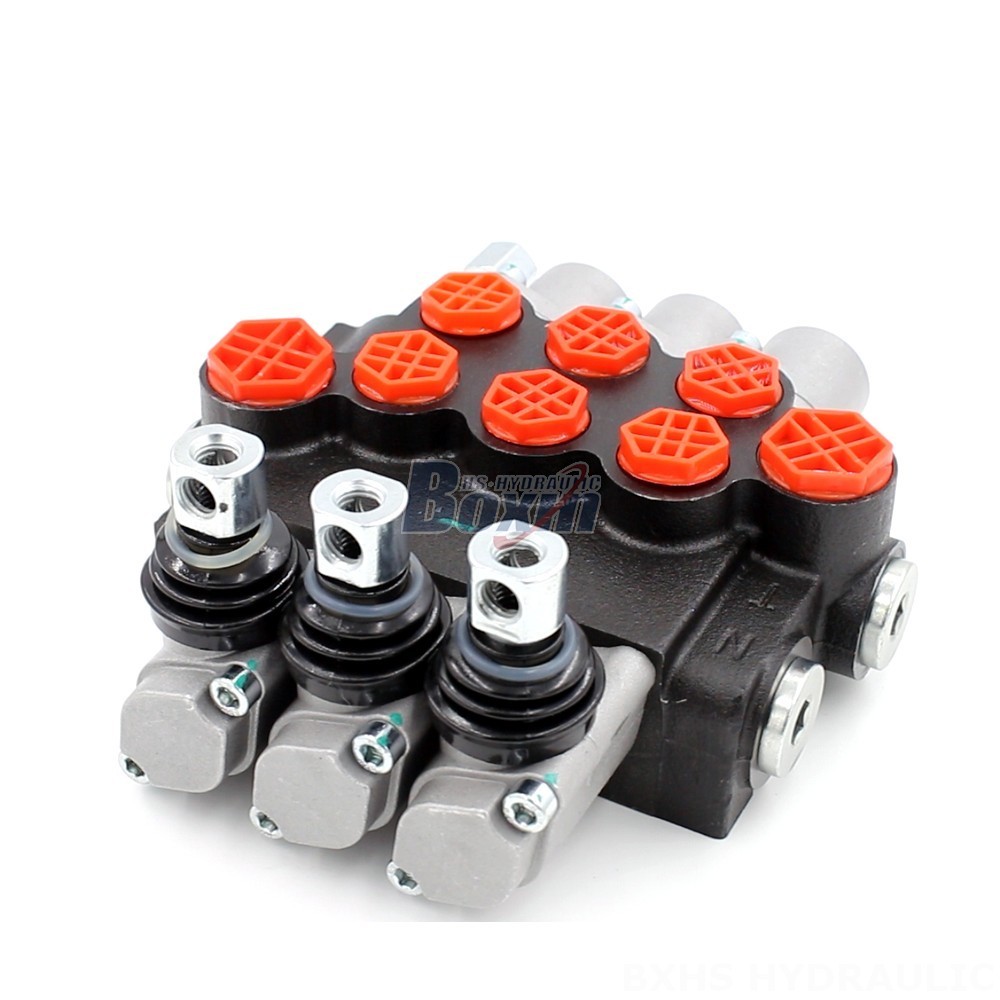

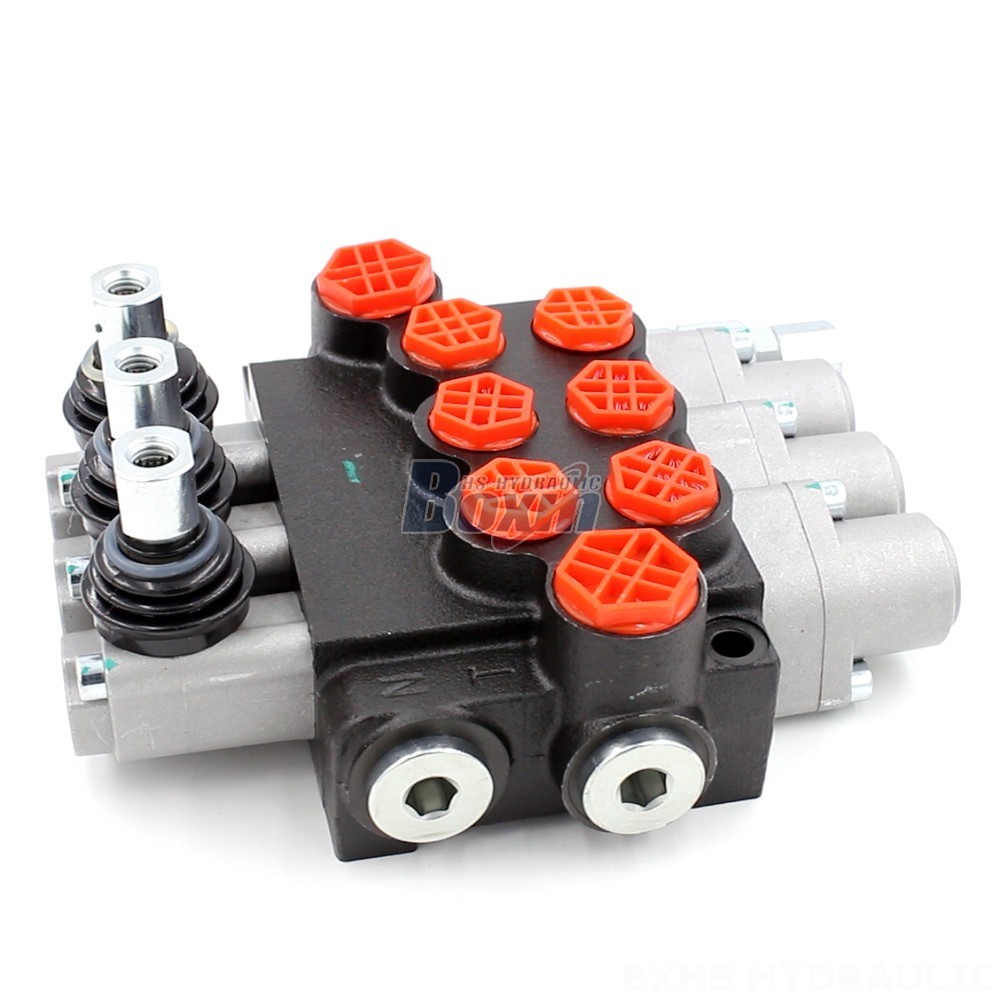

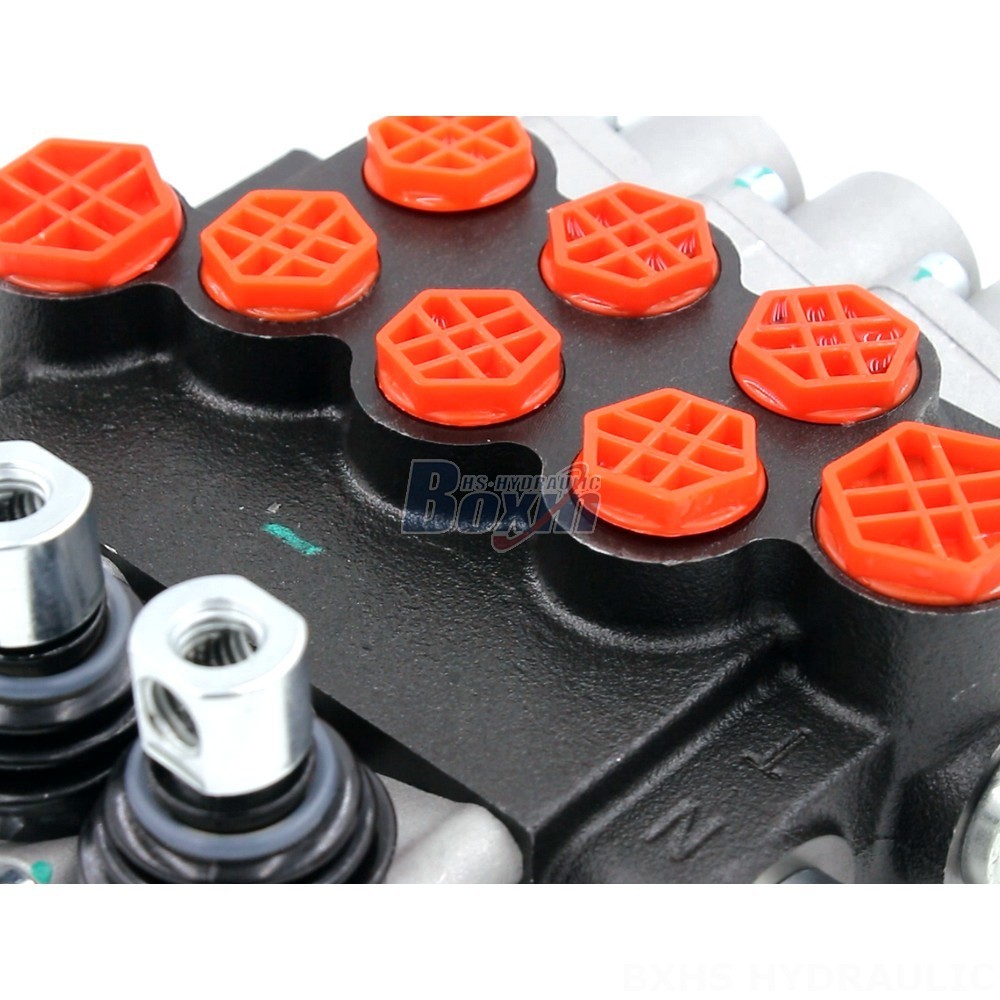

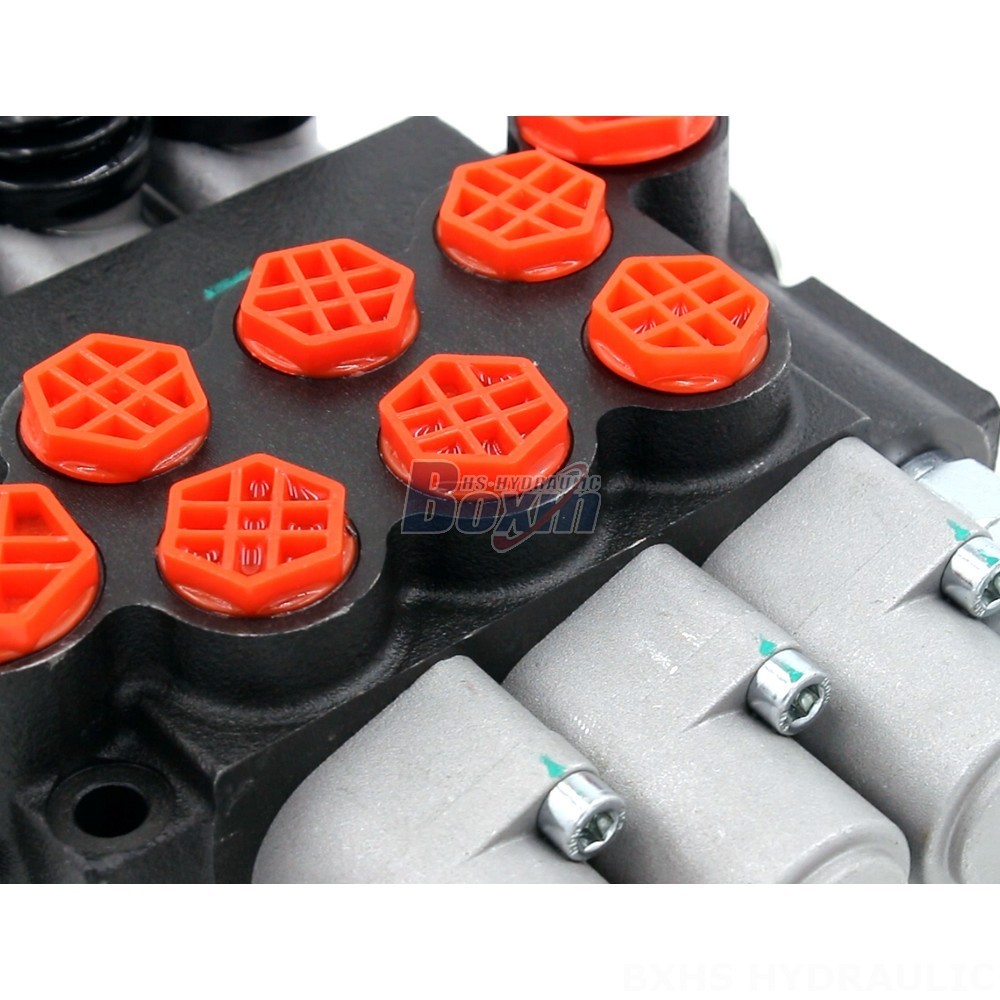

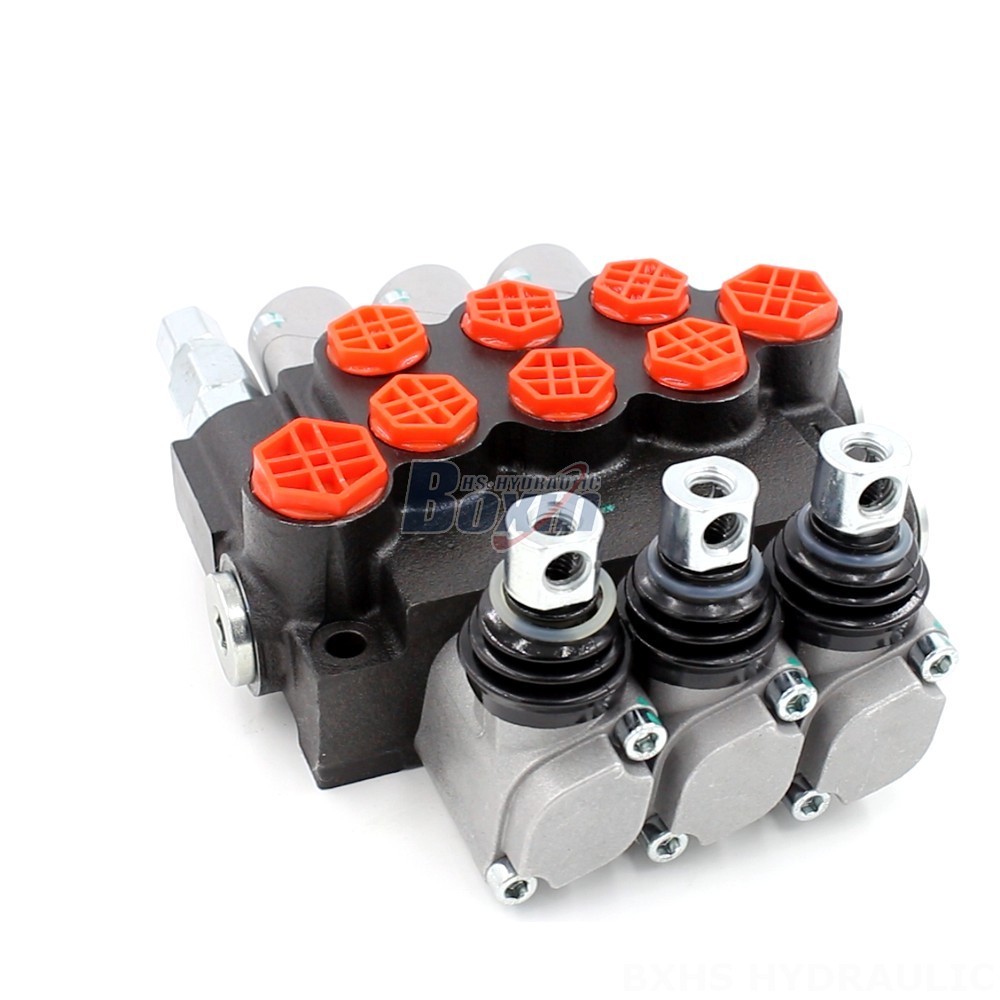

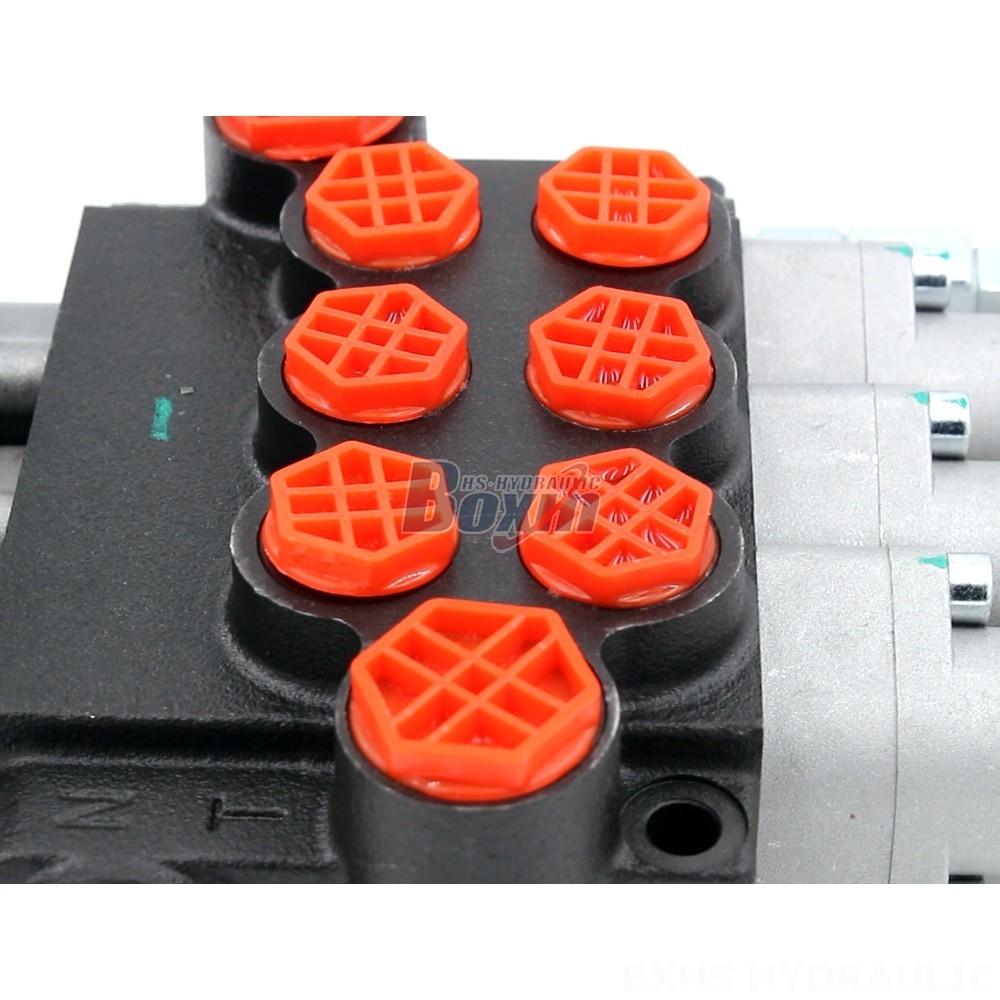

The Hydraulic Directional Control Valve - P40-G12-G38-3OT Series is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With its manual control, 3 section design, and monoblock valve structure, this valve offers precise control and durability in even the most demanding conditions.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise operation
* 3 section design for versatility
* Monoblock valve structure for durability
* 40 L/min rated flow for high efficiency
* 250 bar max pressure for demanding applications
* 15-75 mm²/s operating viscosity range for wide compatibility
* -40°C to +80°C ambient temperature range for use in extreme environments
* 3 spool design for increased control
* P40 Series for proven performance
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini- Excavator
* Skid Steer Loader
* Compact Wheel Loader
