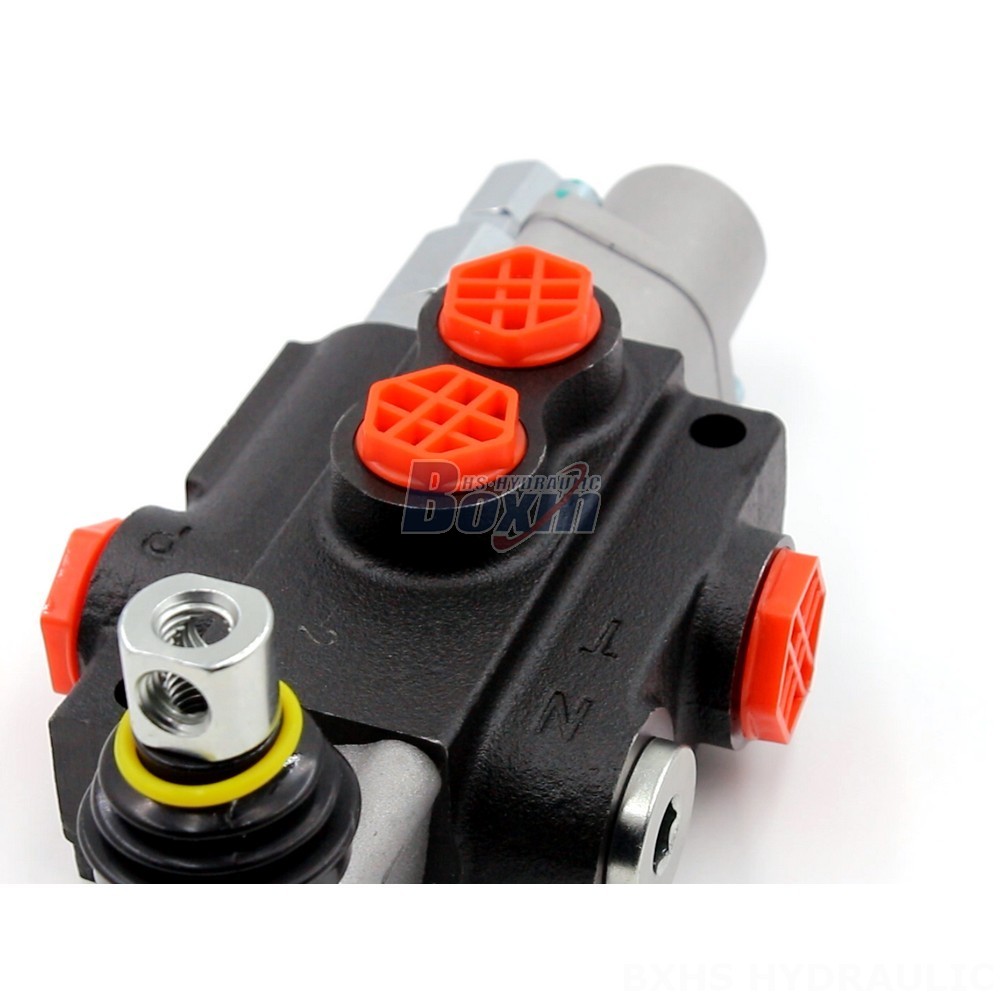

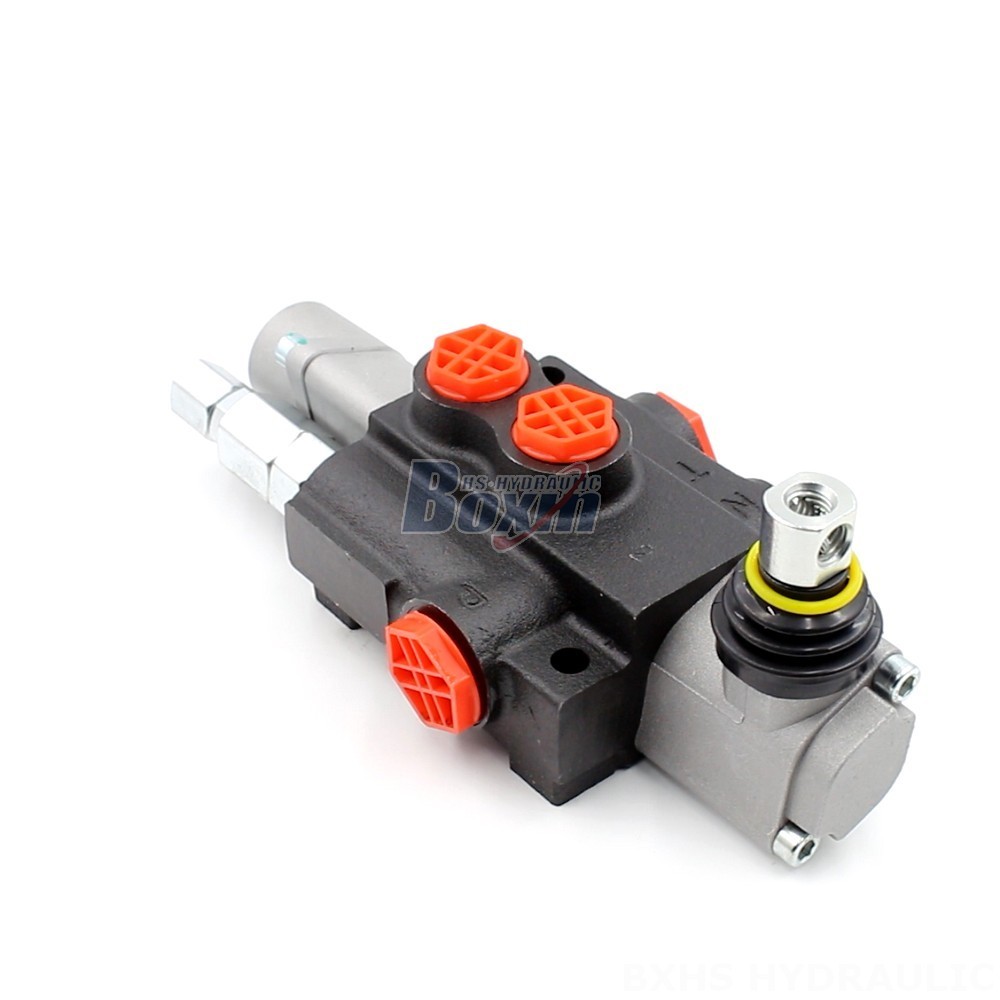

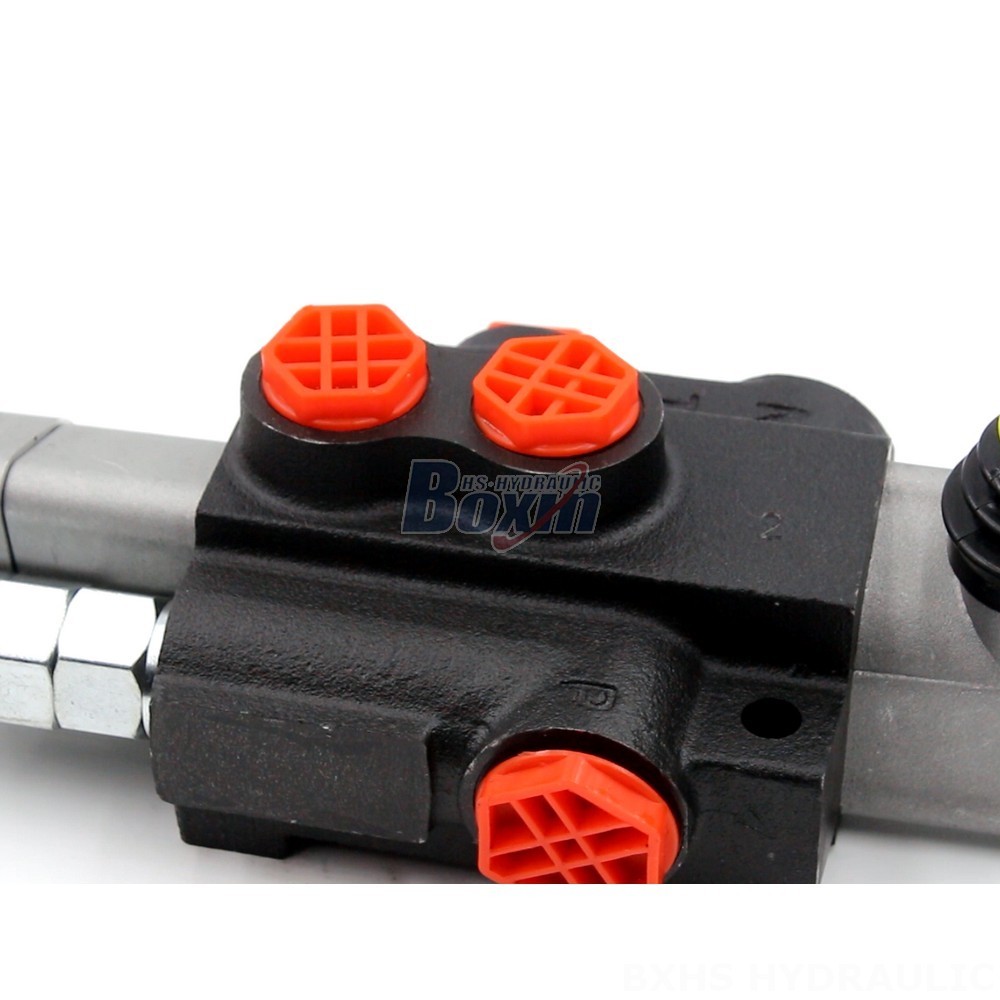

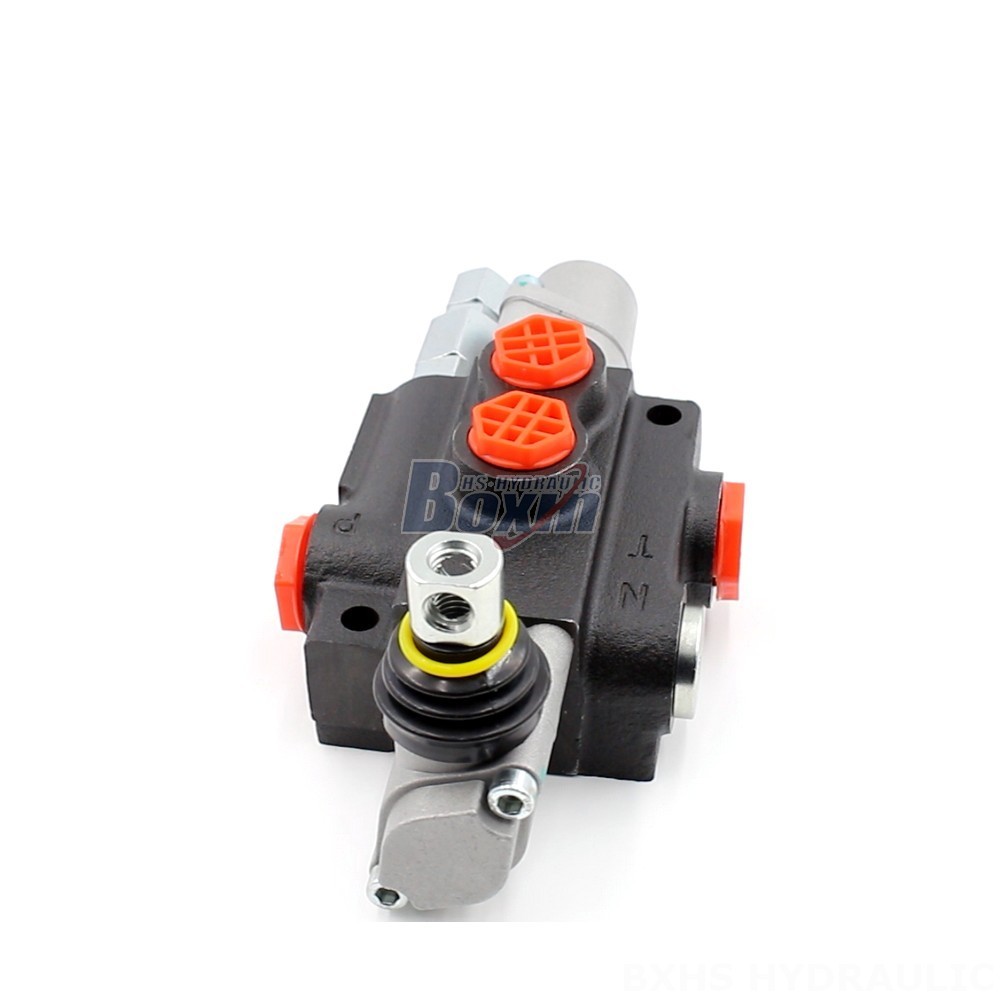

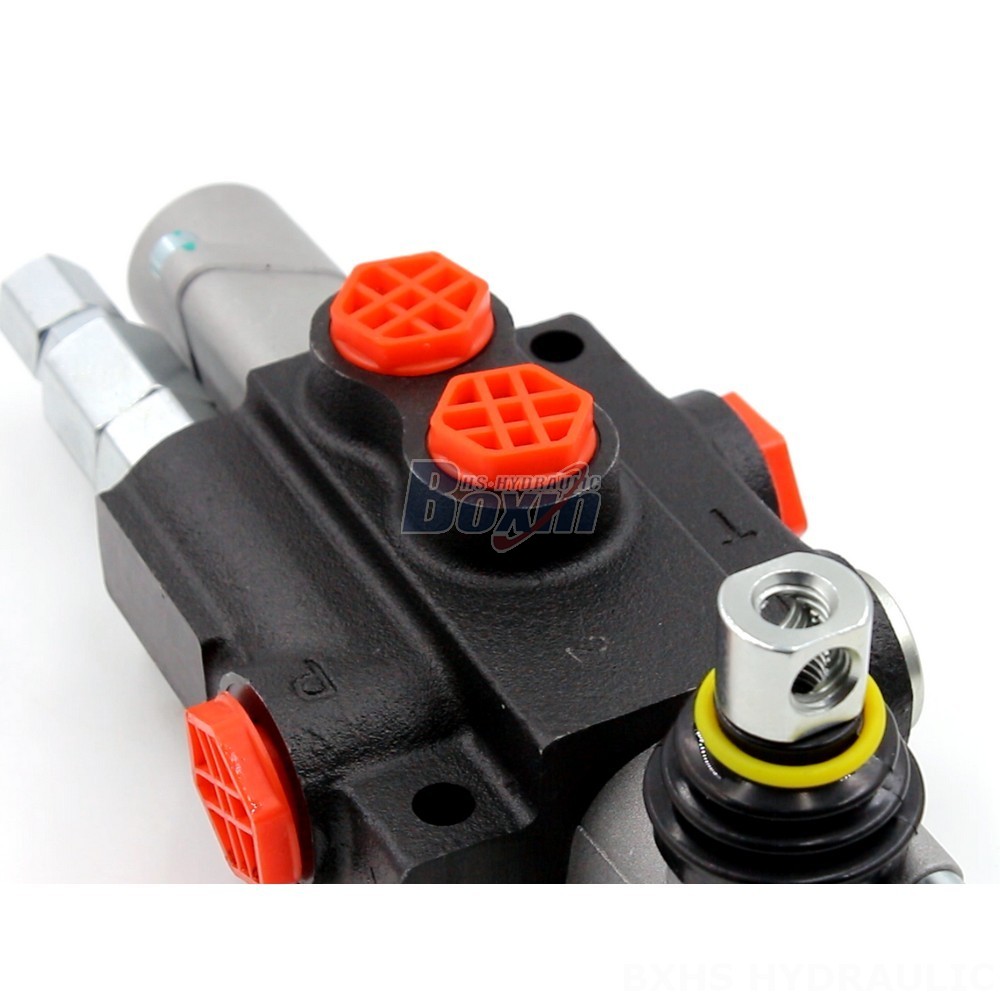

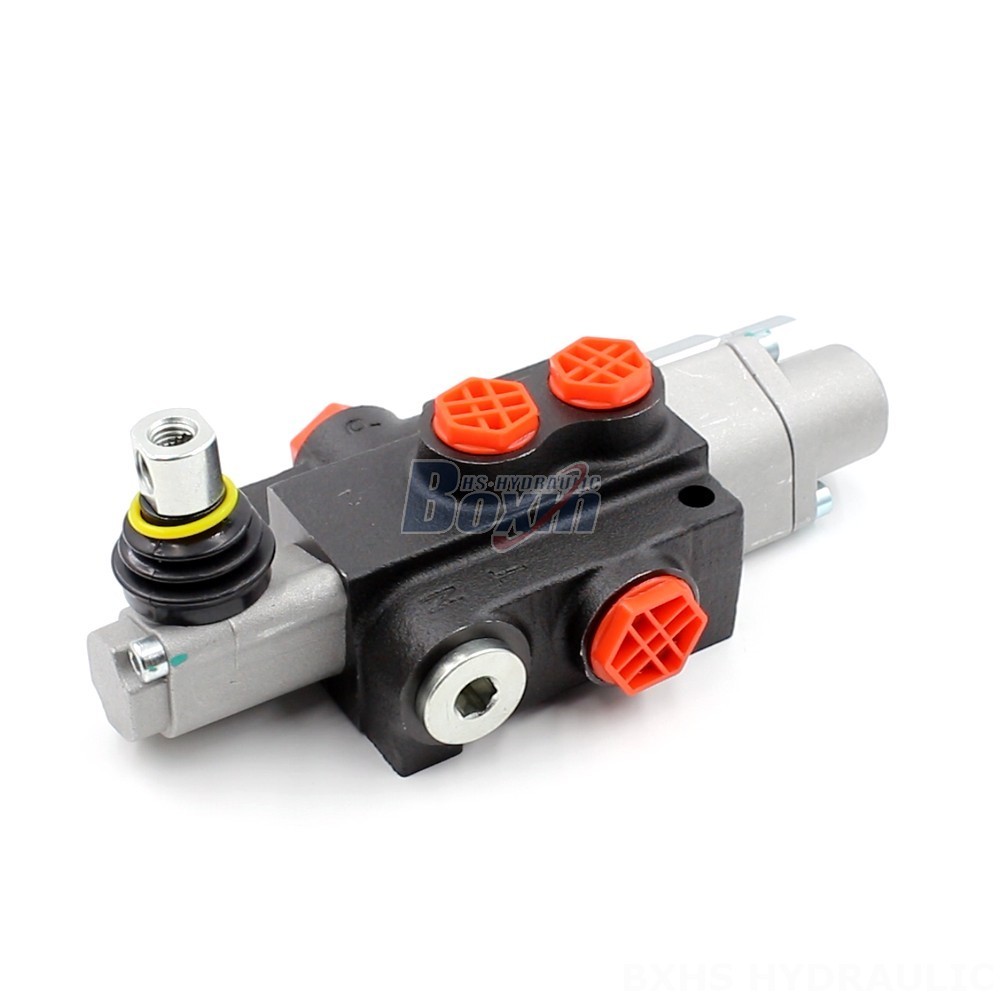

The P40-G12-G38-OTW Series Hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its manual control, monoblock valve design, 40 L/min rated flow, 250 bar max pressure, and 15 - 75 mm²/s operating viscosity range, this valve offers reliable and efficient control of hydraulic systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38-OTW Series Hydraulic Directional Control Valve**
The P40-G12-G38-OTW Series Hydraulic Directional Control Valve is a monoblock valve with manual control. It has a rated flow of 40 L/min, a max pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve has an ambient temperature range of -40°C to +80°C and is available with 1 spool. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Key Features:**
* Manual control
* Monoblock valve design
* 40 L/min rated flow
* 250 bar max pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range
* 1 spool
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
