The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-quality valve designed for use in a variety of applications. It features manual control, a 3-section design, and a monoblock valve structure. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar. It can be used in a wide range of operating viscosities and ambient temperatures. The valve is also available in a variety of spool configurations to meet the specific needs of your application.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

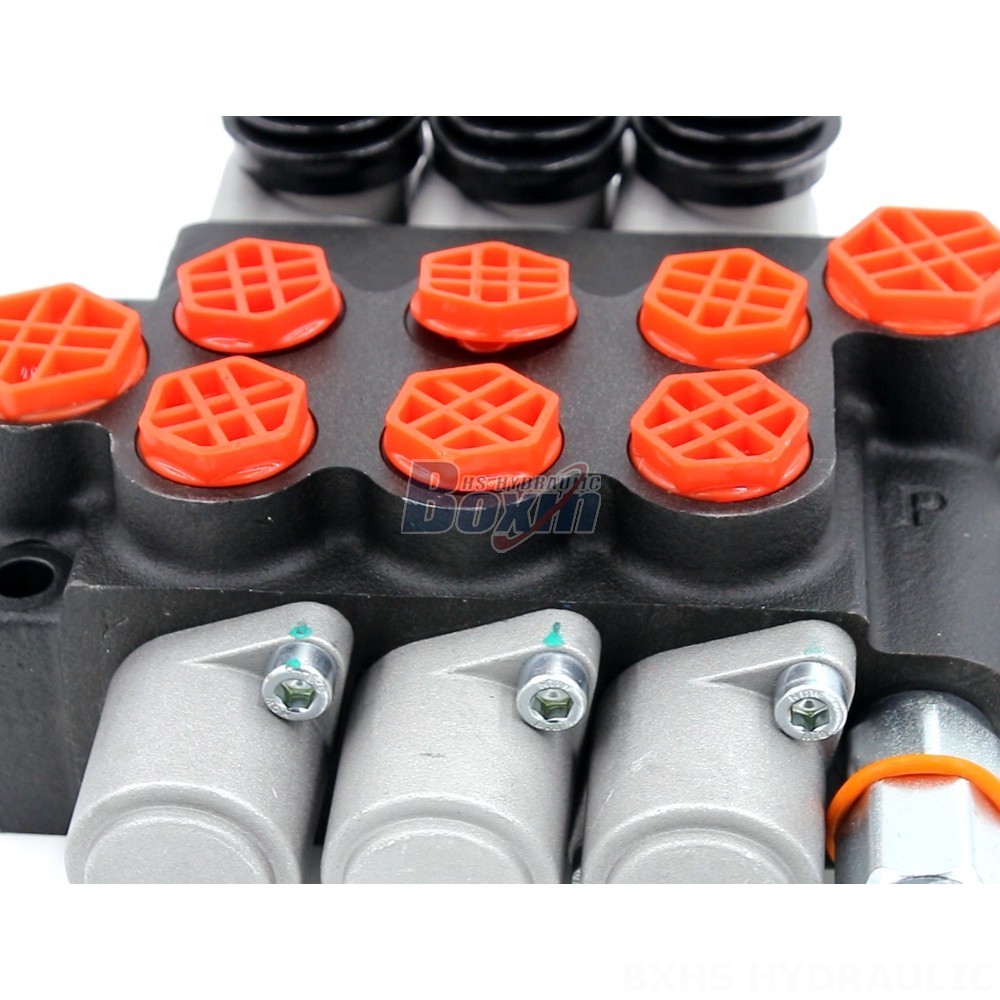

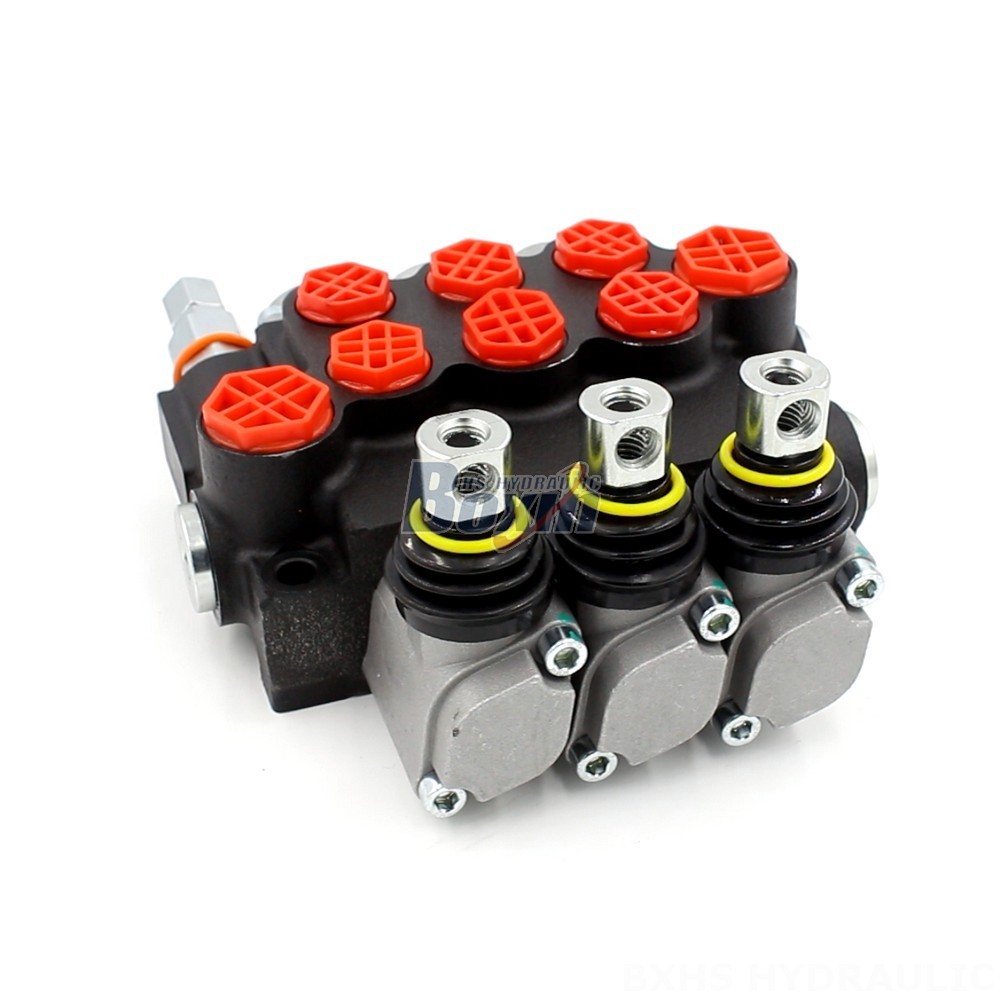

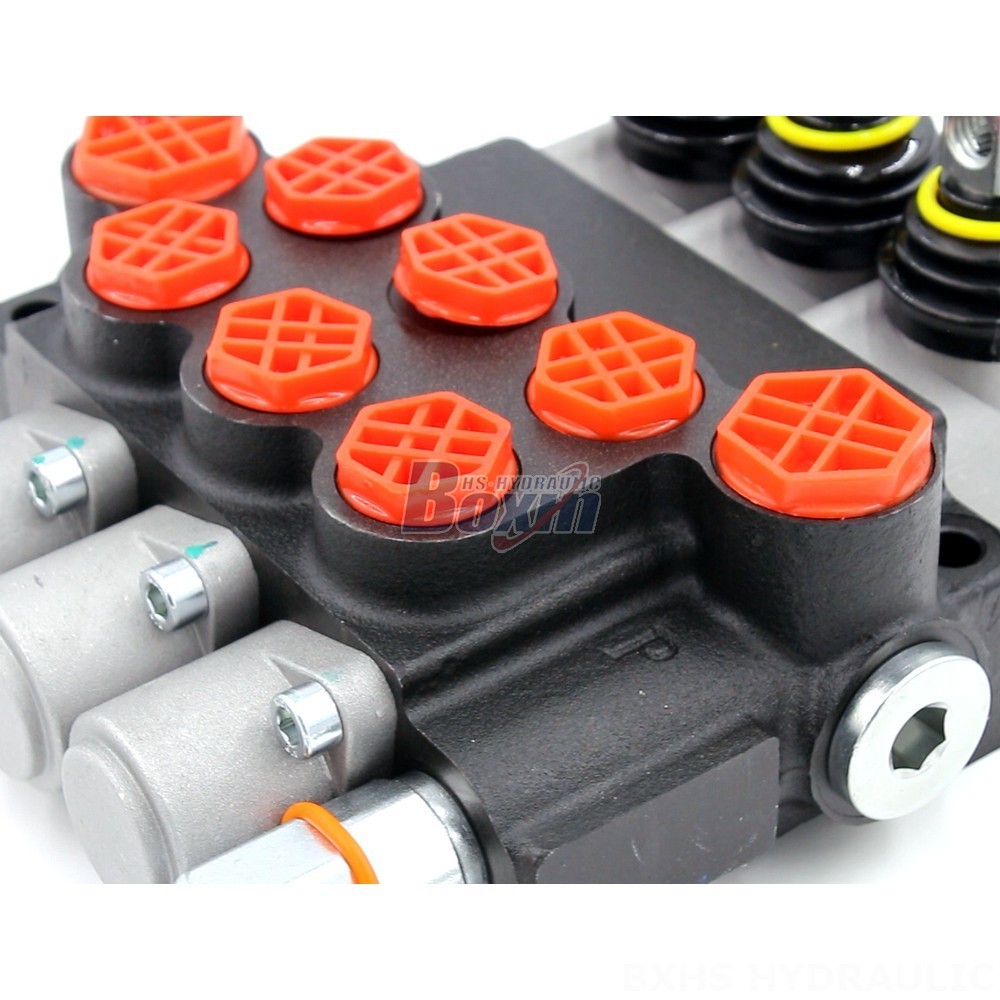

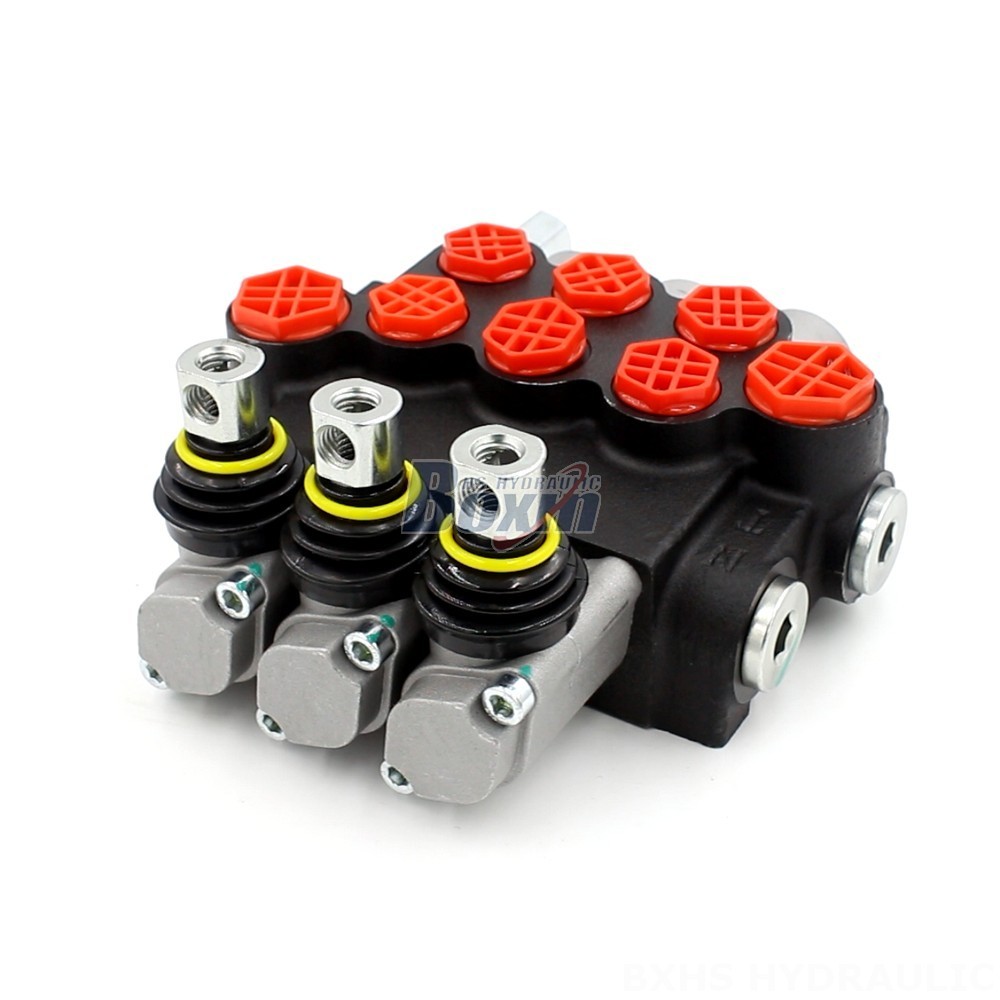

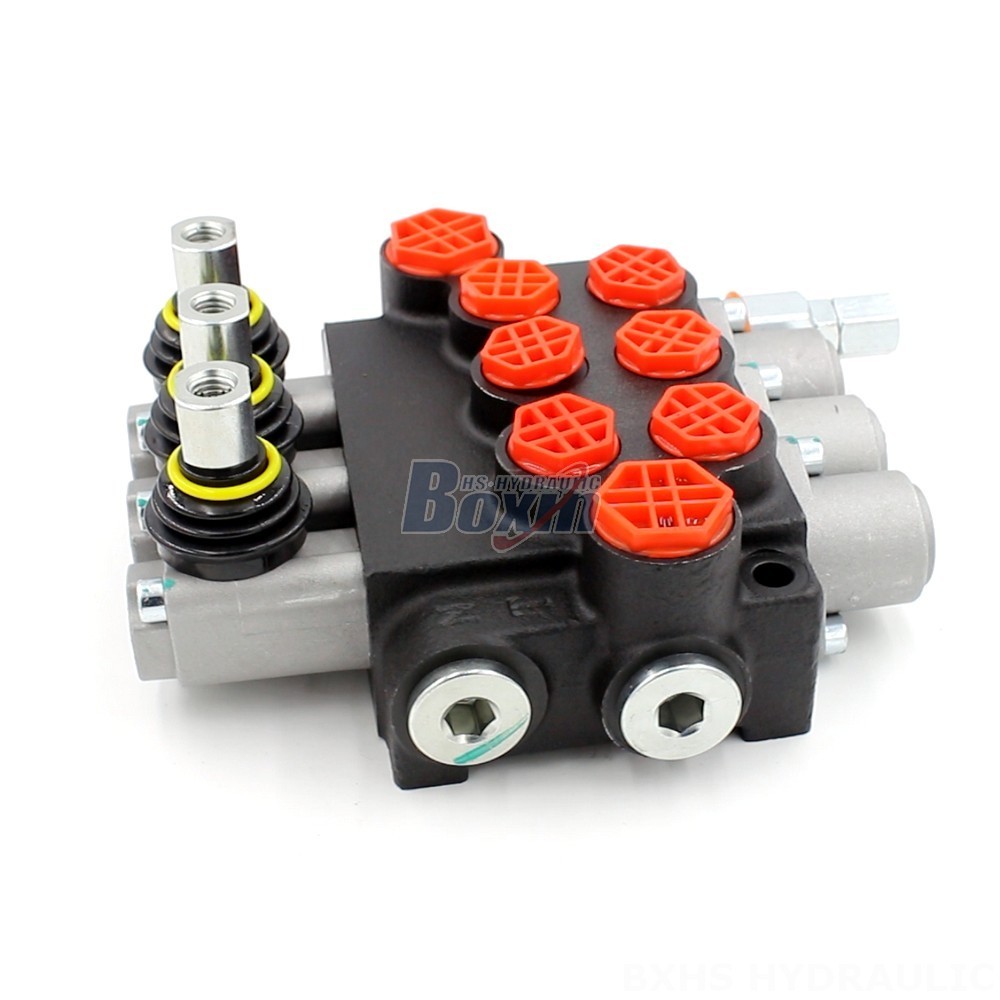

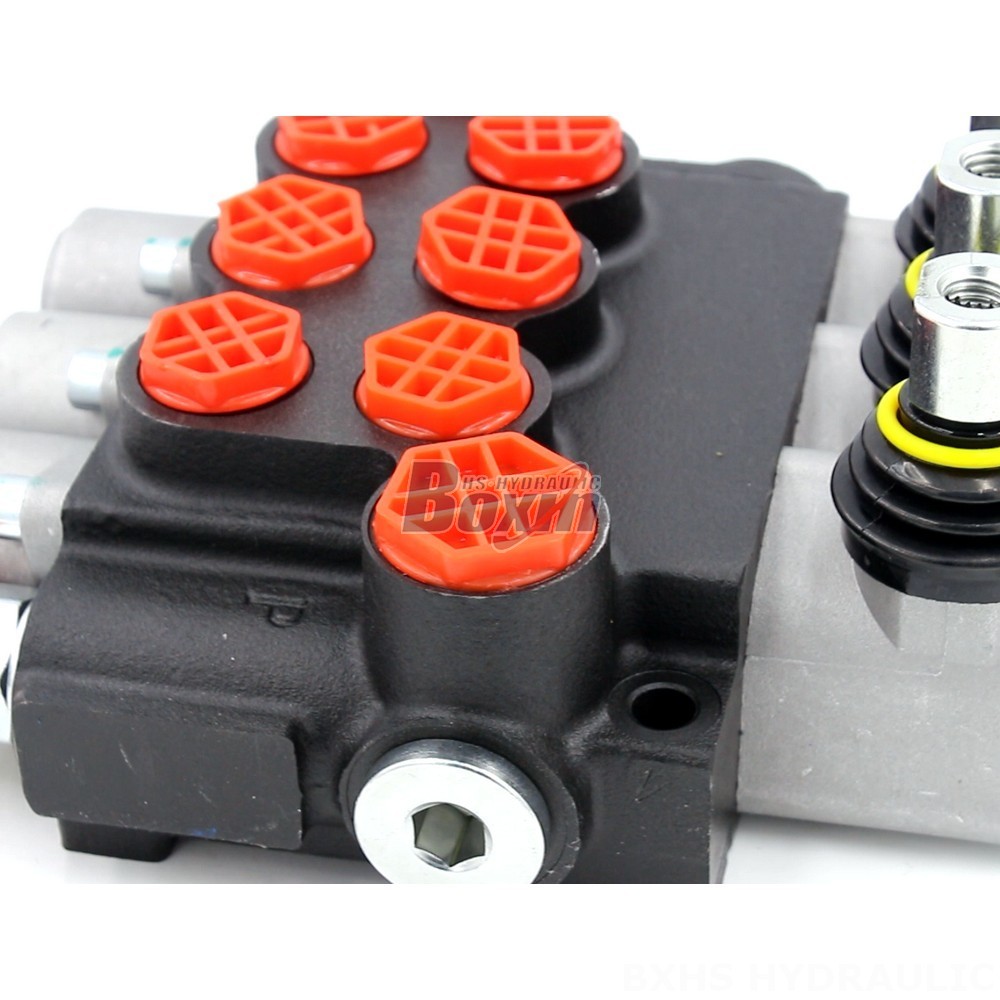

**Hydraulic Directional Control Valve: P40-G12-G38-OW**
The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-performance valve designed for use in a wide range of applications. It features:
* **Manual control** for precise operation
* **3-section design** for versatility
* **Monoblock valve structure** for durability
* **Rated flow of 40 L/min** for high efficiency
* **Maximum pressure of 250 bar** for demanding applications
* **Operating viscosity range of 15 - 75 mm²/s** for compatibility with a variety of fluids
* **Ambient temperature range of -40°C to +80°C** for use in extreme environments
* **3 spool configurations** to meet the specific needs of your application
The Hydraulic Directional Control Valve: P40-G12-G38-OW is the perfect choice for a variety of applications, including:
* **Material handling**
* **Construction and earth moving**
* **Agriculture**
* **Industrial vehicles**
If you are looking for a high-quality, reliable hydraulic directional control valve, the P40-G12-G38-OW is the perfect choice.
